FOXWELL SD203 Automotive Smoke Machine 12V Built-in Air Pump EVAP Vacuum Leak Detector Car Pipe Leakage Diagnostic Tester

Konw before ordering

1. 3-7 days fast delivery!
for European buyers,When you place your order, it shows ship from Spain. But in reality all goods are shipped from DE/CZ and take only 3-7 days to reach you! Because our warehouse is in Germany！

2.No tax burden!
All our goods have no extra fee, no need to worry about the customs burden! Saving you money is our job!

3.100% original Brands!
We have FOXWELL/ANCEL/LAUNCH/THINKCAR Top Brands, and 100% original!

4.Our products are not guaranteed to support 100% of the car models. Please consult the buyer with your car model and year before ordering.

FOXWELL SD203 Advanced Features

[23PCS TOOLKIT FOR AUTOMOTIVE LEAK DETECTION] - As the top-of-the-line of Foxwell automotive smoke machine, ST203 is applicable to all 12V vehicles including cars, mini-vans, light-duty trucks and more, offering comprehensive detection across multiple systems like EVAP, EGR, Vacuum, Engine, Intake, Exhaust, Fuel Tank, Turbo and various pipe fittings, ensuring your vehicle stay in the safe and peak performance.

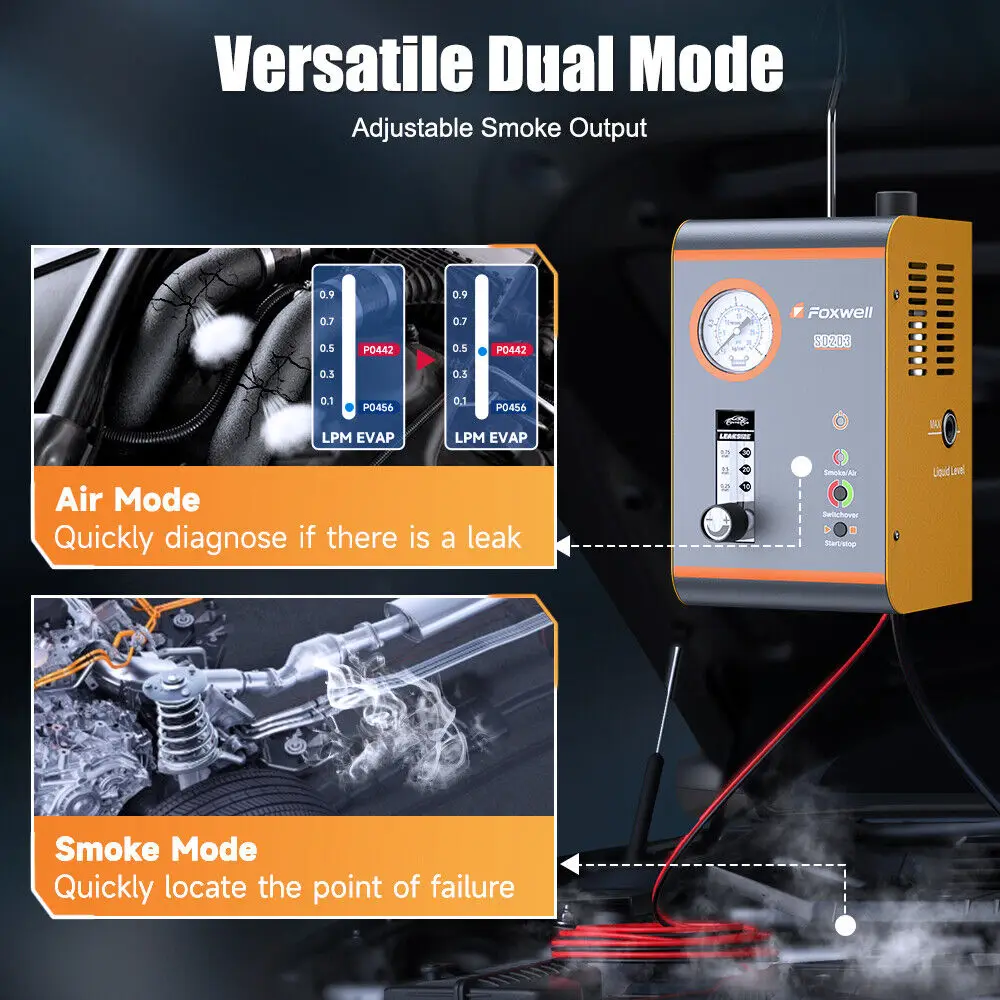

[DUAL MODE & DOUBLE PRECISION] - Swiftly confirm potential leaks and inspect smoke-sensitive components with ease in Air Mode, ensuring prompt responses. For precise pinpointing of leak sources, seamlessly switch to Smoke Mode, revealing hidden issues with visible smoke. This versatile mode not only accelerates leak detection but also optimizes testing efficiency, reducing smoke oil consumption.

[BUILT-IN AIR COMPRESSOR] - This automotive evap smoke leak tester features a high-performance motor, eliminating the need for costly and cumbersome external compressors. With a pressure range of 0.8 to 1.2 bar and a 16L/Min smoke output which allows users to conduct smoke tests anywhere. Say goodbye to costly setups and welcome a budget-friendly, high-powered solution into your toolkit.

[ADJUSTABLE PRESSURE GAUGE AND FLOW METER] - The EVAP leak detector features a built-in pressure gauge and dynamic flow meter, through which the extent of the leak can be seen in real time, ensuring that even the smallest leaks can be detected clearly and accurately. Additionally, the smoke output can be easily adjusted by turning the knob, adapting to the nuances of varied test conditions with unparalleled precision.

[EFFICIENCY & SAFETY] - This smoke leak tester offers a 10-minute work cycle, twice the industry standard which means foxwell car smoke machine will provide a twice work time than others.Unique variable frequency technology allows continuous operation even with high-temperature protection, the patented smoke generation system cuts power consumption by more than 30%, reduces temperature rise by more than 40%, and uses only about 3ml of smoke oil per 10 minutes, minimizing impact on your car battery and keeping it within a safe temperature range for uninterrupted testing.

[MEETS ALL TESTING NEEDS] - Explore a range of testing scenarios with practical accessories like the intake adapter cone, air drum rubber, and full size cap plugs(23pcs) to ensure complete sealing of each opening. These practical and durable accessories paired with ST203 smoke tester enable you to test different vehicle types such as cars, motorcycles, trucks, ATVs, boats, RVs, vans and more.

[PROFESSIONAL BUT EASY TO OPERATION] - Just 3 steps can start smoke leak detection: Step1-pour smoke fluid(Not included) into the machine, Step2-connect to a power source, Step 3-start testing, even a new beginner can quickly and effortlessly use it. Weighing just 2.5 kg, the FOXWELL car smoke machine is compact and easy to store and transport, making it a must-have tool for every car owner or shop.

Dual Mode, No need to buy extra air compressor !

​Air Mode: Air mode can help you test whether there is a leak in the pipe by injecting air into the pipe, and judge by the sound made when the air leaks. Own a S300 air conditioning leak detector, you don't have to buy additional air compressor or air pump, which makes your diagnosis easy and cost-effective.

​Smoke Mode: Smoke mode help you lacate the leak accuarately through the visible smoke. The smoke can be produced within seconds, dramatically reducing diagnostic time.

BUILT IN AIR PUMP

No air compressor needed. Just connect staright to your vehicle's 12V battery and generate smoke in seconds!

Pressure Gauge

​No Leak: When the value of the pressure gauge remains unchanged, it indicates that there is no leakage in the system.

​Small Leak: When the value of the pressure gauge drops, it indicates a small leak in the system.
​
Massive Leak: When the value of the pressure gauge reaches zero, it indicates a massive leak in the system.

Adjustable Flow Meter:
Air Flow meter with ajustable button, easy to control the smoke effect(output flow:<7L/Min)

Wide Coverage:
Suitable for all domestic cars, motorcycles, snowmobiles, off-road vehicles, beaches. Cars, light trucks and speedboats, etc. Using together with automotive diagnostic tool, you can find the vehicle problem accurately and diagnose fault.

How to do leakage test？

1. Turn OFF the ignition of the vehicle.
​LEAK TEST OF VEHICLE SYSTEMS REQUIRES THE ENGINE TO BE OFF
​
2.Dismantle the air filter and the throttle connections.

​3.Clean the inner wall of the intake opening to avoid sharp objects and put the Universal Intake
​Adapter into the opening

​4.Connect the Power Cord to 12V vehicle battery.

​5.Now the Power LED would be ON, if else check the power supply.

​6.Introduce the smoke nozzle into the system via the Adapter Cone

​7.Press Air Control Switch, wait for 30 seconds until the system is pressurized, and check the
​Pressure Gauge & Flow Meter reading for leak status, if the unit is equipped with Pressure Gauge & Flow Meter

8.Press Smoke Control Switch, .unplug and Plug back the smoke nozzle back into the Cone Adapter when there’s obvious smoke coming out of the smoke nozzle

​9.The system will be ready for leak check in 2 minutes. Use a bright light torch or working lamp to assist

​10.After test, press Smoke Control Switch again to stop the unit from generating smoke and
​press Air Control Switch to stop generating pressurized air
​
11.Collect the Smoke Hose and the Power Cord with the Velcro Straps for storage. Hang the unit or make it stand in UPRIGHT position only. Do NOT lay it down.

Smoke Oil Choose

​The equipment is compatible with mineral oil based baby oil like Johnson & Johnson Pink bottle. Pure #5 white oil is the best choice if available.

Baby oil, white mineral oil; (To ensure usability, only Johnson & Johnson baby oil pink label is recognized

Caution !!!

1.When you use this FOXWELL SD203 Car Smoke Leak Detector for the first time, fill with 20ml oil . Please be careful NOT to beyond this range.

2.The testing liquid : both liquid paraffin and baby oil are OK.

3.Fresh oil can be filled with only when the smoke gets thin, and it can’t be filled over 20ml each time.

4.Before filling fresh oil, please pour out the left oil in the detector & replace the detector oil regularly.

5.During the process of leak detection, please keep away from smoke-sensitive parts.

6.Do NOT run the detector over 8 minutes continuously. It needs interval rest.

7.The detector has an intelligent protector, if it exceeds the working limit, such as over 75 ℃, it will automatically turn off the power. In this case, please operate it later.

8.The round part of this detector has temperature, please be careful to avoid burns.

9.If the test pipe needs to be disconnected in the middle, please secure the other side with a rubber stopple.

10. Please do not fill full the test oil when the test to avoid oil leakage and splashing. Just pour in two thirds of the test oil.

Safe Warning !!!

-Operator shall have basic knowledge about structure of vehicle and the engine. Vehicle service book is required.

- To ensure better test result, it’s required there’s no wind in the operating area.

- Do NOT use the product on smoke sensitive component. Eg. Smoke residual might reduce sharpness of head lights if apply to head light housing.

- ONLY low density mineral oil based fluid is allowed to use as smoke oil. Johnson&johnson’s baby oil(pink label) is compatible. Use funnel to avoid spread the oil to other parts of the unit.

- Check oil level before use, if oil level is lower than the middle of the gauge, the unit would need a refill, but do not overfill the unit beyond the gauge.

- The product is only allowed to use while ignition’s off.  Be sure to use 12V vehible battery, and the battery shall be full charged and voltage not lower than 12V.

- Use bright light torch/ halogen light to help find the leaks.
​
Wear goggles if available!!!

Specifications

​Power source: 12V fully charged vehicle battery
​Current: 6A
​Flow rate: < 7 LPM
​Pressure output: 0.8~1.0 bar

Included Components

1 x Hook,
1 x Funnel,
1 x Power Cords,
1 x Inflatable Adapter,
1 x Intake Adapter Cone,
1 x ST203 Automotive Smoke Machine,
1 x User Manual,
1 x Cap Stoppers (23pcs),
1 x Air Drum Rubber
