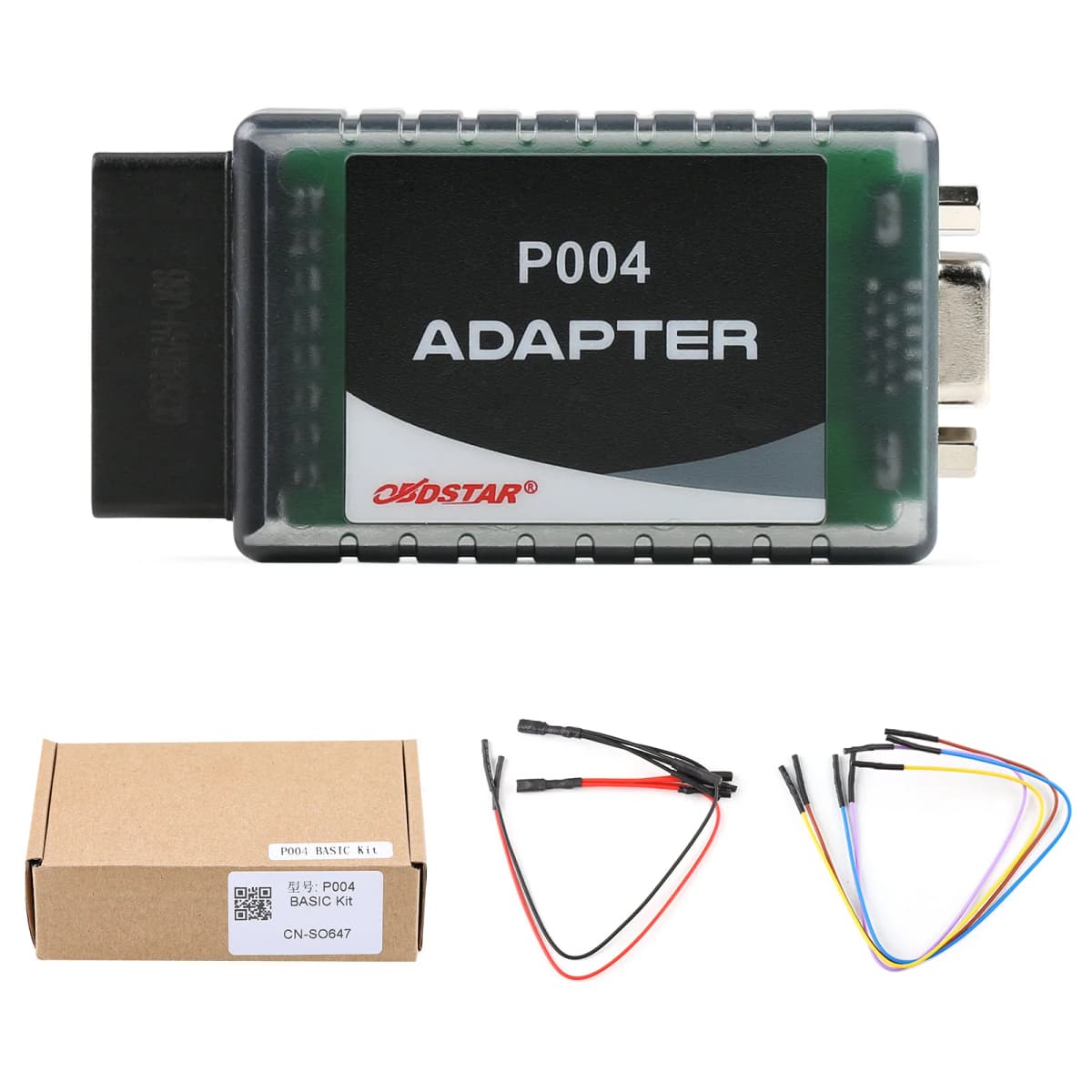

OBDSTAR AIRBAG RESET KIT P004 Adapter+P004 Jumper Covers 38 Brands and Over 3000 ECU Part No. for OBDSTAR X300DP PLUS/ODOMASTER

OBDSTAR AIRBAG RESET KIT P004 Adapter + P004 Jumper Covers 38 Brands and Over 3000 ECU Part No.

Product Introduction:

OBDSTAR airbag reset kit works with Odo master full and OBDSTAR Key Master DP Plus C for airbag reset. With the airbag reset kit, multi-functions can be completed in one tablet device. It's friendly, economical, convenient for vehicle repair plants and fast repair shops.

P004 adapter is designed for ECU programming, reading or writing data in bench mode. It has merits below:

1. Programming devices keep in normal communication no matter the 12V power button is turned on or off ;

2. Turn on or off 120Ω resistance at any time for CANBUS ECU;

3. Support 6&14 and 3&11 CANBUS communication at the same time;

4. Support for GM Single CAN(GM SCAN);

5. Support K communication;

6. DB15 connector can communicate with any OBDII-16 I/O interface.

P004 jumper can be connected with multiple wires at the same time which makes wiring clearer and easier.

Product Functions

1. supports one-click airbag reset for 38 brands and over 3000 ECU part No.

2. supports fuzzy search for ECU part No.

3. contains clear BENCH mode wiring diagram

4. contains powerful and complete description files for fault code

5. calculate PinCode

More functions are in developing...

Advanced Functions:

Ecu Info. /Read DTC/ Erase DTC/ Read EEPROM/ Write EEPROM

Read FLASH/ Write FLASH/ Erase Crash/ Write VIN ...

Vehicle Coverage

1. Supported Brands(38 Brands)

For Acura/ Audi/ Benz/ Buick/ Cadillac/ Chevrolet/ Chrysler/ Citroen/ Dacia/ Dodge/ Ford/ GMC/ GreatWall/ Honda/ Hyundai/ Infiniti/ Jaguar/ Jeep/ KIA/ Land Rover/ Lincoln/ Maserati/ Mazda/ Mitsubishi/ Nissan/ Opel/ Peugeot/ Porsche/ Renault/ Seat/ Skoda/ Smart/ Subaru/ Suzuki/ Tesla/ Toyota/ VW/ Volvo

2. Over 3000 ECU part No.(supporting fuzzy search)

3. MCU types

H8SX, RH850, SPC, XC2XXX, TC2XXX, TMS570

Package Includes:

1pc x P004 adapter

1pc x P004 jumper
