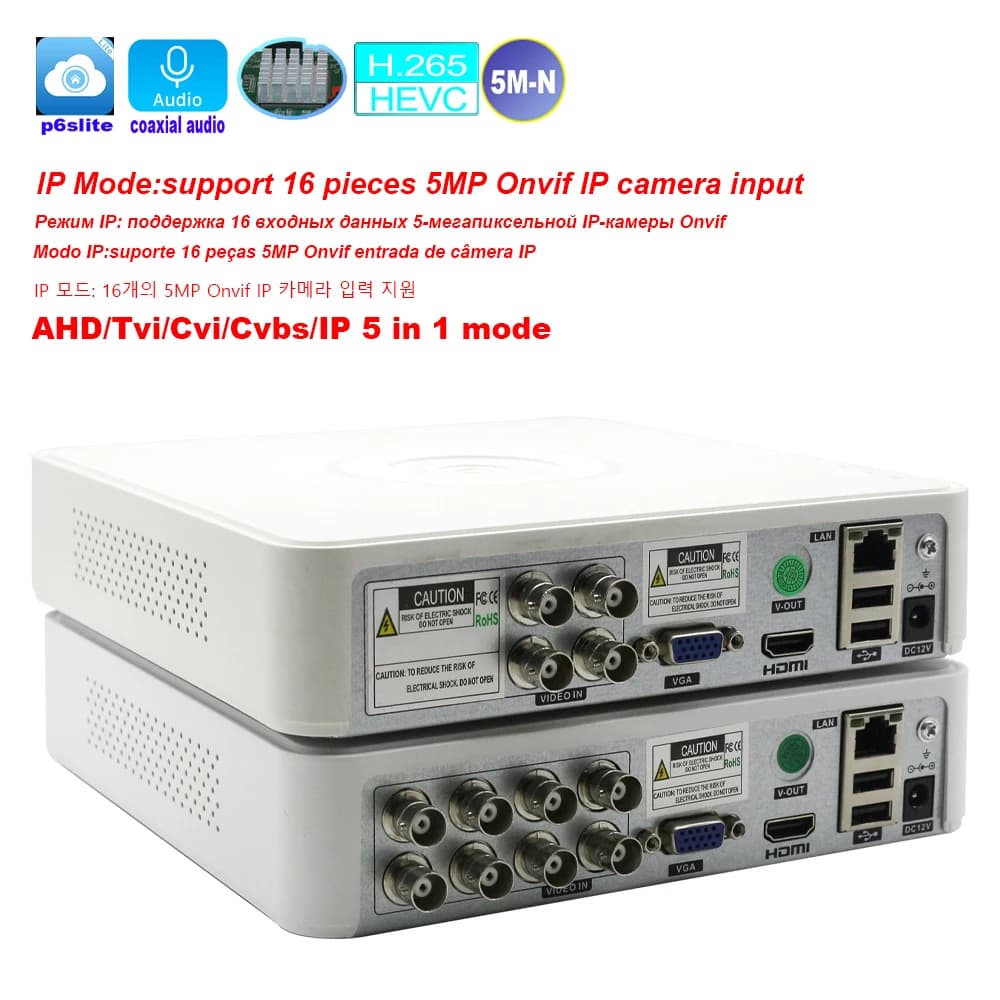

Hybrid DVR CCTV Security 4CH/8 Channels 5M-N Audio Over Coaxial for 5MP 12.5Fps 1080P 720P TVI CVI CVBS Camera 5MP IP Onvif Cam

Be Careful:

Display resolution(the board display resolution is default 1024*768.If you use a monitor to connect this device, please make sure it can withstand at least 1024*768 resolution input.
​or the monitor will show black screen after it display first time the Boot logo(will show "out of range" or "input not supported" this is very important,for example,if your monitor display resolution is 1920*1080P but you choose the HVR display resolution is 3840X2160(4K) but your monitor not 4K,that will show black screen)

if need software of the DVR,can download by copy this link https://disk.yandex.lv/d/eC9OqRyZ7xkL7Q

 Parcel include:

1*DVR
1*mouse
1*power adapter(12V2A)
1*screw bag for hard disk
Hard disk is Not include

How to connect camera to this DVR

Channel type（you can set the channel type to make the DVR suitable for you)

4CH 5MN

8CH 5M-N

Language

Main display

4CH

8CH

H.265+(can save a lot of Hdd storage than H.264)

Display resolution(the board display resolution is default 1920*1080P.If you use a monitor to connect this device, please make sure it can withstand 1920*1080P resolution input.

or the monitor will show black screen after it display first time the Boot logo(will show "out of range" or "input not supported"you can ask US help to change the display resolution before send goods)

Product parameters

4 channels

Main processor MC6630
Operation system Embedded LINUX operation system
System resources Multichannel real time record
Operation system graphic menu operation interface, support mouse to operateImage
display 1/4/6/9/16 screen
Image coding H.264/H.265
Surveillance quality VGA(Max 1080P)；HDMI(Max 1080P),
Preview 4*5MP-N@20fps/4*4MP-N@25fps/4*1080P@25fps
Code capacity 4*5 MP-N@12fps/4*4MP-N@17fps/4*1080N@15fps
Decode capacity 4*5 MP-N@12fps/4*4MP-N@17fps/4*1080N@15fps
Various mode input Coaxial: 4*5MP-N
Mixed: 4MP-N(coaxial)+1080P (IP) Arbitrary combination for coaxial and IP hybrid mode
IP: 8*5MP, 16*5MP for all IP mode
Recognize method Automatic Identification 、All AHD、All TVI 、All CVI 、Customized
Motion detection 192 （16*12） testing areas can be set for each image；can set multi-sensitivity (only for local channel and P6S IP camera)
Audio compression G.711A
Audio output HDMI, support extended audio output.
coaxial audio Support 4ch coaxial audio
Record &Playback Video mode manual>alarm>dynamic testing>timing
Local playback 1CH (5MP-N coaxial)1CH (Coaxial or Hybrid mode);1ch IP mode
Record retrieval Time retrieval, event retrieval, Timeline retrieval, channel retrieval 、Face playback, Intelligentplayback(Motion detection playback)
Storage& Occupation 1080P 10-15G/day*channel; 720P 10G/day*channel; 960H 6-10G/day*channel;
Backup Audio:691.2M/day*channelRecord storage Local hard disk; network
Backup mode Network backup 、USB , SATA record
VMS Type mobile/VMS
P2P Support(IOS, Android, PC)APP Multi-screen surveillance; audio surveillance; mobile record; snap; pan-tile control; remote record playback
UTC Camera OSD control SupportPan-tilt control Don’t support3D-NR Support auto/manual setting for noise reduction parameters
Port Video input 4ch BNC; support coaxial audio inVideo output 1ch VGA，1ch HDMI; 1ch TV output(Optional)Audio output HDMI outputNetwork port RJ45 10M/100M Self-adapt to Ethernet interface
USB port 2 USB 2.0 port
Battery: Contains a built-in coin cell battery

8 channels

System Main processor MC6630

Operation system Embedded LINUX operation system

System resources Multichannel real time record

Multichannel real time playback

multichannel multi-user on network operation

Interface Operation system graphic menu operation interface, support mouse to operate

Image display 1/4/6/9/16 screen

Language English, traditional Chinese, simplified Chinese, Japanese, Russian, German, Italian, Turkish, polish, Spanish, Korean, Indonesian, Thai, Arabic, Persian, Vietnamese, French, Portuguese, Greek, Czech

Video Image coding H.264/H.265

Surveillance quality VGA(Max 1080P)；HDMI(Max 1080P), CVBS optional

Preview 8*5MP-N@12fps/8*4MP-N@15fps/8*1080P@30fps

Code capacity 8*5 MP-N@5fps/8*4MP-N@8fps/8*1080N@15fps

Decode capacity 8*5 MP-N@5fps/8*4MP-N@8fps/8*1080N@15fps

Various mode input Coaxial: 8*5MP-N

Mixed: 4MP-N(coaxial)+1080P (IP) Arbitrary combination for coaxial and IP hybrid mode

IP: 8*5MP, 16*5MP for all IP mode

Recognize method Automatic Identification、All AHD、All TVI、All CVI、Customized

Motion detection 192（16*12） testing areas can be set for each image；

can set multi-sensitivity (only for local channel and P6S IP camera)

Audio Audio compression G.711U

Audio output HDMI, support extended audio output.

Audio Input Can extend to 4ch audio In.

intercom Support extend audio in and out intercom

coaxial audio Support 8ch coaxial audio

Record & Playback Video mode manual>alarm>dynamic testing>timing

Local playback 8CH (5MP-N coaxial input)

8CH (Coaxial or Hybrid mode);

8ch IP mode

Playback mode Fast playback, Playback by Time, Smart playback

Record retrieval Time retrieval, event retrieval, Timeline retrieval, channel retrieval、Intelligent playback(Motion detection playback)

Storage& Backup Occupation 1080P 10-15G/day*channel; 720P 10G/day*channel; 960H 6-10G/day*channel; Audio:691.2M/day*channel

Record storage Local hard disk; network

Backup mode Network backup、USB , SATA record

VMS Type mobile/VMS

P2P Support(IOS, Android, PC)

APP Multi-screen surveillance; audio surveillance; mobile record; snap; pan-tile control; remote record playback

UTC Camera OSD control Support

Pan-tilt control Don’t support

3D-NR Support auto/manual setting for noise reduction parameters

Port Video input 8ch BNC; support coaxial audio in

Video output 1ch VGA，1ch HDMI; 1ch TV output(Optional)

Audio output HDMI output/Extended 1ch RCA audio output

Network port RJ45 10M/100M Self-adapt to Ethernet interface

USB port 2 USB 2.0 port

HDD port 1 SATA Port（Can support 8T HDD）

Wifi port NO

Remote control Optional

Others Power 12V/2A（Sufficient amperes）

Consumption < 15W（exclusive hard disk）

Temperature -5 °C~ +55 °C

Working humidity 10%~90%



HDD port 1 SATA Port （Can support 8T HDD）

Wifi port NO

Battery: Contains a built-in coin cell battery

Remote control Optional


Others Power 12V/2A （Sufficient amperes）

Consumption < 15W （exclusive hard disk）

Temperature -5 °C~ +55 °C

Working humidity 10%~90%
