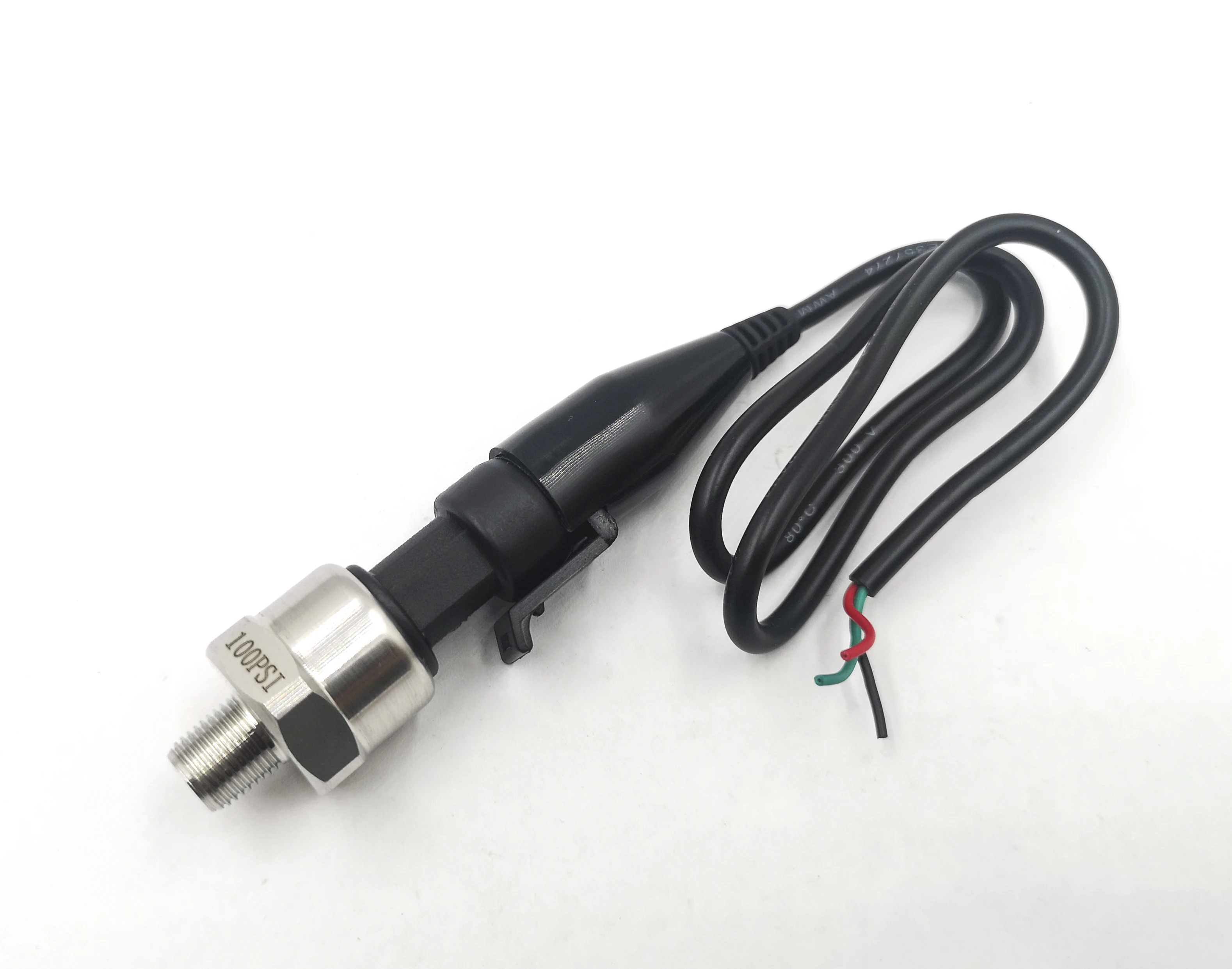

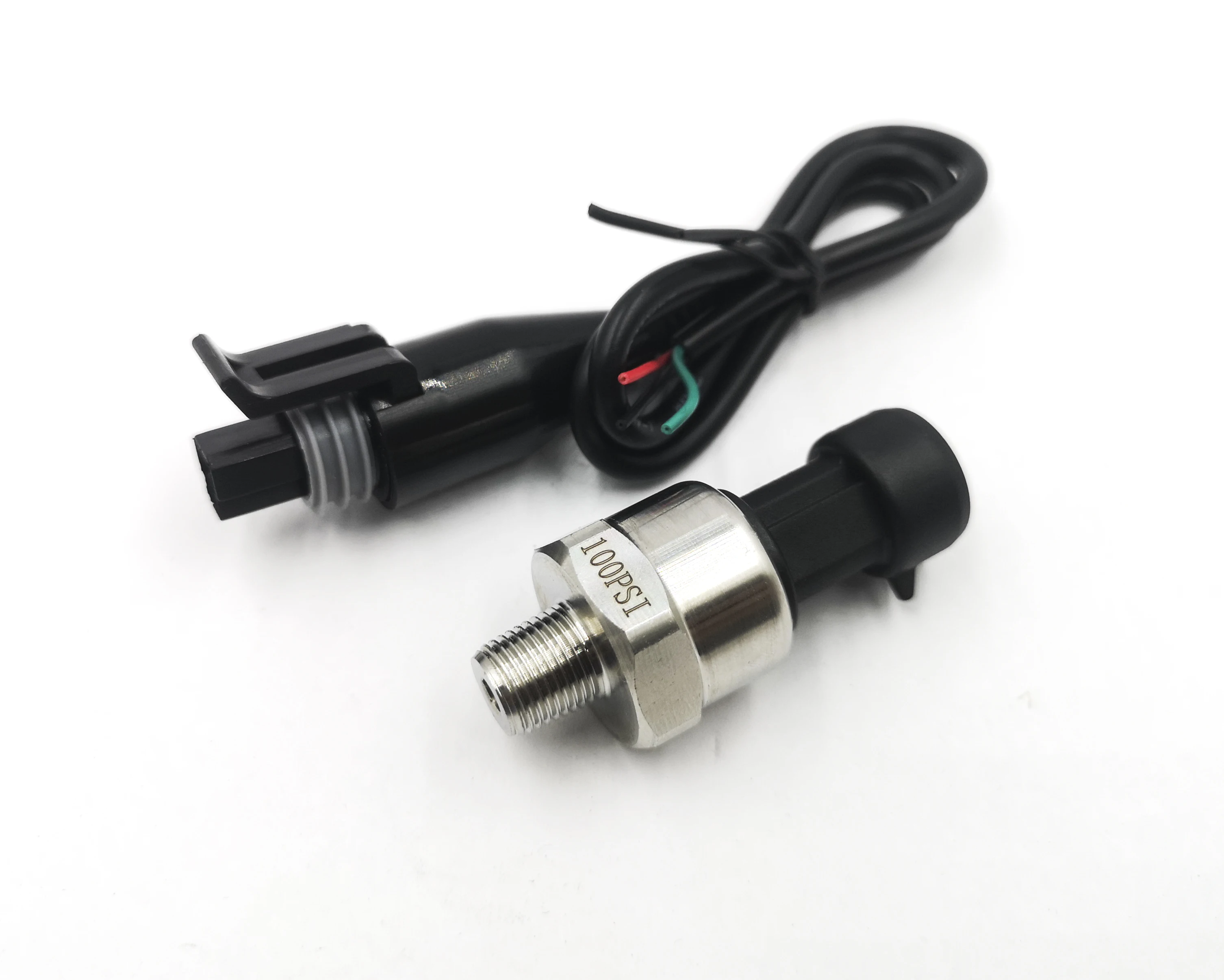

Pressure Sensor Transducer Transmitter for Water Oil Fuel Gas Air 1/8NPT DC 5V Ceramic Sensor Stainless Steel 5-300psi Optional

Features:

Its an advance pressure transducer than traditional mechanical pressure transducer.

±2%FS small output error, including nonlinear, hysteresis error and repeatability, full temperature range.

Light weight and small size, convenient to install and operate.

It has complete surge voltage protection function.

Works for oil, fuel, diesel, gas, water, air pressure, can be used in oil tank, gas tank, diesel tank etc.

Specifications:

Material: Stainless steel

Voltage: DC 5V

Pressure: 30 psi, 100 psi, 150 psi, 200 psi, 300 psi, 500 psi (Optional)

Thread Type: 1/8" NPT

Parameters

Measuring range: -14.5-30psi / 5-300psi gauge

pressure

Accuracy: ±1.0%FS

Output signal: 0.5-4.5V, 0-5V, 1-5V

Supply voltage: 5VDC, 12VDC, 3.3VDC

Operating temperature: -40～105℃

Compensation temperature: -20～80℃

Operating current: ≤3mA

Temperature drift (zero&sensitivity): ≤±0.03%FS/℃

Long-term stability: ≤±0.2%FS/year

Response time: ≤3ms

Overload pressure: 150%FS

Burst pressure: 300%FS

Cycle life: 500,000 times

Sensor core: Al2O3-96% ceramic sensor

Pressure medium: Non-corrosive liquid or gas

Pressure connection: 1/8”NPT, Other pressure connection is on request

Electrical connection: Packard connection

Housing material: 304 Stainless Steel

Protection class: IP65

Explosion-proof class: ExiaⅡCT6

Weight: ≈0.080kg
