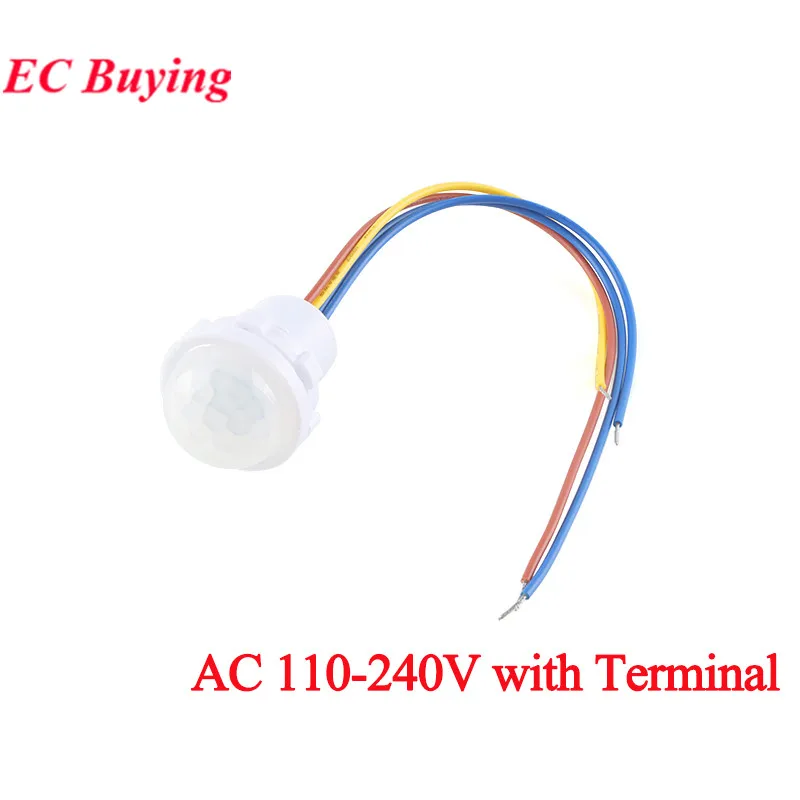

Mini PIR Infrared Sensor Module Detector Smart Switch Controller Human Sensor Hand Scan Head AC 85-265V Home Indoor LED Lighting

Product parameters:

Name: Human body infrared sensor head (high voltage type)

Working voltage: AC 85-265V

Load power: ≤40W

Sensing distance: about 3-5m

Sensing angle: 120°

Delay time: 30S

Working temperature: -20-40 degree

Material: PC fuel resistance

Scope of application: energy-saving lamps, incandescent lamps, LED ceiling lamps

The quantity is large, the line can be customized according to the requirements, and it can also be made as a three-line or an extended line

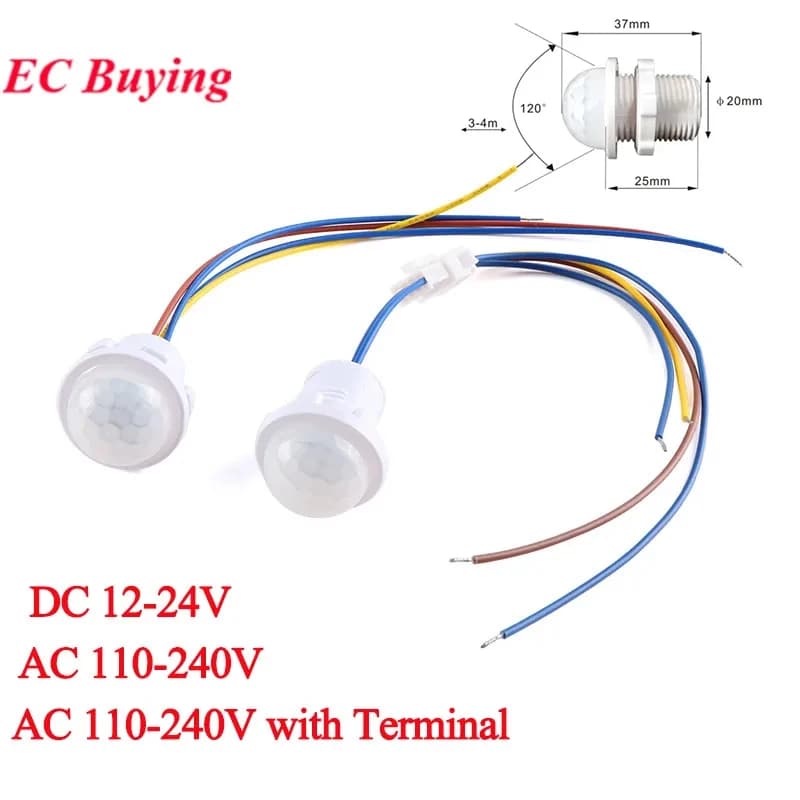

Hole size: 20mm is recommended (the hole should be embedded and fixed, so the sensor head should not be exposed to cover the detection window)

Without light control: switch lights 24 hours a day regardless of day and night

With light control: when working at night or when the light is below 10LUX, someone will switch the light.
