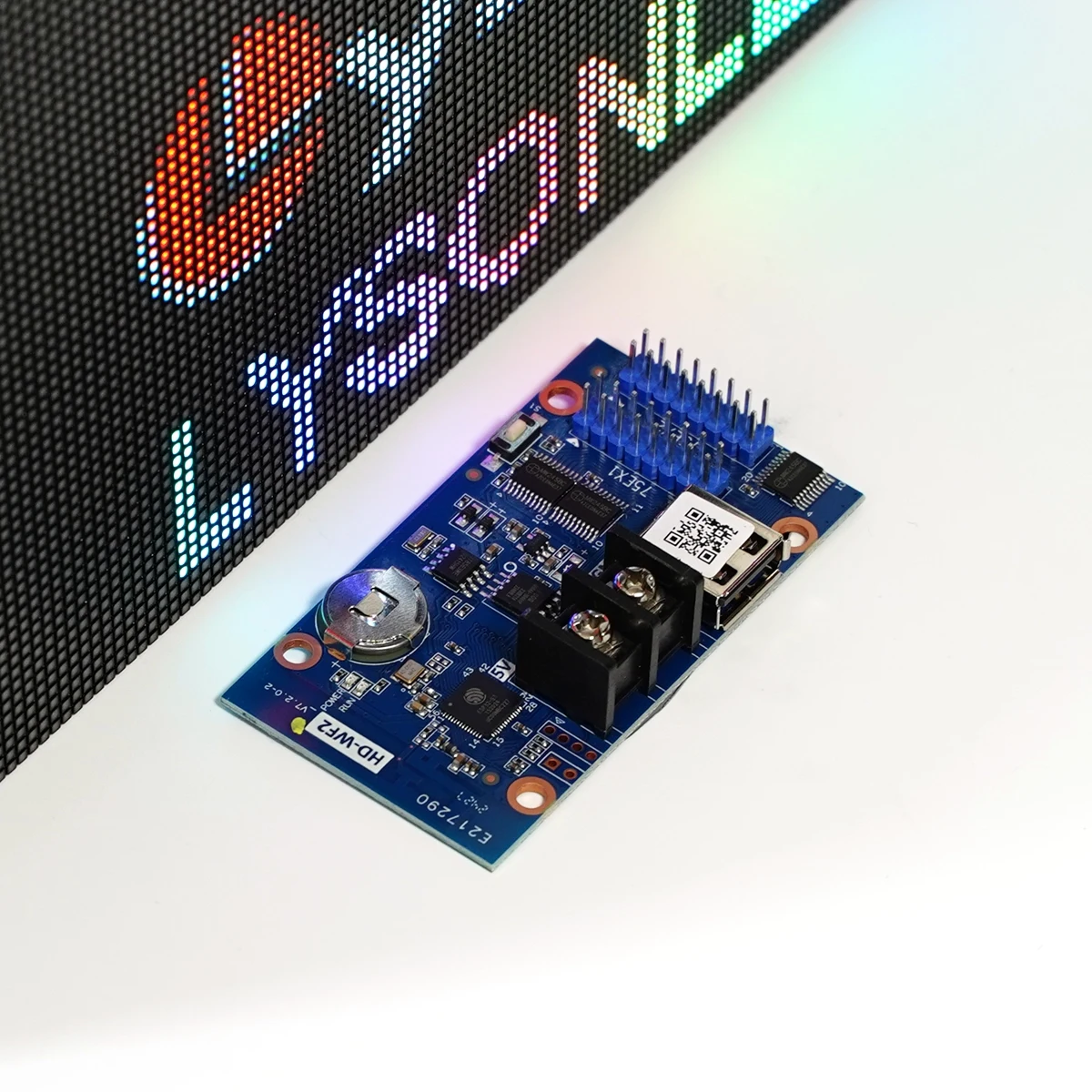

HD-WF2 (referred to as WF2) is a Wi-Fi control card for dazzle display, with 2 HUB75E interface on board, which supports playing text, animated words, GIF animation, timing and other kinds of programs, and supports two ways of updating the programs, Wi-Fi and U-disk, and it is suitable for door displays, store signboards and other occasions. The supporting software has a simple interface, easy to operate, and is characterized by high cost performance.

Application Software:
PC: HDSign (HD2020);
Mobile: "LedArt APP" and “LedArt lite APP”.

Pls place sample order to test if compatible with your module before bulk order.

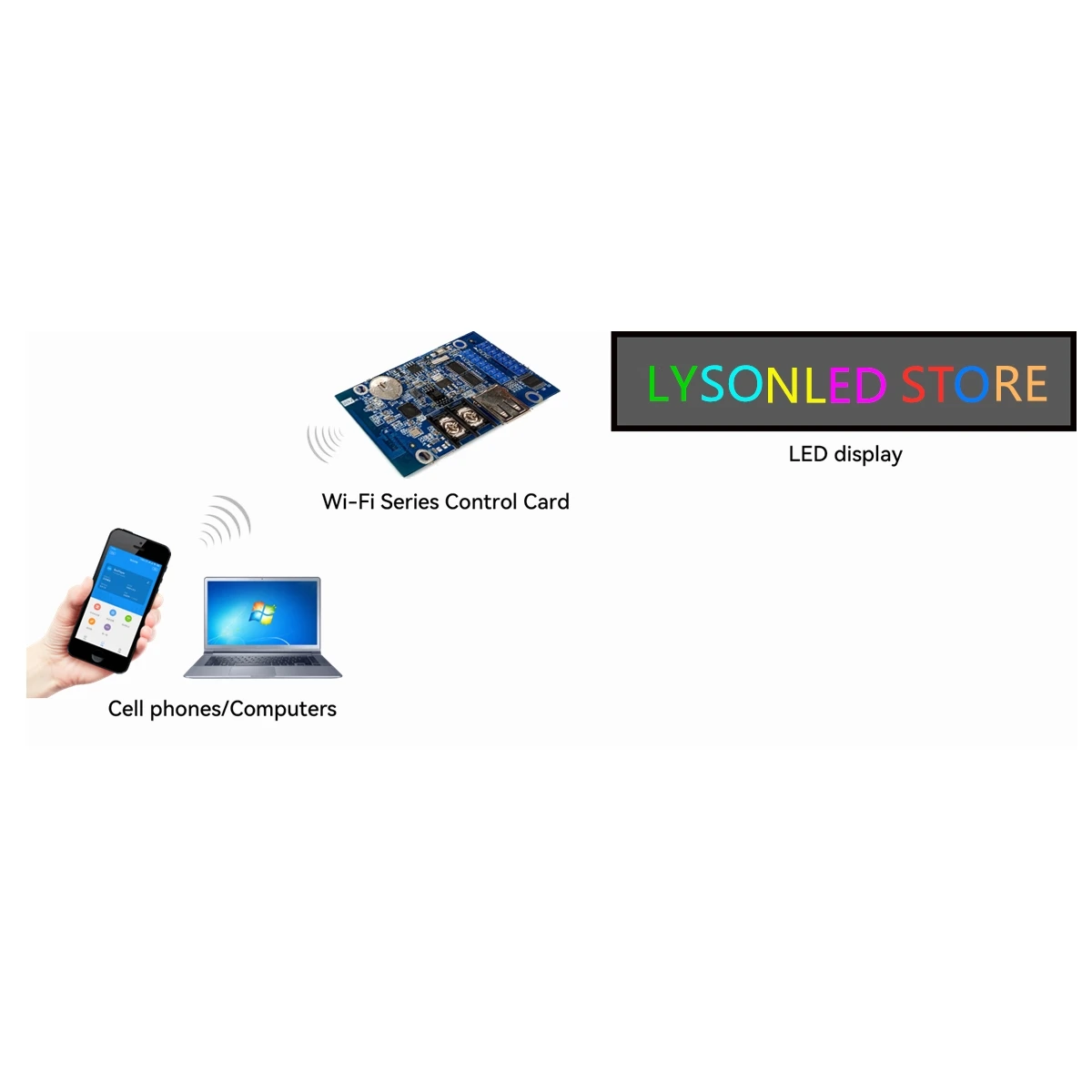

Connection Diagram

After the Wi-Fi control card is powered on, cell phones and laptops can connect to the control card's Wi-Fi hotspot for debugging or updating programs,and can also update programs via U-disk.

Function List

Module Type： Supports full color module with HUB75 interface, supports regular and 2038S chip
Scanning Method： Supports static to 1/32 sweep
Control Range： 768*64,Max Width:1280 Max Height:128
Communication： U-disk, Wi-Fi
FLASH Capacity： 8M Byte（Practical usage 4.5M Byte）
Support Seven Colors： No gray scale can display red, green, blue, yellow, purple, cyan, white
Support Full Color： Up to 8 levels of grayscale, support dazzling color text
Number of Programs： 999
Area Quantity： 20 areas with separate zone, and separated special effects and border
Display Showing： Text, Animated characters, 3D characters, Graphics (pictures, SWF), Excel, Time, Temperature (temperature and humidity), Timing, Counting, Lunar calendar
Automatic Switch Screen： Support timer switch machine
Dimming： Brightness adjustment, adjustment by time period
Power Supply Method: Standard terminal block power supply

Port Definition

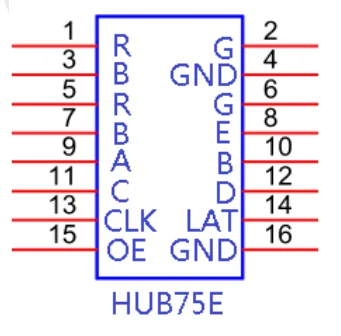

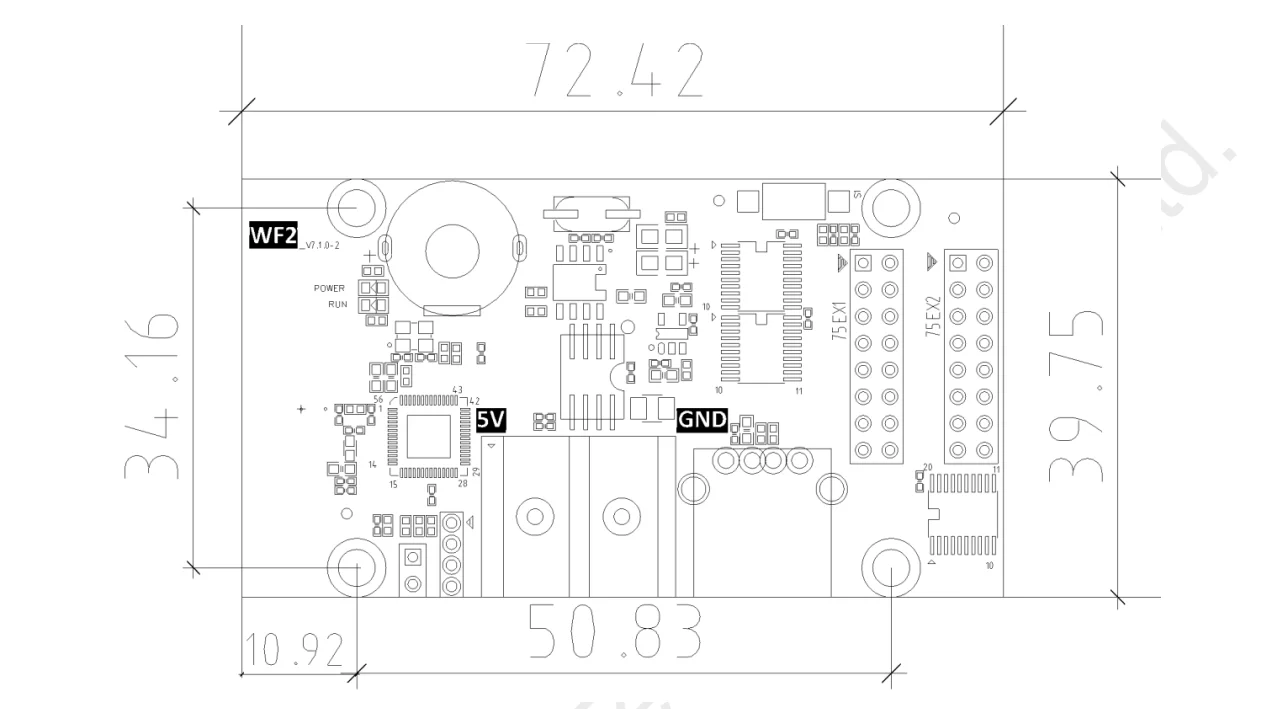

Size Diagram

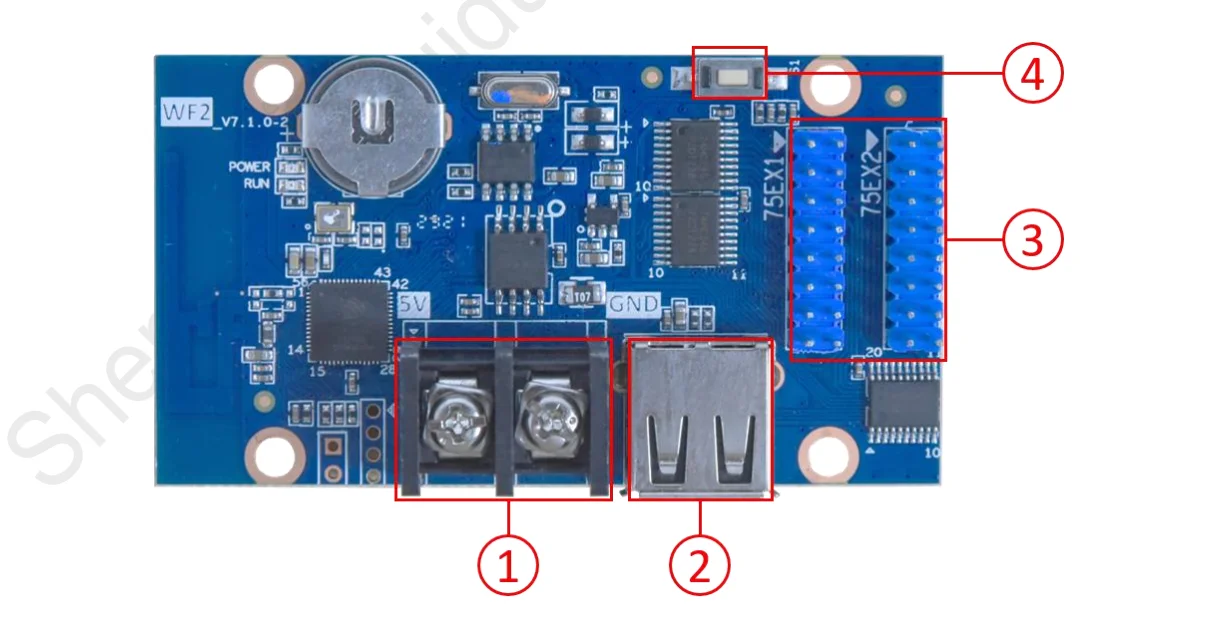

Interface Description

1) Power inport: Connect to a 5V DC power supply
2) USB Ports:Updated program by U-disk
3) HUB ports: 1 HUB75, connect LED display module
5) S1:For test display, multiple status selection

Basic Parameters

Work voltage（V）: DC 4.2V-5.5V
Work temperature（℃）: -40℃~80℃
Work humidity（RH）: 0~95%RH
Storage temperature(℃) : -40℃~105℃
