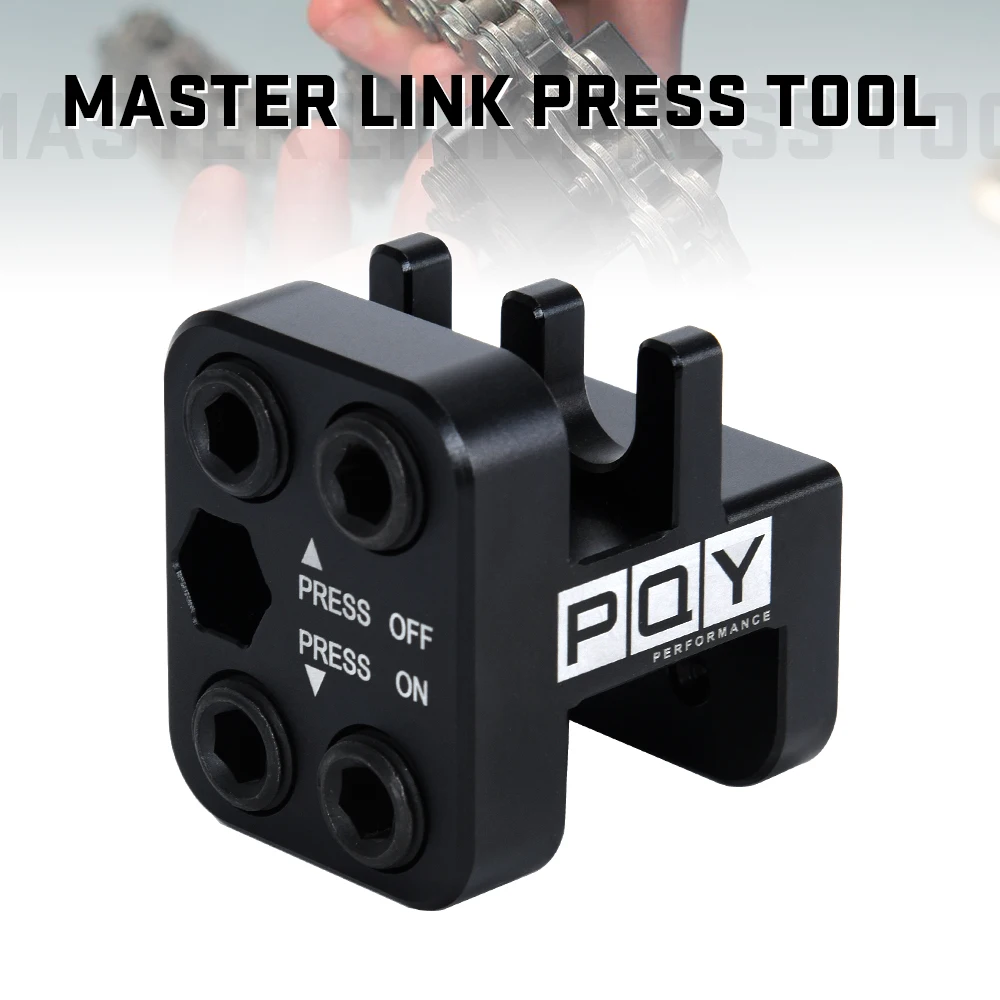

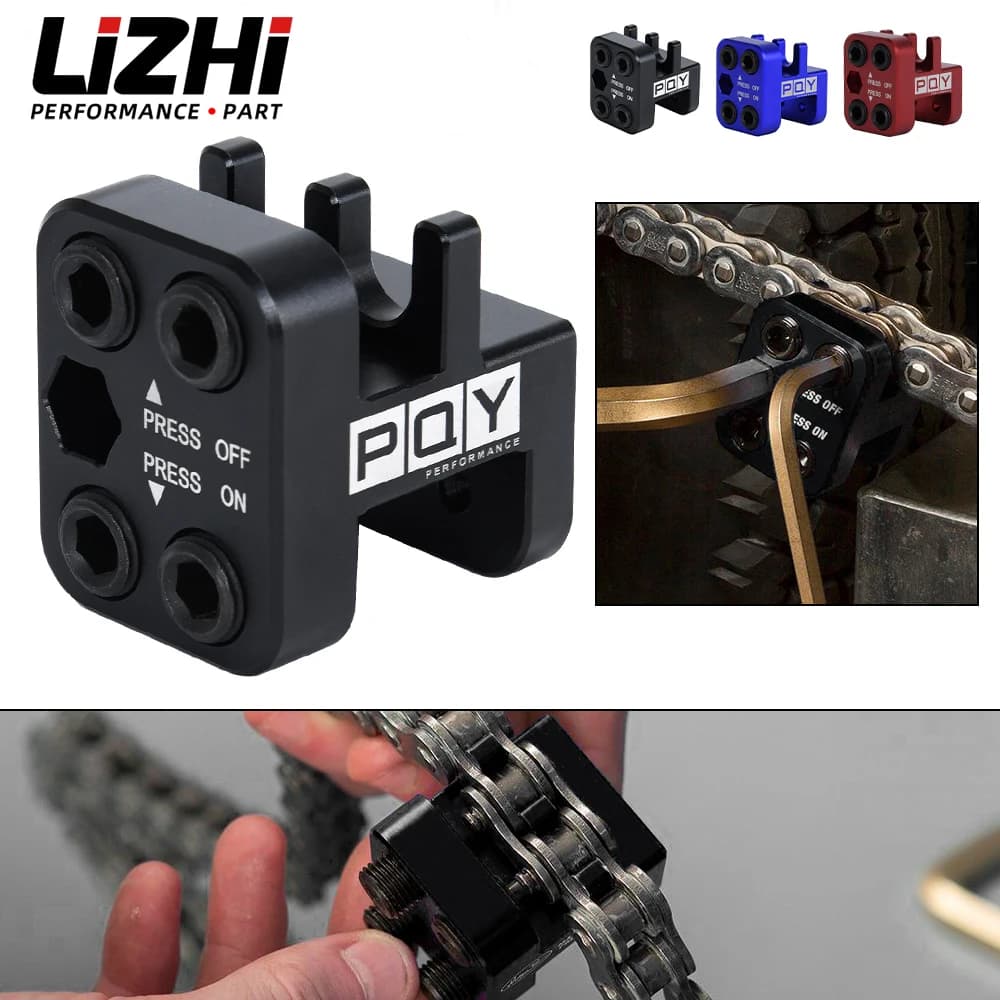

Professional Master Link Chain Press Tool Universal For 520 525 530 Side Plate Motorcycle ATV

Professional Master Link Chain Press Tool Universal For 520 525 530 Side Plate Motorcycle ATV

Application:
For Most 50 series Chains like 520, 525, 530. (Please confirm the chain size before purchasing.)
Universal for street off road motorcycle, dirt bike, side plate motorcycle, ATV.
!!! Not for Use in Breaking Rivet Master Links.
!!! Will not damage master links.
Specification:
100% quality assurance tested, more responsive, less expensive, easier to install.
Easily press up and down the main link plate of the clip-on chain without damaging the main link.
Make removing and installing clip style master links a breeze.

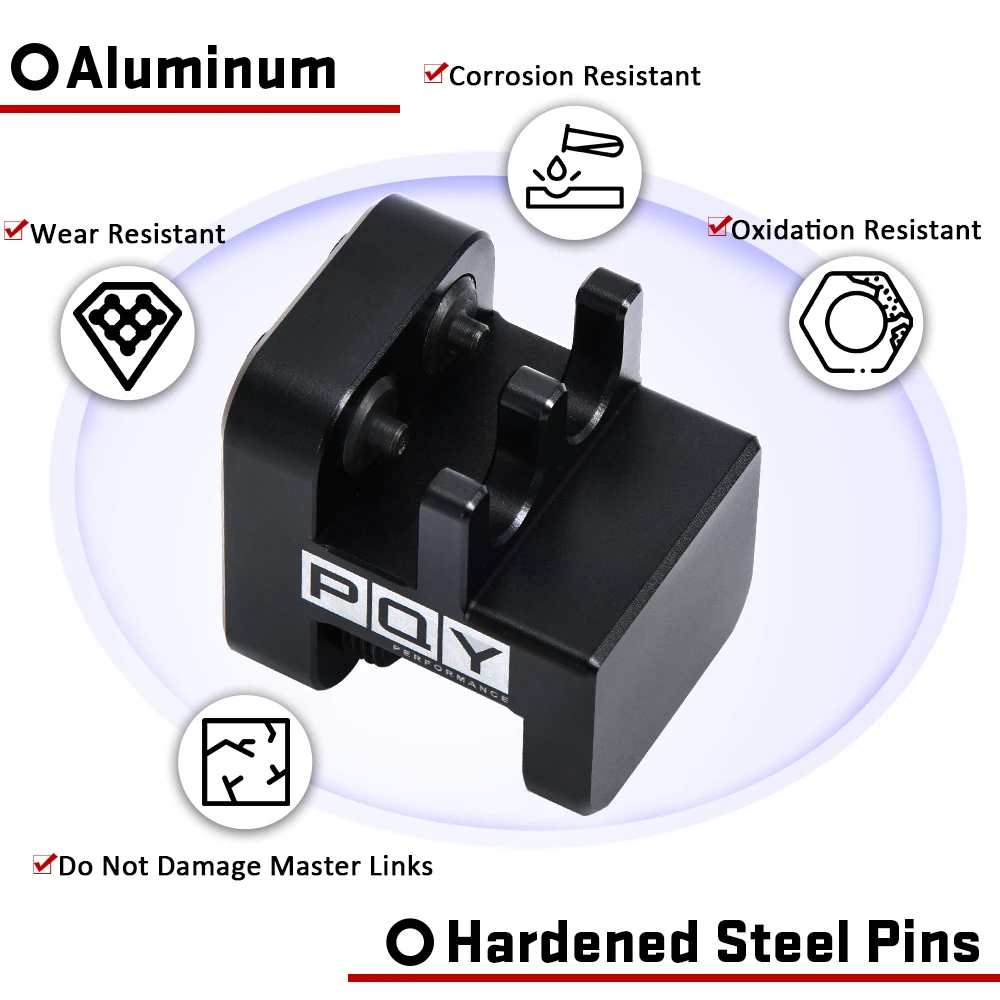

Wear and corrosion resistance, oxidation resistance. Hardened steel pins do not damage master links.

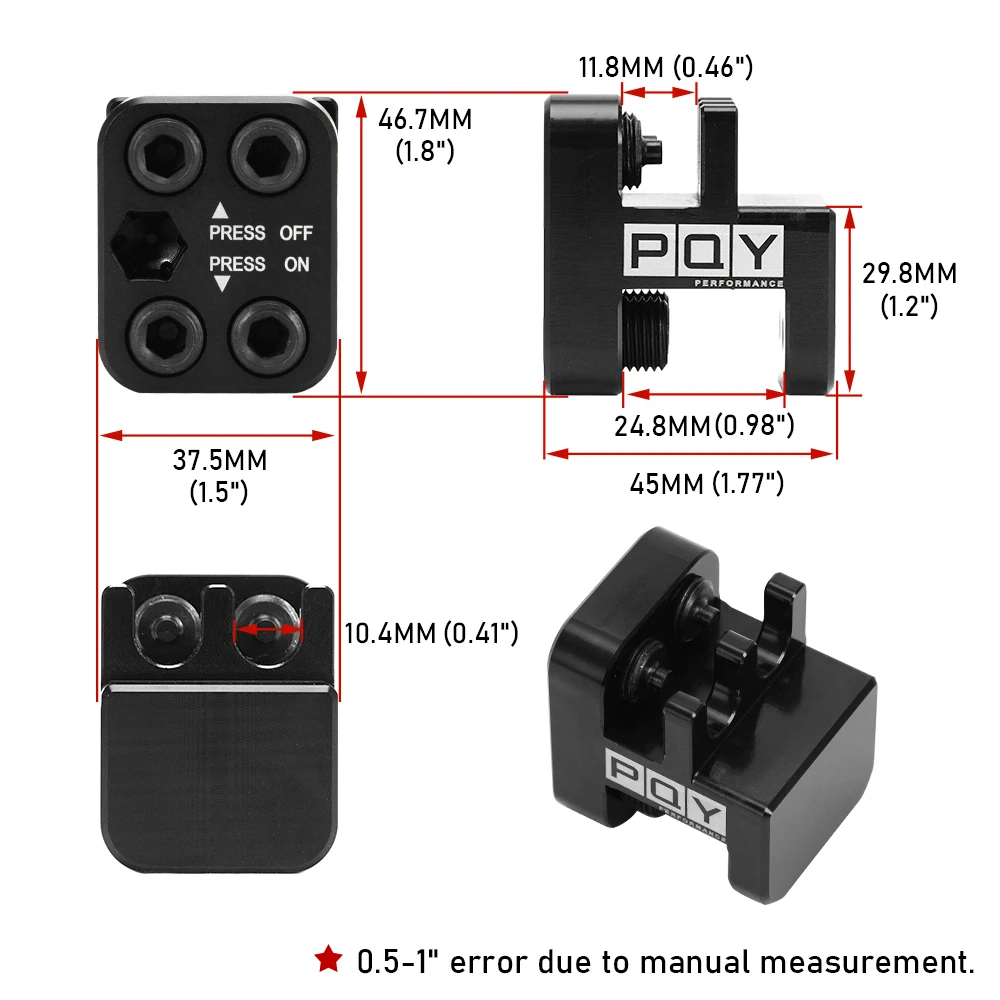

Maximum master link width 24.8 mm.
Presses on side plates with roller pins up to 5.25 mm (0.207") diameter.
Material & Color:
Material: made of high quality Aluminum.
Color: as picture.
Package Included:
1x Master Link Press Tool. (100% Brand New Never Used Or Installed)

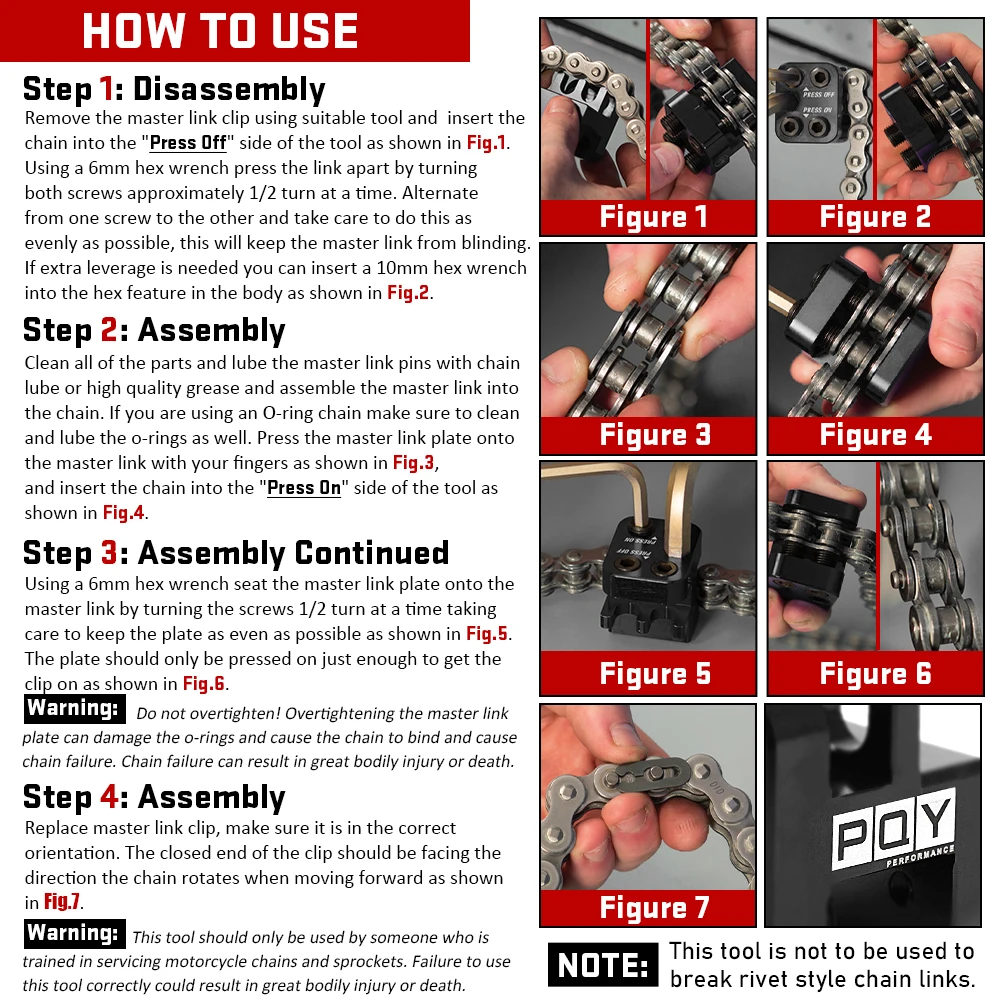

How to Use:
Note: This tool is not to be used to break rivet style chain links.
Step 1: Disassembly

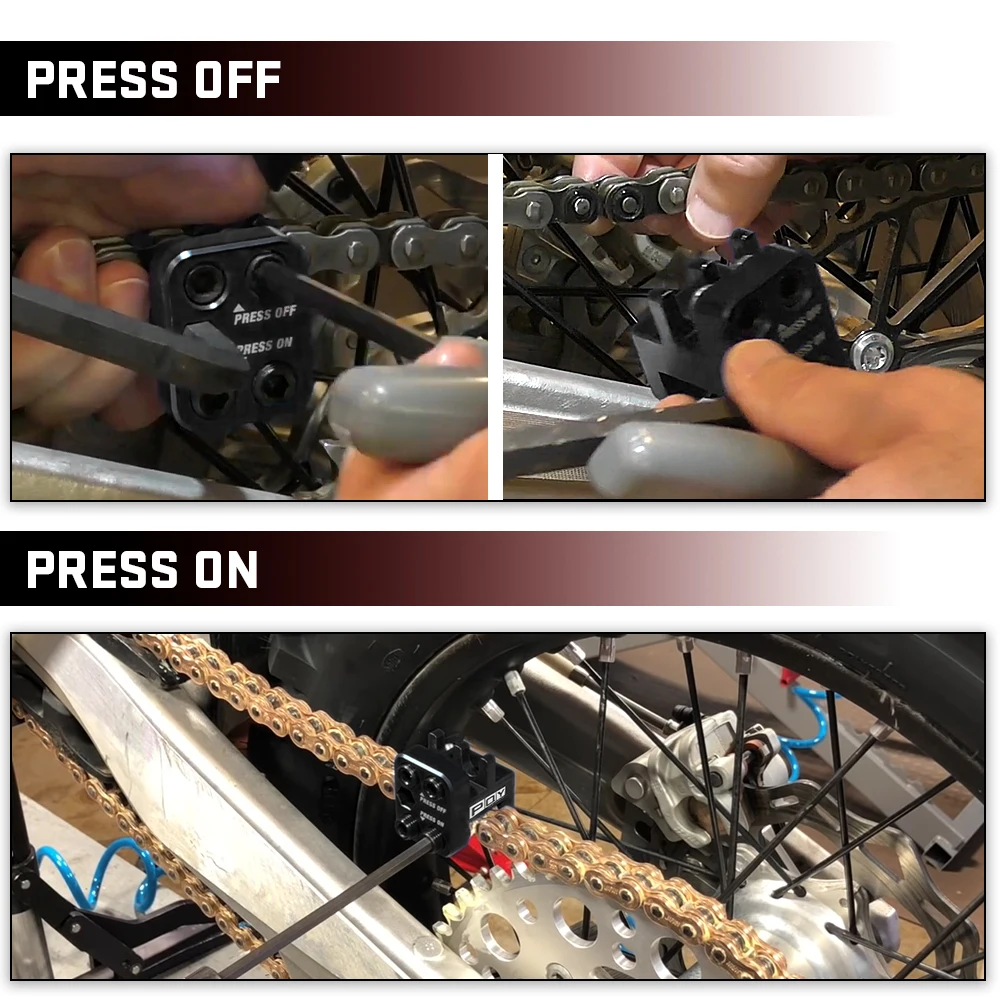

Remove the master link clip using suitable tool and insert the chain into the "Press Off" side of the tool as shown in Fig.1.
Using a 6mm hex wrench press the link apart by turning both screws approximately 1/2 turn at a time. Alternate from one screw to the other and take care to do this as evenly as possible, this will keep the master link from blinding. If extra leverage is needed you can insert a 10mm hex wrench into the hex feature in the body as shown in Fig.2.
Step 2: Assembly
Clean all of the parts and lube the master link pins with chain lube or high quality grease and assemble the master link into the chain. If you are using an O-ring chain make sure to clean and lube the o-rings as well. Press the master link plate onto the master link with your fingers as shown in Fig.3, and insert the chain into the "Press On" side of the tool as shown in Fig.4.
Step 3: Assembly Continued
Using a 6mm hex wrench seat the master link plate onto the master link by turning the screws 1/2 turn at a time taking care to keep the plate as even as possible as shown in Fig.5. The plate should only be pressed on just enough to get the clip on as shown in Fig.6.
Warning: Do not overtighten! Overtightening the master link plate can damage the o-rings and cause the chain to bind and cause chain failure. Chain failure can result in great bodily injury or death.
Step 4: Assembly
Replace master link clip, make sure it is in the correct orientation. The closed end of the clip should be facing the direction the chain rotates when moving forward as shown in Fig.7.
Warning: This tool should only be used by someone who is trained in servicing motorcycle chains and sprockets. Failure to use this tool correctly could result in great bodily injury or death.
