Motorcycle thermometer Water Temperature Mini Meter For XMAX250 300 NMAX CB 400 CB500X Sensor thermomete gauges

Specifications

-Item Name: Motorcycle Universal Thermometer
-Function: Test water temperature
-Function: Test cylinder temperature
-Fitment: Universal
-Material: Plastic + LED
-Backlight Color:Blue/Red/Green
-Meter Size: 5.6 *2.9 * 0.8cm
-Water temperature adapter:16/18/22mm
-Cylinder temperature adapter:10/14mm
-Water temperature sensor: M10*1.0mm
-Length of extension line:110.8cm
-Temperature range: 0~120 Celsius Degree (32~248 Fahrenheit Degree)
-Working Voltage: DC 12V(Not support 24V）
-Voltage Warning Rang: >120℃

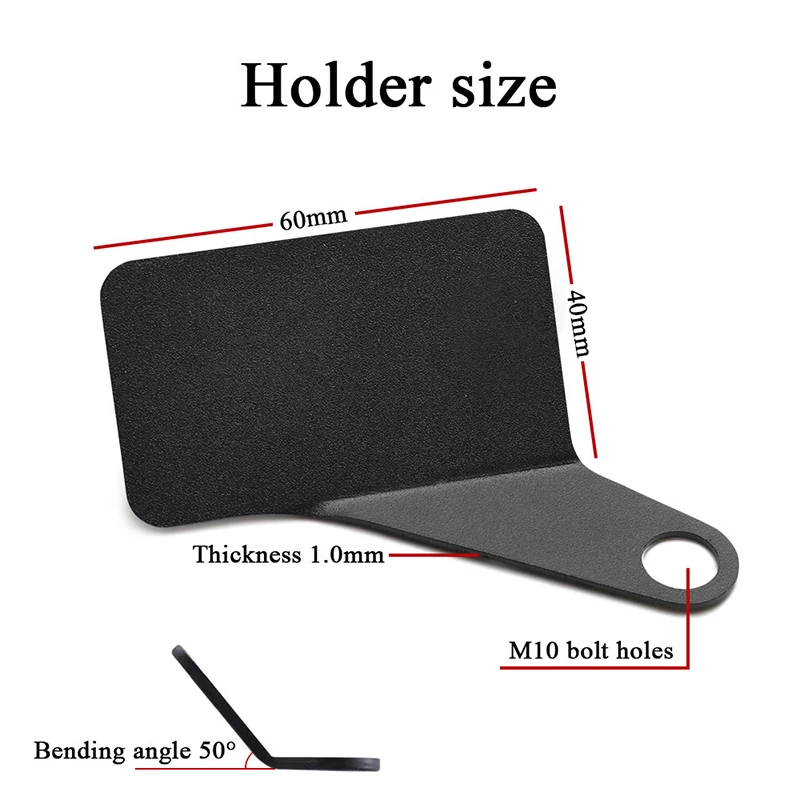

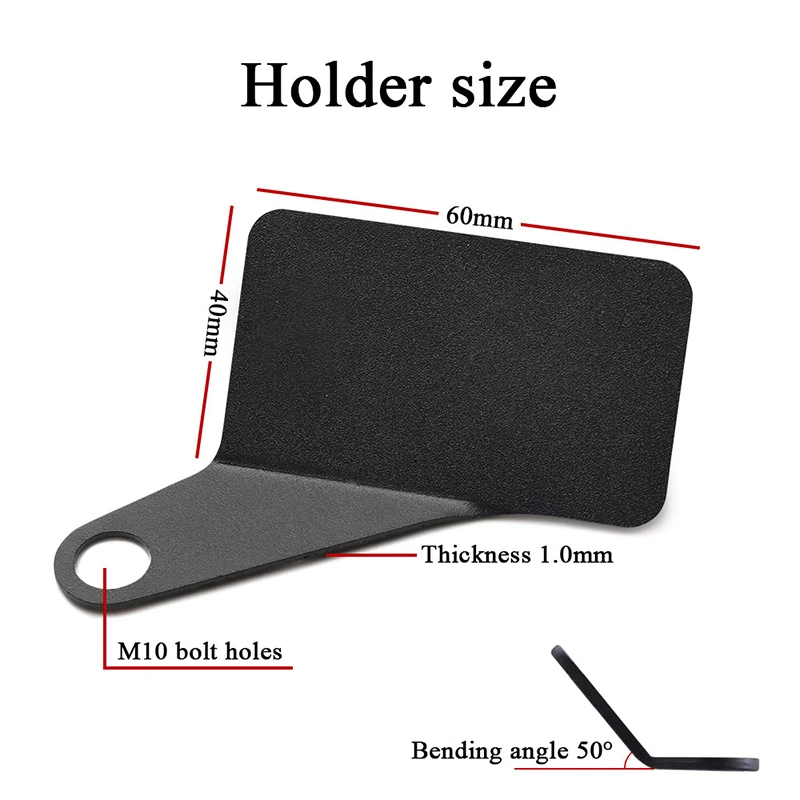

-Holder size: 60mm*40mm
-Wiring Method: Red - Power Positive Pole/Main Power Switch DC 12V(+) Black - Negative Pole(-)

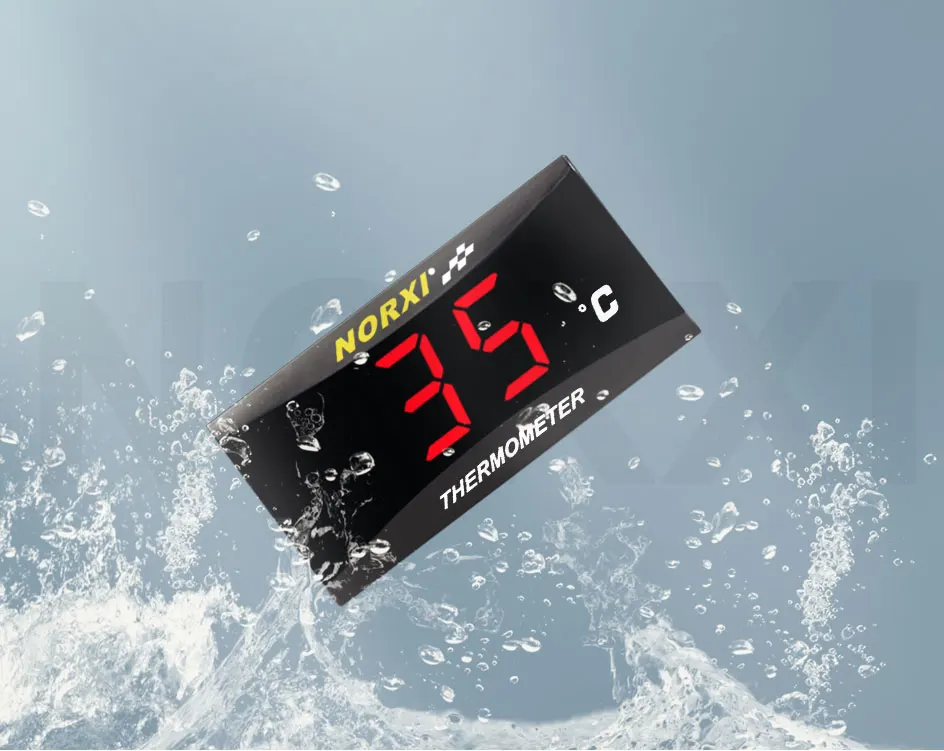

About waterproof

(Motorcycle thermometer is super waterproof and travels smoothly in rainy days.)

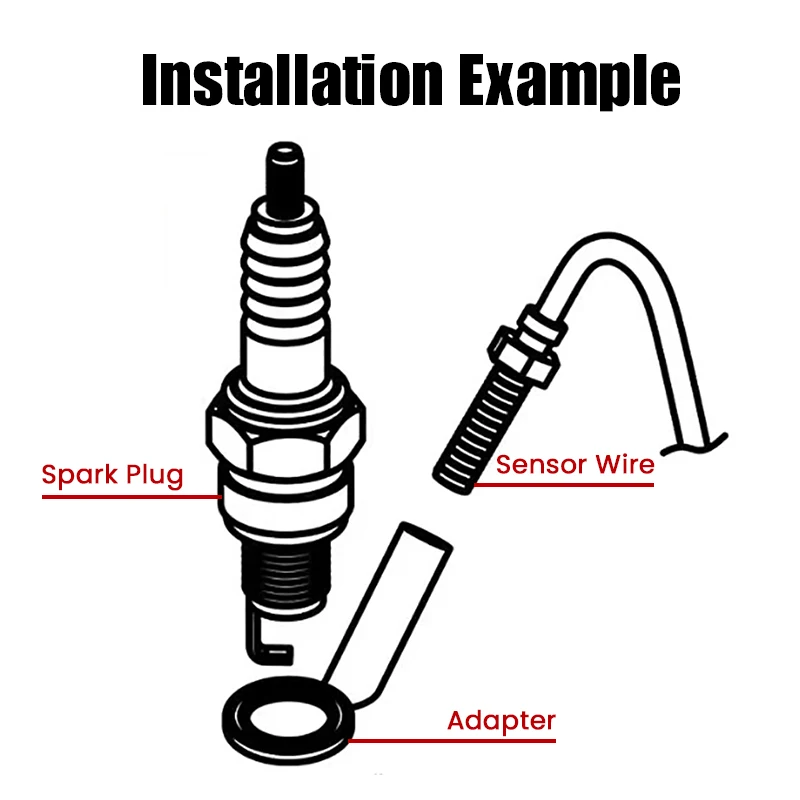

About ylinder head temperature

(The adapter is installed on the head of the spark plug of your motorcycle engine to read the temperature of the cylinder head. Please measure the outside diameter of the spark plug head before ordering. This product is suitable for 10mm, 14mm outer diameter, if you need 12mm, please note in the order.)

About Water temperature

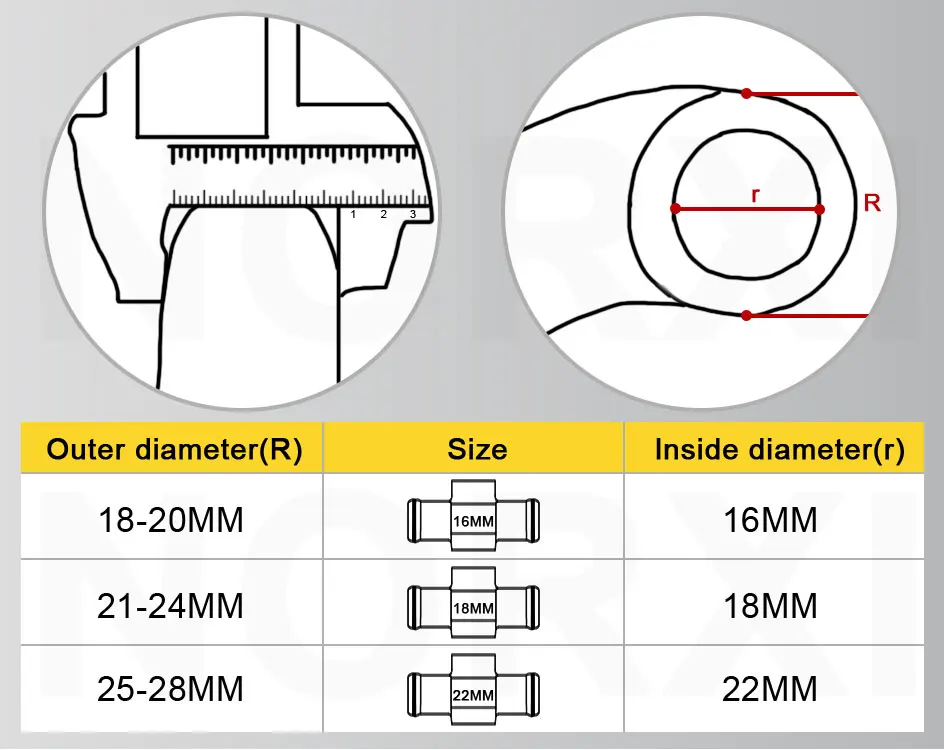

Water temp adapter size measurement

Method 1： measure the outer diameter of the tube with a vernier caliper.

Method 2： measure the outer diameter of the tube with a ruler or tape                                   measure.

Method 3:    use a soft ruler to measure the circumference of the pipe and                                 divide it by 3.14 to get the circumference of the pipe.

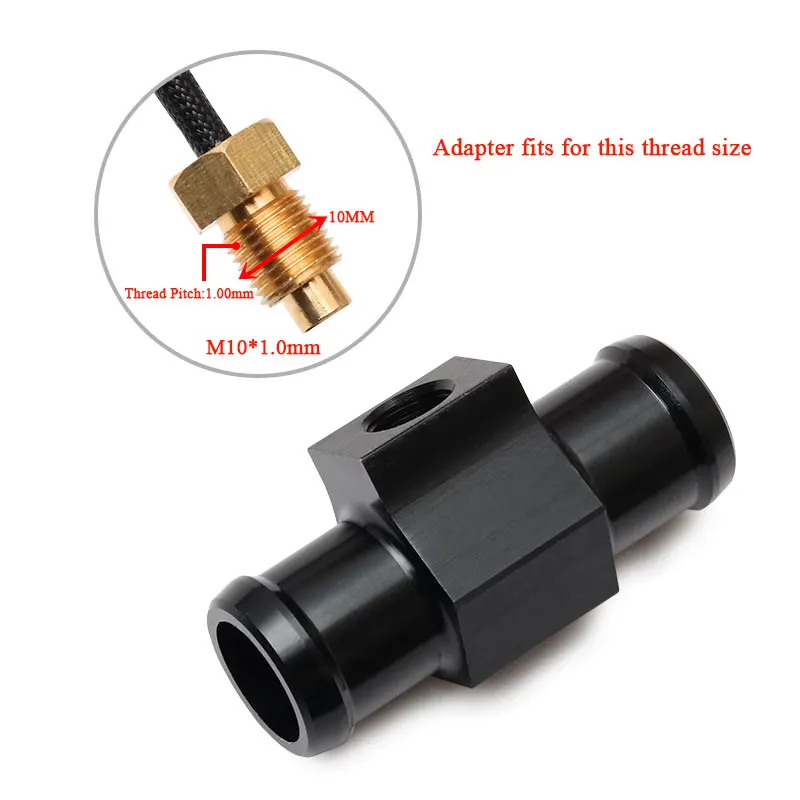

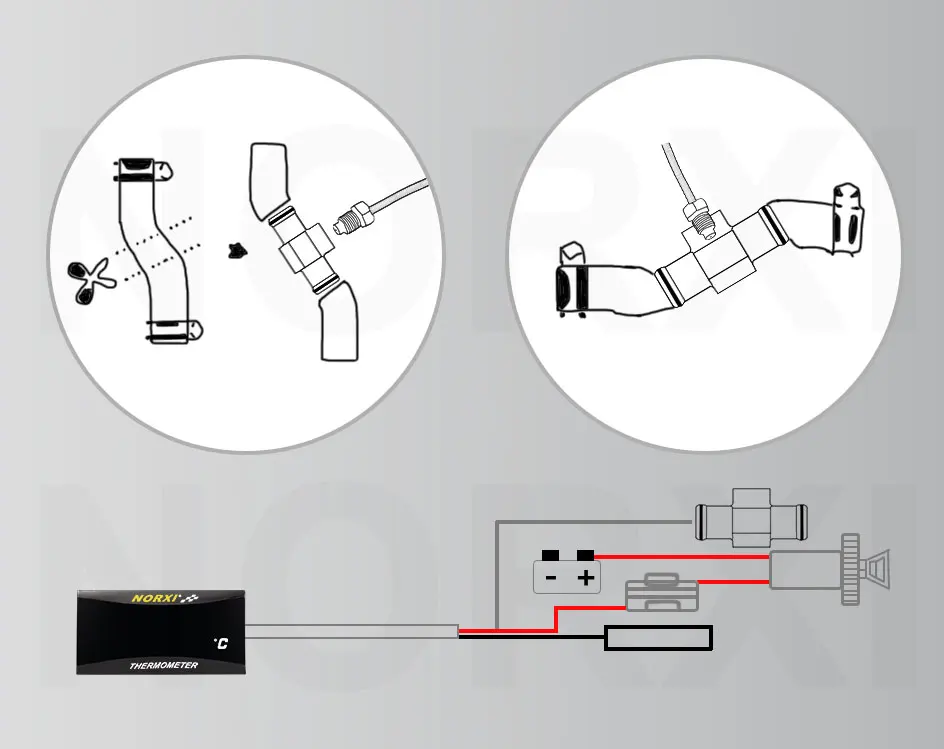

Adapter installation

The red cable connects to the power switch DC12V.
The black cable connects to the body or engine.

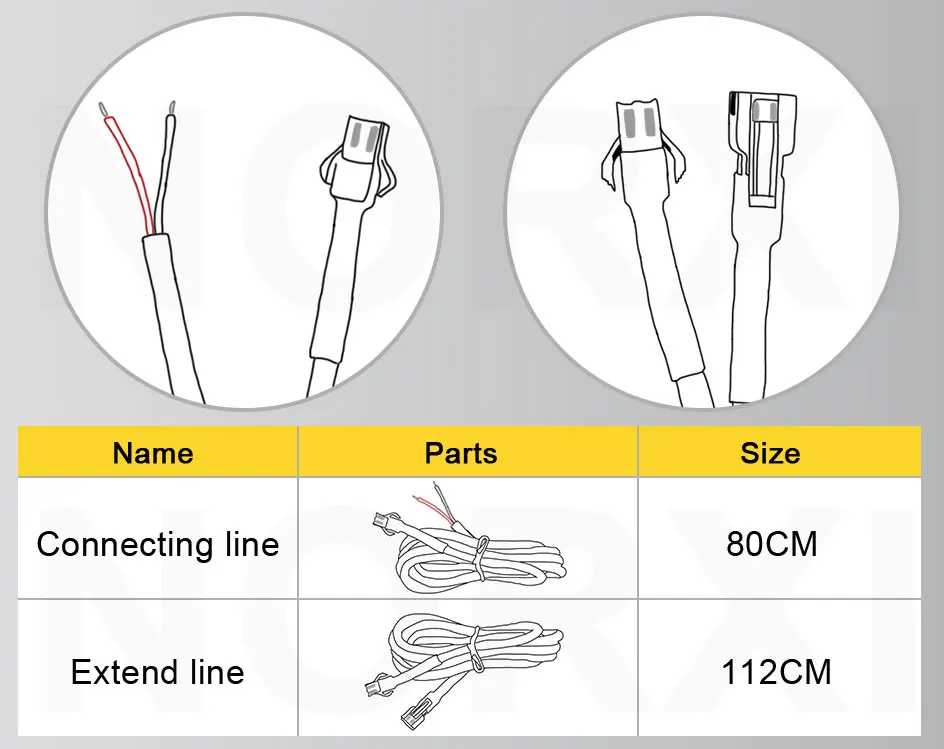

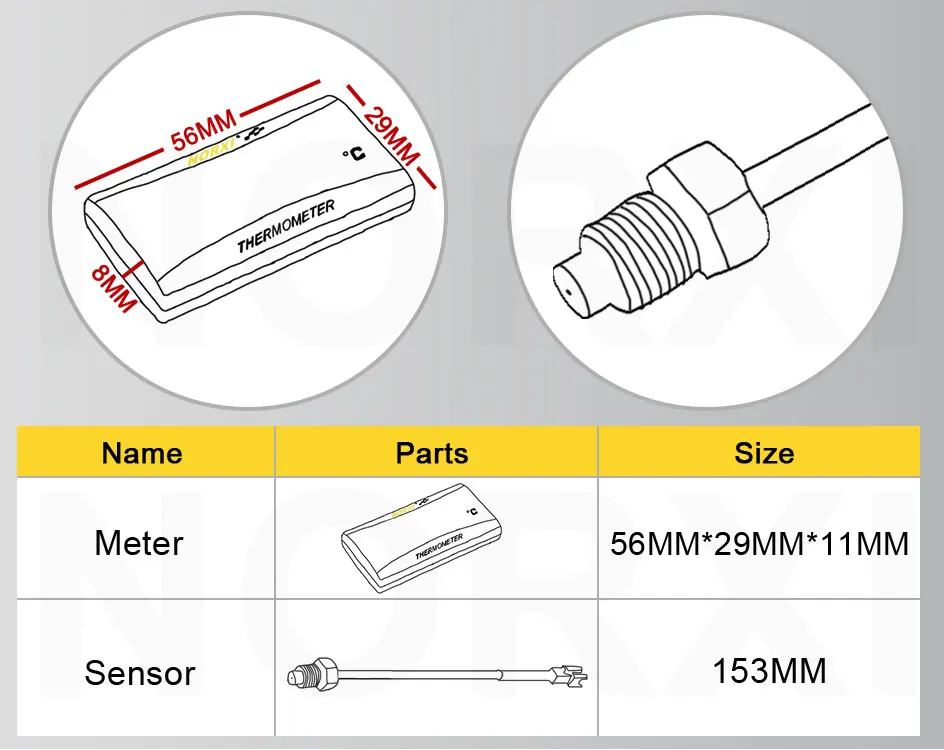

Size description

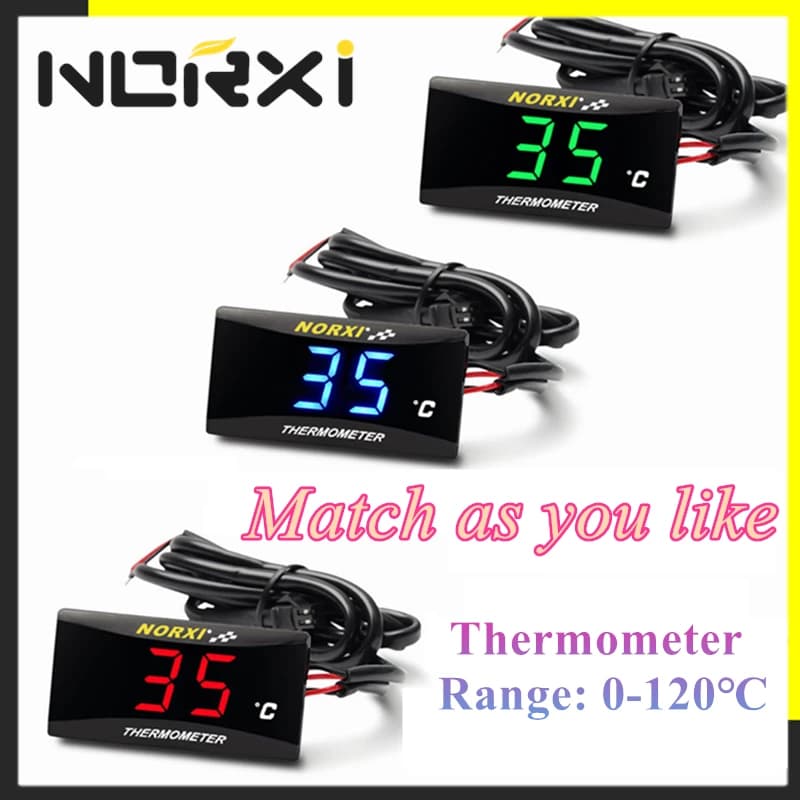

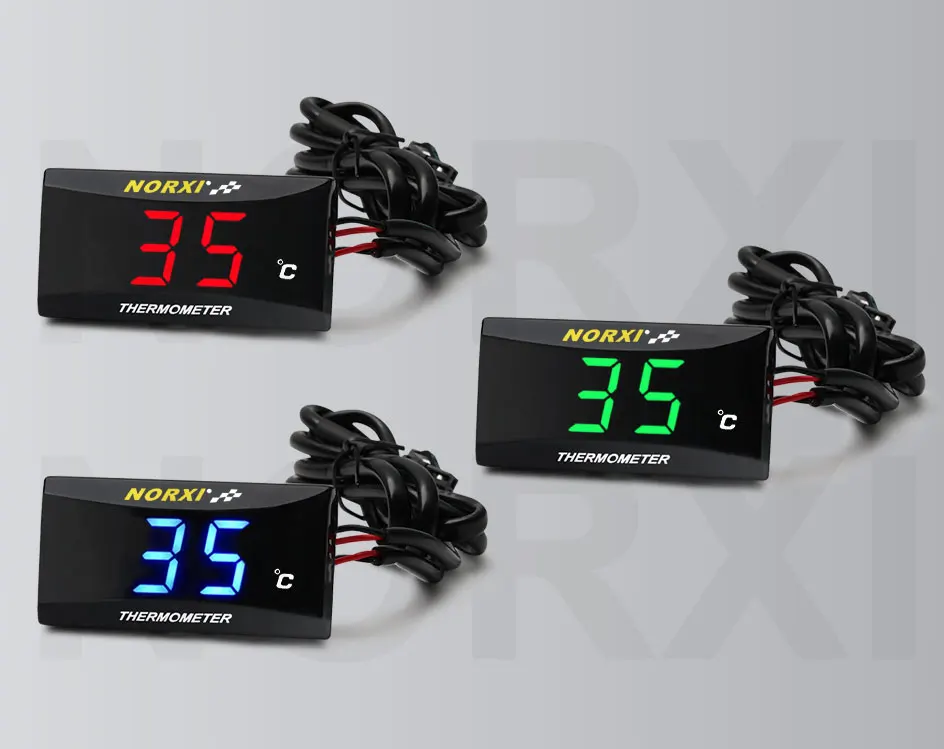

Various colors

Shipping guide

Packaging process

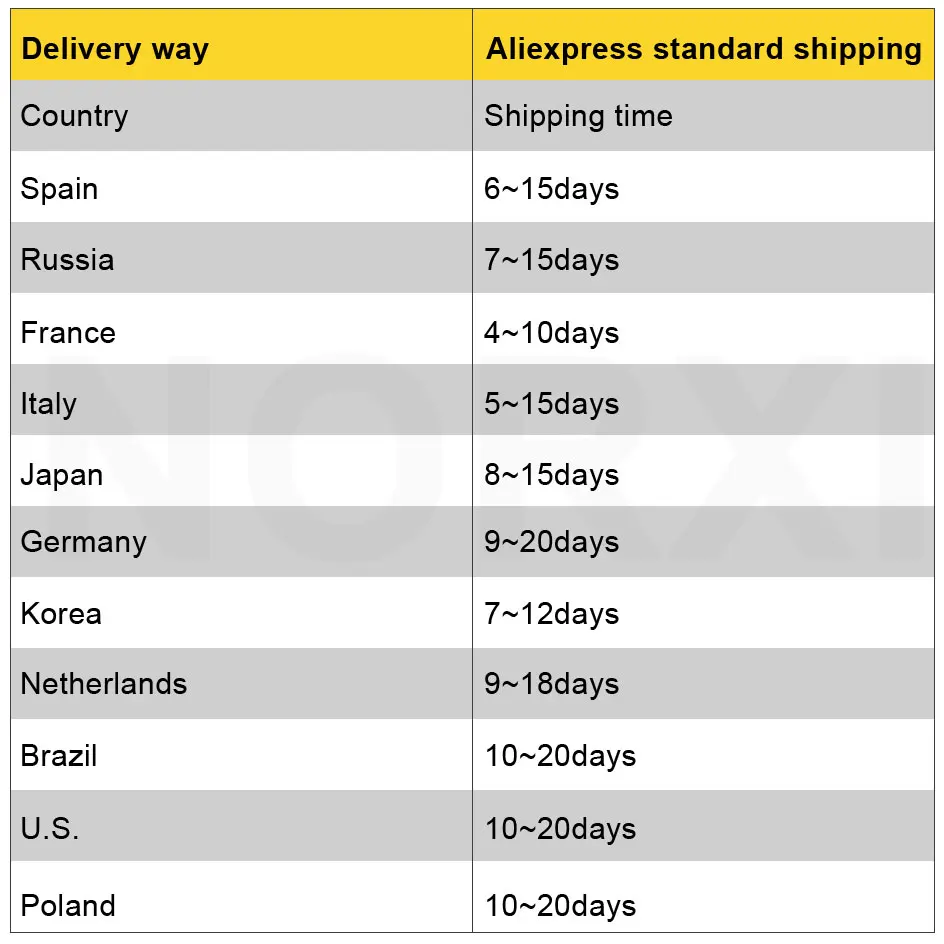

Shipping time

After receiving the goods
