Original M5Stack ATOMS3 ESP32-S3 Programmable Controller Development Board Kit Wi-Fi 6-axis Gyro Sensor MPU6886 For IoT node

M5Stack ATOMS3 ESP32-S3 Programmable Controller

Product Features

Developed based on ESP32-S3FN8
Comes with USB download function
Built-in 3-axis gyroscope and 3-axis accelerometer (MPU6886)
Programmable keys
0.85 inch LCD screen
Infrared emission function
Expandable pins and interfaces
Development platform: Arduino, UIFlow

Applications

ApplicationsIoT node
Microcontroller
Wearables

Package Includes

1x ATOMS3

Specification

Resources Parameters
MCU: ESP32-S3FN8
DCDC: SY8089
IMU: MPU6886
Operating temperature: 0°C ~ 40°C
Resolution: 128 x 128
support voltage: 5V
Power supply mode: TYPE C
output voltage: 3.3V
GPIO: G5/G6/G7/G8/G38/G39
Screen communication protocol: SPI
Product Size: 24*24*13mm
Package Size: 65*44.5*14mm
Product Weight: 6.8g
Package Weight: 10.9g

Product details

Schematic

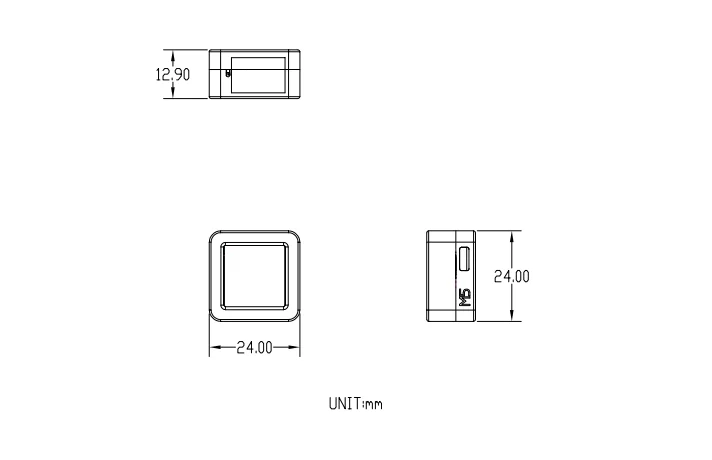

Module Size

Product Description

AtomS3 is a highly integrated programmable controller that harnesses the power of the ESP32-S3 chip. This compact controller boasts a range of features, including integrated WiFi functionality and 8MB of on-chip FLASH memory. With the ESP32-S3 chip, AtomS3 delivers exceptional performance and versatility for a variety of applications.

AtomS3 features a sleek 0.85-inch IPS screen, providing clear visual feedback and user interaction. The bottom of the screen is equipped with programmable buttons, allowing for customizable functions and enhanced user control. It comes with a built-in 5V to 3.3V circuit, ensuring stable power supply for reliable operation. The controller incorporates a 6-axis gyro sensor MPU6886, enabling precise motion detection and orientation tracking. On-board Type-C interface facilitates both power supply and firmware download processes. Additionally, AtomS3 offers one HY2.0-4P expansion port, six GPIOs, and power pins reserved at the bottom for seamless integration and expansion of various applications.

AtomS3 is designed with compactness in mind, measuring at only 24 *24 *13mm in size. Its small form factor makes it suitable for a wide range of embedded smart device applications. Whether it's robotics, IoT devices, or other embedded systems, AtomS3 provides a powerful and flexible solution to meet the project requirements.

Download Mode

Press and hold the reset button (about 2 seconds) until the internal green LED lights up, then release the firmware. At this time, the device has entered download mode, waiting for burning.
