Zigbee Smart Relay Module Home Automation 1/2/4CH 12V 7-32V AC 220V RF433Mhz Remote Control Light Switch Works With Tuya Alexa

Purchase Tips

For the device to connect to the mobile app, it must be paired with a supported Zigbee gateway, which needs to be purchased separately and can be linked with other compatible smart devices to realize automation scenarios.

Function

【APP Remote Control】
Require Tuya Zigbee Hub. You can check the working state of the device in Tuya APP anywhere and anytime.
【RF433mhz Control】
The device can be controlled by the RF433mhz Remote Controller.
【Mobile Phone Control】
Require Tuya ZigBee Hub ,when you go outside or at home, your smart phone could control the device by 2.4Ghz WIFI or 2G/3G/4G Mobile Network.
【Voice Control】
Require Tuya Zigbee Hub, you could voice control the device by Alexa/Google Assistant.
【Smart Linkage】
Cooperate with other zigbee products to achieve intelligent linkage. For example, with zigbee door magnetic sensing, to realize the light on immediately after opening the door
【Group Control】
Unified management of individual devices using gateways
【Timing function】
Lying in bed without turning off the lights fell asleep, it does not matter, the wall switch timing function to the point of turning off the lights, from the lights off do not worry about.
【Three Working Modes】
Self-locking, Interlocking, Jog

What can I use it for?

*Connect a light, remotely control the switch of the light.Connect a light, remotely control the switch of the light, and can also switch on and off regularly
19:00 On 21:00 Off
*Open your curtains regularly 7:00
*Change the water for the fish tank regularly
*Use mobile phone or voice control Garage door switch
*Control your heater remotely
*And your coffee machine
*Connect a water pump, remote control or timer switch
More functions waiting for you to discover. DIY

Checklist before using the device

You need to have a Zigbee gateway ZIGBEE HUB.
Try to be close to the Zigbee gateway when pairing.
It can not connect directly to a WiFi network

Remote Control

Control your home curtains anytime,anywhere

Timing Function

you can the time to turn on lights and turn on the fans in the office

1CH 2CH 4CH Remote control of garage door opening and closing

Remotely give a pulse signal to turn on/off Garage Door,Door Access

Only one motor can be connected to one switch

Group Control

Set all of your smart switches in a group by Smart Life app. Then one-click to turn/off all of your appliances or lightings by smartphone.

Smart Scene

Creating your own scene to trigger ON/OFF home appliances by departure mode, home mode, temperature, humidity, or other environmental conditions.

Family Sharing

Share the control with family member.Enjoy the convenience and happiness together

Hands-Free Voice Control

Compatible with Alexa & Google Home,the smart switch allows you to control lights on/off with your voice

Smart Scene

Creating your own scene to trigger ON/OFF home appliances by departure mode, home mode, temperature, humidity, or other environmental conditions.

Self-locking Switch Application Scenarios

Momentary Button (Delay time 1s) Application Scenarios

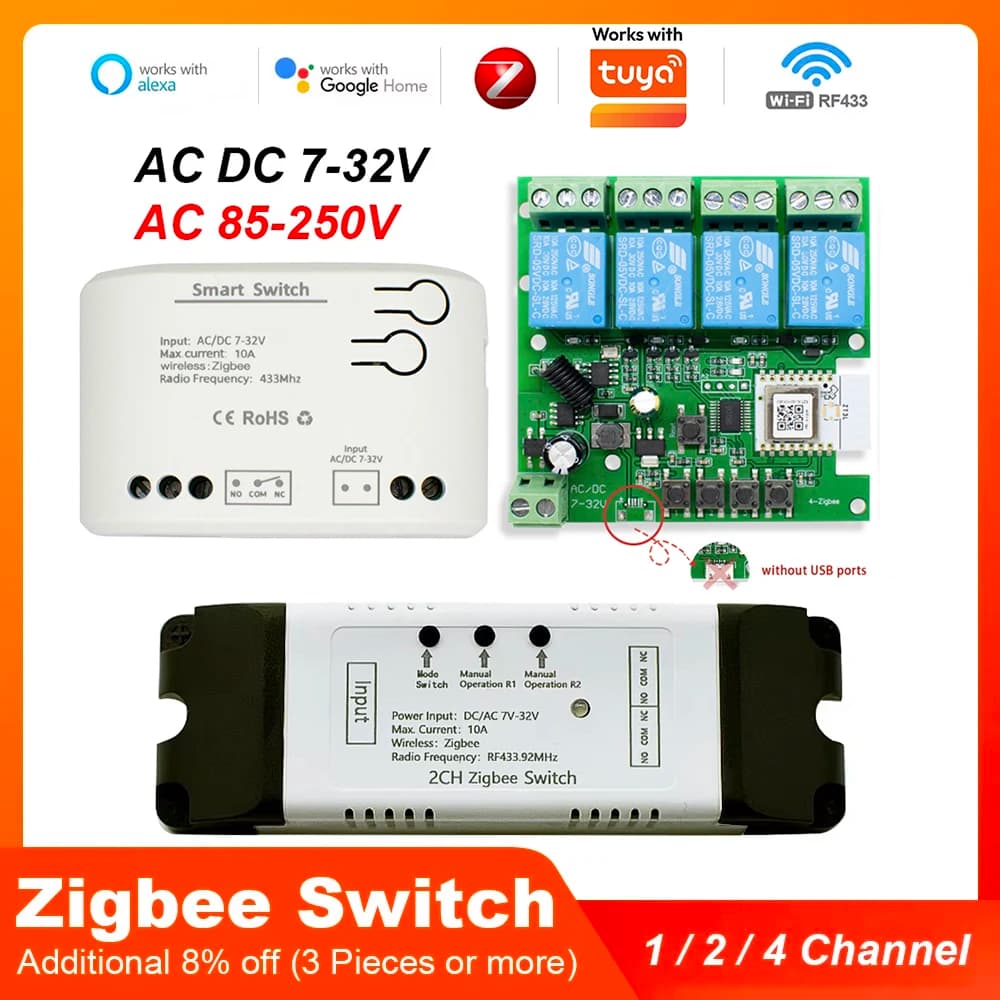

Parameters:

lnput voltage: DC/AC 7V~32V AC 85-250V
Max.Current:2200W/10A
wireless Standard:Zigbee 3.0
Working temperature: -20℃~70℃
3 Control methods: APP, 433MHz Remote, voice control
3 Working Modes:Self-locking, interlock and inching mode
Voice Control:Alexa Google Home Compatible
APP: Works with Smart Life / Tuya Smart
Size:
1ch 69*41*20mm
2ch 116*38*25mm
4ch 81*76*28

1CH wiring diagram

2CH wiring diagram

4CH wiring diagram

Package includes

1XZigbee Smart Switch
1XEnglish instructions
1XPackaging
Other products are available separately

Why Choose Zigbee Smart Switch Module?

1. Low power consumption
2. ZigBee responds quickly
3. Large network capacity: A Zigbee network with a star structure can accommodate up to 254 slave devices and one master device, and a maximum of 100 ZigBee networks can exist in one area at the same time, and the network composition is flexible.
4. Longer connection range: farther than devices directly connected to WiFi
5. Safe and reliable

FAQ

Does this switch feature a USB port?

Hello! This model is gradually replacing older versions and no longer includes a USB port, focusing instead on delivering a more stable and reliable smart switch experience. Thank you for your interest!

I don't have a Gateway Hub, will the product work?

Sorry, can't.If you want app remote control switch, you need a zigbee gateway, if you don't have a gateway, you can choose to buy our gateway

What voltage is supported?What is the maximum power？

AC DC7-32V AC 85-250V
2200W 10A

How many channel switches do you have?

Now with 1 channel 2 channels 4 channels

I'm not a professional electrician, is it convenient to install it myself?

The installation is very easy, we will send the wiring diagram. Instructions, we also have a connection video to send you

What is the size of the product？

1ch 69*41*20mm
2ch 116*38*25mm
4ch 81*76*28

I have my own 433mhz remote control, can I add it?

The remote control must be learning code, 433mhz, we recommend to buy our remote control，to avoid incompatibility
