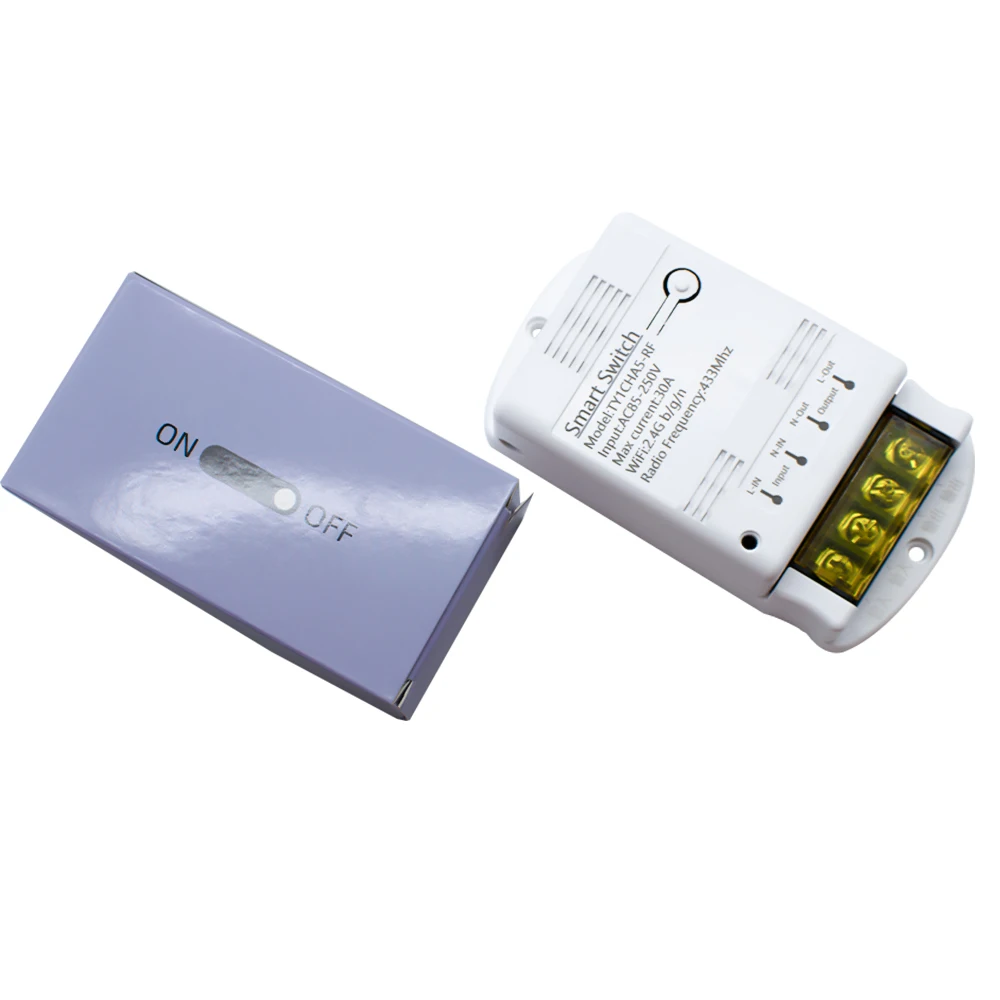

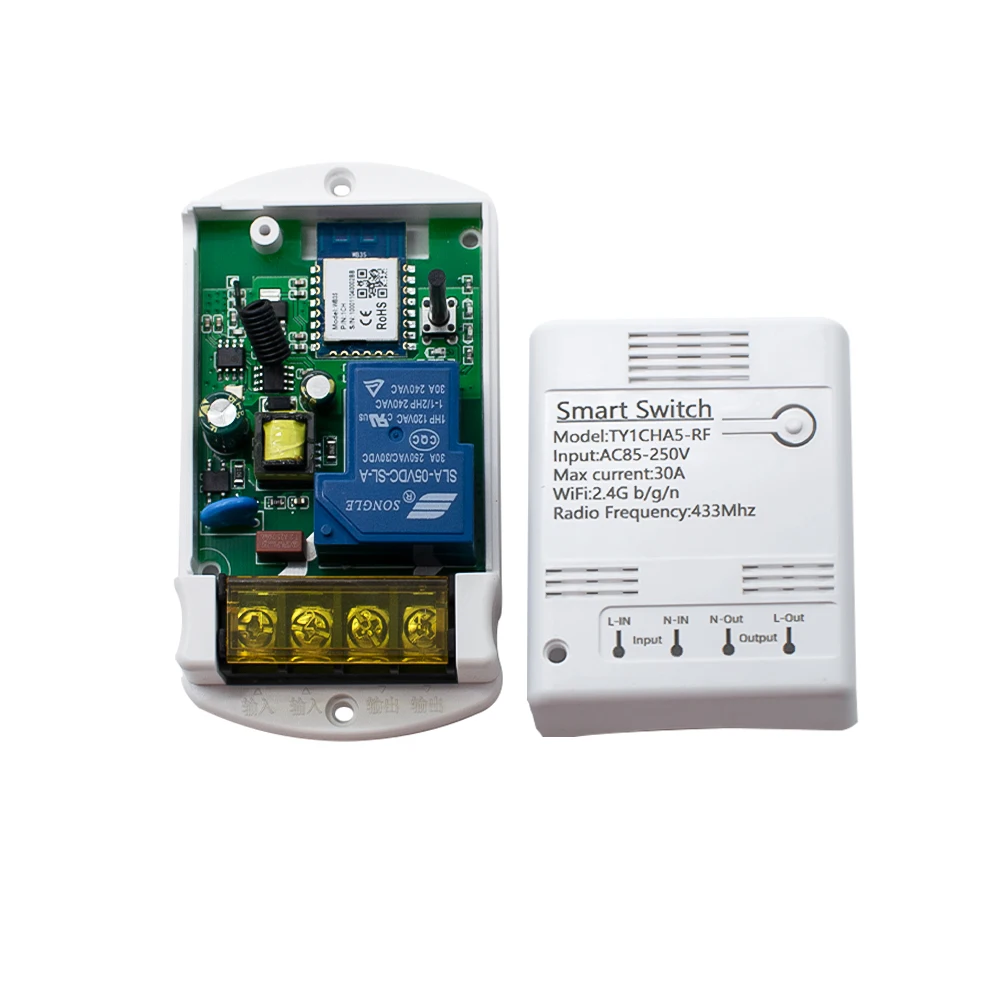

Wifi 30A Switch Module Wireless Relay Controller AC 220V 110V DC 12V 24V Works with Tuya Smart Life APP Voice Remote Control

HIGH POWER Max.Current 4000W / 30A Tuya wifi Smart Switch

Product Application Area

Factory \ Farm\ Office\ Instrument\ Ventilation \ Pump \ Motor \ Remote control garage door \ Remote control house door \ Remote control Lamp \ Remote control curtains \ Remote control Gate and other remote control device

Wifi smart Inching/ Self-locking WIFI Wireless Smart Home Switch Remote Control Works with Tuya Alexa

This product is a wireless switch supports inching /self-locking mode. Users can add the device to the APP Smart life in order to remotely control connected home appliances or devices.

In self-locking mode, customers can remotely turn on/off connected devices immediately.

When in inching mode, customers can have two wiring ways to select, and you can set the inching time in APP .

WIFi control model, no need to program. No matter where you are, you only need to download a APP to connect the wifi and control the cloud.

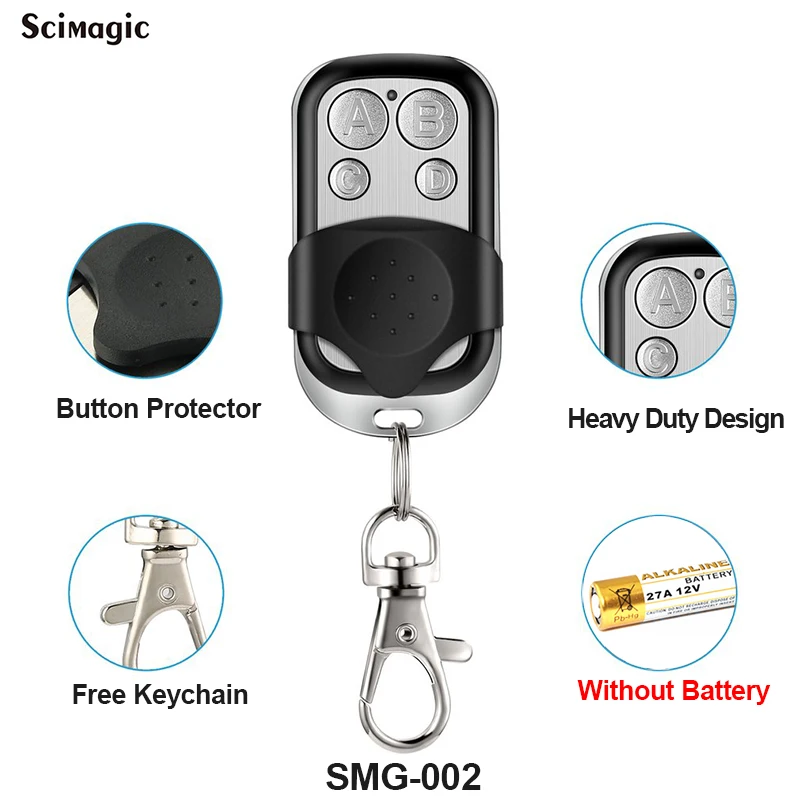

RF mode , you can control the board with RF 433 remote controller.

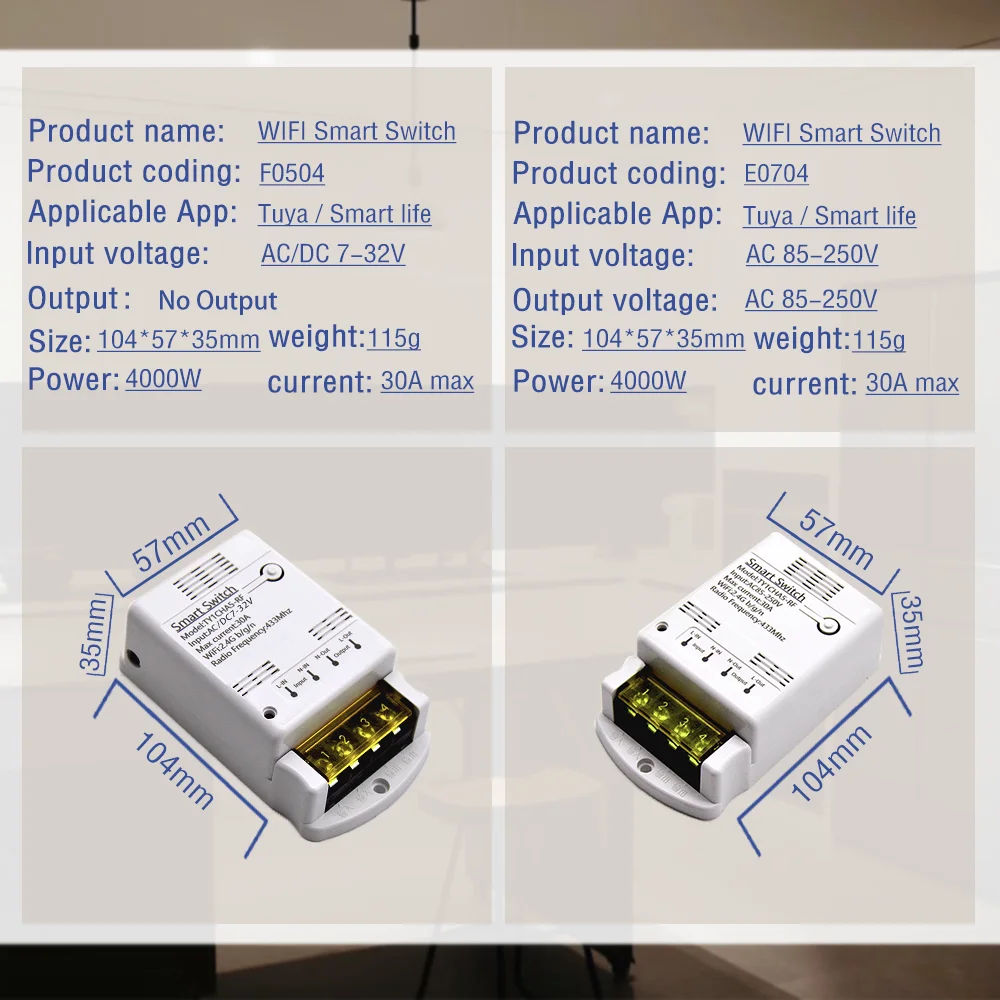

Receiver Description:

*Voltage: AC DC 7-32V / AC85-250V 50/60Hz
Max.Current:4000W / 30A
*WIFI frequency:2.4G. IEEE 802.11 b/g/n

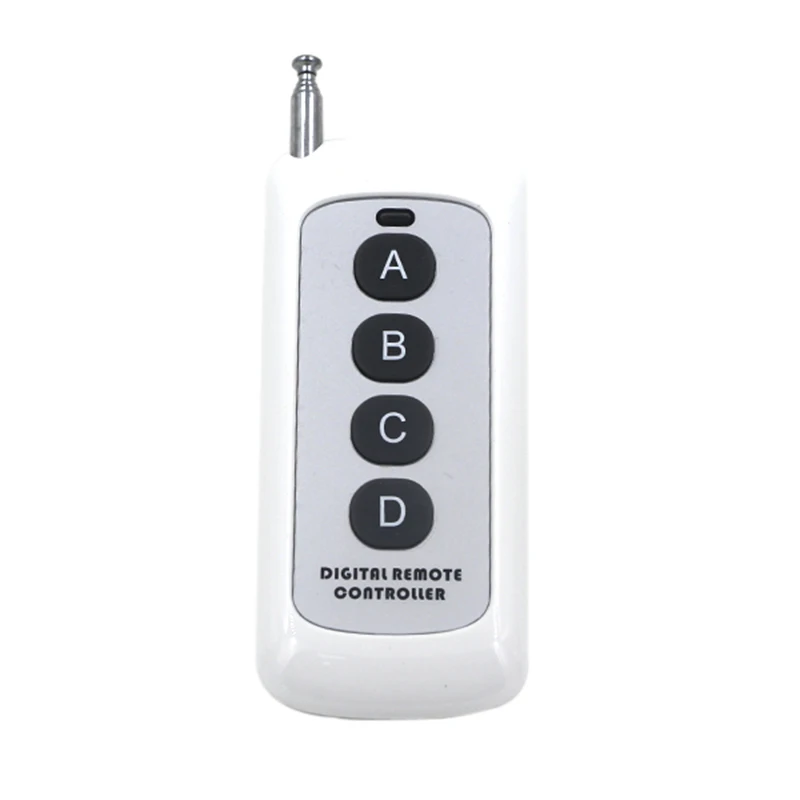

*Remote control frequency: 433MHz

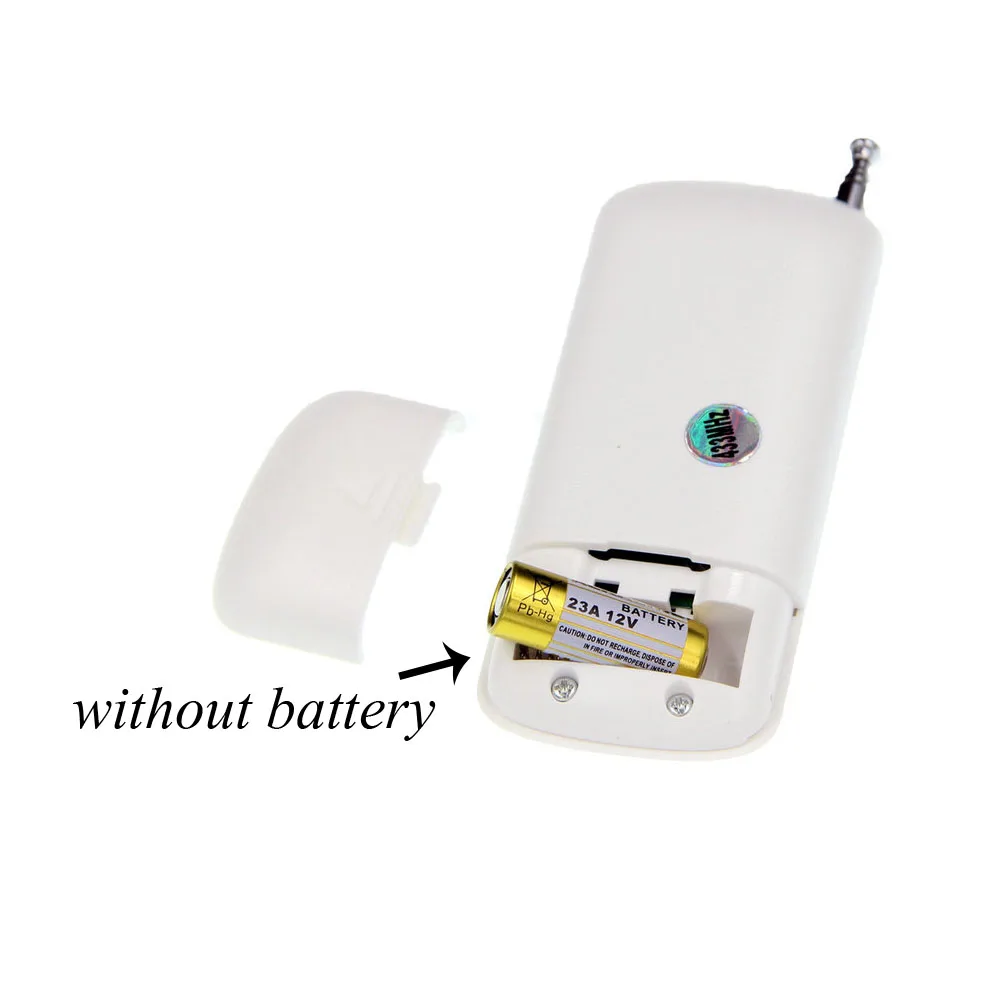

*Battery no included in the remote control
This receiver will have a detailed instruction manual, please rest assured to buy. I will send the package within 18 hours, and I will do the best service.

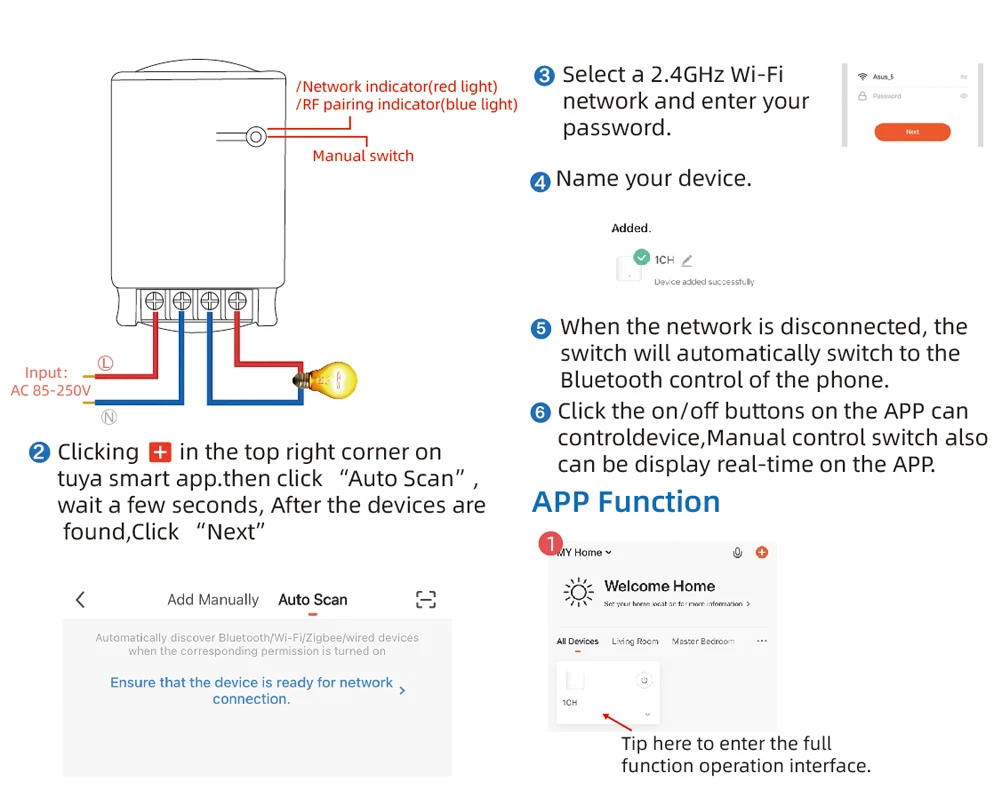

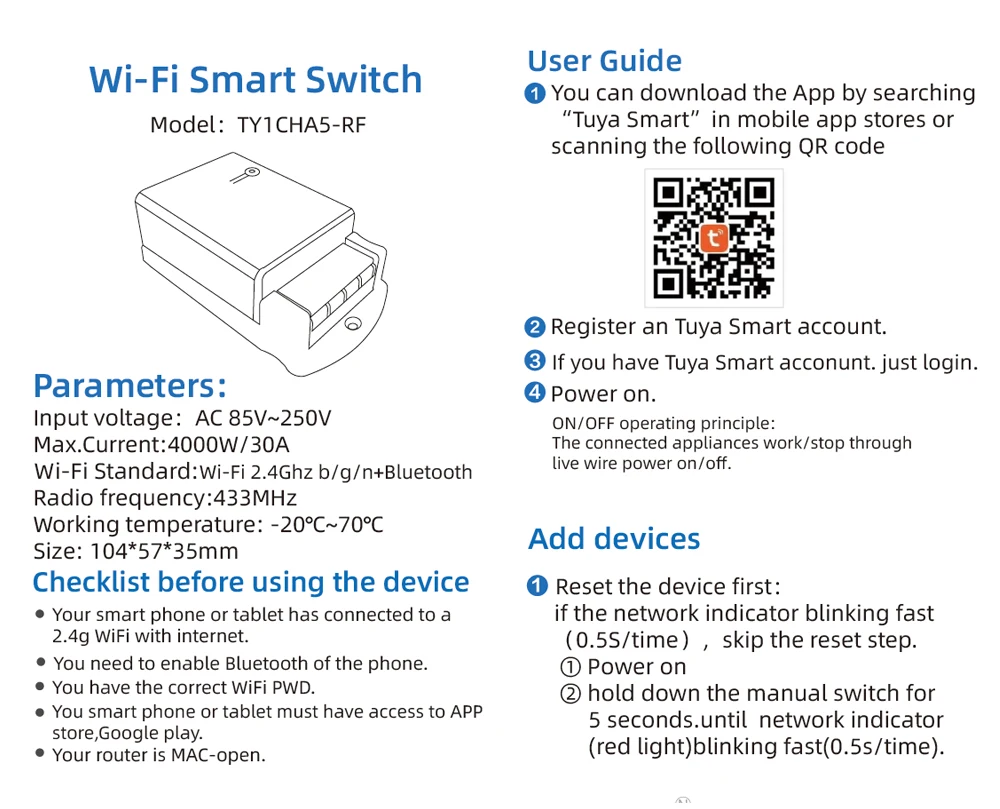

Preparation before use:

1.Your smart phone or tablet has connected to a 2.4G WiFi with internet
2.Turning on bluetooth helps with the connection
3.not allow to hide wifi (SSID)
4.do not set "not allow Wi-Fi squatter" or MAC address limits on routers

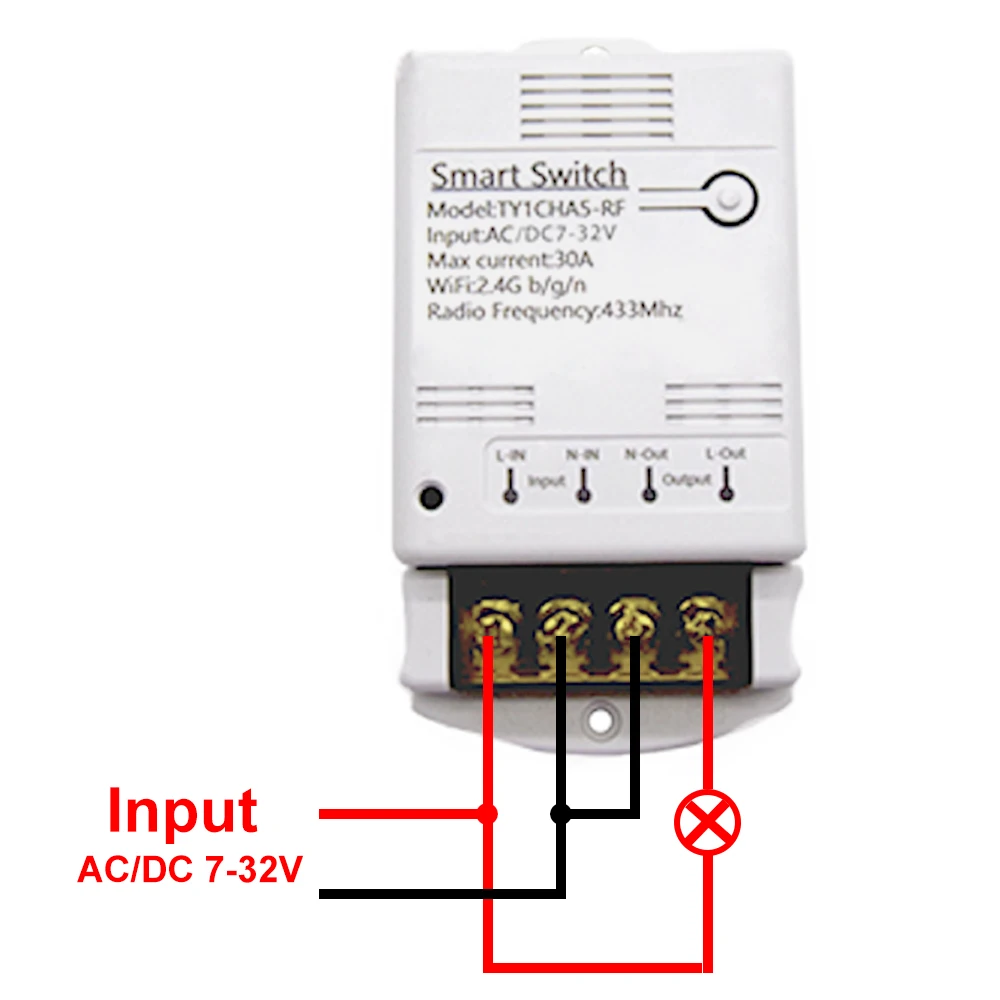

The intelligent switch is wired and energized.
Observe the green LED.If the green LED fast blinks(Blink twice a second),Press the button for 7s until the green LED fast blinks(Blink twice a second).

Note:
A receiver can be configured with 8 remote controllers at most, and the first one will be overwritten after the 9th one is added.

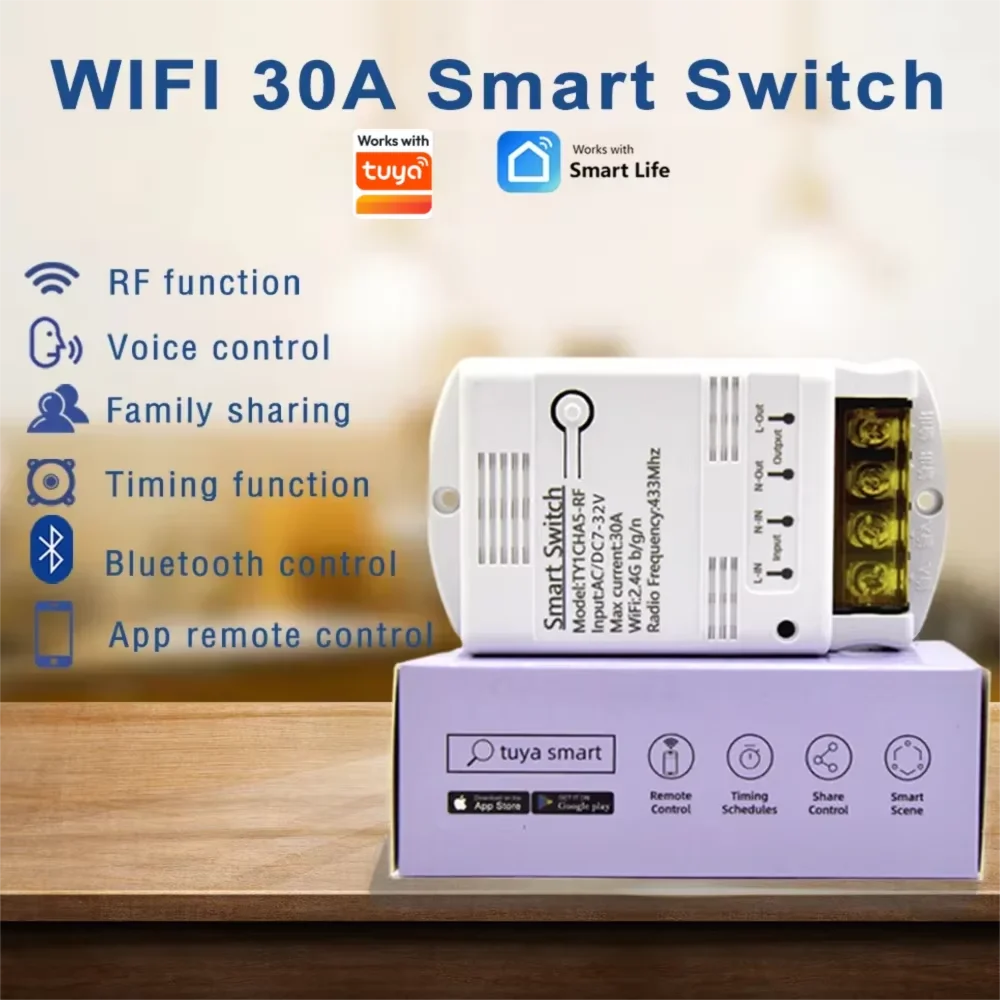

Features:

*Supports WiFi network. Supports numerous WiFi smart switches on one smart phone.
*Supports status tracking: device status timely provided to the Tuya / Smart life.
*Supports remotely turn on or off connected appliances, for example light, electric kettle, electric rice cooker, electric curtain, etc.
*Supports max 8 enabled scheduled/countdown/loop timers for each device.

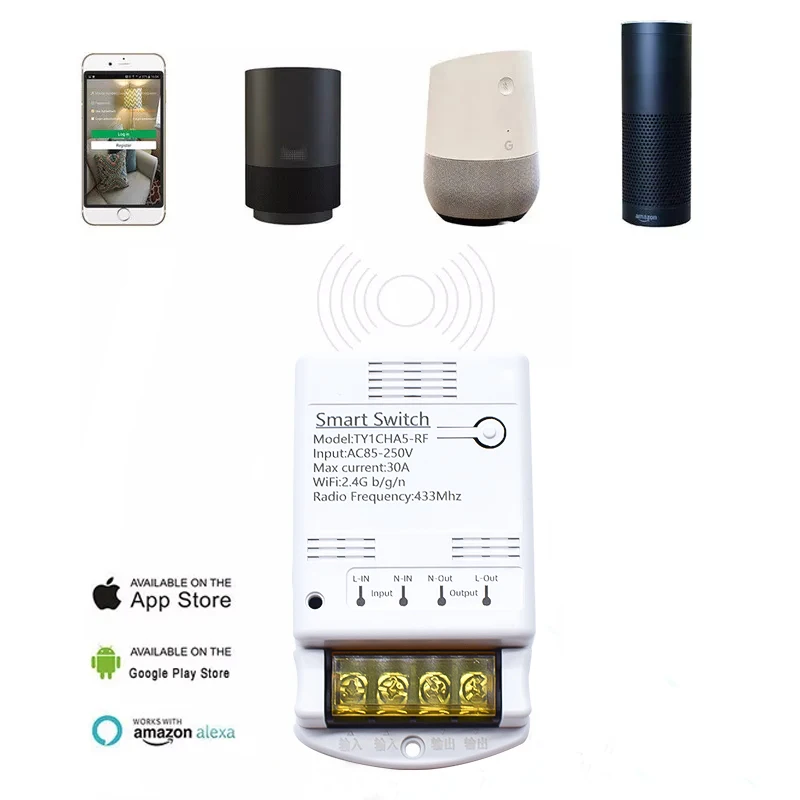

*Voice Control: Compatible with "Amazon" Alexa, for Google Home/Nest, IFTTT.

Supported Functions Include:

*Remote turn on/off.
*Timing schedules.
*Device sharing.
*Group management.
*Works with Amazon Echo, Echo Dot, Amazon Tap.
*Works with Google Home.
*Works with IFTTT.
*Compatible with Amazon Alexa.

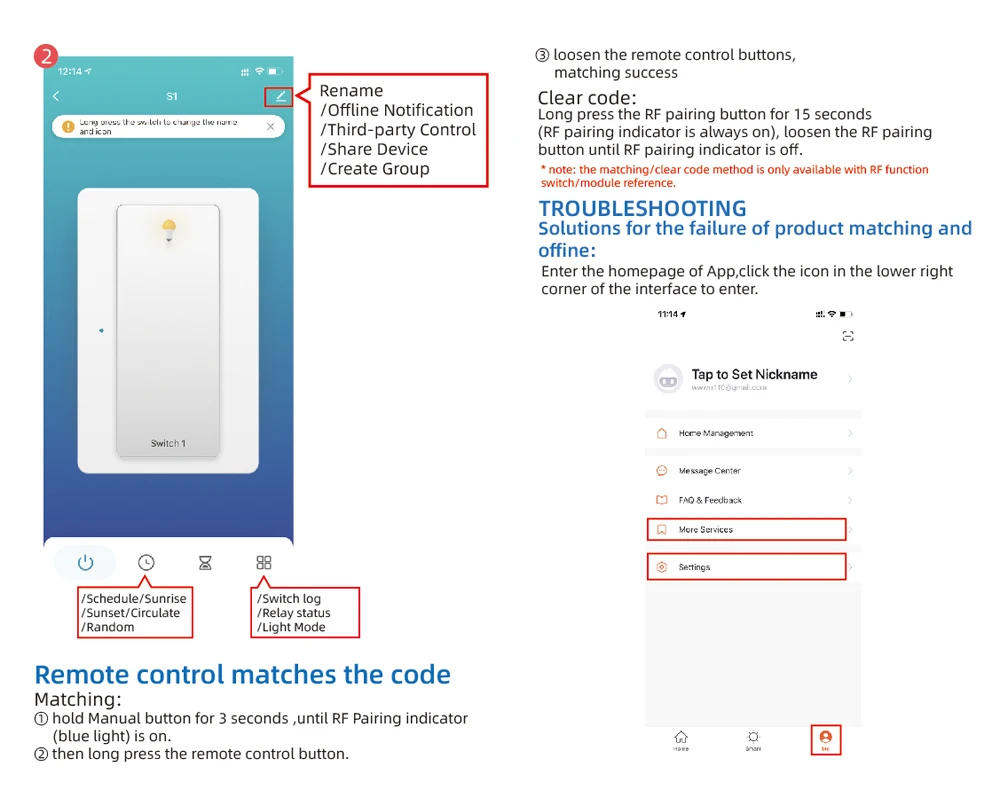

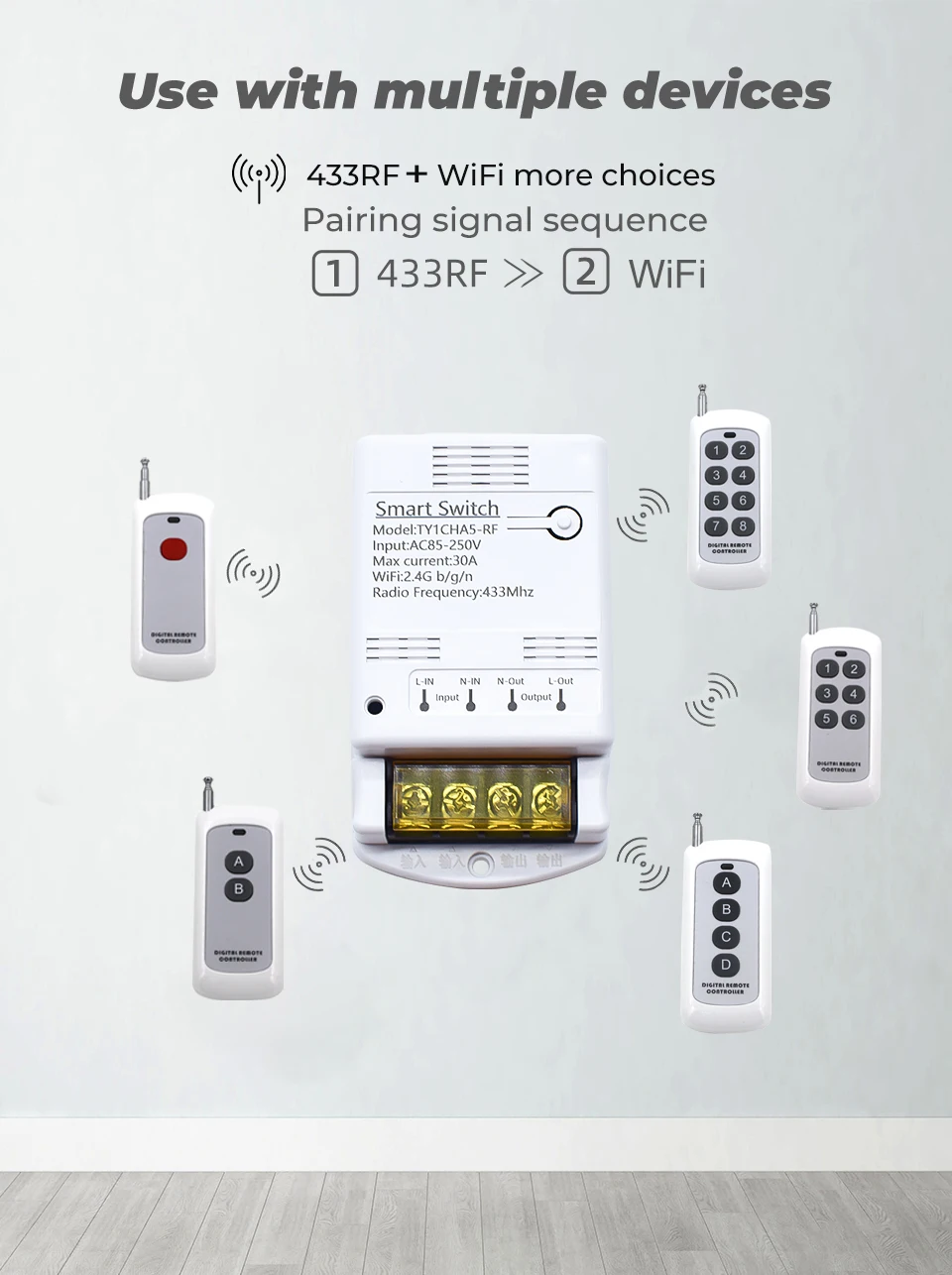

Remote control code:

1.Power off the smart switch for 5seconds
2.Power the smart switch
3.Press immediately (within 5 seconds) after energizing the switch more Three clicks on the remote control button (need to ptess that with that),the red LED flashes 2 to indicate the success of the remote control learning code .
If there is no flicker,please repeat the above operation

Note:

All remote controls do not contain batteries
