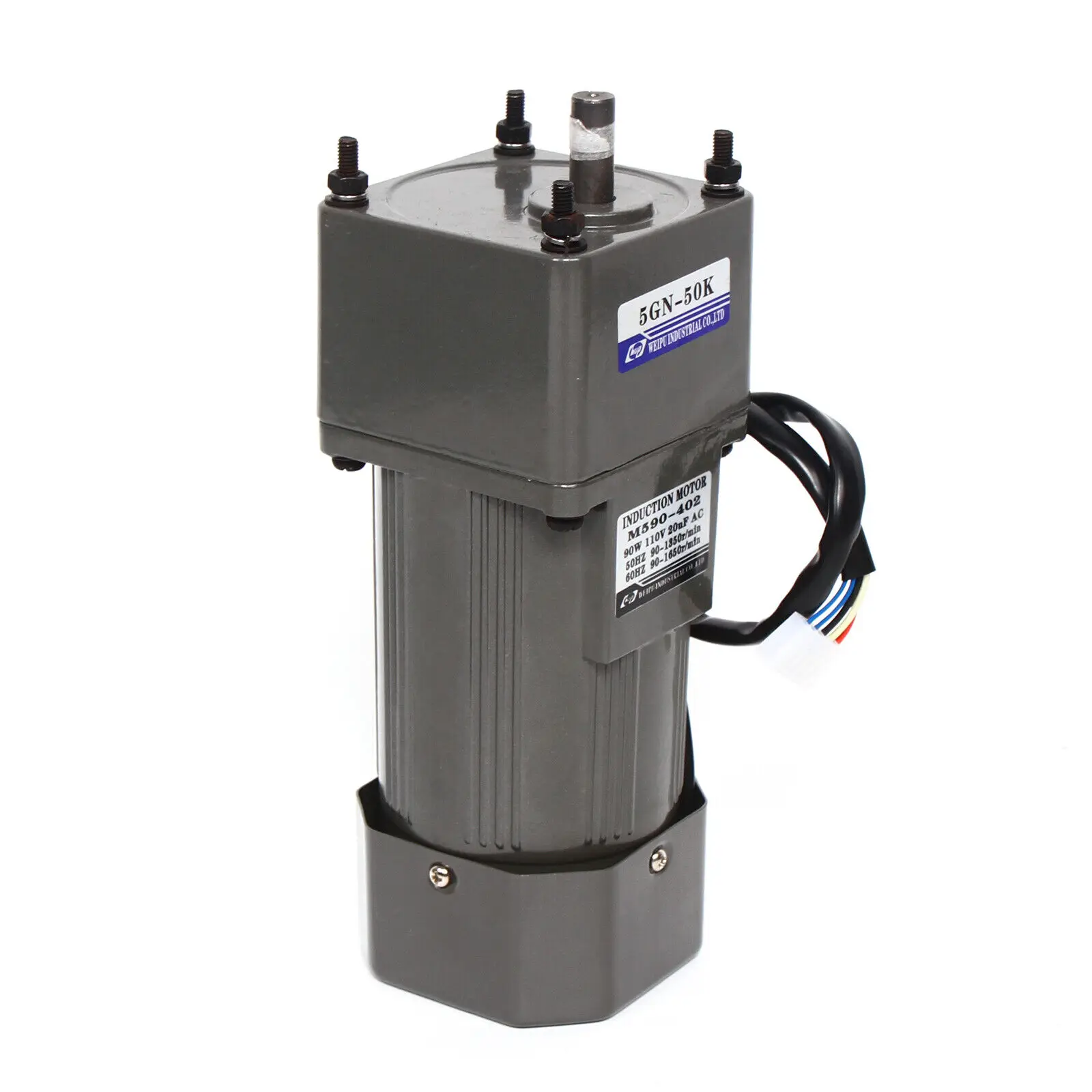

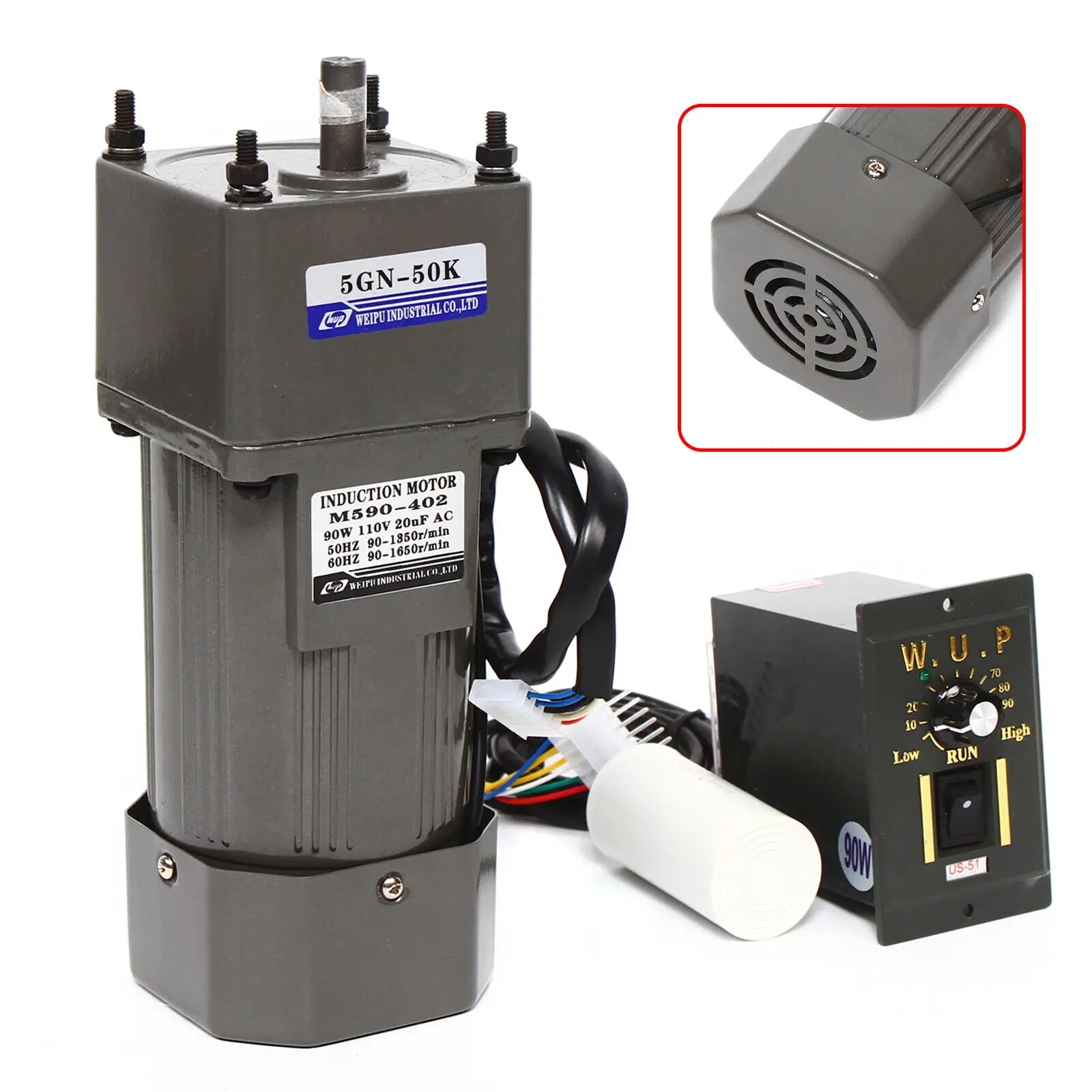

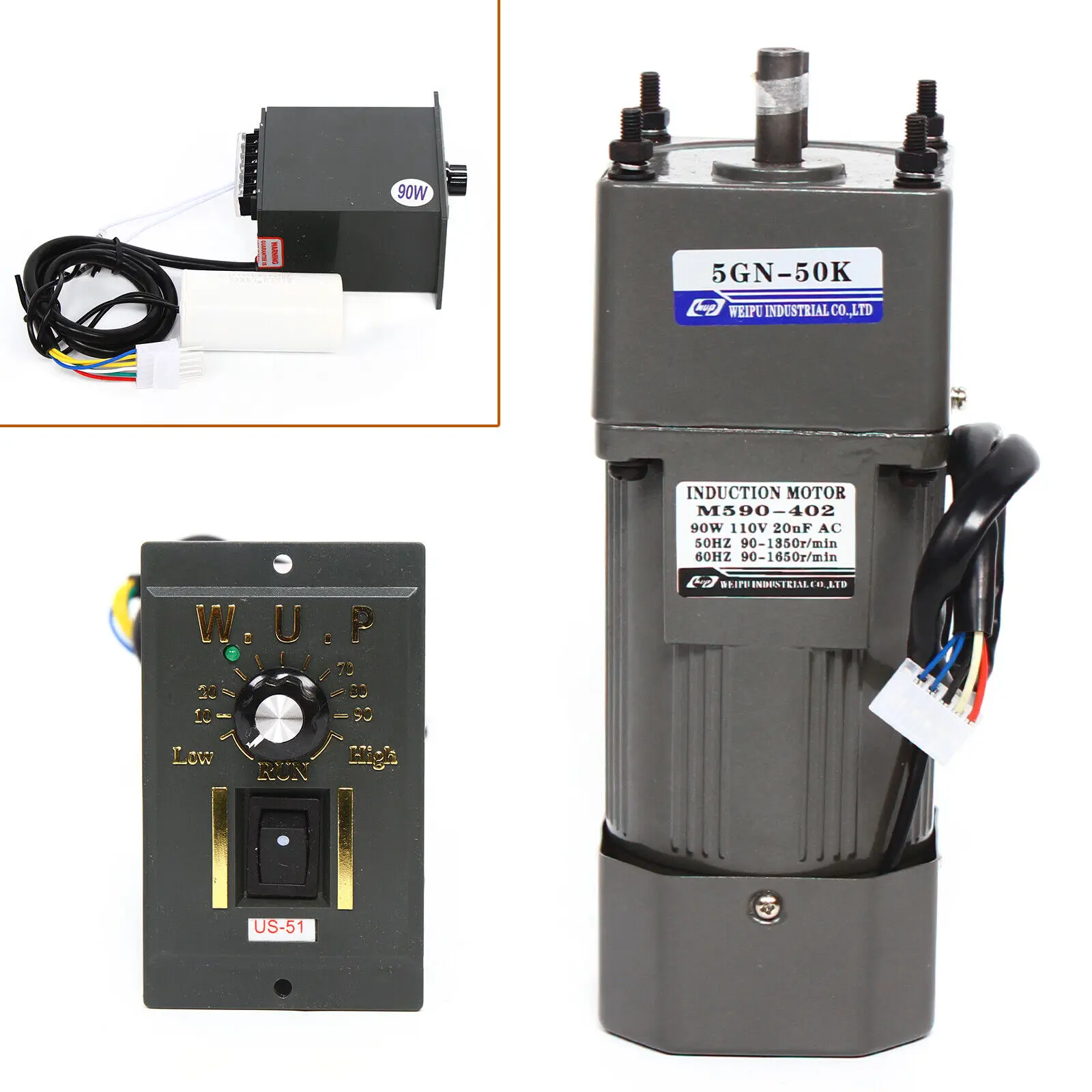

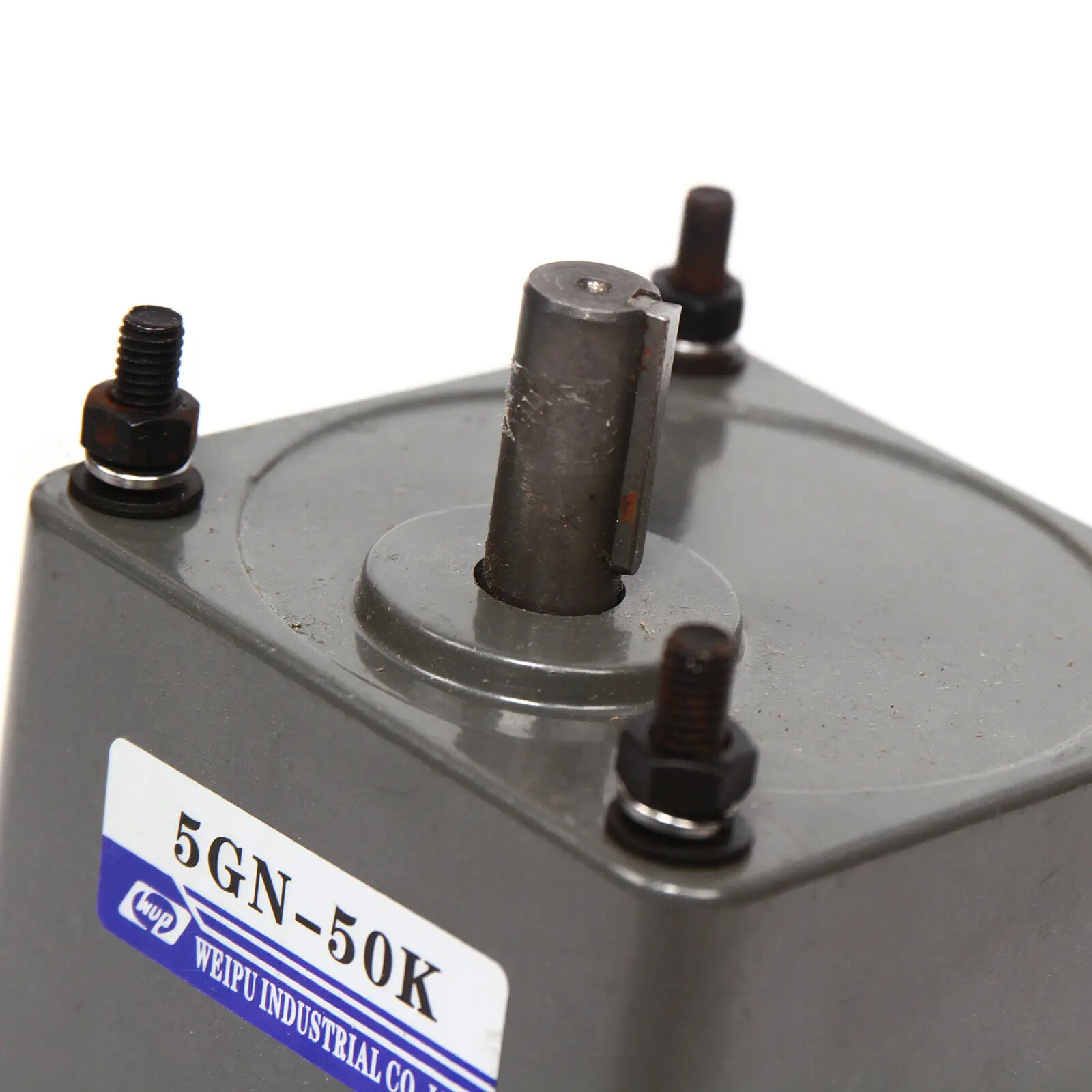

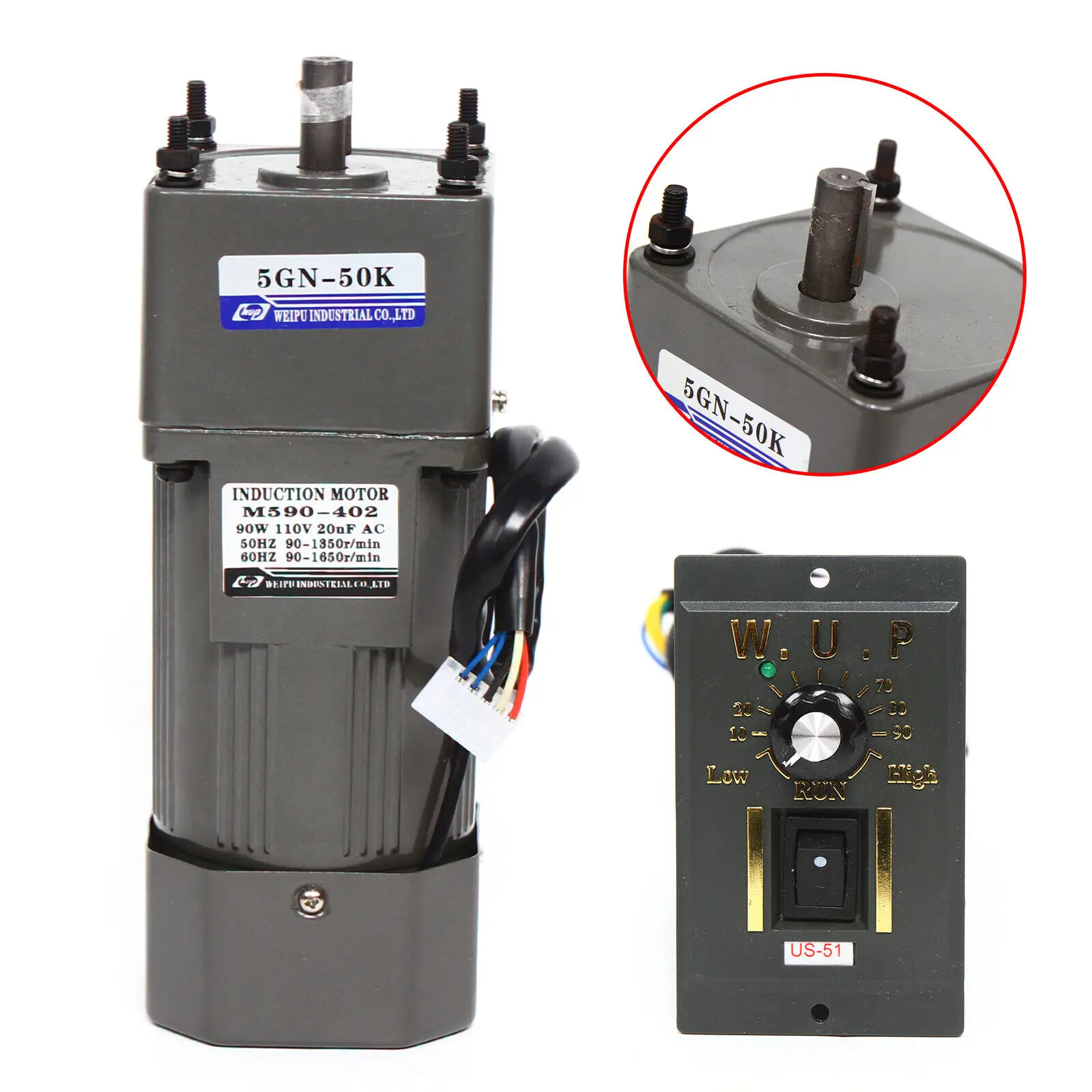

90W 220V AC 50K Gear Motor Reducer Electric Variable Speed Controller 0-27RPM

Specification:

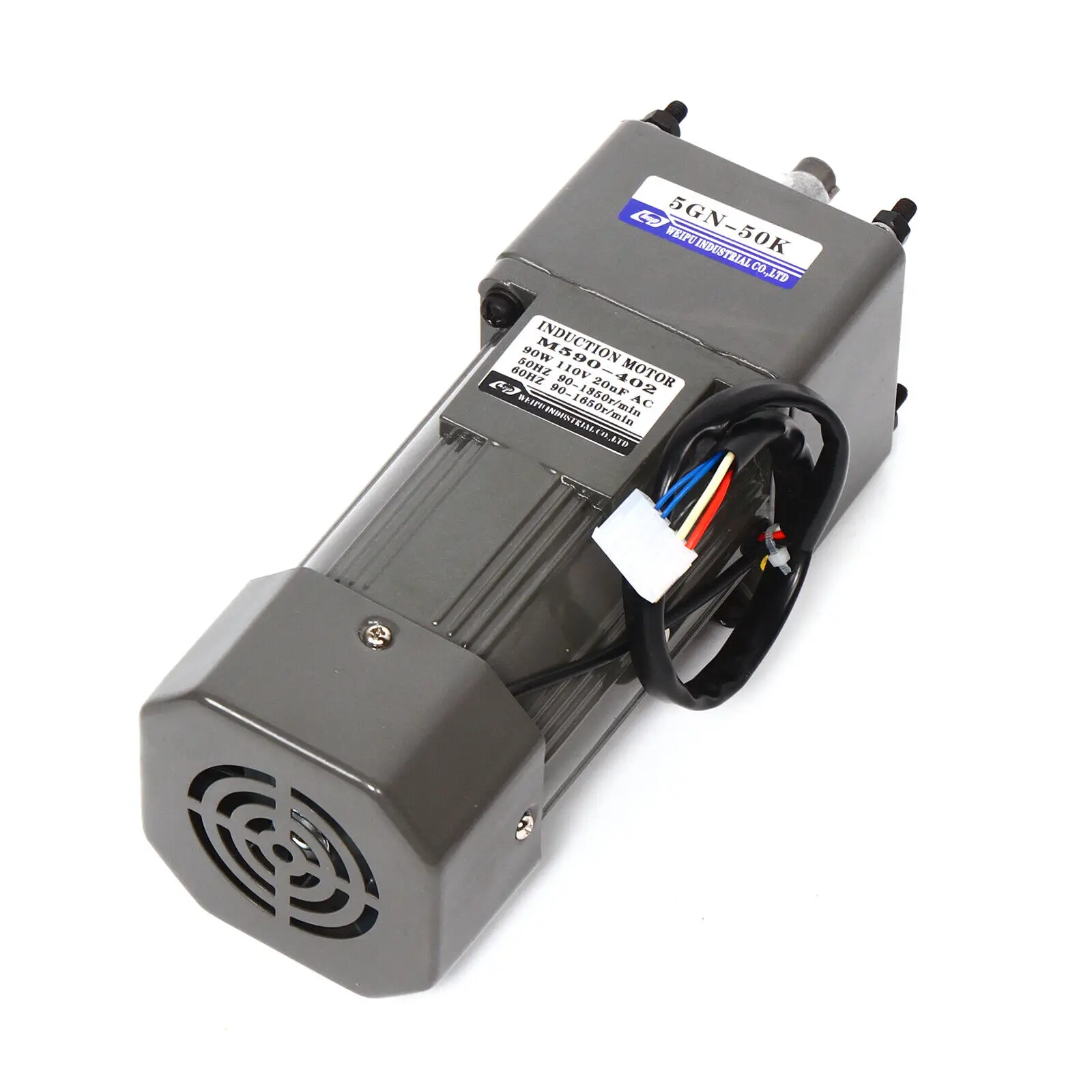

Name: AC gear motor

Rated voltage: 220V

Rated speed: 0-27 RPM

Reduction ratio: 1:50（50K）

Torque: 21nm

Power Phase: single-phase

Shaft diameter：12mm

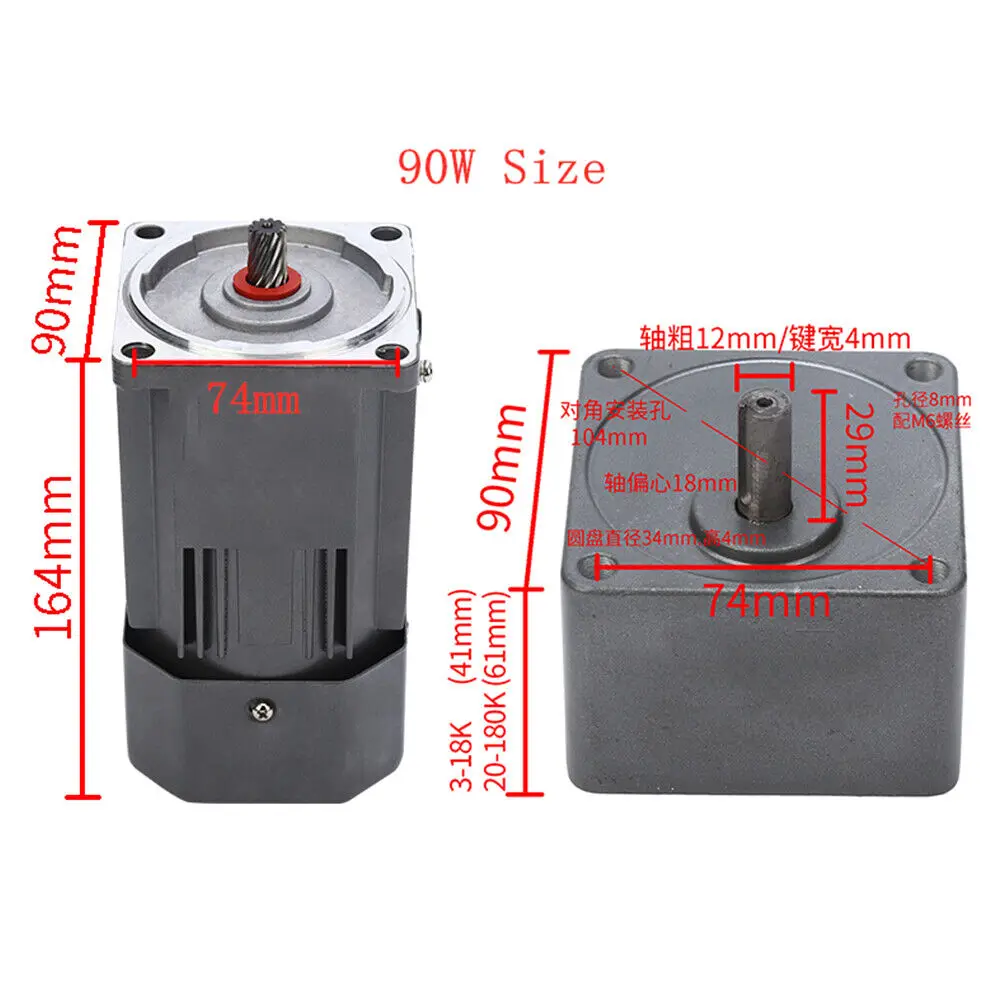

geared motor size：164MM * 90MM *74MM

Reducer size: 61*90*74mm

Warm tips: the product label may be 110V, but the physical object is 220V

Features:

Flexible installation

Efficient works

Torque large

Smooth operation

Long working life

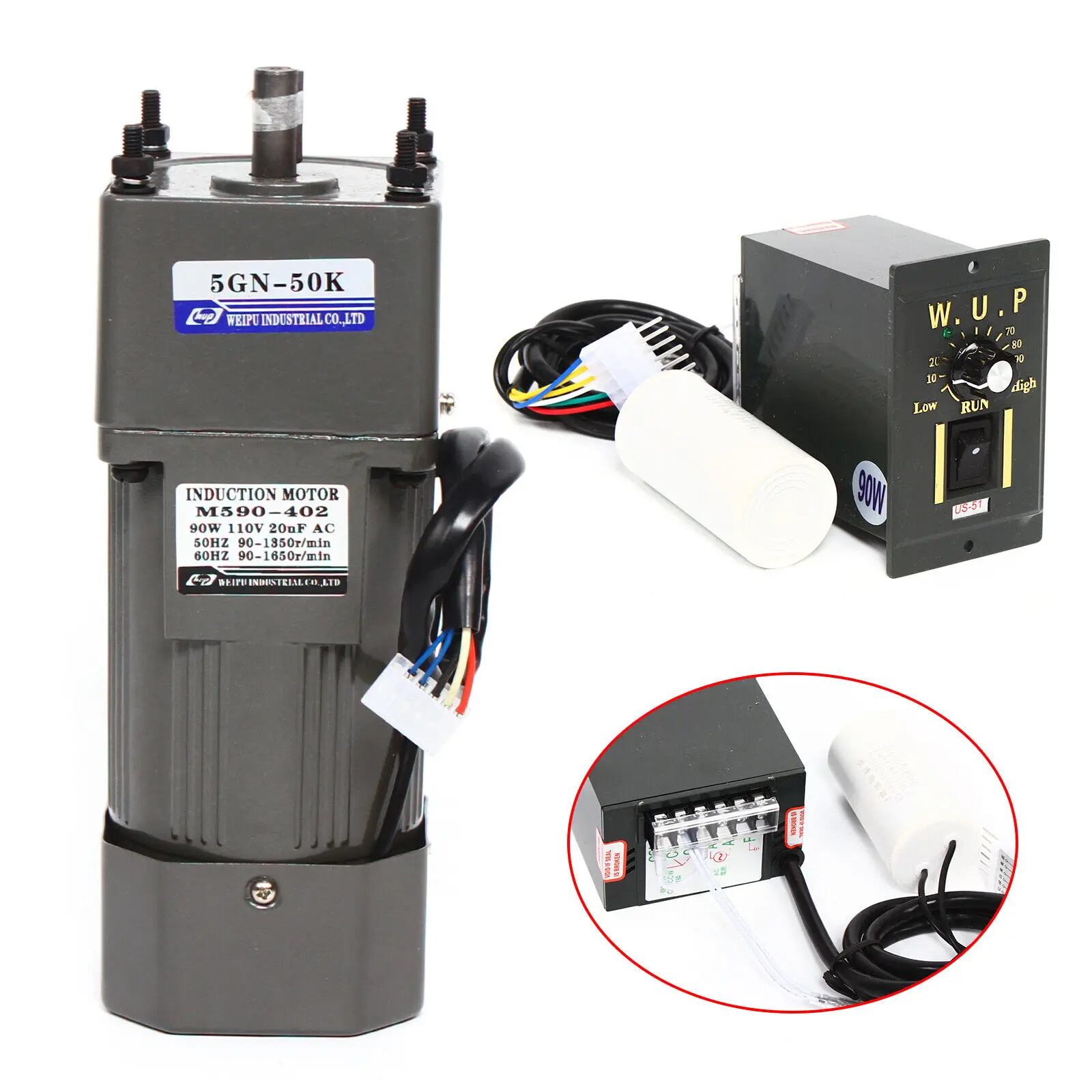

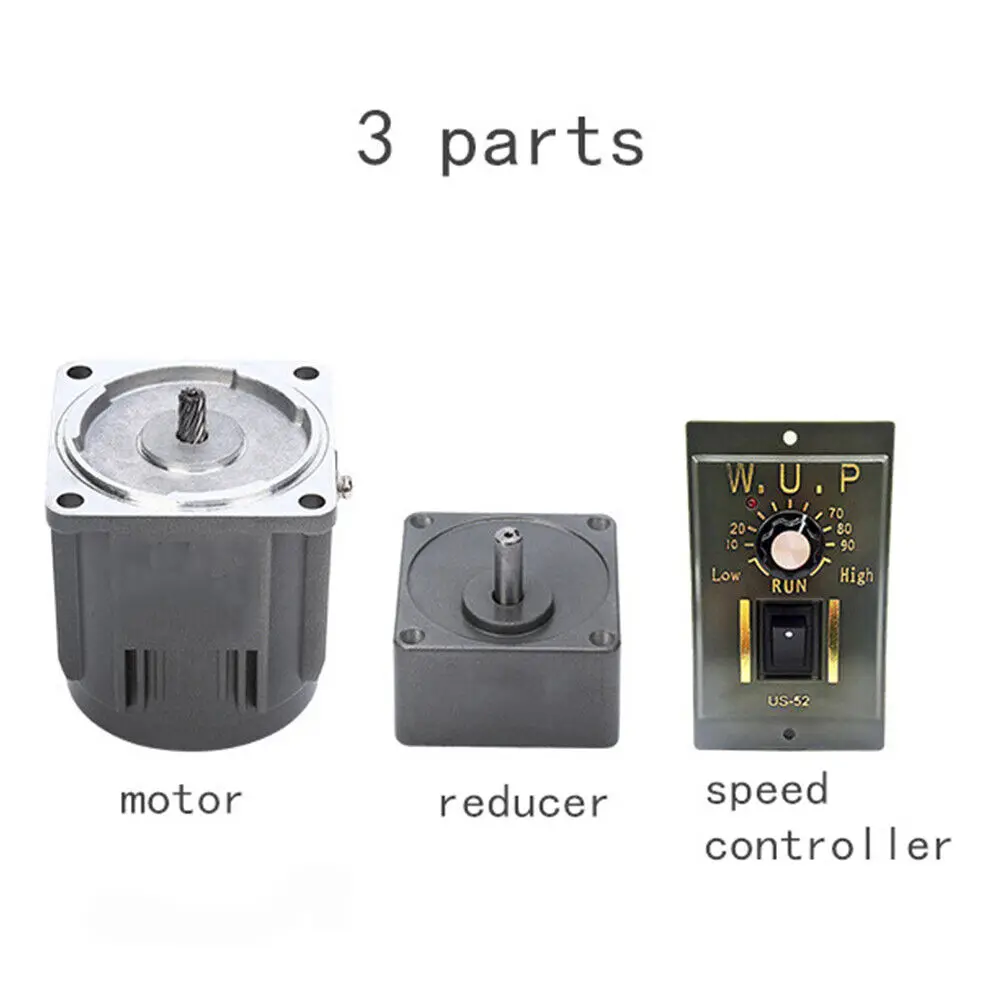

Packing list:

1 x motor

1 x reducer

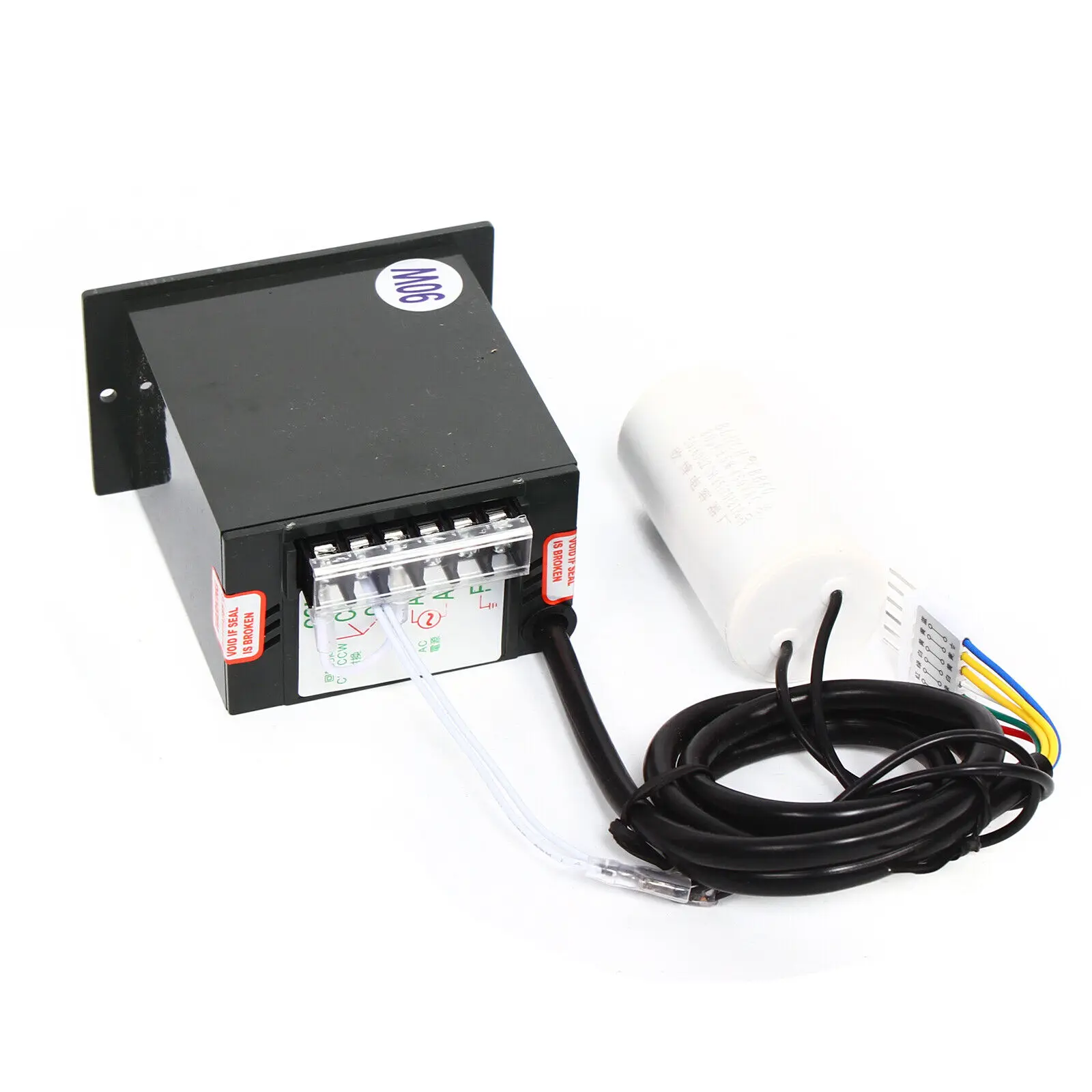

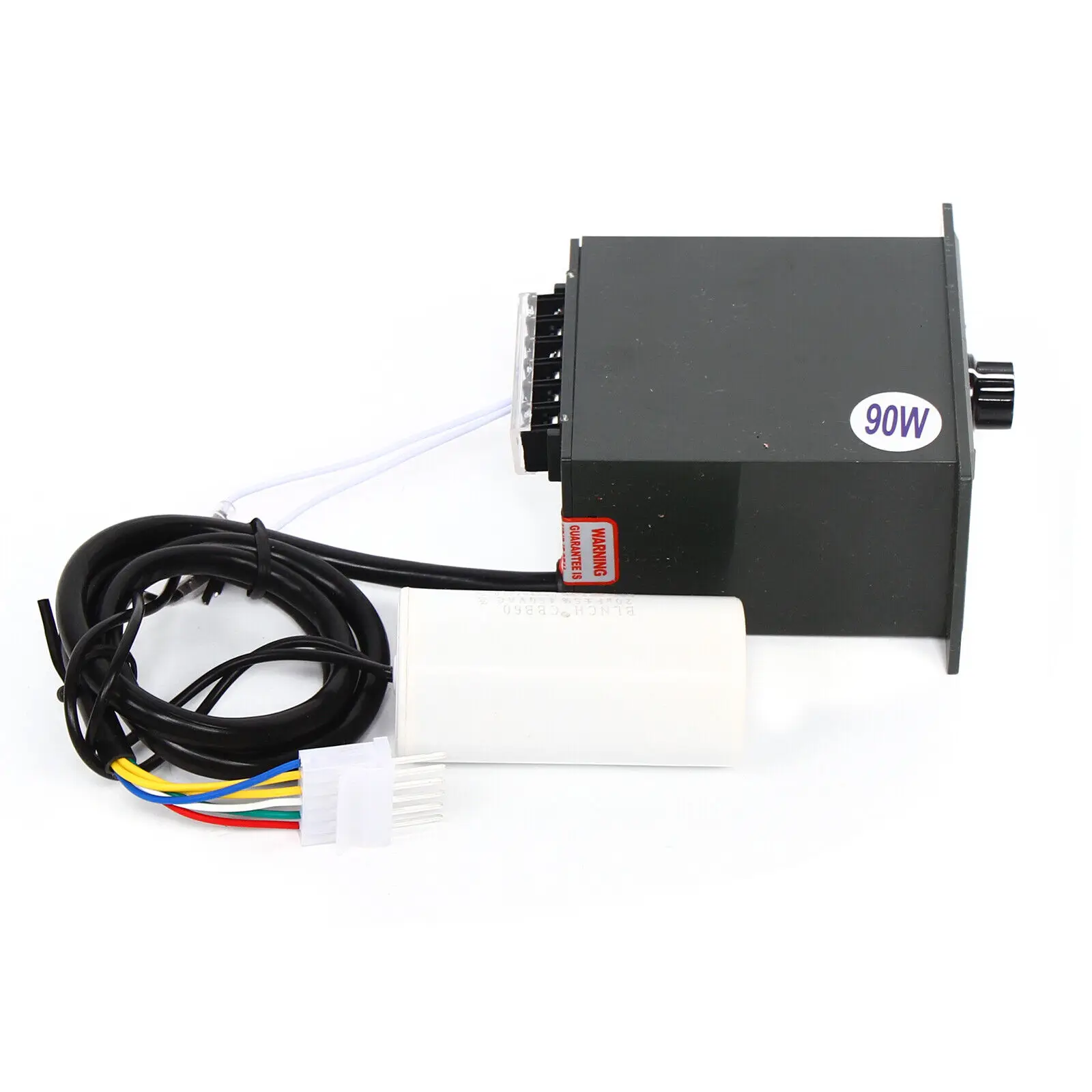

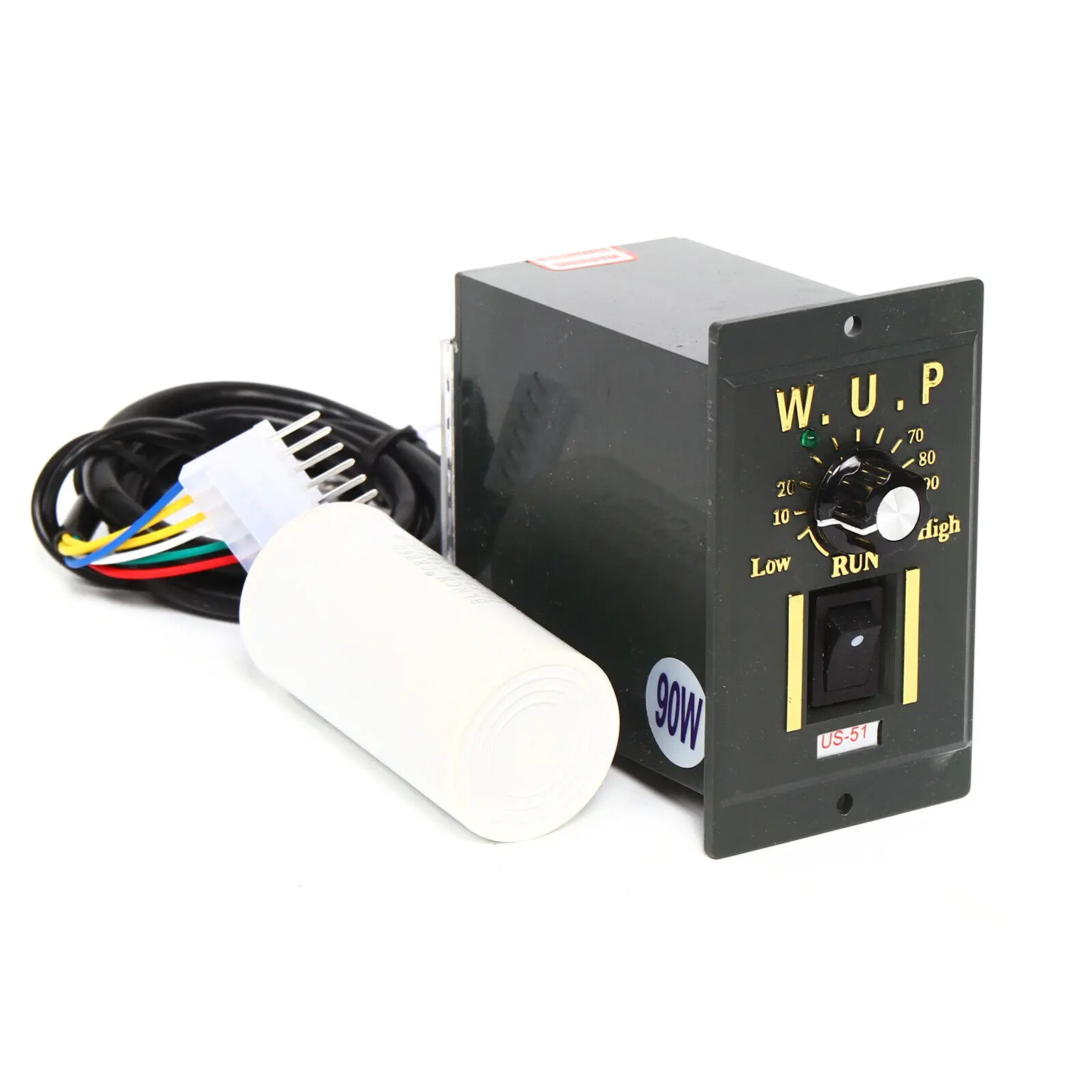

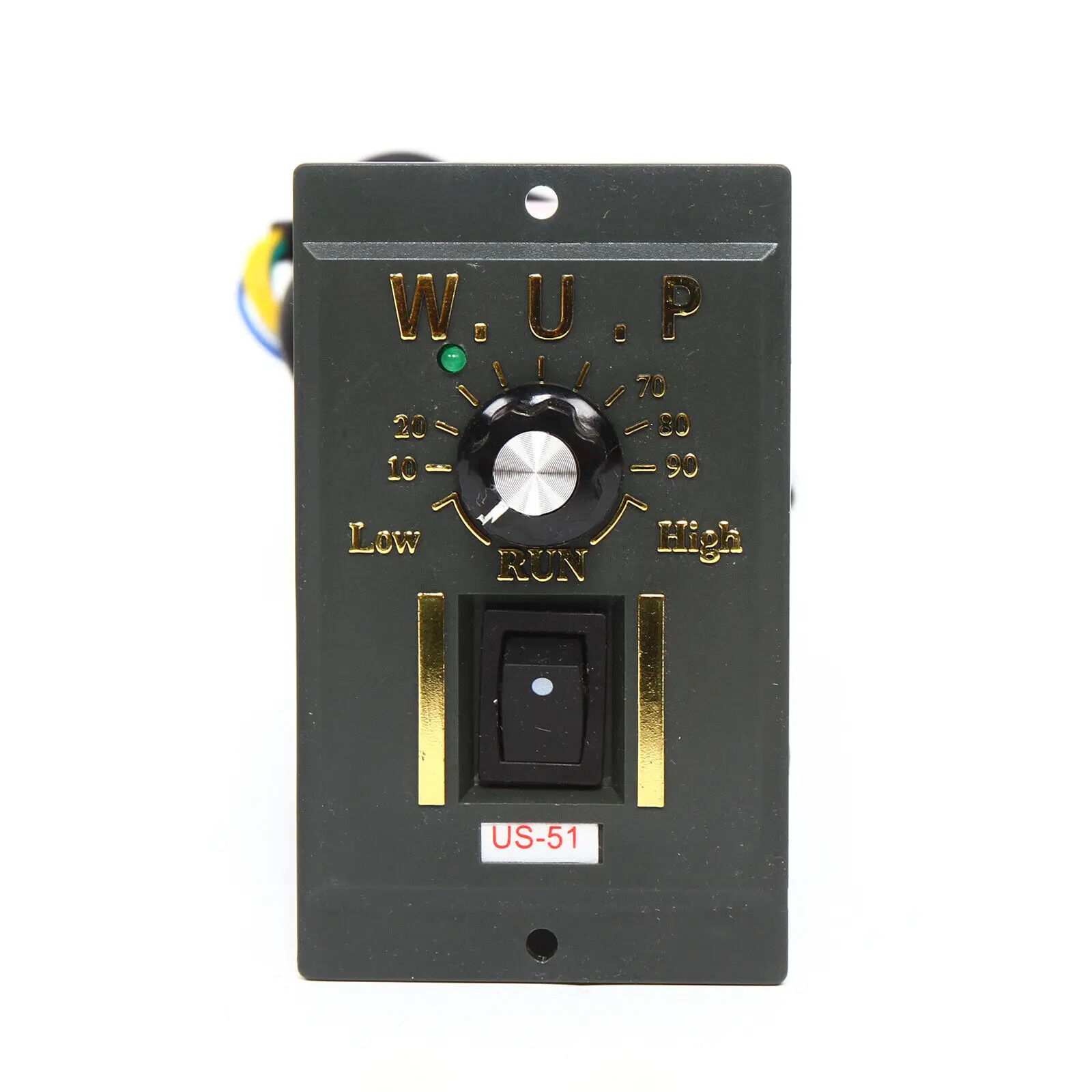

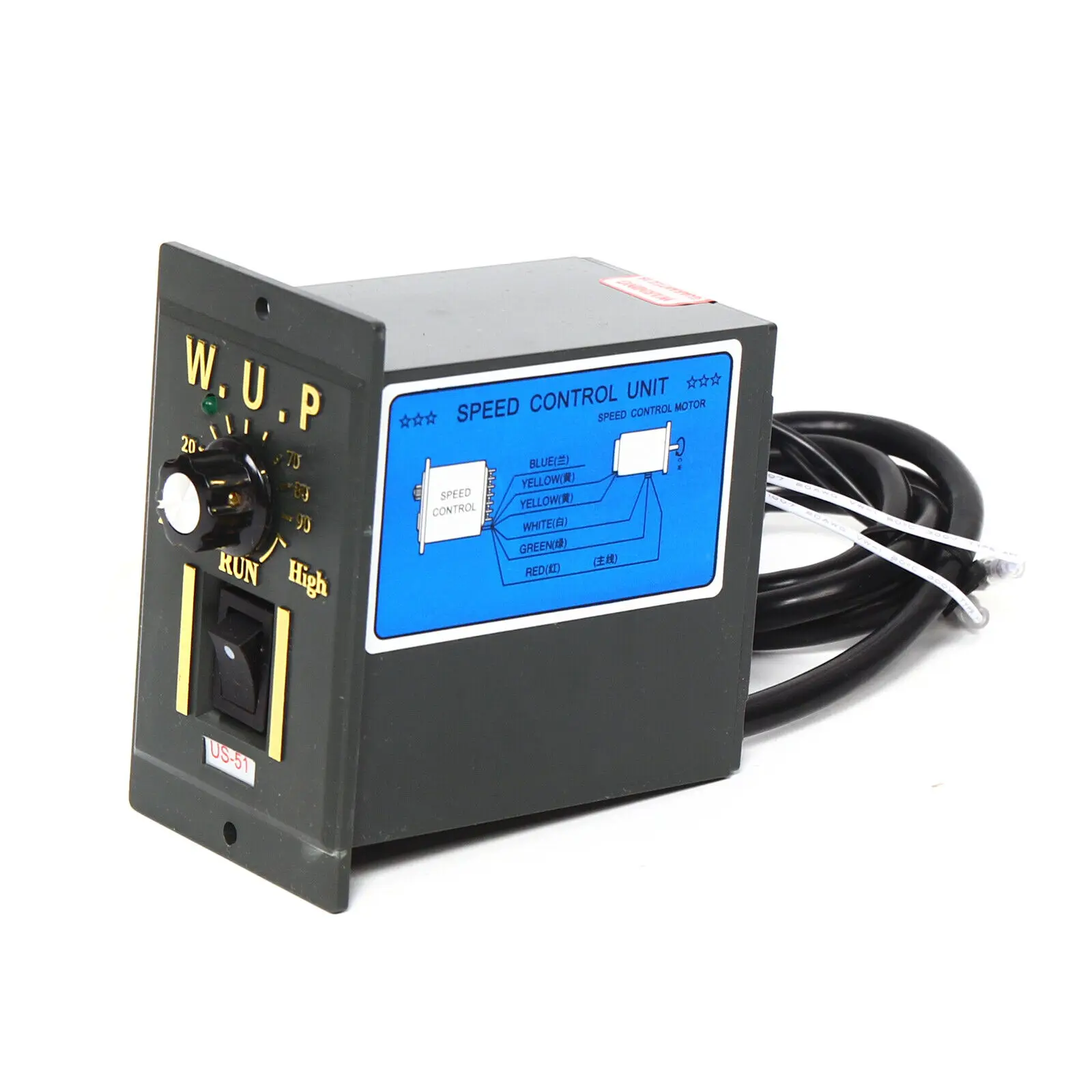

1 x speed controller

Note: Under different deceleration ratio, the output shaft speed is different. The output shaft speed is equal to the motor speed of 1350 rpm divided by the deceleration ratio.
