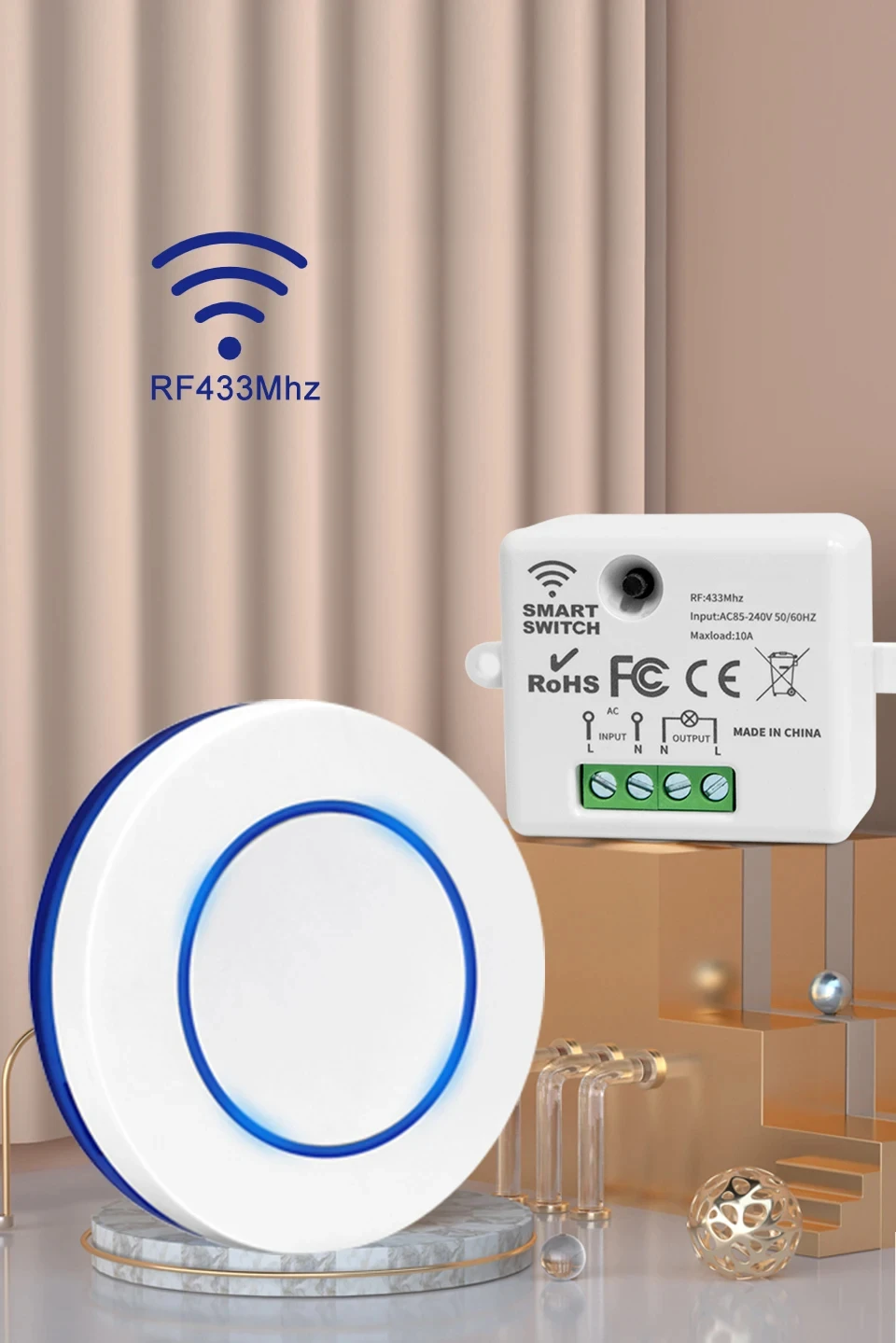

RF 433MHz Wireless 10A Relay Receiver Remote Control Light Switch 220V 110V Mini Round Button Wall Panel Switch For LED Lamp

Specification:

Transmitter (Remote) :

Operating frequency: 433MHz

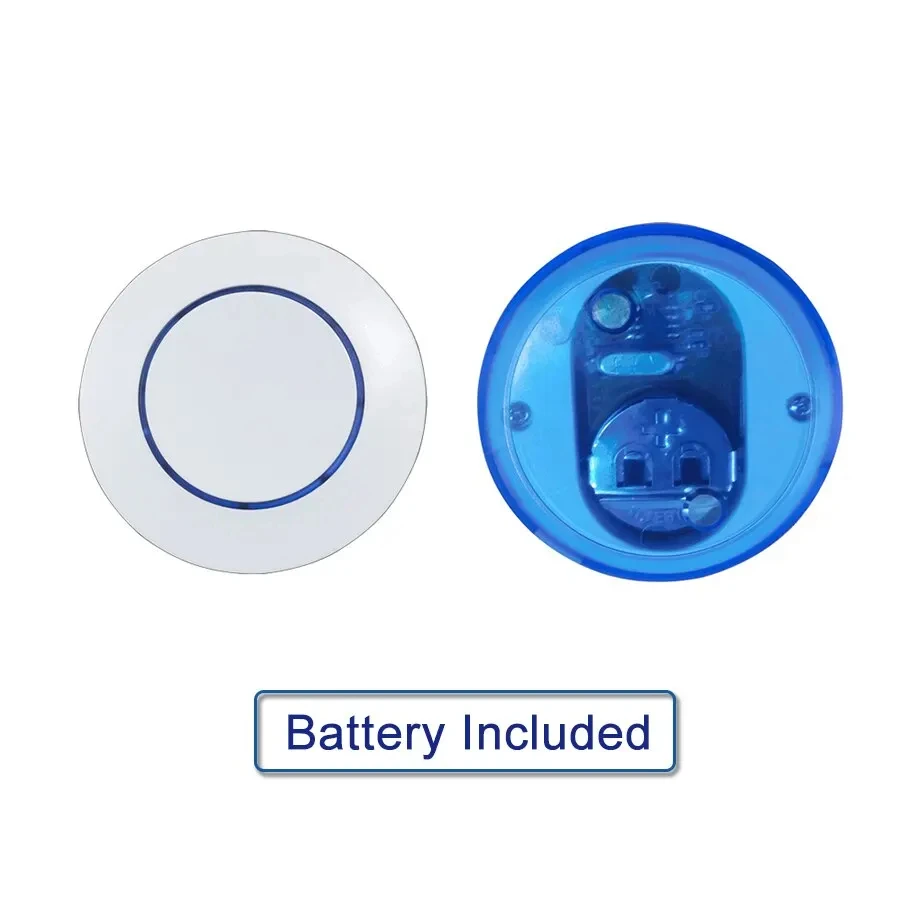

Power by 2 Pcs 3V CR2016 Battery (Battery included )

Material: PVC;

Button: 2 buttons;

Size: 60mm x 30mm;

Operating voltage: 3V ;

Operating Current: 12mA;

Transmitting power: 10mw;

Modulation mode: ASK (AM).

Encoding type: Learning.

Transfers distance: 20~50m

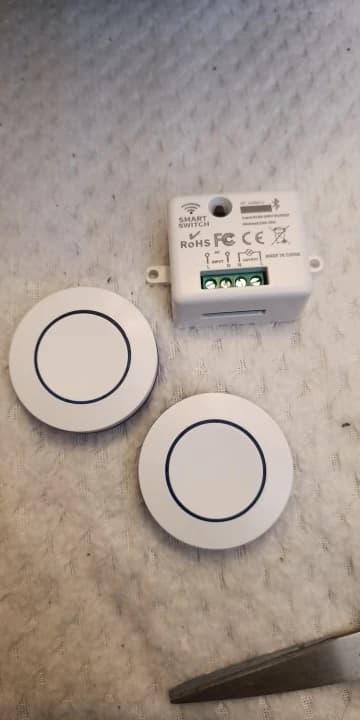

Controller (Receiver) :

Input Power: AC85-240V 60HZ/50HZ

Max current: 10 A

RF Frequency: 433Mhz

Working temperature:-30~+80

RF working mode: superheterodyne

Receive sensitivity: >97dbm

Transmitting distance: more than 50 m ( open space)

Remote storage:10pcs

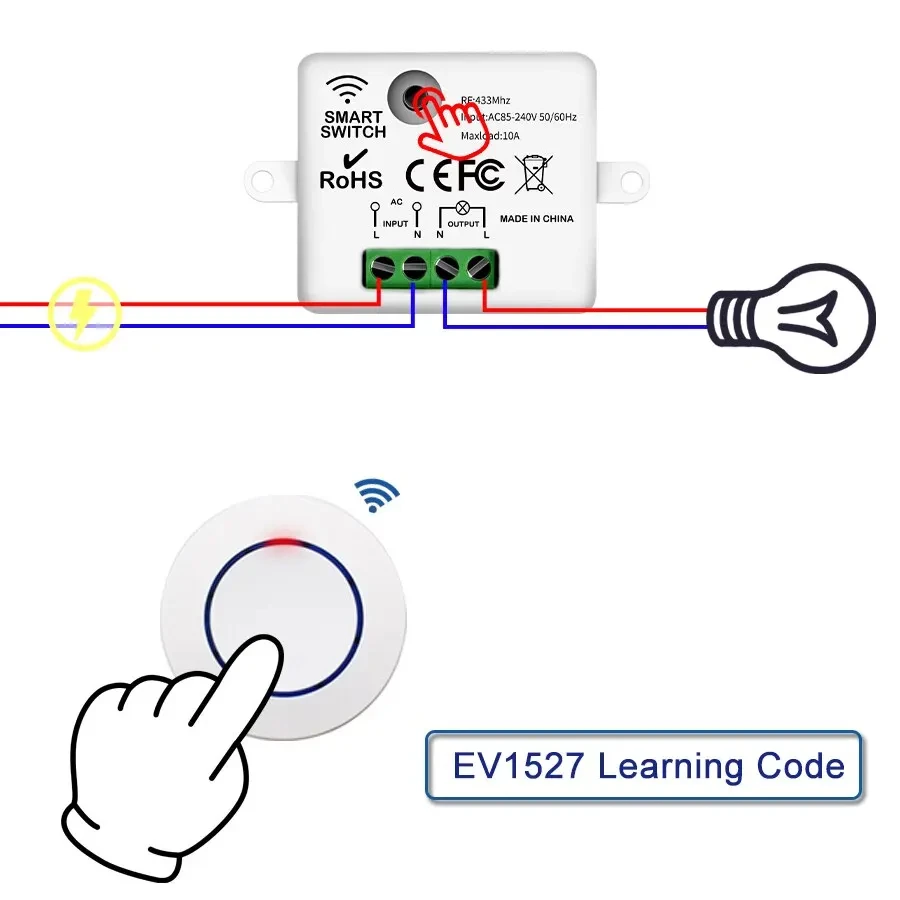

Support remote type: Learning code 1527code

Size: 47.4*42*22.8 (mm)

Feature:

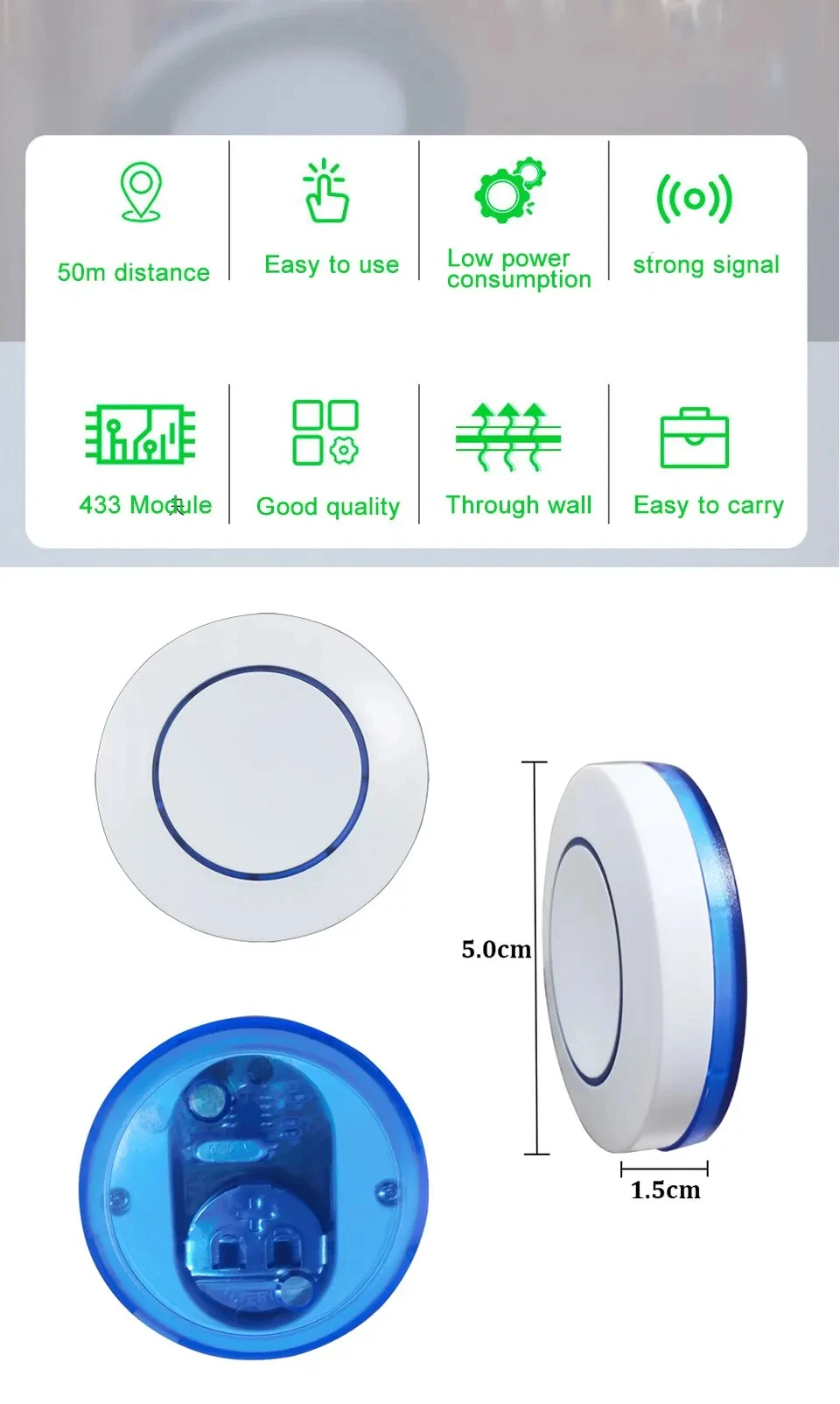

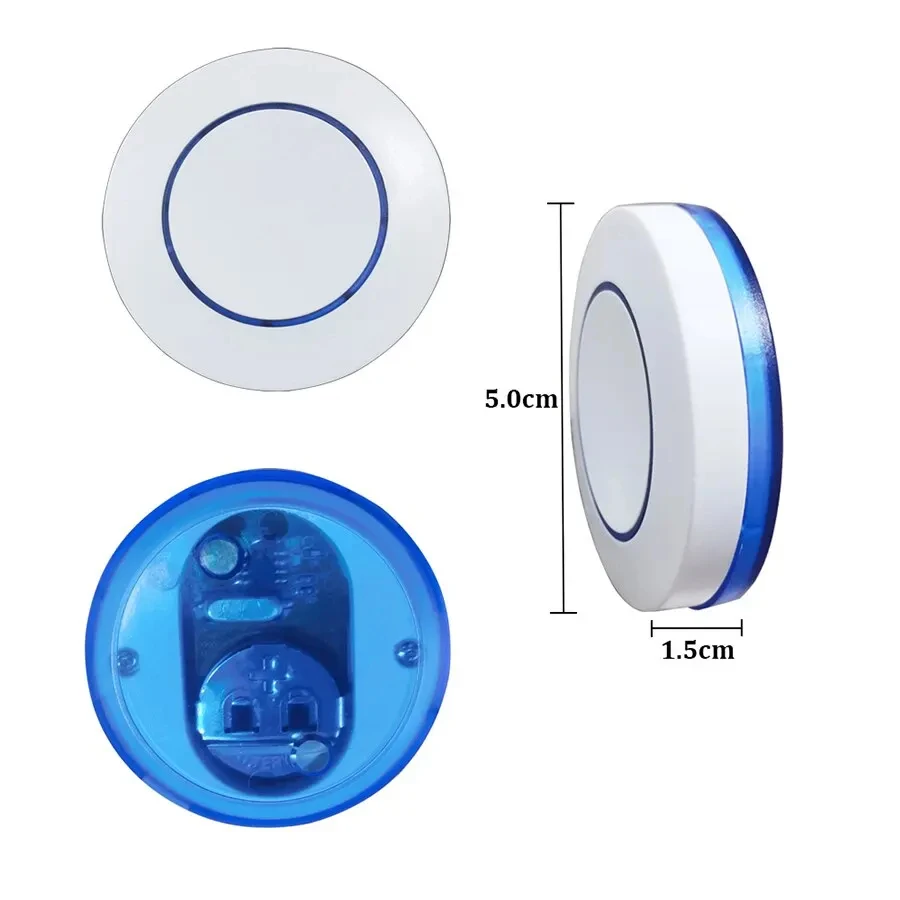

1. New mini round wireless panel switch(50mm*50mm*15mm)

2. 10A power: suitable for most equipment, safer to use

3. Mini body: can be directly installed in the switch bottom box, maintenance and installation are more convenient

4. Up to 50 meters remote range.The more obstacles, the shorter the distance, the more serious the signal loss.

5. After turning off the power, turn on the power again, the device status is off.

How to get the signals？

Step 1: Press the learning button(on the Receiver) twice . Wait for 3 seconds;

Step 2: Press one button on the remote control. Wait for 3 seconds. Succeed.

How to clear the signals？

Only one step :Press the learning button(on the Receiver) 8 times.

Note:

The relay controller is RF Receivers,the wall switch is RF only.Wall switch itself cannot control lights on off.It needs to work with rf receiver together.
