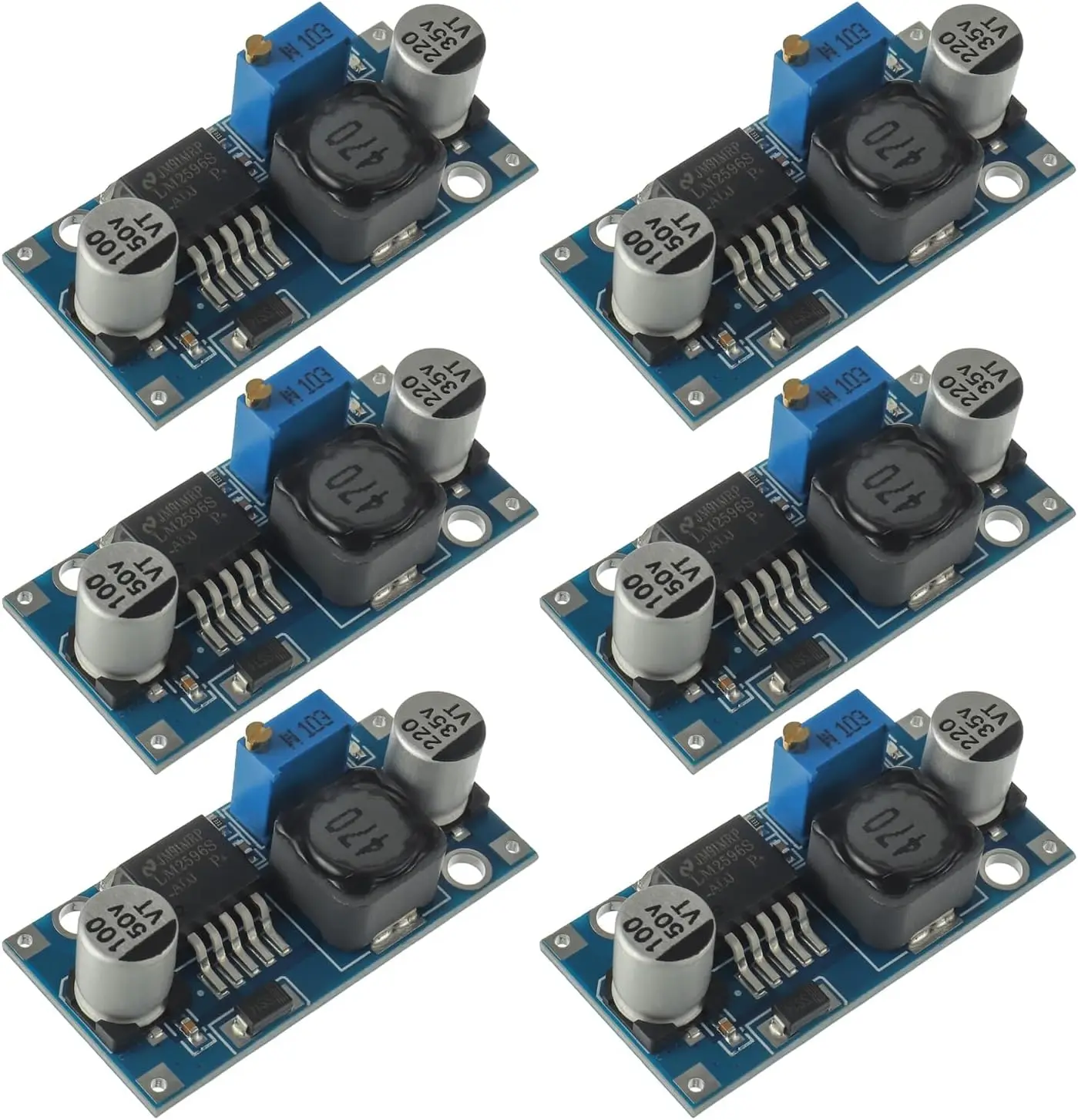

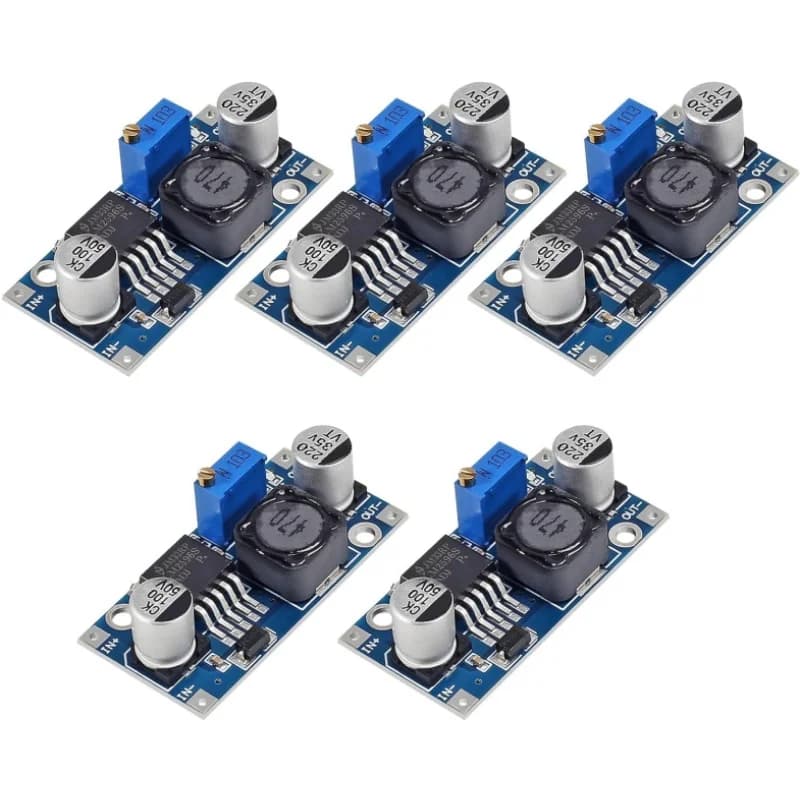

1/5/10PCS LM2596 DC to DC Buck Converter 3.0-40V to 1.5-35V Power Supply Step Down Module

Input: DC 3 V to 40 V (input voltage must be 1.5 V higher than the output voltage, no boost)

Output: DC 1.5 V to 35 V voltage is continuously adjustable, maximum output current is 3 A

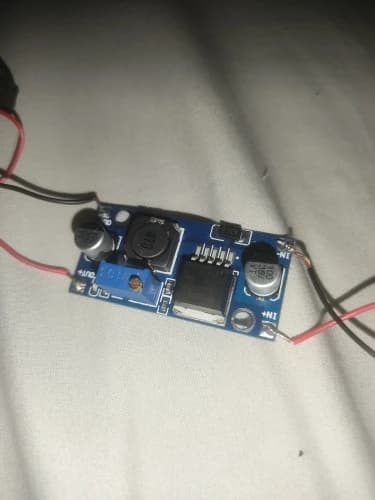

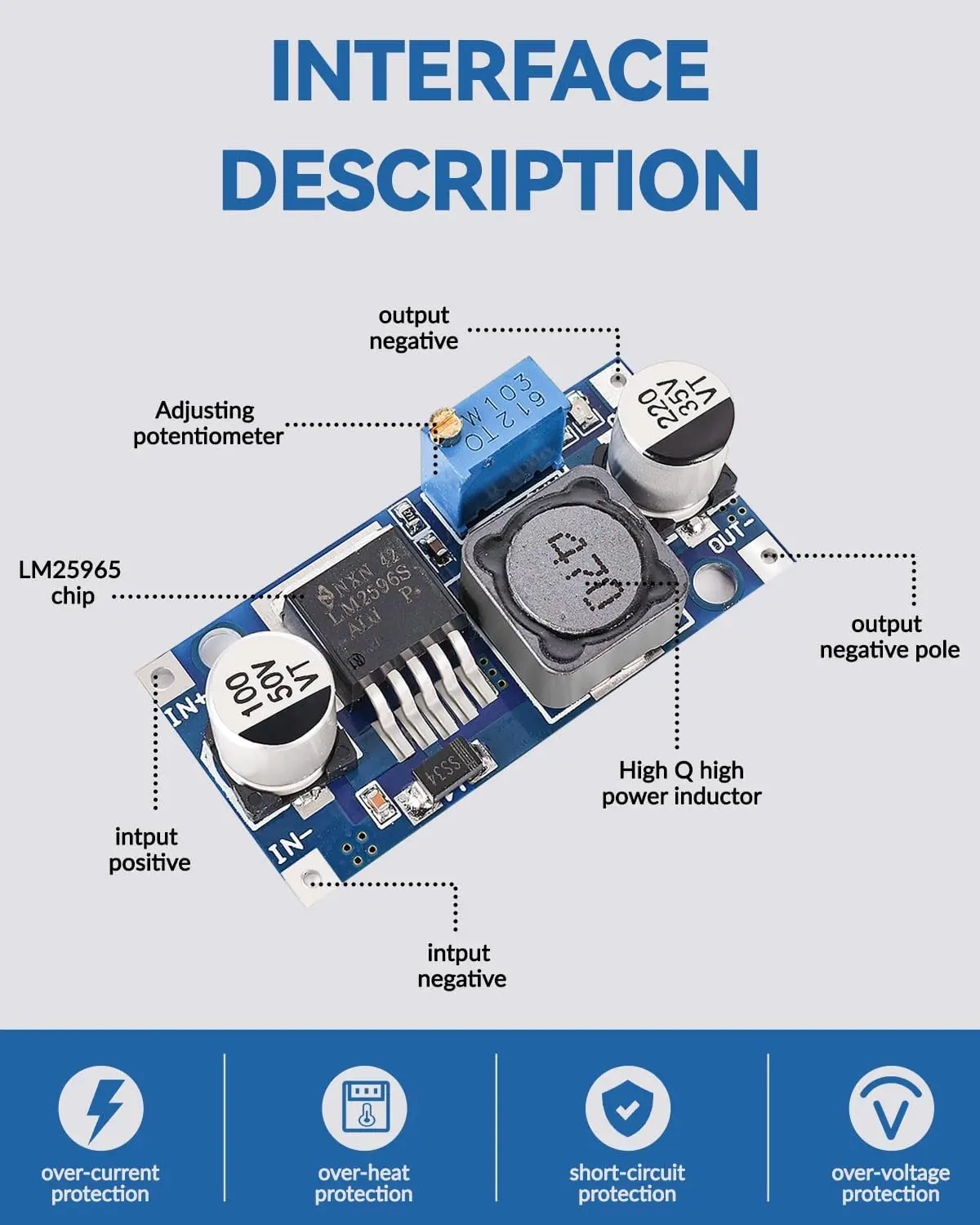

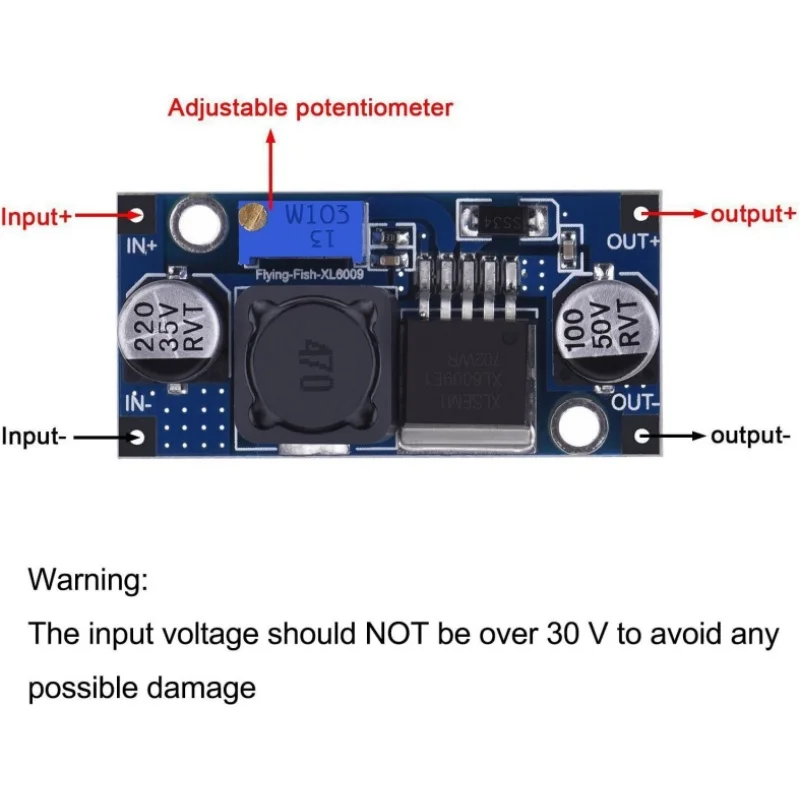

Steps: connect to power source, adjust the swirl button on the blue potentiometer and monitor voltage with multimeter to get the needed voltage (The factory have tested these at max voltage so they are very high by default, takes about 15-20 turns CCW before the voltage starts ramping down)

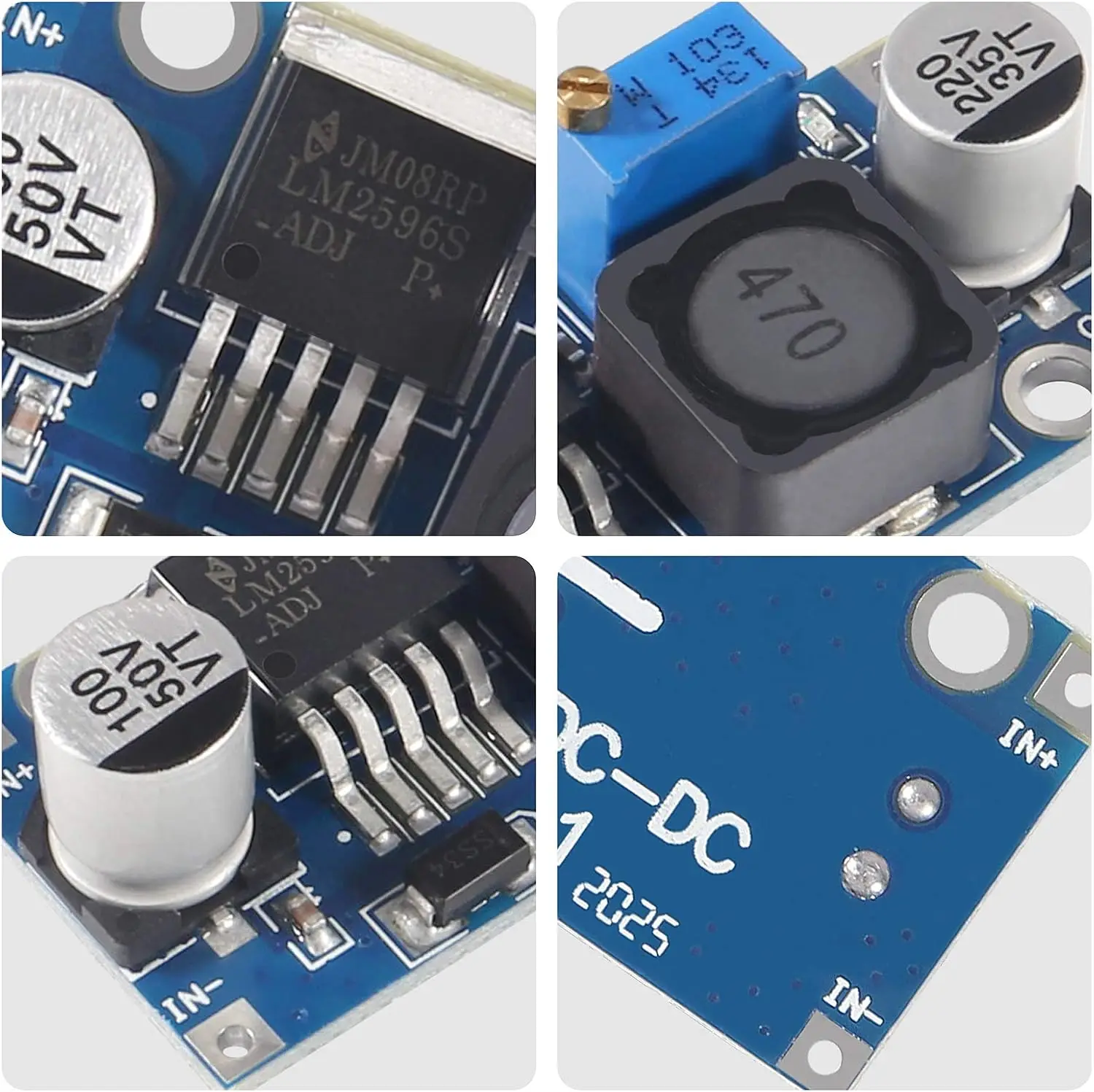

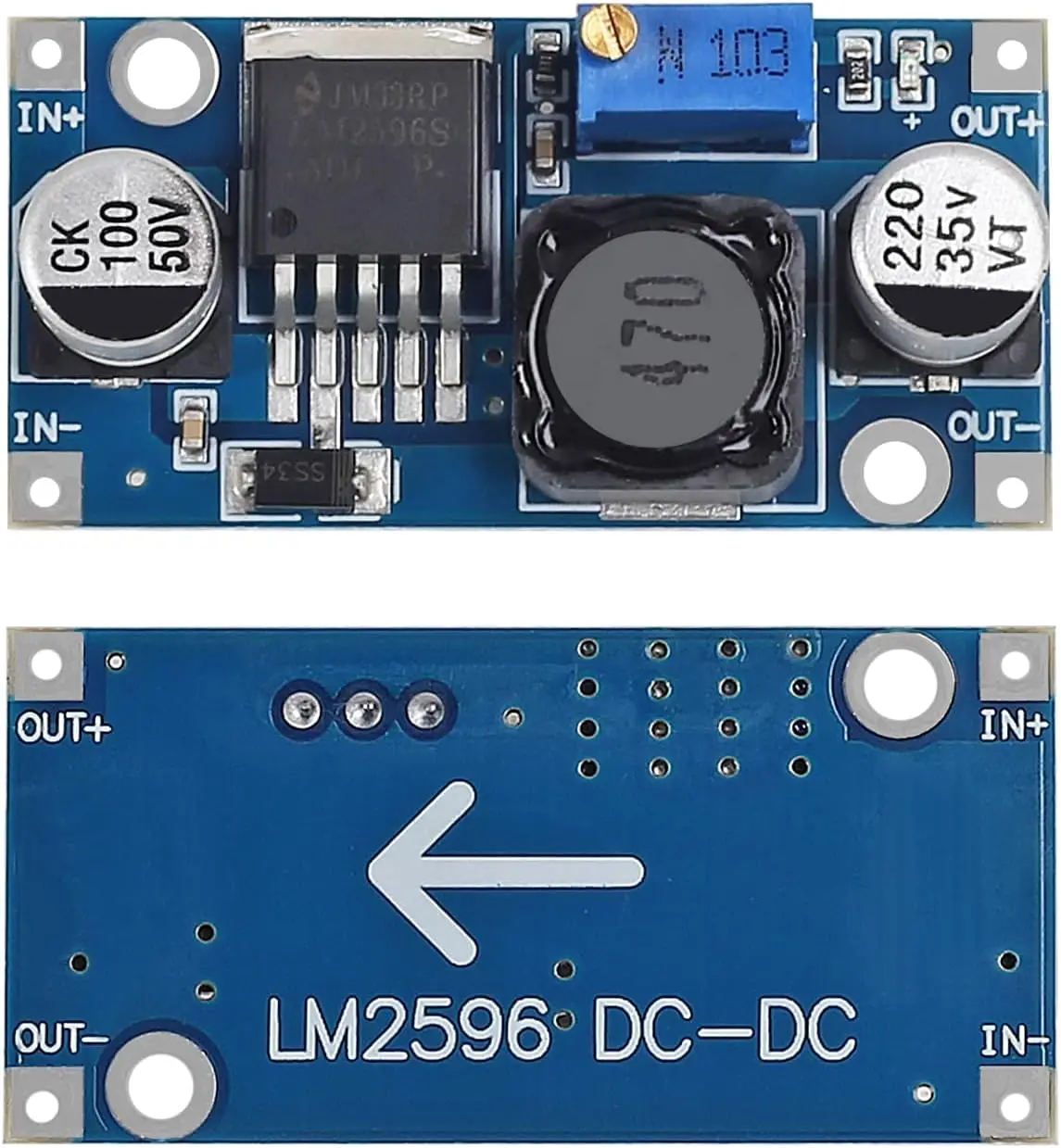

Features: all use SANYO solid-state capacitors, 36 u thickening circuit boards, high-Q inductance with LED indicator output

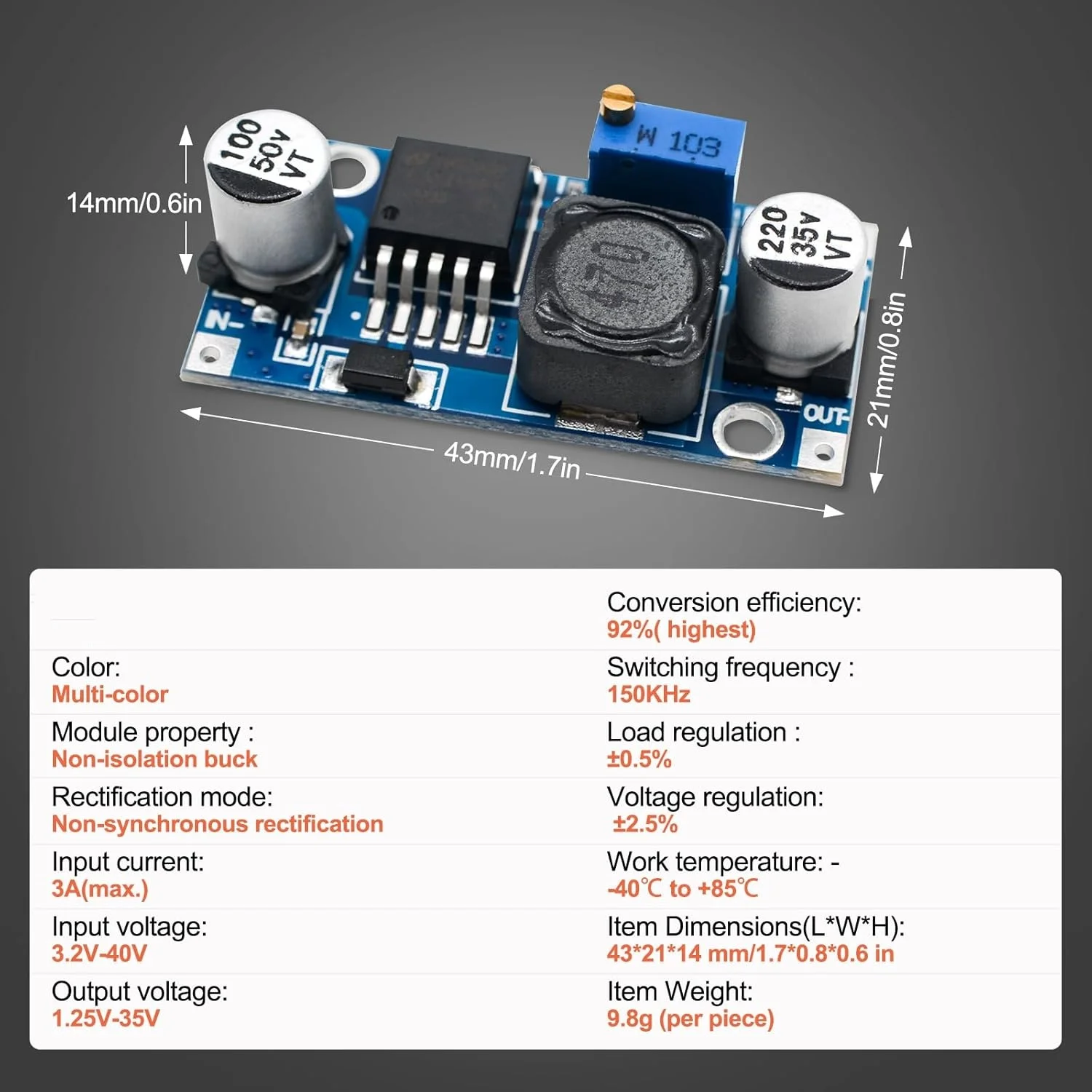

Size: 45 * 20 * 14 mm

Features:

- DC to DC step down module
- Thickened circuit boards
- Advanced solid-state capacitor

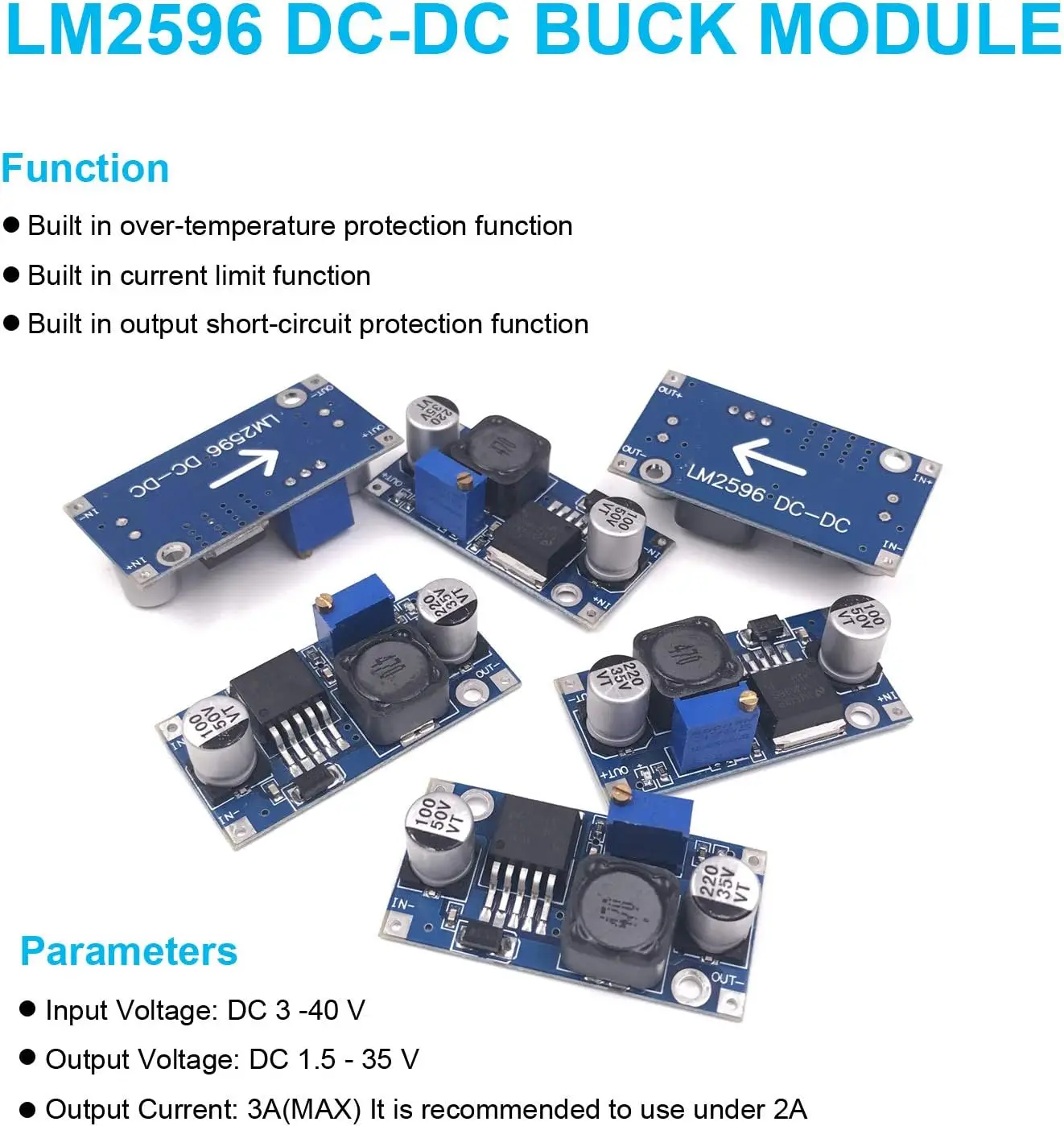

- Short circuit and over-temperature protection

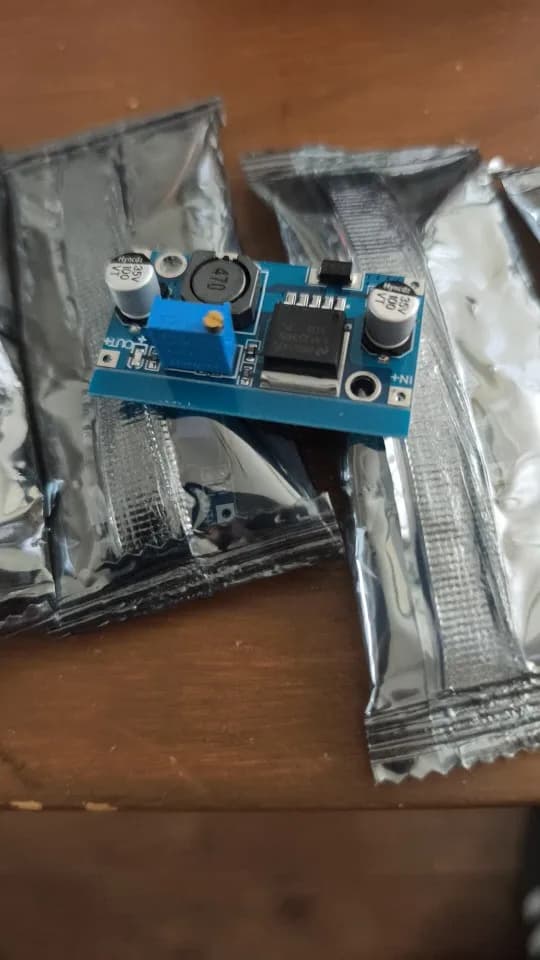

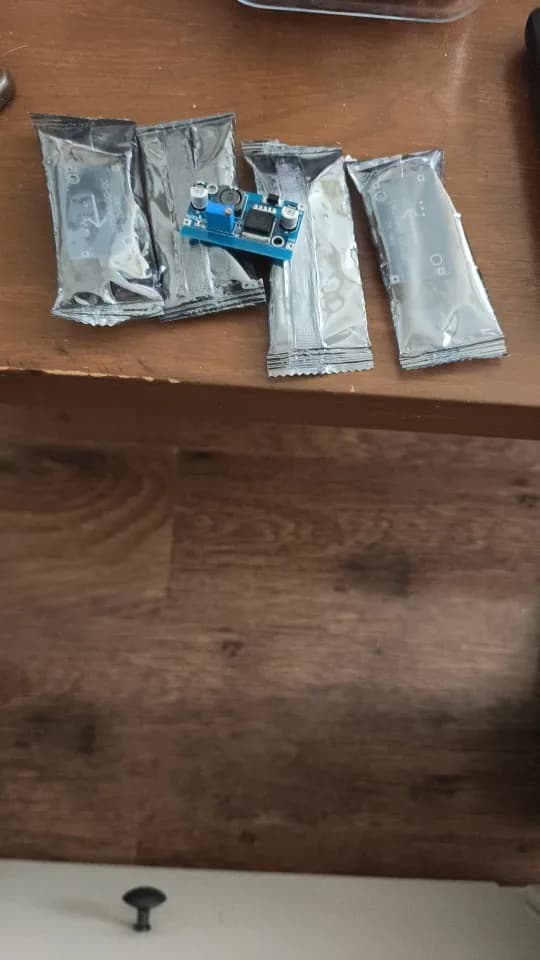

- 100% tested, sealed in anti-static packaging

Kindly Note:
1. Input voltage must be 1.5 V higher than the output voltage, no boost
2. Do not reverse the input and output interface
3. Keep output under 2.5A and use a heat sink when for a long time working

Specifications:
- Model: LM2596
- Input voltage: DC 3V - 40V
- Output Voltage: DC 1.5V - 35V (adjustable)
- Output Current: 3A (max.)
- Conversion Efficiency: 92% (max.)
- Switching Frequency : 65KHz
- Rectification: non-synchronous rectification
- Module property: non-isolated buck module
- Operating Temperature: -45℃ to +85℃
- Load Regulation: ±0.5%
- Voltage Regulation: ±2.5%
