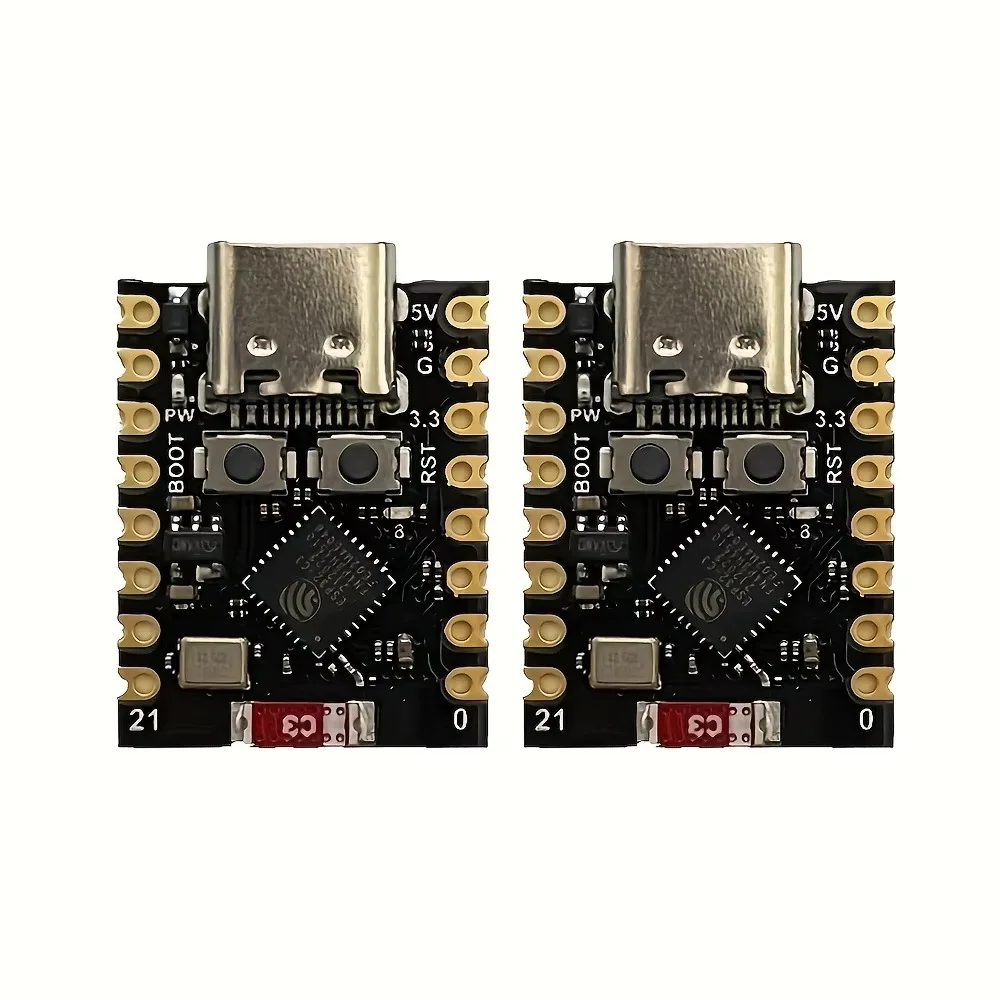

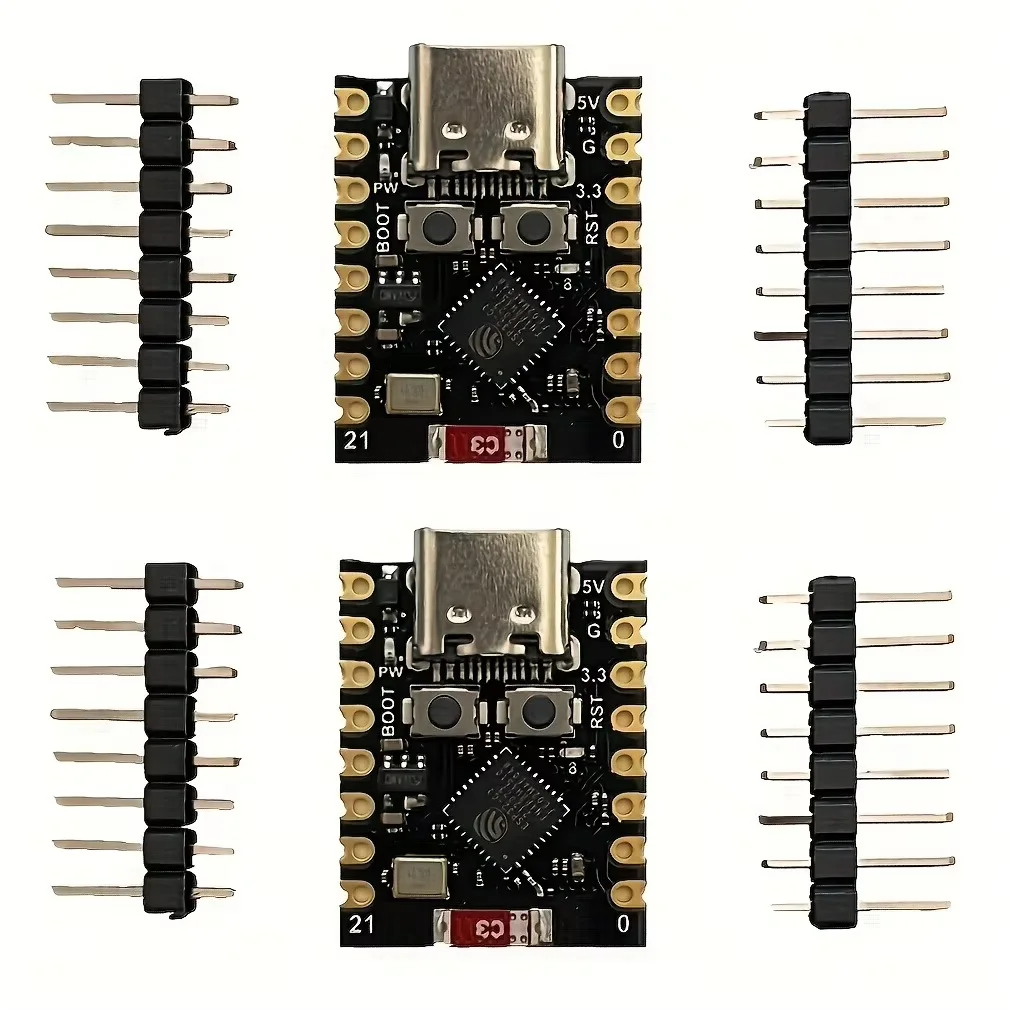

ESP32 C3 Development Board Modules Mini Wifi BT Bluetooth Module 32-Bit Single-Core Processor ESP32 C3 16Pin Type-C

Link to documentation: https://www.nologo.tech/product/esp32/esp32c3SuperMini/esp32C3SuperMini.html

Tutorial on using Arduino to upload programs: https://chat.nologo.tech/d/72

If an external power supply is required, simply connect the positive terminal of the external power supply to the 5V pin and the negative terminal to GND. (Supports 3.3–6V power supplies). Please note that when an external power supply is connected, the USB port cannot be used; you must choose between USB and external power.

Entering download mode: Hold down the BOOT button on the ESP32C3, then press the RESET button. Release the RESET button, then release the BOOT button; the ESP32C3 will now enter download mode. (You must re-enter download mode each time you connect. Occasionally, a single press may not suffice if the port connection is unstable and disconnects; you can determine this by listening for the port identification sound.)
ESP32 offline installation package download link: https://arduino.me/download
ESP32 series MicroPython firmware download tutorial: https://chat.nologo.tech/d/75
ESP32 series Arduino firmware download guide: https://chat.nologo.tech/d/72
Solution for ESP32C3SuperMini/ESP32S3Pico/ESP32S2Pico serial port printing issues: In an Arduino environment, ensure ‘CDC on boot’ is enabled when using a direct USB connection; ensure ‘CDC on boot’ is disabled when using a USB-to-serial adapter.
Resource link: https://www.nologo.tech/product/esp32/esp32c3SuperMini/esp32C3SuperMini.html

Tutorial on using Arduino to upload programs: https://chat.nologo.tech/d/72

If external power is required, simply connect the positive terminal of the external power supply to the 5V pin and the negative terminal to GND. (Supports 3.3–6V power supplies). Please note that when an external power supply is connected, the USB port cannot be used; you must choose between USB and external power.

Entering download mode: Hold down the ESP32C3’s BOOT button, then press the RESET button, release the RESET button, and finally release the BOOT button. The ESP32C3 will then enter download mode. (You must re-enter download mode each time you connect. Occasionally, the connection may be lost due to port instability after a single press; you can determine this by listening for the port identification sound.)
ESP32 offline installation package download link: https://arduino.me/download
ESP32 series MicroPython firmware download tutorial: https://chat.nologo.tech/d/75
ESP32 series Arduino firmware download guide: https://chat.nologo.tech/d/72
Solution for ESP32C3SuperMini/ESP32S3Pico/ESP32S2Pico serial port printing issues: In the Arduino environment, when using a direct USB connection, ensure ‘CDC on boot’ is enabled; when using a USB-to-serial adapter, ensure ‘CDC on boot’ is disabled.

ESP32 C3 Development Board Modules Mini Wifi BT Bluetooth Module 32-Bit Single-Core Processor ESP32 C3 16Pin Type-C
Product Description:

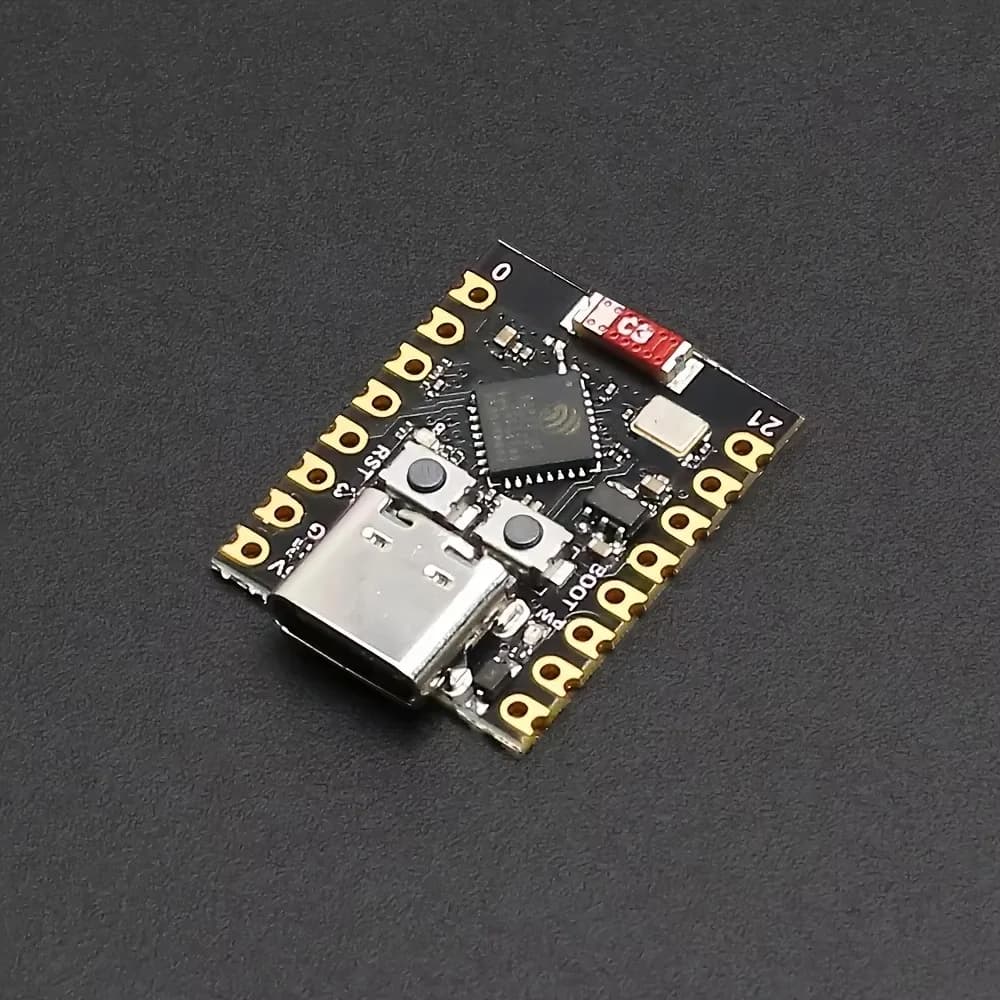

ESP32C3SuperMini is a dual-mode WiFi/Bluetooth chip based on Espressif ESP32-C3
IoT Mini Development Board. ESP32-C3 is a 32-bit RISC-V CPU that includes an FPU (Floating Point Unit) and is capable of performing
32-bit single precision operation with powerful computing power. It has excellent RF performance and supports IEEE 802.11 b/g/n
WiFi and Bluetooth 5 (LE) protocols. It is equipped with rich interfaces, including 11 digital I/O pins that can be used as PWM pins and 4
An analog I/O that can be used as an ADC pin. It supports four serial interfaces: UART, I2C, and SPI. There is another one on the board
A small reset button and a bootloader mode button.
Product parameters:
Powerful CPU: ESP32-C3, 32-bit RISC-V single core processor, running at a frequency of up to 160 MHz
WiFi: 802.11b/g/n protocol, 2.4GHz, supports Station mode, SoftAP mode, SoftAP+Station
Mode, hybrid mode
Bluetooth: Bluetooth 5.0
Ultra low power consumption: Deep sleep power consumption of about 43 μ A
Rich board resources: 400KB SRAM, 384KB ROM with built-in 4Mflash.
Chip model: ESP32C3FN4

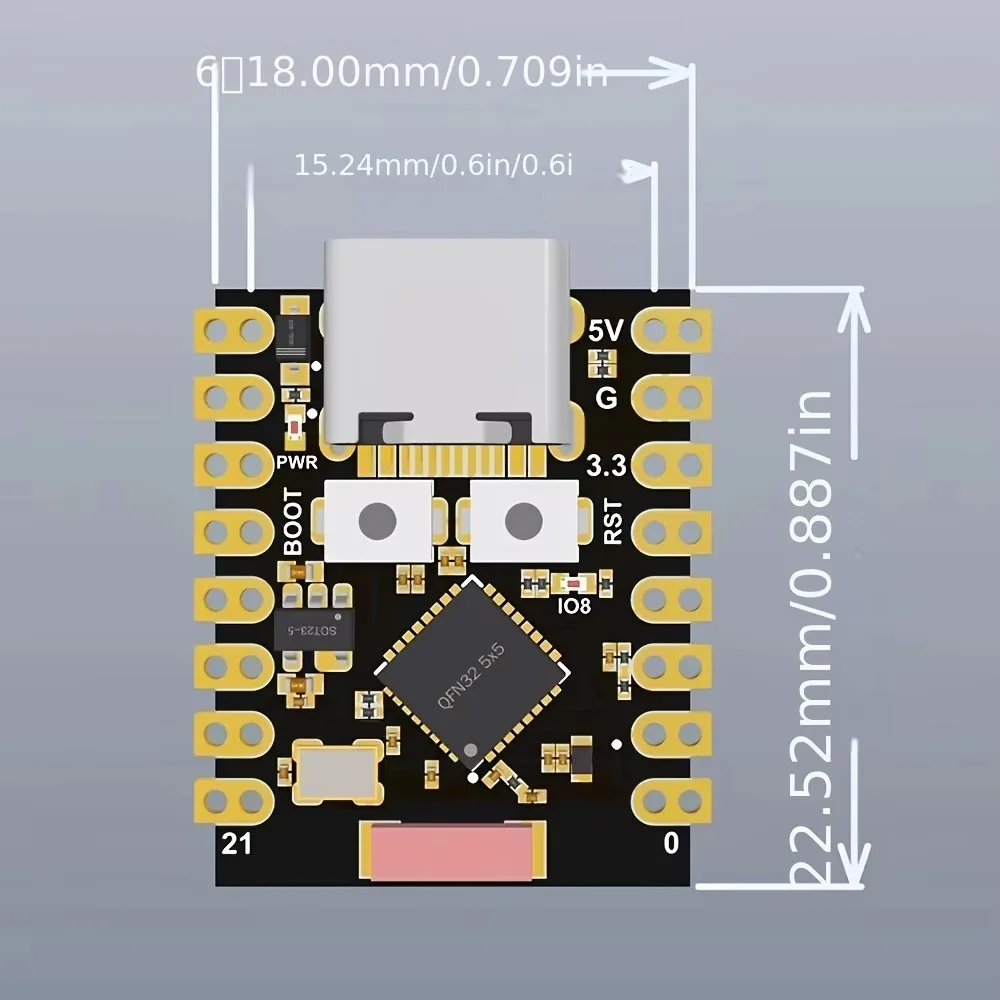

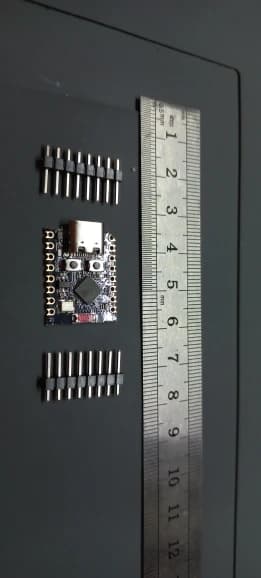

Ultra small size: as small as the thumb (22.52x18mm) with a classic appearance, suitable for wearable devices and small projects
Reliable security features: Supports AES-128/256, hash, RSA, KBC, digital signature, and secure boot
Confidential hardware accelerator

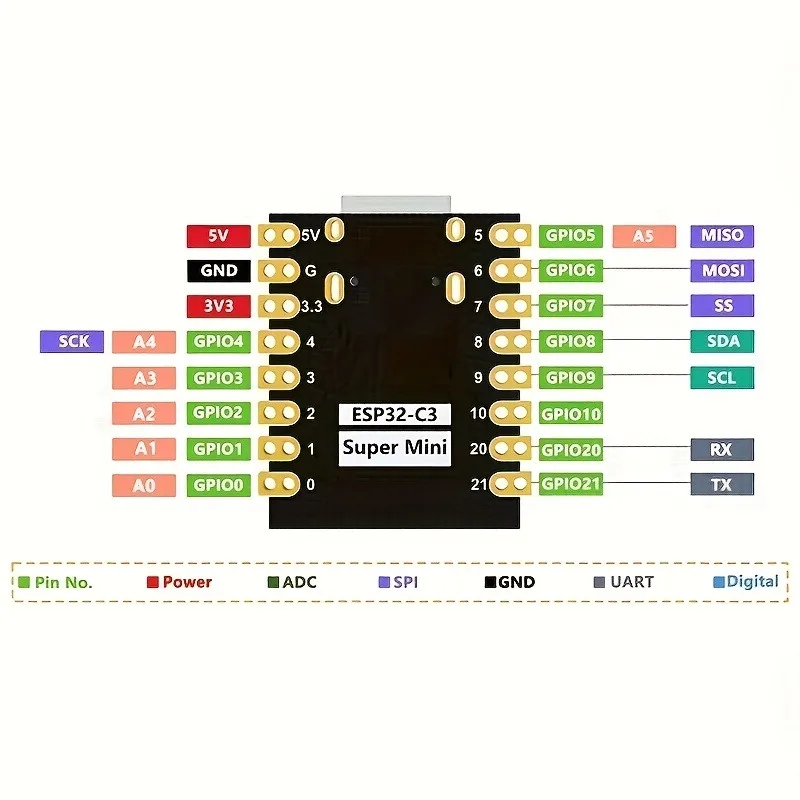

Rich interfaces: 1xI2C, 1xSPI, 2xUART, 11xGPIO (PWM), 4xADC single-sided components, surface mount devices
meter
Onboard LED blue light: GPO8 pin
