Tuya Smart 3MP 140° Wide View Angle Mini Digital Peephole Eye Viewer WiFi IR PIR Detection Doorbell Door Camera Alexa Google

Important Notice before to Buy It!

Peephole Camera Can Not Work if do not Connect to Smart Phone Tuya/SmartLife APP via Home WiFi Network.

- Please connect the peephole camera part with monitor via cable and then turn on monitor and follow the User Manual to add to Tuya/SmartLife APP. (If you do not connect camera to monitor, you turn on monitor ONLY, the monitor can not show the video)

Only Support 2.4Ghz Wi-Fi to connect to Tuya/SmartLife APP. 5Ghz Wi-Fi and BLE NOT Support!

Monitor will NOT AUTO-ON when PIR Triggered.

Only support event recording; NOT SUPPORT Continuous recording.

When Indoor Monitor pressed and will ON about 8-10S and then Auto Turn-Off. Can not Turn off via press monitor button again.

Recently Tuya update the APP with Loop recording.You can not enable it on APP. Because our product default support LOOP RECORDING. So you can ingore this setting!

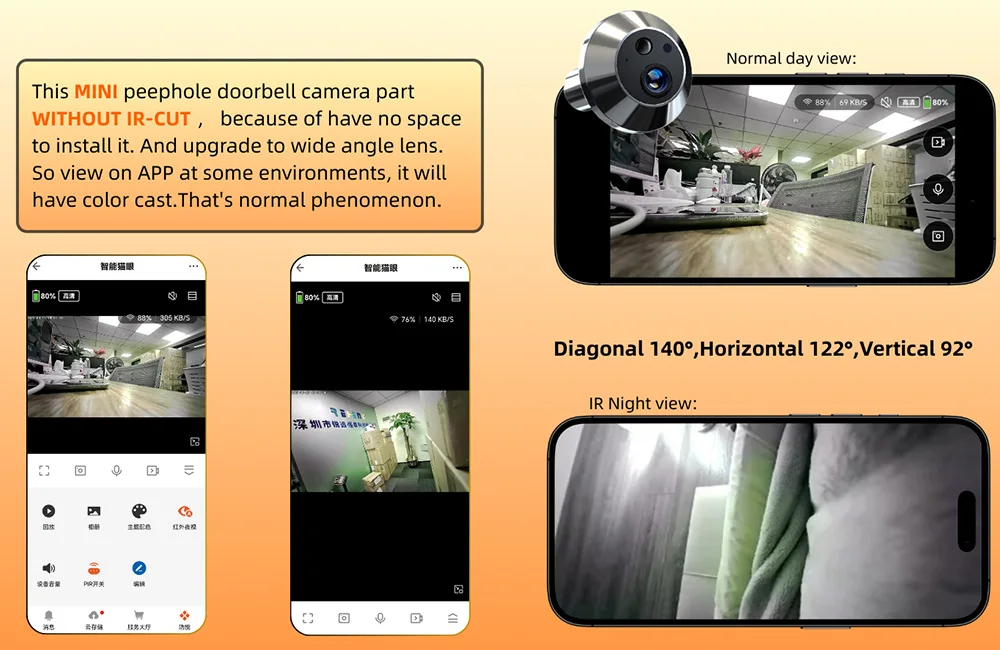

About Color Cast

If you are new to this product, please kindly check below video about how to install and add to APP!

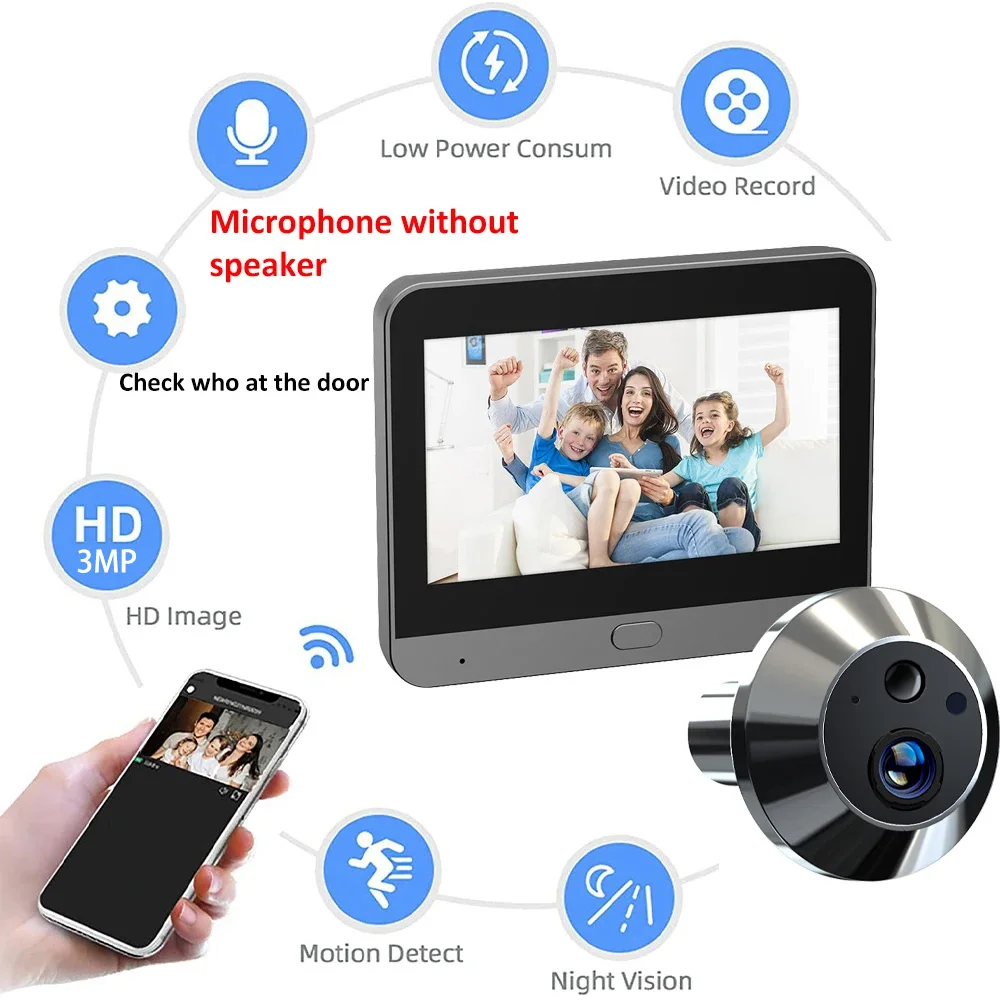

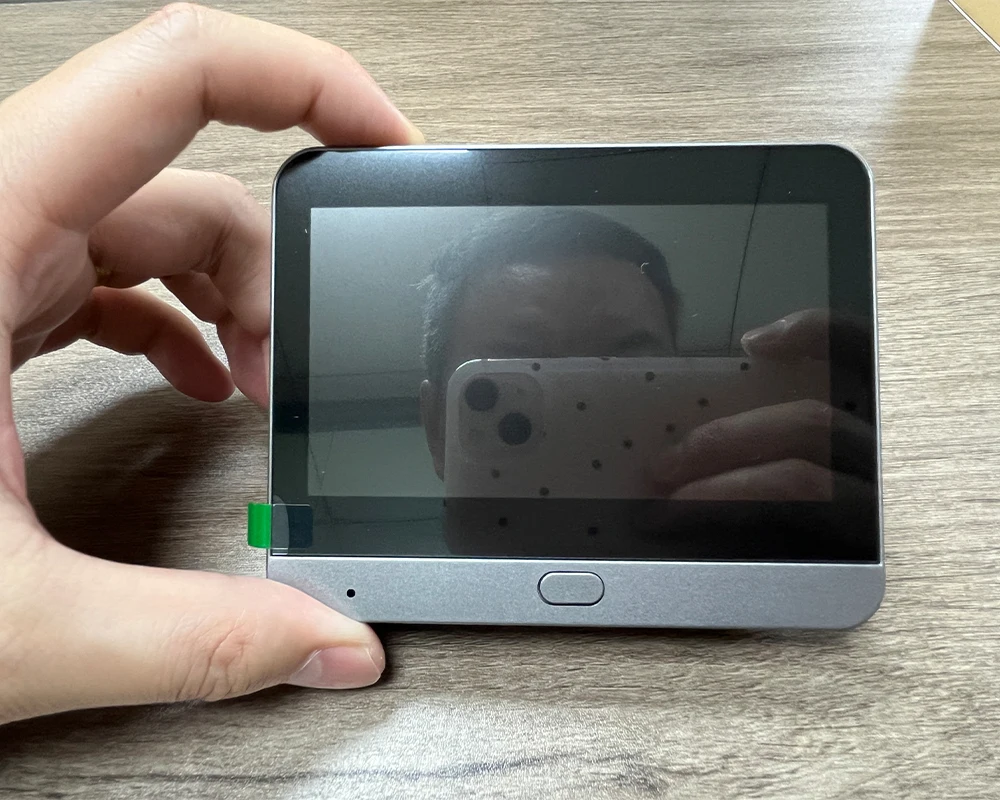

【Tuya Smart 4.3" LCD Digital Peephole Door viewer Camera & 3MP Cleary Day and Night View】

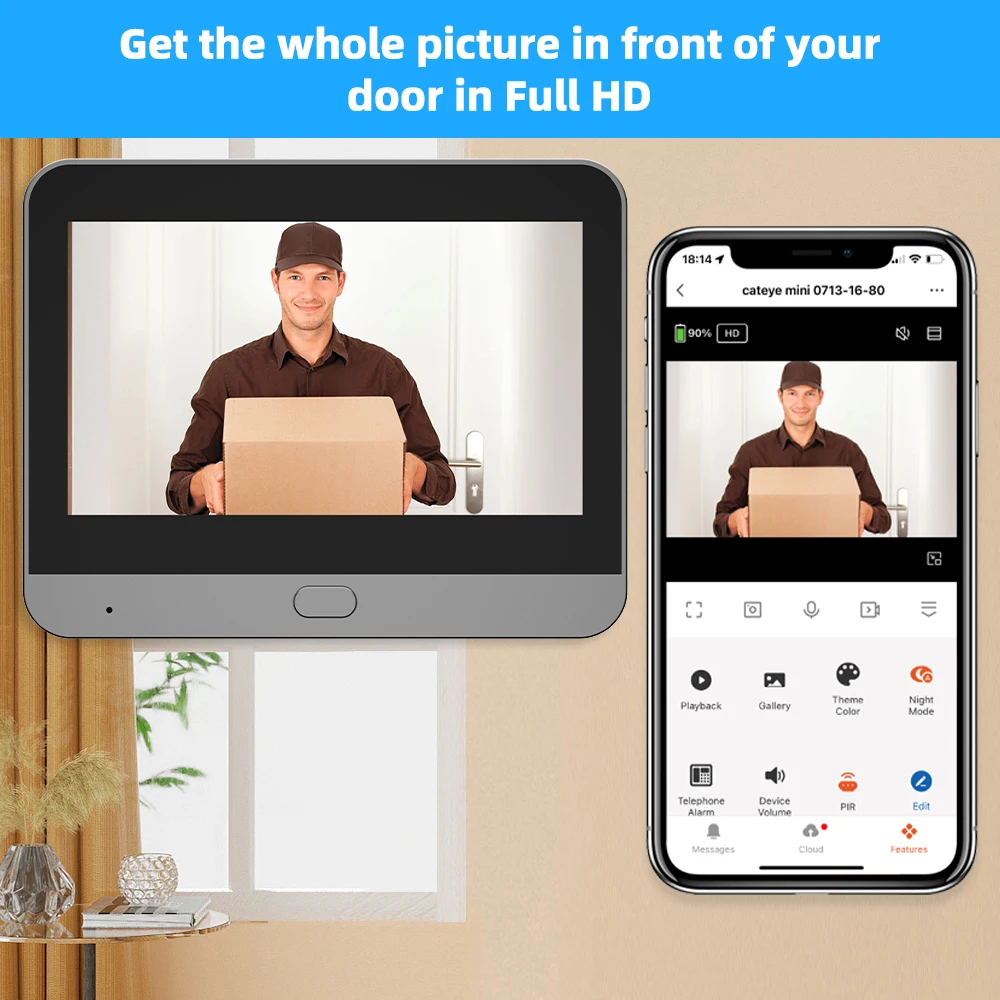

It can connect to WiFi router wirelessly. You can monitor (handheld including smartphones, Android tablets) and one-way intercom with noise reduction . The system function menu is located in the mobile APP console instead of the indoor display. (The device is widely used in homes, apartments, villas, hotels or offices, etc.).At the same time the large 4.3" LCD screen enables you or your family to see out the door clearly and sharply.

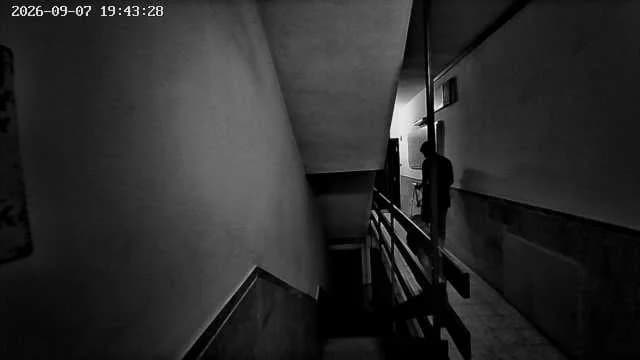

With 940nm LED lights to provide NO Red Exposure at Night.

【PIR detection and 140° Wide View Angle】

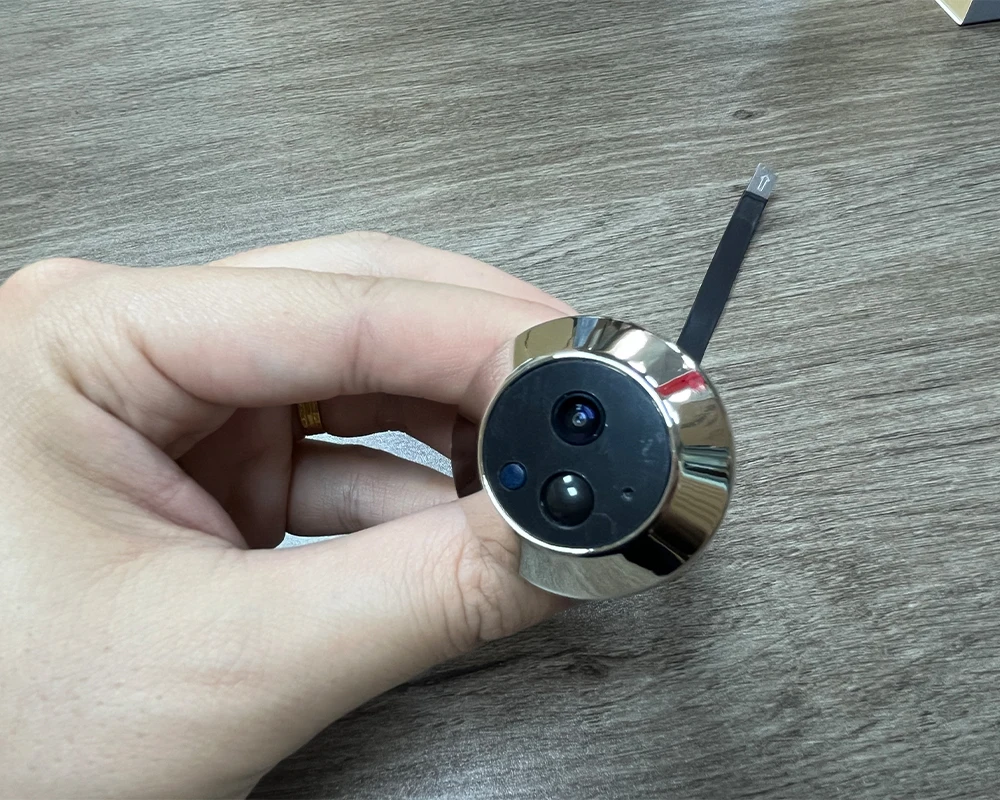

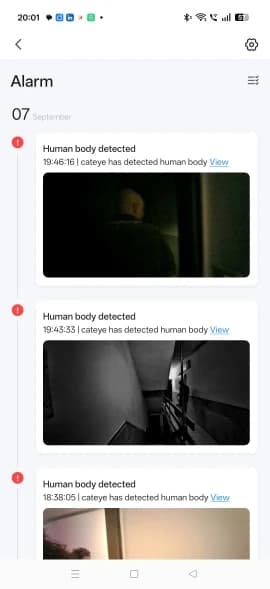

Using 3MP camera Wide View Angle:Diagonal 140 °;Horizontal 122 °;Vertical: 92°, Easily Maximize Your Home Security with a Clear View of Your Doorway.Automatic switching of day/night vision sensitivity (adjustable; distance is about 3-4 meters), TFT color LCD display, suitable for AHD images and videos. Motion detection (PIR motion sensor can automatically detect body movement and trigger push messages and videos (stored to TF card or cloud storage need subscribe) within seconds, keeping your home safe 24 hours a day.

【One-way intercom brings convenience】

When someone at the doorbell, it will trigger pir and you app get notifications and you can check the live view and check who at the door and hear what the visitor say. But visitor can not hear what you say. Because door camera is so mini, that can not install the speaker.

【Long-lasting battery and app control】

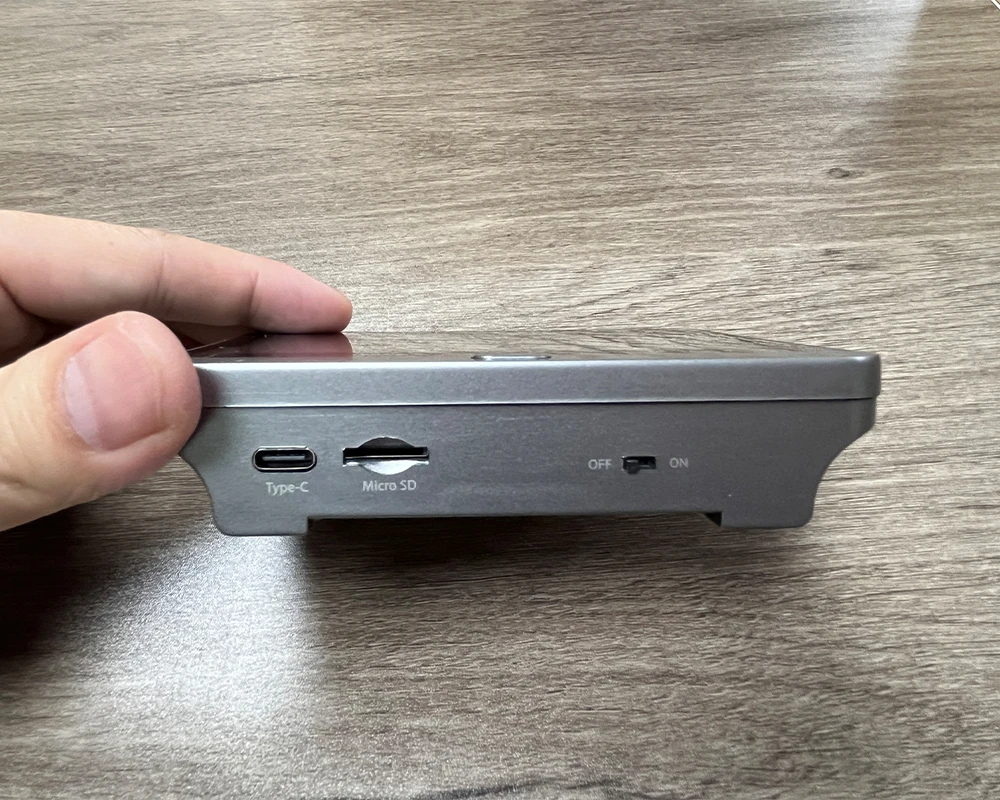

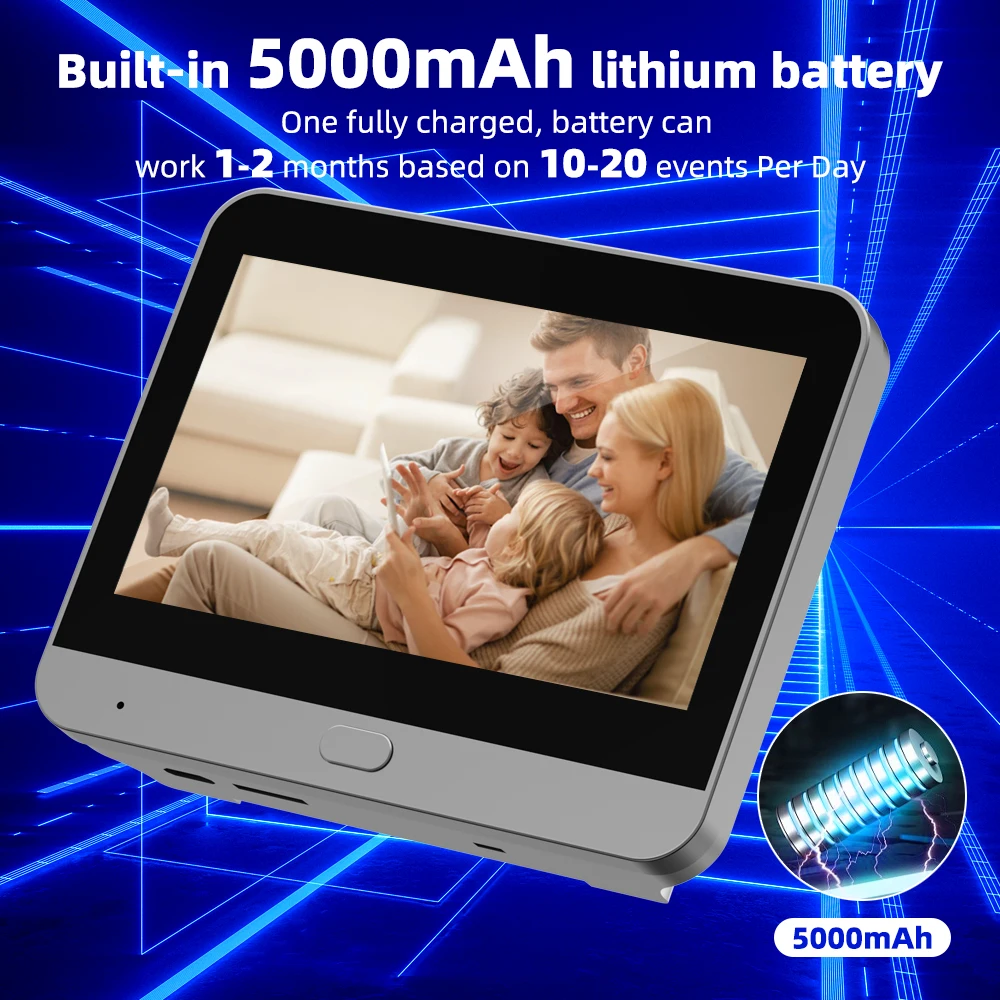

Built-in 5000 mAh rechargeable large capacity battery supports 30 days long standby (usually 5-10 calls per day), low battery reminder and Type-C port charging. This digital door viewer supports both iOS and Android, download the Smart Life App to receive every detail of what happens every day at your front door anytime, anywhere. Never miss a visitor or prevent theft, strangers or voyeurs.

【TF Card or Cloud Storage】

Support Max. 128G TF Card for local or event recording. Cloud Storage need subscription

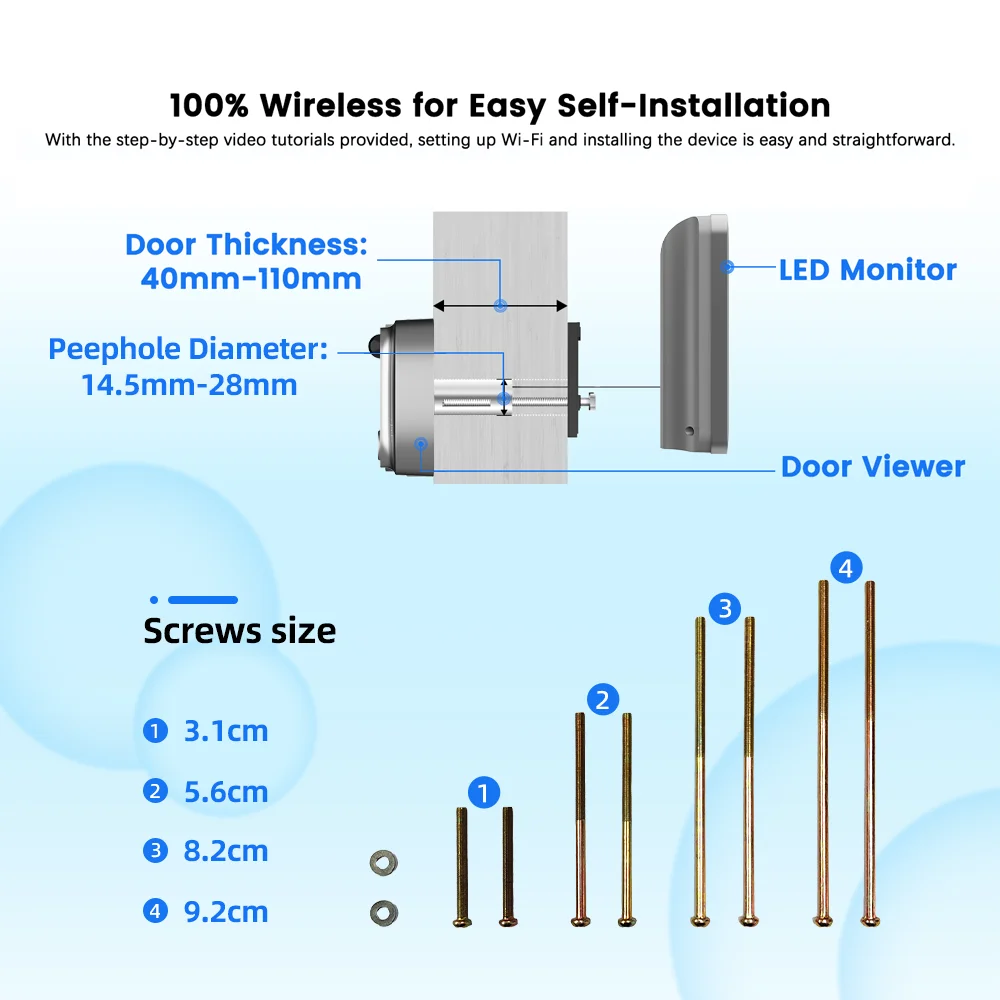

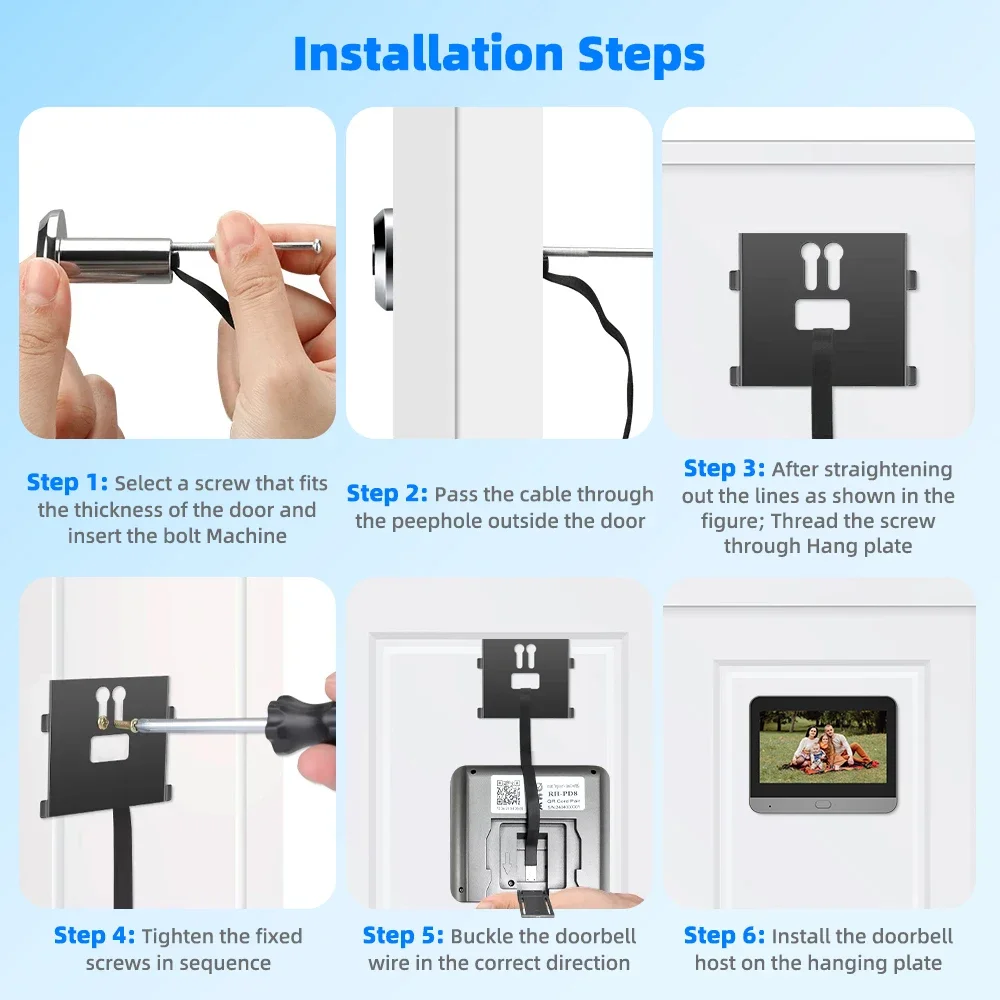

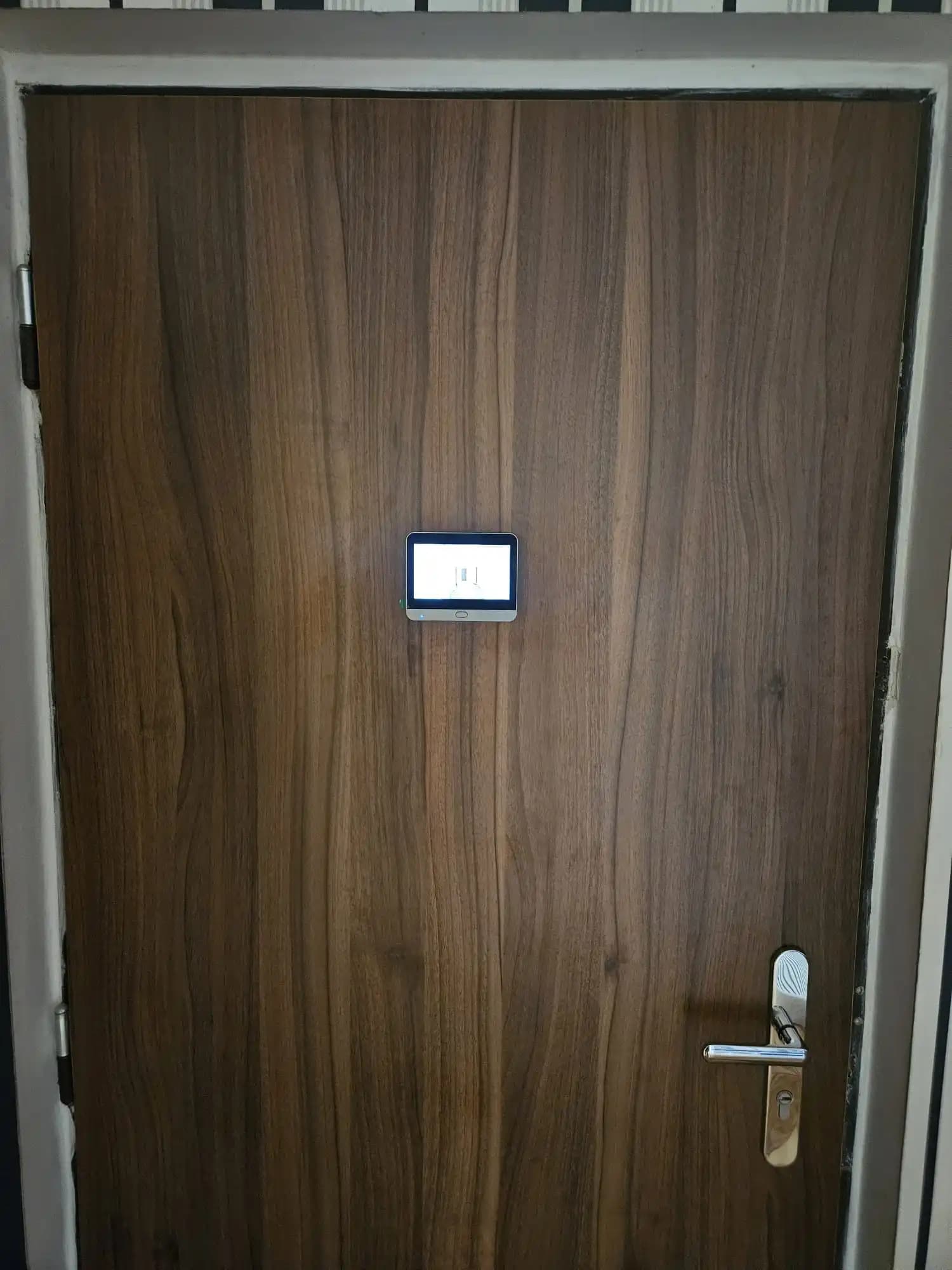

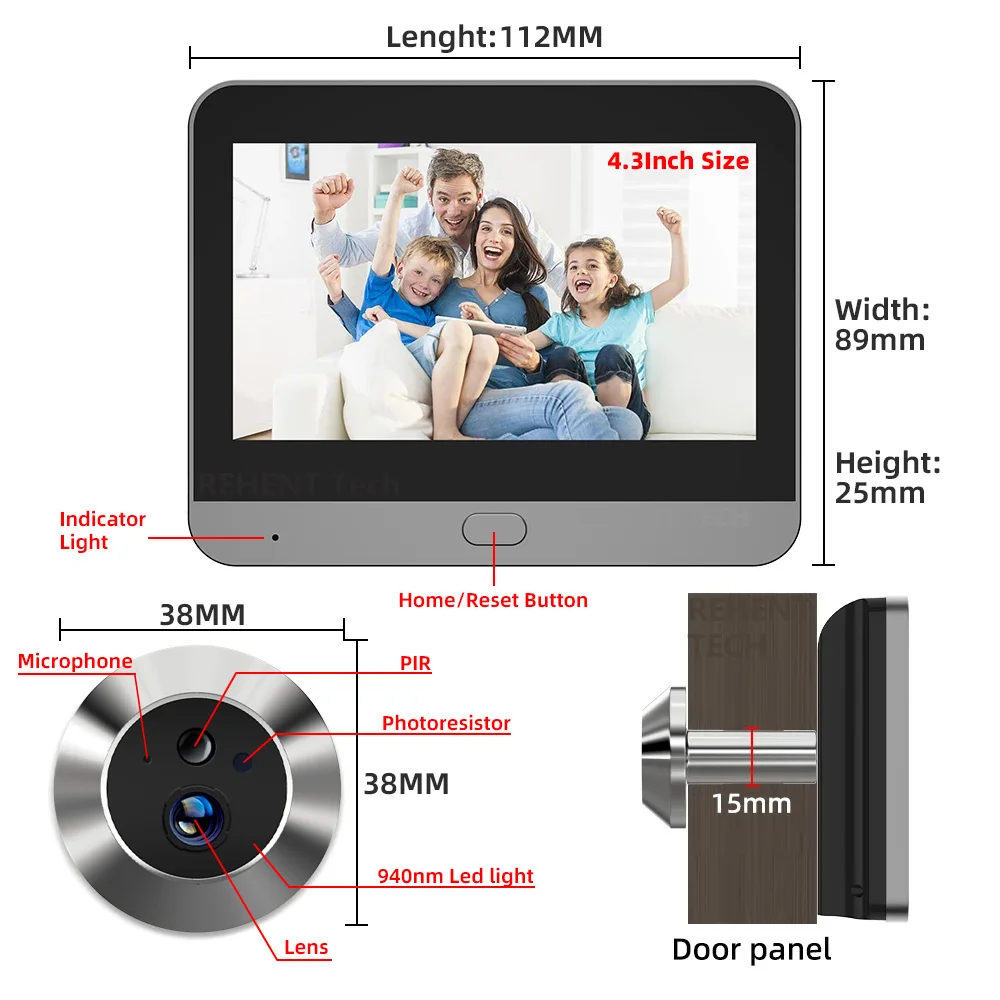

A Door Hole Required & Peephole Diameter and Door Thickness Requirements

Please note that the installation requires a hole through which you can connect the camera to the screen.

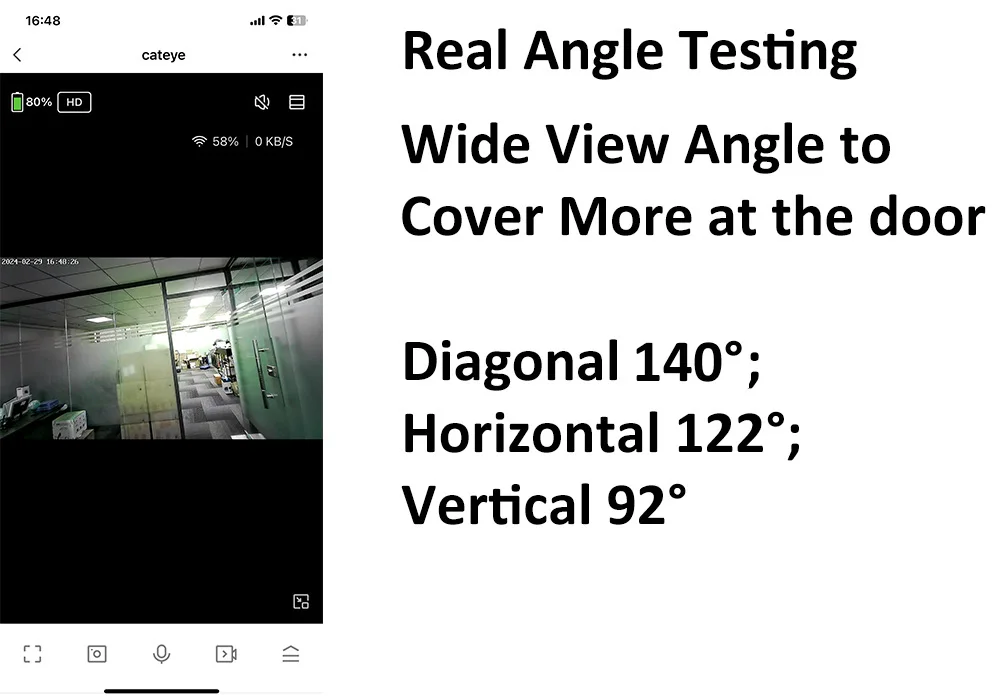

Wide View Angle to Cover More

Tuya WiFi 3MP 1080P Peephole Door Camera Viewer 4.3 Inch

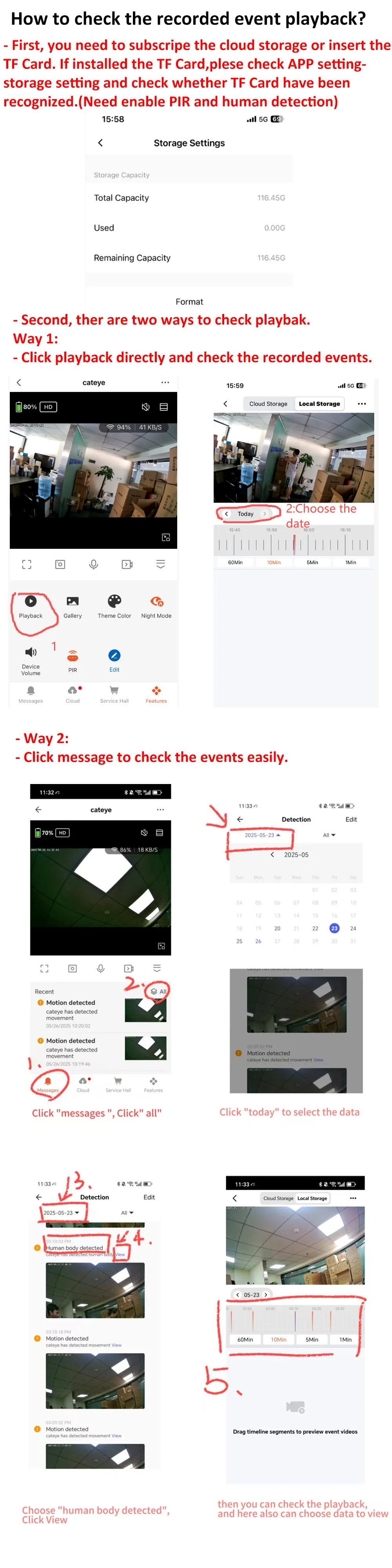

Record and Smart Playback

Support Max 128G TF Card(Not Include) for event recording or cloud storage subscription.

Tuya 4.3 Inch Peephole Door Camera Q&A

1: What's the battery capacity of this digital viewer? Working Time?

- It is built-in 5000mAh Lithium rechargeable battery doorbell camera
- Works 1-2 months based on 10 movements triggered per day

2: 3MP Digital Viewer working APP Name is? Does it support Alexa Google Voice Command?

- It is use " Tuya Smart" or " Smart Life" APP. You can download from APP Store.
- If you need works with Echo show, please select the SKU with Alexa words. It works to wake up doorbell camera via voice command: "Alexa, show me device name" or " Hey, google, show me device name"

3: Do you have to have an existing peep hole to use this product?

- No... I wouldn't think so. But, you will probably have to create a hole in the door for the camera if you don't already have an existing peephole to replace.

4: What the view angle of digital viewer? Support Night Vision?

- Support 140° wide view angle
- Support 3MP Clear night vision with distance 5-8 meters

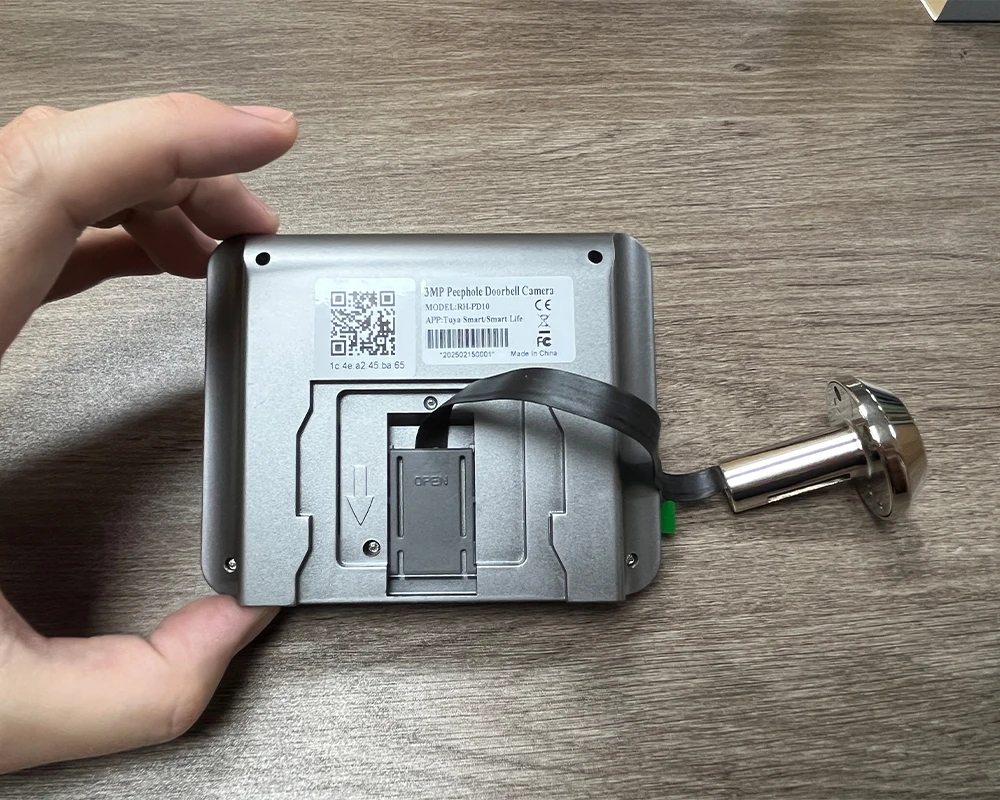

5: When i connect the door camera to monitor, but monitor can not show video? How to solve it?

- Make sure the door camera cable connect to monitor in the right direction
- Also push hard to make it connect well.

6: Can you turn off the monitor via press the monitor button?

- It is NOT support press doorbell button to turn off the monitor. The monitor will TURN OFF AUTO after 10 Seconds
- Indoor 4.3 inch screen monitor will NOT-AUTO-ON when PIR detect movement.
