PTFE Oil Fuel Swivel Hose End Fitting AN4/6/8/10/12 Straight 0°/45°/90°/180° Degree Oil Hose End Adaptor Kit Red Blue
9.77$
9.77$
Quantity:
1
Availability:
Color
Ships From
Card Payments
Crypto Payments
Easy return
Reliable Shipping
PTFE Oil Fuel Swivel Hose End Fitting AN4/6/8/10/12 Straight 0°/45°/90°/180° Degree Oil Hose End Adaptor Kit Red Blue
Application:
Fit For PTFE hose.
Features and Benefits:

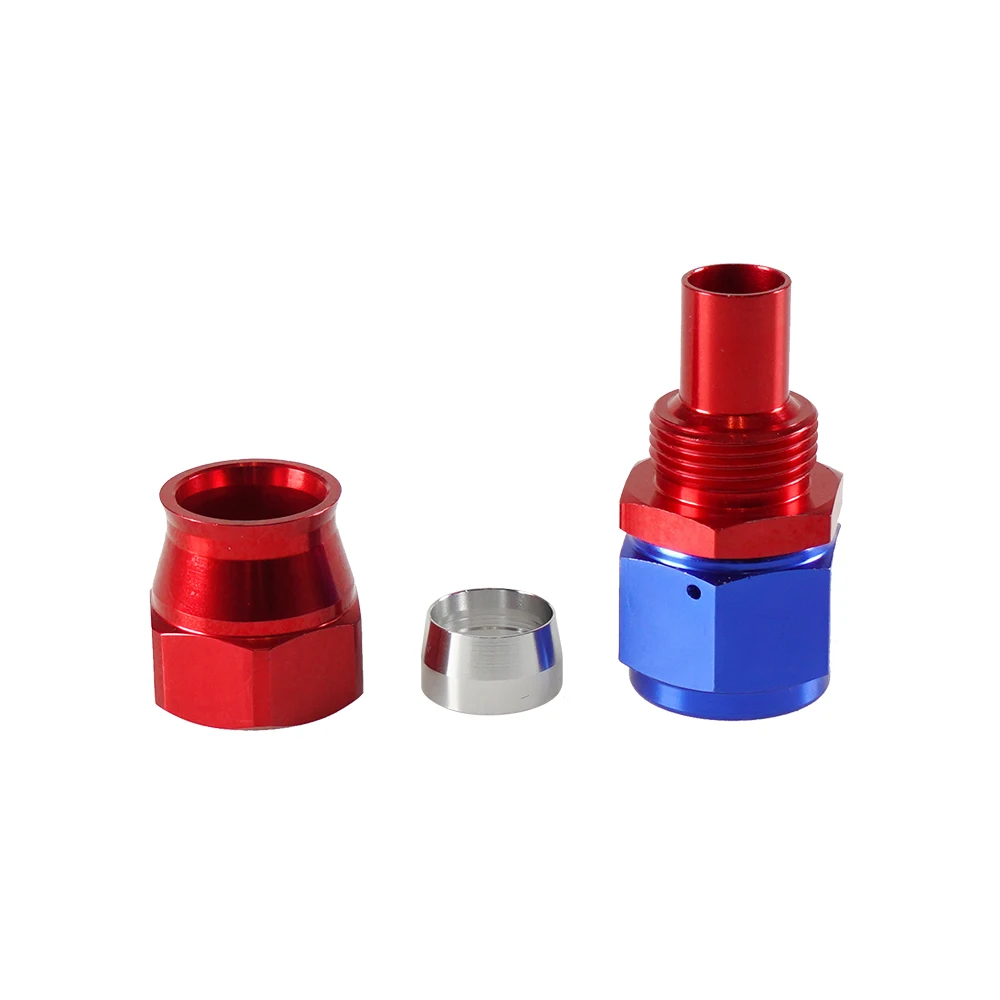

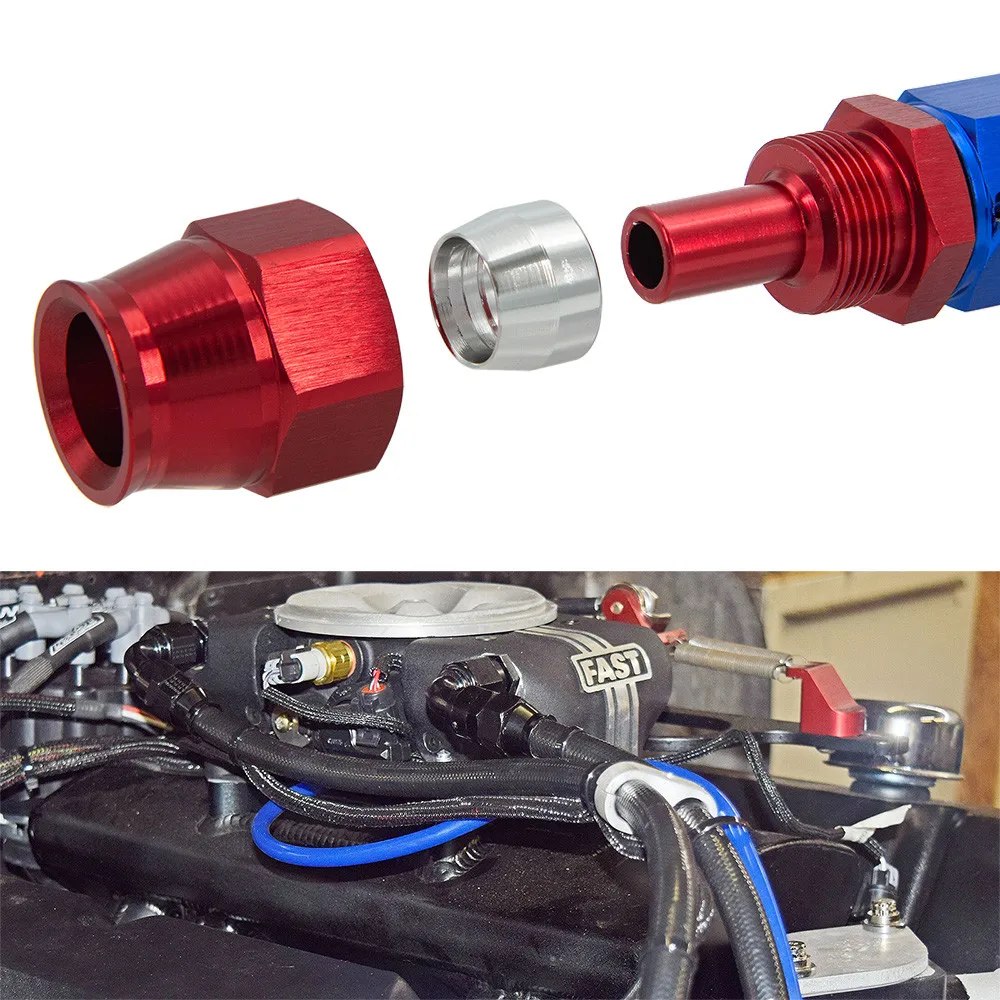

The PTFE hose fittings mechanically clamp onto the PTFE hose core to provide the maximum seal
possible and separately clamp the stainless steel outer-braid to achieve the strongest possible hose retention.
Their one-piece design allows for improved flow and eliminates two potential leak points (brazed joints).

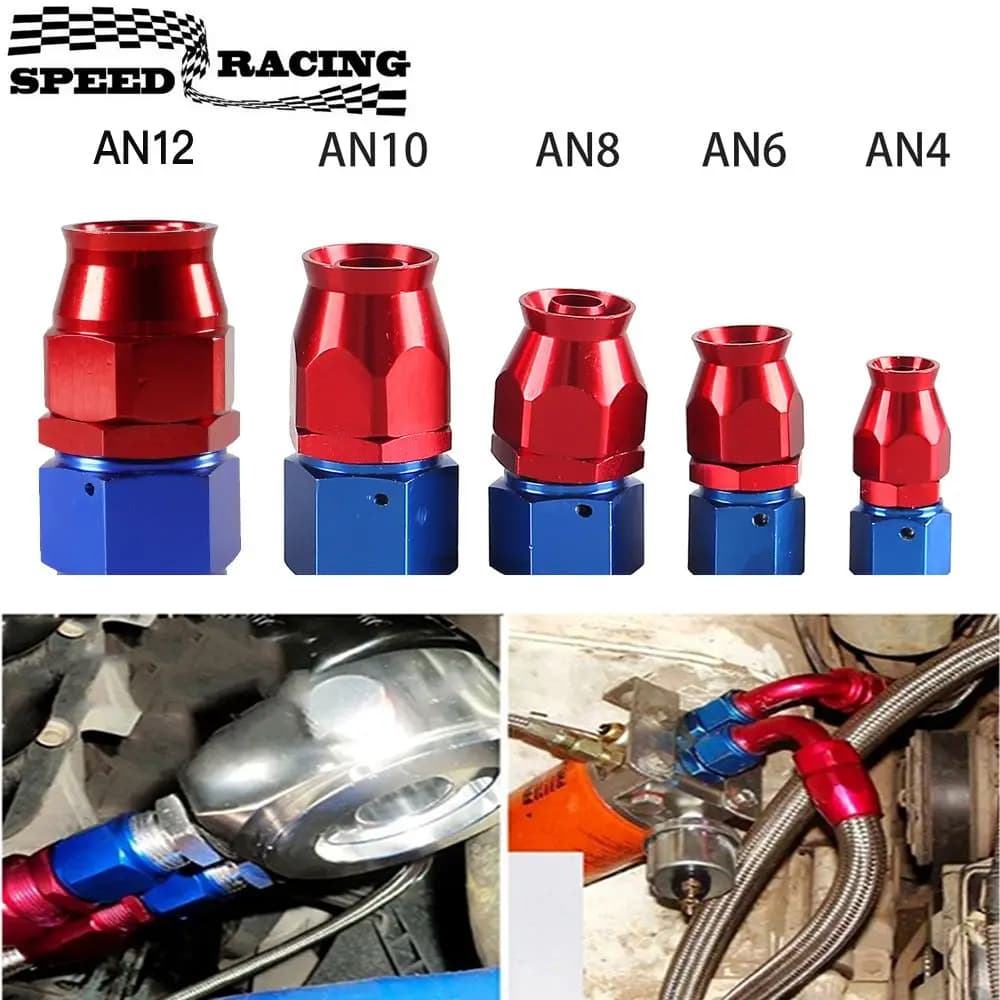

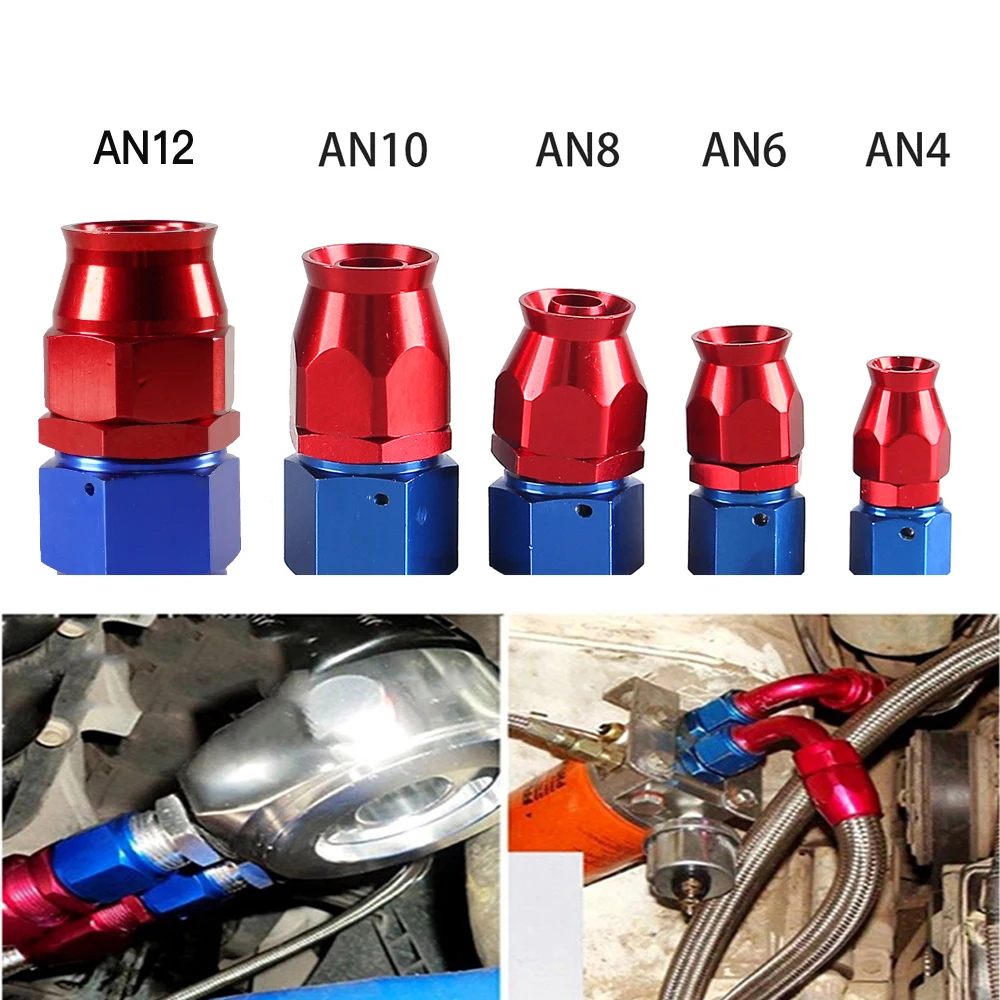

Size:

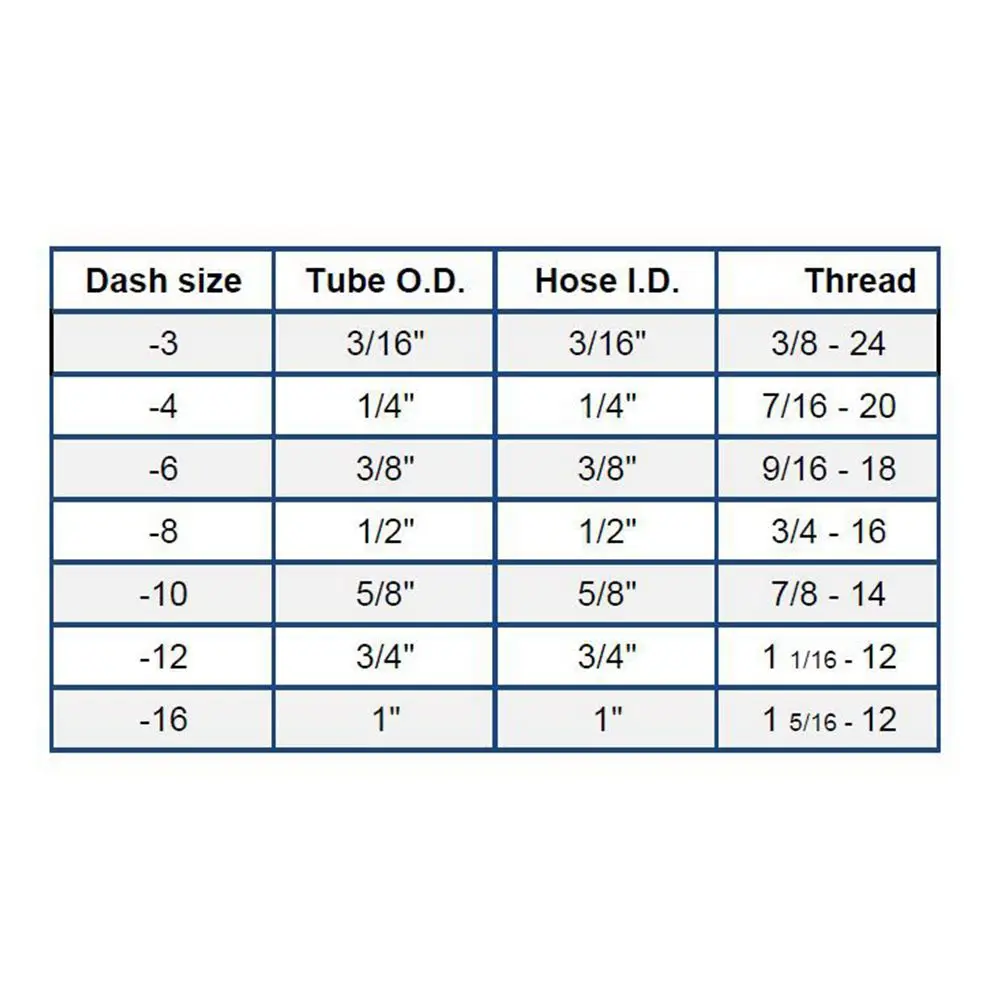

AN 4 6 8 10 12AN4, AN6, AN8, AN10, AN12 not means 4mm, 6mm, 8mm, 10mm, 12mm. Which corresponds to the inner diameter of the tubing were 1/4", 3/8", 1/2", 5/8", 3/4". Therefore, when purchasing products, be sure to pay attention to the inner diameter of the tubing.
Material:
Fitting Style: PTFE Swivel Hose End
Work with all stainless braided and nylon braided hose
Package Included:
1x Fitting. (100% Brand New Never Used Or Installed)
We take no responsibility in teaching you how to install.
Professional installation is strongly recommended.
