Smart Electronics Soil Moisture Hygrometer Detection Humidity Sensor Module For arduino Development Board DIY Robot Smart Car

Smart Electronics Soil Moisture Hygrometer Detection Humidity Sensor Module For arduino Development Board DIY Robot Smart Car

Disclaimer:

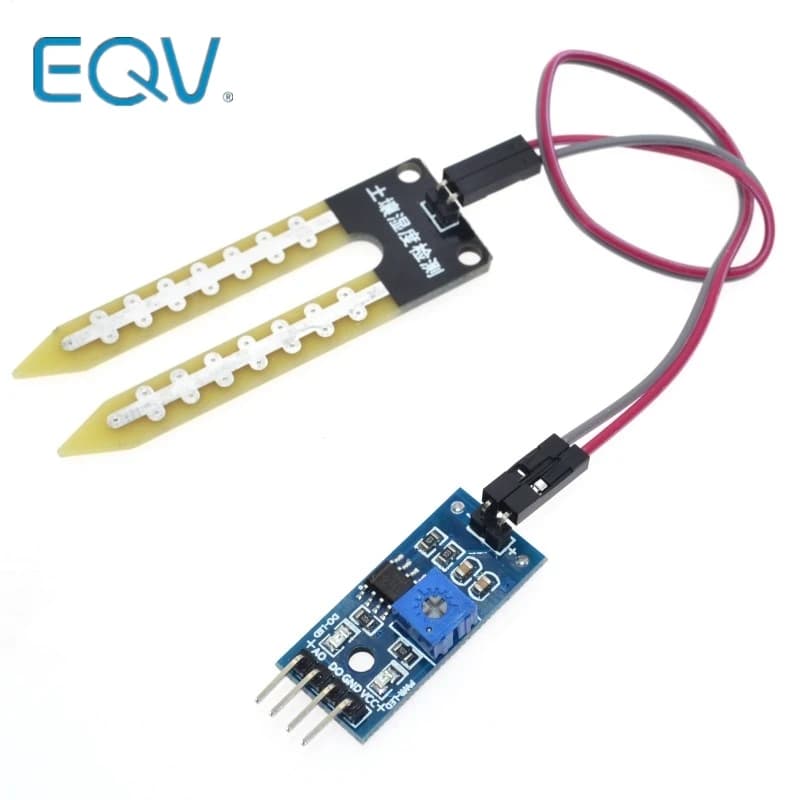

1 This is a summary of the moisture sensor can be used to detect the moisture of the soil, when the soil is dry , the module outputs a high level , whereas the output low. Using this sensor make an automatic watering system , so that your garden plants need people to manage .

2 adjustable sensitivity ( shown in blue digital potentiometer adjustment )

4 Operating Voltage 3.3V-5V

5 Module Dual Output mode , a simple digital output , analog output more accurate.

6 with fixed bolt hole for easy installation

7 small PCB board size : 3cm * 1.6cm

8 power indicator ( red ) and the digital switch output indicator ( green )

9 using LM393 comparator chip , stable

VCC external 3.3V-5V

GND GND External

DO small board digital output interfaces ( 0 and 1 )

AO small board analog output interface

Instructions

A soil moisture and humidity module most sensitive to the environment , usually used to detect soil moisture .

Modules in the soil moisture reach the set threshold , DO port output high when soil moisture exceeds a set threshold, the module D0 output low ;

Digital outputs D0 small plates can be directly connected with the microcontroller through the microcontroller to detect high and low , thereby detecting soil moisture ;

Small plates digital output DO OUR relay module can directly drive the buzzer module , which can be composed of a soil moisture alarm equipment ;

Small plates AO analog output modules can be connected and AD through the AD converter , you can get a more accurate value of soil moisture ;

Package Included:

1pcs X  Soli moisture sensors
