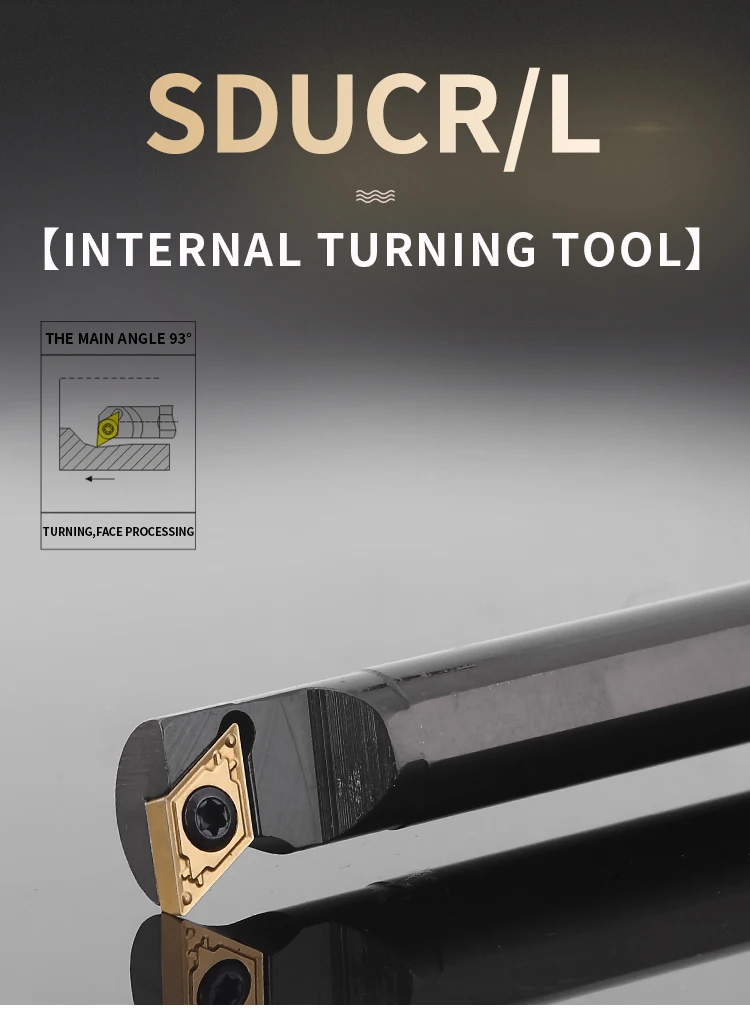

Internal Turning Tool S08K/S10K/S12M/S14N/S16Q/S20R/S25S- SDUCR/L07/11 Lathe Turning CNC Cutting Tool Cutter Bar

Specification

Name: Screw lnternal turning tool
Brand: KEENCUTEER
Item No.: - SDUCR/L
Material quality: 40CrMo-42CrMo
Hardness: HRC42~46
Accessories: screw, wrench
Suitable insert: DCMT
Pack: High-grade PE outer box

Package Included

Cutter bar and accessories including 1pc screw, wrench.

Note that insert is not included, which needs to be purchased separately.

Feature

1.Not easy to stick tools, more smooth chip removal.
2.The tool is hardened and durable.
3.Refined polishing, fine luster.
4.Imported matrix, tool rod imported 40Cr material.

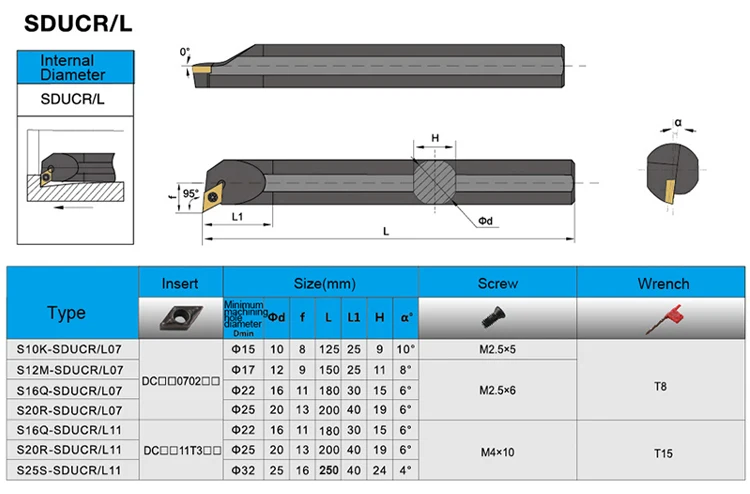

Product Parameters

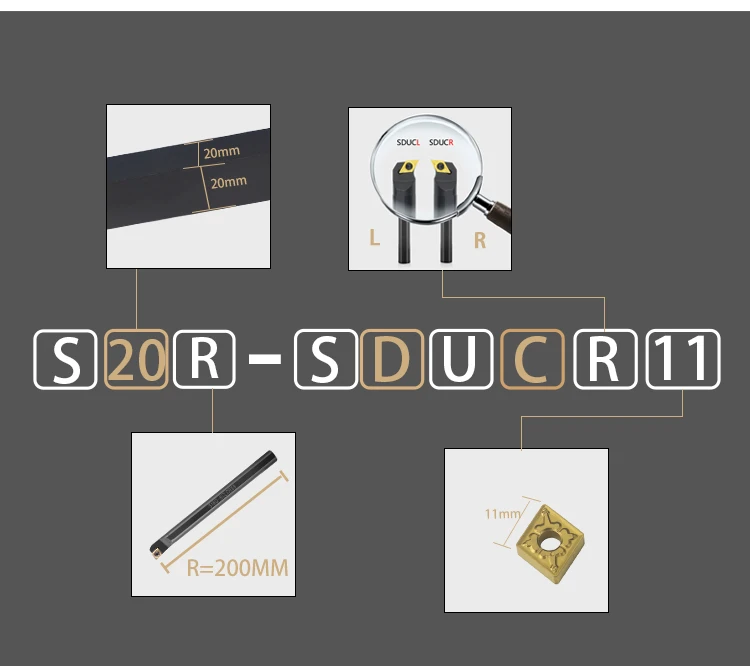

Product Model Explanation

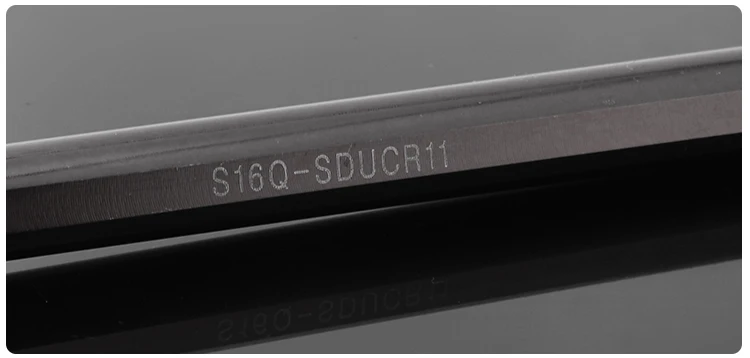

For example : S20R-SDUCR11
S - Tool holder material
20 - shank diameter
R - Shank length
S - Screw type
D - Insert shape
U- Main declination
C - Single-sided blade
R - Right hand tool
11 - Insert width

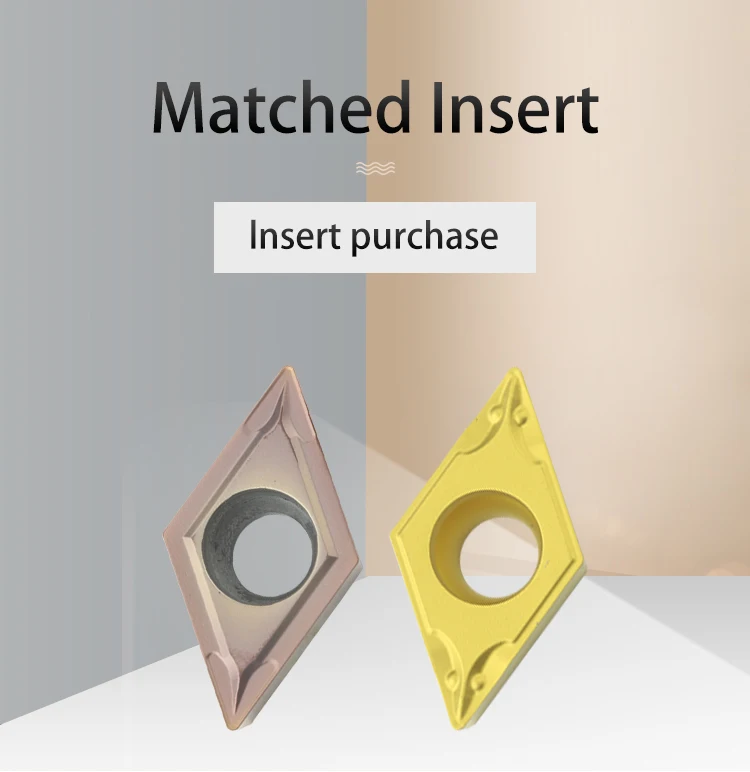

How to Match Insert

We have a complete series of high-precision, high-hardness and super cost-effective CNC inserts. Using the tools matched with our own inserts will bring excellent effect.

Note that insert needs to be purchased separately.

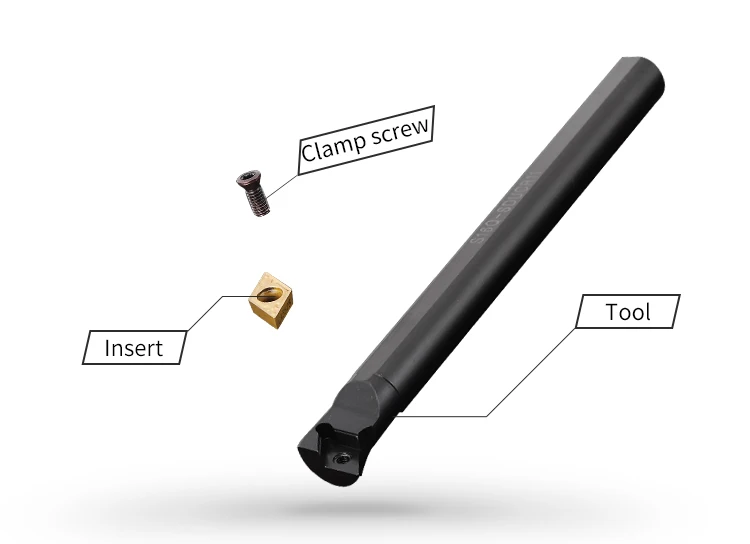

Split Diagram

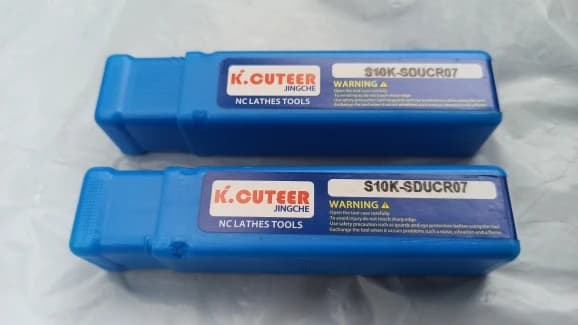

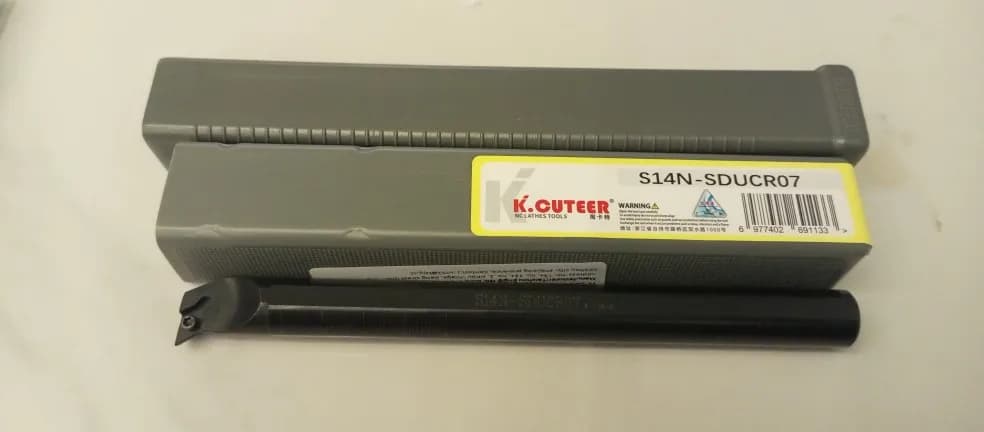

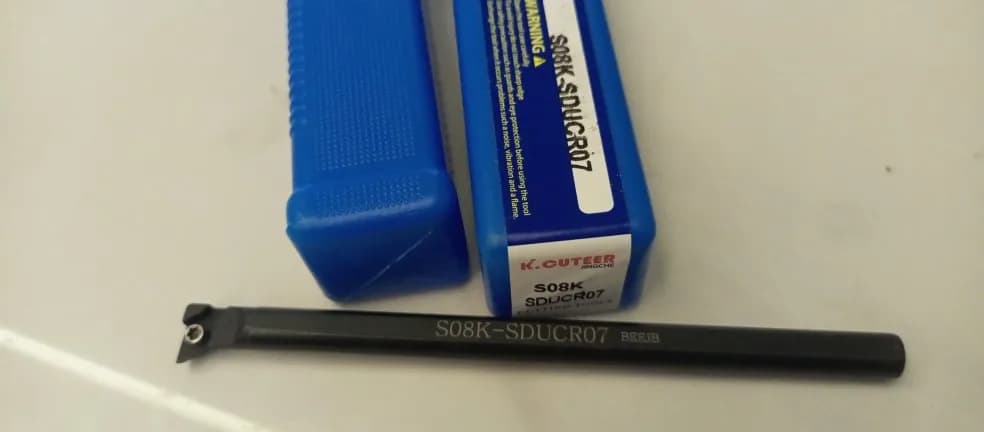

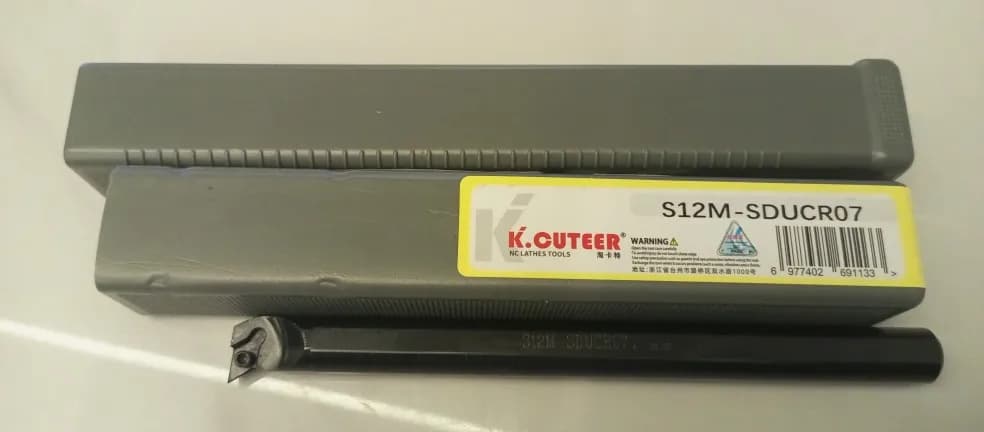

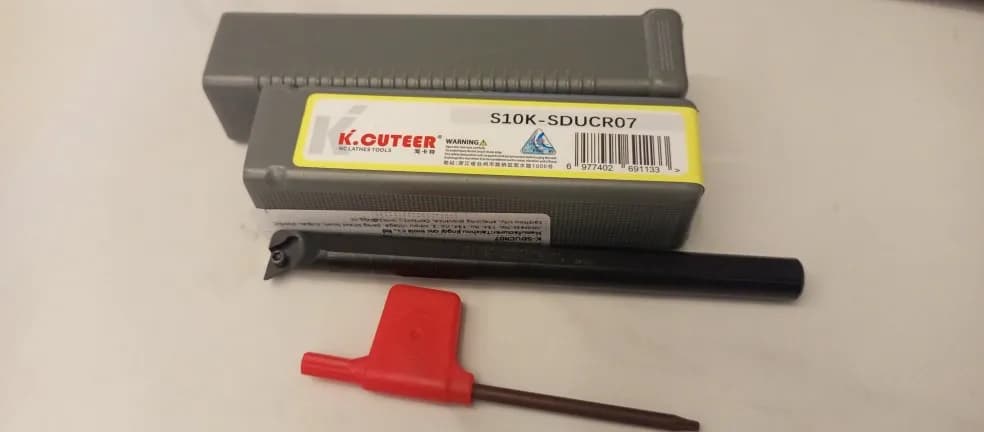

Packing Info

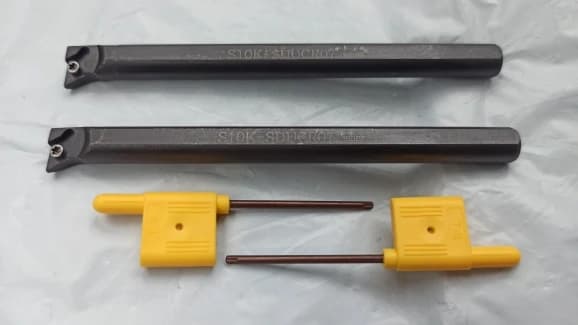

Cutter bar and accessories including screw, wrench except insert

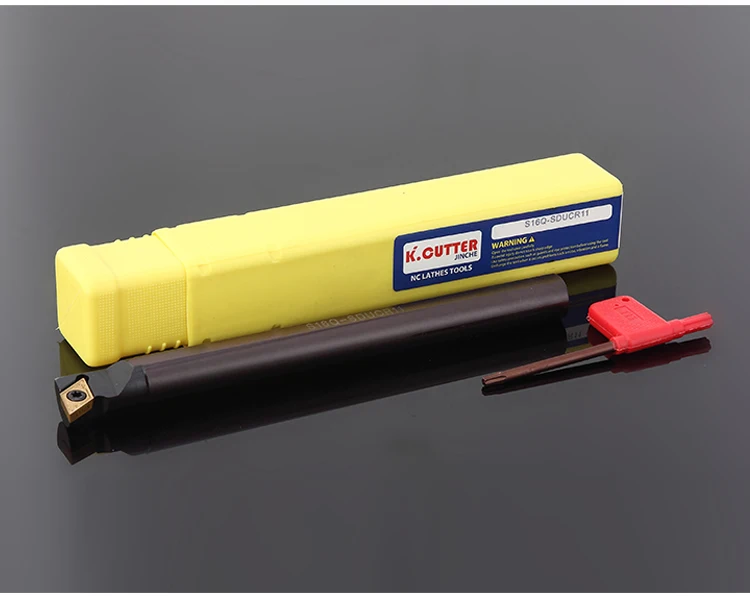

Product Details

More item details make you purchase assuredly

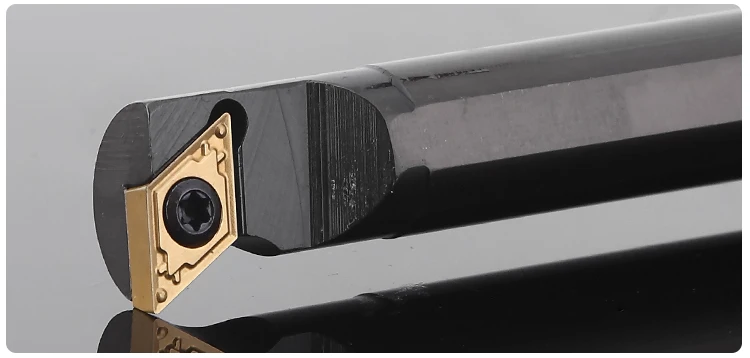

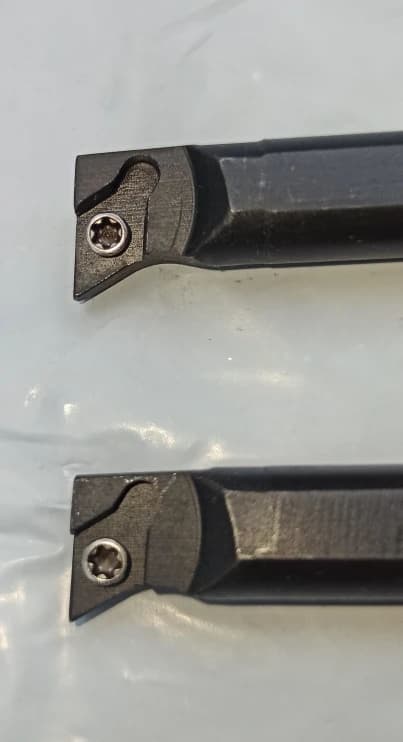

Screw Type Turning Tool
The press plate structure makes the blade not easy to loosen and more firm.

Fine Polishing Fine Luster
The surface of the tool body is polished with imported diamond, which makes it fine and glossy.

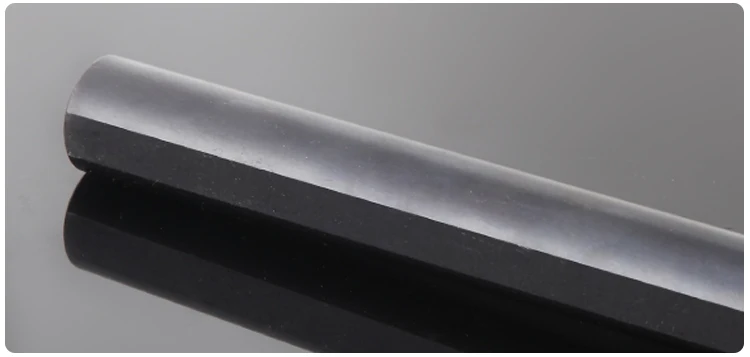

High Quality Tool Body
The turning tool is made of high-quality 40CrMo material, with good anti-seismic and more wear-resistant.
