XINJ 3.7V 180 mAh 501520 Polymer Li Lithium Battery Lipo Cell For DIY MP3 MP4 Music Player GPS Sat Nav Car Camera Smart Watch

1. Model code : PL501520

2. Cell size : 0.5 cm (thick) x 1.5 cm (width) x 2 cm (length)

0.19inch X 0.59inch X 0.787inch

3. Nominal capacity: 3.7v 180mah 0.666Wh

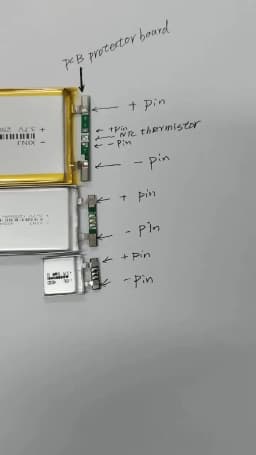

4. Built-in protection circuit PCM for prevent over charging or over discharging.

5. Fit for Cellular Line Interphone Sport ,Remote controller, IPTV Set top box remote controller, LED lighting, Underwater lighting system, Bluetooth device, Mp3/Mp4 player, Safety lamp, GPS, Mobile phone, Game player, Pos machine, Consumer electronics device, Medical devices, Flash lighting, Garden lighting, Karaoke, Digital Camera, Driving recoder, Recording pen, Headset , Dashcam, Satnav, Navigation, Baby monitor, Navigation, Car camera, Drift camera, Taillight, Bluetooth speaker, Instrumentation, Smart lock, Medical device, Digital light, Air purifier,  Project Desigh ,etc.

6. Each Cell weight : 2.4 g

Package include :

1/2/5/10 pcs 3.7v 180mah polymer rechargeable li battery 501520

Electrical characteristics：

1.  we confirm that we will provide high quanlity li battery to you .

2. we can provide CE and test report for all our li batteries.

3.Standard Charging method ：0.5C （constant current）charge to 4.2V,then CV(constant voltage 4.2V)charge till charge current decline to ≤0.05C

4.  Rated Capacity  ：  The capacity means the discharge capacity of the cell, which is measured with discharge current of 0.2C with 3.0V cut-off voltage after standard charge.

5.   Charging time       ：Standard Charging：3.0 hours(Ref.) ，Rapid charge：     2.0 hours(Ref.)

6.   Max. charge current       ：1.0C

Max. discharge current     ：1.0C

Discharge cut-off voltage   ：3.0V

7.  Operating temperature     ：Charging：  -20℃~60℃  Discharging：-20℃~60℃

8.   Storage temperature       ： -10℃~ +45℃

9.  Cycle life:  600 cycles,Stable performance with 100% in house testing

10.  Warranty: 18 Months

11.  Test condition：

Charge:0.5C to 4.2V

Discharge:0.2C to 3.0V

70% or more of 1st cycle capacity at 0.2C discharge of Operation

Self-discharge ：Residual capacity >90%

After the standard charging, storied the cells under the condition for 30 days, then measured the capacity with 0.2C till 3.0V

12：Temperature  characteristics ：

-20℃: ≥65%

23℃: 100%

60℃: ≥96%

---- According to item at 23±5℃.

----Capacity comparison at each temperature, measured with constant discharge current 0.2C with 3.0V cut-off. Percentage as an index of the capacity compared with 100% at 23℃

13 ：  Mechanical characteristics:

----- Vibration Test : No leakage /  No fire

After standard charging, fixed the cell to vibration table and subjected to vibration cycling that the frequency is to be varied at the rate of 1Hz per minute between 10Hz an 55Hz,the excursion of the vibration is 1.6mm.The cell shall be vibrated for 30 minutes per axis of XYZ axes.

-----  Drop Test : No fire/ no leakage.

The cell is to be dropped from a height of meter twice onto concrete ground.

We accept Escrow; We will ship to the default address in Escrow.

All Package will shipping out in 24 hours except holiday & weekend day.

we are unable to take any responsibility for any. custom delay or tax. because transit time is highly dependent and provided by Postal Service !

All items sold by us are being described to the best of our abilities, as accurate as possible, and withutmost conscientiousness on our part,

If the item is defected by normal use, returns are available within 30 days after the buyers receivedthe items, money back after we received item!

Returned item has to be new, unworn and in its original condition;

Warranty :  18 months
