Analog Voltage Signal Isolation Conversion Module HCNR201 Voltage to Voltage 0-5V/0-10V Linear

modname=ckeditor

YL-201 Product Parameters:

1. Board size: Length 62.5mm X Width 23mm X Height 17mm

2. Supply voltage: DC12V-DC24V, (for O-5 to 0-5V or below, a minimum of 8V can be used for power supply)

Functional features:

Isolation conversion circuit is a common electronic circuit, which serves to avoid errors caused by different nodes in internal and external circuits

Wiring diagram:

The left side (2P) is the isolated signal input: Signal negative pole Vin - (black) Positive signal Vin+(red) The right side (3P) is for power supply and signal output: Negative GND of power supply (black) Positive pole VCC of power supply (red) Signal positive output Vout+(yellow)

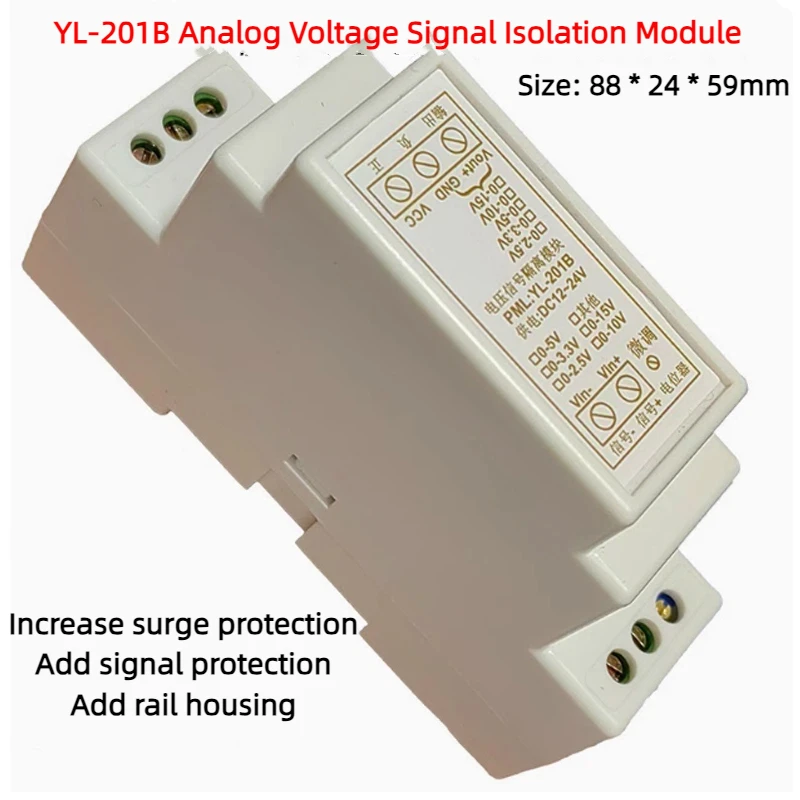

YL-201B Product Parameters:

1. Board size: Length 88mm X Width 24mm X Height 59mm

2. Supply voltage: DC12V-DC24V, (for O-5 to 0-5V or below, a minimum of 8V can be used for power supply)
