RS485 CAN HAT For Raspberry Pi
Allows Stable Long-Distance Communication Between Raspberry Pi And Other Devices
Comes With Online Development Resources And Manual
Features
1. Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards

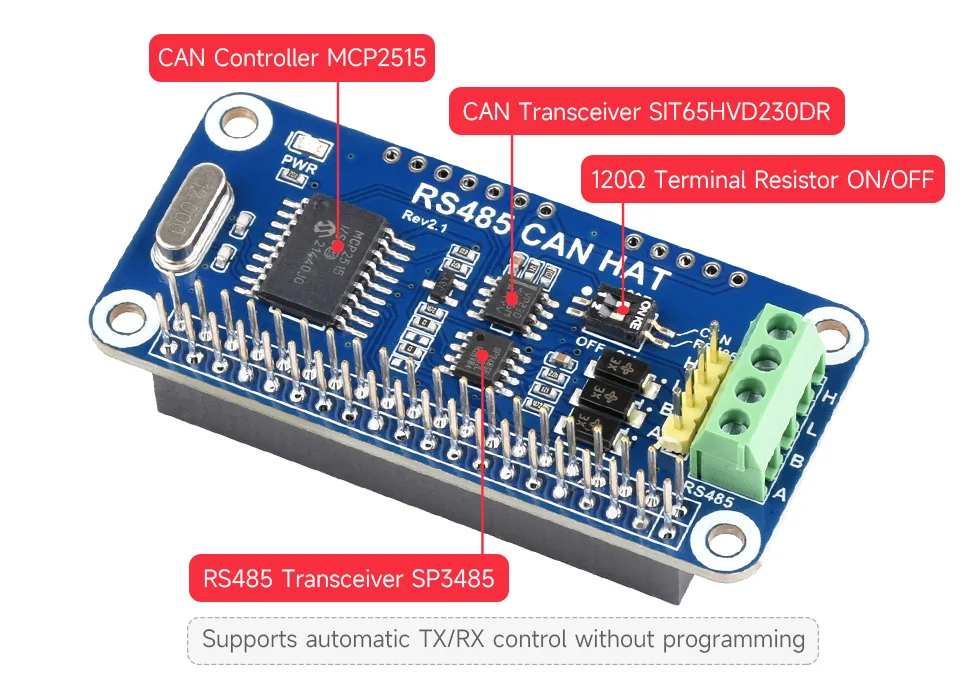

2. CAN function, onboard CAN controller MCP2515 via SPI interface, onboard transceiver SIT65HVD230DR
3. RS485 function, controlled via UART, half-duplex communication, supports automatic TX/RX control without programming, onboard transceiver SP3485
4. Onboard 120Ω terminal resistor for RS485 and CAN interfaces, enabled via DIP switch
5. Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit for RS485 transceiving, lightningproof & anti-electrostatic

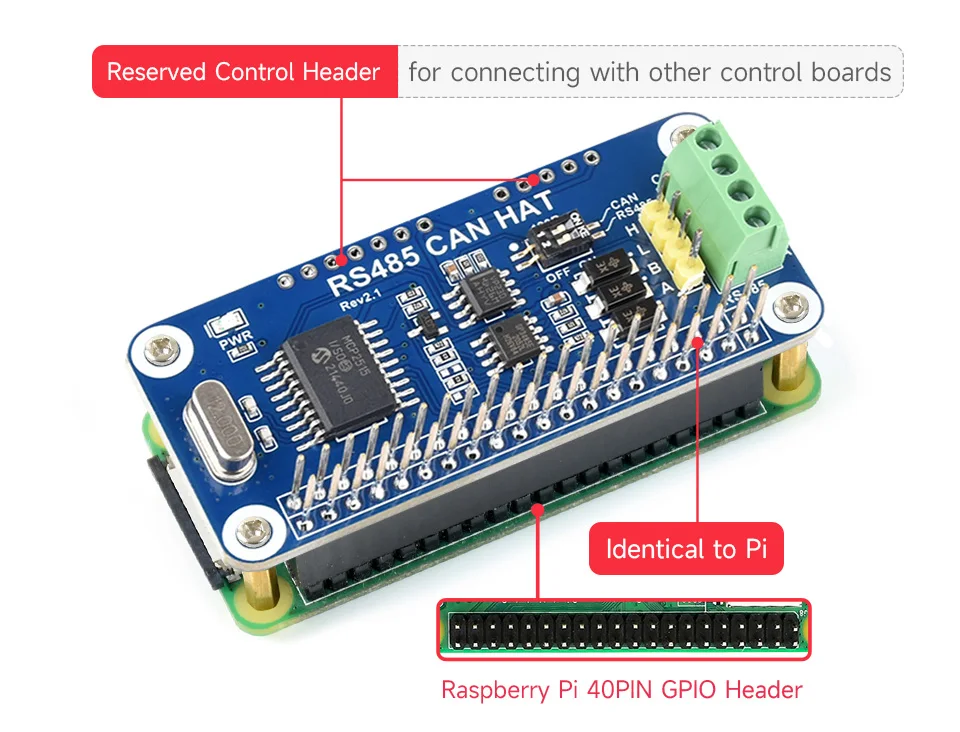

6. Reserved control header, allows working with other control boards
7. Comes with online development resources and manual (examples in wiringPi/python)

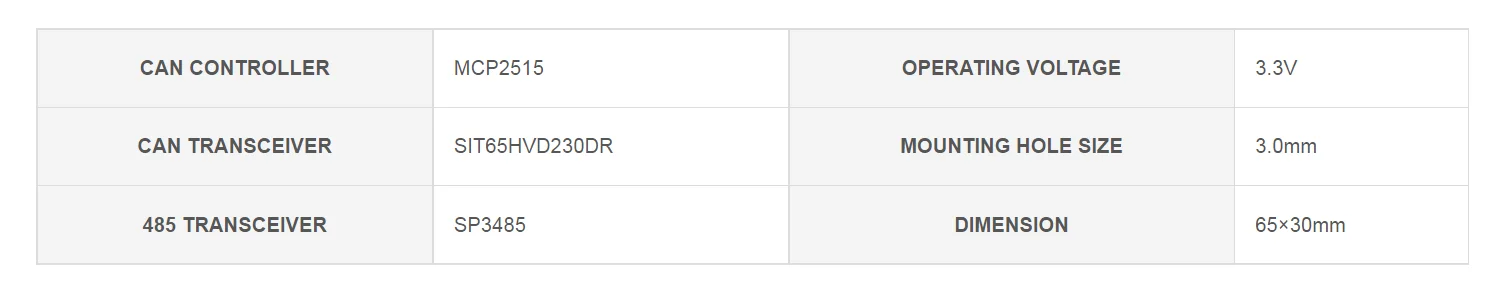

Specifications
Designed For Raspberry Pi Series
Standard Raspberry Pi 40PIN GPIO Header, Customized For Raspberry Pi Series Boards
Expand CAN And RS485 Functions
CAN: Onboard CAN Controller MCP2515 Via SPI Interface, With Transceiver SIT65HVD230DR
RS485: Controlled Via UART, Half-Duplex Communication, Onboard Transceiver SP3485

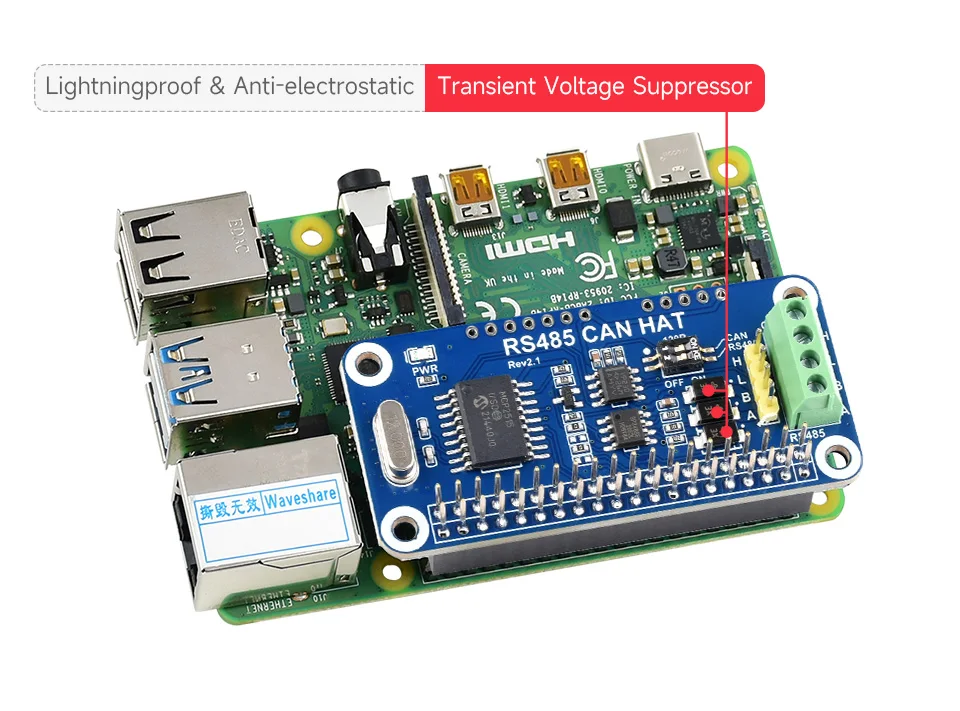

Onboard Transient Voltage Suppressor
Effectively Suppress Surge Voltage And Transient Spike Voltage In The Circuit For RS485 Transceiving

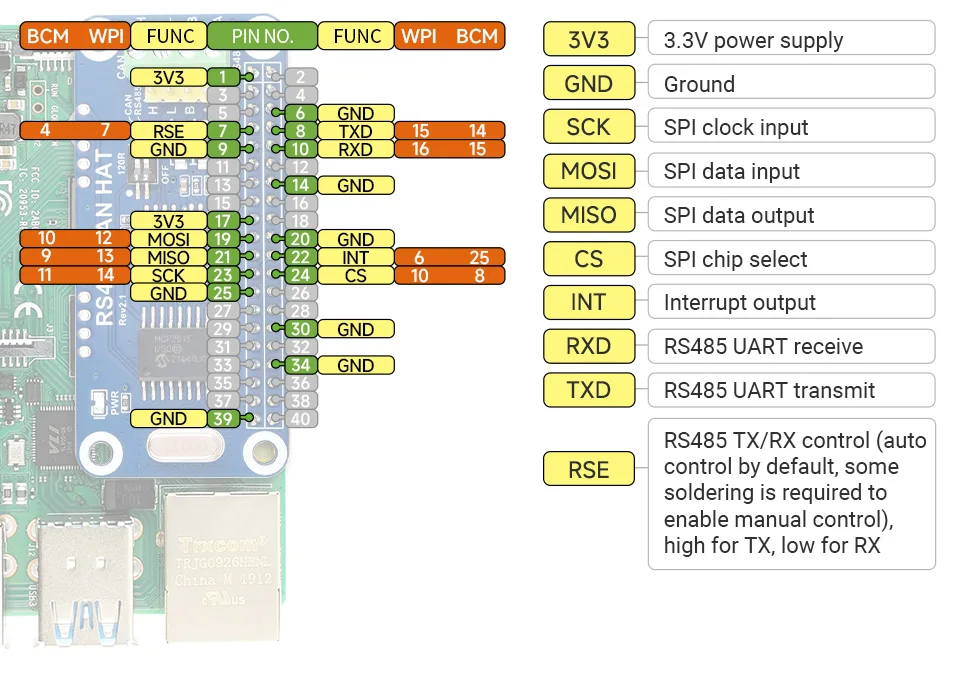

Pin Definition

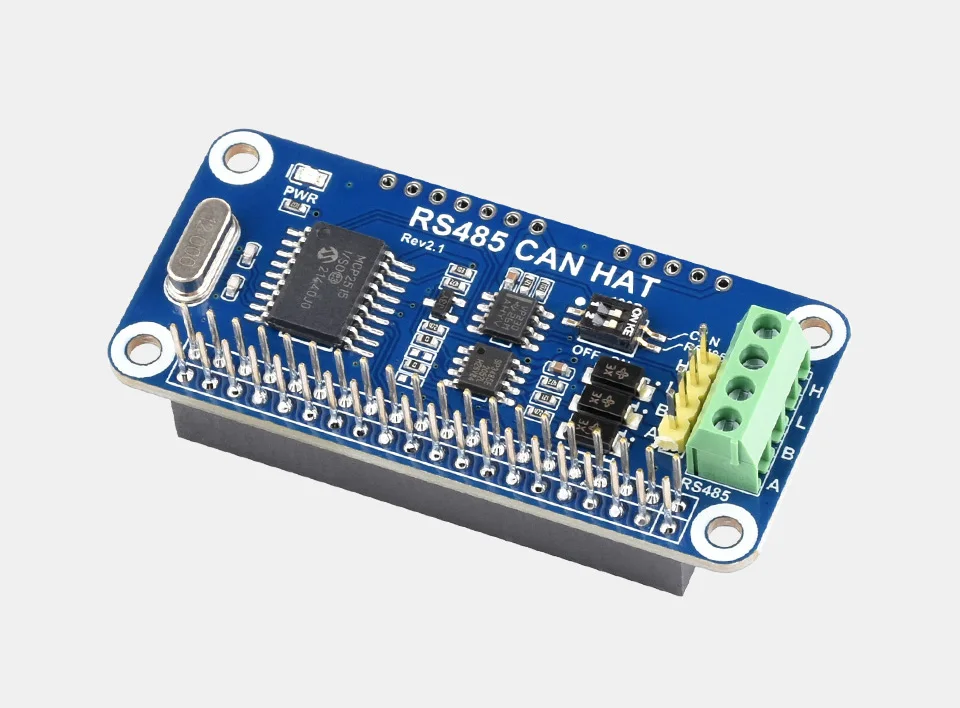

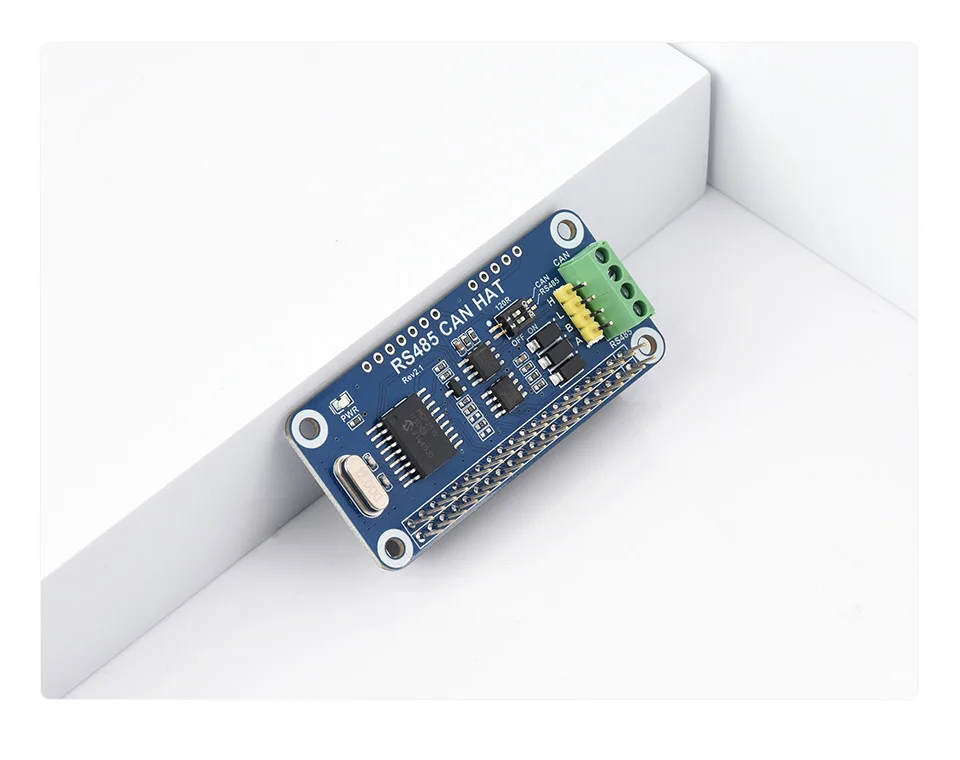

Product Show

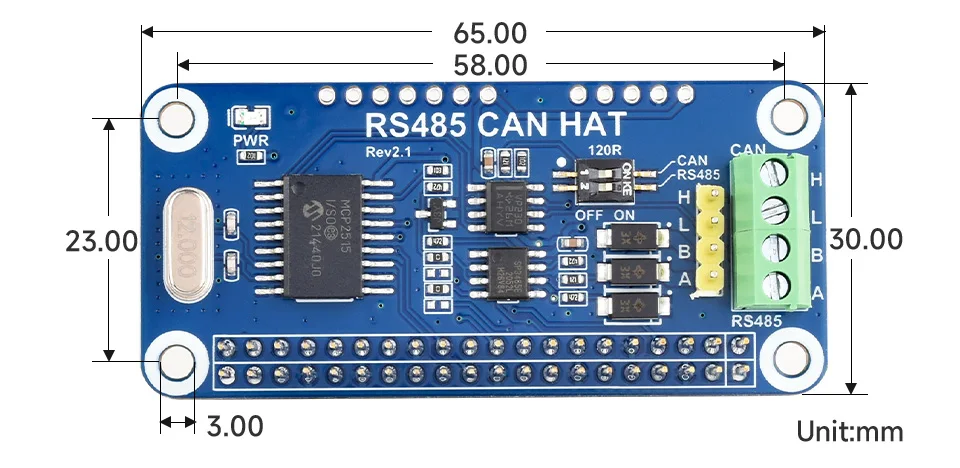

Outline Dimensions
Resources
http://www.waveshare.com/wiki/RS485_CAN_HAT

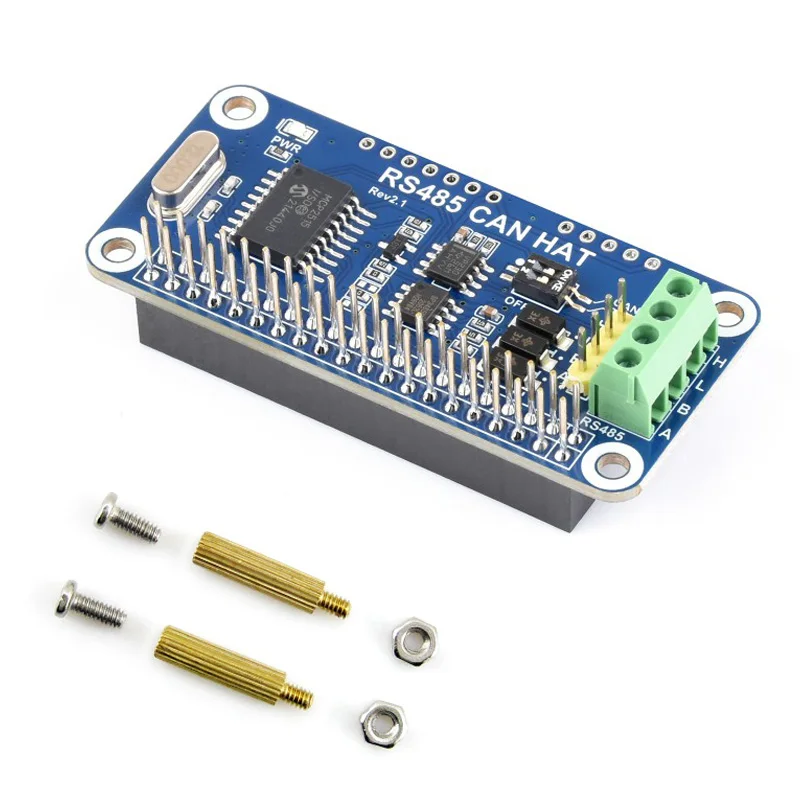

Packing List:
1 x RS485 CAN HAT Rev2.1
1 x RPi Screws Pack
(not include Raspberry Pi)
