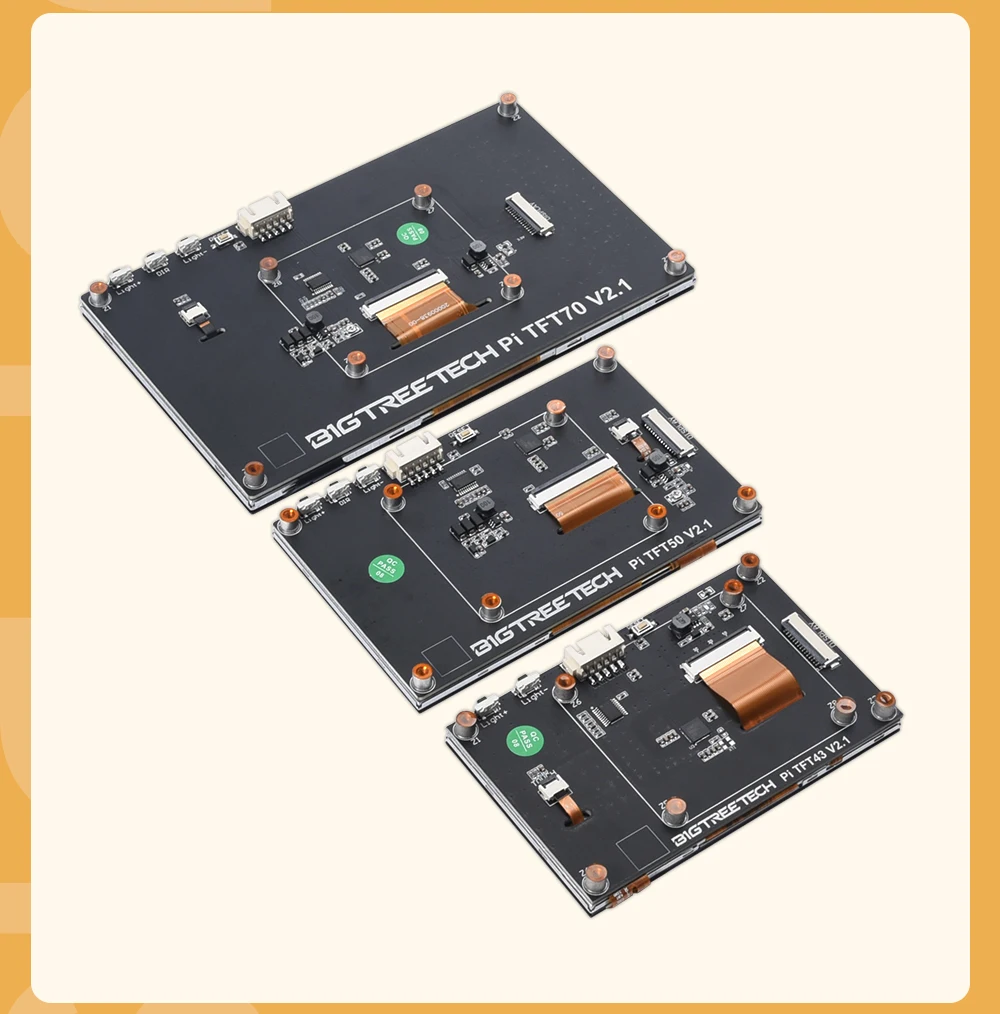

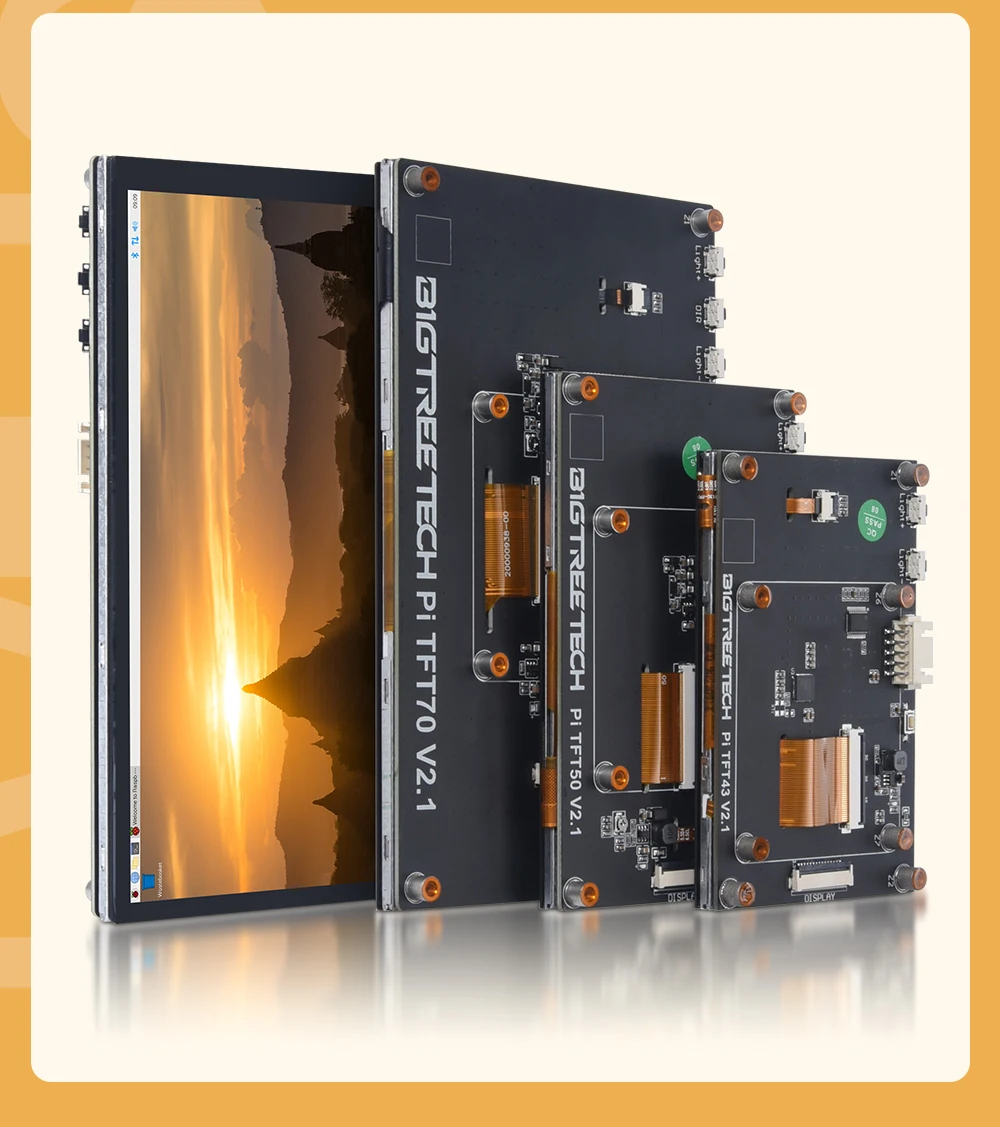

BIGTREETECH PITFT50 PITFT43 PITFT70 DSI Capacitive Touch Screen Raspberry PI LCD Display For Octopus Pro Control Board TMC5160

Multiple chips, randomly sent，If there are any unclear areas, please contact us to verify!

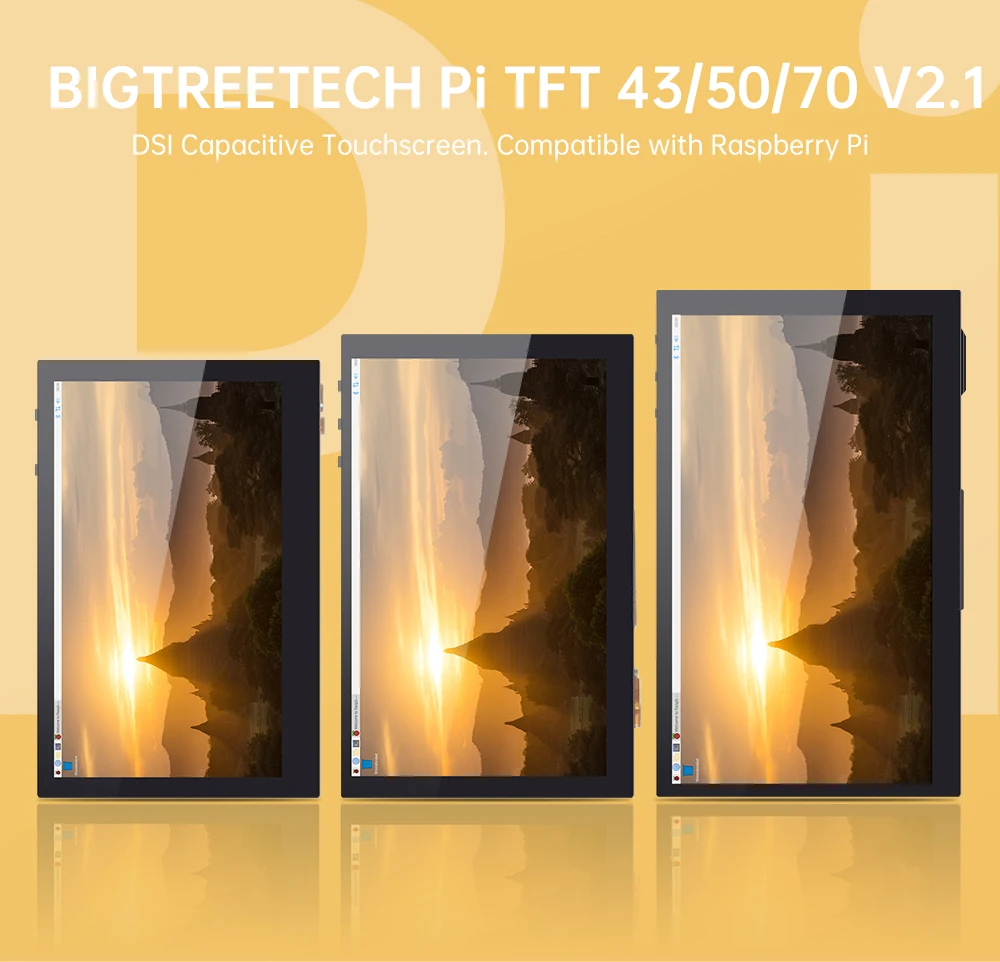

DSI Capacitive Touchscreen. Compatible with Raspberry Pi

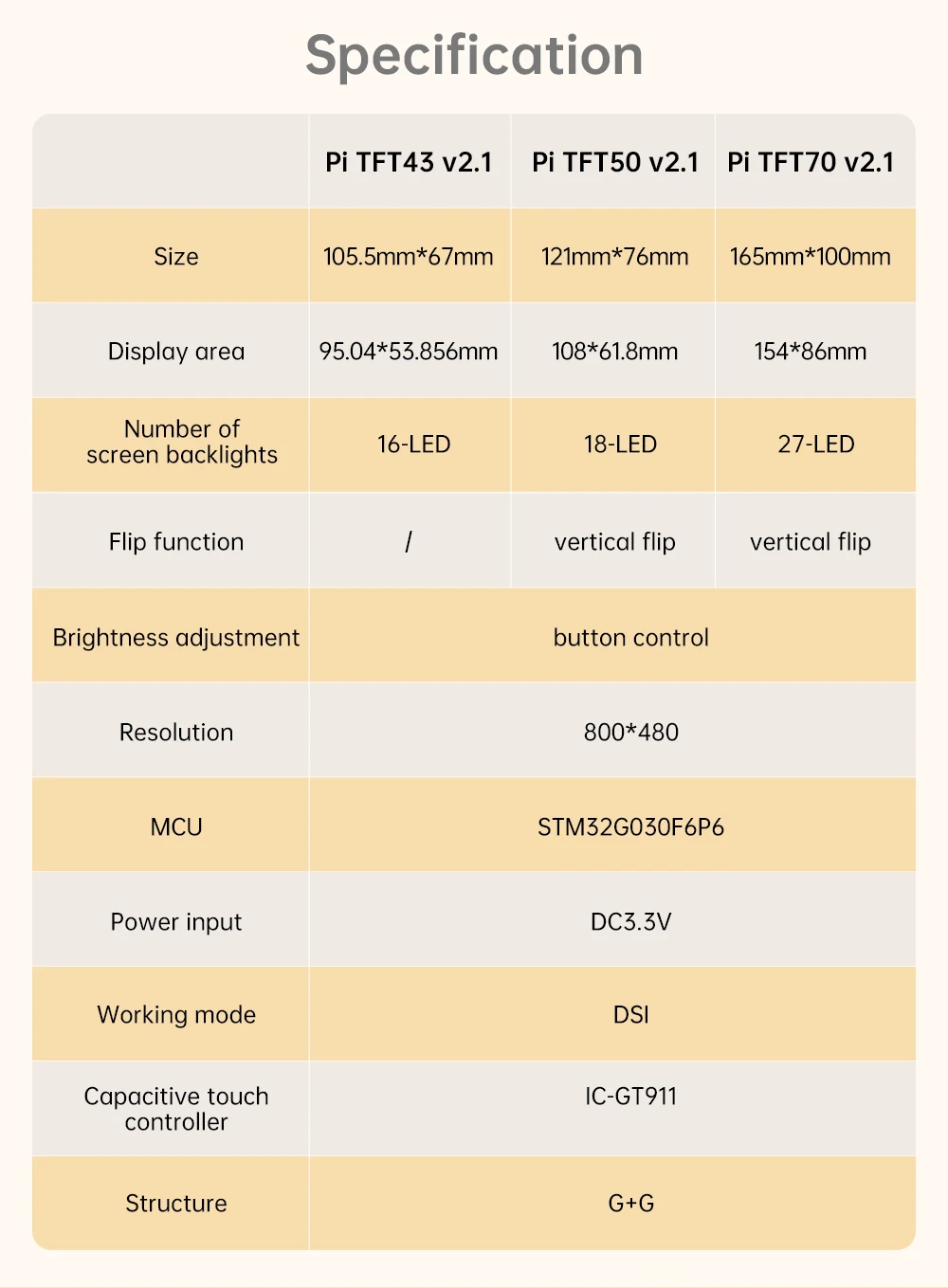

Specification

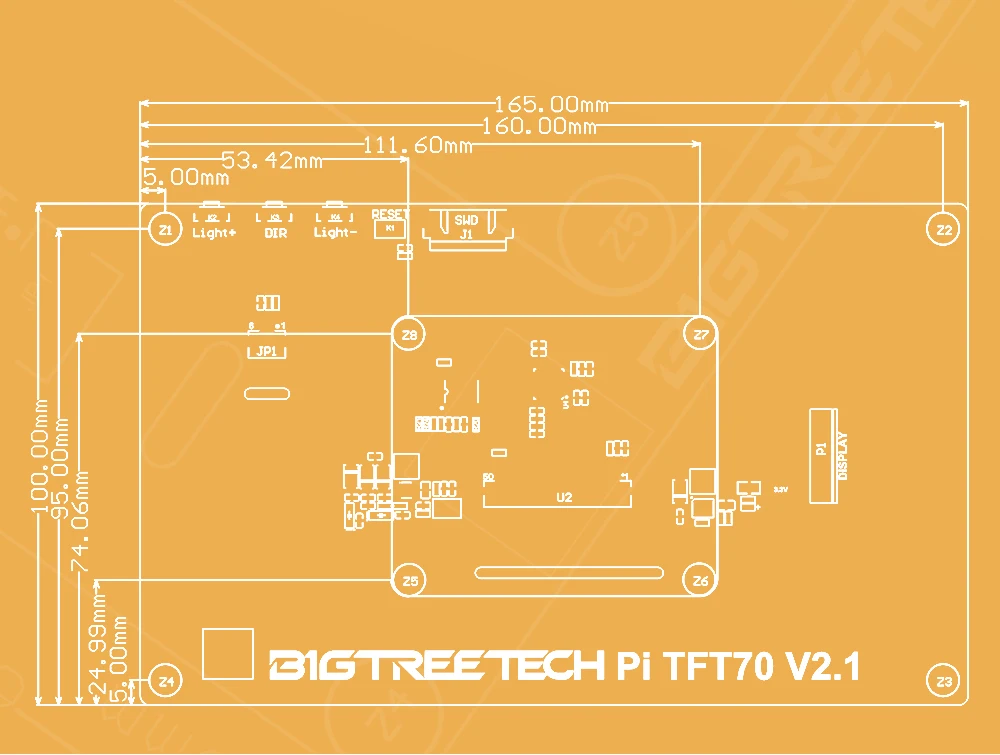

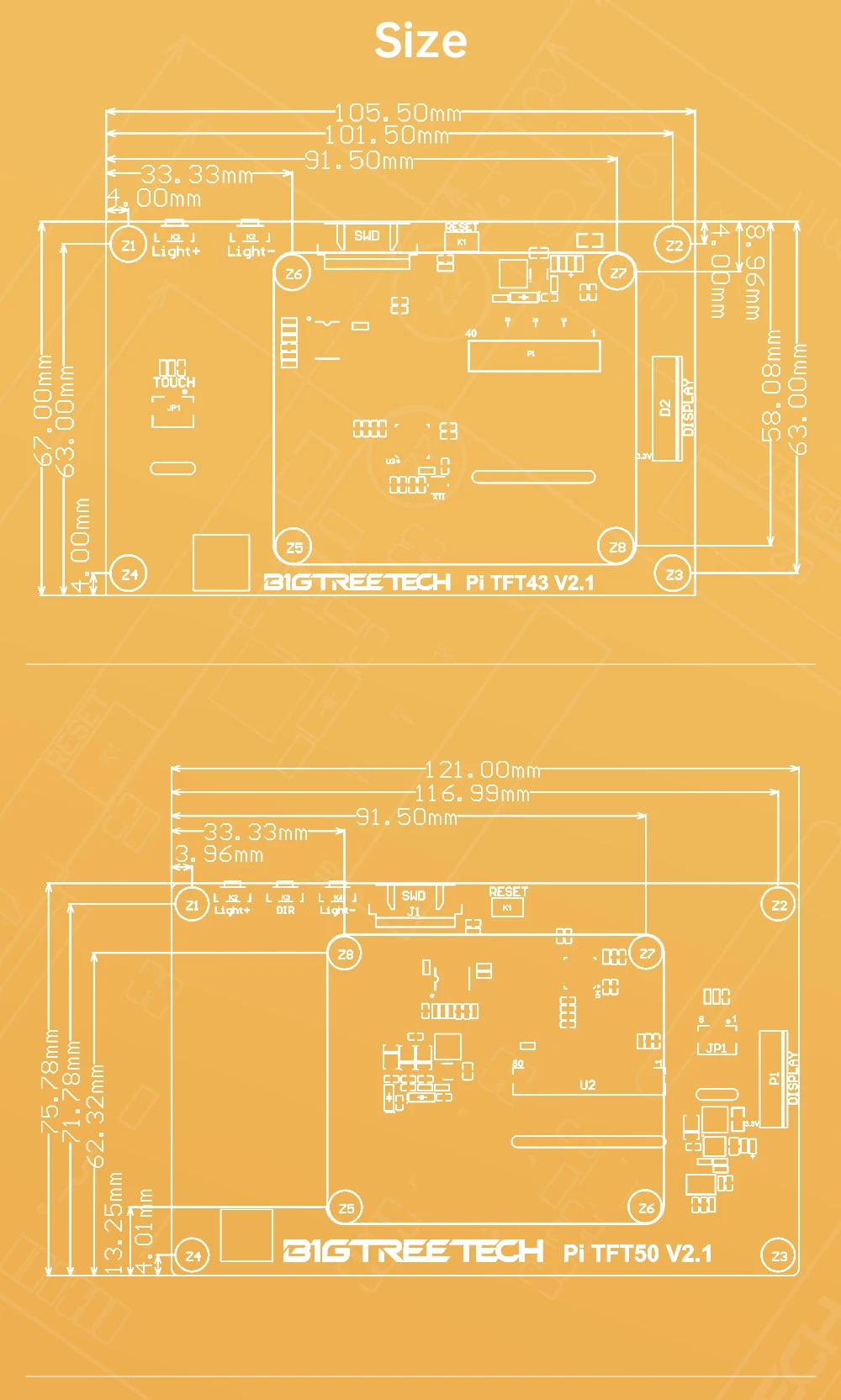

Pi TFT43/Pi TFT50/Pi TFT70 Size：105.5mm*67mm/121mm*76mm/165mm*100mm

Pi TFT43/Pi TFT50/Pi TFT70 Display area：95.04*53.856mm/108*61.8mm/154*86mm

Pi TFT43/Pi TFT50/Pi TFT70 Number of screen backlights：16-LED/18-LED/27-LED

Pi TFT43 Flip function：NO

Pi TFT50/Pi TFT70：vertical flip

Brightness adjustment：button control

Resolution：800*480

MCU：STM32G030F6P6

Power input：DC3.3V

Working mode：DSI

Capacitive touch controller：IC-GT911

Structure：G+G

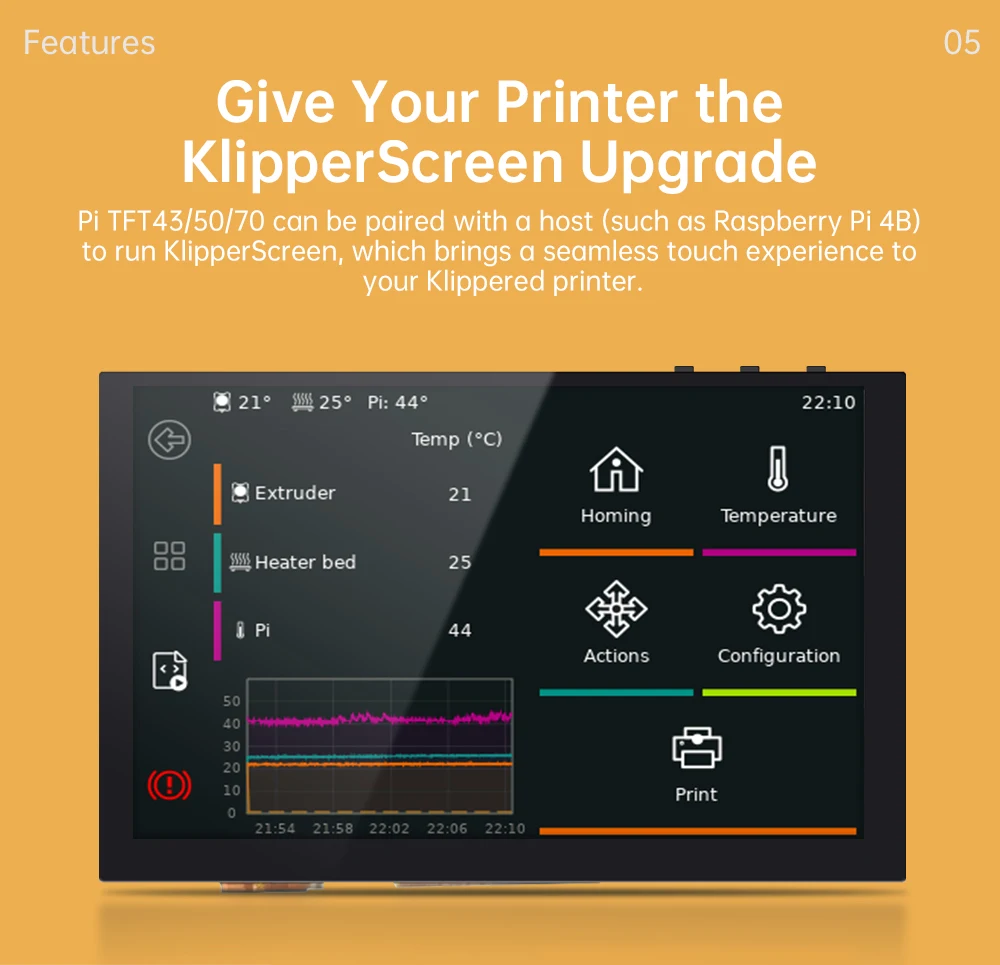

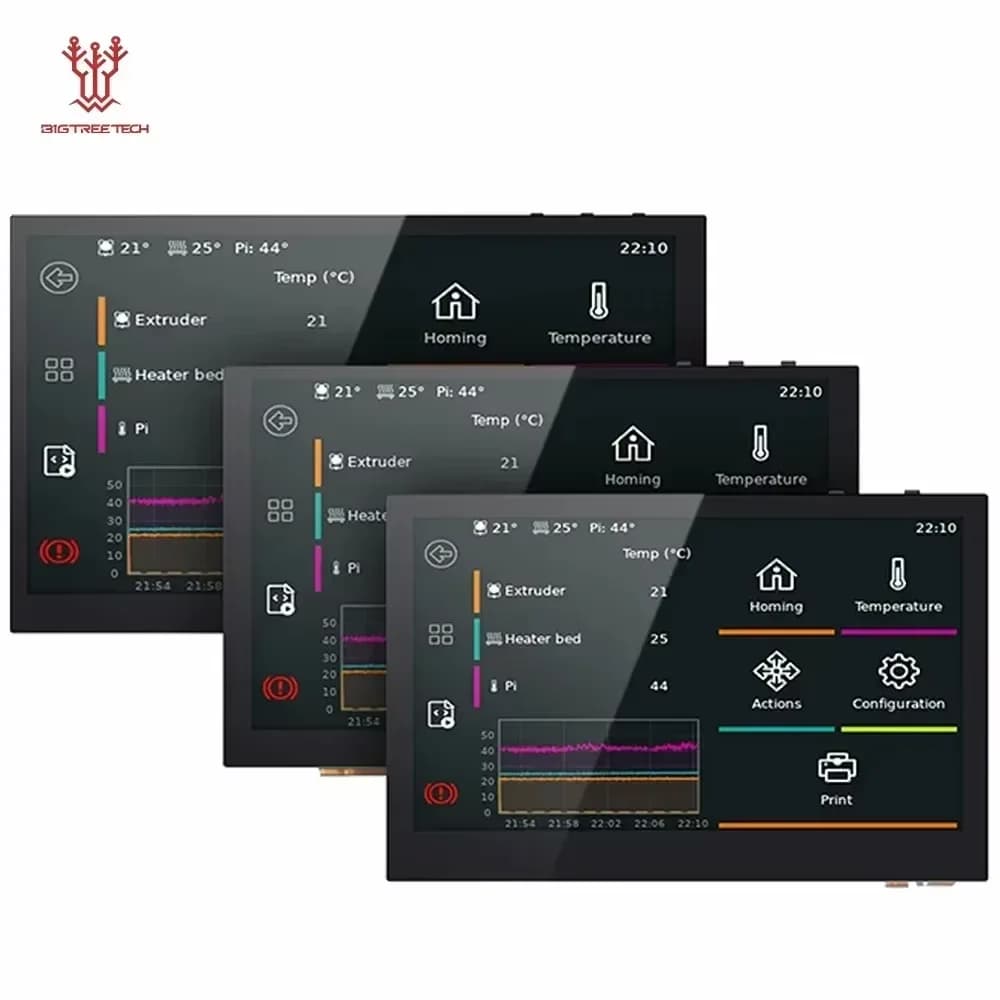

Give Your Printer the KlipperScreen Upgrade：Pi TFT43/50/70 can be paired with a host(such as Raspberry Pi 4B) to run KlipperScreen,which brings a seamless touch experience to your Klippered printer.

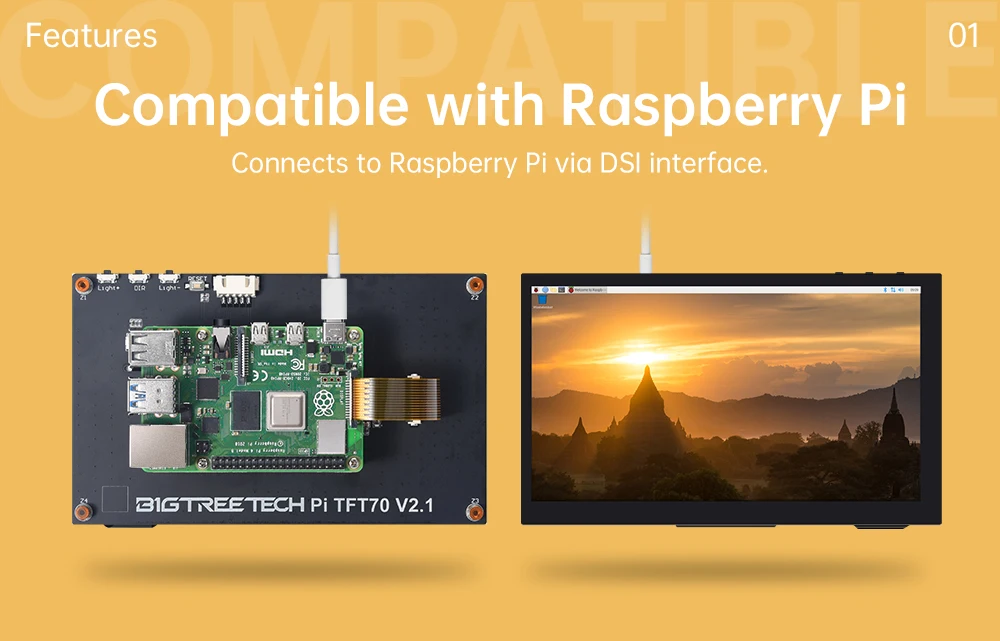

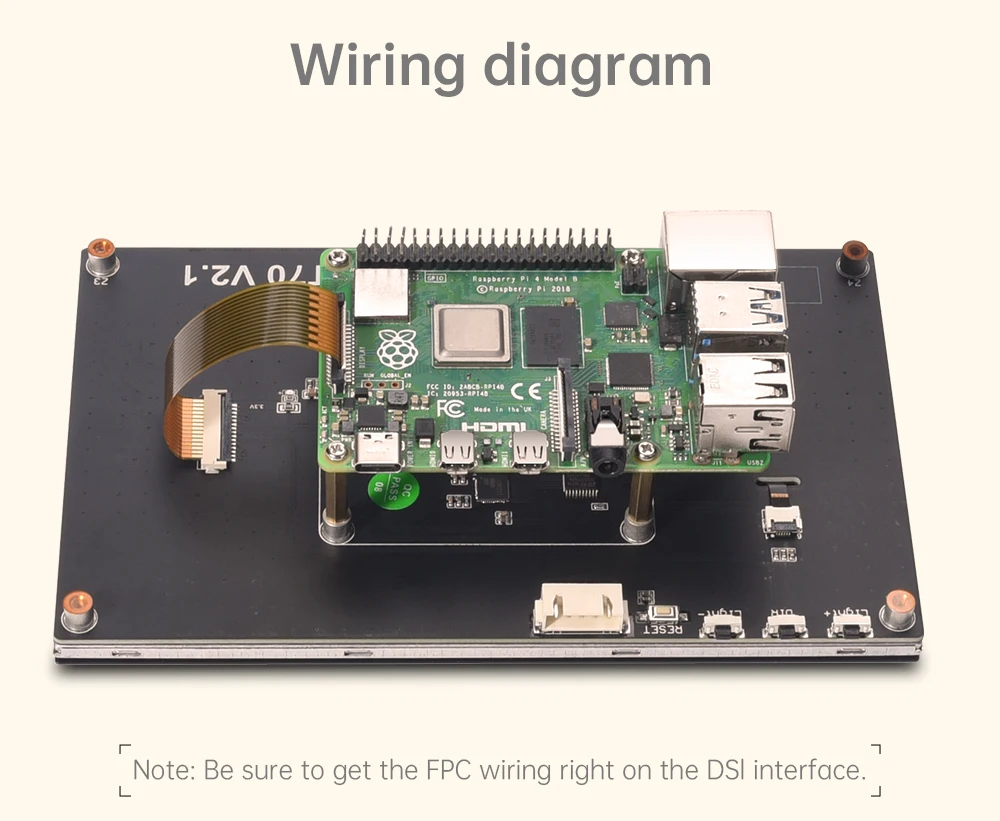

Compatible with Raspberry Pi：Connects to Raspberry Pi via DSl interface.

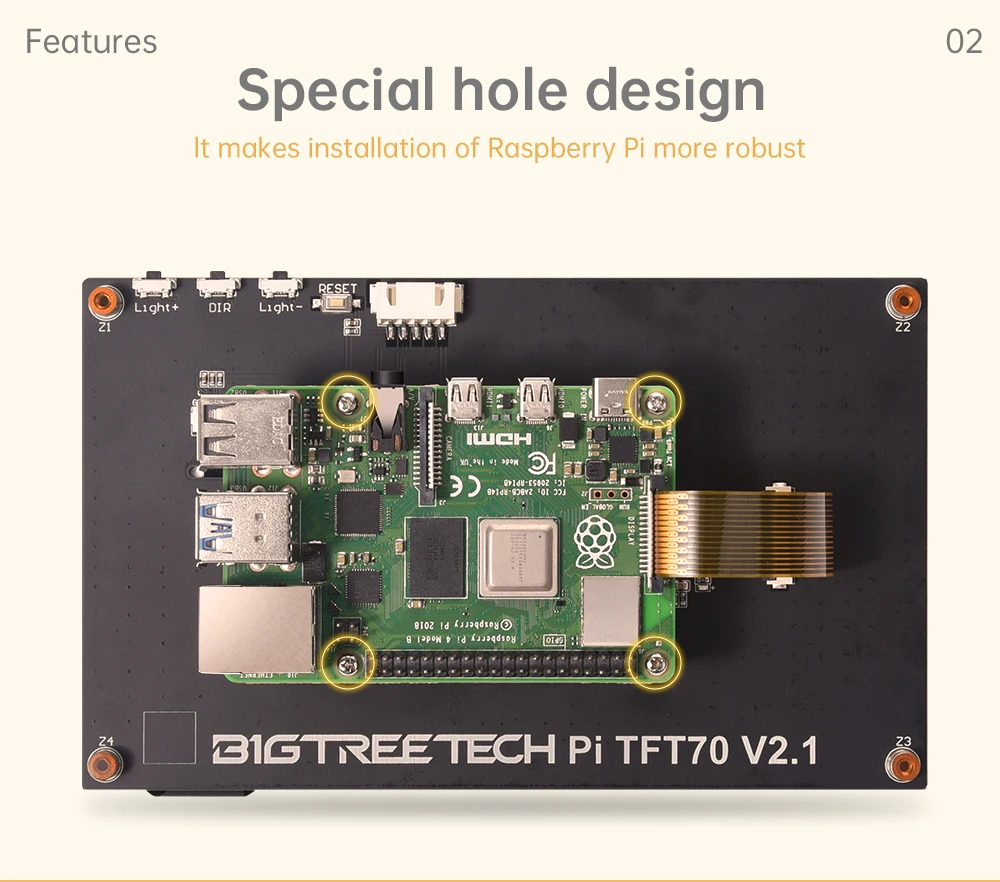

Special hole design：It makes installation of Raspberry Pi more robust

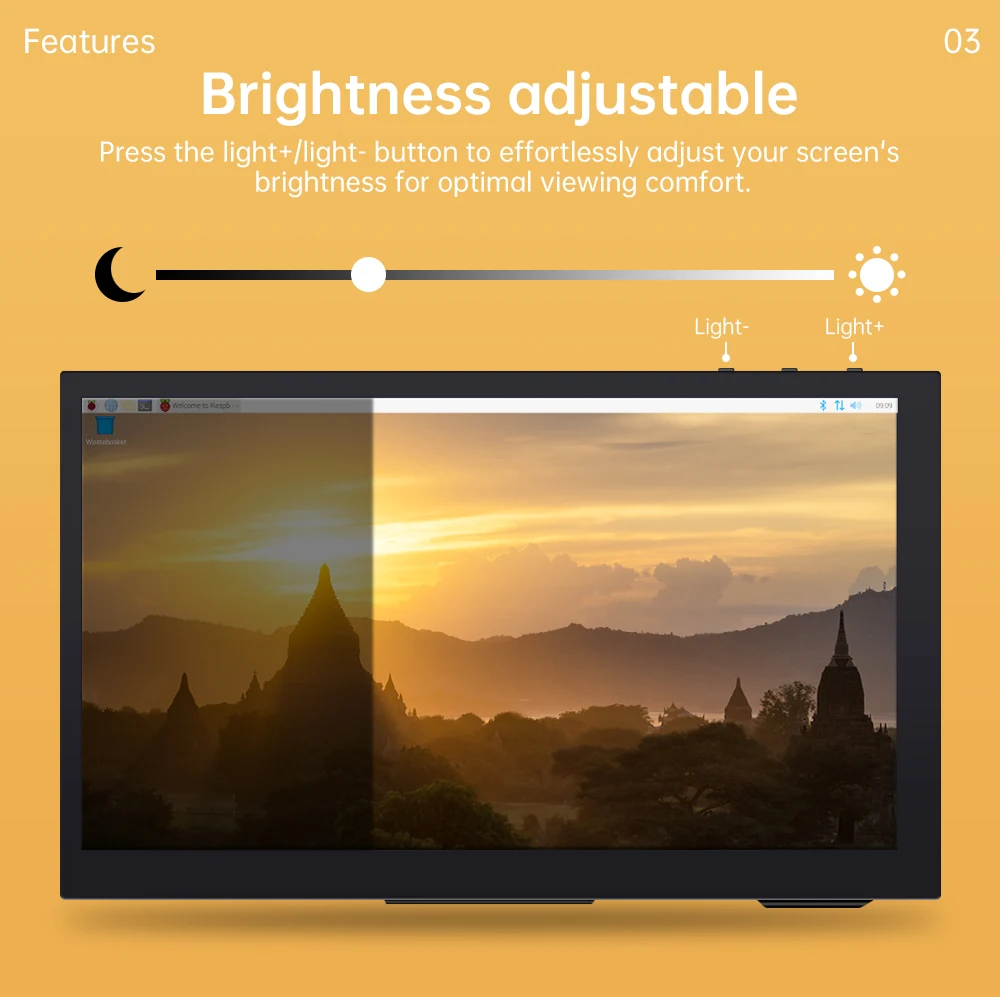

Brightness adjustable：Press the light+/light-button to effortlessly adjust your screen's brightness for optimal viewing comfort.

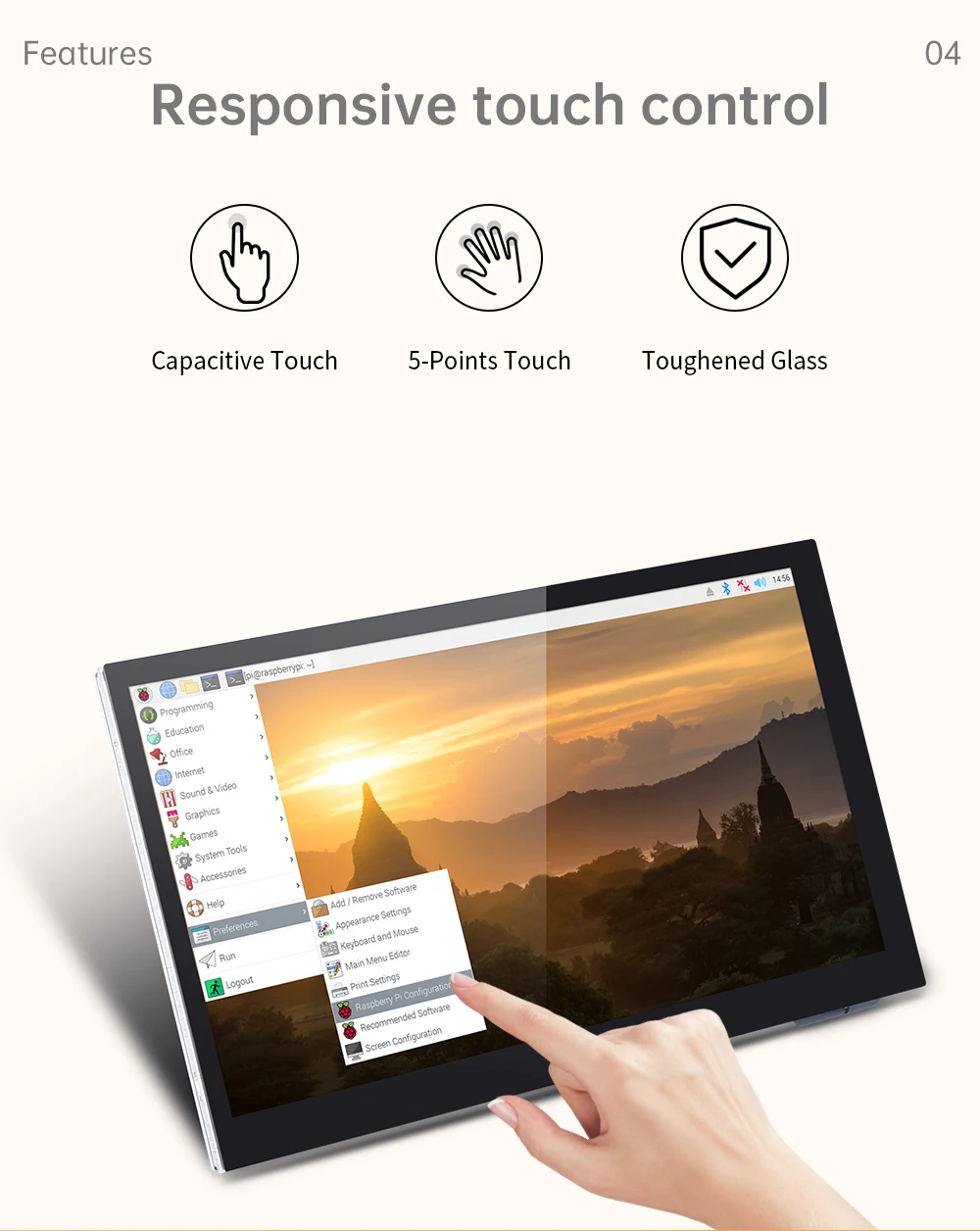

Responsive touch control：Capacitive Touch、5-Points Touch、Toughened Glass

https://github.com/bigtreetech/BIGTREETECH-TouchScreenHardware

The screen does not support the zero version of raspberry pi
