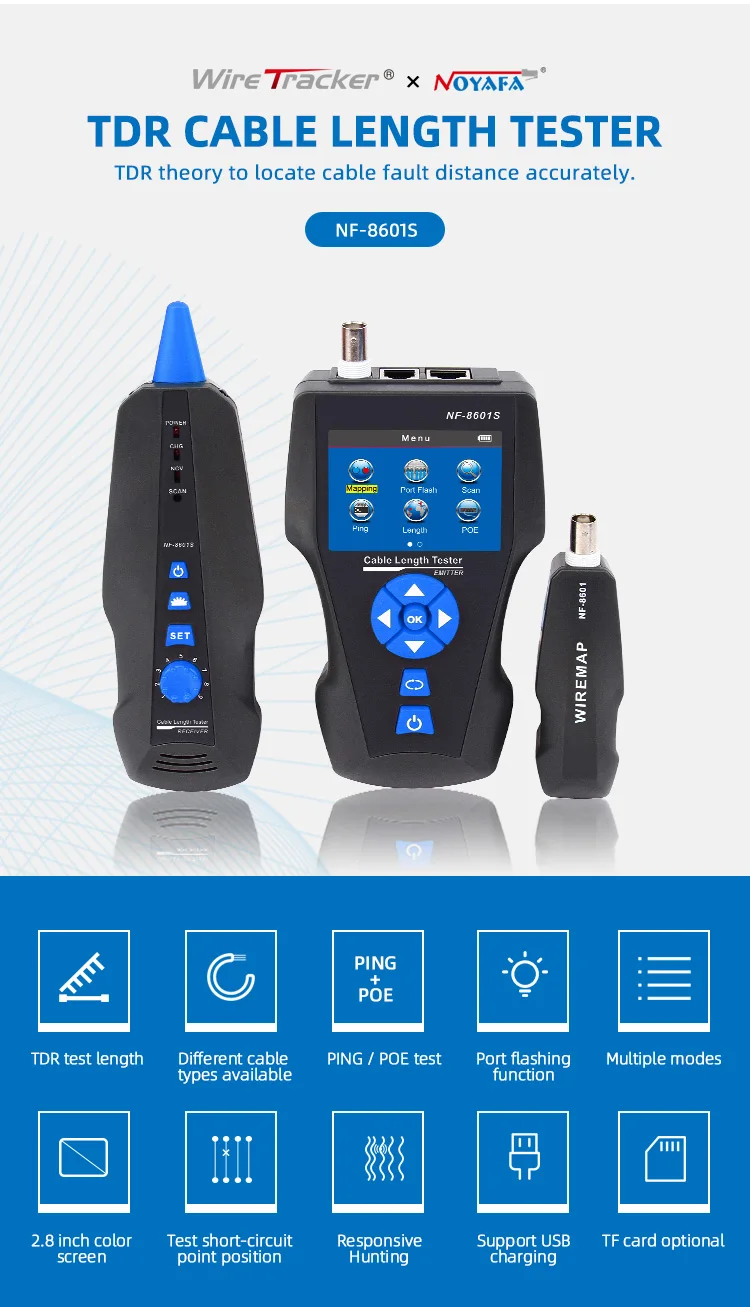

NOYAFA NF-8601S Network Cable Tester Multifunction TDR Length With PoE/PING/Port Voltage Wiremap Tracker Diagnose Tool Detector

Functions:

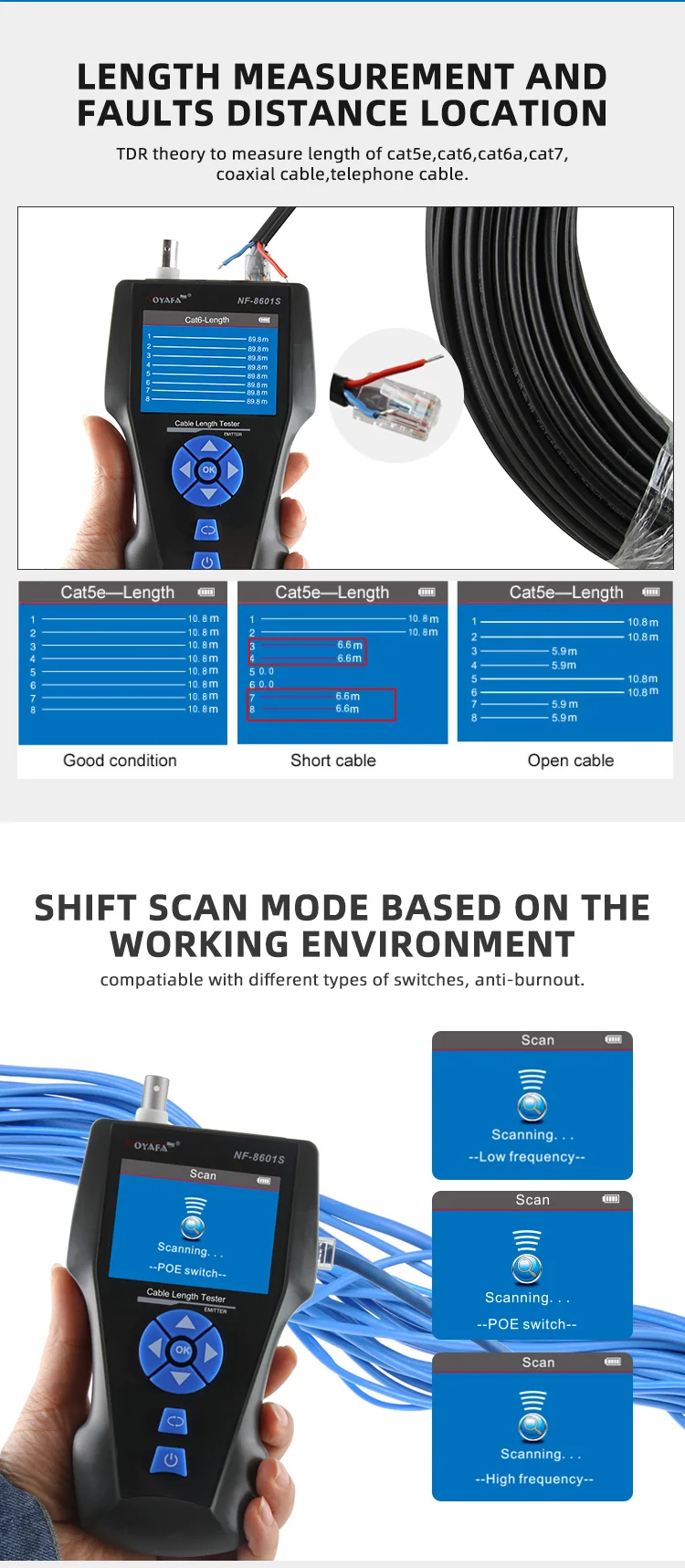

1. TDR theory to measure length of cat5e, cat6 and cat7 cable, coaxil cable, telephone cable.

2. Wiremapping with length and provide the distance to fault information.

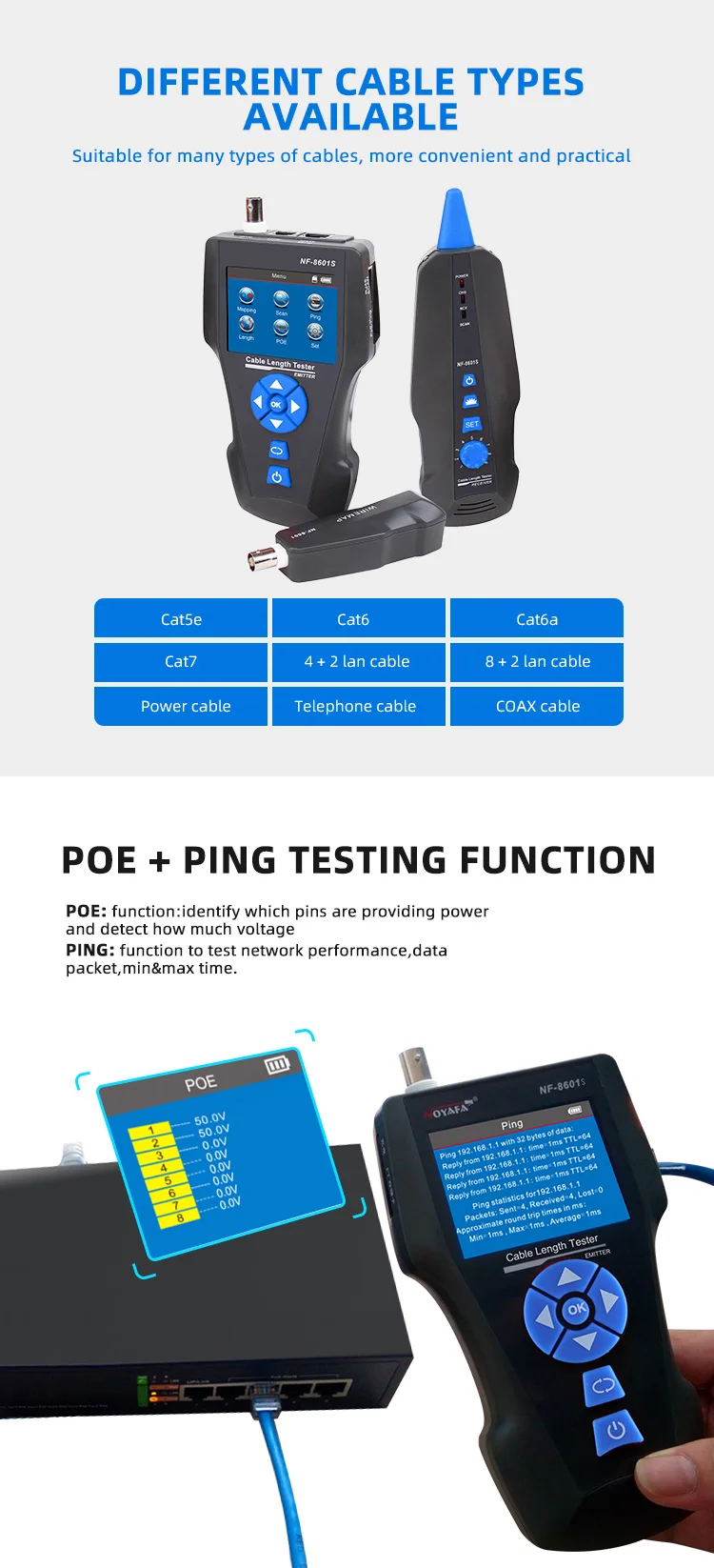

3. PoE function: identify which pins are providing power and detect how much voltage.

4. PING function to test network performance, data packet, MIN&MAX time.

5. Quickly find the targeted cable without stripping isolation among unknown cables.

6. Hub blinks for locating network port by the flashing port light on Hub / Switch.

7. Voltage detector: included in receiver (90~1000V)

Benefits:

1. Tone traces cable with complete AC fliter.

2. TF card function to export data from computer (50sets, TXT format)

3. 2 scan modes: common switch and PoE switch

4. 3.7V lithium battery for power supply and 2.8 inch color screen

Technical indexes:

NF-8601S Transmitter specifications

IndictorLCD 320x240 mm, with backlight

Cable test typesSTP/UTP 5E,6E network , telephone , coaxial cable.

Max. distance of wiremap1000 m

Max. distance of tracing1000m

Max. distance of cable length1000 m

Min. distance of calibration50 m

Accuracyup to 98% ( after calibration )

Compatible connectorsRJ11, RJ45, PING/POE, BNC

Cable map indicationLCD (#1-#8)

Battery Type3.7V lithium battery 1800mAh

Work temperature / humidity10℃ ~ -60℃ / 0℃~70℃

Dimension(LxWxD)173x92x34mm

NF-8601S Receiver specifications

Cable huntingRJ11，RJ45, BNC

Types of cable≥ 2 cores

Battery Type3.7V lithium battery 1800mAh

Dimension(LxWxD)183x58x35 mm

NF-8601S Remote unit specifications

Compatible connectorsRJ11，RJ45, BNC

Dimension(LxWxD)106x32x30mm

Accessories Included:

Bulit-in battery x 2 set

Adapted telephone line x 1 set

Adapted network cable x 1 set

Cable clips x 1 set

Charging adaptor  x 1 set

Toolkit  x 1 set
