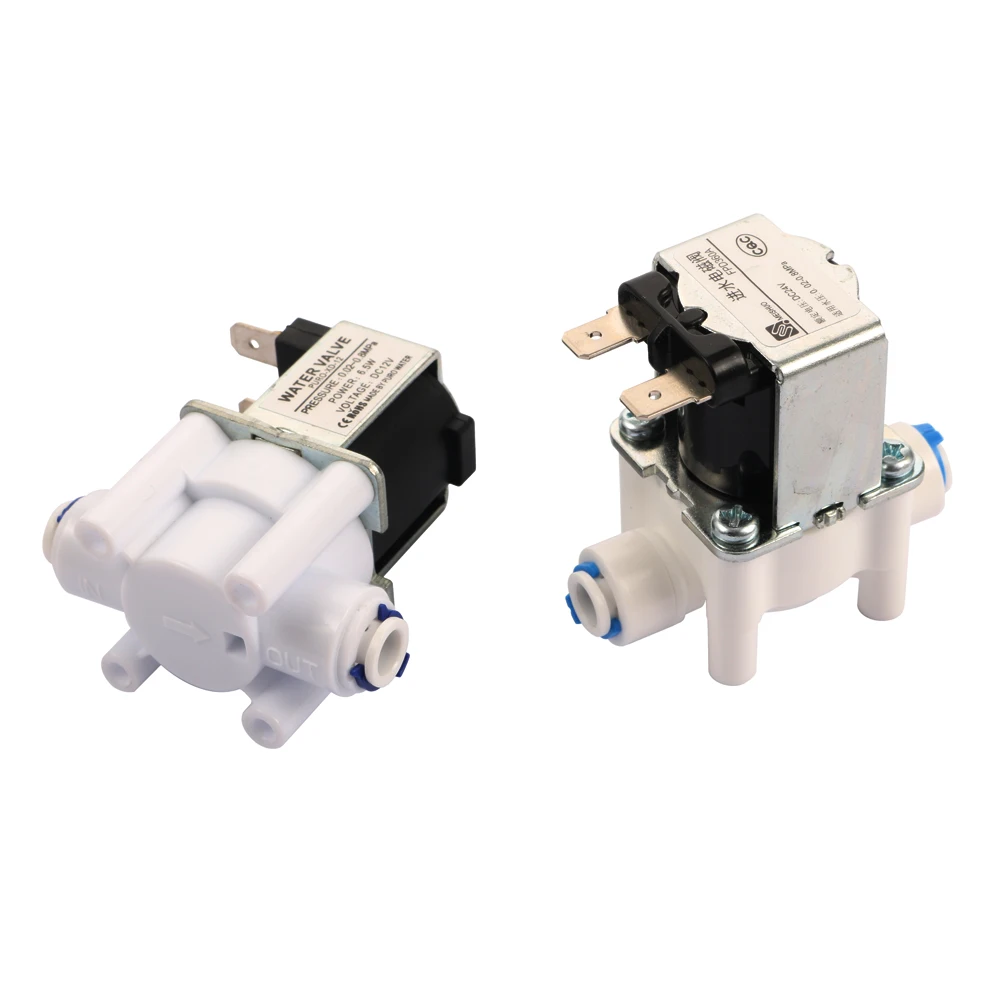

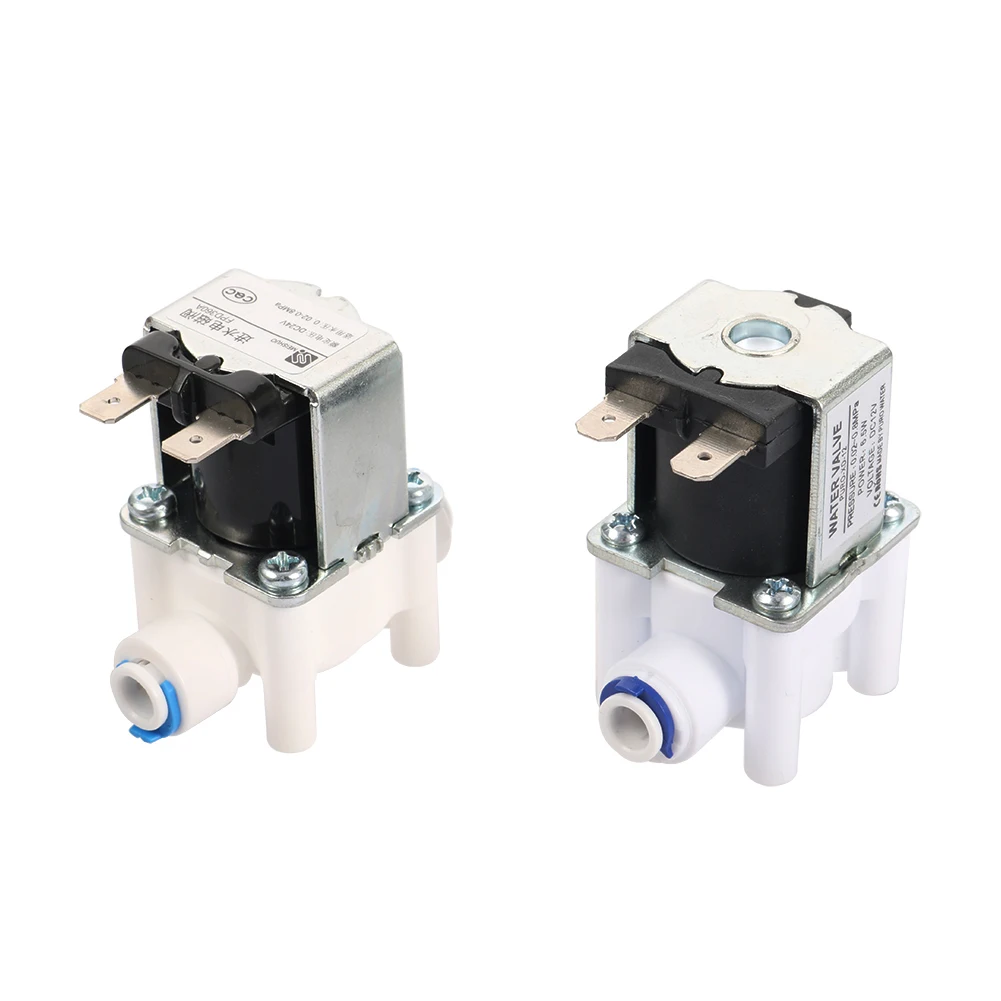

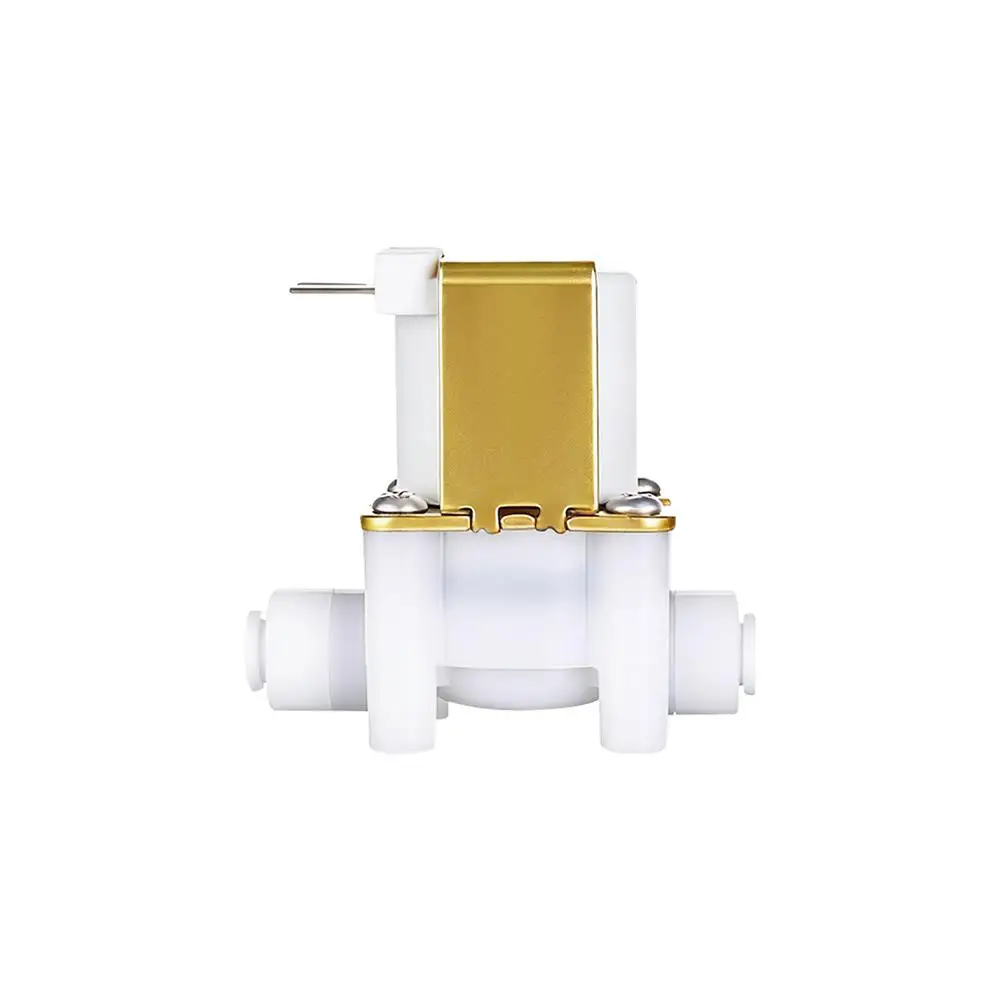

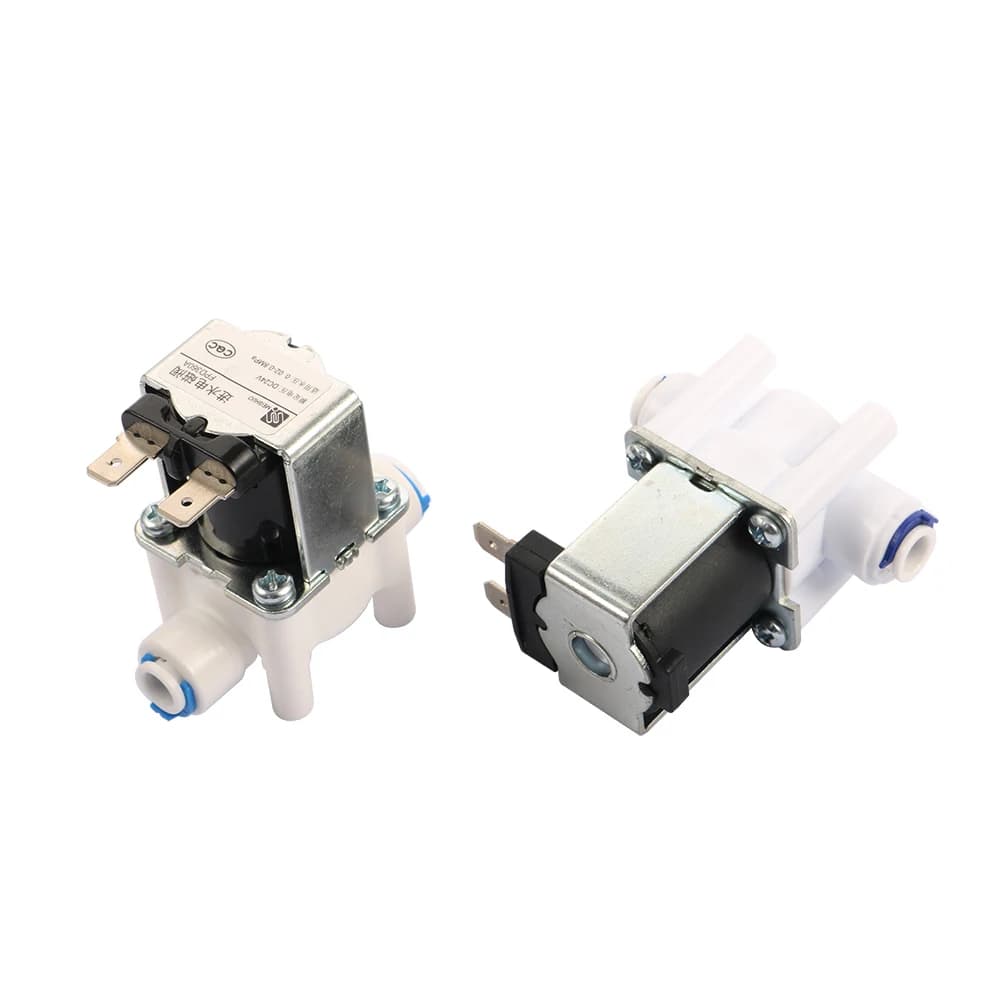

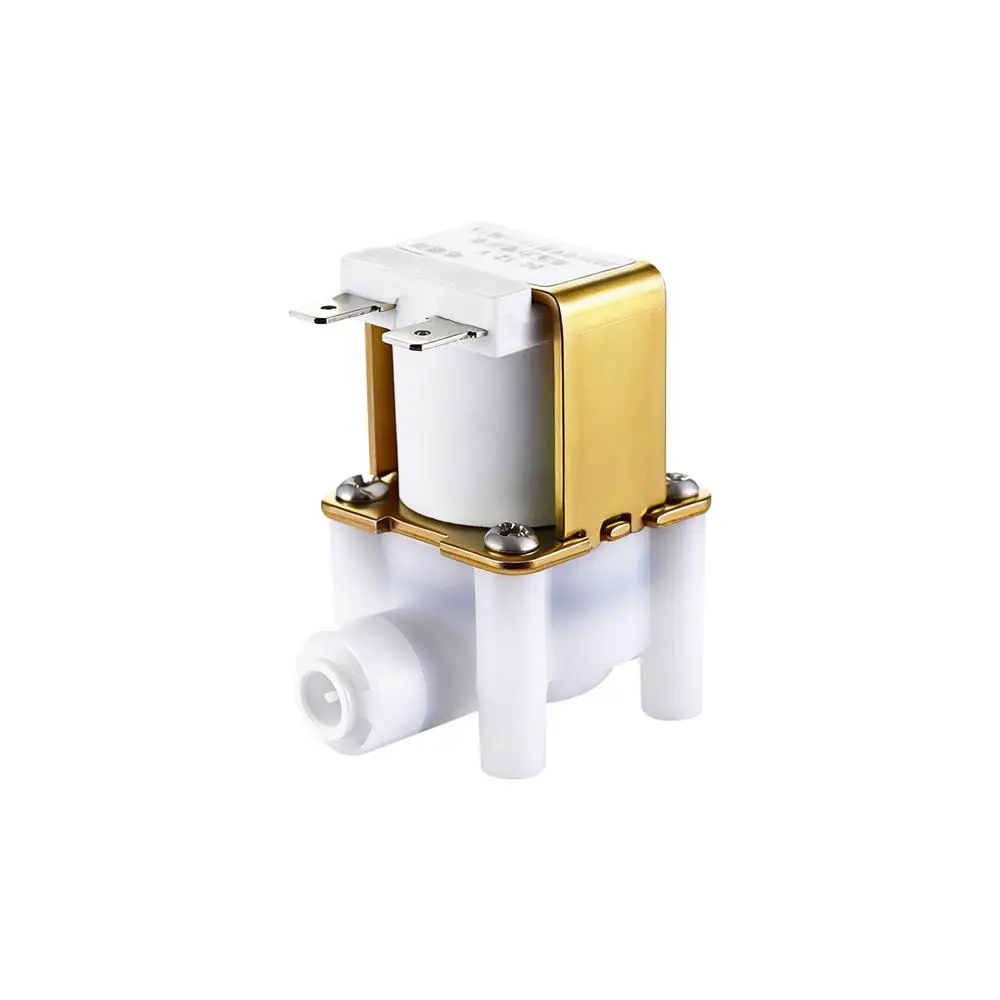

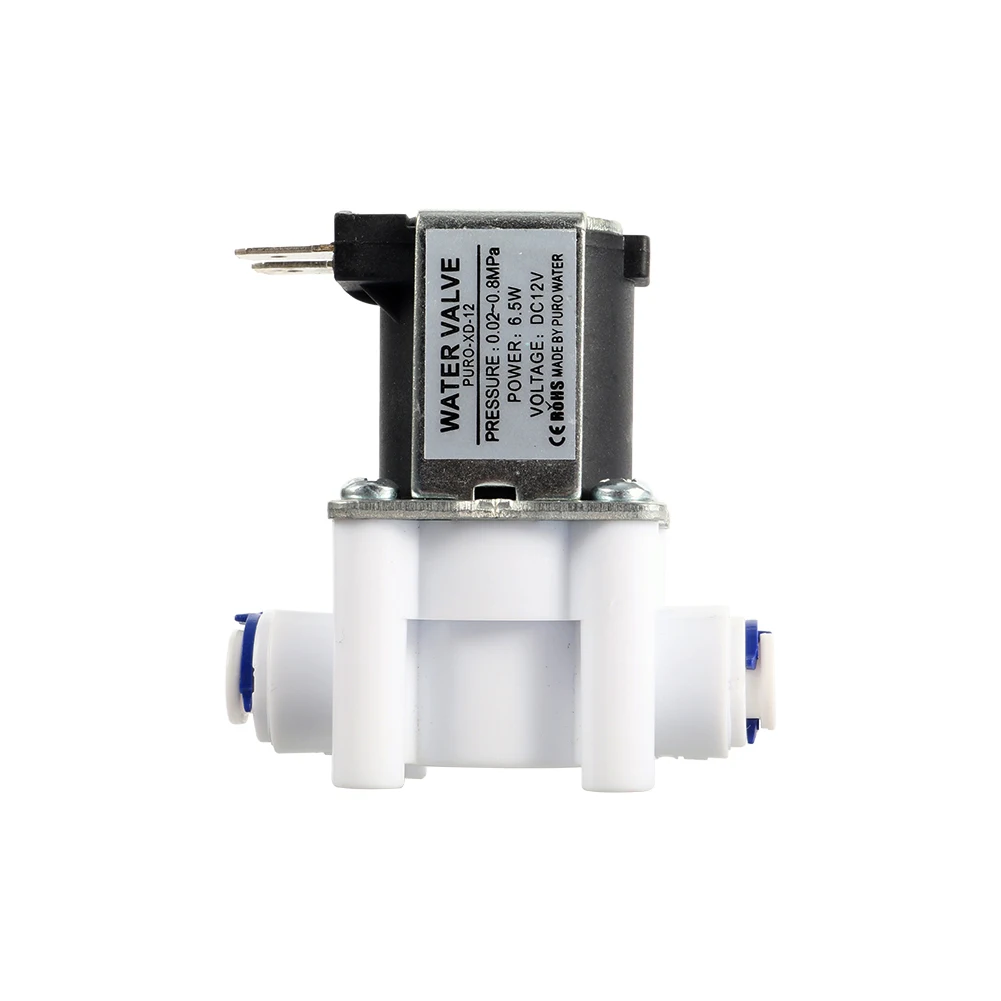

Normally closed Electric Solenoid Valve Magnetic DC 12V Water Inlet Flow Switch 1/4 " 12V 24V Magnetic Controller Dispenser

Description:
Product Usage:
①water solenoid valve and high pressure water pump connected in parallel on the computer board.
② in the system of water or rinse, the water solenoid valve open at the same time high-pressure pump work; in standby, the water solenoid valve closed at the same time high-pressure pump to stop.
③the role of the water solenoid valve is in the water or rinse, open the water, and in the standby or power off when the closure of water,it can work in the pure water machine and not waste water.
Specification:

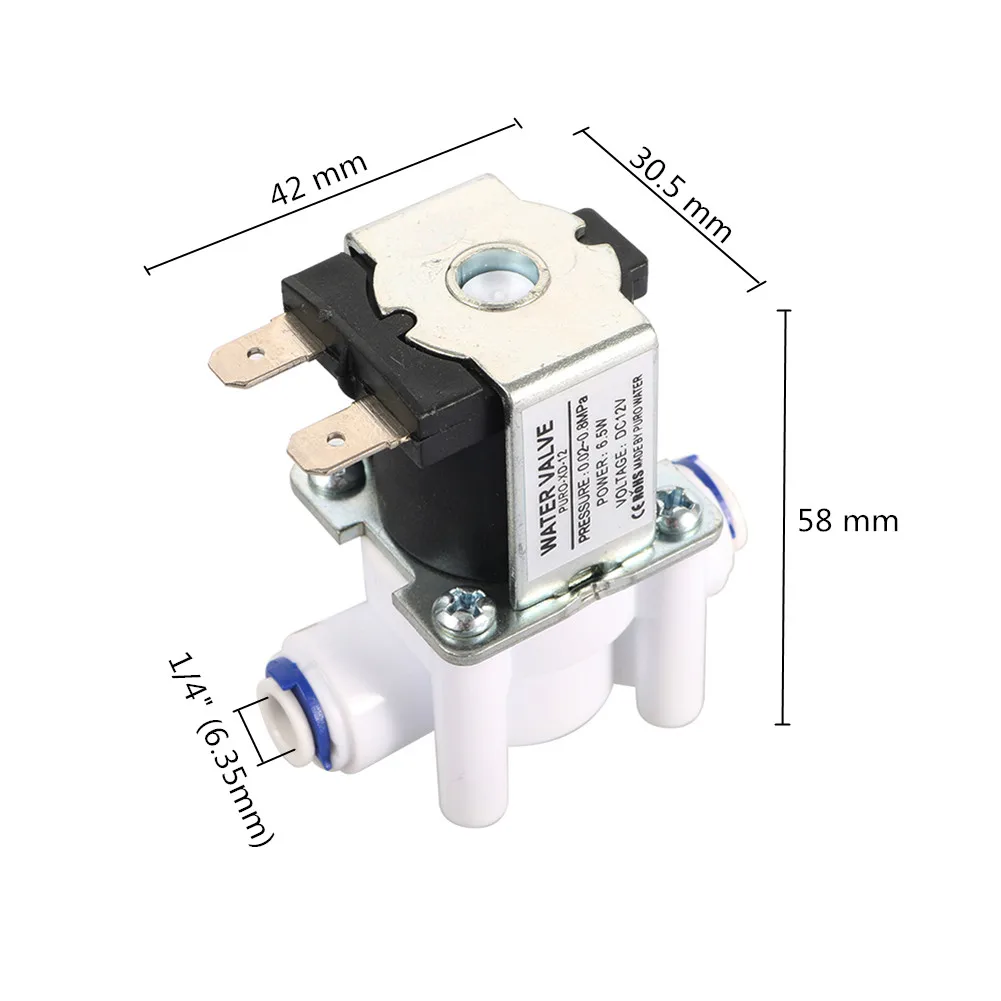

Name: Quick access water solenoid valve
Accessories Type : Water Purifier Valve
Model :1/4" quick access
Voltage：DC12V，DC24V
Operating temperature: 0-80 ° C (no freezing)
Working pressure: 0.02-1.0Mpa
Operation Mode: Normally Closed
Switch type :DC continuous type
Product role: Control the open or close of water purifier water inlet
Features: Water Inlet have filter
Application: Water Purifier
Package include:1 Pc ( type as you choose)
Note: The color of the solenoid valve is random.
Notice:
The size is measured by hands, please allow minor error of measurement. Photo color might be a little different from the actual product due to color display of different monitors.
