12V~220V 200W 300W Heating Element AC DC Insulated Thermos PTC Ceramic Air Heater 110V Incubator Electric Heater 120x50mm 76A2

100% Brand new and high quality

Product Description

Rated Power: 200W/300W

Rated Voltage: 12V/24V/110V/220V

Size: 120 x 50.5 x 26mm

Mounting Pitch: 100 x 43mm

Mounting Hole Size：8 x 4mm

Heat material: PTC Thermistor

Heat methods: heat radiation by air flow

Lead wire: silicone high temperature line

The length of lead wires : 200mm

The length of bare wires : 10mm

Main used in: Electric Heater / Air Conditioner / equipment / Humidifier / Air Purifier / Clothes Dryer / Dehumidifier

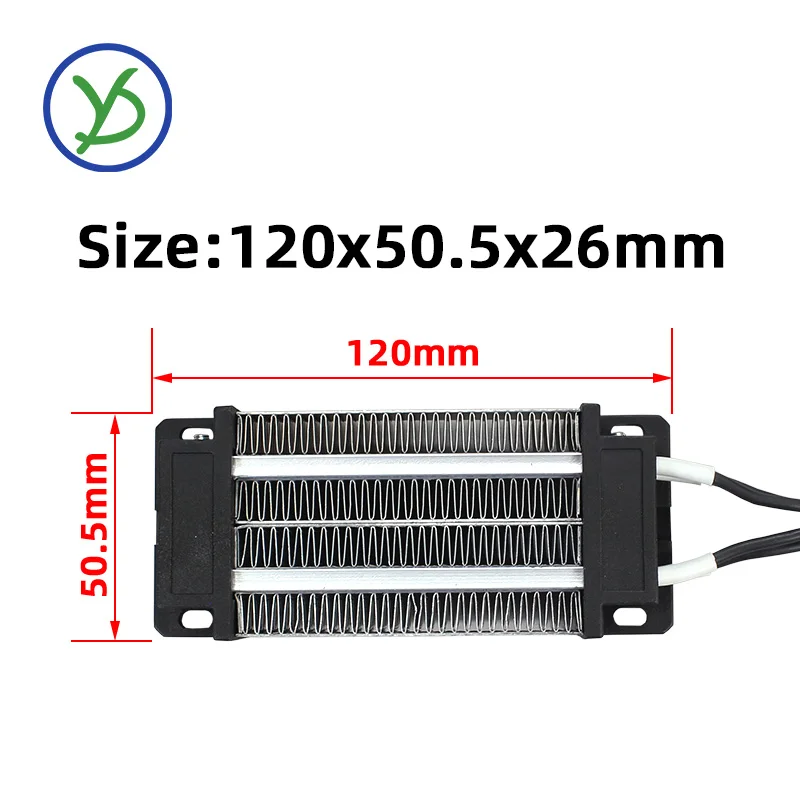

Item Size

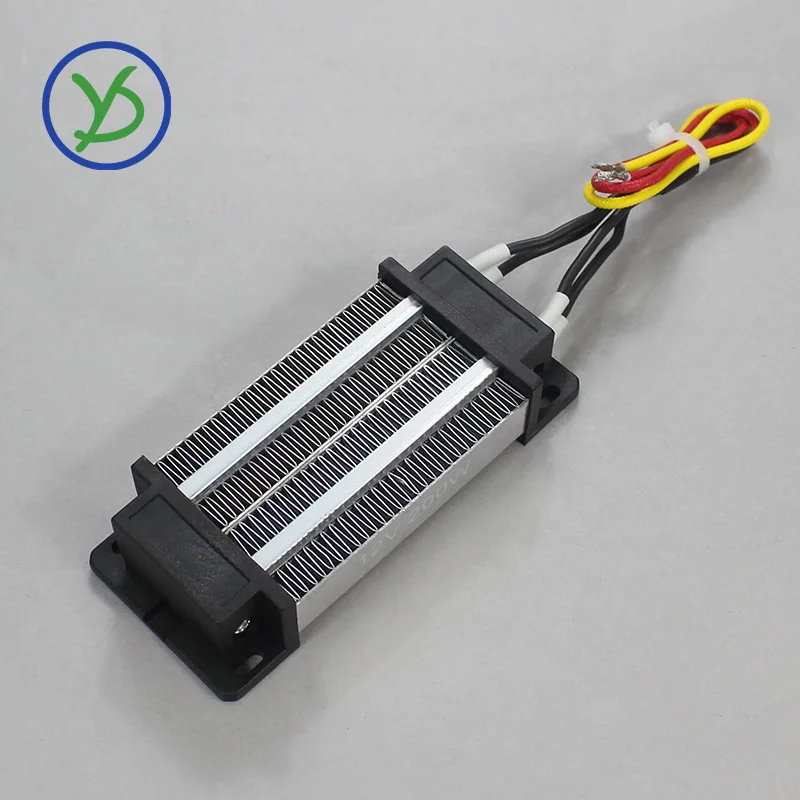

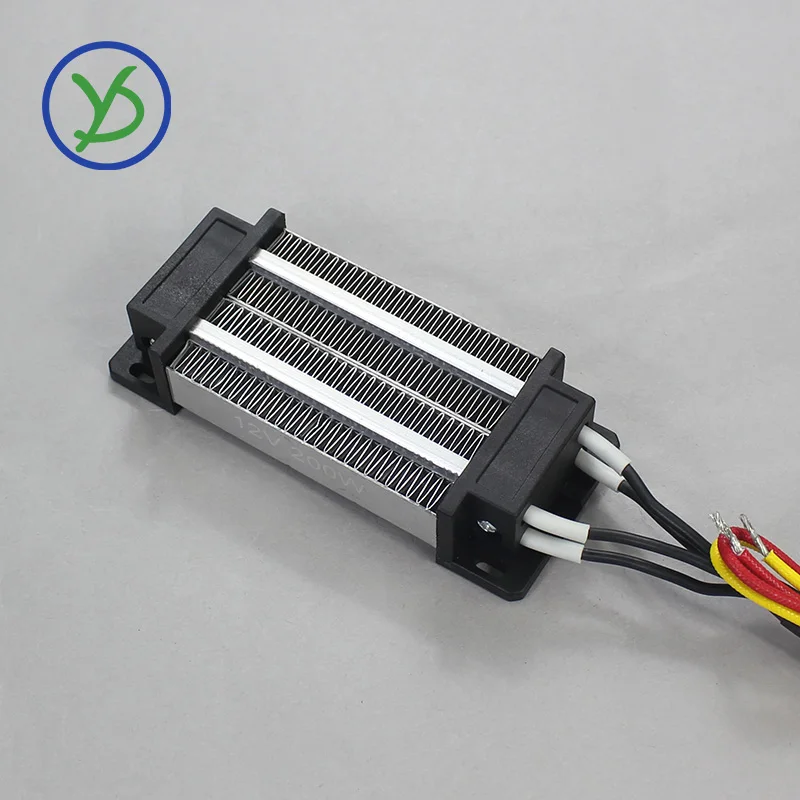

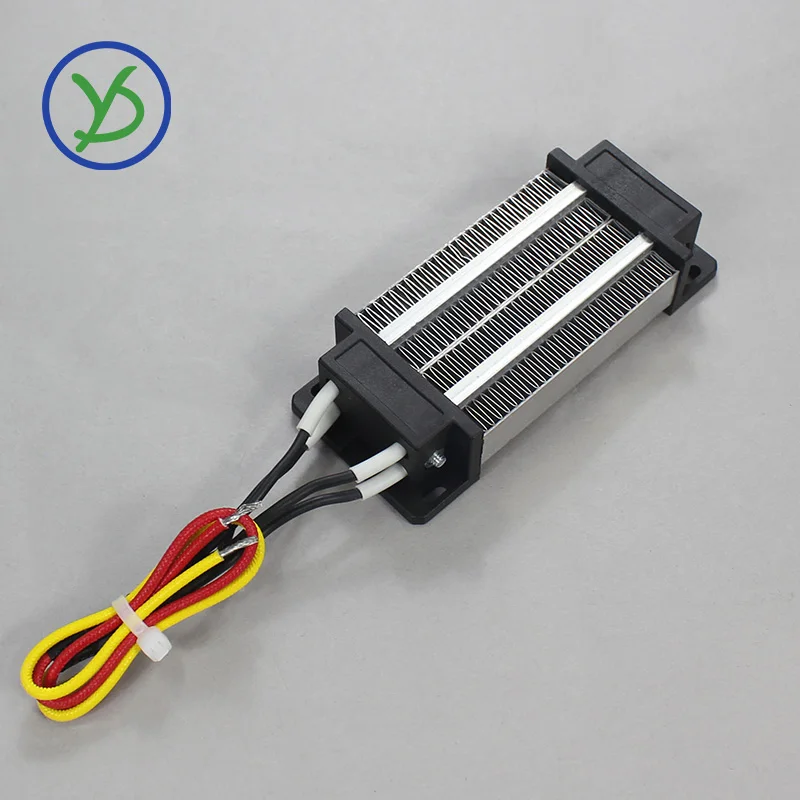

Item Show

Advantage:

Safety, surface insulation.

Heat up quickly, long service life.

Self-control temperature

Small sound

About Specifications:

1, The power line does not distinguish between positive and negative, you can freely link power.
​
​2, When the heater operates in dry firing(without heat dissipation), it can only achieve 20%-50% of rated power. Recommended to use it with a fan. The better the heat dissipation, the closer to the rated power.
​Test (under optimal heater operation):Ambient temperature: 24°C,with fan assistance, air temperature at 10 cm from the outlet: about 40-60°C.
​
​3, Can be placed under a wet environment, but can not be placed in water.
​
​4, For the first time, will produce a small amount of smoke, is a normal phenomenon, it will disappear within a short time.
​
​5, Built-in 230 °C heater chip, when dry the surface temperature of about 200°C, the fan blowing, the surface temperature of about 120°C.
​
​6, Both ends of the product wearing bracket (PA66 high temperature nylon).
​
​7, Under normal circumstances, PTC heater in a very short time after the start, it will have an impact power, which is about 1.5 to 3 times the rated power, but will rapidly decline, which is normal. Please buyers understand!
​
​8, Life: about: 3--5 years.

FAQ

Q: Are you trading company or manufacturer ?

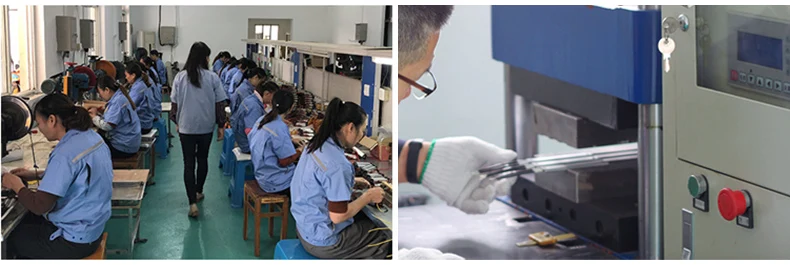

A: We are professional PTC factory.

Q: Can you customize different requirements products?
A: Sure, we have a professional R & D team, so we can customize different sizes, power, voltage... according to your specific requirements.

Q: How long is your delivery time?
A: Generally it is 1-3 days if the goods are in stock. or it is 5-10 days if the goods are not in stock, it is according to quantity.

Q: What is your terms of payment ?
A: Payment<=3000USD, 100% in advance. Payment>=3000USD, 50% T/T in advance ,balance before shippment.If you have another question,please send us your RFQ.

Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
