Motorcycle Gear Indicator Gear Display Meter For Yamaha Fjr1300 Bt1100 Fz1n Wr250x Wr450x Xvs1300A Xvs1100 R6s Fzs1000 Road Star

▶Fitment:

For YAMAHA FZ8{nonABS}(2010 - 2015)

For YAMAHA Bolt{non-ABS}(2013 - 2016)

For YAMAHA YZF-R1(2001 - 2008)

For YAMAHA Bt1100 Bulldog(2002 - 2006)

For YAMAHA Dlverslon{non-ABS} (2009 - 2015)

For YAMAHA Dyag Star(1999 - 2006)

For YAMAHA Fjr1300{non-ABS}(2001 - 2005

For YAMAHA Fjr1300{ABS}(2003 - 2005

For YAMAHA Fz-16/FZ-S(2008 - 2015)

For YAMAHA Fz400(1997 - 2002)

For YAMAHA Fz6{non-ABS}(2003 - 2012)

For YAMAHA FZ6r(2009 - 2016)

For YAMAHA Stryker(2011 - 2016)

For YAMAHA Fz8{non-ABS}(2010 - 2015)

For YAMAHA Fz1(2001 - 2016)

For YAMAHA Fzh150(2015)

For YAMAHA Fzn150(2015)

For YAMAHA Fz1n 2006

For YAMAHA Fzs600 Fazer(EFI 2003 -)

For YAMAHA Fzs1000 Fazer(2005 - 2015)

For YAMAHA Mt-01(2005 - 2012)

For YAMAHA Mt-03{non-ABS}(2006 - 2016)

For YAMAHA Ralder(2006 - 2016)

For YAMAHA Roadllner(2006 - 2015)

For YAMAHA Road Star(1999 - 2014)

For YAMAHA Royal Star{All Varlants}(1996 - 2013)

For YAMAHA V-Star{950cc and above}(All)

For YAMAHA Warrior(2002 - 2012)

For YAMAHA Wr250r/x(2008 - 2016)

For YAMAHA Wr450r/x(2008)

For YAMAHA Xt660(2004 - 2015)

For YAMAHA Xv1600A wlld star(1999 - 2005)

For YAMAHA Xvs950A Mldnlght Star(2009 - 2016)

For YAMAHA Xvs1300A Mldnlght Star(2007 - 2015)

For YAMAHA Yzf-R6(2001 - 2016)

For YAMAHA Yzf-R6s(2006 - 2009)

For YAMAHA Stratollner(2006 - 2015)

For YAMAHA TDM900{non-ABS}(2002 - 2013)

For YAMAHA TDM900{ABS}(2002 - 2006)

For YAMAHA Xj6{non-ABS}(2009 - 2015)

For YAMAHA Xjr400(2002 - 2007)

For YAMAHA Xjr1300(2004 - 2016)

For YAMAHA Xv1900A Mldnlght Star(2006 - 2015)

For YAMAHA Xvs1100 Drag Star(1999 - 2006)

For YAMAHA Ys250 Fazer(All)

(If you encounter any questions, please be sure to contact me first, please do not leave negative comments first, I very much hope to answer your questions, thank you)

Description:

Condition:100% Brand New

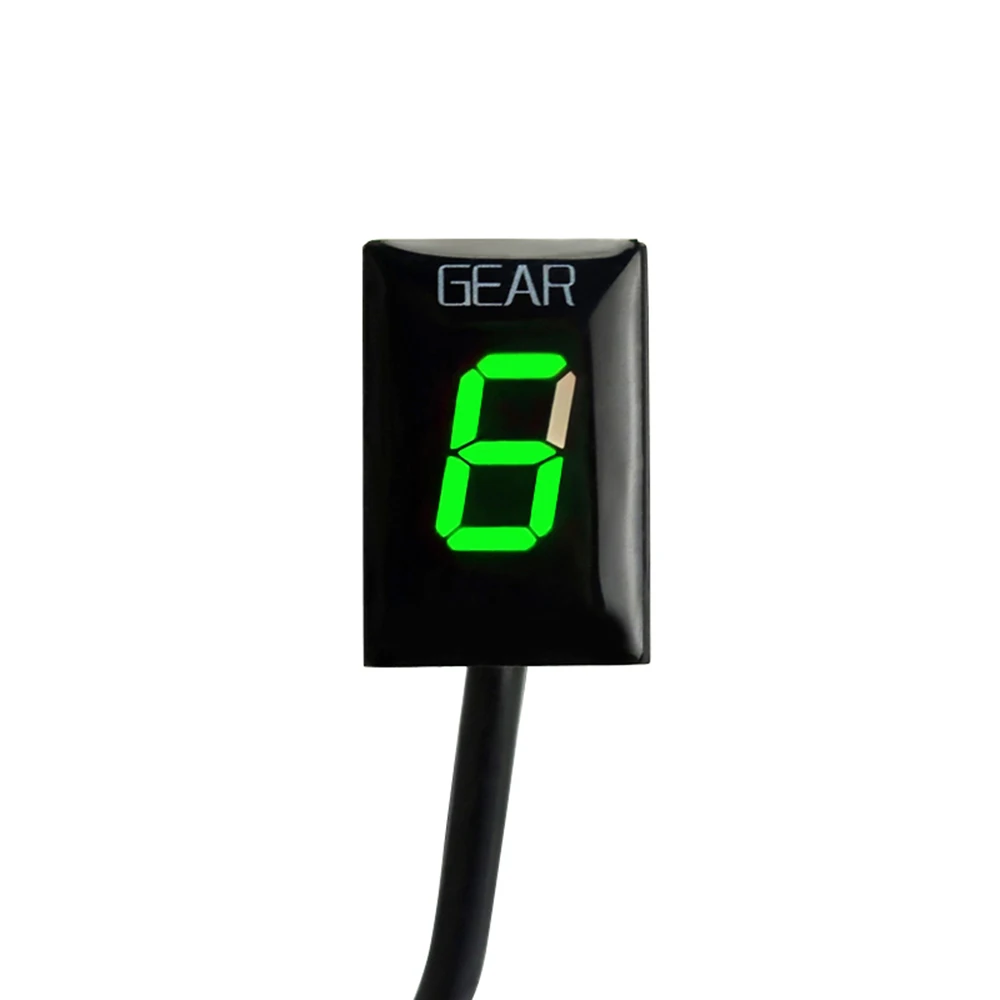

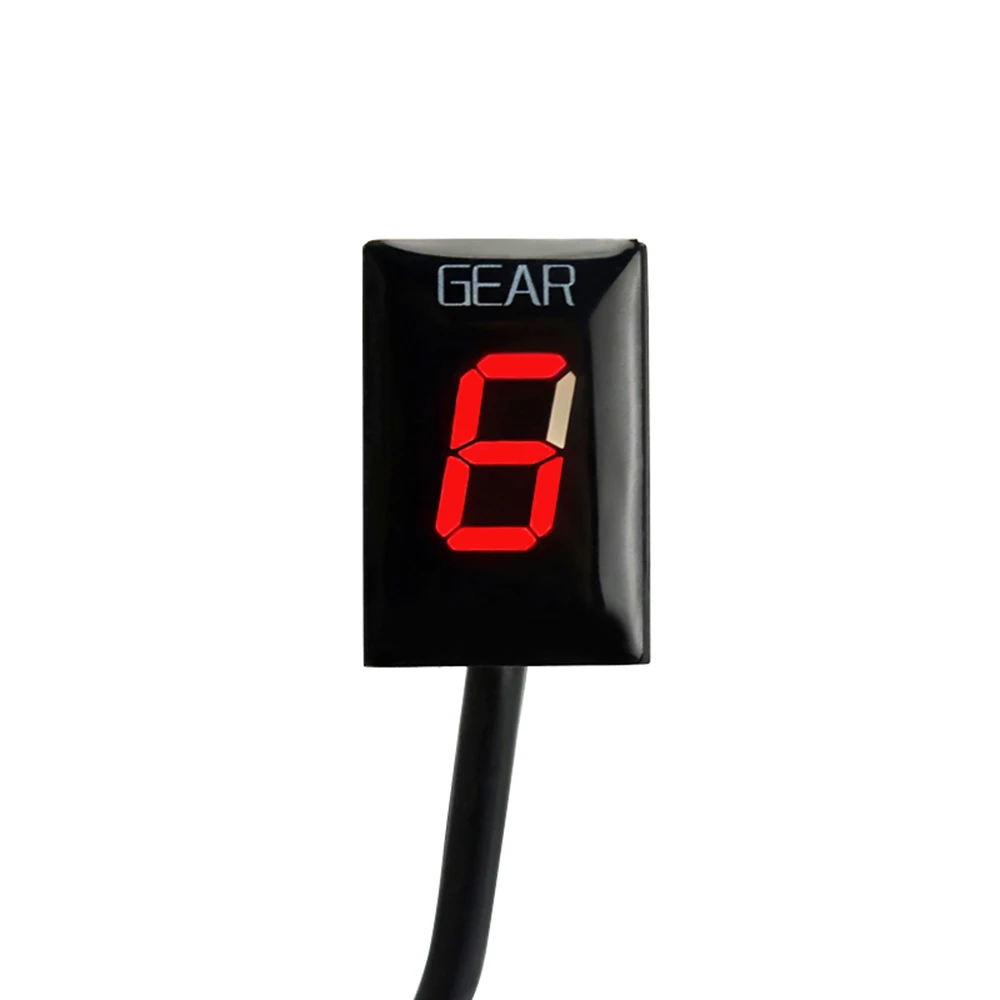

Item Name:Speed Gear Display Indicator

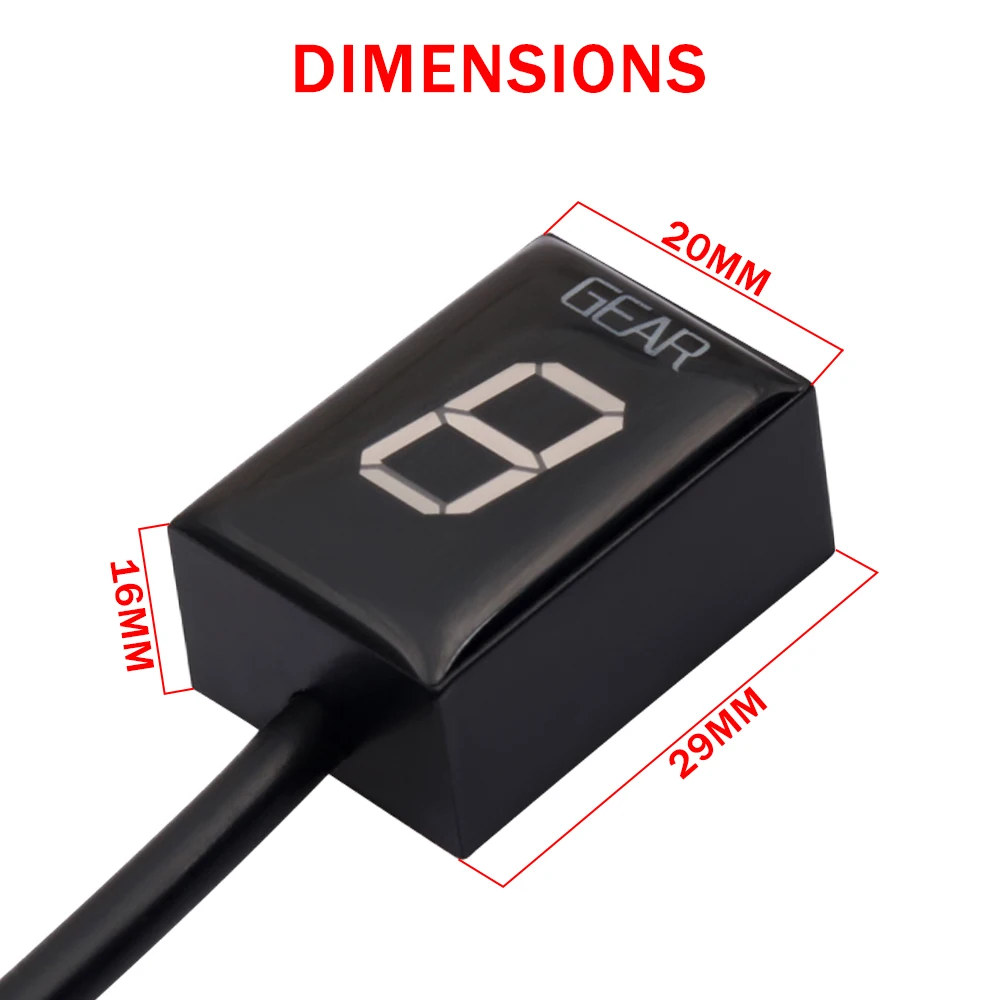

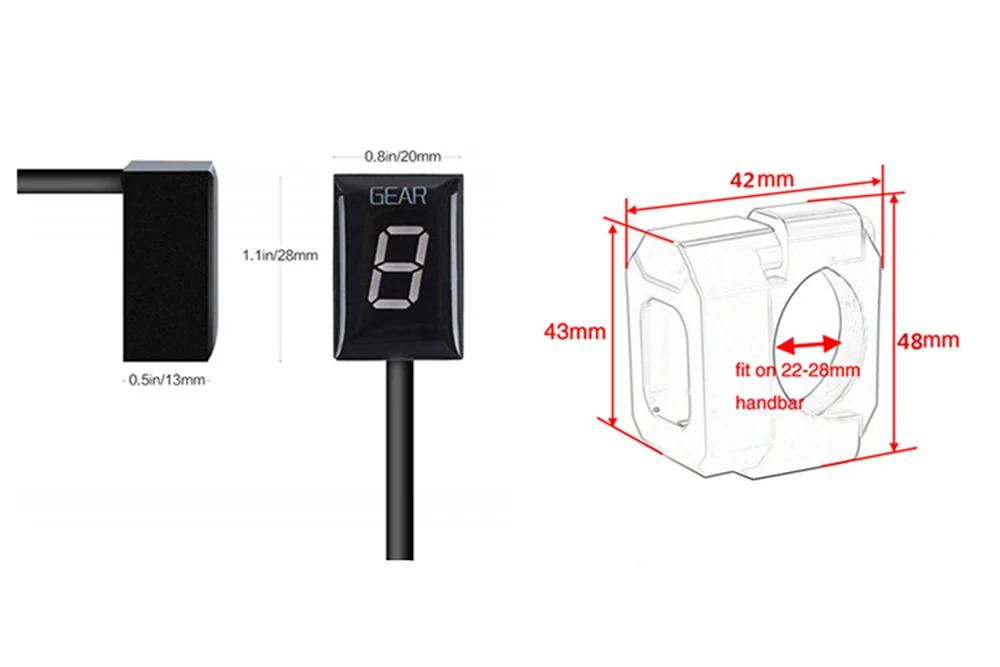

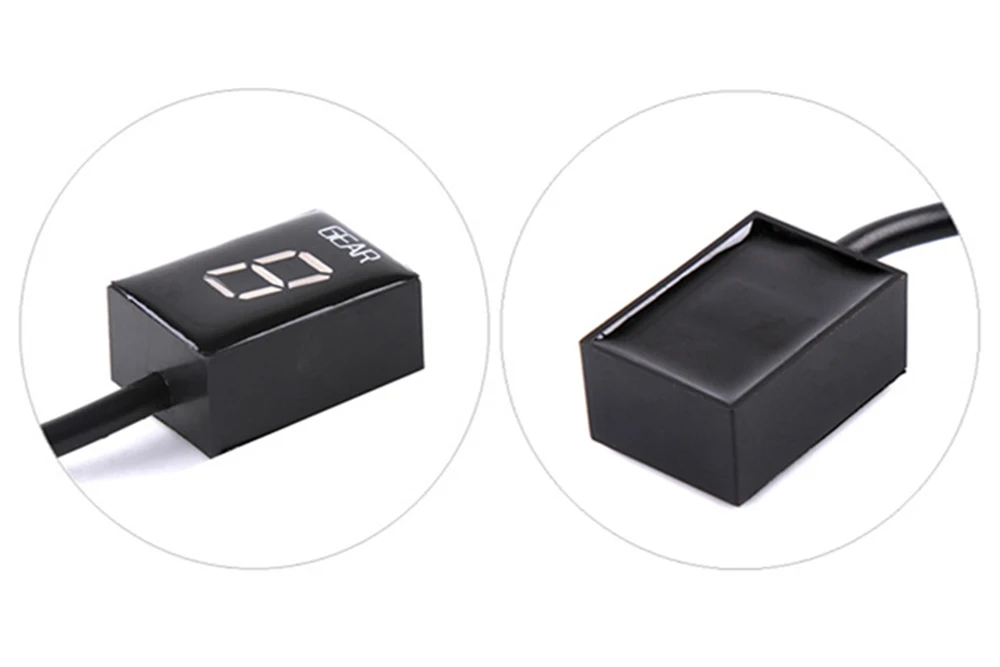

Size:4cm*4cm*4cm/1.57inch*1.57inch*1.57inch

Feature:

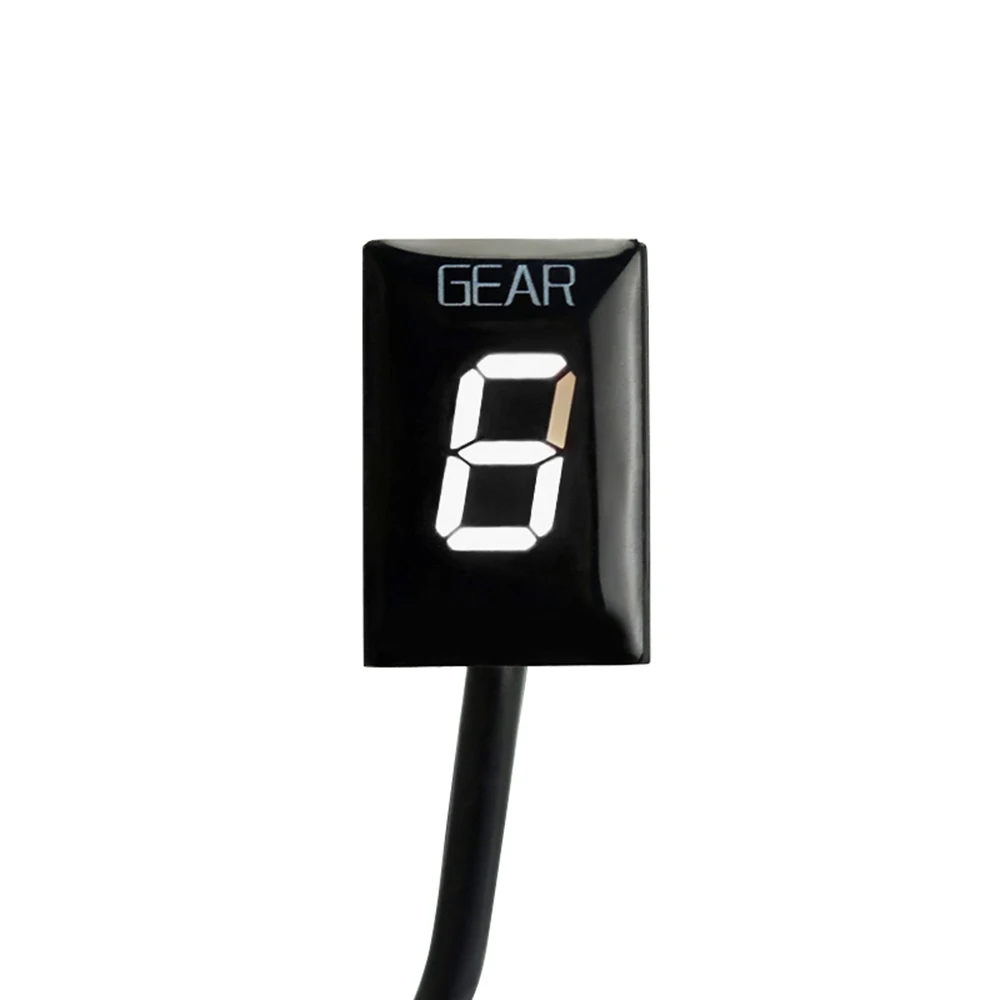

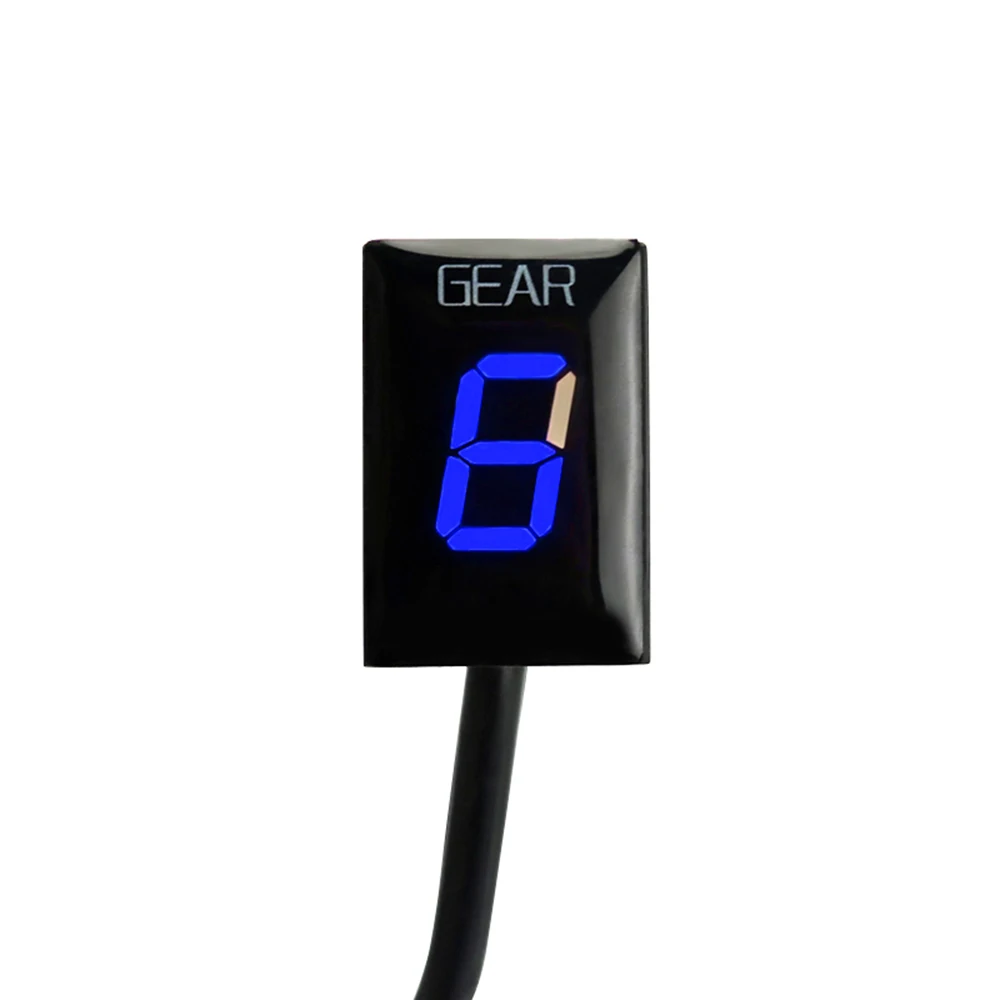

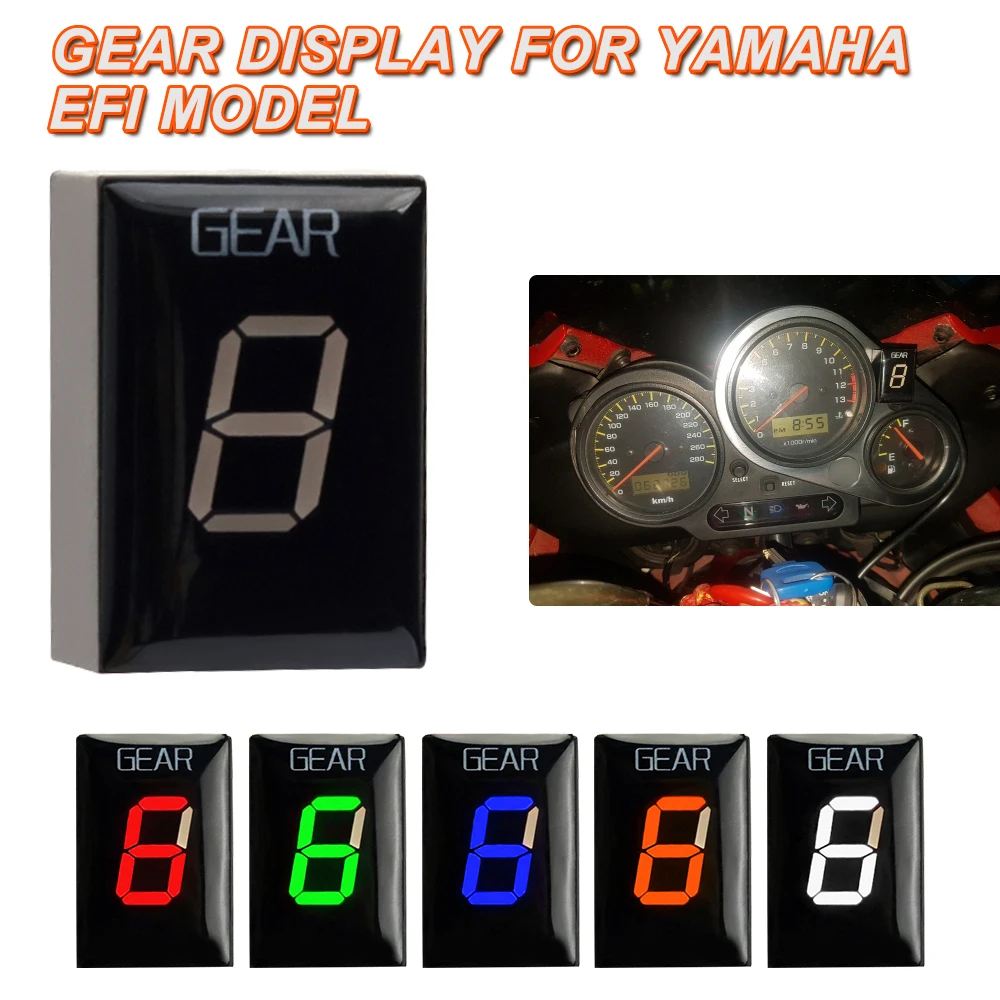

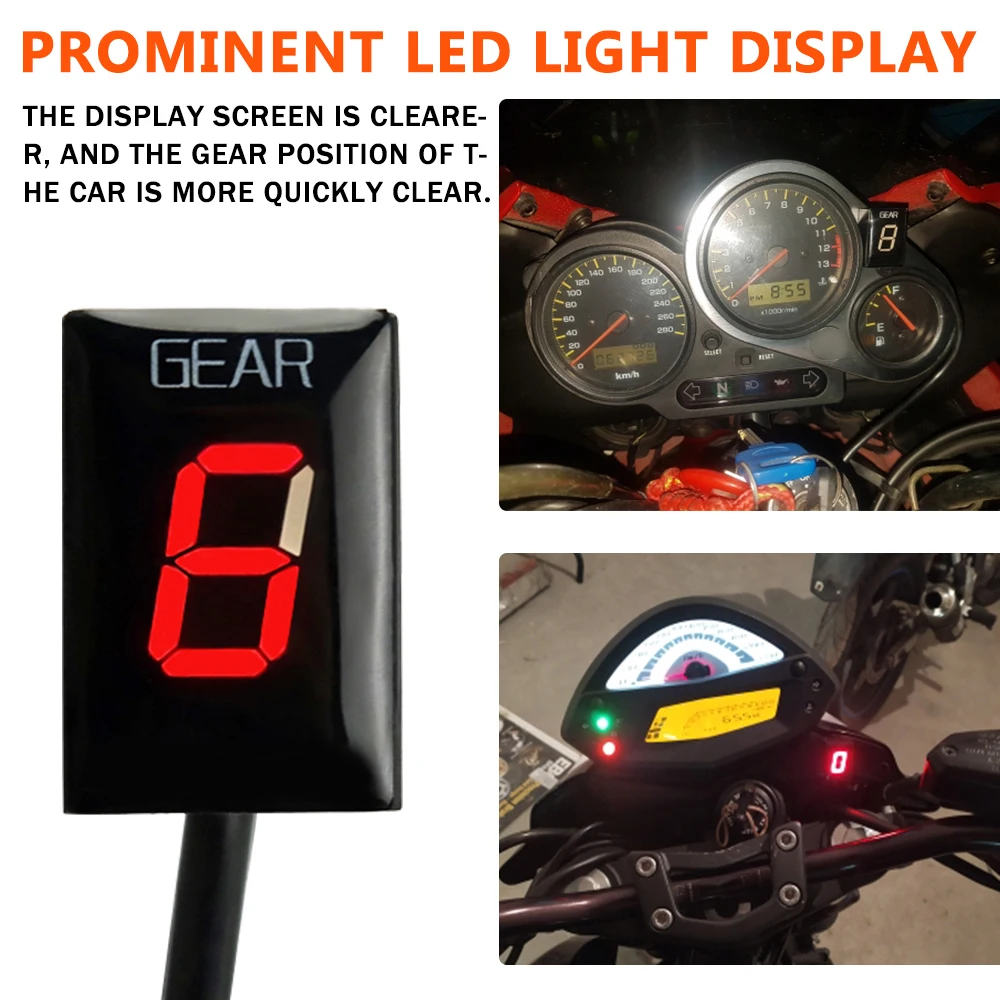

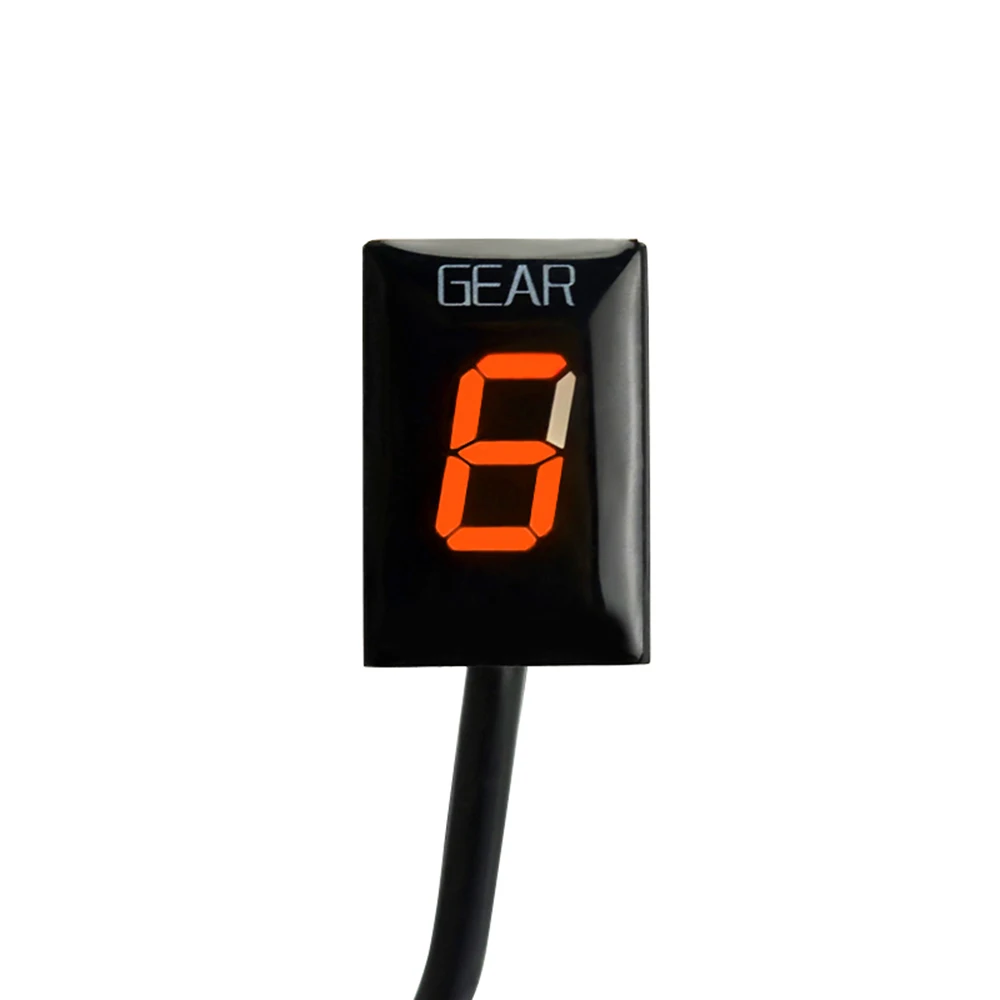

Shows current gear number

Indicates current gear from 1 to max of 6. as well as a neutral indicator.

Detects the current gear faster than other gear indicators that use speedometer/tachometer signal.

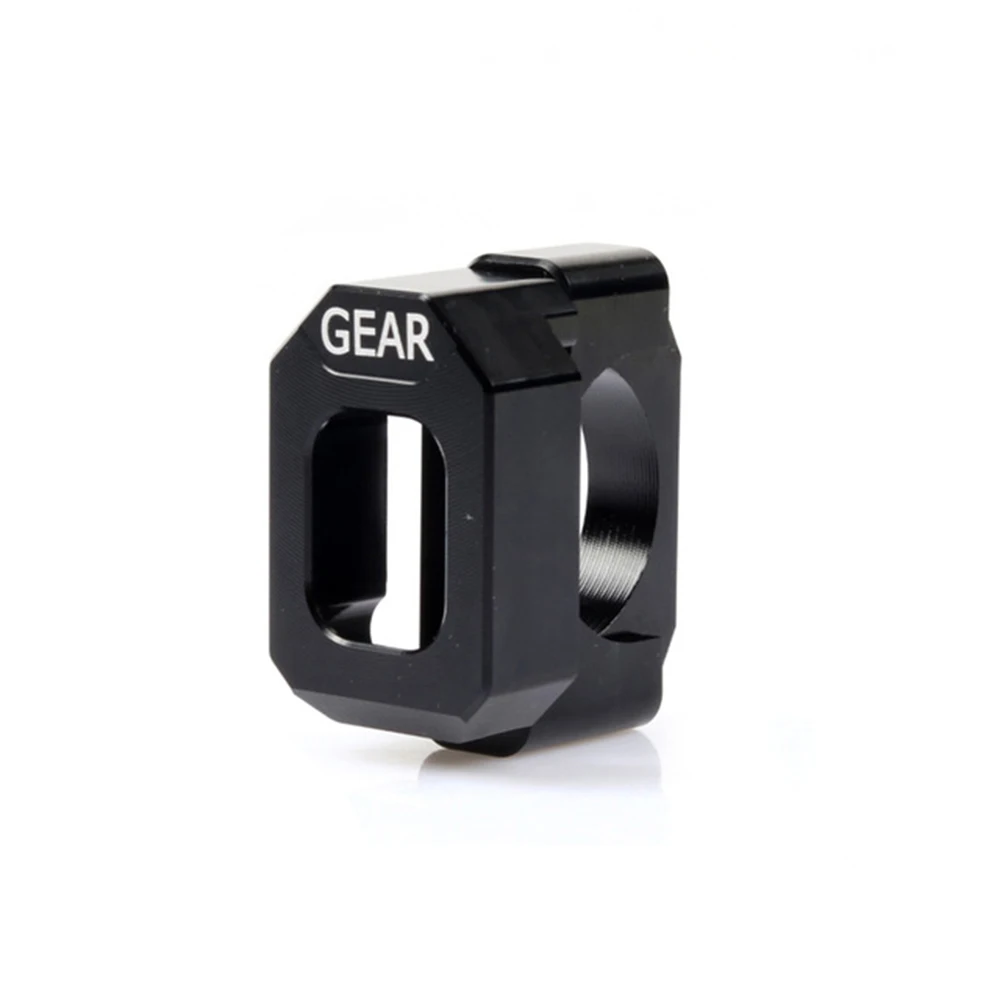

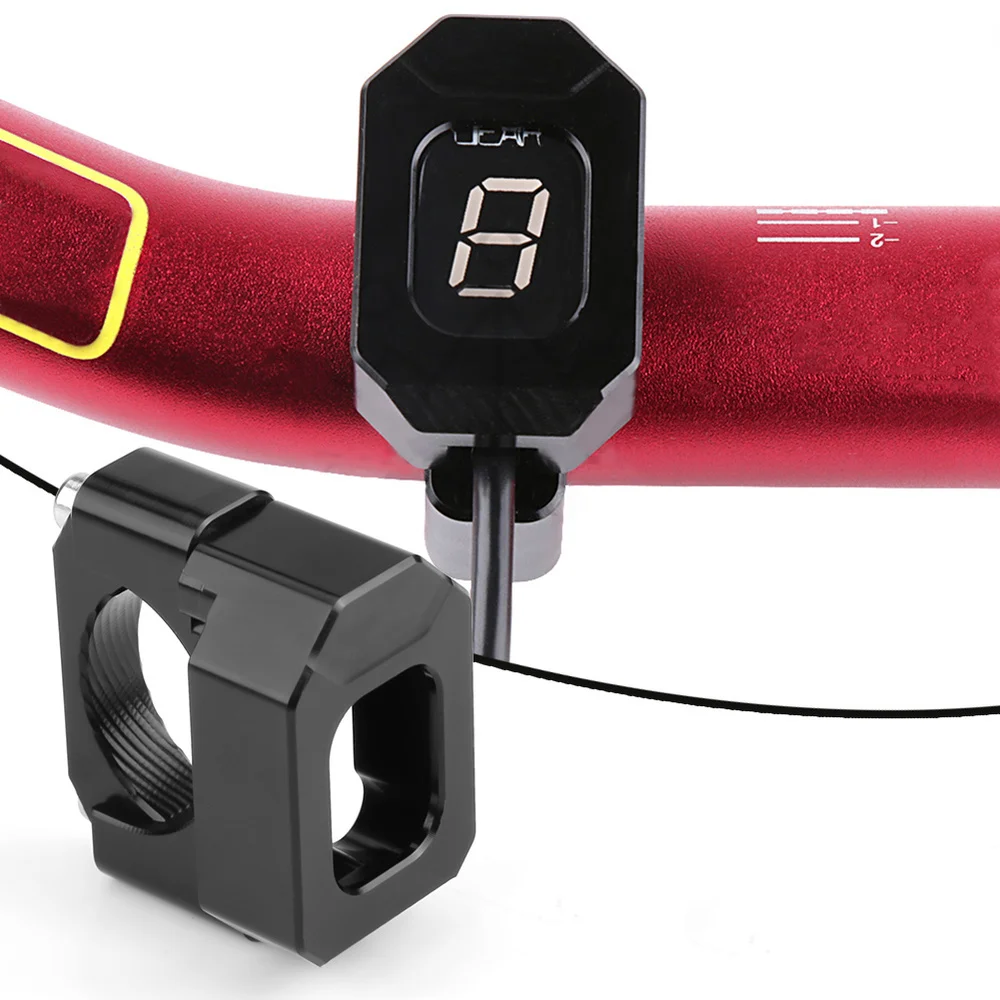

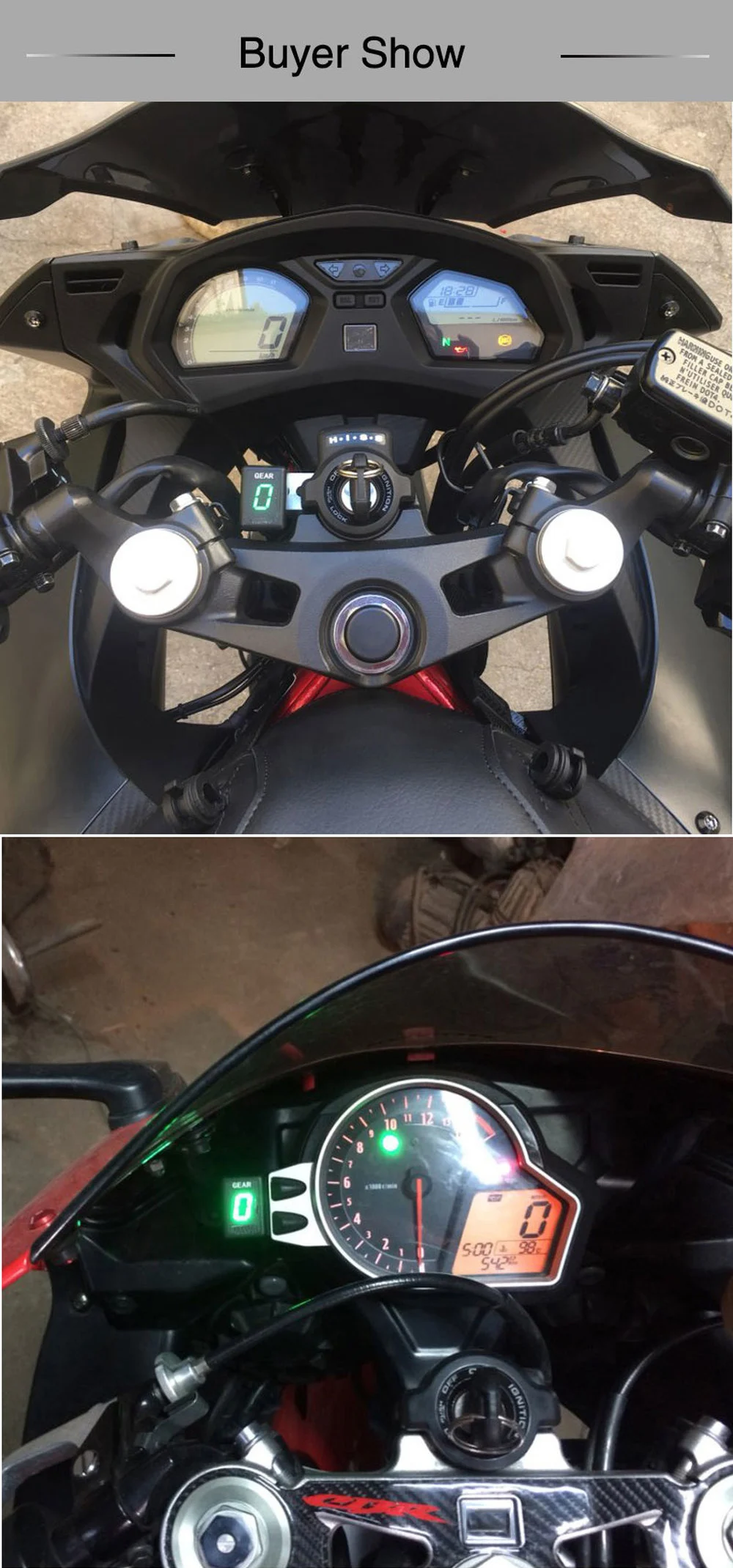

Display can be mounted anywhere

Install:

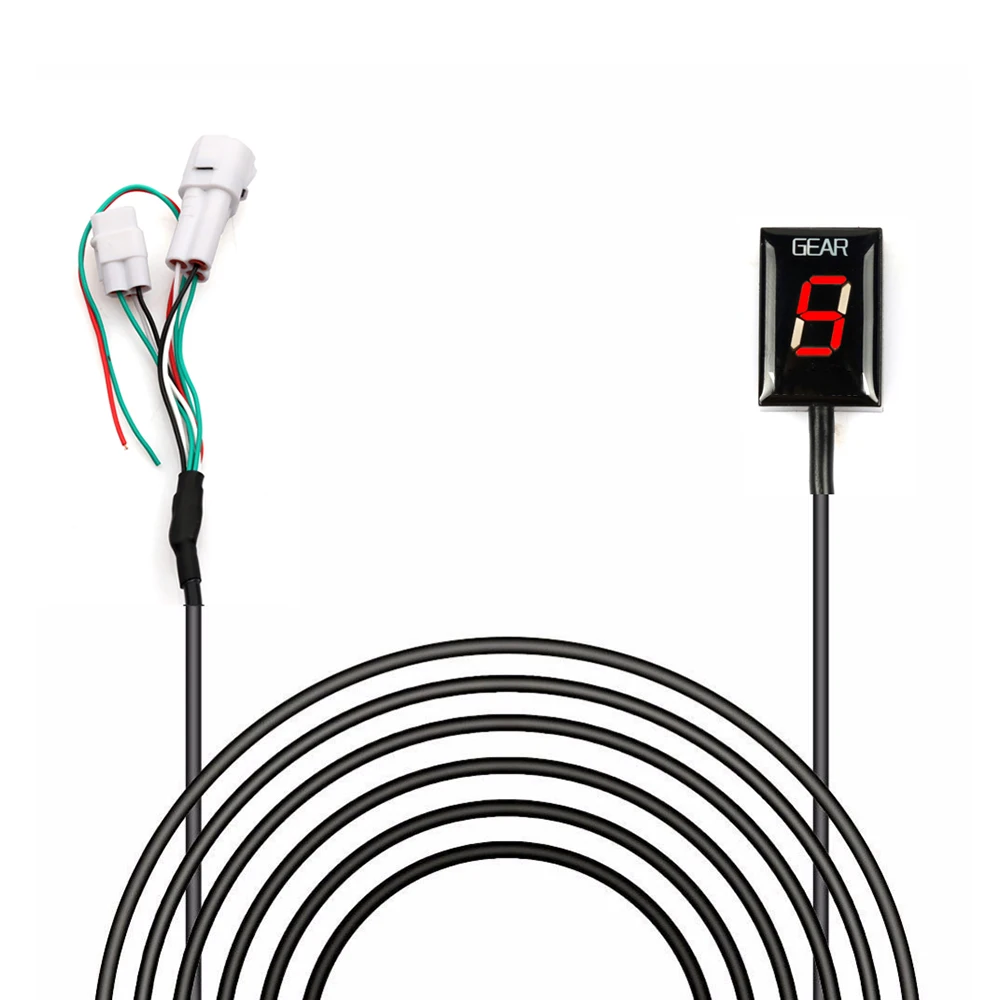

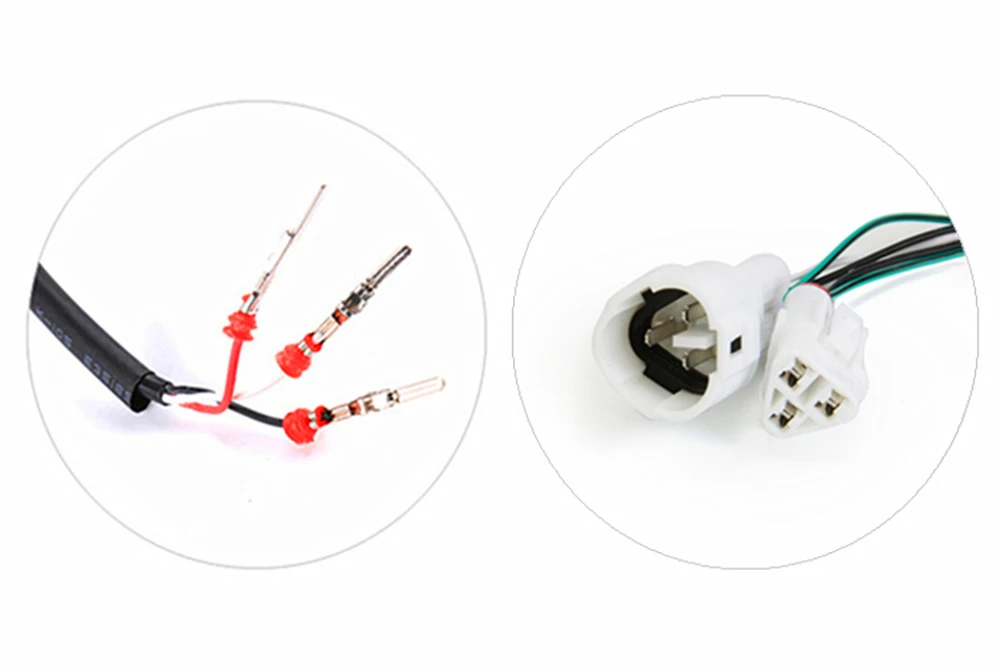

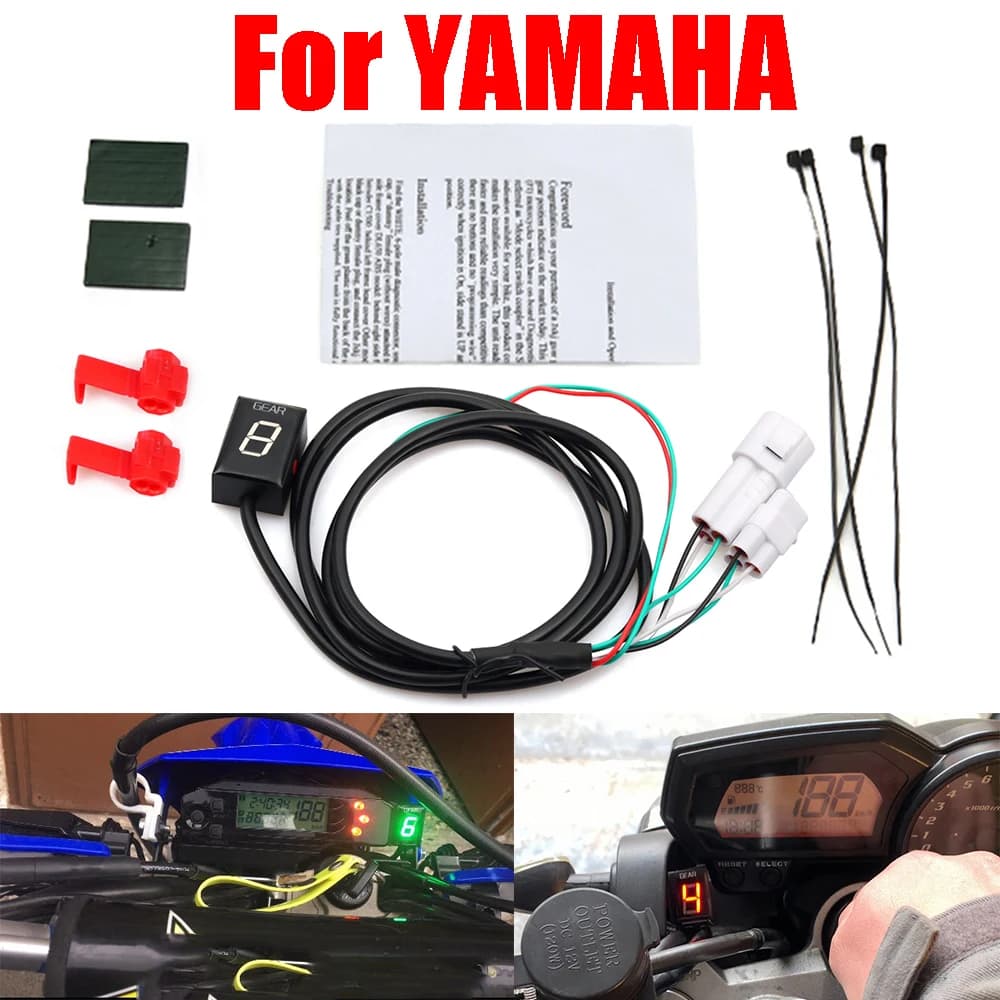

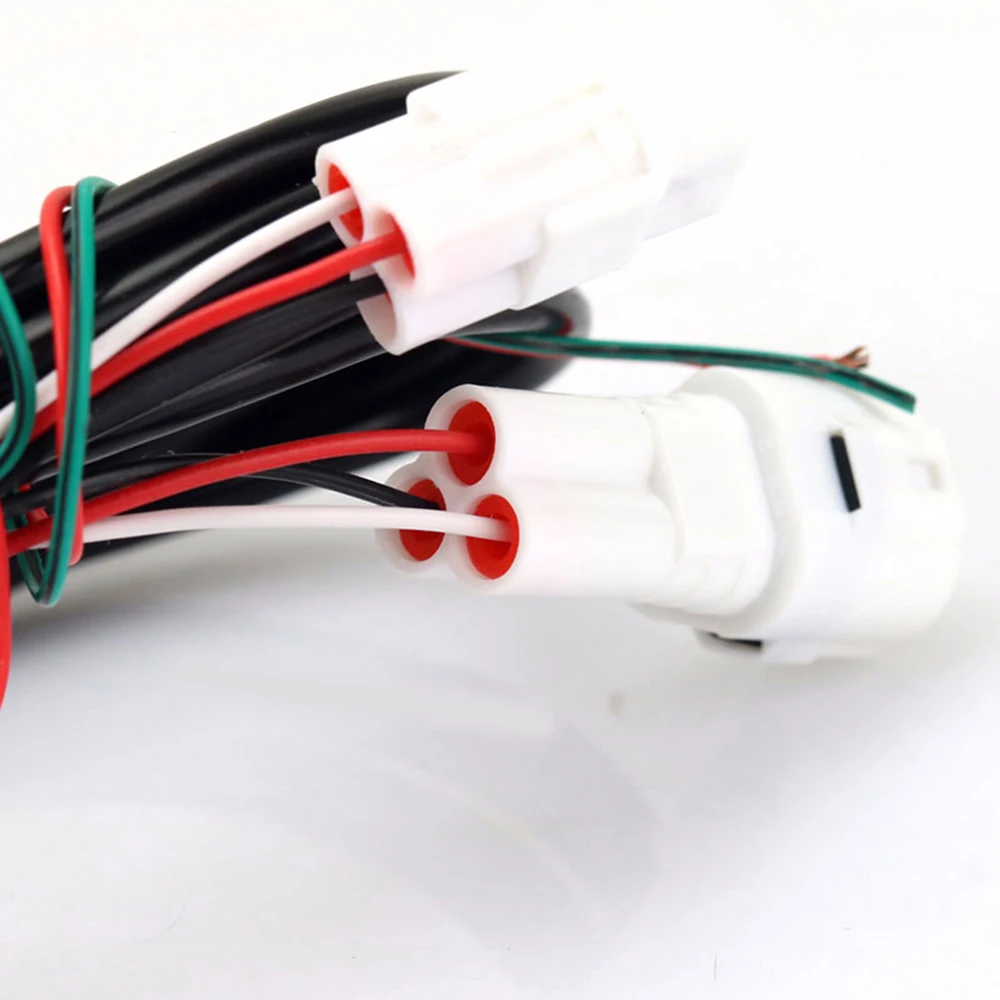

To find the gear display plug as Smoku technology to the product and then connected to a power line and speed signal line is inserted in the tank below!When the monitor is in place,check that the cable is not subject to steering damage!

Step:

You need to setup this module after installation.Perform the setup only when the engine is WARM so the idle speed is normal,Find a long,straight road with light traffic.The unit does not learn the same gear twice,this makes it easy to set up on the road.You can even shift down and stop during the setup if needed.Do not stare at the display,watch the road and ride with extreme care as always!Turn the ignition On.The display counts backwards(6 to 1)indicating that the memory is clear. When "L"is flashing,stare the engine in Neutral and let the engine idle. When the display is flashing "1",select second gear. Release the clutch and stare riding normally. The display is blinking faster while the unit is learning the gear. When the display show "n"(next),select second gear. Repeat this process until all gears are thought. In top gear, wait until "o"(over) is indicated and the display stops blinking.The unit is now programmed and should indicate all gears correctly. When ignition is turned on,the display counts forward(1 to 6)indicating that it is programmed and fully functional.

Rest:

If some gears are not indicated correctly, reset the unit and set it up again. If you change your gearing (install new front or rear sprocket),or you install a speedometer (or other speedometer calibrator), probably you will have to reset it and set it up again. Cut off the power of the unit 6 times in a row, while the display is counting up and shows 3 ,4 or 5.You can power on/off the display by turning the ignition key on/off. On the next power up, the display will count backwards(6 to 1). The memory is clear now and you can perform the Setup procedure.
