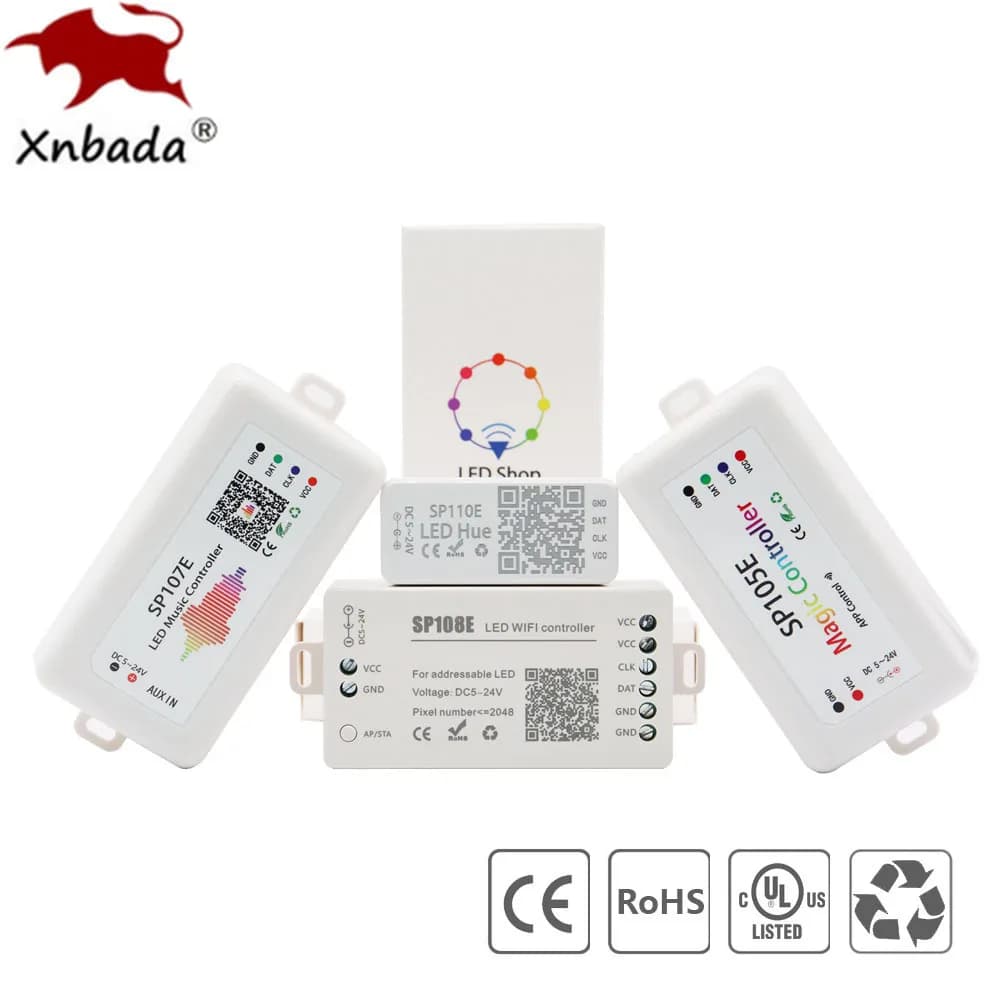

WS2812B WS2811 Led Pixels Strip Controller SP105E SP107E SP108E SP110E Bluetooth/WIFI/Music Smart Led Light Controller DC5-24V

Pay Attention:

1、What Voltage Of The Power Supply Used is Determined by the Voltage of Led Strip.

2、If your country does not support Alexa, then the controller does not support it either. This is not a product problem, it is a problem of the Alexa manufacturer.

About the bluetooth led controller bluetooth connection ways:

1.You only open the phone Bluetooth Button is ok,do not need search the controller bluetooth and connection.

2.Then you open your Download APP,The APP will search the bluetooth automatically,then you can find your controller model,please click it to connection.

3.If when you open the APP it can not search the bluetooth automatically,please Refresh the first page of the opened APP.

SP105E Pixels LED Controller:

Control Method: APP (Bluetooth)

Input Port: DC Female Connector

Input Voltage: DC5-24V

Maximum Current: 5.5A

Pixel: 2048

Music activated mode: No

Magical colour effect mode: 200

Connector: 3Pin/4Pin

Support IC: WS2811 WS2812B WS2813 WS2815 WS2801 SK6812 P943S P9411 P9413 TX1812 TX1813 SK6812-RGBW SM16703 UCS1903 TM1804 LPD6803 LPD8806 APA102 GS8206 GS8208 SK9822 P9414 P9412

SP106E Pixels LED Controller:

Control Method: RF Remote Control

Input Port: DC Female Connector

Input Voltage: DC5-12V Maximum Current: 8.0A

Pixel: 600

Music Activated Mode: Built-in Microphone

Musical Effect Mode: 5 Magical Colour Effect Mode: 20

Output Port: 1

Connector: 3Pin

Connection mode: common anode

Support IC: WS2811 / WS2812B / WS2813 / USC1903 etc

SP107E Pixels LED Controller:

Control Method: APP (Bluetooth)

Input Port: DC female connector Input

Voltage: DC5-24V

Maximum current: 9.0A

Pixel: 960

Music activated mode: Built-in microphone and AUX IN

Musical effect mode: 15+10

Magical colour effect mode: 180

Connector: 3Pin/4Pin

Support IC: WS2811 WS2812B WS2813 WS2815 WS2818 WS2801 SK6812 P943S P9411 P9413 TX1812 TX1813 SK6812-RGBW SM16703 UCS1903 TM1804 LPD6803 LPD8806 APA102 GS8206 GS8208 SK9822 P9414 P9412 TM1814 TM1913 P9813 APA105

SP108E Pixels LED Controller:

Control Method: APP (WiFi)

Input port: DC female connector

Input Voltage: DC5-24V

Maximum current: 4.0A

Pixel: 2048

Music activated mode: No

Magical colour effect mode: 180 +DIY

Connector: 3Pin/4Pin

Support IC: WS2811 WS2812B WS2813 WS2815 WS2818 WS2801 SK6812 P943S P9411 P9413 TX1812 TX1813 SK6812-RGBW SM16703 UCS1903 TM1804 LPD6803 LPD8806 APA102 GS8206 GS8208 SK9822 P9414 P9412 TM1814 TM1913 P9813 APA105

SP110E Pixels LED Controller:

Control Method: APP (Bluetooth)

Input port: DC female connector

Input Voltage: DC5-24V

Maximumcurrent: 4.0A

Pixel: 1024

Music activated mode:No

Magical colour effect mode: 120

Connector: 3Pin

Support IC: WS2811 WS2812B SK6812 P943S P9411 P9413 TX1812 TX1813 SK6812-RGBW SM16703 UCS1903 TM1804 LPD6803 LPD8806 P9414 P9412 TM1814 TM1913 P9813

SP511E Pixels LED Controller:

Control Method: IR Remote / APP (WiFi) / Voice Control

Input port: DC female connector

Input Voltage: DC5-24V

Maximum current: 4.6A

Pixel: 900

Music activated mode: Built-in microphone

Magical colour effect mode:8+8+180

Output port: 1 / 2

Connector: 3Pin

Support IC: WS2811 WS2812B SK6812 P943S P9411 P9413 TX1812 TX1813 SM16703 UCS1903 TM1804 LPD6803 P9414 P9412 TM1814 TM1913 P9813

SP601E Pixels LED Controller:

Control Method: RF Remote / APP (Bluetooth)

Input port: DC female connector

Input Voltage: DC5-24V

Maximum current: 4.5A

Pixel: 600*2

Music activated mode: Built-in microphone

Magical colour effect mode: 12+24

Output port: 2 (Standalone 2 ways, Can independently control the color of each way.) Connector: 3Pin

Support IC: WS2811 WS2812B WS2818 SK6812 P943S P9411 P9413 TX1812 TX1813 SM16703 UCS1903 TM1804 LPD6803 LPD8806 P9414 P9412 TM1814 TM1913 P9813

SP602E Pixels LED Controller:

Control Method: RF Remote / APP (Bluetooth)

Input port: DC female connector

Input Voltage: DC5-24V

Maximum current: 5.0A

Pixel: 600*4

Music activated mode: Built-in microphone / AUX IN

Magical colour effect mode: 12+28

Output port: 4 (Standalone 4 ways, Can independently control the color of each way.) Connector: 3Pin

Support IC: WS2811 WS2812B WS2813 WS2815 WS2818 SK6812 P943S P9411 P9413 TX1812 TX1813 SK6812-RGBW SM16703 UCS1903 TM1804 LPD6803 LPD8806 P9414 P9412 TM1814 TM1913 P9813

SP608E Pixels LED Controller:

Control Method: RF Remote / APP (Bluetooth)

Input port: DC female connector

Input Voltage: DC5-24V

Pixel: 600*8

Music activated mode: Built-in microphone / AUX IN Magical colour effect mode: 9+40

Output port: 8 (Standalone 8 ways, Can independently control the color of each way.)

Connector: 3Pin

Support IC: WS2811 WS2812B WS2813 WS2815 WS2818 SK6812 P943S P9411 P9413 TX1812 TX1813 SK6812-RGBW SM16703 UCS1903 TM1804 LPD6803 LPD8806 P9414 P9412 TM1814 TM1913 P9813

SP611E Pixels LED Controller:

DC Connector:DC5-24V

USB Connector:DC5V

Control Method: IR Remote / APP (Bluetooth)

Input Voltage: DC5-24V

Maximum current: 5.7A

Pixel: 600

Music activated mode: Built-in microphone /AUX IN

Magical colour effect mode: 18+142

Output port: 1 / 2

Connector: 3Pin

Support IC: WS2811 WS2812B WS2813 WS2815 WS2818 SK6812 P943S P9411 P9413 TX1812 TX1813 SM16703 UCS1903 TM1804 LPD6803 LPD8806 P9414 P9412 TM1814 TM1913 P9813

SP621E Pixels LED Controller:

DC Connector:DC5-24V

USB Connector:DC5V

Control Method: APP (Bluetooth)

Input Voltage: DC5-24V

Maximum current: 5.7A

Pixel: 600

Music activated mode: Built-in microphone /AUX IN

Magical colour effect mode: 18+142

Output port: 1

Connector: 3Pin

Support IC: WS2811 WS2812B WS2813 WS2815 WS2818 SK6812 P943S P9411 P9413 TX1812 TX1813 SM16703 UCS1903 TM1804 LPD6803 LPD8806 P9414 P9412 TM1814 TM1913 P9813

SP801E Pixels LED Controller:

1. APP controlled via WiFi, compatible with multiple Art-Net computer software ;

2. BluFi configuration using dual mode chip(WIFI&BT);

3. Support AP mode and STA mode;

4. Two layout setting method: regular rectangle layout setting and importing DXF files ;

5. Support two layers overlay, built-in multiple types of effect layers: text layer, music effect layer...;

6. The effect layers support a variety of custom parameters: direction, width, color, length, shape...;

7. Real-time preview, support recording the current scene to the controller storage;

8. Support change device name ,reorder the RGB order, and OTA update.

Specifications:

Working temperature : -20℃~60℃;

Working Voltage : DC5V~24V;

Working Current : 25mA~130mA;

Flash Capacity : 128M;

Output signal: 4-port TTL signals;

Maximum pixel number : 1024 / port;

LED driver IC: Normal one-wire RZ code LED driver IC.

Control Method: APP (Bluetooth)

Connector: 3Pin

Support IC: WS2811 WS2812B WS2813 WS2815 WS2818 SK6812 P943S P9411 P9413 TX1812 TX1813 SK6812-RGBW SM16703 UCS1903 TM1804 LPD6803 LPD8806 P9414 P9412 TM1814 TM1913 P9813
