SH T80-T Z1 Series Large Long Handle 12mm Panel Mount Mini Toggle Switch 5A 125VAC
4.23$
1.73$
Quantity:
1
Availability:
Color
Card Payments
Crypto Payments
Easy return
Reliable Shipping
Feature
Type:T80-T Series Large Long Lever Mini Toggle Switch
Model:

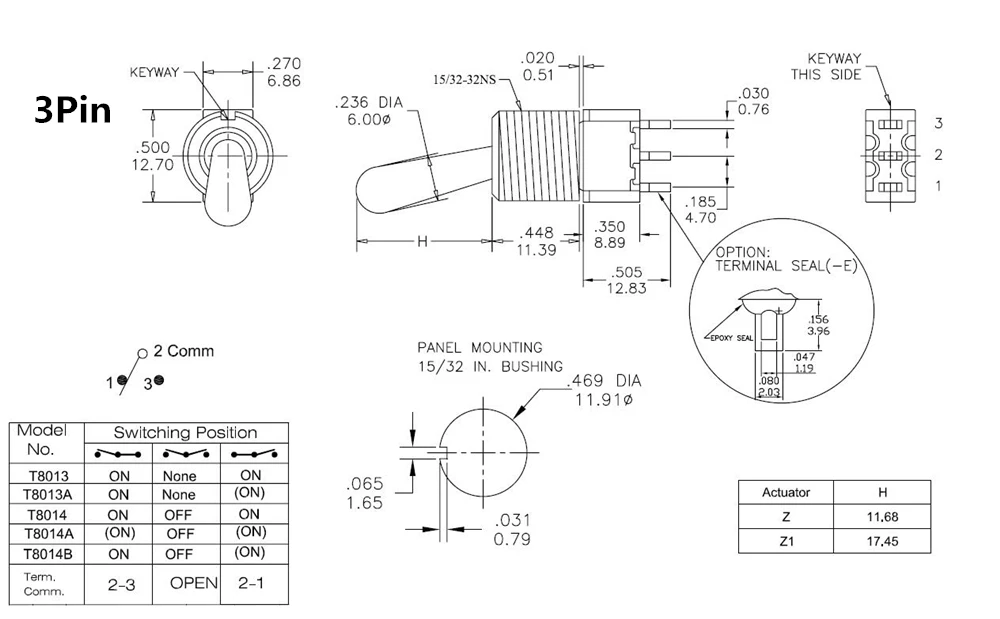

3Pin SPDT
T8013-Z1 ON-ON (Position Fixed)
T8014-Z1 ON-OFF-ON (Position Fixed)
T8014A-Z1 MOM-OFF-MOM Momentary (Self-Return)
T8014B-Z1 ON-OFF-MOM One Side Momentary (ON Position Fixed,MOM Position Return)

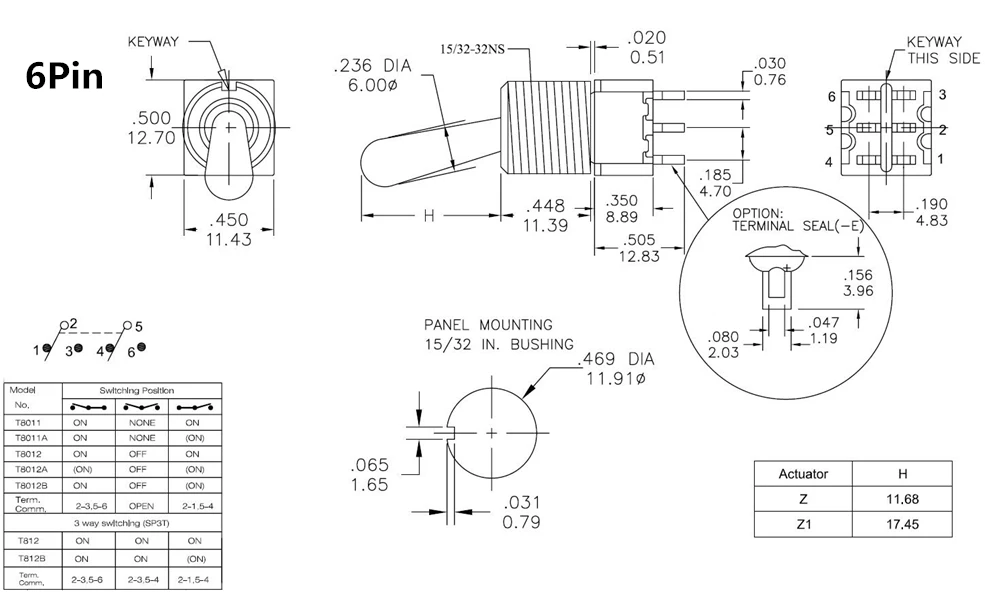

6Pin DPDT
T8011-Z1 ON-ON (Position Fixed)
T8012-Z1 ON-OFF-ON (Position Fixed)
T8012A-Z1 MOM-OFF-MOM Momentary (Self-Return)
T812-Z1 ON-ON-ON (SP3T , Position Fixed)

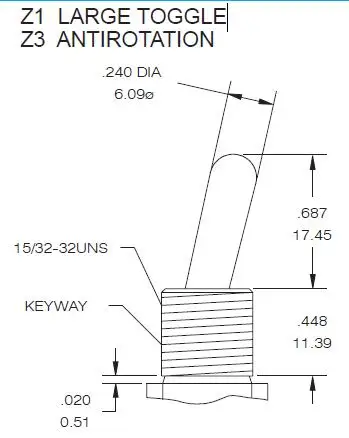

Mounting Diameter:12mm (Inch thread 15/32-32UNS)
Handle Length:17.45mm
Connection:Solder

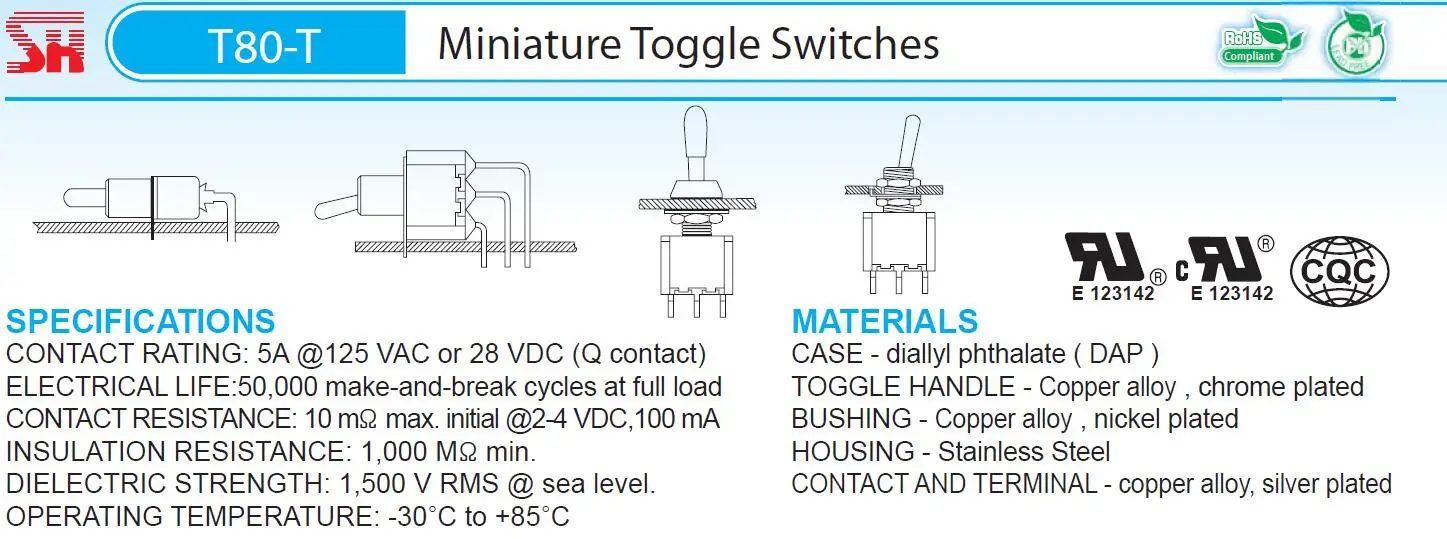

Contact Rating: 5A @125 VAC or 28 VDC
Electrical Life: 50,000 make and break cycles at full load
Contact Resistance: 10 mΩ max. initial @2-4 VDC,100 mA
Insulation Resistance: 1,000 MΩ min.
Dielectric Strength: 1,500 V RMS @ sea level.
Operating Temperature: -30°C to 85°C
Customer Reviews
206 ratings
as described (11)
good quality (5)
satisfactory (5)
works well (4)
fast shipping (3)
timely delivery (2)
Customer photos (4)
s***r
August 17, 2026
Variant: Color:T8014 ON-OFF-ON
As advertised, works great. Exactly what I was looking for would buy again. Fast shipping
A***n
December 22, 2025
Variant: Color:T8014A MOM-OFF-MOM
I was expecting less force to be applied on it to move it. Bottom line: If to be installed on thin plate, then make sure to have big washers to spread the forces.
Buyer from Italy
September 23, 2026
Variant: Color:T8014B ON-OFF-MOM
valid product
Buyer from Spain
June 11, 2026
Variant: Color:T8014 ON-OFF-ON
everything fine 1 switch
Buyer from Italy
June 2, 2026
Variant: Color:T8013 ON-ON
Good product!
j***r
May 28, 2026
Variant: Color:T8012A MOM-OFF-MOM
Product identical to the one published by the seller. It has not been tested yet.
