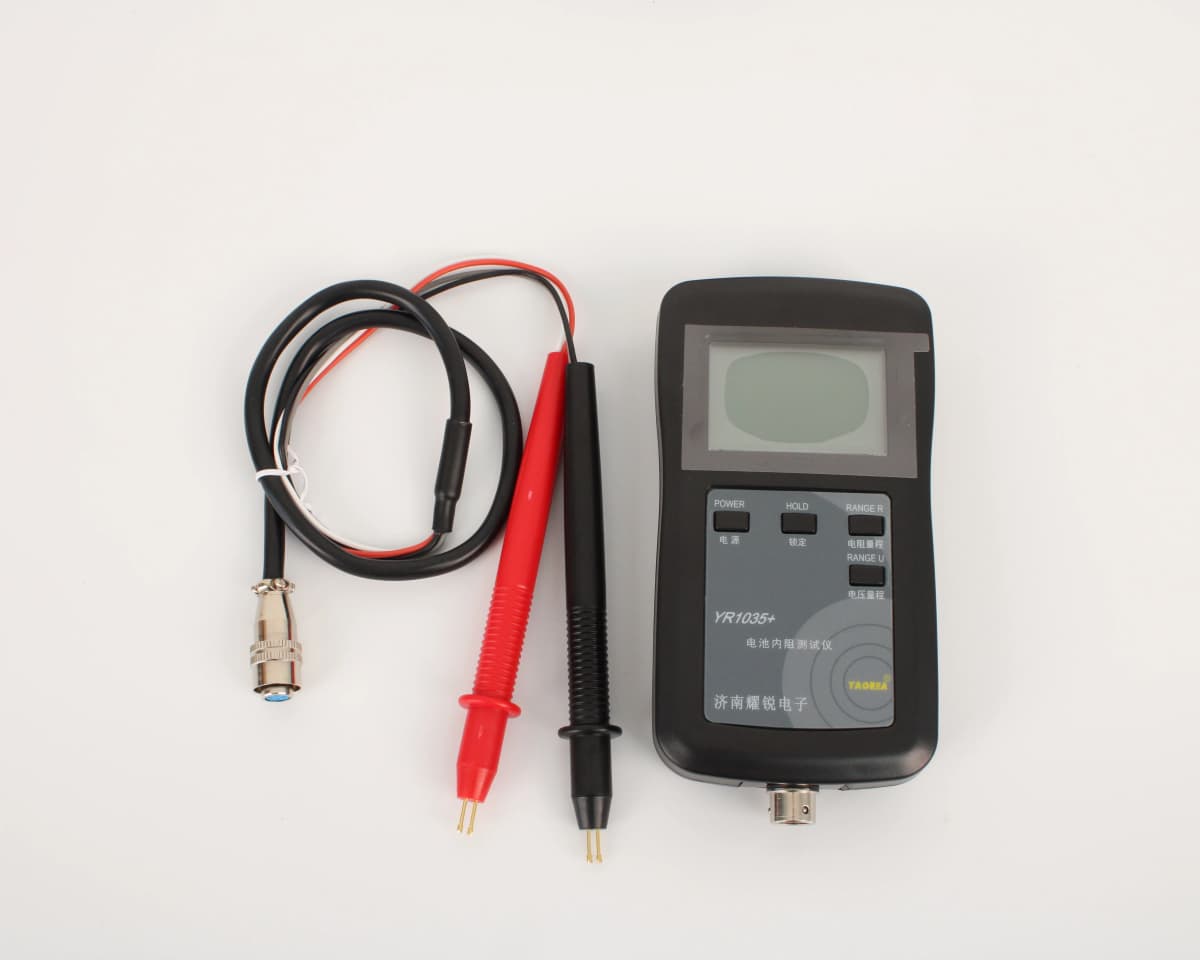

Real Four-Wire Lithium Battery Internal Resistance Tester YR1035+ Nickel Hydrogen Lead Button Polymer Alkalinity

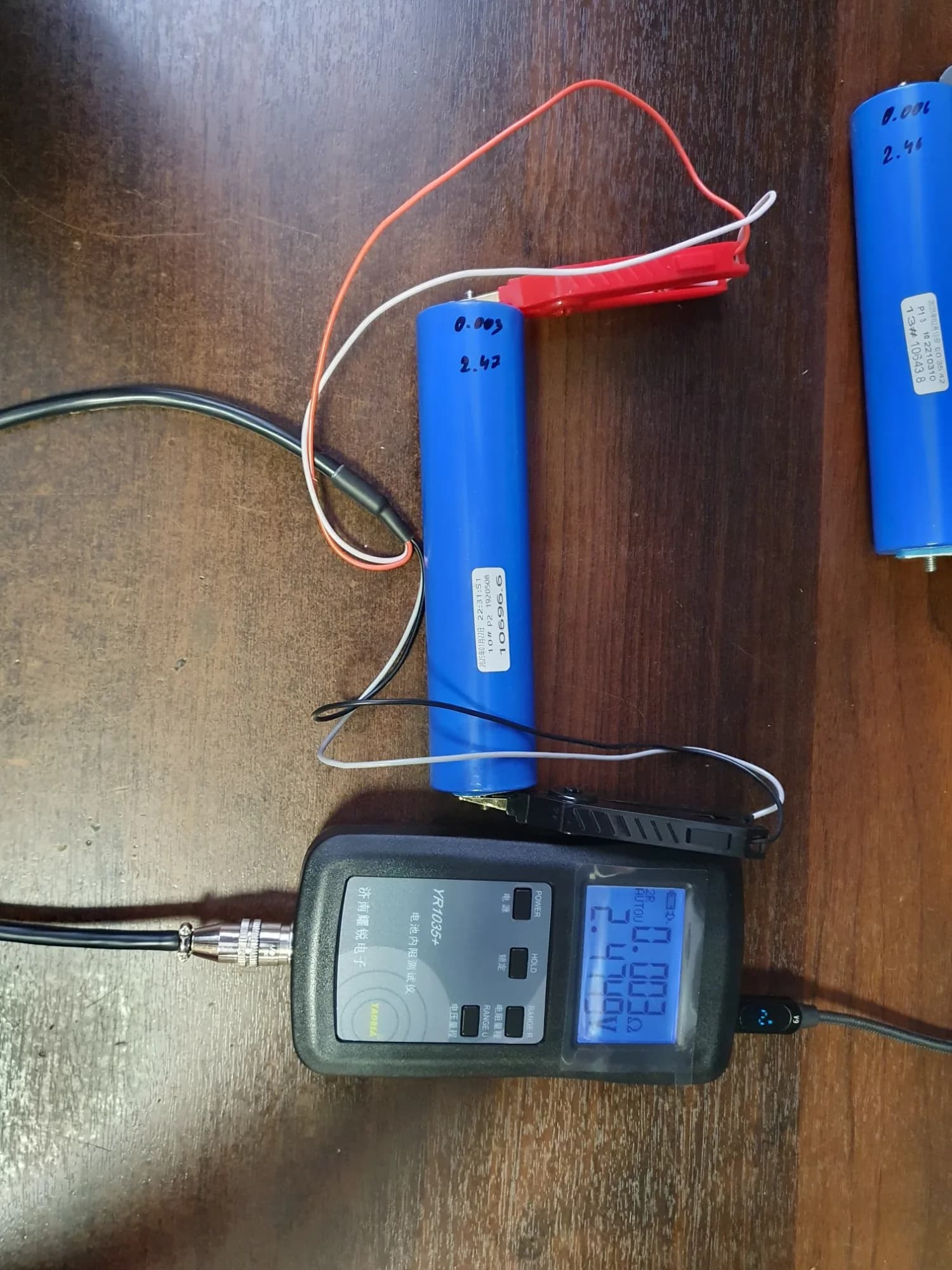

YR1035+ battery internal resistance tester is a true four-wire internal resistance tester, which can measure the internal resistance and voltage at the same time. It can also be used to measure the resistance. The measurement results are displayed on the same screen. This product is suitable for battery configuration, battery performance testing, battery screening and other aspects.The machine structure exquisite, easy to carry, is your ideal electrician, electronic testing machine.

Accuracy parameters

Format of precision specification: ± ([degree percentage]+[minimum significant digit])

Range※Maximum resolution Precision display mode

20mΩ            0.01mΩ             0.7%+7       22.00mΩ

200mΩ          0.1mΩ               0.5%+5       220.0 mΩ

2Ω                 1mΩ                  0.5%+5       2.200 Ω

20Ω               10mΩ                0.5%+5       22.00 Ω

200Ω             0.1Ω                  0.6%+5       220.0 Ω

※The range of gear range is 5%-95%, and the error may be greater than the above precision if the range is not within this range (less than 5% range, or greater than 95% range).

Voltage measurement: ±(% reading +% range)

Range        Maximum      resolutionPrecision      display mode

1V            0.00001V     0.15+0.015            .99999V

10V          0.0001V     0.15+0.010             9.9999V

100V        0.001V       0.15+0.015             99.999V

Positive and negative symmetry error ±(0.012% +5 words)

Temperature Drift 100ppm/℃ within normal service temperature (10℃-40℃)
