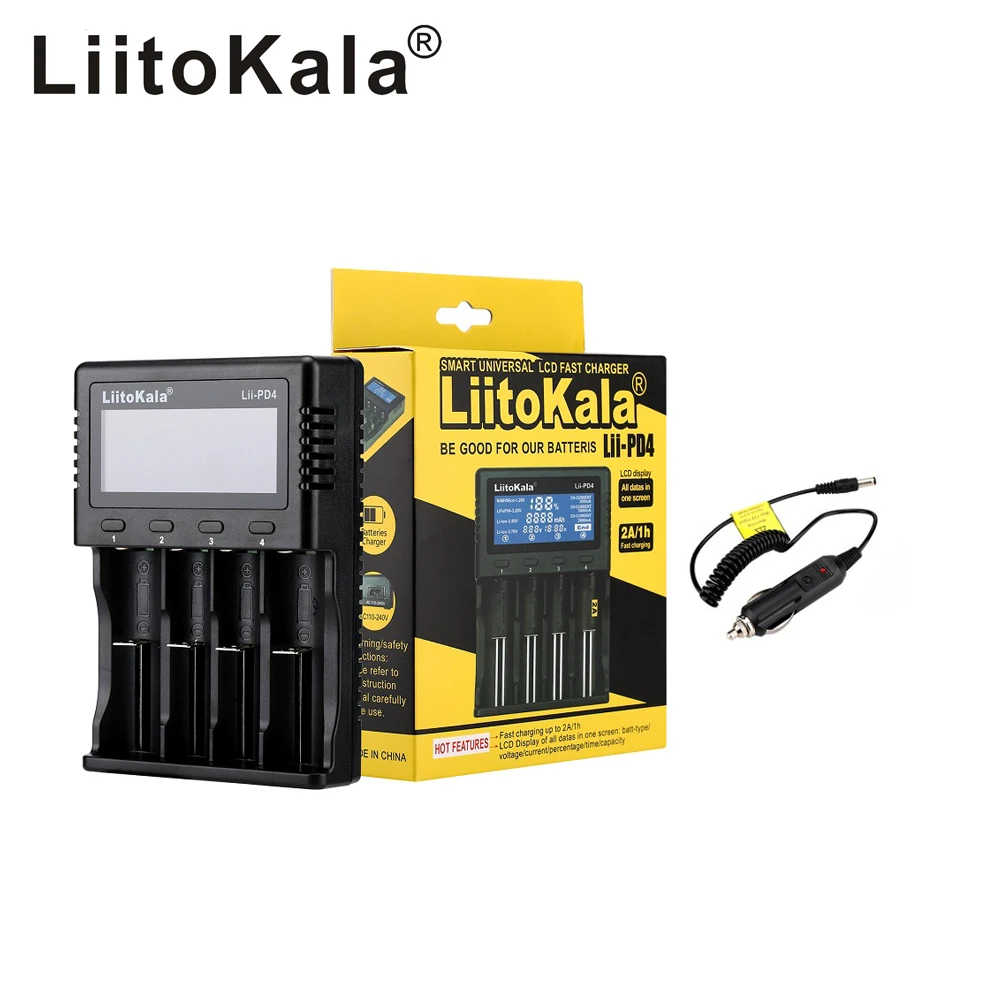

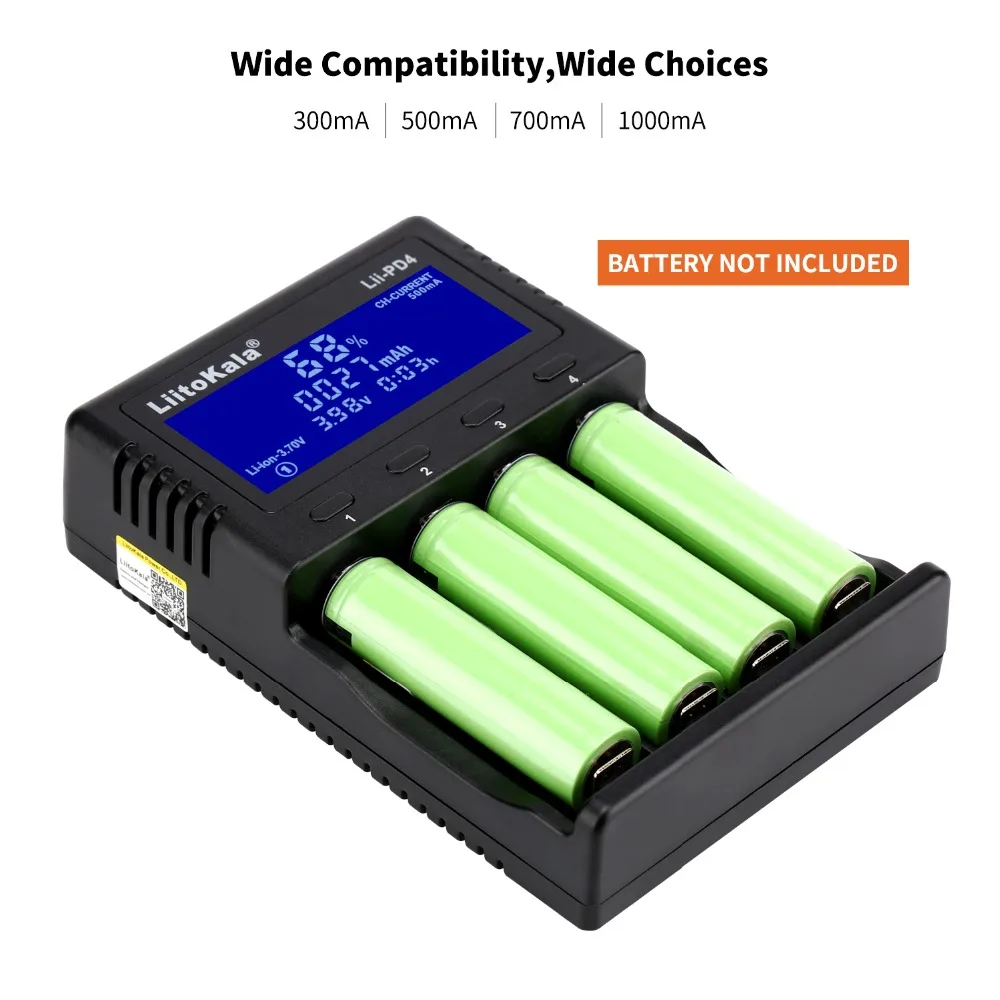

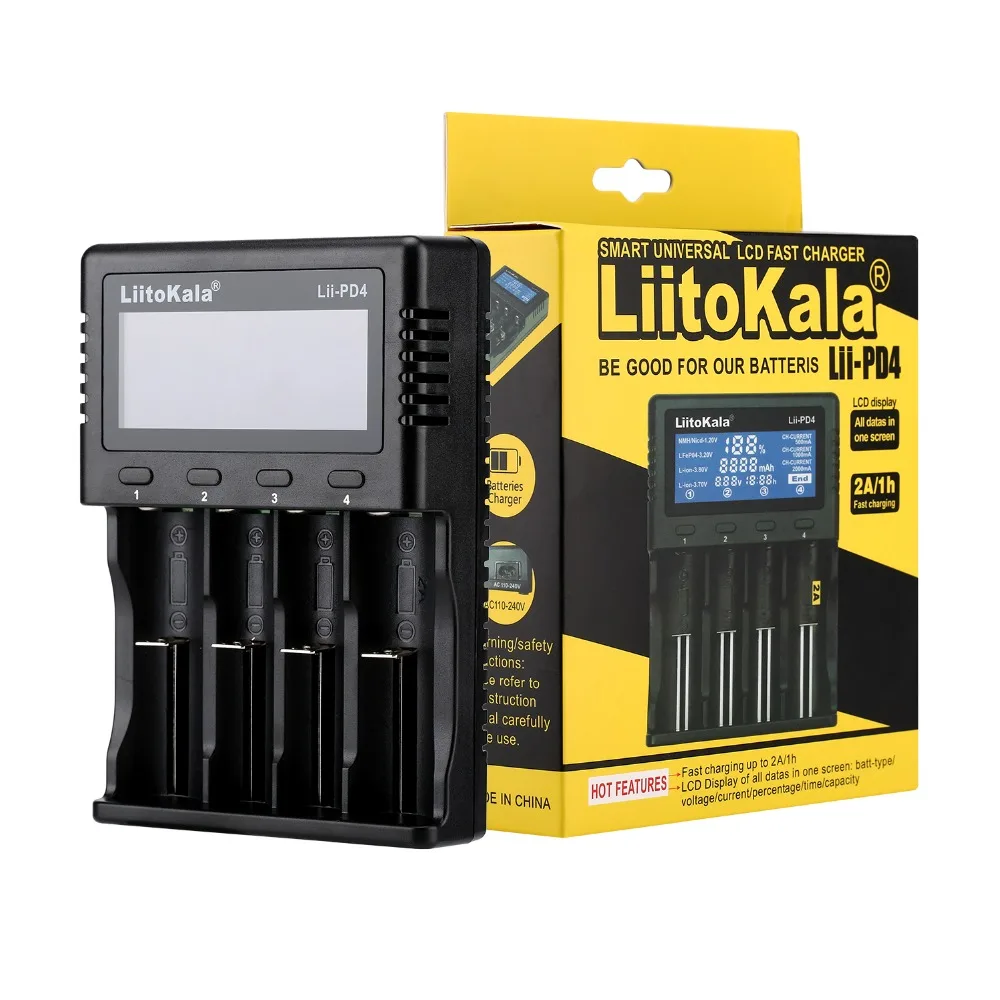

LiitoKala Lii-PD4 LCD Battery Charger for 18650 26650 21700 18350 AA AAA 3.7V/3.2V/1.2V/1.5V lithium NiMH battery 18650 charger

User Manual Lii-PD4

Cautions:

1.Thischarger can chargeallcylindricalrechargeablebatteries 3.7VLi-Ion,3.8VIMR,1.2VNi-MH/Cd, 3.2VLiFePO4

2.Read this manual before use and pay special attention to the recommended charge current, must avoid to charge battery beyond the recommended current limit

3.If DC input, only12V1Ais recommended

4.Mind heating while charging

5.Remove the charger from power source after charging complete, and remove the battery from the charger at the same time

6.For indoor use only

7.The displaying dataonly for reference, please refer to professional instrument for more accurate data

Specifications and functions:

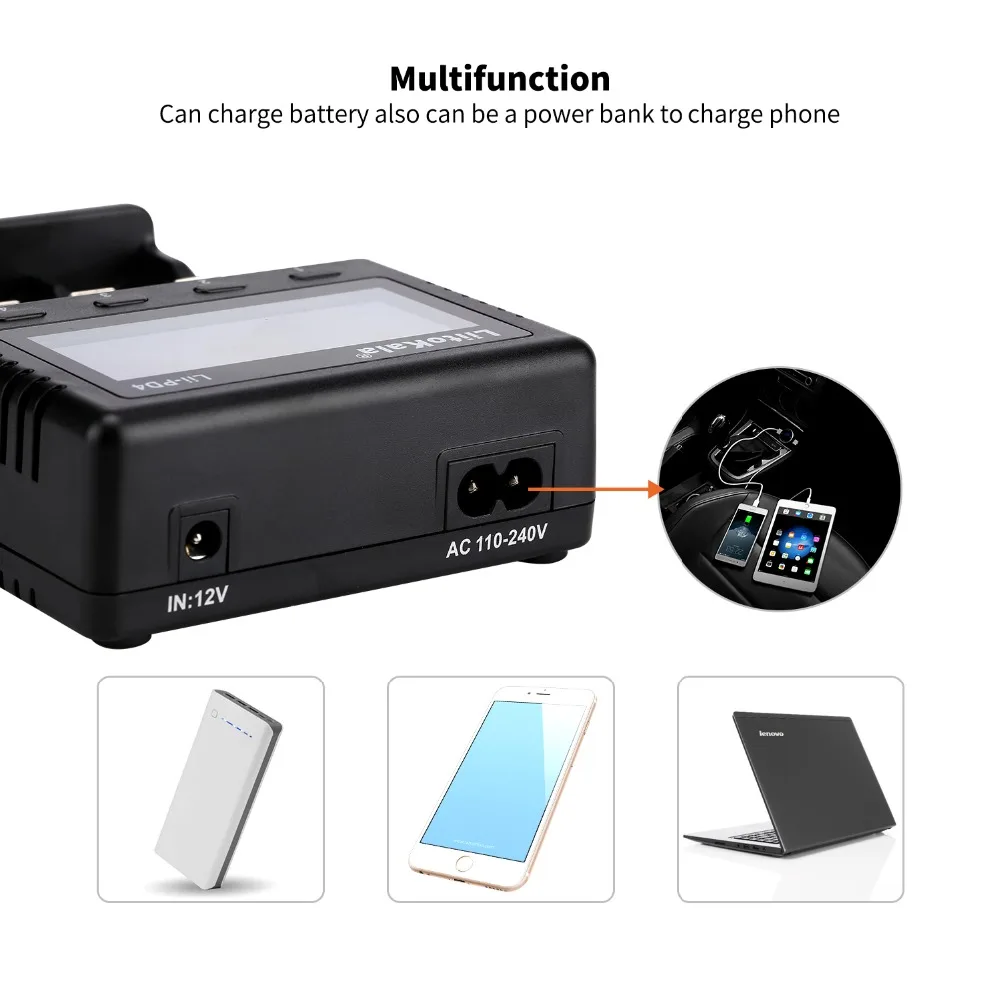

1.Multi-powerinput: AC cable 110-240V 50/60Hz (included)/ 12V 1A adapter(selective), four independent charging and micro computer management system.

2.Charge current intelligent auto-set of total three levels:500mA /1000mA/2000mA),2000mA is fixed only for slot#4.

3.Multi-functionalLCDchargingdisplay: forcharging progress25% - 50% - 75% -100%,battery types: Ni-MH 1.2V , Li-Fe 3.2V, Li-ion 3.7V, Li-ion 3.80V(IMR), charging capacity, voltageandcurrent: 0.5A/1A/2A.

4.Identify Li-ion and Ni-MH batteries automatically and adjust manually the charging mode for LiFePO4 and 3.80V li-ion batteries(IMR)

5.Refresh for OV battery. Itwill not charge any battery of1.65 -2.20V (refresh current can be detected only)

6.Multi-safety protection function of over-charge and over-discharge,short circuited, polarity reverse and so on. It can smartly identify broken batteries with much more safety.

7.Chargingat constant voltage and current

Button and LCD :

1.Buttonof Mode(Channel button):there are 4 independent buttons separately for each channel.Whilepower supplyis connectedand battery inserted,  1)Short clickthechannelbuttonin 5Sto change the battery type. It will start to charge 5 seconds after setting the battery type (3.2V or 3.80V),  1.2V Ni-MH and 3.7V li-ion canbe detected automatically, so it needs setting only 3.2V and 3.8V batteries;

Note: Battery type can be only selective before charging starts.

2.LCD: Whilepower supply connected,the LCDwilllight upfor 3S:1) If no battery isinserted,the LCD will display"null"and will be off in 30S2) When battery isinserted anddetected,the LCD will show channel number while the battery type image"Li-Ion 3.7V"flashingindicatingto set the battery type: this momentifshort click the channel button, it can set battery type; ifno operationin5 seconds, it beginsbyautomaticdetection(Li-Ion 3.7V or NIMH)thencharging percentage image will flash meaning the start of charging. At the same time the LCD displays also charge voltage, capacity, time and current. When charge completes, it will display"100%"mean while it shows"End" on the LCD right down corner.

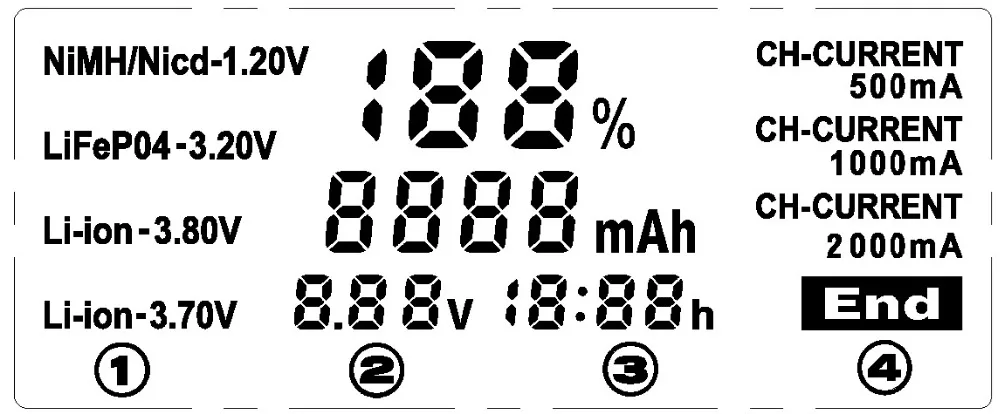

LCD displaygraphic reference:

Electrical Parameters:

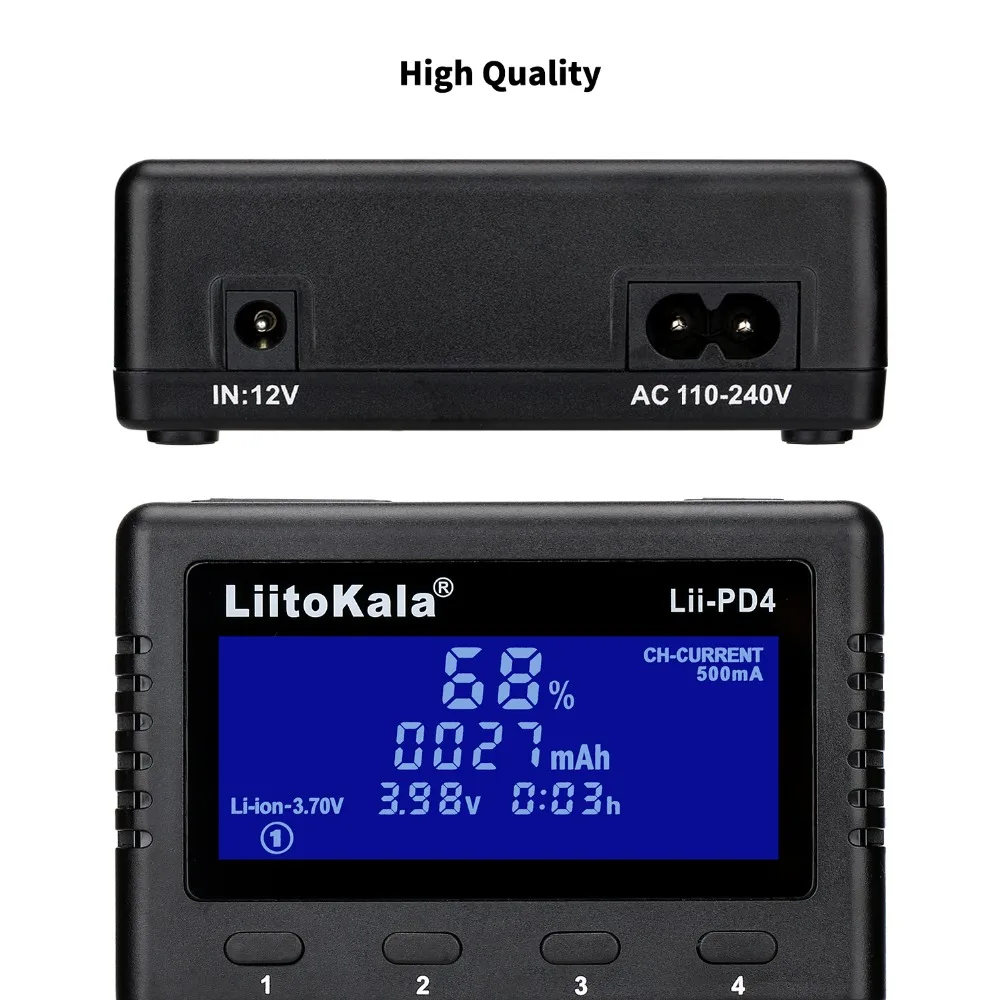

1. Input : AC cable 110-240V 50/60Hz (included)/  DC 12V 1A(selective)

2. Output voltage: DC 4.2V for Li-Ion 3.7V

DC 4.35V for Li-Ion 3.8V( IMR)

DC 3.65V for LiFePO4

DC 1.48V for NiMH/NI-Cd

3. Output current: Li-Ion/IMR/LiFePO4 2000mA*1(only for slot#4),

1000mA*2, 500mA*3  500mA*4

NiMH/NiCd: 1000mA*2, 500mA*3  500mA*4

4. Constant voltage, cut-off current: less than 100mA

5. Standby current: less than 15mA

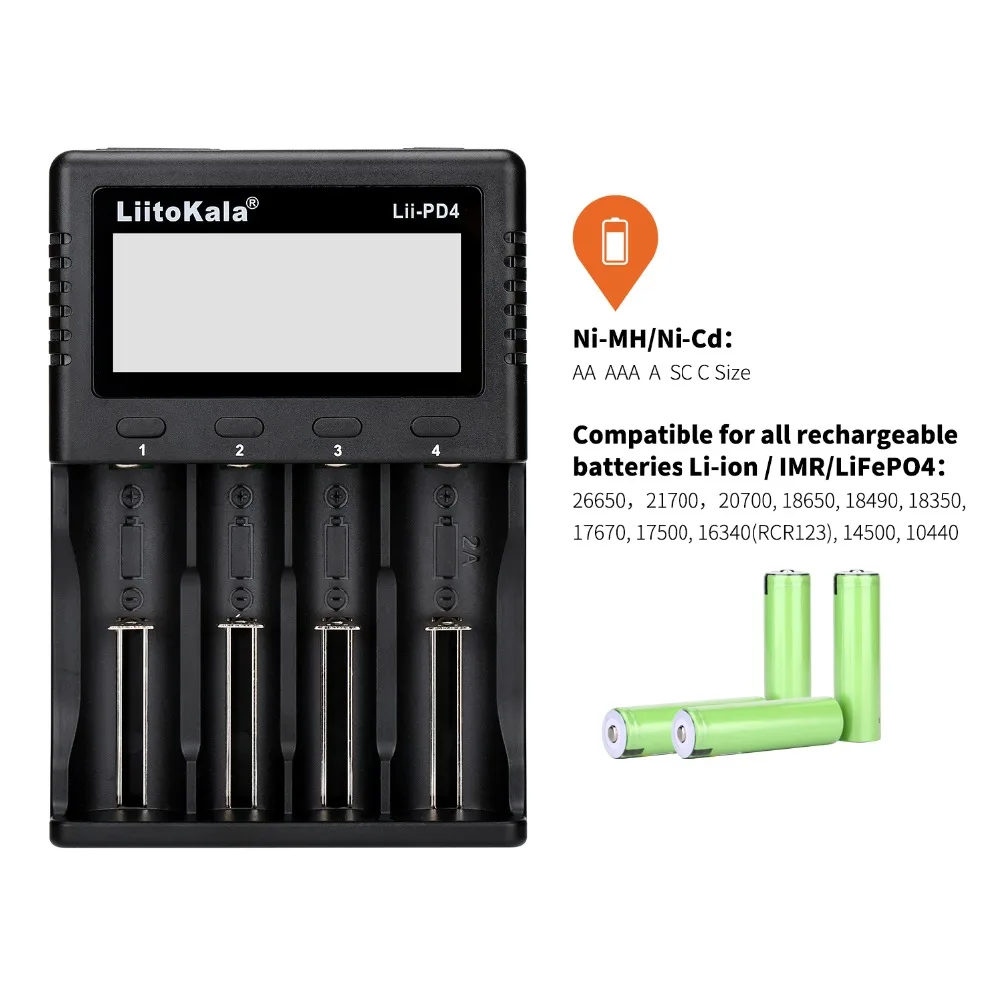

Compatible battery types and sizes

Li-ion / IMR/LiFePO4: 26650,21700,20700, 18650, 18490, 18350, 17670, 17500, 16340(RCR123), 14500, 10440

NiMH/Cd: AA, AAA,SC, C

Size and weight:

147mm x 100mm x 37mm (L x W x H)

Weight:      approx221g (not including AC cable)

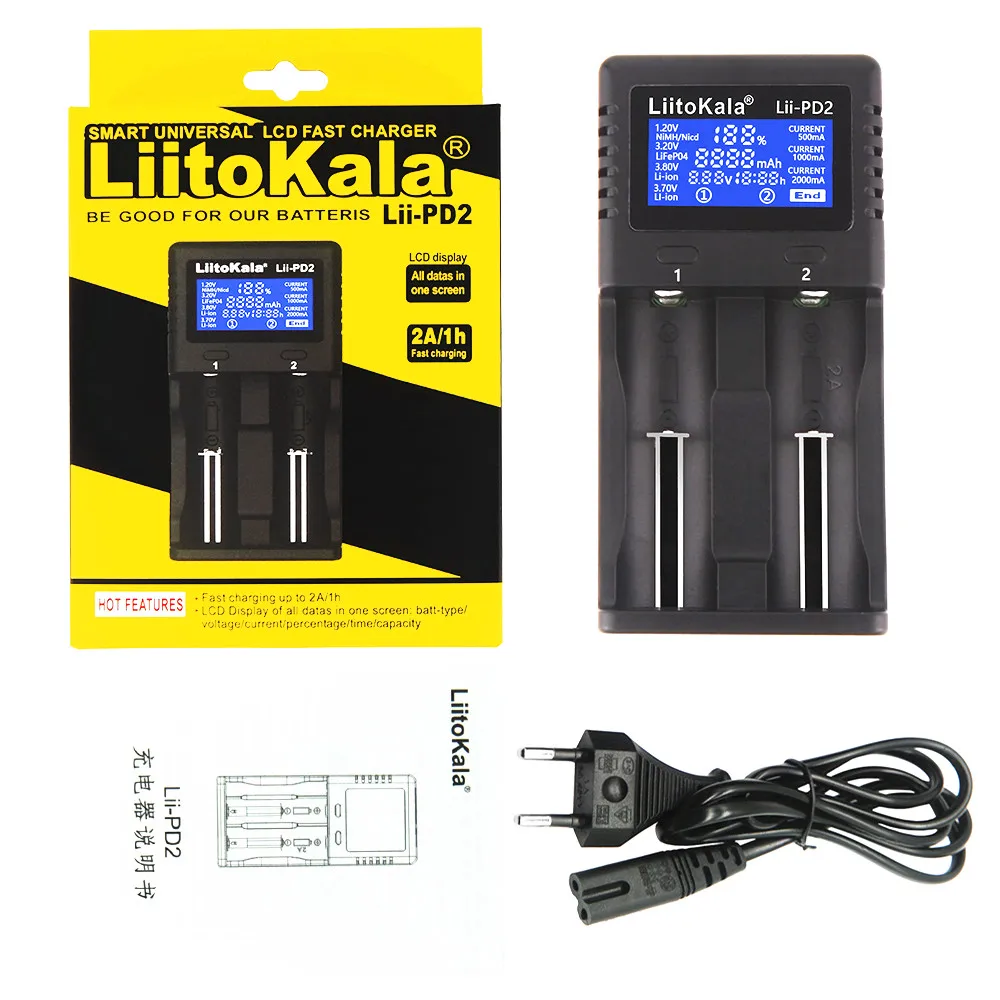

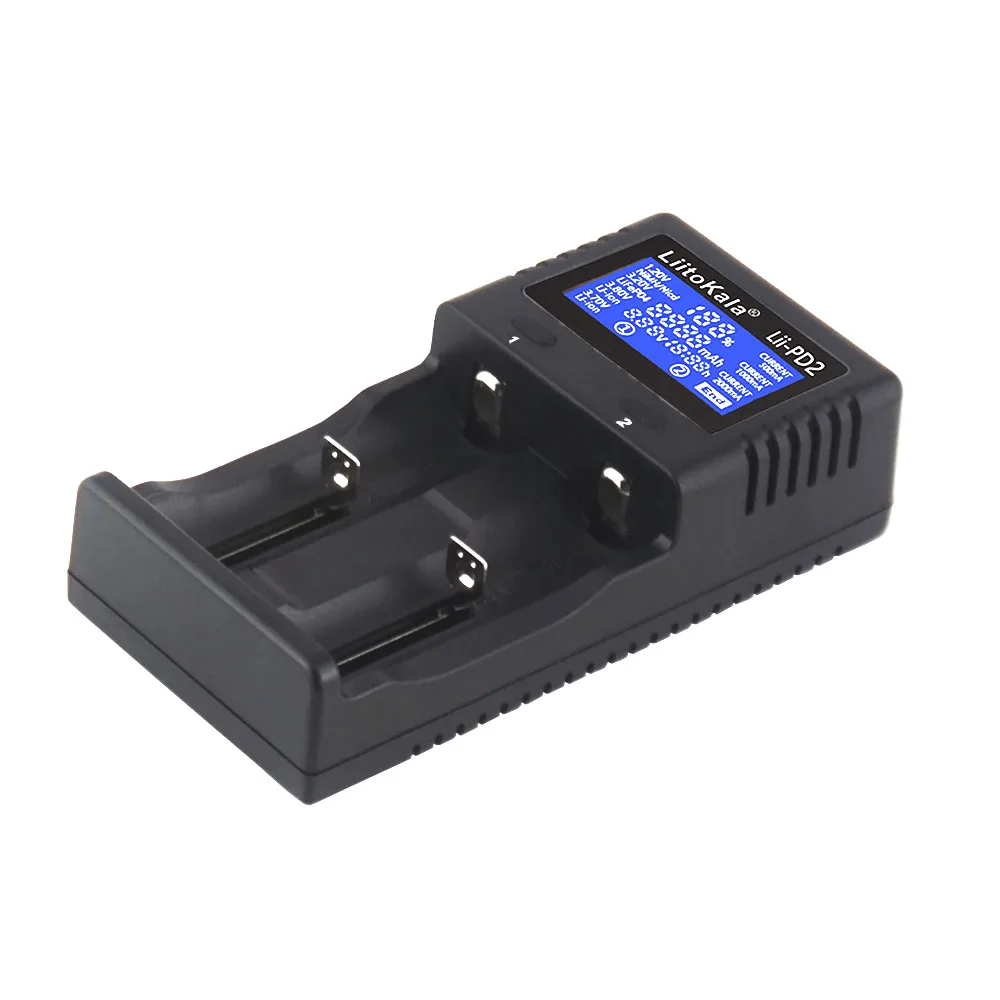

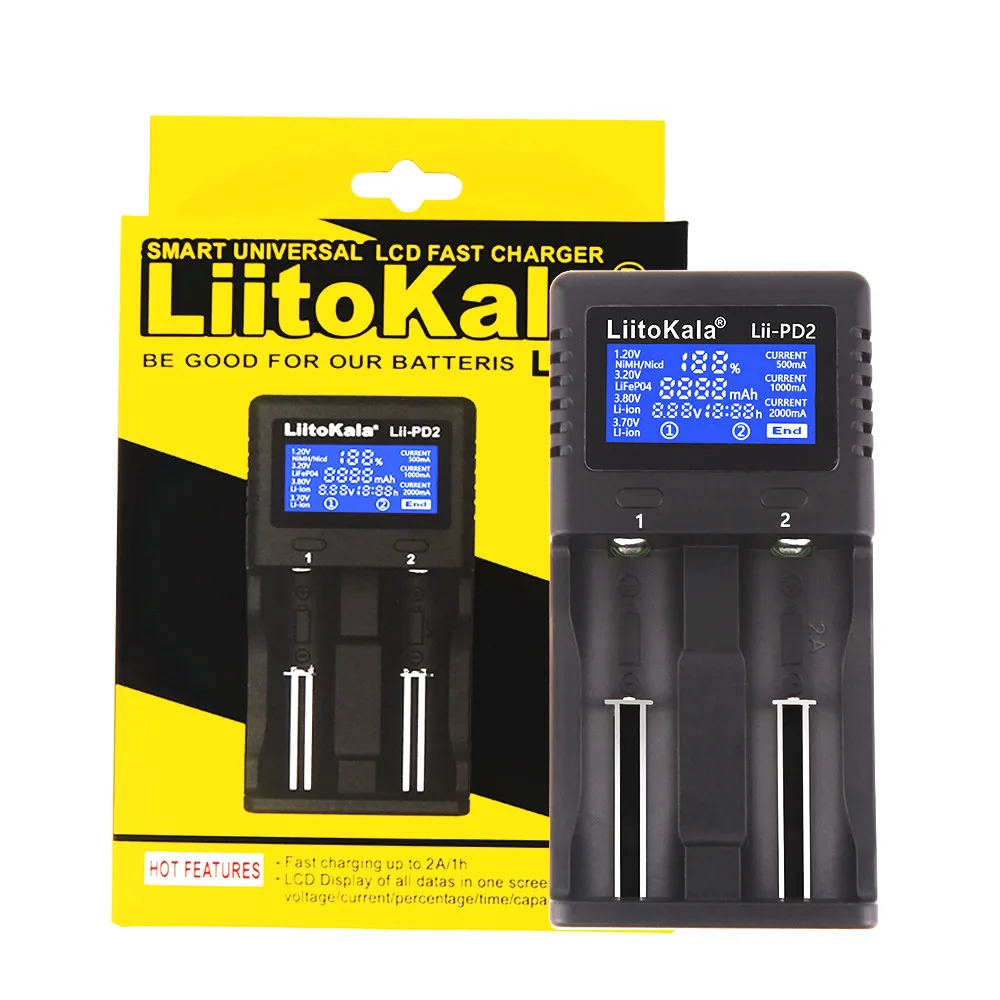

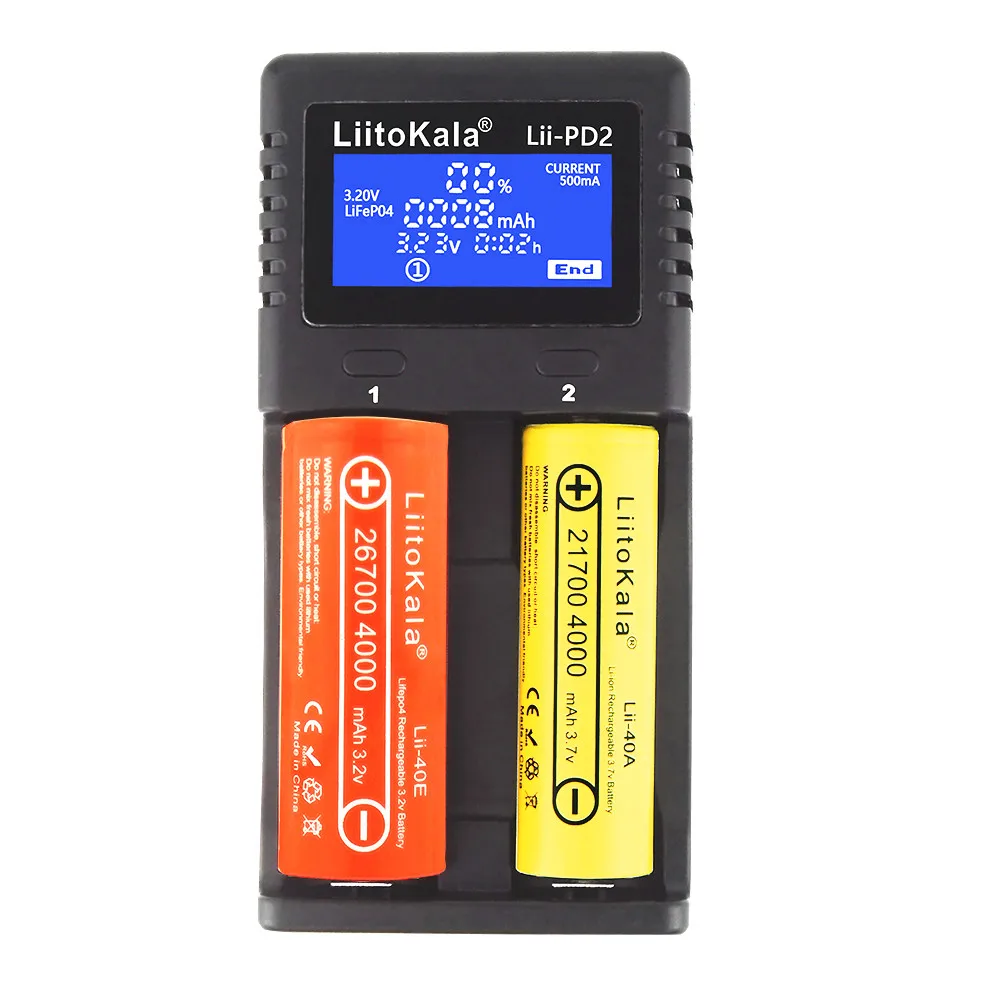

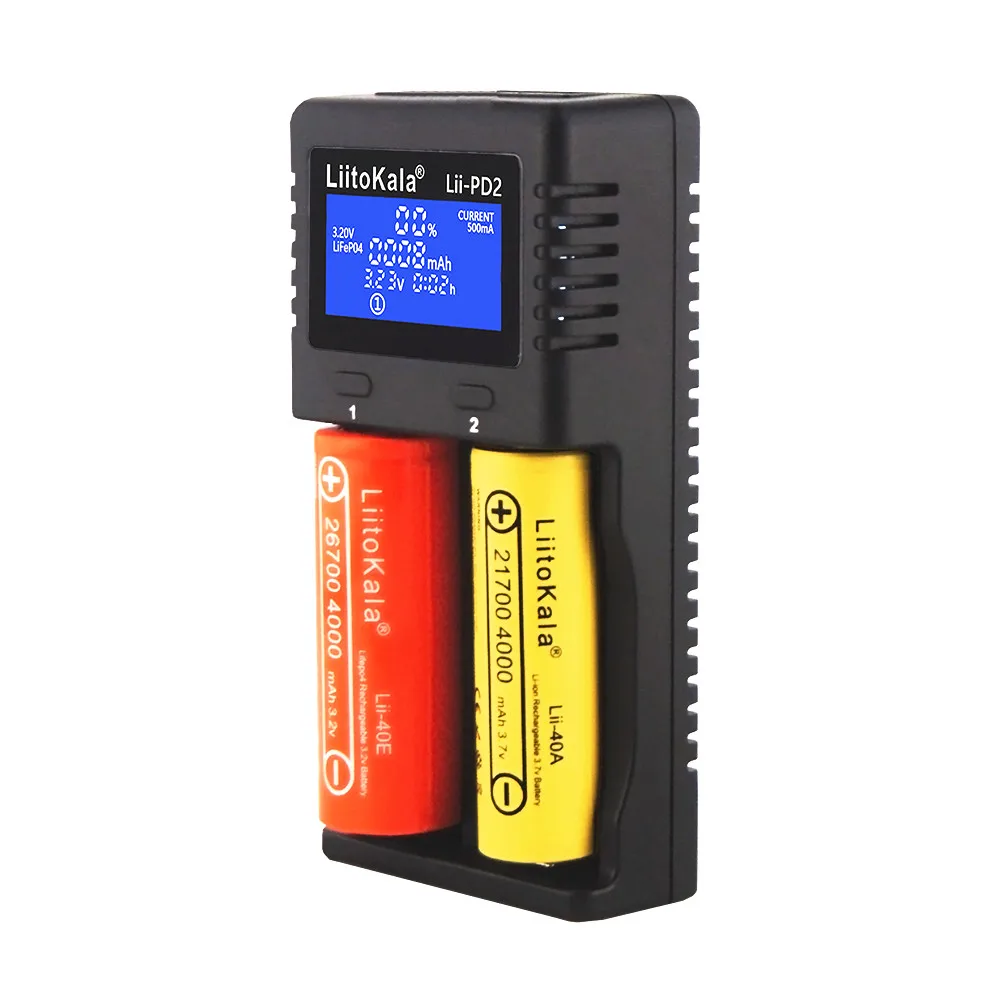

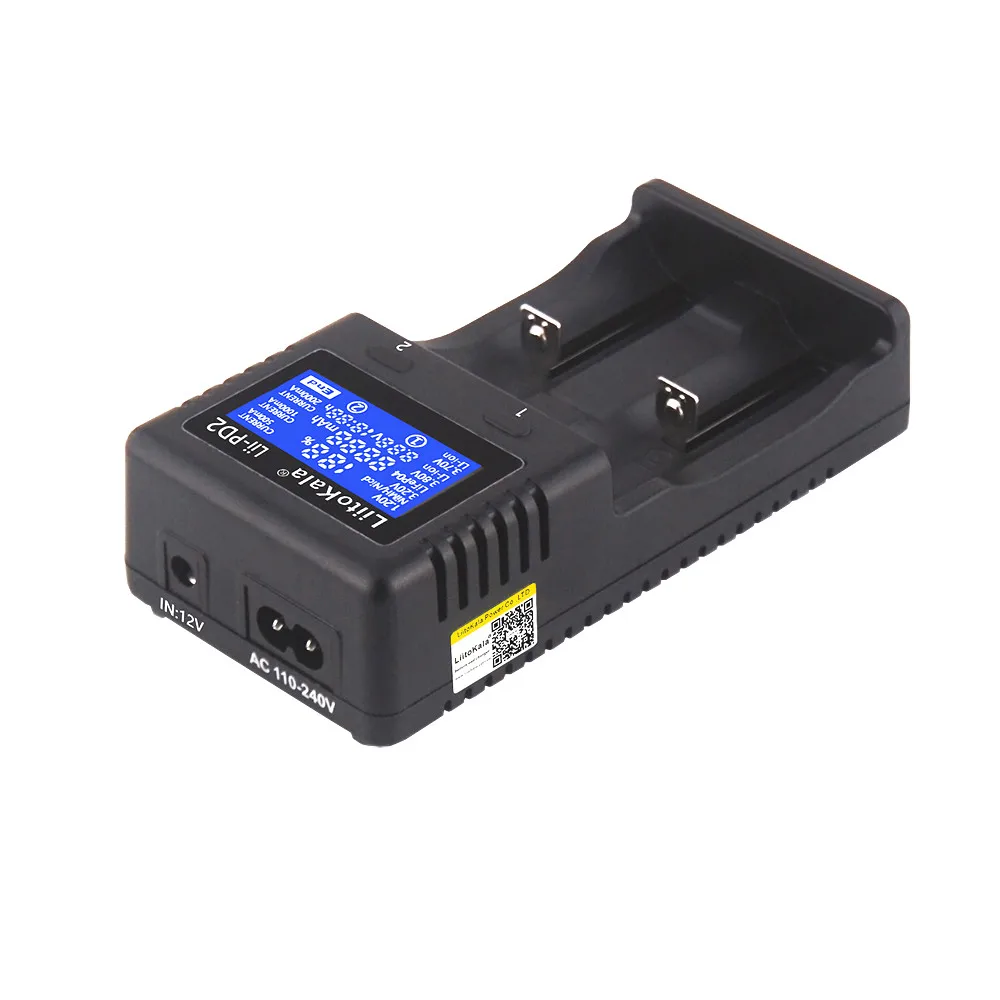

Charger PD2. Manual.

I. Charger specifications and functions:

1. DC12V1A (nominal) input, two-slot independent charging and

microcomputer management system.

2. The biggest highlight of this charger is that you can charge the battery

regardless of polarity!

3. There are three levels of charging current: 0.5A / 1.0A / 2.0A. The

default charging is 0.5A. You can press and hold the corresponding

button to select the charging current.

4. During charging the LCD can display the channel CH and the

charging current, voltage, time, capacity and battery type of the channel

Li-Fe 3.20V / Li-ion 3.70V / Li-ion 3.85V (IMR). The charging current of

the two slots does not exceed 2A in total. When one of the slots is

charged with 2A current, and then the battery is charged in the other

slot, the front 2A current will drop. Charge to 1A current; when the

battery is fully charged, the LCD will display FULL.

5. Automatic recognition of Li-Ion 3.70V and Ni-MH batteries, manual

selection of lithium iron phosphate battery (3.20V) and Li-Ion 3.85V

battery.

6. With 0V voltage activation function, 1.65-2.20V cannot be charged

(but there will be activated current trickle charging).

7. With multiple safety protection functions such as overcharge,

overdischarge, short circuit, etc., it can intelligently and automatically

identify bad batteries.

8. Charging mode: constant current and constant voltage.

II. Buttons and display:

1. Button (Mode): 2 buttons each control one slot. Within 5 seconds after

the battery is powered on, click the Mode button of the corresponding

slot to select the type of rechargeable battery. Press and hold the Mode

button to select the charging current. Determine the type of battery that

needs to be charged (such as 3.20V / 3.80V) and stop the operation

after charging current, and enter the charging state after 5 seconds. You

cannot switch the battery type during the charging process, but you can

click the button to light up the backlight and long Press to switch the

current.

2. LCD: After the charger is connected to the power supply, the LCD

display will be displayed for about 2 seconds, and then display null.

When the battery is detected, the LCD displays the corresponding slot

number, battery voltage and current, and the battery type symbol flashes

(NiMH / Nickel-cadmium 1.2V no battery type symbol blinks), after 5

seconds, it will enter the default recognition to charge the battery. At this

time, the charging display "%" symbol flashes to indicate that charging is

in progress, and END is displayed when charging is complete.

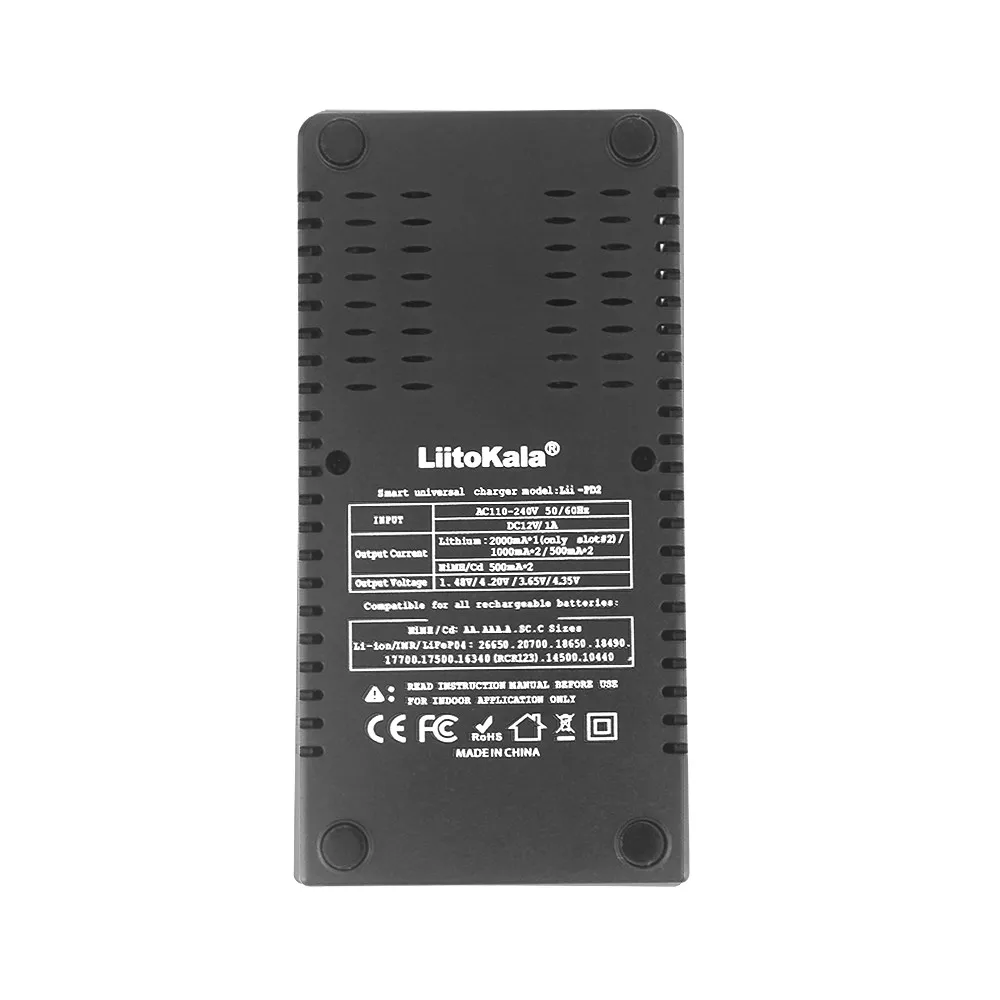

III. Electrical technical parameters:

1. Input power: DC 12V 1A.

2.Output voltage: DC 4.20V for Li-Ion, DC 4.35V for IMR, DC 3.65V for

LiFePO4, DC 1.48V for NiMH / NI-Cd.

3. Output current (optional): Li-Ion / IMR / LiFePO4: 2000mA * 1 (only

one) / 1000mA * 2 / 500mA * 2, NiMH / NiCd: 500mA.

4. Constant current / constant voltage charging, cut-off current: <100mA.

5. No-load standby current: <15m A.

Are you seeking for one charger which can support various types and battery volume of battery to charge at the same time? Here is your best choice! What are you waiting for? Just come and buy!

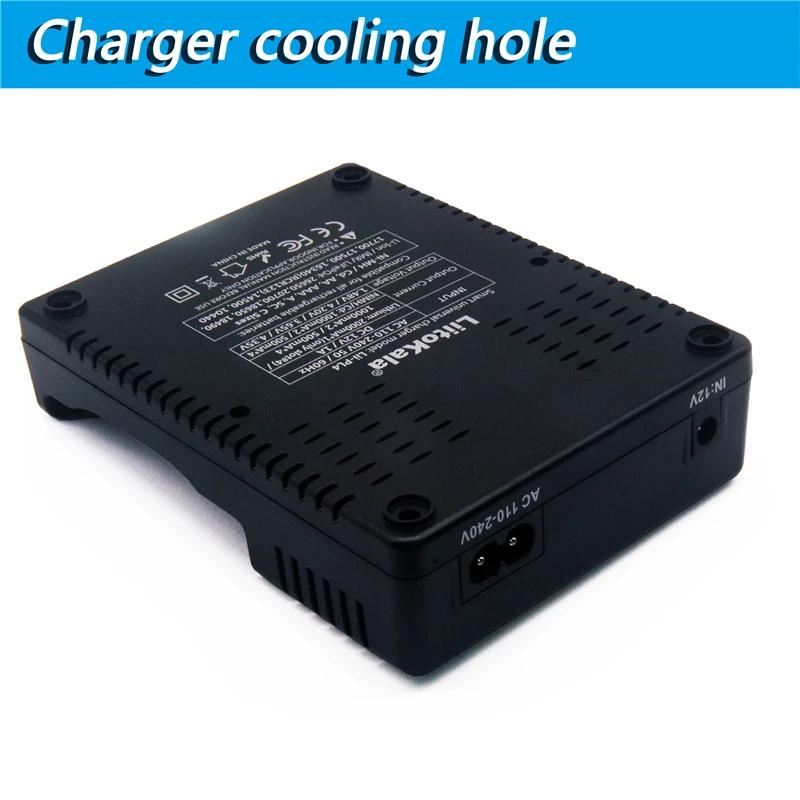

Features:

It can charge all cylindrical rechargeable batteries, including 3.7V Li-Ion, 3.8V IMR, 1.2V Ni-MH/Cd, 3.2VLiFePO4 etc.

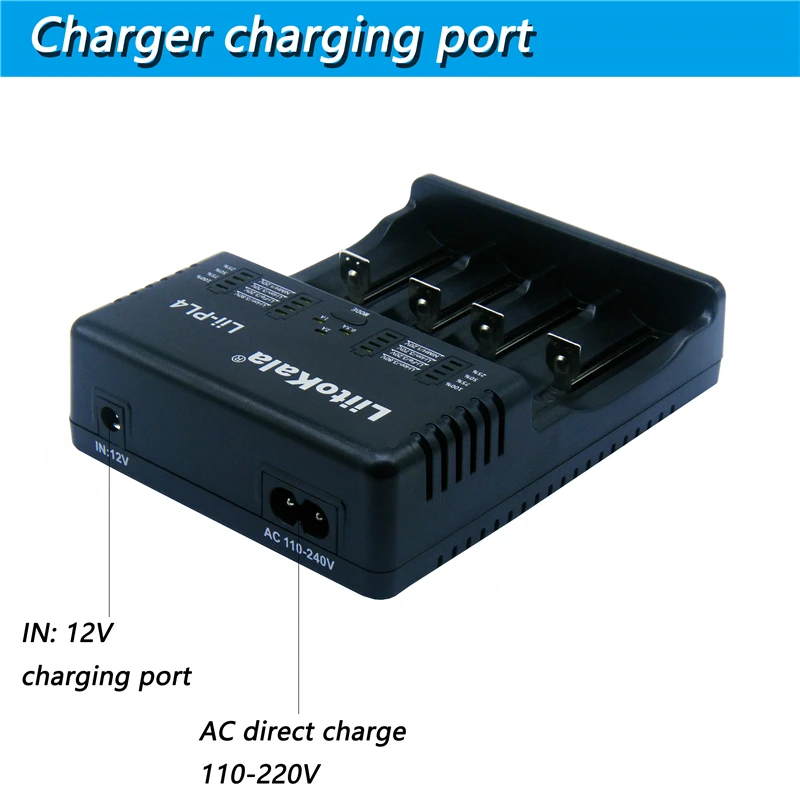

Wide input voltage, AC 110-240V 50/60Hz, is perfect for different areas.

Four independent charging and micro computer management system.

Charge current intelligent auto-set of total three levels: 500mA /1000mA/2000mA/ 2000mA is fixed only for slot4.

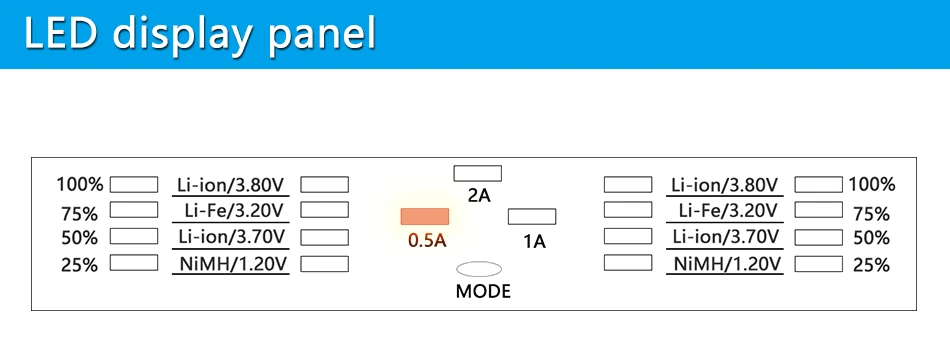

Multi-functional LED charging indicators for charging progress: 25% - 50% - 75% -100%, battery types: Ni-MH 1.2V, Li-Fe 3.2V, Li-ion 3.7V, Li-ion 3.80V (IMR) and for charging current: 0.5A/1A/2A

Identify Li-ion and Ni-MH batteries automatically and adjust manually the charging mode for LiFePO4 and 3.80V li-ion batteries(IMR)

Refresh for OV battery. It will not charge any battery of1.65 -2.20V (refresh current can be detected only)

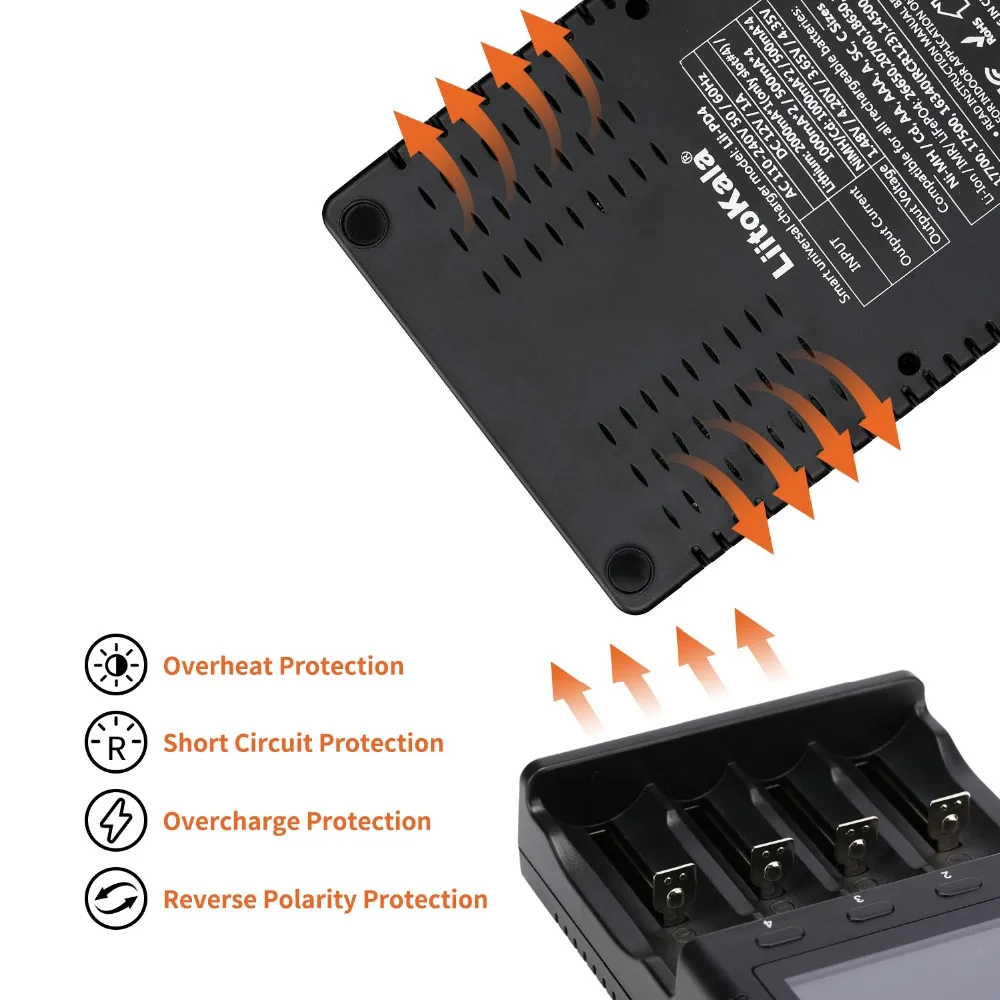

Multi-safety protection function of over-charge and over-discharge, short circuited, polarity reverse and so on. It can smartly identify broken batteries with much more safety.

Automatically stops charging when complete.

Charging at constant voltage and constant current, safe, portable and powerful, it is good for you.

Specifications:

Input voltage: AC100-240V 50-60Hz

Output voltage: DC4.2V for Li-Ion 3.7V

DC4.35V for Li-Ion 3.8V( IMR)

DC3.65V for LiFePO4

DC1.48V for NiMH/NI-Cd

Output current: Li-Ion/IMR/LiFePO4 2000mA*1(only for slot#4),

1000mA*2/ 500mA*3/ 500mA*4

NiMH/NiCd: 1000mA*2/ 500mA*3/ 500mA*4

Suitable for: All cylindrical rechargeable batteries, including 3.7V Li-Ion, 3.8V IMR, 1.2V Ni-MH/Cd, 3.2VLiFePO4 etc.

Material:ABS+PC+V0 fire-resistant material

Item color: Black

Plug type: EU/US (optional)

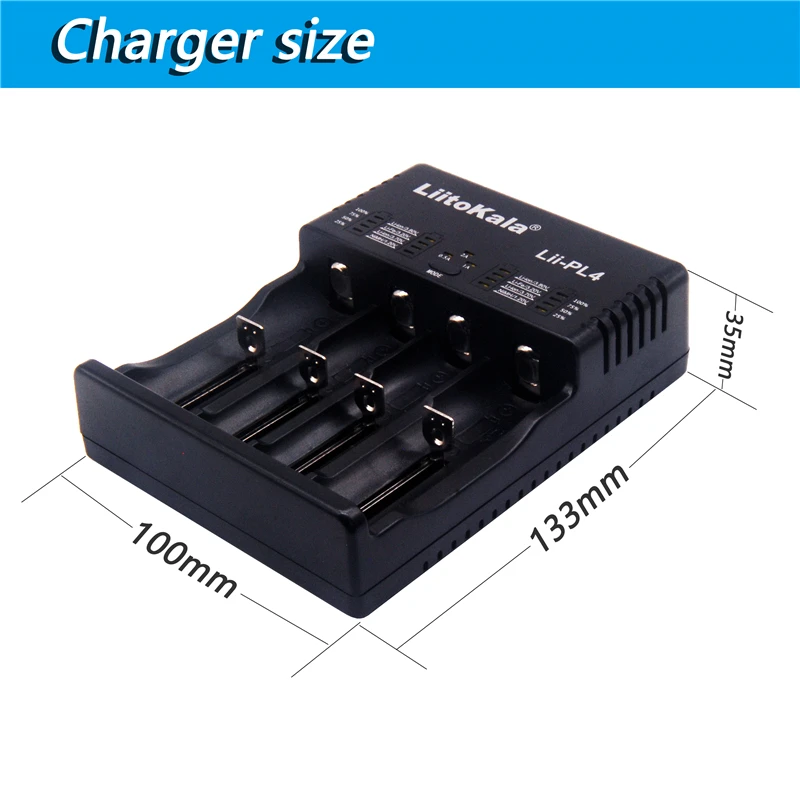

Item size:130 * 100 * 30mm/ 5.1 * 3.9 * 1.2in (L *W * H)

Item weight: 175g/ 6.2oz

Package size: 170 * 140 * 38mm/ 6.7 * 5.5 * 1.5in (L * W * H)

Package weight: 252g (US)/266g (EU)

Note:

This item is non-waterproof, please use it carefully.

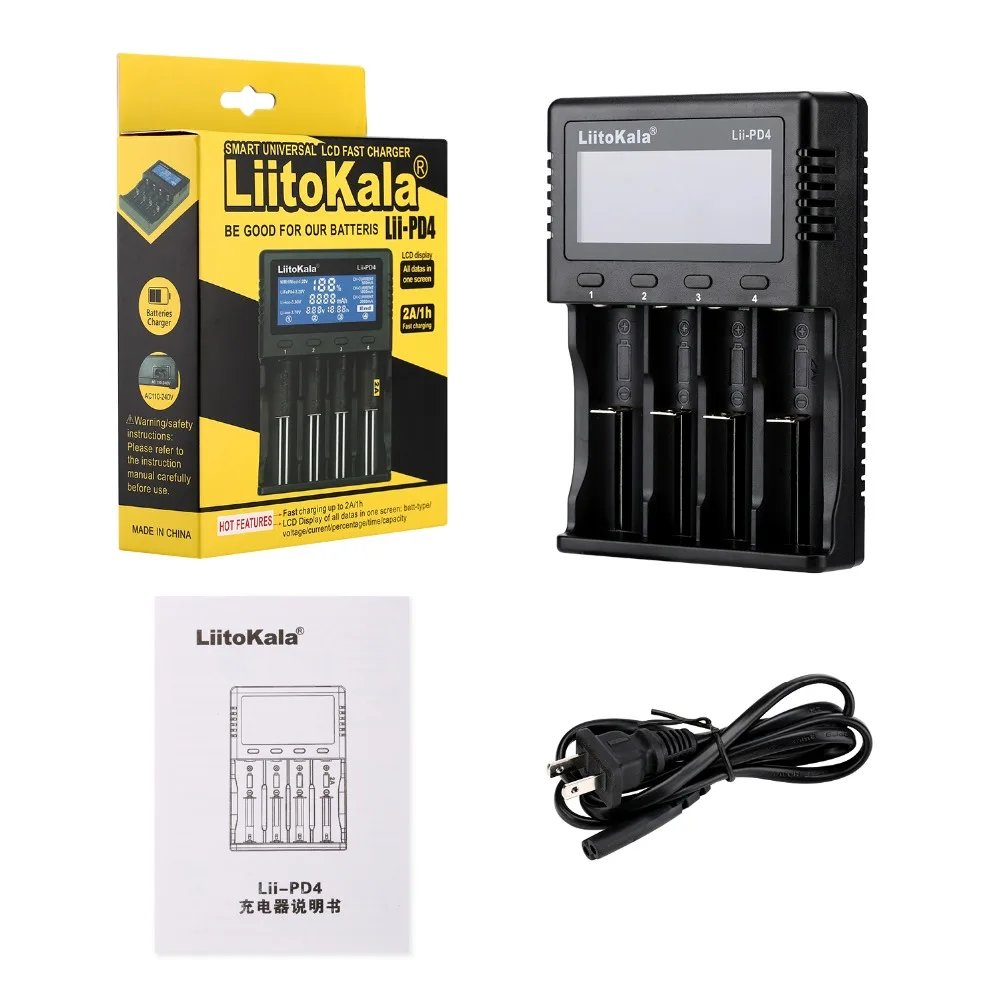

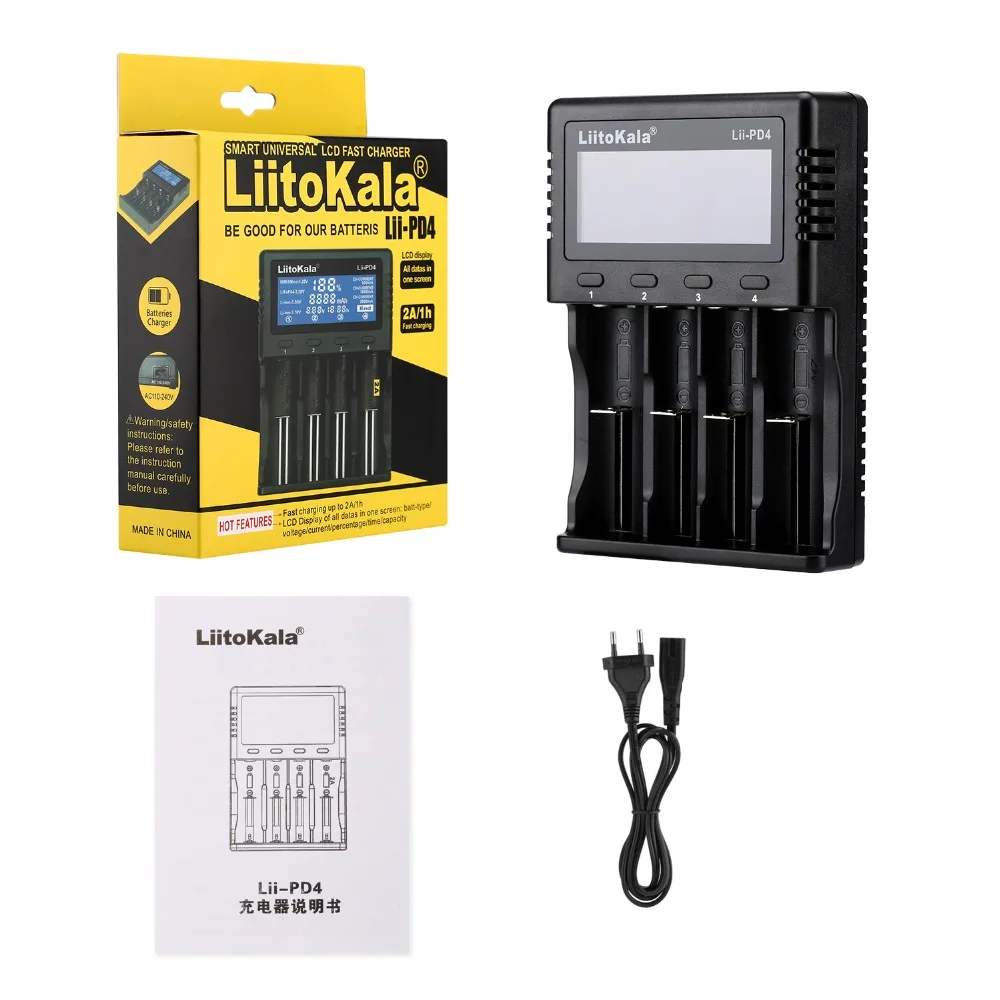

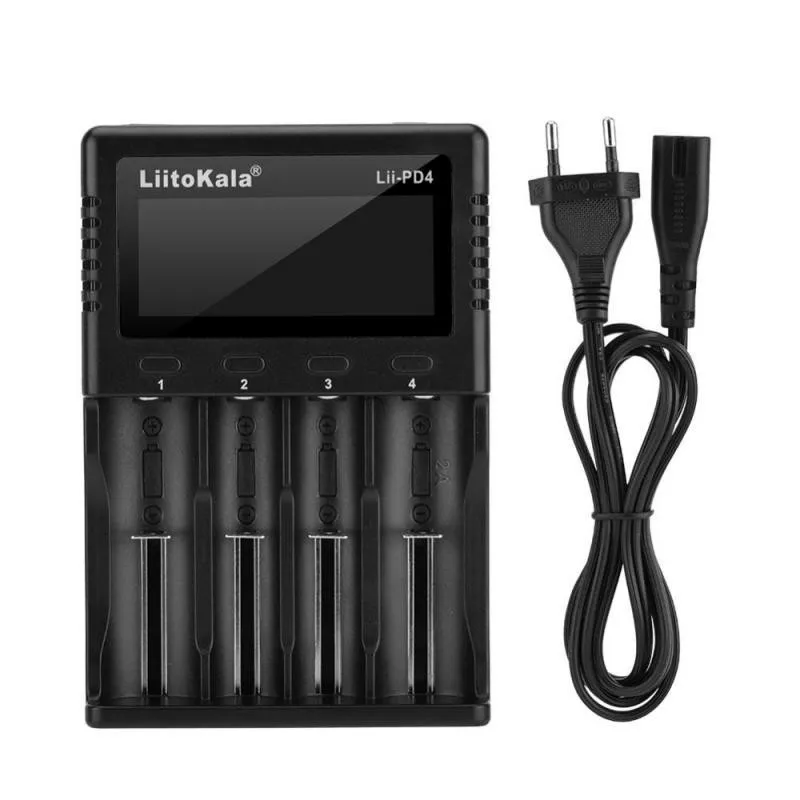

Package list:

1 * Charger

1 * Power cable

1 * Instruction

User Manual Lii-PD4

Cautions:

1.Thischarger can chargeallcylindricalrechargeablebatteries 3.7VLi-Ion,3.8VIMR,1.2VNi-MH/Cd, 3.2VLiFePO4

2.Read this manual before use and pay special attention to the recommended charge current, must avoid to charge battery beyond the recommended current limit

3.If DC input, only12V1Ais recommended

4.Mind heating while charging

5.Remove the charger from power source after charging complete, and remove the battery from the charger at the same time

6.For indoor use only

7.The displaying dataonly for reference, please refer to professional instrument for more accurate data

Specifications and functions:

1.Multi-powerinput: AC cable 110-240V 50/60Hz (included)/ 12V 1A adapter(selective), four independent charging and micro computer management system.

2.Charge current intelligent auto-set of total three levels:500mA /1000mA/2000mA),2000mA is fixed only for slot#4.

3.Multi-functionalLCDchargingdisplay: forcharging progress25% - 50% - 75% -100%,battery types: Ni-MH 1.2V , Li-Fe 3.2V, Li-ion 3.7V, Li-ion 3.80V(IMR), charging capacity, voltageandcurrent: 0.5A/1A/2A.

4.Identify Li-ion and Ni-MH batteries automatically and adjust manually the charging mode for LiFePO4 and 3.80V li-ion batteries(IMR)

5.Refresh for OV battery. Itwill not charge any battery of1.65 -2.20V (refresh current can be detected only)

6.Multi-safety protection function of over-charge and over-discharge,short circuited, polarity reverse and so on. It can smartly identify broken batteries with much more safety.

7.Chargingat constant voltage and current

Button and LCD :

1.Buttonof Mode(Channel button):there are 4 independent buttons separately for each channel.Whilepower supplyis connectedand battery inserted,  1)Short clickthechannelbuttonin 5Sto change the battery type. It will start to charge 5 seconds after setting the battery type (3.2V or 3.80V),  1.2V Ni-MH and 3.7V li-ion canbe detected automatically, so it needs setting only 3.2V and 3.8V batteries;

Note: Battery type can be only selective before charging starts.

2.LCD: Whilepower supply connected,the LCDwilllight upfor 3S:1) If no battery isinserted,the LCD will display"null"and will be off in 30S2) When battery isinserted anddetected,the LCD will show channel number while the battery type image"Li-Ion 3.7V"flashingindicatingto set the battery type: this momentifshort click the channel button, it can set battery type; ifno operationin5 seconds, it beginsbyautomaticdetection(Li-Ion 3.7V or NIMH)thencharging percentage image will flash meaning the start of charging. At the same time the LCD displays also charge voltage, capacity, time and current. When charge completes, it will display"100%"mean while it shows"End" on the LCD right down corner.

LCD displaygraphic reference:

Electrical Parameters:

1. Input : AC cable 110-240V 50/60Hz (included)/  DC 12V 1A(selective)

2. Output voltage: DC 4.2V for Li-Ion 3.7V

DC 4.35V for Li-Ion 3.8V( IMR)

DC 3.65V for LiFePO4

DC 1.48V for NiMH/NI-Cd

3. Output current: Li-Ion/IMR/LiFePO4 2000mA*1(only for slot#4),

1000mA*2, 500mA*3  500mA*4

NiMH/NiCd: 1000mA*2, 500mA*3  500mA*4

4. Constant voltage, cut-off current: less than 100mA

5. Standby current: less than 15mA

Compatible battery types and sizes

Li-ion / IMR/LiFePO4: 26650,21700,20700, 18650, 18490, 18350, 17670, 17500, 16340(RCR123), 14500, 10440

NiMH/Cd: AA, AAA,SC, C

Size and weight:147mm x 100mm x 37mm (L x W x H)

Weight: 300g
