1PCS~5PCS KY-019 DC5V 1channel Relay Module for Arduino Raspberry Pi PIC + 3PCS 10CM 10Pin Dupont Line for Arduino Relay
7.71$
7.53$
Quantity:
1
Availability:
Size
Card Payments
Crypto Payments
Easy return
Reliable Shipping

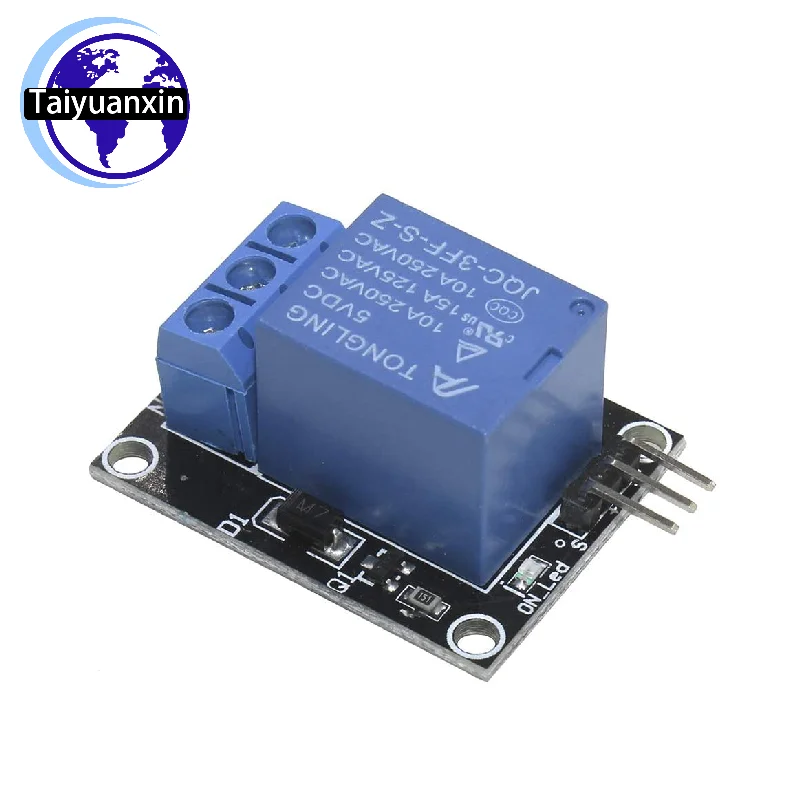

1. New 5V relay module
2. Can be used as a microcontroller development board module, can be used for home appliances control
3.5V-12V to TTL control signal
4. Can control signal DC or AC, 220V AC load.

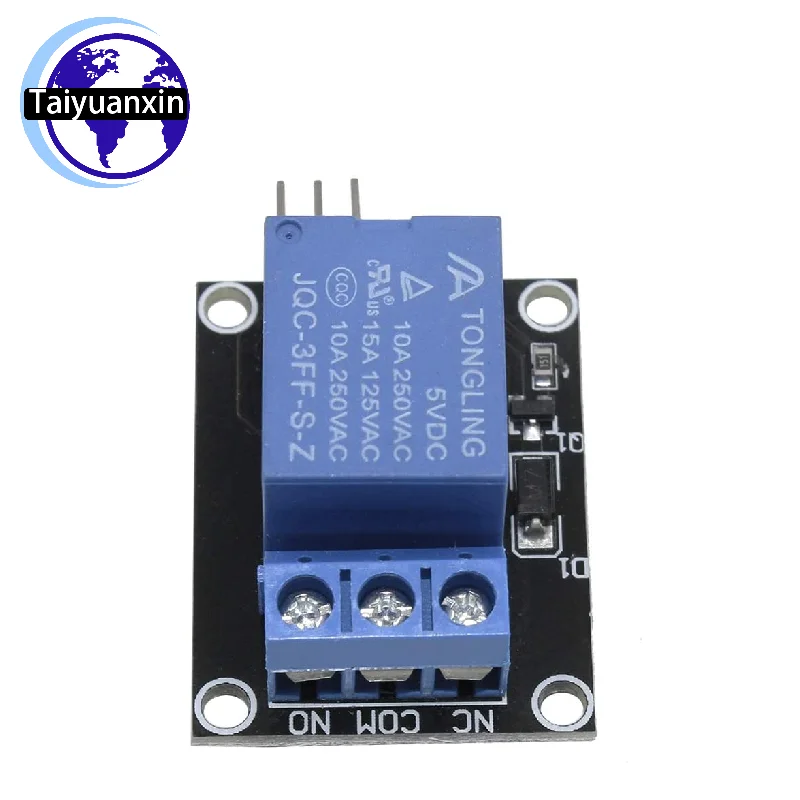

5. One normally open contact and one normally closed contact
.6. One power indicator
7. A control indicator, unplugged, disconnected not lit
8. Transistor driven, increasing the high impedance of the control pin of the relay coil.
9. The control pin has a pull-down circuit to prevent the relay from becoming vacant if it fails.
10.SKU:1PCS/5PCS+3pcs 10CM Dupont Line
. Relay coil drive voltage is 5V, input control level can also be within 5V. Module description.

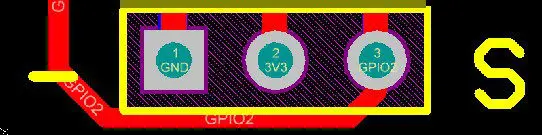

Pin definition
1. Output drive capability: 250VAC-10A, 125VAC-10A, 30VDC-10A, 28VDC-10A.
2. Easy to use, each output group has a simple 3-wire structure, and retains 6 output terminals.
3. Inputs are directly connected to the IO port of the microcontroller or digital circuit, input high level relays are closed, low level relays are released.
4. The operating voltage is 5V, the current of each circuit is about 70mA, and there is a relay status indicator.
5. Full chip assembly, the most reasonable drive circuit design, using 8050 transistors to drive the relay action.
6, with fixing screw holes, easy to install, the board size is 1.8cm * 4.0cm * 1.9cm, weight is 15g.
A simple test note: the module is electrically insulated between input and output. Once the correct voltage has been supplied, simply connecting a high level (e.g. shorted to VCC) to the input pin will cause the relay to engage, rather than connecting or connecting a low level (if shorted) using GND) the relay will not operate.
Input section.
VCC: connects to the 5V positive supply
GND: connects to 5V negative supply

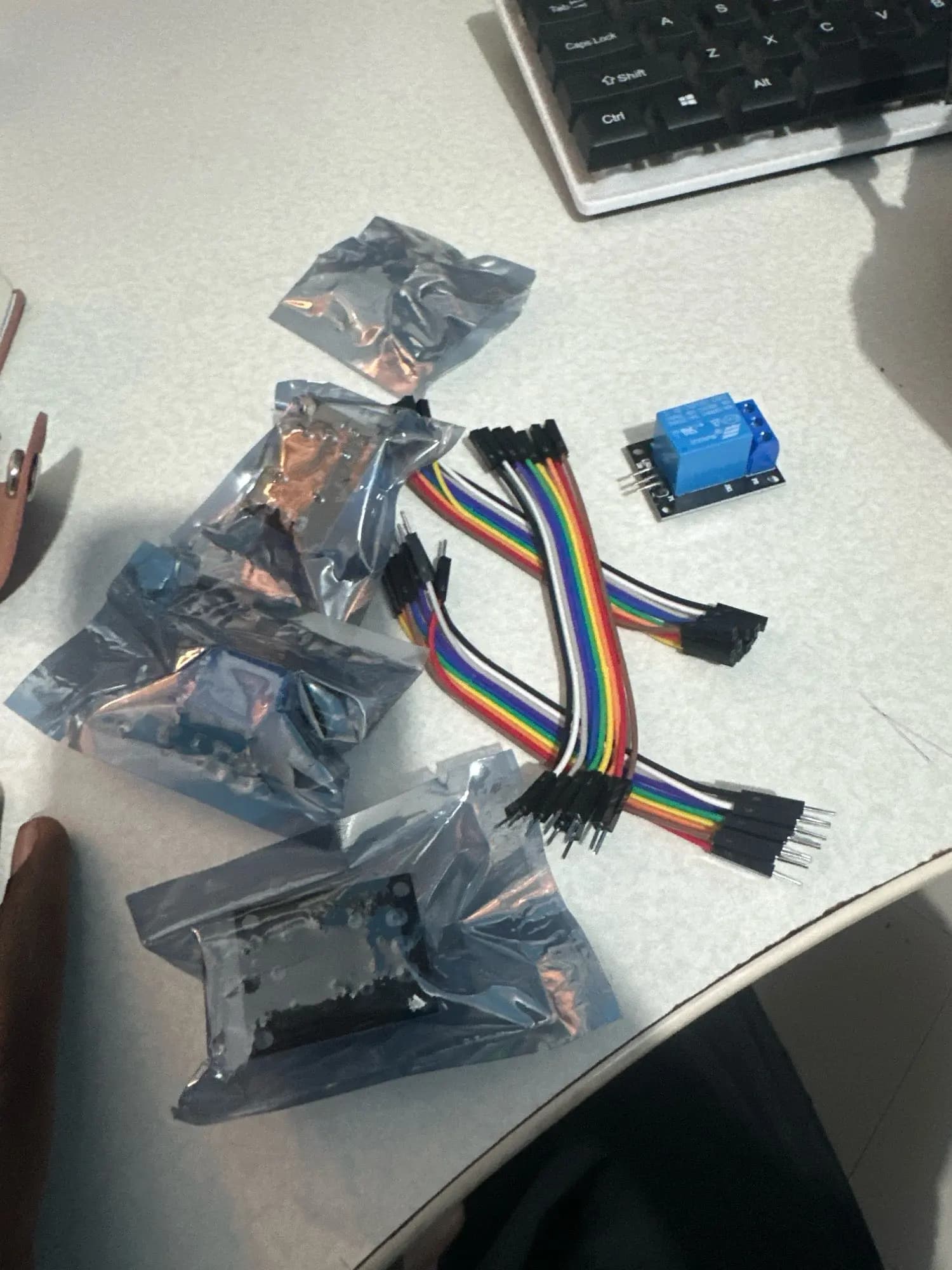

Package includes.
5 x 1 channel 5V relay module boards

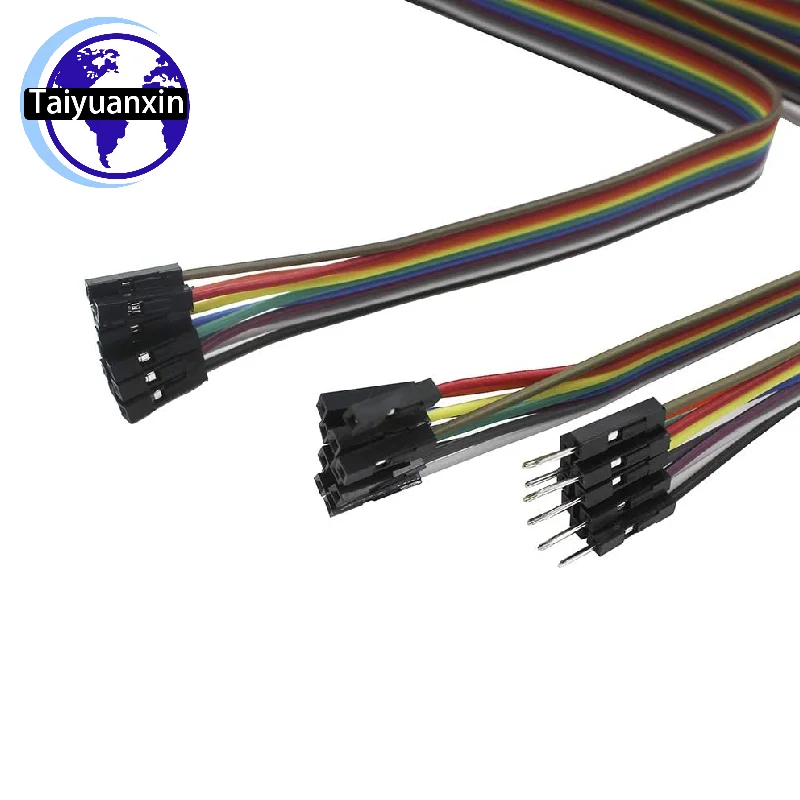

1 x 10Pin 20CM male to female jumper cable
1 x 10Pin 20CM male to male jumper cable
1 x 10Pin 20CM female to female jumper
Customer Reviews
61 ratings
recommended (2)
as described (2)
fast delivery (2)
fast and responsive (1)
perfect item (1)
excellent seller (1)
Customer photos (4)
Buyer from France
August 9, 2026
Variant: Size:KY-019 Relay 1PCS

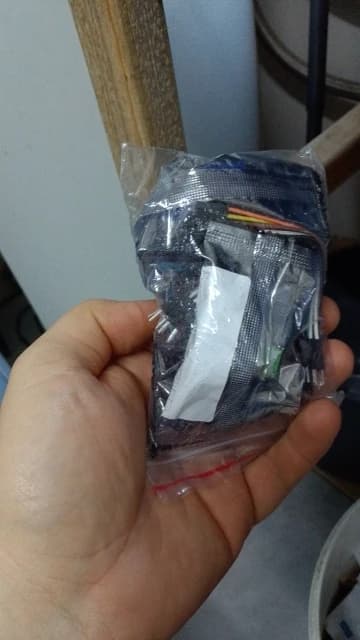

Received well, now he just needs to try it.
Translated by AliExpress ·
С***ч
May 25, 2026
Variant: Size:5 Relay and 3 Wires
The contact gets stuck when switching to 220V, and it would be understandable if the load was high, but no, it's just a regular 10-watt diode bulb. Extremely dissatisfied with these relays.
Translated by AliExpress ·
Buyer from Senegal
May 17, 2026
Variant: Size:5 Relay and 3 Wires
The product is okay.
Translated by AliExpress ·
K***m
April 30, 2026
Variant: Size:5 Relay and 3 Wires
Works
Translated by AliExpress ·
С***ч
March 8, 2026
Variant: Size:5 Relay and 3 Wires
Great 👍 thank you
Translated by AliExpress ·
A***k
February 23, 2026
Variant: Size:KY-019 Relay 1PCS
Good, thanks.
