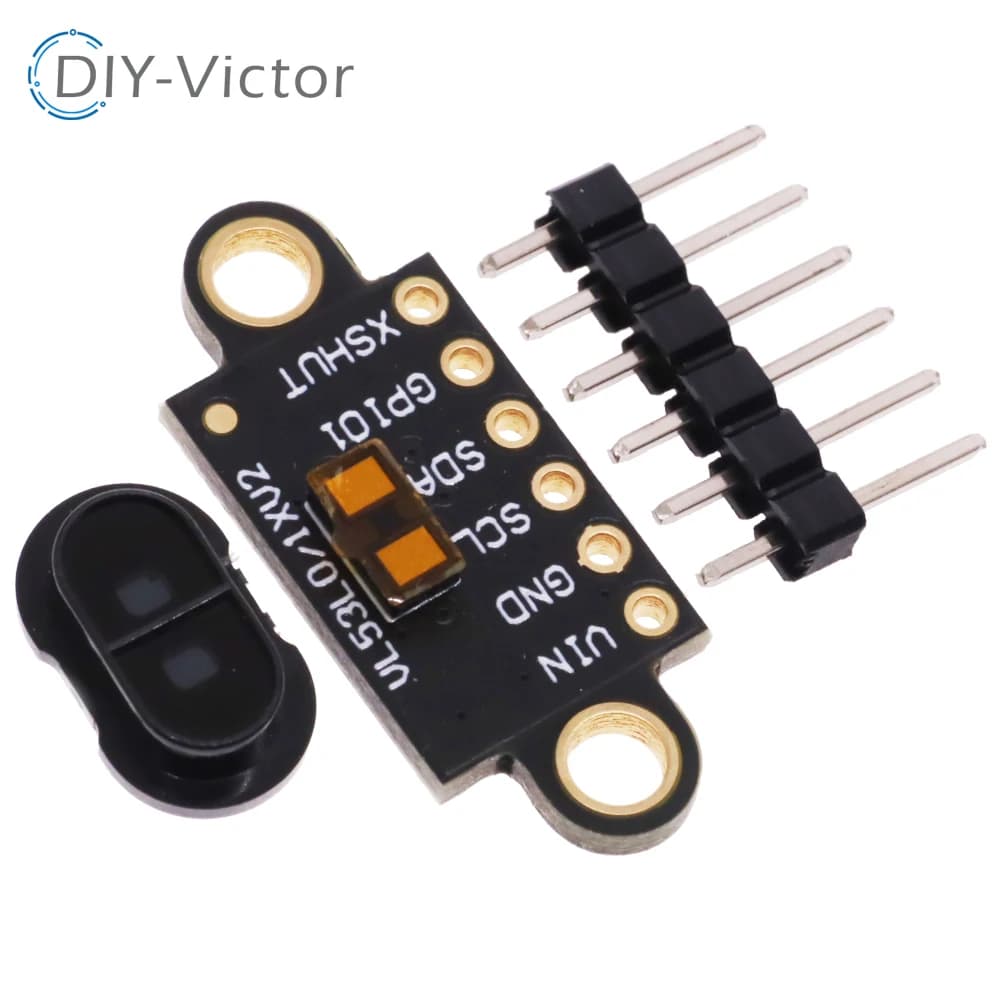

Vl53L1X With Lid Laser Ranging STM32 TOF Time of Flight Chip Flight Distance Measurement Sensor for Arduino

DIY-Victor Hot Sale

We still have a lot of inventory not uploaded to AliExpress,

If there are other suppliers and any other requirements that we do not show in AliExpress, please contact us by creating a new link for you so that you can purchase.

 < In practice, we found that a single order of AliExpress cannot purchase more than 999 pieces. If you purchase more than 999 pieces, please contact us to add the option of purchasing one piece=1000 pieces of commodity card for you  >

Description:

The VL53L1X is a state-of-the-art, Time-of-Flight (ToF), laser-ranging sensor, enhancing the ST FlightSense™ product family. It is the fastest miniature ToF sensor on the market with accurate ranging up to 4 m and fast ranging frequency up to 50 Hz

Unlike conventional IR sensors, the VL53L1X uses ST’s latest generation ToF technology which allows absolute distance measurement whatever the target color and reflectance.

It is also possible to program the size of the ROI on the receiving array, allowing the sensor FoV to be reduced.

Key Features

Fully integrated miniature module

Emitter: 940 nm invisible laser (Class1)

SPAD (single photon avalanche diode) receiving array with integrated lens

Low-power microcontroller running advanced digital firmware

Pin-to-pin compatible with the VL53L0X FlightSense™ ranging sensor

Fast and accurate long distance ranging

Up to 400 cm distance measurement

Up to 50 Hz ranging frequency

Typical full field-of-view (FoV): 27 °

Programmable region-of-interest (ROI) size on the receiving array, allowing the sensor FoV to be reduced

Programmable ROI position on the receiving array, providing multizone operation control from the host

Easy integration

Single reflowable component

Can be hidden behind many cover window materials

Software driver and code examples for turnkey ranging

Single power supply (2v8)

I⊃2;C interface (up to 400 kHz)

Shutdown and interrupt pin
