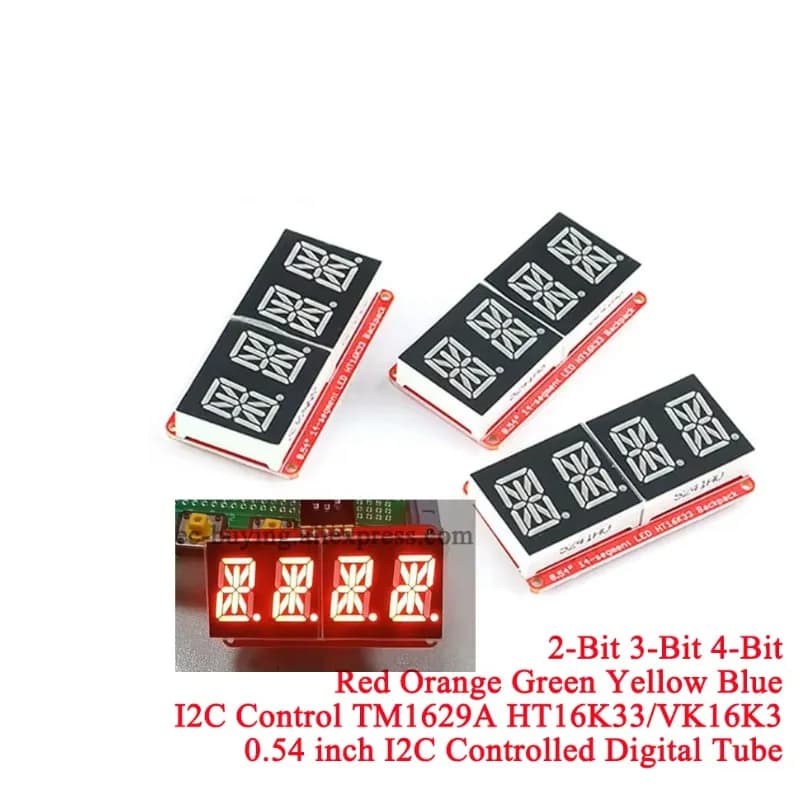

HT16K33 0.54 Inch 0.54‘’ 4 Bit Meter Digital Tube Module LED Display IIC I2C Control Meter 3.3V 5V for Arduino

This product is a 4-digit M-shaped nixie tube module. It is controlled by I2C. Only 2 IO ports can control the 4-digit nixie tube, which greatly saves the number of IO ports. The control chip is HT16K33

, Strong compatibility, compatible with most microcontrollers.

Product parameters:

Working voltage: 5V (3.3V is relatively dark)

IIC address: default address 0X70

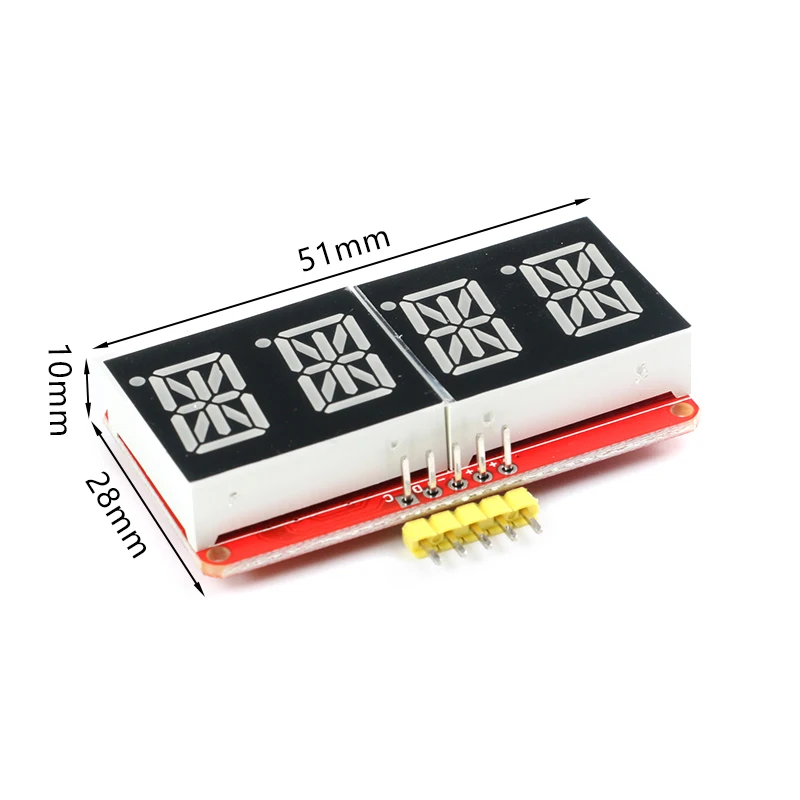

Digital tube size: 0.54 inch

Pin description:

C: Serial clock line

D: Serial data line

-: Supply voltage-

+: supply voltage +

+: IIC level control terminal (connect 3.3V or 5V)

A0, A1, A2,: IIC data address control terminal

IIC address calculation: 0X70+A0+A1+A2 (floating is 0, welding A0 is 1, A1 is 2, A2 is 4, for example A0, A2 welding IIC address at this time = 0X70+1+4=0X75)
