Wireless Remote Control DC 6V 12V 24V 30V 4CH RF Relay Receiver and 433MHZ Transmitter for Garage/Light/Motor/Home Appliance

433MHz Universal Wireless remote DC 6V~30V 4CH rf Relay Receiver and Remote Transmitter ,for Garage/Light/Door/Home appliance

Working Voltage : DC 6~30V
Input vlotage : 1~250V
Output vlotage : 1~250V
Quiescent Current : <5MA
Max current : 10A
RF frequency : 433MHz
Working temperature : -30~+80
Receiving Sensitivity : >97dbm
Amount of storage remote controls : 25 pieces

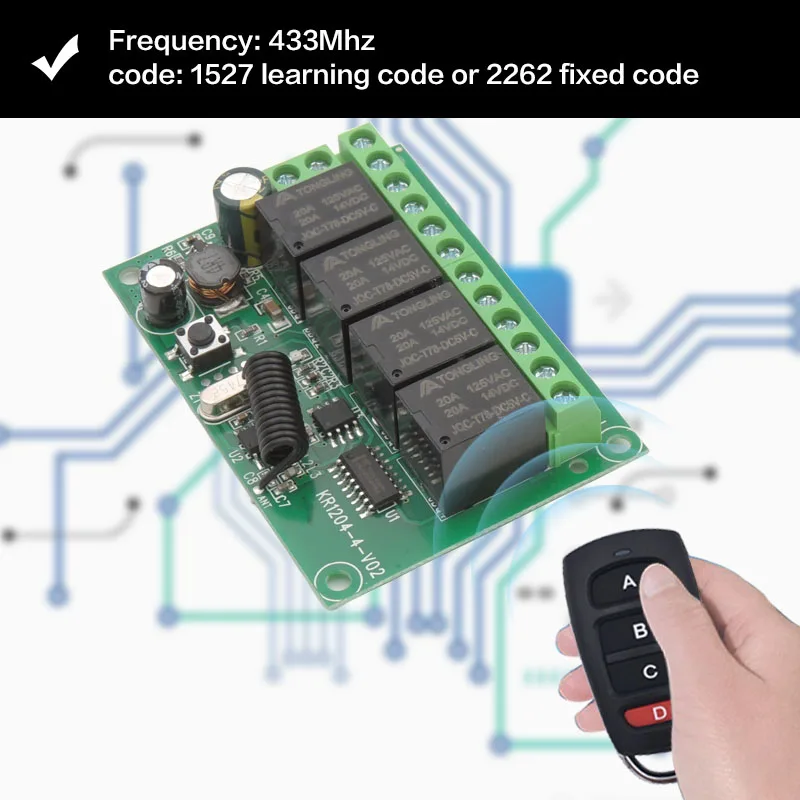

Support encoding : 1527 Leaning code/2262 fixed code
RF Operating mode : ASK superheterodyne wireless reception
Receiving range : Open space is more than 50 meters
Remote operating mode : Momentary Mode /Toggle Mode /Latched Mode

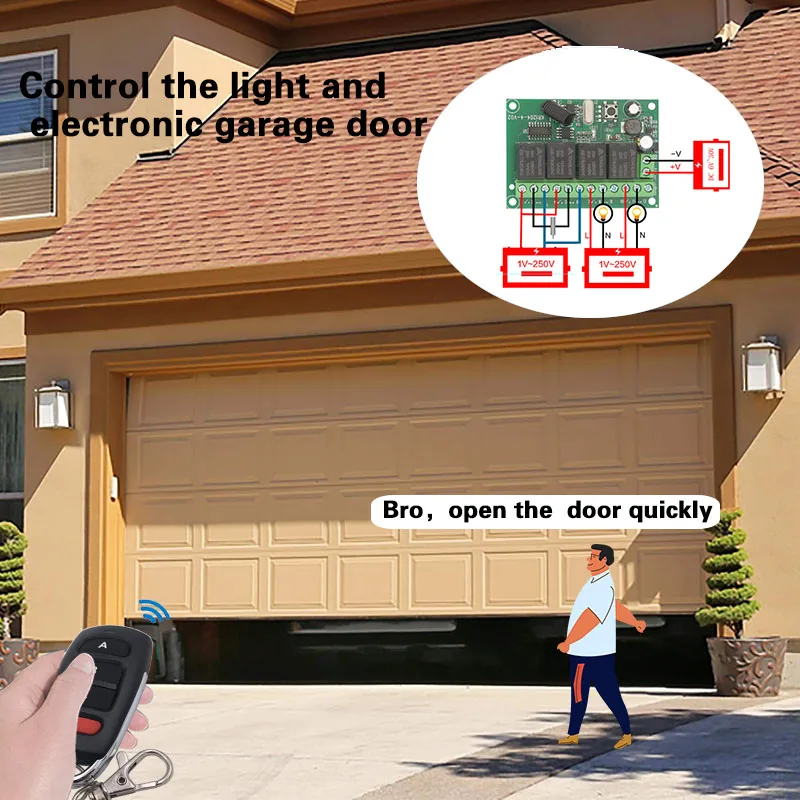

Wide Range of Uses

Make your life easier

Wide range of application

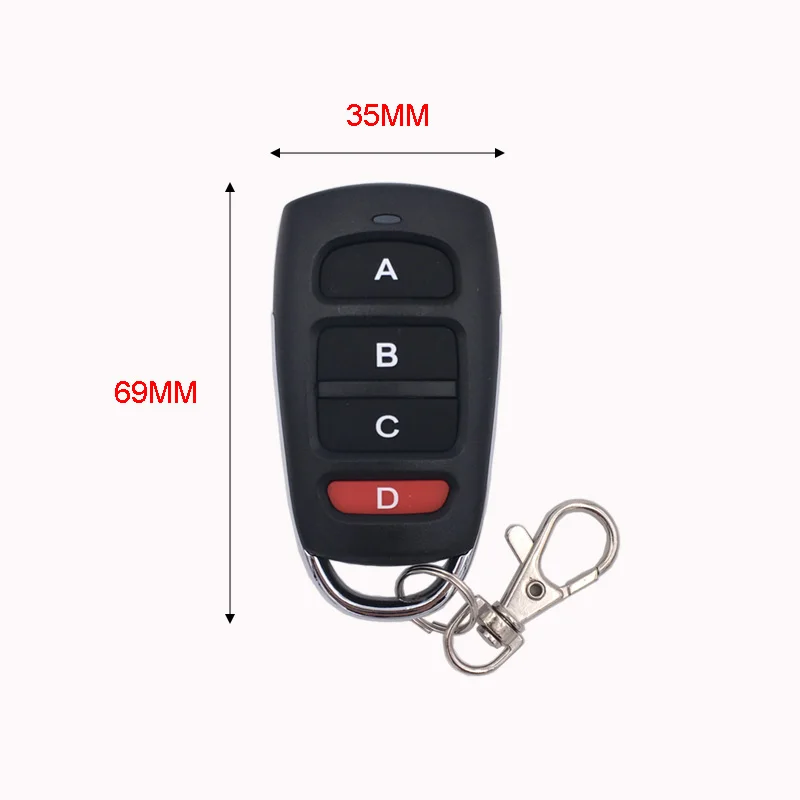

The right size makes it easy to carry

Super Stable RF Output

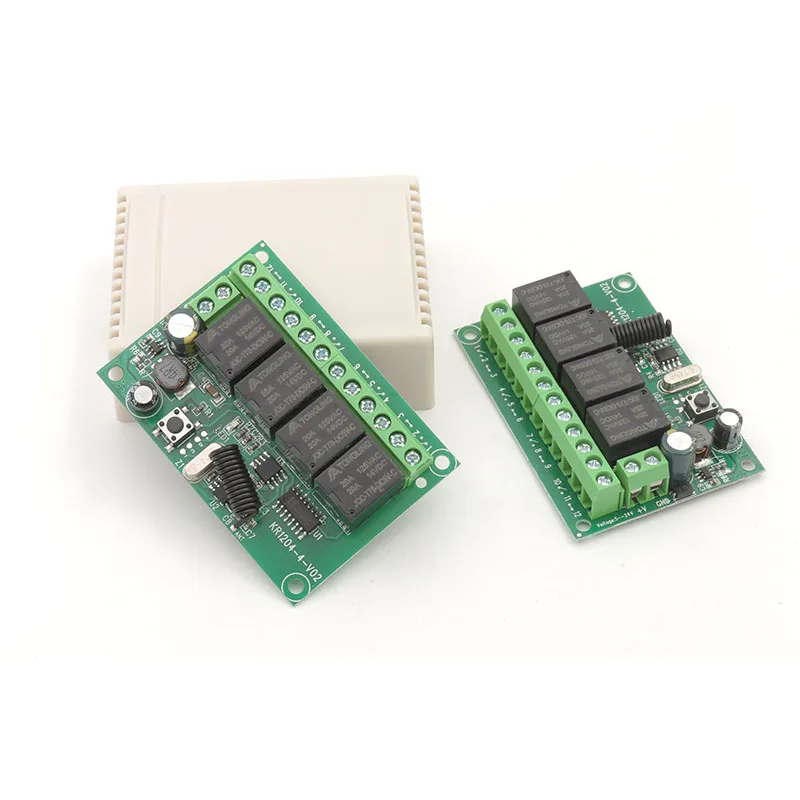

Perfect Craft Detail Control

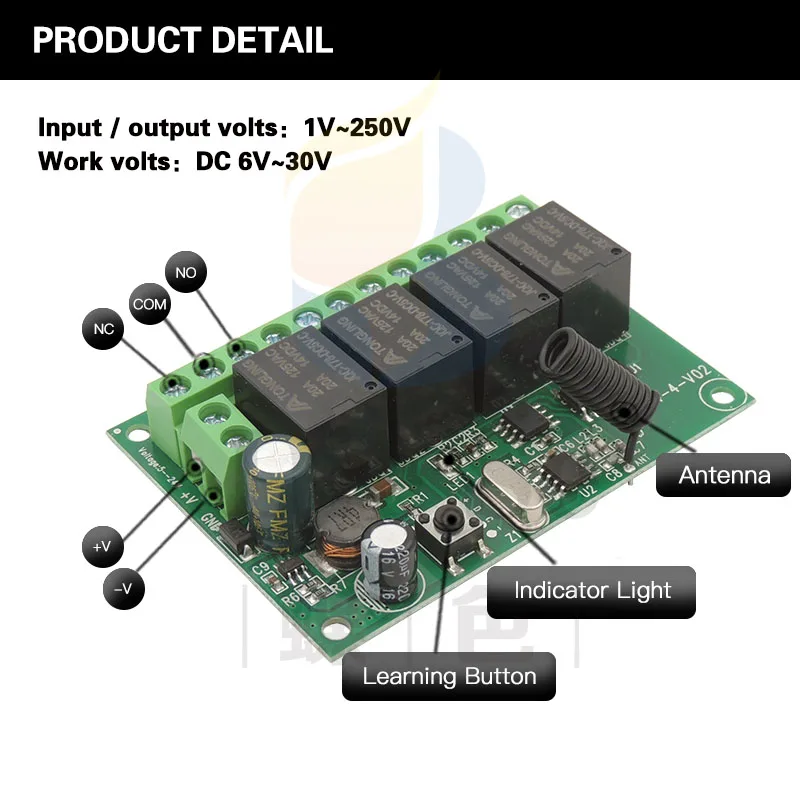

NO : Normal open COM : Common NC : Normal closed

Package include

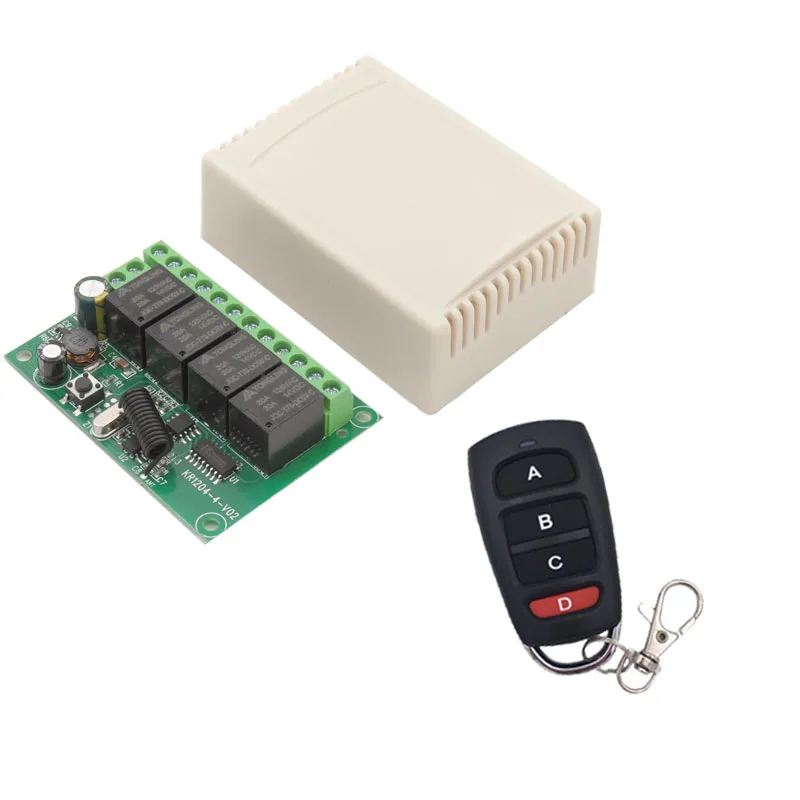

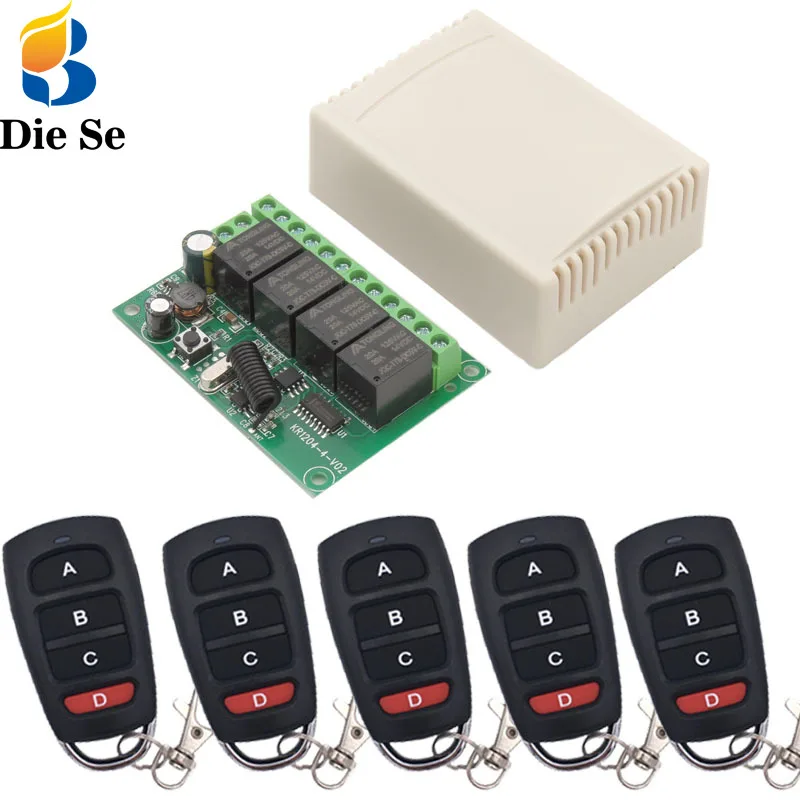

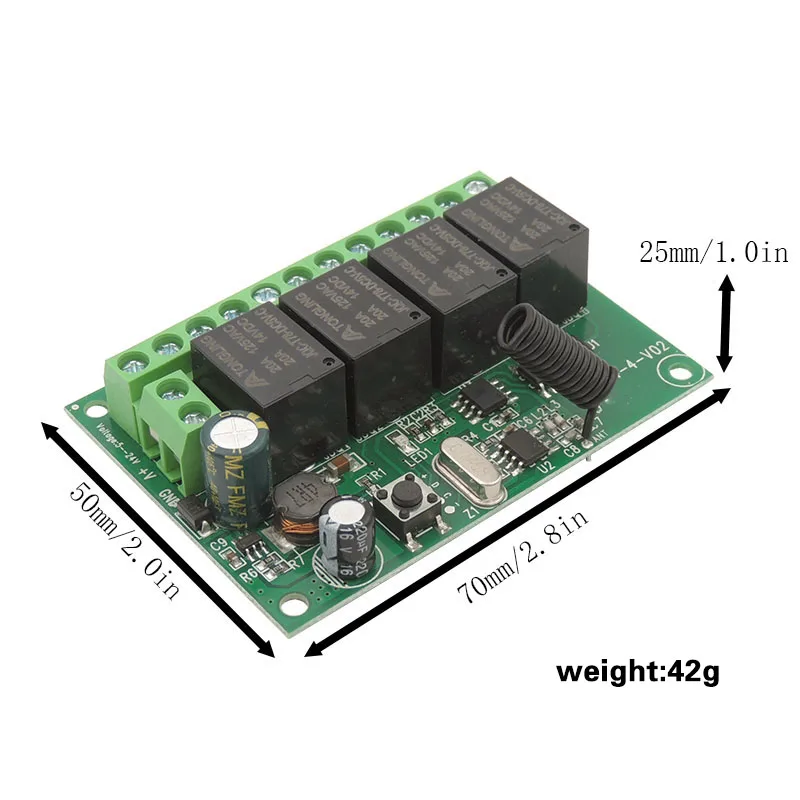

Receiver module ( include Shell )

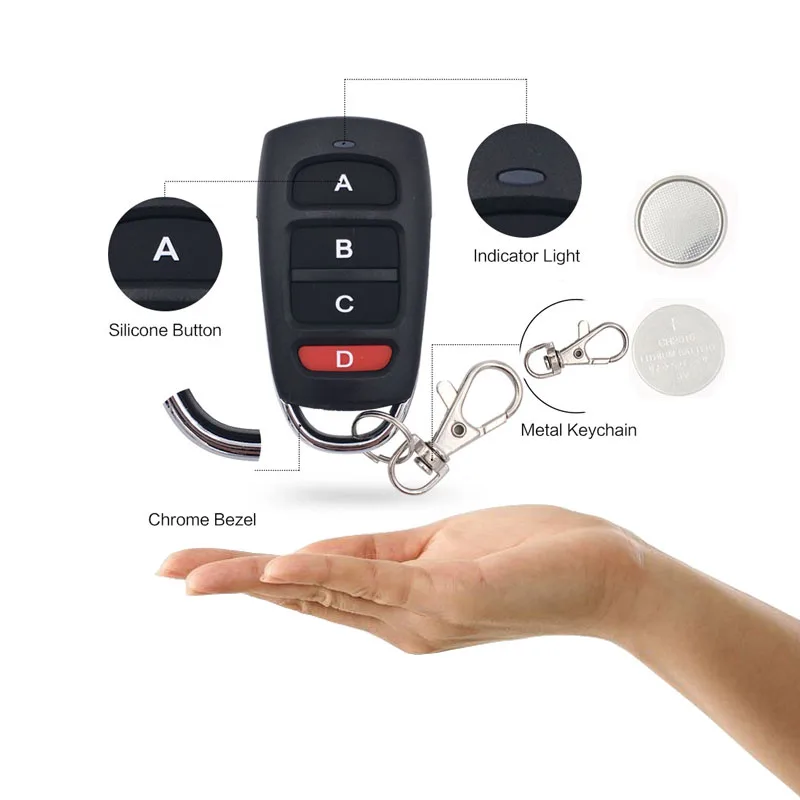

Remote Control (include battery )
Product Manual

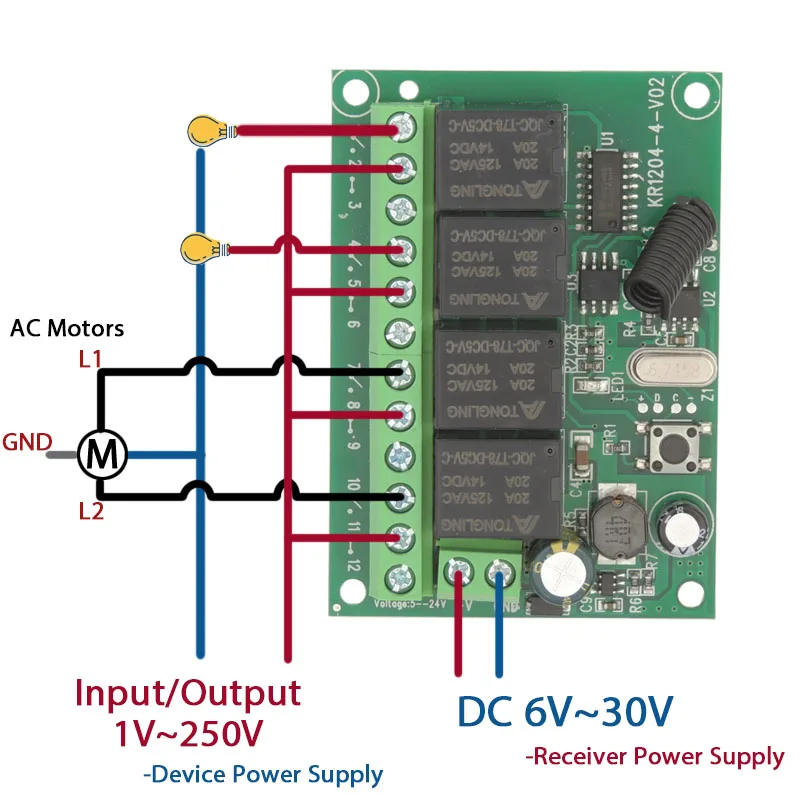

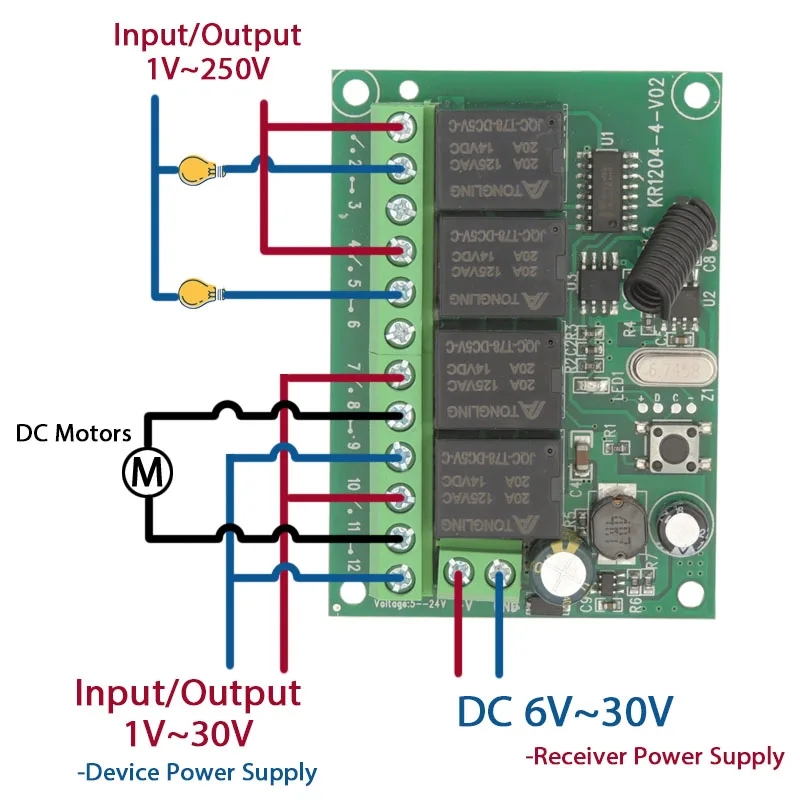

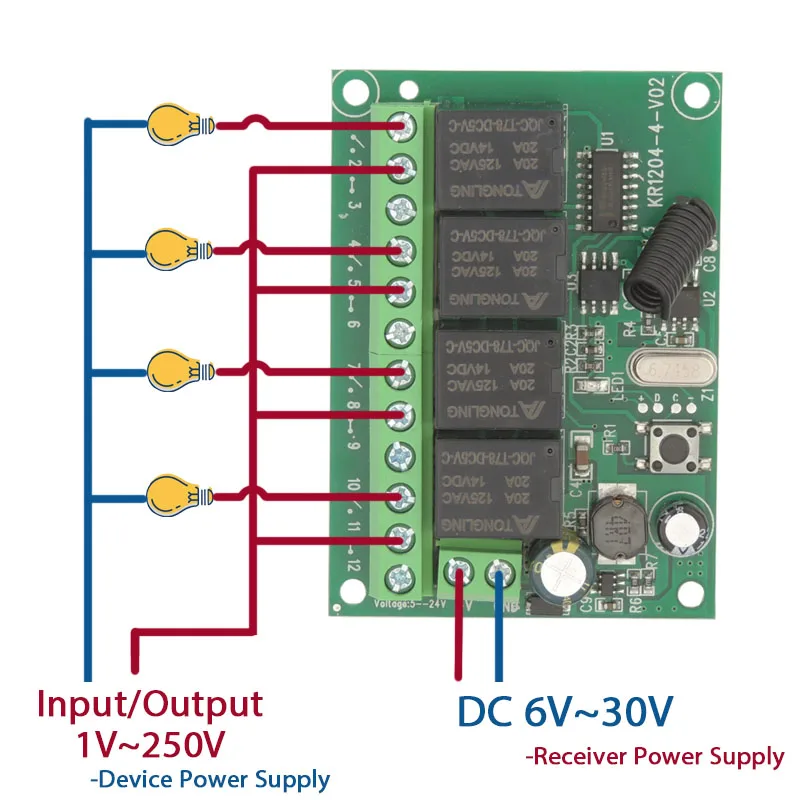

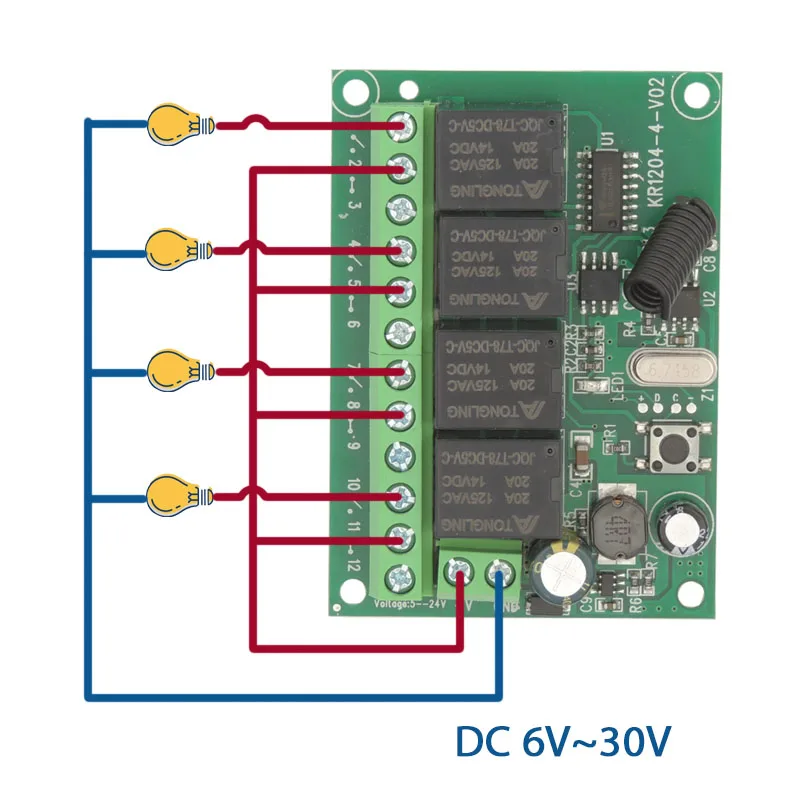

Wiring Diagram

Operating Mode ,

The relay receiver board has 3 operation modes, you can program depend on your requests.

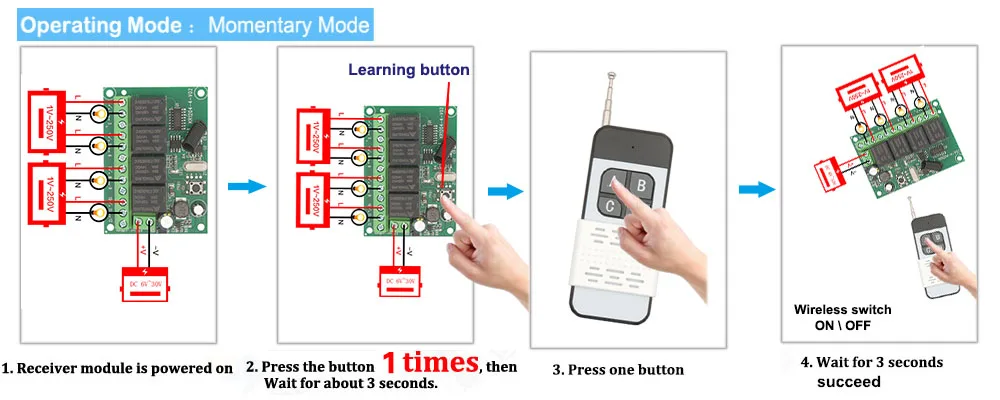

- 1. Momentary Mode:
Description : Press and hold on button "A" , relay will turn on; Release the button, this relay will turn off.
- 2. Toggle Mode:
Description : Press button "A", relay will turn on; Press button "A" again, this relay will turn off.

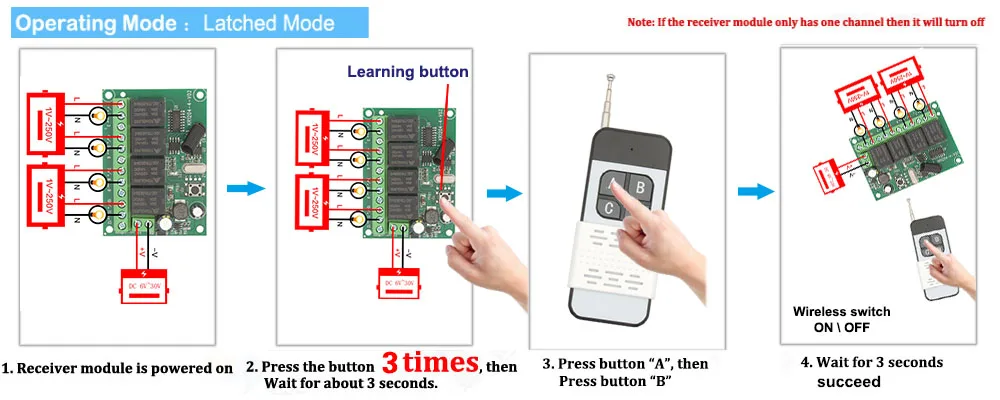

- 3. Latched mode:
Description : Press button "A", relay will turn on; Press button "B", this relay will turn off.
Set Up

Set Up

- Set up( Momentary Mode)
1. Press the learning button(on the Receiver) once. Wait for 3 seconds;
2. Press one button on the remote control. Wait for 3 seconds. Succeed.

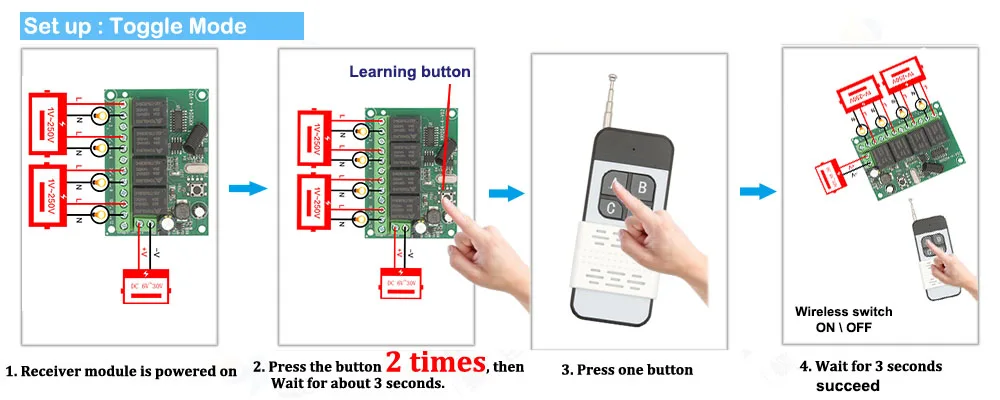

- Set up( Toggle Mode)
1. Press the learning button(on the Receiver) twice. Wait for 3 seconds;
2. Press one button on the remote control. Wait for 3 seconds. Succeed.

- Set up( Latched Mode)
1. Press the learning button(on the Receiver) triple. Wait for 3 seconds;
2. Press button "A" on the remote control. Wait for 3 seconds.
3. Press button "B" on the remote control. Wait for 3 seconds. Succeed.

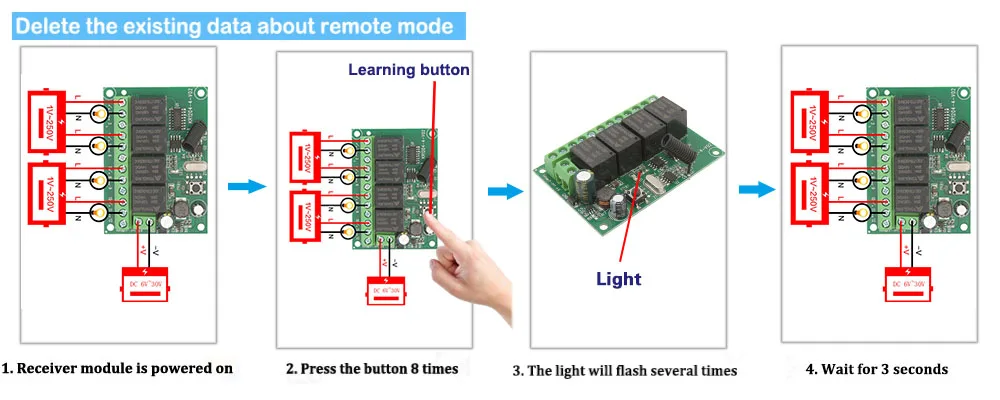

- Reset
1,Press the learning button (on the Receiver) 8 times. The existing data will be deleted succeed.

Note

1, Reset the receiver before you want to change the operating mode of one remote control.
2, After reset, all the remote controls cannot work any more.
