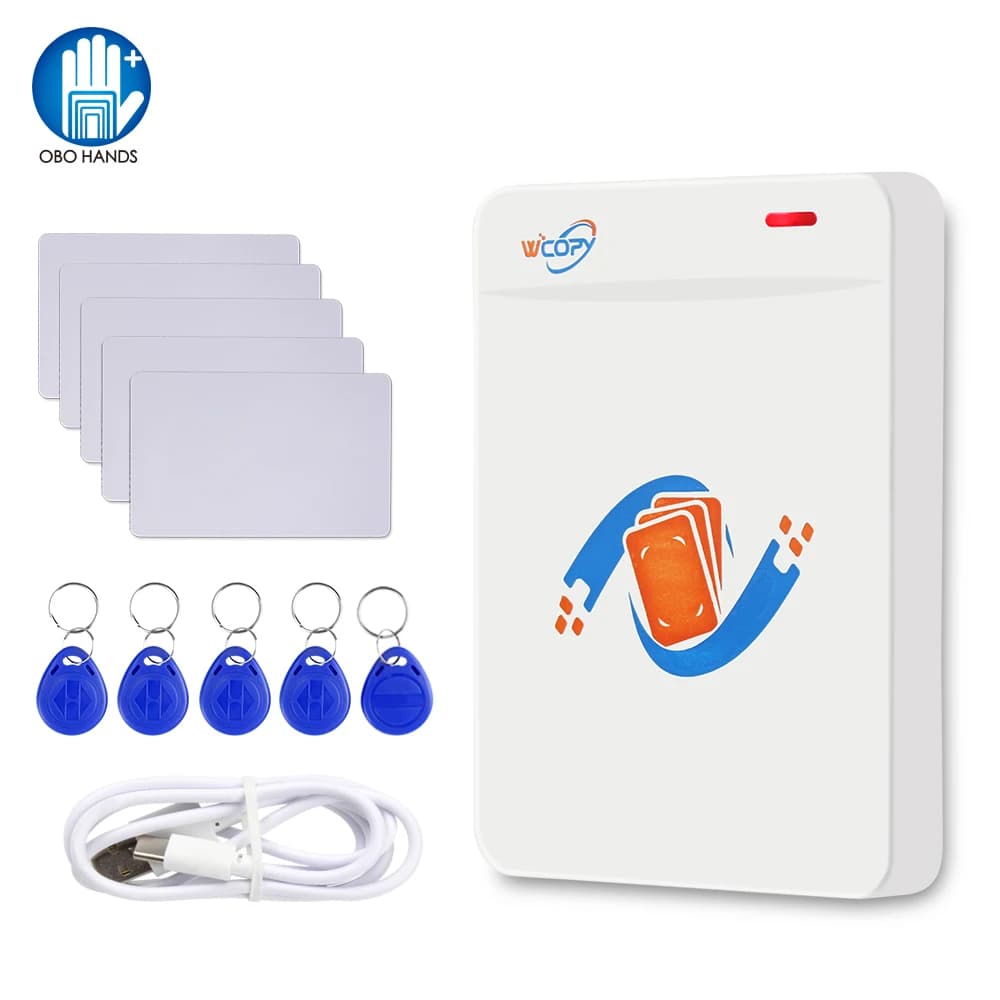

RFID Copier Duplicator Reader Writer 125KHz 13.56MHz USB Programmer Key fobs UID T5577 Rewritable Support NFC Phone / Wristband

125KHz / 13.56MHz Frequency NFC Smart Card Reader Writer

RFID Copier / RFID Reader / RFID Writer / RFID Duplicator

Product Specification:

Dimensions: 96 (L) X 65 (W) X 15 mm (H)
Interface: USB full speed
Working Voltage: 5V DC
Working current: 200mA
Standby current: 50mA
Normal current: 100mA
Support IC/ID dual frequency replication.
Driver-free, no need to download software installation.
Two-color LED light prompt (red light is standby, green is working).
Built-in buzzer "beep" sound reminder
Supported operating systems: Support Windows (including Windows XP, Windows 7, Windows 8, Windows 10).
Not support Mac and Linux.
Working frequency: ID125KHz, 250KHz, 375KHz, 500KHz, 625KHz, 750KHz, 875KHz, 1000KHz. IC 13.56MHz frequency.
Support card type:
For 125KHz ID type: EM4100, TK4100, 8800, 5200, EM4305, T5577, 8265 etc.
For 13.56MHz IC type: UID FUID CUID UFUID, Most of IC Half-encryption, IC Full-encryption etc.

How to use the card reader?

1) Connect the device to your computer with the USB cable.
2) You can view and open the software on your computer.

Read and write ordinary 125KHz RFID card

1) Set "LF Card" interface.
2) Put the card on the device and press "Read" on the software to scan the card.
3) The software will scan and display the card number.
4) Put the writable T5577 (125KHz writable chip) key cards on the device, and press "Write" on the software.

Read and write 13.56MHz IC, IC half encryption card, IC full encryption card

1) Set "HF Card" interface.
2) Put the card on the device and press "Card Number" on the software to scan the card.
3) Put the UID type key cards (13.56MHz writable chip) on the device, and press "Write card" on the software.

Decode NFC mobile phone or NFC smart band

Phone—Wallet—Swipe Card—Add Now—Choose the Type of Add—Key—Simulate a physical access card, the encryption card is a simulation failure

1) Put the encryption card on the reader --- start decoding --- save data as another --- save the data to the folder
2) Put the UID card on the reader --- Write UID card --- format
3) Use UID card to simulate physical access card on mobile phone
After the simulation is successful, click the card cover and show success
4) Put the phone on the reader --- Start decoding --- format --- Import data (encrypted card data) --- Write ordinary MF1K card

Product Details

Light weight body. Mini Design

ABS flame-retardant material casing, small and light.
The interior is controlled by high-quality microchip, the card reading effect is fast.

LED indicator light / buzzer

The LED indicator light is red under standby mode, and it's green under the card reading status.
Built-in buzzer, very convenient for effective prompts.

Support decoding NFC Mobile Phone or NFC Smart Band

(Please make sure that your mobile phone or smart band support NFC function)

Easy to decode NFC mobile phone or NFC smart band, freely simulate adding the data of the RFID card to NFC mobile phone or smart band.
This reader writer can read and decode most of encrypted IC card, then write the data into the NFC mobile phone or smart band, and then you can open the door by your mobile phone or smart band. (NFC mobile phones and smart bands are not included in the package.)

USB full speed and efficient

1.2m long USB transmission cable, fast response. No need to install the driver, quickly read the card number

Built-in mobile disk with software, plug and play

Connect the RFID reader to your computer with the USB cable, then can find the software

1) Can find the Software when connect the device to your computer.

Support ID 125KHz, 250KHz, 375KHz, 500KHz, 625KHz, 750KHz, 875KHz, 1000KHz frequency type key cards. Support save data.

2) Support IC 13.56MHz frequency type key cards. Support save data.

Can decode a lot of type half and full encrypted cards. (not all type)
