DC 3V 3.7V 47rpm-1200rpm Mini 6mm Planetary Gearbox Gear Reducer Motor Reduction Micro Coreless Motor DIY Robot

Tips1 :The rated voltage of the motor is 3V/3.7V. The applicable voltage is 0.5V-3.7V, and the higher the voltage, the faster the speed, and the greater the torque..
Tips2 : If you need large quantity, we can provide wholesales for you.Thanks.

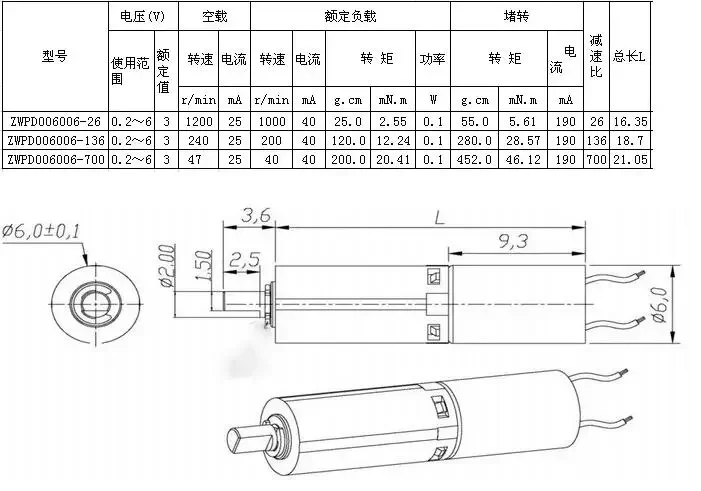

Specification:

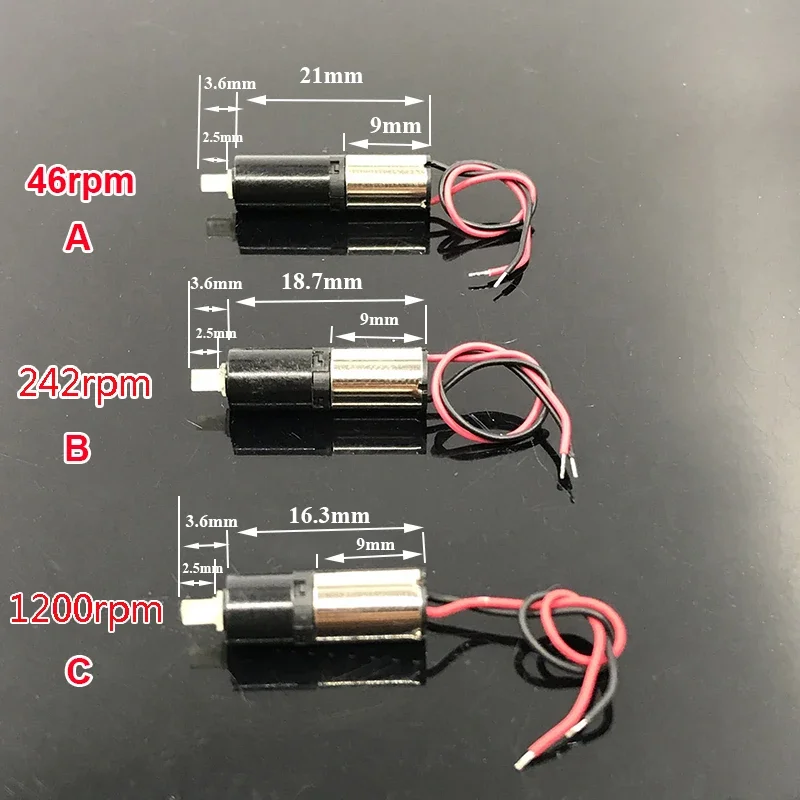

Model A: 3V 42RPM
1.Gearbox diameter: 6mm
2.Total height: 21mm(not include shaft)
3.Output shaft diameter: 1.95mm (flat position 1.5mm)
4.Output shaft length: 2.8mm
5.Gearbox gear ratio: 1/700
6.Test data:
(1)Voltage:3.0V
Current:45mA
Stall current:200mA
Motor speed:32000RPM
Output speed: 46RPM
Torque:200g.cm
Stall torque:300g.cm
(2)Voltage:1.5V
Current:25mA
Stall current:100mA
Motor speed:17000RPM
Output speed: 20RPM
Torque:100g.cm
Stall torque:150g.cm
=============================================================================================
Model B: 3V 242RPM
1.Gearbox diameter: 6mm
2.Total height: 19mm(not include shaft)
3.Output shaft diameter: 1.95mm (flat position 1.5mm)
4.Output shaft length: 2.8mm
5.Gearbox gear ratio: 1/136.02
6.Test data:
Voltage:3V Current:60mA
Stall current:200mA
Output speed:242RPM
Torque:120g.cm
============================================================================================
Model C: 3V 1200RPM
1.Gearbox diameter: 6mm
2.Total height: 16.5mm(not include shaft)
3.Output shaft diameter: 1.95mm (flat position 1.5mm)
4.Output shaft length: 2.8mm
5.Gearbox gear ratio: 1/26.45
6.Test data:
(1)Voltage:3.0V
Current:45mA
Stall current:200mA
Motor speed:32000RPM
Output speed: 1200RPM
Torque:25g.cm
Stall torque:55g.cm
(2)Voltage:1.5V
Current:25mA
Stall current:100mA
Motor speed:17000RPM
Output speed: 600RPM
Torque:17g.cm
Stall torque:30g.cm

=============================================================================

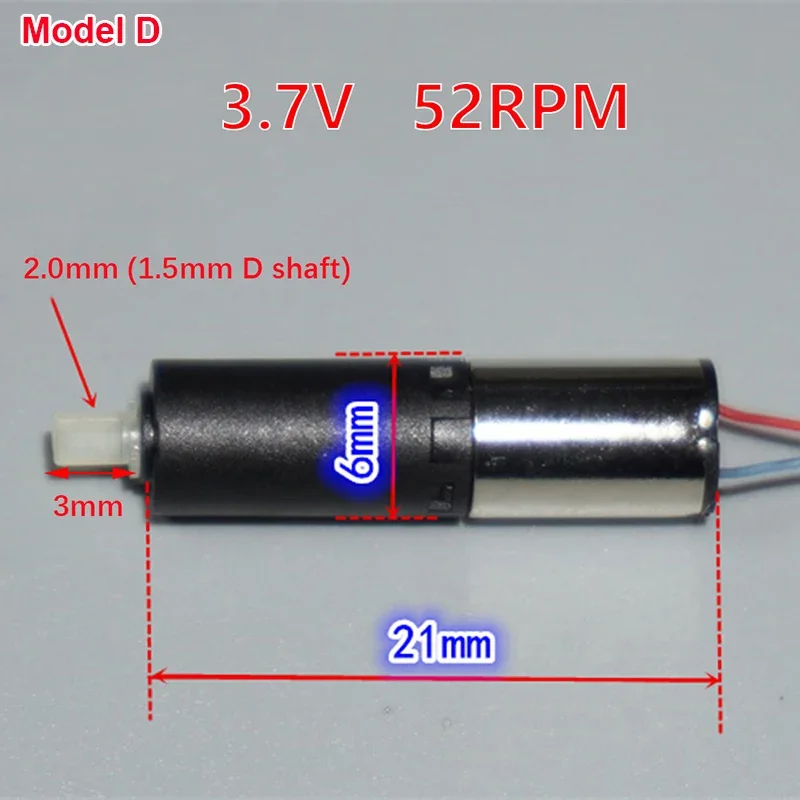

Model D: 3.7V 52RPM
1.Motor diameter: 6mm
2.Motor length: 10mm
3.Total length: 21mm(Motor+Gearbox)
4.Output shaft diameter: 2mm(flat shaft 1.5mm)
5.Weight: 1.5g
6.Gear ratio: about 1:700
7.Rated voltage: DC 3.7V
8.Suitable voltage:DC 1.5V-4.2V
9.Test data:
Voltage: DC1.5V, no-load current: 25mA, rotational speed: 17rpm.
Voltage: DC3V, no-load current: 30mA, rotational speed: 38 rpm.
Voltage: DC3.7V, no-load current: 32mA, rotational speed: 52 rpm.

===============================================================================

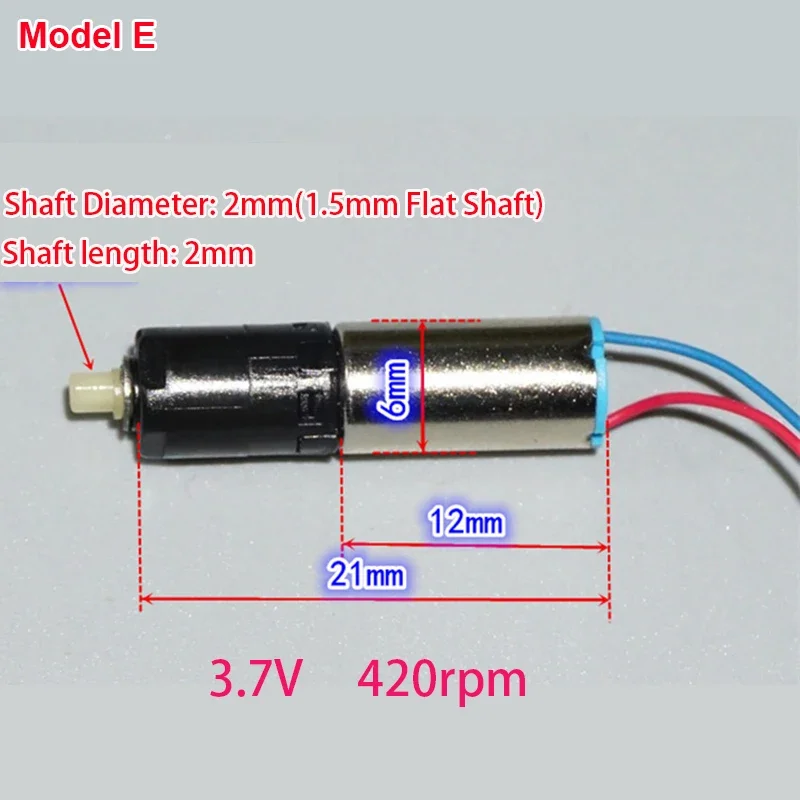

Model E: 3.7V 420RPM
1.Gearbox diameter: 6mm
2.Total height: 21mm(not include shaft)
3.Output shaft diameter: 2mm (flat position 1.5mm)
4.Output shaft length: 2mm
5.Gearbox gear ratio: 1/60
6.Test data:
Voltage:1.5V No-load Current:8mA Speed: 156RPM Working Torque: 15g.cm Stall Torque: 30g.cm
Voltage:3.0V No-load Current:10mA Speed: 330RPM Working Torque: 35g.cm Stall Torque: 70g.cm
Voltage:3.7V No-load Current:14mA Speed: 420RPM Working Torque: 40g.cm Stall Torque: 90g.cm
7.Weight: 1.7g

=============================================================================

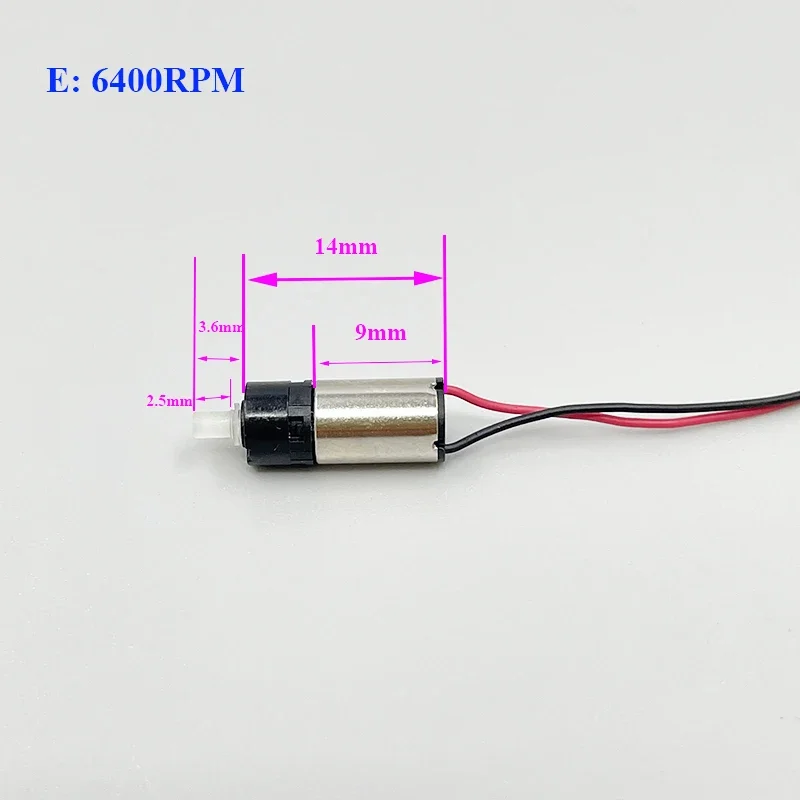

Model F: 3V 6400RPM
1.Gearbox diameter: 6mm
2.Total height: 14mm(not include shaft)
3.Output shaft diameter: 1.95mm (flat position 1.5mm)
4.Output shaft length: 2.8mm
5.Gearbox gear ratio: 1/4.5
6.Test data:
Voltage:3.0V No-load current:50mA Stall current:230mA
Output speed: 6400RPM

=====================================================================================
Package Include:
Motor x 1pc
Specification:

Model A: 42RPM
1.Gearbox diameter: 6mm
2.Total height: 21mm(not include shaft)
3.Output shaft diameter: 1.95mm (flat position 1.5mm)
4.Output shaft length: 2.8mm
5.Gearbox gear ratio: 1/700
6.Test data:
(1)Voltage:3.0V
Current:45mA
Stall current:200mA
Motor speed:32000RPM
Output speed: 46RPM
Torque:200g.cm
Stall torque:300g.cm
(2)Voltage:1.5V
Current:25mA
Stall current:100mA
Motor speed:17000RPM
Output speed: 20RPM
Torque:100g.cm
Stall torque:150g.cm
====================================================================================================
Model B:242RPM
1.Gearbox diameter: 6mm
2.Total height: 19mm(not include shaft)
3.Output shaft diameter: 1.95mm (flat position 1.5mm)
4.Output shaft length: 2.8mm
5.Gearbox gear ratio: 1/136.02
6.Test data:
Voltage:3V Current:60mA
Stall current:200mA
Output speed:242RPM
Torque:120g.cm
====================================================================================================
Model C: 1200RPM
1.Gearbox diameter: 6mm
2.Total height: 16.5mm(not include shaft)
3.Output shaft diameter: 1.95mm (flat position 1.5mm)
4.Output shaft length: 2.8mm
5.Gearbox gear ratio: 1/26.45
6.Test data:
(1)Voltage:3.0V
Current:45mA
Stall current:200mA
Motor speed:32000RPM
Output speed: 1200RPM
Torque:25g.cm
Stall torque:55g.cm
(2)Voltage:1.5V
Current:25mA
Stall current:100mA
Motor speed:17000RPM
Output speed: 600RPM
Torque:17g.cm
Stall torque:30g.cm
Specification: 420rpm
1.Gearbox diameter: 6mm
2.Total height: 21mm(not include shaft)
3.Output shaft diameter: 2mm (flat position 1.5mm)
4.Output shaft length: 2mm
5.Gearbox gear ratio: 1/60
6.Test data:
Voltage:1.5V No-load Current:8mA Speed: 156RPM Working Torque: 15g.cm Stall Torque: 30g.cm
Voltage:3.0V No-load Current:10mA Speed: 330RPM Working Torque: 35g.cm Stall Torque: 70g.cm
Voltage:3.7V No-load Current:14mA Speed: 420RPM Working Torque: 40g.cm Stall Torque: 90g.cm
7.Weight: 1.7g
Package Include:
Motor x 1pcs
