1PC 8mm 10mm 12mm 15mm 17mm 816 1020 1215 1725 7-pole Rotor DC 12V Dual Shaft Coreless Motor For Rail Train Model

Tip: The suitable voltage range of each motor is 6V-12V

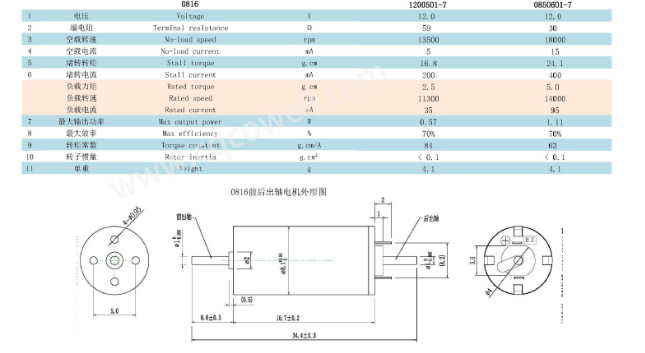

Specification:816
1.Model: 816 mini coreless motor
2.Motor diameter: 8.1mm
3.Motor length: 16.7mm
4.Output shaft diameter: 1.0mm
5.Output shaft length: 8mm/9mm
6.Weight: About 4.1g
7.Voltage range: DC 6V-12V
8.Application: Mainly used for micro hobby toy model, toy Rail train andother machines.]

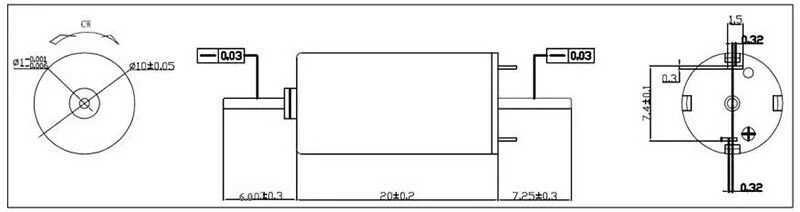

Specification:1020
1.Model: 1020 mini coreless motor
2.Motor diameter: 10mm
3.Motor length: 20mm
4.Output shaft diameter: 1.0mm
5.Output shaft length: 6mm/7.5mm
6.Weight: About 7g
7.Voltage range: DC 6V-12V
8.Test data:
Voltage:6V No-load speed:9000RPM
Voltage:12V No-load speed:18000RPM
9.Application: Mainly used for micro hobby toy model, toy Rail train andother machines.]

Specification:1022
1.Model: 1022mini coreless motor
2.Motor diameter: 10mm
3.Motor length: 22mm
4.Output shaft diameter: 1.0mm
5.Output shaft length: 4.5mm(Front output shaft)/ 7.25mm(Rear output shaft)
6.Weight: About 7g
7.Voltage range: DC 6V-12V
8.Test data:
Voltage:6V No-load speed:1100RPM
Voltage:9V No-load speed:17000RPM
Voltage:12V No-load speed:23000RPM
9.Application: Mainly used for micro hobby toy model, toy Rail train andother machines.
Specification:1215
1.Model: 1215 coreless motor
2.Motor diameter: 12mm
3.Motor length: 15mm
4.Output shaft diameter: 1.0mm
5.Output shaft length: 9.5mm/9.5mm
6.Weight: About 8g
7.Voltage range: DC 6V-12V
8.Test data:
Voltage:6V No-load speed:8500RPM
Voltage:12V No-load speed:17000RPM
Specification:1524
1.Model: 1524
2.Weight: 22g
3.Voltage range: DC 6V-12V
4.Motor size: 15mm*24mm
5.Output shaft diameter: 1.0mm
6.Output shaft length: 4.5mm/6mm
7.Test data:
Voltage:6.0V No-load speed:5400RPM Current:6mA
Voltage:12V No-load speed:10800RPM Current:9mA
Package Include:
Motor x 1pc
