4K 2K 48MP 1080P 55MP HDMI USB Electronic Eyepiece Video Microscope Camera Mounting Size 23.2mm With Ring Adapters 30mm 30.5mm

This adapter provides stable image quality when connected to a dual-lens camera via HDMI to a display screen, but image quality is inconsistent when connected via USB. If you primarily need to connect to a computer, we do not recommend ordering this adapter.

Note: HDMI port output uses HDMI monitor, VGA port output uses VGA monitor, TF card interface, the function is to store pictures and videos, U disk interface, the function is to store pictures and videos.

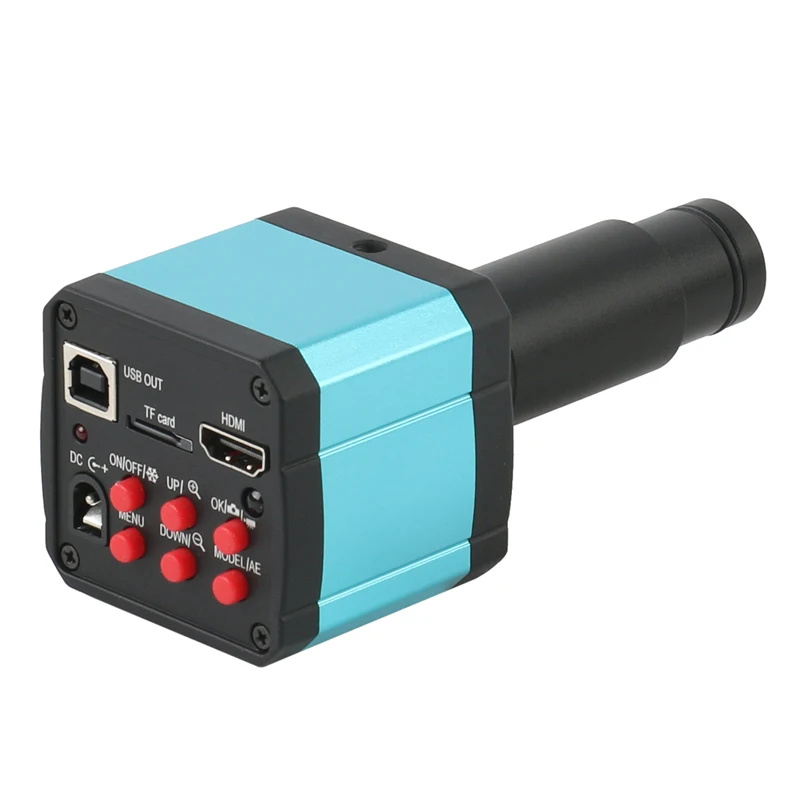

18MP USB HDMI:

Optical format:1/2.8 inch
Housing: Aluminium alloy
Interface:HDMI(Type A).USB(Type B).TF Card,USB Flash Drive
Image resolution:1080P
Video record resolution:1080p@30FPS
HDMI resoltion:1920*1080p 60FPS
HDMI scale:Support 4:3,16:9, screen
USB2.0(Drive free):1920*1080@30FPS1280*720@30FPS640*480@30FPS
TF card:MAX 64GB
Storage:TF card or U disk format
Digital Zoom:1X-4X
White balance:One key white balance,Manual balance
AWB:WB color correction/Auto/Manual
Brightness:0-100%,Adjustable
Contrast:0-100%,Adjustable
Saturation:0-100%,Adjustable
Sharpness:1-5,Adjustable
Sharpness: 0-10,Adjustable
Noise reduction: 0-10,Adjustable
Avoid flicker: Auto or 50Hz 60Hz
Color:Black and White / color
R.G.B value setting independent
Exposure:Auto/Manual.AE value can set
Cross lines:8lines.Can set color& width& position
Scale mark lines:2lines.
Mirror:Horizontal vertical mirror
Language:English/simplified Chinese
IR remoter:Support
Power supply:12V 1A

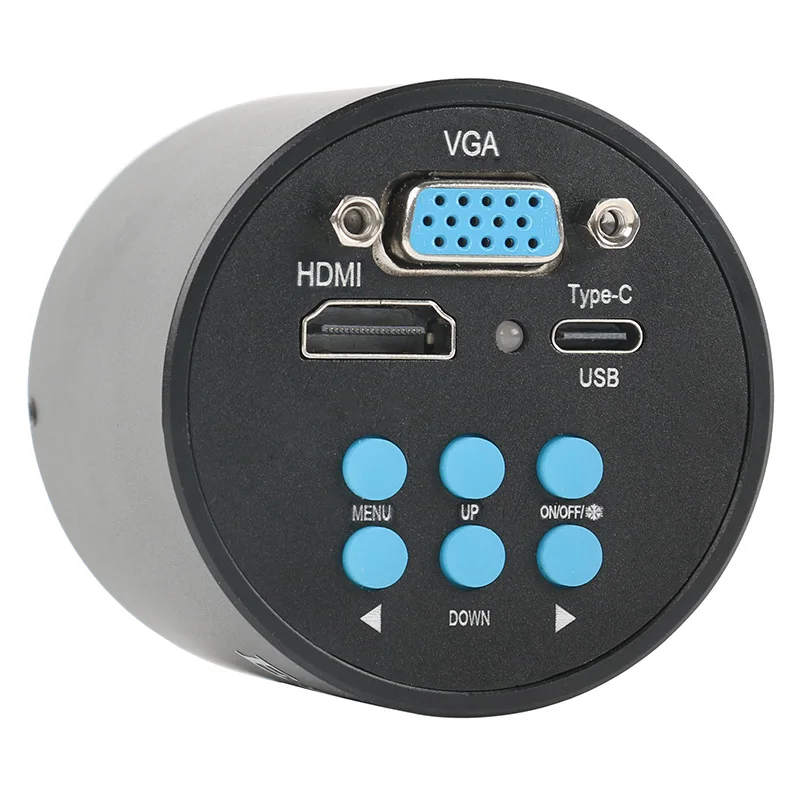

HDMI VGA Type-c PC Feature:

Sensor type:1/2.8" Sony Color CMOS
Effective pixels:1920H*1080V
Data bits: 16bit
Pixel size:2.9μm*2.9μm
Frame rate:60 frames per second (HDMI or VGA), 30 frames per second (UVC)
Definition:The maximum definition is above 1000TV lines
Scanning method:Progressive
Shutter Type:Electronic Shutter
Dynamic range:>90dB
Signal-to-noise ratio:55dB
Sensitivity:2.0 V/lux-sec (550nm)
Exposure mode:manual/automatic
White balance:automatic/manual
Lens interface:C/CS
Video interface:GA, HDMI and Type-C UVC synchronous output
Output resolution: 1920*1080(16:9) / 1920*1080(16:10) / 1280*720 / 1024*768 (4:3)
Power supply:Type-C power supply, DC 5-12V/1A
Language:Chinese, English, Japanese, Korean, Portuguese, Spanish, Russian, Italian, German!
Menu function:1, crosshairs:1-30 groups, optional color, adjustable size.
2. Scale bar, center cursor, center line

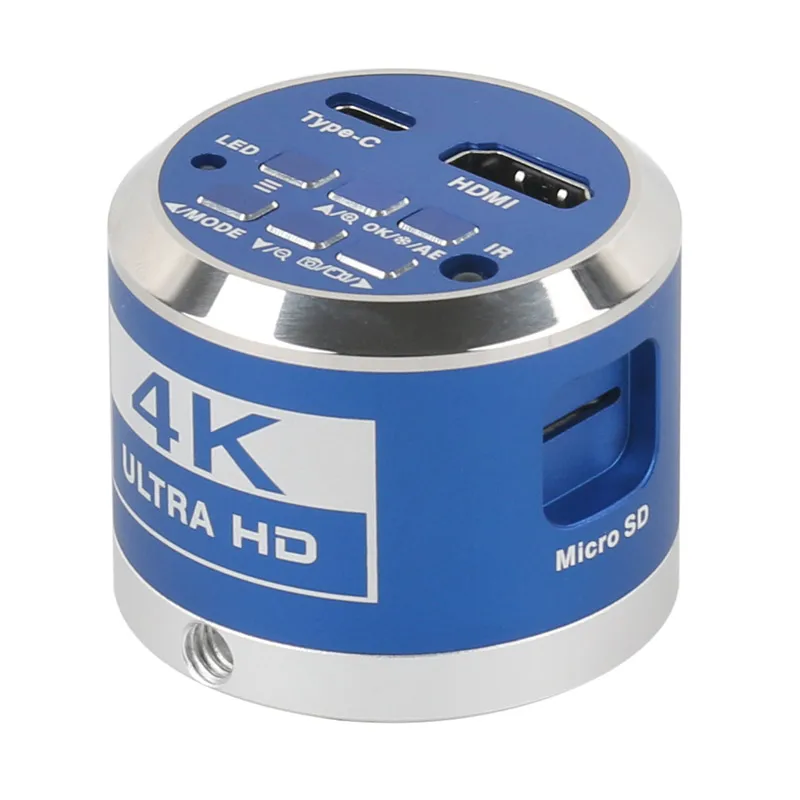

4K HDMI Type-c Feature:

Sensor Type:1/1.8" Sony IMX678 Color CMOS
Image Resolution:8.3MP
24MP photos, JPG format, photo size 6552x3688;
Video Interface:HDMI Type-c TF Output
Material:Aluminum Alloy
Effective Pixel:UHD
HDMI Video Resolution Output:4K/3840*2160@30FPS 1920*1080@60FPS
Video Output Mode:PC or HDMI Monitor
Pixel Size:2.0μm*2.0μm
Exposure Time:0-33MS
White Balance:Automatic/Manual/One Button
Video Format:AVI
Image Format:JPG
TF Card Support Format:FAT32
TF Card Support Maximum Storage:128G
Language:Chinese,English
Digital Zoom:1-4X
Exposure Compensation:+0.0 -1/3 -2/3 -1.0 -5/3 -2.0 +2.0 +5/3 +1.0 +2/3 +1/3
Picture and Video Storage:Support TF Card
Color:Standard,Black & White,Sepia
Mirror Settings:Standard,Horizontal Mirror,Vertical Mirror,Horizontal Mirror and Vertical Mirror
Grid lines:20 Groups Grid Line Selectable
Line Direction:Selectable
Line Color:Selectable
Line Position:Adjustable
Line Width:Adjustable
Line Calibration:5 Groups Data
Scale Unit:6 Options
Center Scale Line:Support
Light Source Frequency:50HZ/60HZ
Image Ratio:16:9,16:10,4:3
Remote Control:Support
Power:5V Type-C Power Supply

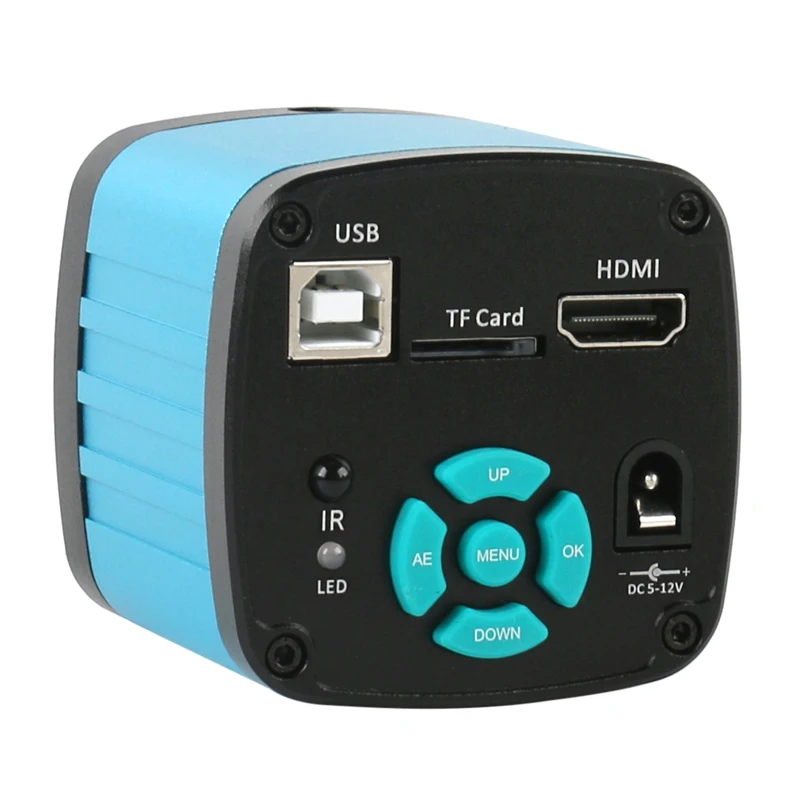

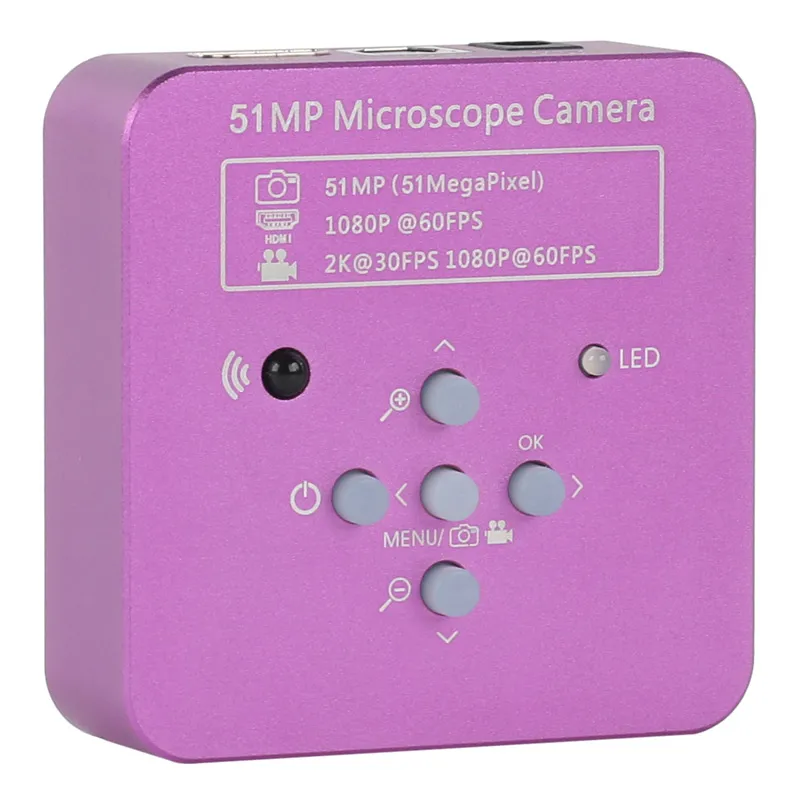

51MP 2K HDMI USB

Specification:
Model: High Definition Multimedia Interface USB2.0 Dual Output Camera
Image Format: jpg
Image Resolution: 51MP
Video Format: MP4 (for Memory Card)
Video Recorder: 1080P at 60FPS
High Definition Multimedia Interface Video Resolution: 1920x1080 at 60FPS
USB Video Resolution: 1920x1080 at 30FPS; 1280x720 at 30FPS; 640x480 at 30FPS; 320x240 at 30FPS
White Balance: Automatic / Manual
Light: Automatic / Manual
Exposure: Automatic / Manual, Value Adjustable
Color: Color
Direction: Left / Right, Up / Down
Freeze: Support
OSD: English / Chinese / French / Spanish / Japanese / German
Lines: Different colors, 5 horizontal lines, 5 vertical lines, any position
Image Sensor: 51MP CMOS Sensor 1/2.33 Inches
Effective Pixels: 51MP
Pixels Size: 1.335μm x 1.335μm
Frame Rate: 60fps
Definition: Full High Definition
Housing: Metal
Lens: C/CS
Video Format: MOV
Digital Zoom: Support
Brightness Control: Automatic / Manual
Color: R / G / B Adjustable
Film and Records: Support
Cross Cursor: Support multi-color, adjustable size
Horizontal and Vertical Lines:
Support multi-color, 5 horizontal / vertical lines, movable
Different colors, 5 horizontal lines, 5 vertical lines, any position
Memory Card Interface: up to 64G (Not Included)
High Definition Multimedia Interface: Standard High Definition Multimedia Interface Output (Type A)
USB Interface: Standard USB2.0 Interface (Type B)
Input Voltage: DC 12V

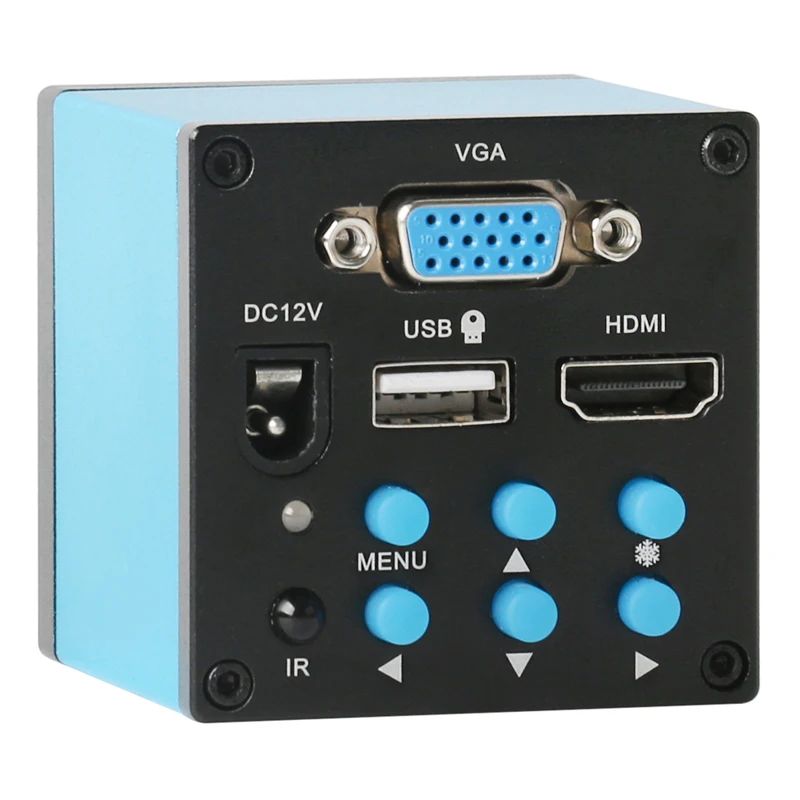

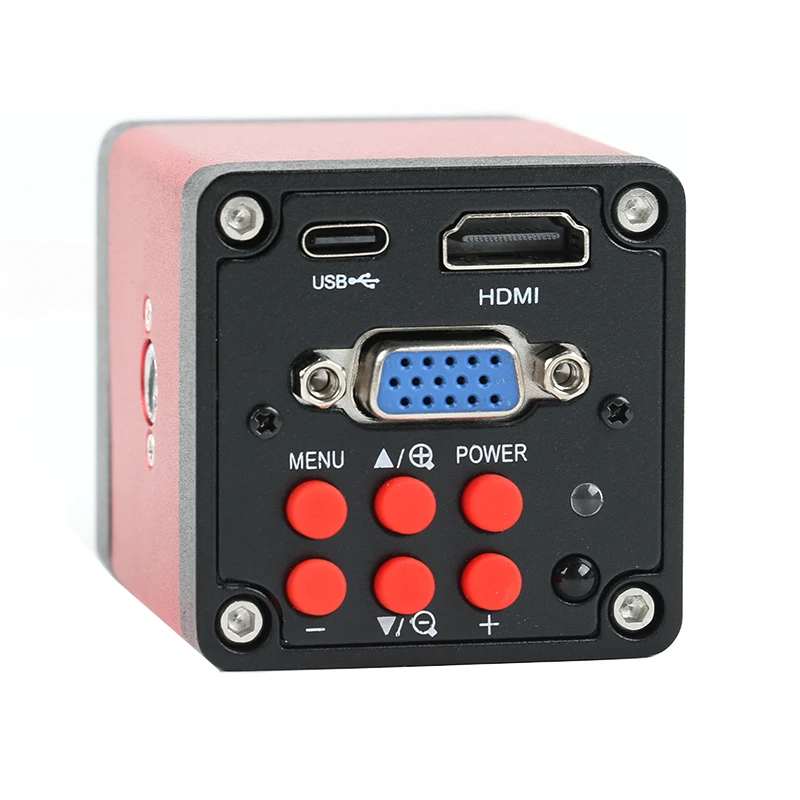

HDMI VGA  Type-c Feature:

14MP Camera Feature:
High Quality, High Resolution, Clear Images
1/3" CMOS
1080P @60F/S Camera
Industry Cmos Camera. It can Show the live image directly on any HDMI monitor , Projector or TV.
Supply VGA,HDMI HD Video,Two output ports Meanwhile output
It build in digital crosshairs and color control, add line in the pictures, freeze ,Mirror, Rotate,

Negative,Compare function,Use remote control, easy to operate


Specification:
Model: Camera with HDMI VGA USB Type C Three output
Sensor: 1/3 inch 14MP
Image resolution: 1920* 1080@60F/S (for HDMI), 1920 *1080 (for VGA) ,1920*1080 22FPS (for USB Type C)
HDMI VGA ​output of display resolution: 1920*1080 ,1600*900,1440*900,1280*1024, 1280*720, 1024*768
White Balance: Auto
Color: Color
Mirroring: Left/right,Up/Down
Light: Auto
Freeze: Support
Negative: Support
​Language: Chinese/English/Traditional Chinese/Japanese/French/Spanish/German/Italian/Portuguese/Russian
Line: supported 32 cross lines
adjustable position/color/width

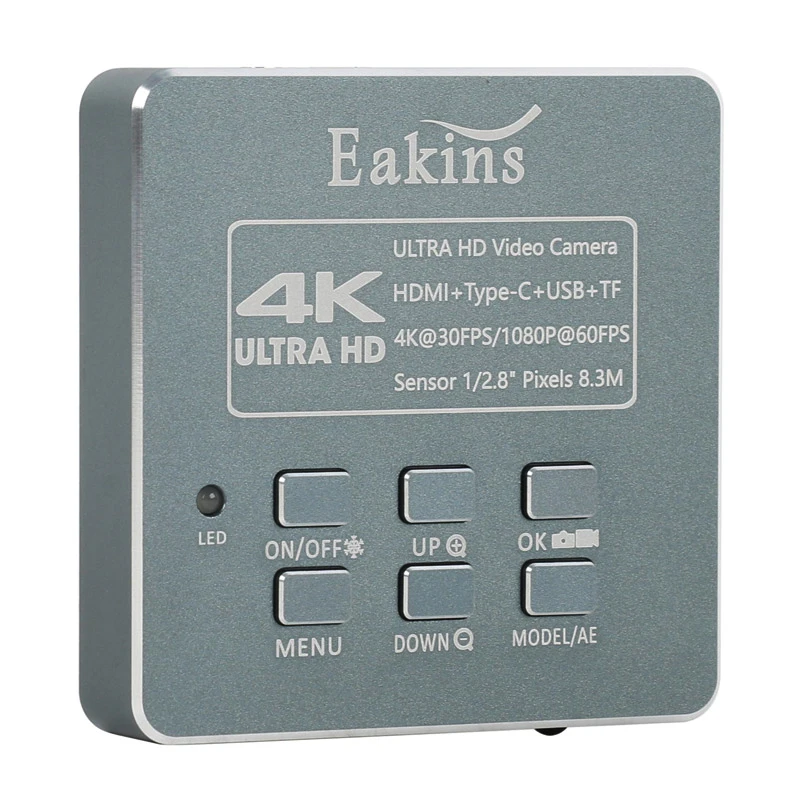

8.3MP USB HDMI 4k Function:

Adopt Imported Sony sensor;
Adopt 1/2.8 inch image sensor;
HDMI 4K 3840*2160 30/Fps / 1080P 60/Fps image output;
TYPE-C driver-free output 3840*2160 1080P 30/Fps image output;
HDMI port 4K, 1080P video recording, 4K Pictures were taken;
4K photos, JPG format,
One-key freeze/thaw function;
Electronic zoom function;
Support manual/automatic exposure/one-key exposure, exposure compensation value adjustment;
Support manual/automatic white balance/one-key white B, R, G, adjustable;
Provide 16 line functions, line color, thickness, position adjustable;
Provide center crosshair display on/off;
Support TF card storage, up to 64GB;
Support remote control operation, take pictures without shaking and the image will be clearer;
Support Chinese and English menu languages;
Support shutdown setting parameter saving;
Aluminum alloy casing processed by CNC precision milling technology;
Sensor: 1/2.8 Sony IMX 415 Sensor
Pixel size: 1.45μm × 1.45μm
HDMI output: 4K 3840*2160 30/Fps 1920*1080 60/Fps
TYPE-Coutput:3840*2160/2560*1440/1920*1080/1280*720/640*480/424*240/320*240 (MJPG)
Lens interface: C/CS
Exposure: automatic/manual/one key exposure
Exposure Compensation: Support
White balance: automatic/manual/one-key white balance, support RGB adjustable
Storage: maximum support 64GB
Input voltage: DC 5V
Parallel lines: support 16 straight/vertical lines, adjustable in color, thickness and position
Centerline: support
Menu language: English/Chinese/Traditional Chinese
Remote control: support remote control operation

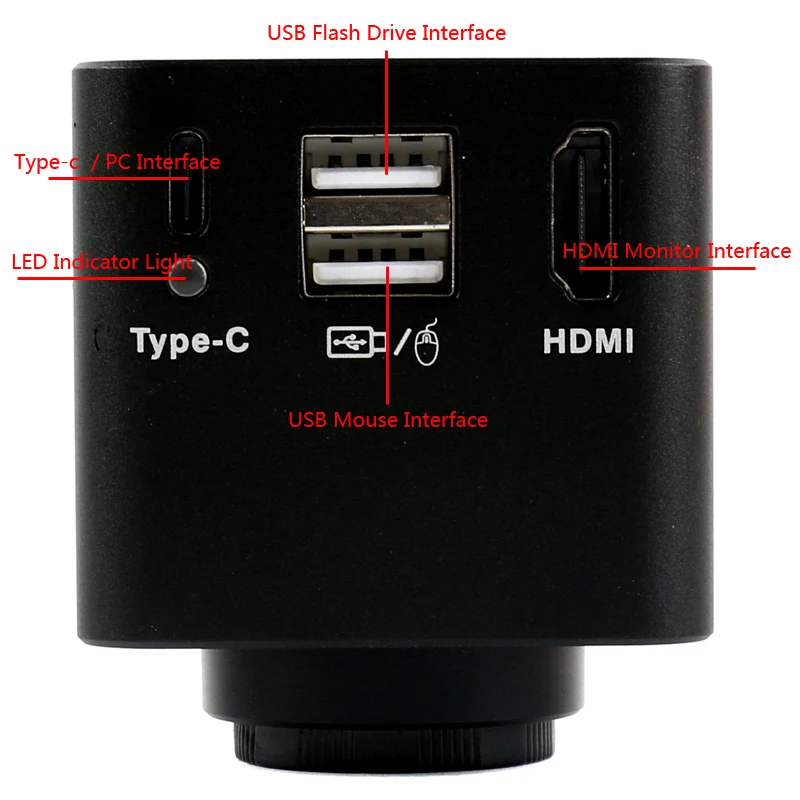

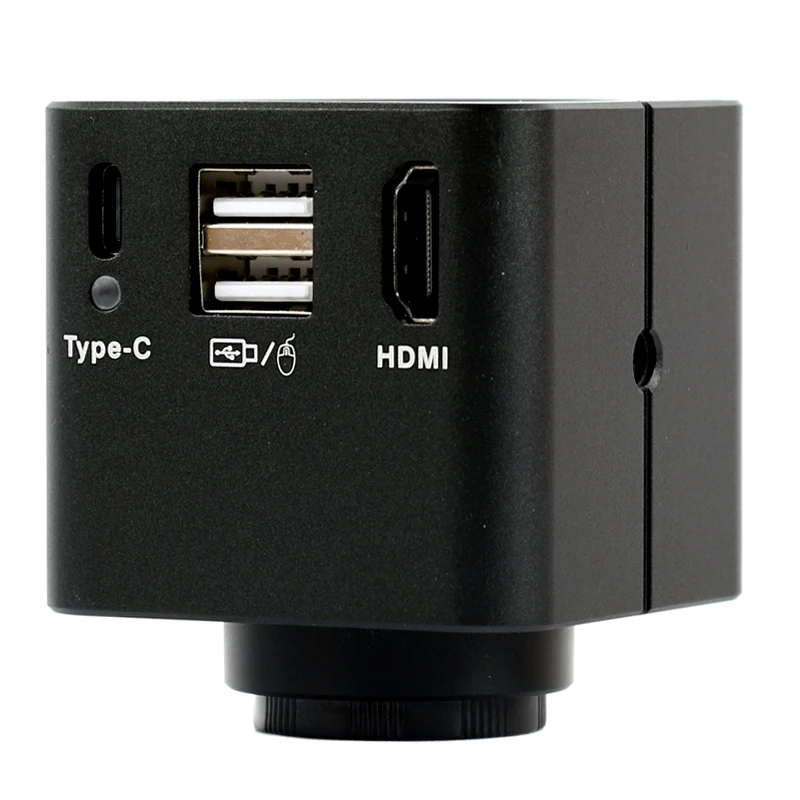

1080P HDMI Type-c PC：

Chip Structure:ARM dual-core architecture
Operating System:LINUX
Core Structure:Dual-core ARM Cortex-A7
Main Frequency:900MHz
Sensor Type:1/2.8" Sony IMX307 Color CMOS
Video Interface:HDMI USB Type-C Output
Material:Aluminum Alloy
Effective Pixel:Full HD
Operation Mode:USB Mouse
Operation Interface:UI
HDMI Video Resolution Output:1080P 60fps@1920*1080/60fps@1280*720
USB Video Resolution Output:1080P 60fps@1920*1080
Video Recording:1080P 60FPS;720P 30FPS
Pixel Size:2.90*2.90μm
Frame Rate:60 frames per second (HDMI)
Exposure Time:0-999MS
Exposure Mode:Manual/Automatic
White Balance:Automatic/Manual
Video Format:AVI
Image Format:JPG
U disk Support Format:FAT32
U disk Supports Maximum Storage:128G
Language:Chinese, English,Japanese, Korean
Electronics Digital Zoom:1-10x
Picture and Video Storage:Support U disk Storage
Video and Picture Playback:Support
Basic function:Brightness, Contrast,Saturation, White Balance
UI Interface:Easymouse Control
Measuring Function:Straight Line, Circle, Rectangle, Parallel line, etc
Mirroring,B&W Pictures,Image Freezing,Image Flip:Support
Reticle:8 Sets of reticle,can adjust color,size,shift and hide
Objective Zoom Magnification:1.0-100
Eyepiece Zoom Magnification:1.0-2.0
Monitor Size:Optional
Wide Dynamic Range:Suppor
Regional Zoom Magnification:Suppor
Center Scale:Suppor
Anti-flicker:Automatic/50Hz/60Hz
Color Temperature:2961K-9000K
Acutance:0-100% Adjustable
Brightness:0-100% Adjustable
Contrast:0-100% Adjustable
Saturation:0-100% Adjustable
Noise Reduction:0-100% Adjustable
Clarity:0-100% Adjustable
Flip:Horizontal Flip or Vertical Flip
BW Mode:Suppor
Power:5V-2000MA
Size:55*55*58.16mm
Weight:0.22kg

20MP HDMI VGA Feature:

parameter
Sensor: 1/2 inch 2 million pixel Sony CMOS sensor
Pixel size: 3.75μm ×3.75μm
USB interface: USB2.0 (plug in U disk or mouse)
HDMI output: 1920*1080 60 frames
Lens interface: C interface
Exposure: One-click exposure
White balance: one-key white balance
Storage: Support U disk storage
Input voltage: DC 5V-12V
Scribe: support 8 straight lines, color, thickness and position are adjustable
Mirror: support horizontal/up and down roll
Menu language: English/Chinese/Traditional
Product size: 70*70*38mm
Preparation
1. Unscrew the lens cap and install the lens;
2. Plug in the HDMI cable and DC power supply, and the LED light is on at this time, indicating that the camera has been turned on;
3. After inserting the mouse into the USB interface, use the mouse for setting operations. Right-click on any blank place to display the main menu, click again to hide the menu, and the menu will be automatically hidden after 30 seconds without any operation
NOTED!!!
TF card storage is only for HDMI output. USB output will be storaged in PC.

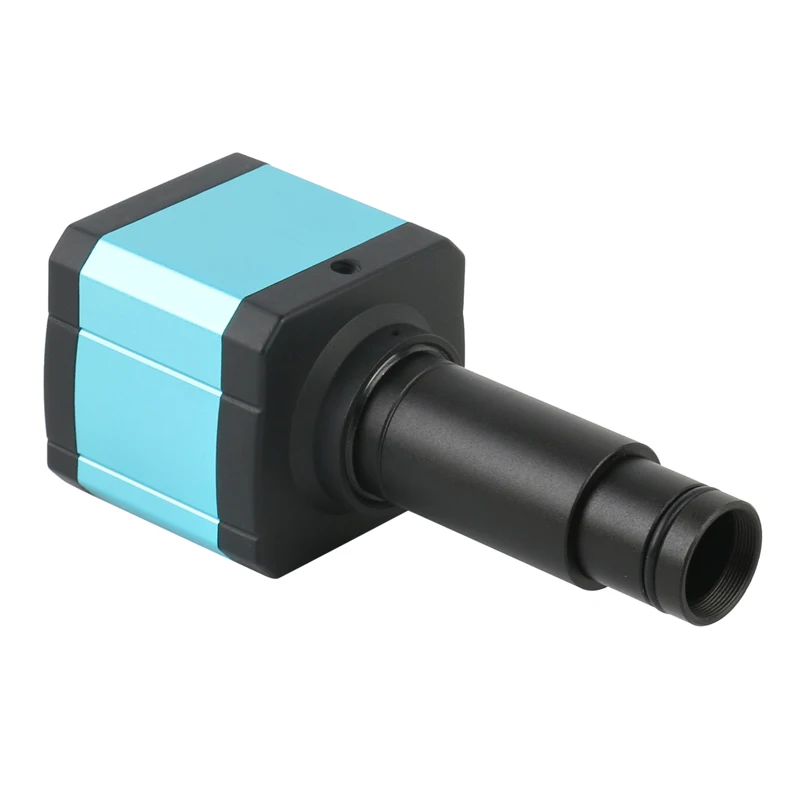

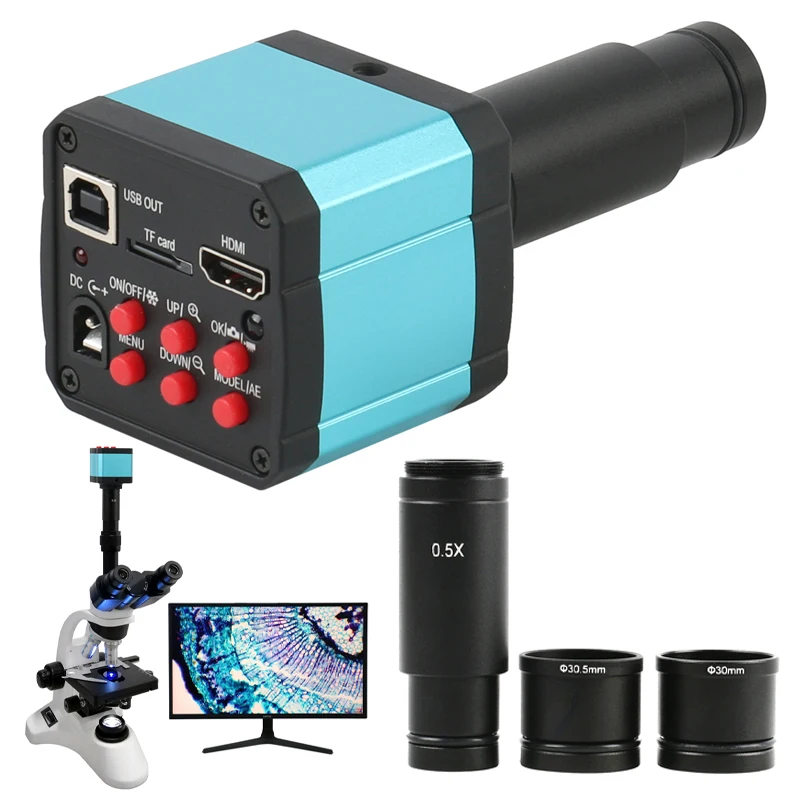

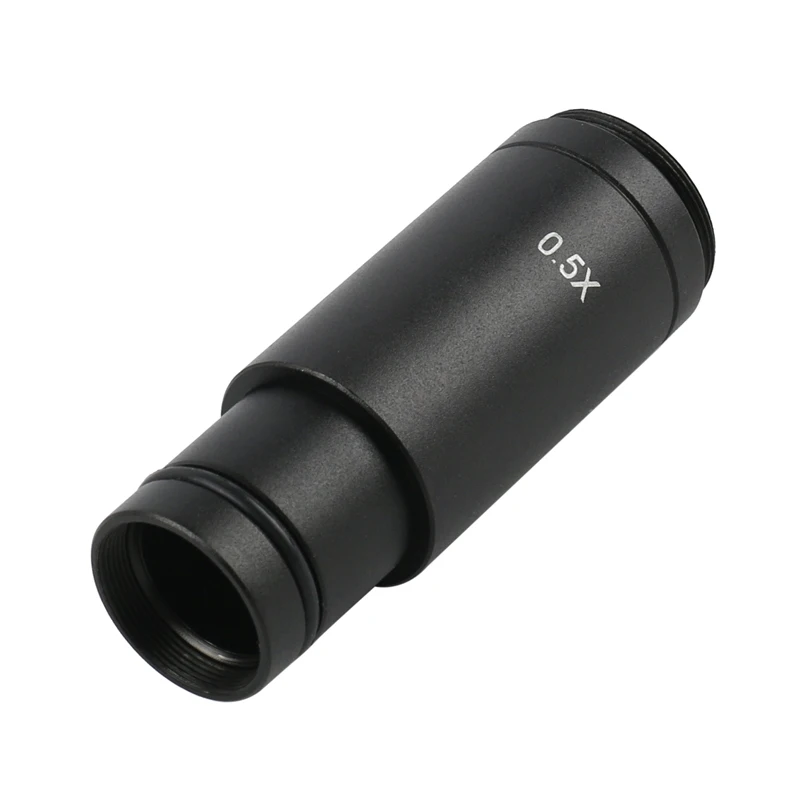

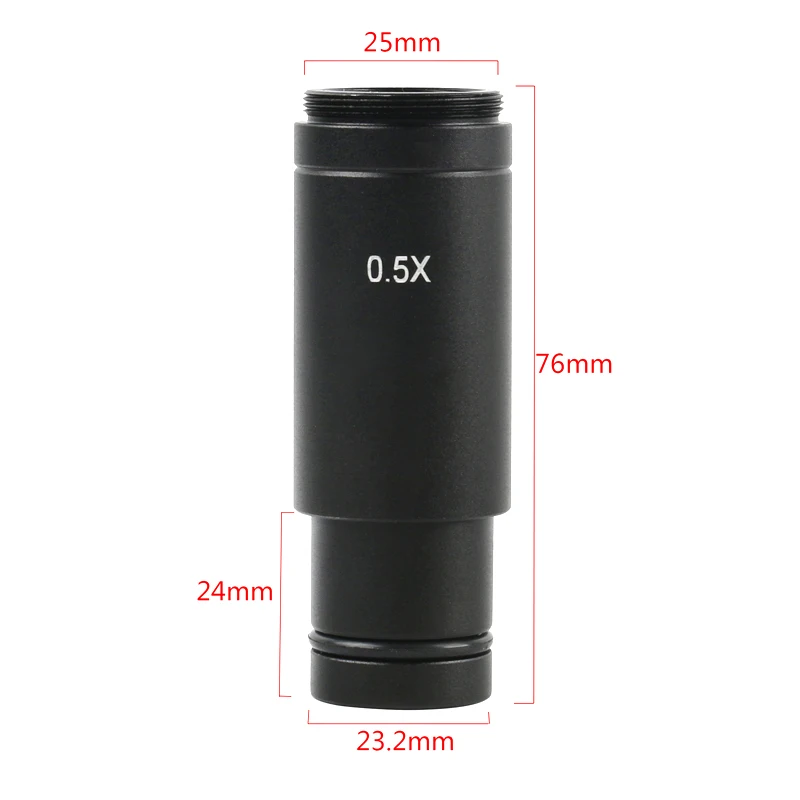

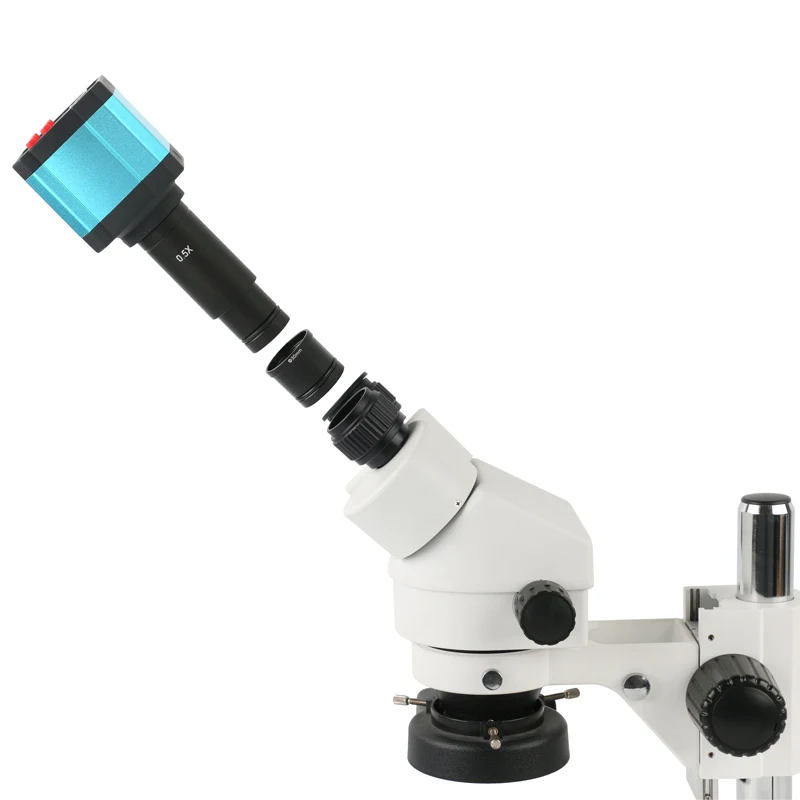

This microscope camera is a 0.5x Reducing lens, which expands the camera's field of view. It can be used with C-Mount or CS-Mount camera in any pixel and placed in a binocular or trinocular microscope to expand its field of view. Can be installed directly in the biological or stereo eyepiece camera.
Specification:
Magnification: 0.5X
Mounting Size: 23.2mm, 30mm ,30.5mm
C-mount Thread: 32TPI-UN-2A
Suit Microscope: biological microscope and stereo microscope
Feature:
0.5X magnification to get a more wide view of microscope
C-MOUNT adapter to connect CCD camera or Digital eyepiece to microscope

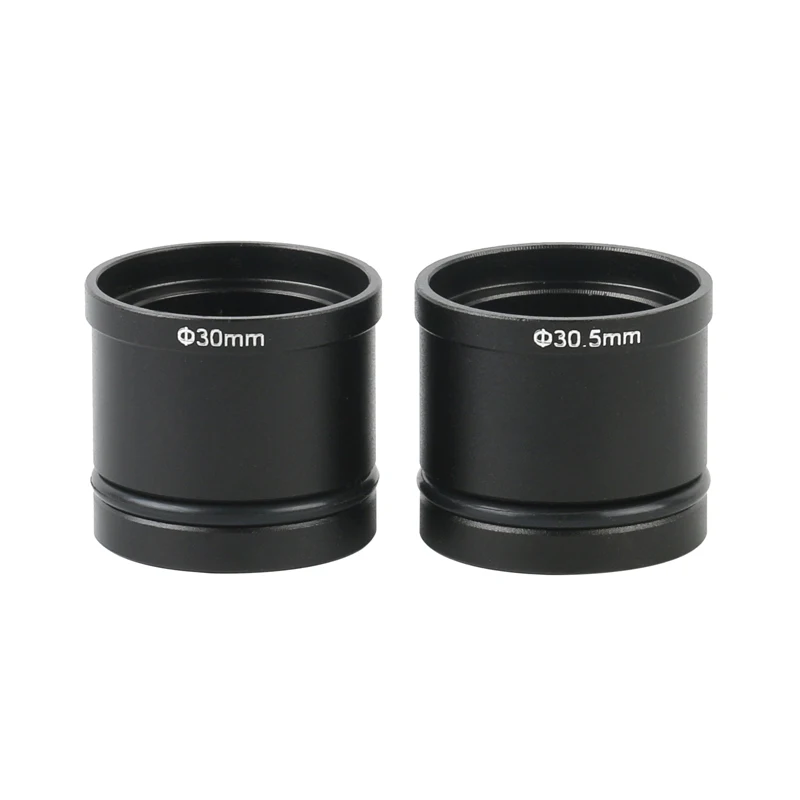

Including two adapters from 23.2mm to 30mm and 30.5mm
Package including:
1 x HDMI Microscope Camera
1 x Power supply
1 x HDMI line
Optional accessories:
1 x 0.5X C-MOUNT adapter
1 x Software DISC
1 x USB line
1 x Remote Control
1 x 23.2mm to 30mm adapter ring
1 x 23.2mm to 30.5mm adapter ring
