GEYA Multifunction Timer Relay 12V 24V 220V-Adjustable 10 Functions & 10 Time Ranges with CE CB

If you only need single function time relay, delay on or delay off time relay GRT8-A/B, please Click Here!
General
Multifunction time relay can be used for electrical appliances, control of lights, heating, motors, pumps and fans (10 functions, 10 time ranges, multi-voltage).

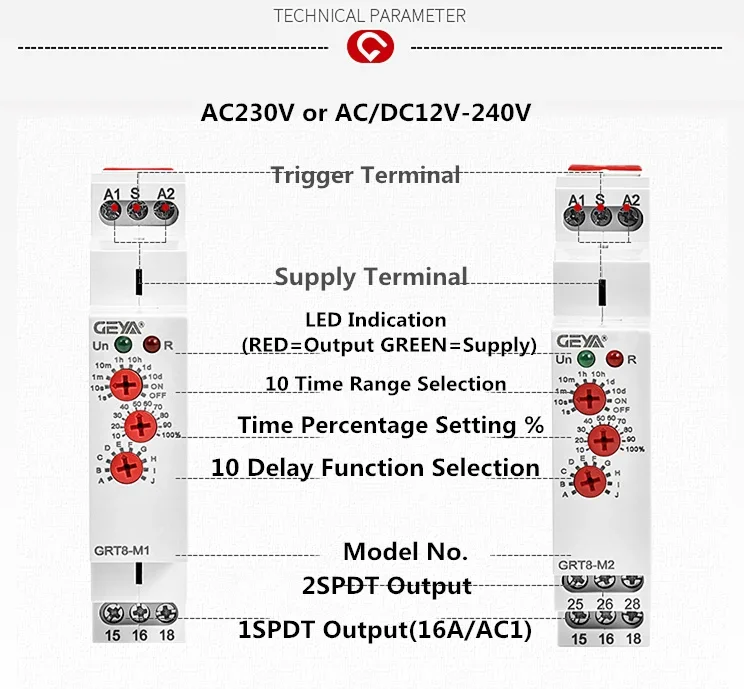

- GRT8-M Multifunction Time Relay
- Voltage Range: AC230V or AC/DC12-240V
- Output: 16A 1SPDT or 2SPDT

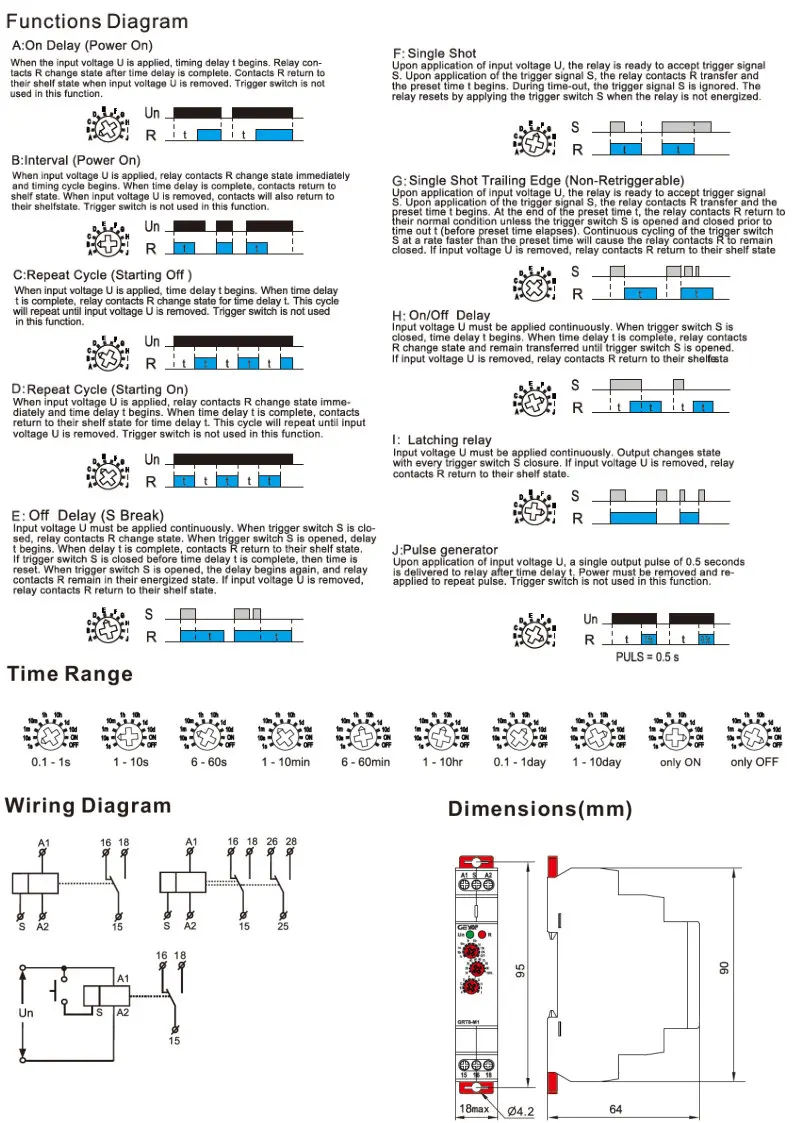

-10 Functions:
5 time functions controlled by supply voltage ( A B C D J )
4 time functions controlled by control input ( E F G H )
1 function of latching relay ( I )
-Time scale 0.1 s - 10 days divided into 10 ranges, setting by Potentionmeter.
0.1-1s, 1-10s, 6-60s, 1-10min, 6-60min, 1-10hr, 0.1-1day, 1-10day, only on, only off

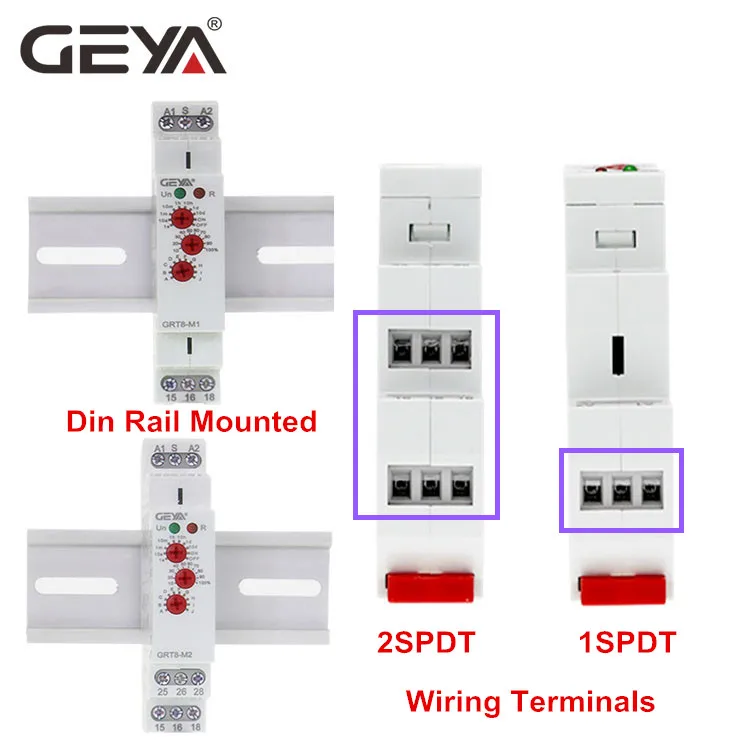

- 1-MODULE 18mm, DIN rail mounting, convenient install.

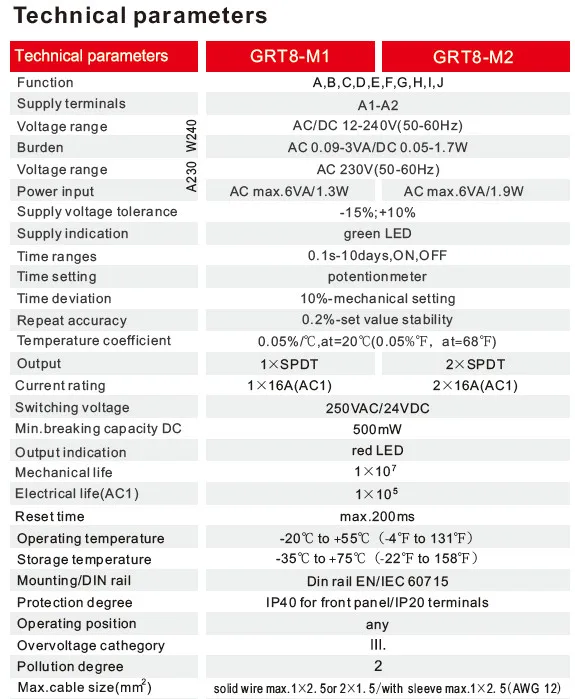

Technical Data
