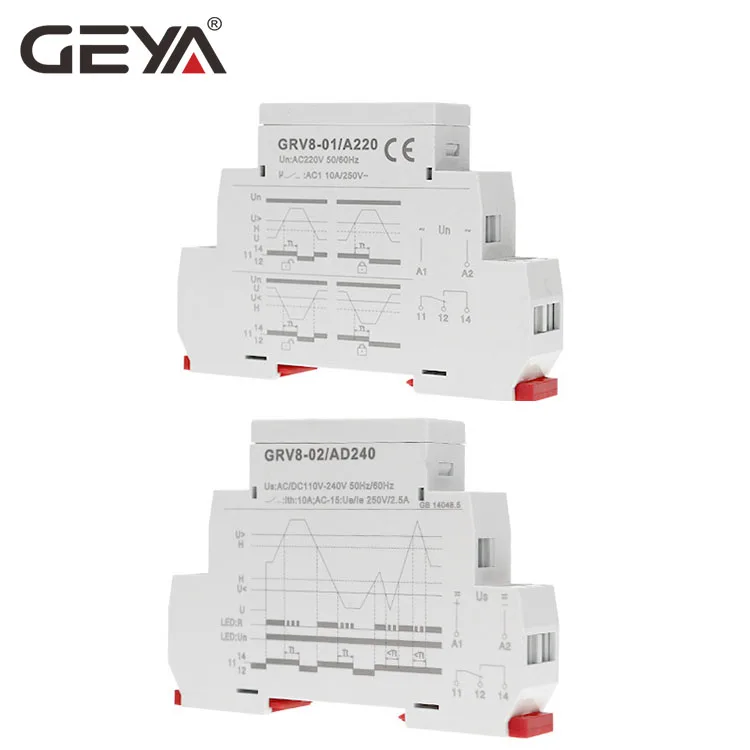

GEYA Over Voltage and Under Voltage Protection Relay DC12V 24V 48V 220V 10A Voltage Protector Relay GRV8-02

TIPS: This link is forGRV8-02 protect Overvoltage and  Undervoltage Together Relay, If you need moitoring overvoltage or undervoltage separately, please buy the GRV8-01 model, click here thanks!

General

Applications

-Protect electrical equipment and motors from over-voltage or under-voltage.

-Normal/emergency power supply switching.

Function Features

- Controls its own supply voltage(True RMS measurement)

-.User may select operation mode through knob.

- Voltage measurement accuracy<1%.

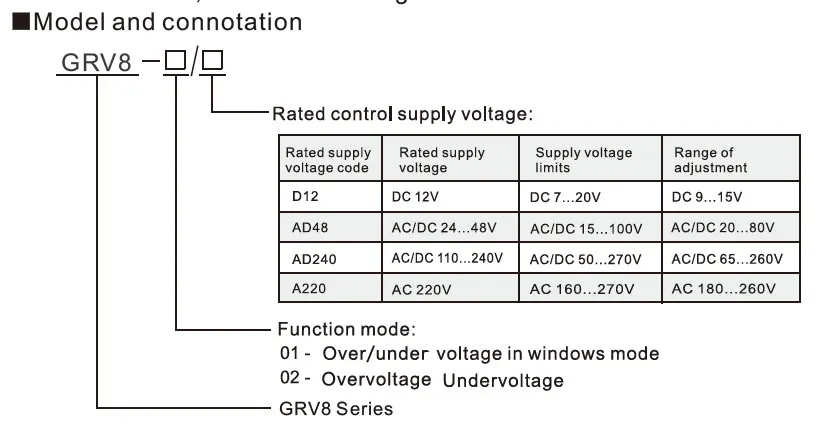

-Voltage Range AC/DC12-240V or  DC12V or AC/DC24-48V or AC220V

-Rated Current 10A/AC1 &1SPDT

- Relay status is indicated by LED.

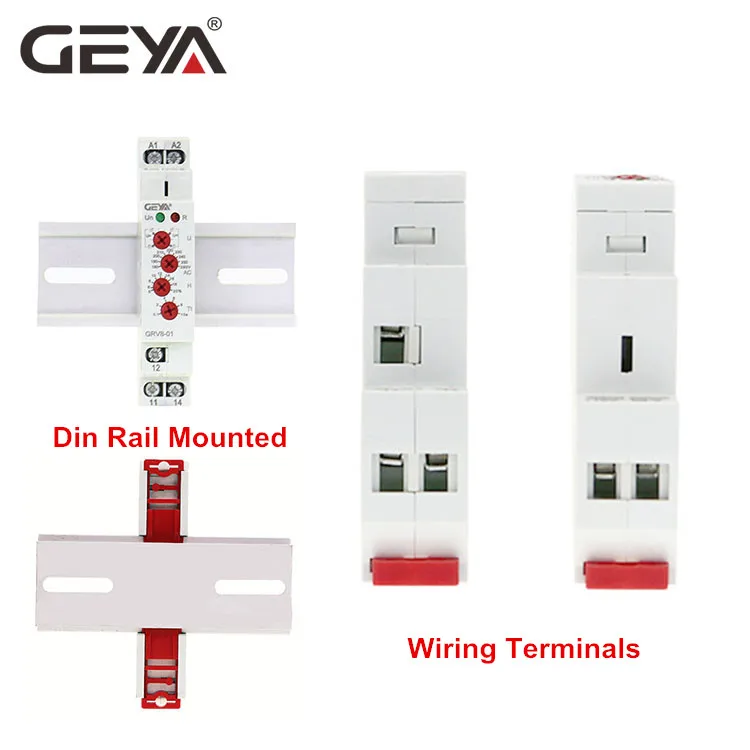

- 1-MODULE,DIN rail mounting.

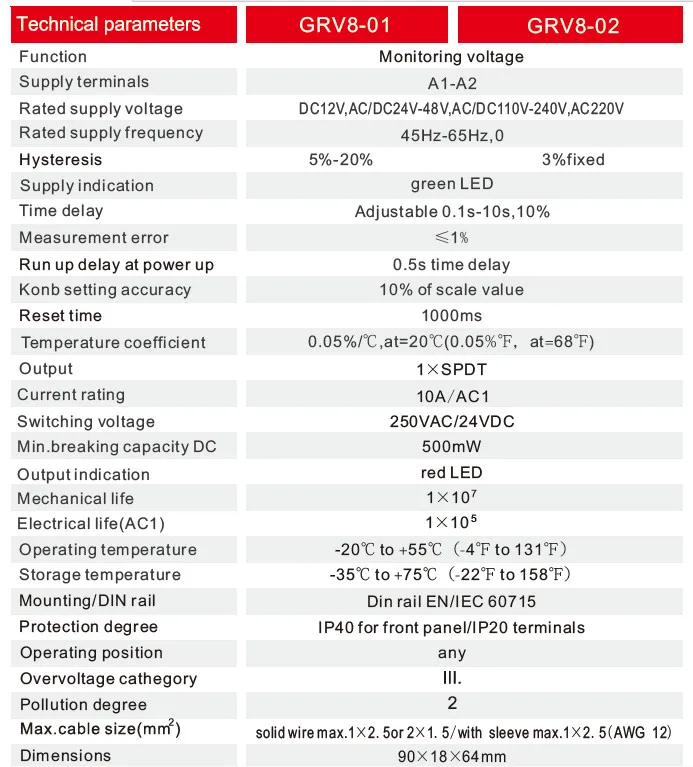

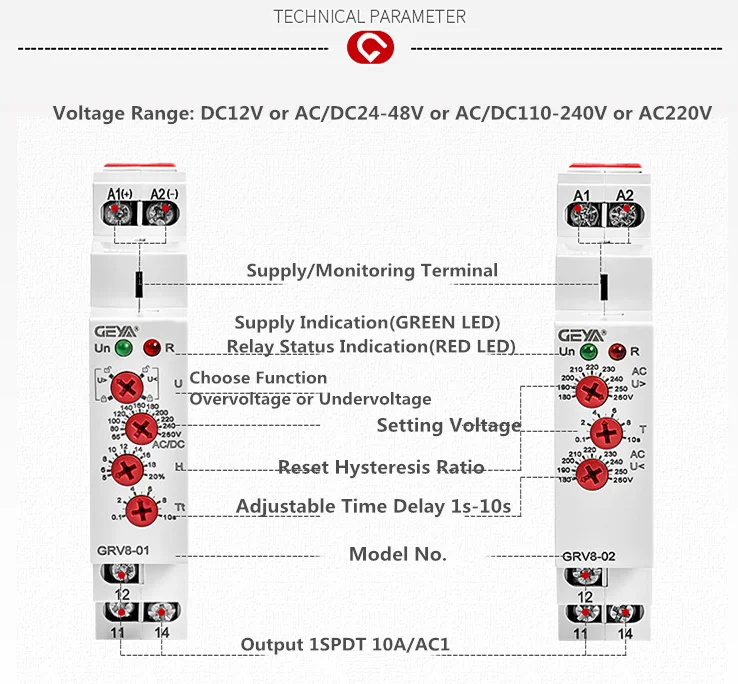

Technical Data
