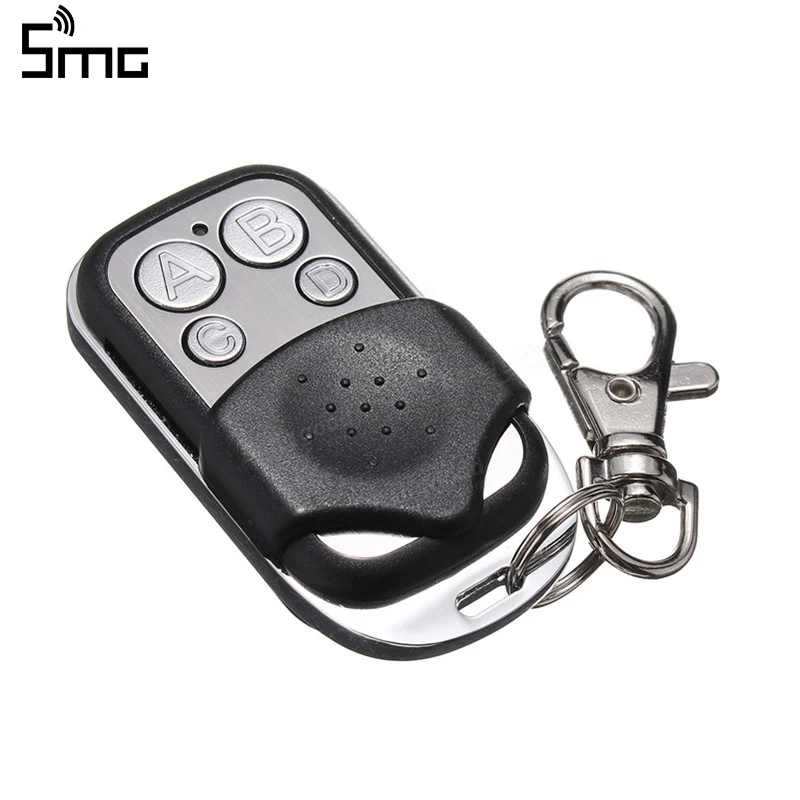

TEDSEN SKX1MD SKX2MD Remote Control Gate Garage Door TEDSEN 433,92MHz Remote Control

Specifications:

1.Operating frequency: 433.92MHz
2. Number of channels: 2
3. Code: Fixed code
4.Include: 1 x Remote Control (Battery and Keychain Include),1 x English Manual
5.Distance: Up to 100 meters

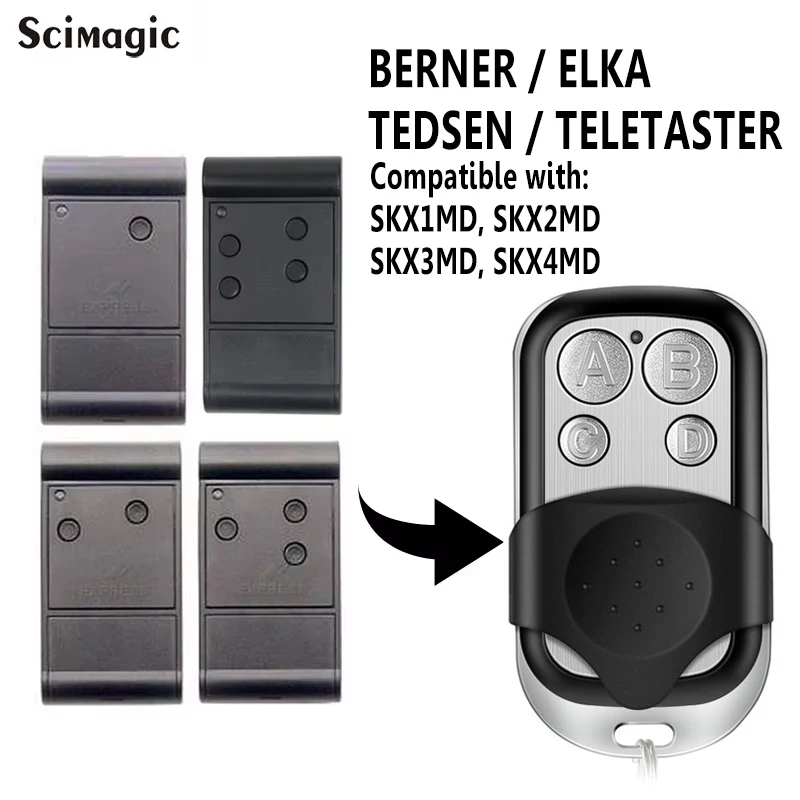

Compatible Model:

TEDSEN SKX1MD

TEDSEN SKX2MD

TEDSEN SKX3MD

TEDSEN SKX4MD

The remote control is the same function as your original remote.

Cloning chip types:

2260(PT2260,SC2260,LX2260,HX2260); 2262,(PT2262,SC2262,LX2262,HS2262,HX2262),PT2264,PT2240(LX2240),1527( EV1527,HS1527,HX1527 ),FP527,CS5211,SMC918,SMC926,AX5026,AX5326-3,AX5326-4,HT600,HT680,HT6207,HT6010,HT6012,HT6013,HT6014,HT12D, HT46F49E, PIC16F629,PIC16F630 and so on.

How to program the remote:

Step:1:Clear the history code from duplicator

1:Press button A and B continuously until LED flash 3 times

2.Release button B (Keep pressing button A),and press button B Slowly for 3 times,LED flash

3.Release button “A”,finish code clearance.

Step 2,Copy code from original remote control

1.Put duplicator aside of original transmitter,as close as possible.

2.Press and hold button A of original transmitter,then press and hold button A of duplicator until you see the duplicator’s LED flash

3.Release both buttons,finish code copy,copy other button in same way.

Button A= lock button Button B=unlock button

If you can not copy it well, please be patient and repeat the above steps and try it again.
