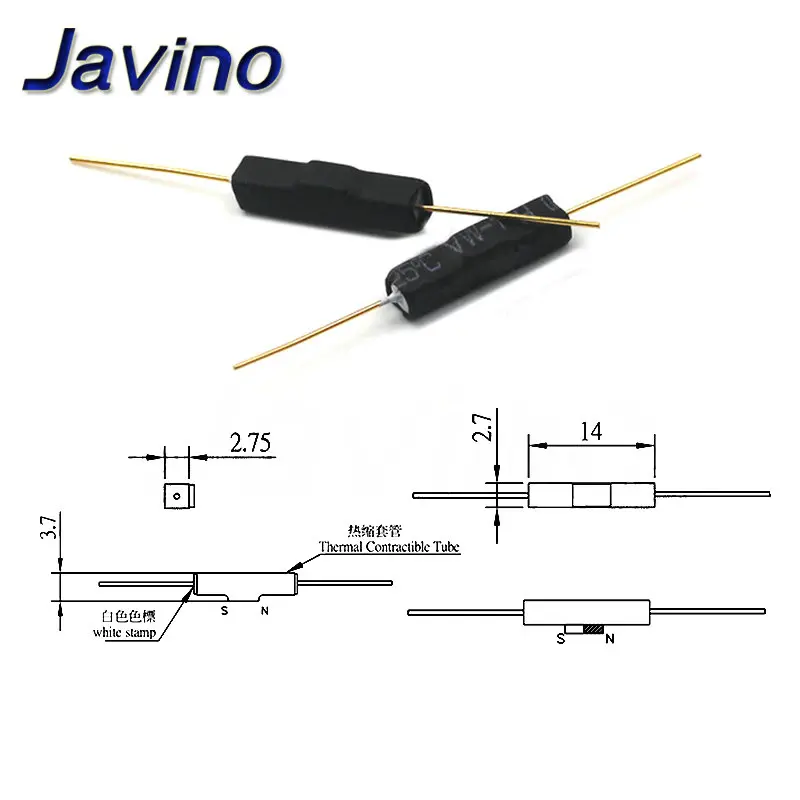

5-50PCS N/O Reed switch Magnetic Switch 2 * 14mm Normally Open Magnetic Induction switch N/C Normally closed MKA14103 GPS-14B

Ontology Material: ABS

Maximum power: 10W

Maximum switching voltage: 100VDC

Maximum switching current: 0.5A

Minimum collapse voltage 150 VDC

Maximum load current: 1.0 A

Maximum contact resistance excluding wire: 100m_

Minimum Insulation Resistance: 10

Release time: 0.3ms

Action time: 1.0ms

Temperature range: - 10 ~85 ~

GPS-14A GPS-11A normally open plastic type

GPS-14B GPS-11Bnormally closed plastic type

MKA14103 2*14MM normally open type

MKA10110 1.8*10MM normally open type

Specification:

Maximum power:4W

Maximum switching voltage:60VDC

High voltage:60VDC

Maximum switching current:0.25A

Maximum load current:0.5A

Maximum contact resistance:115M

Minimum insulation resistance:2x107/2x109

Action time:0.25ms

Bounce time:0.05ms

Response frequency:3000Hz

Sensitive value:10 ~ 20AT

The minimum value reset Min:5FT

Maximum contact capacitance:2.0PF

Package Included:

5 * 2.5x14mm 3Pin Reed Switch
