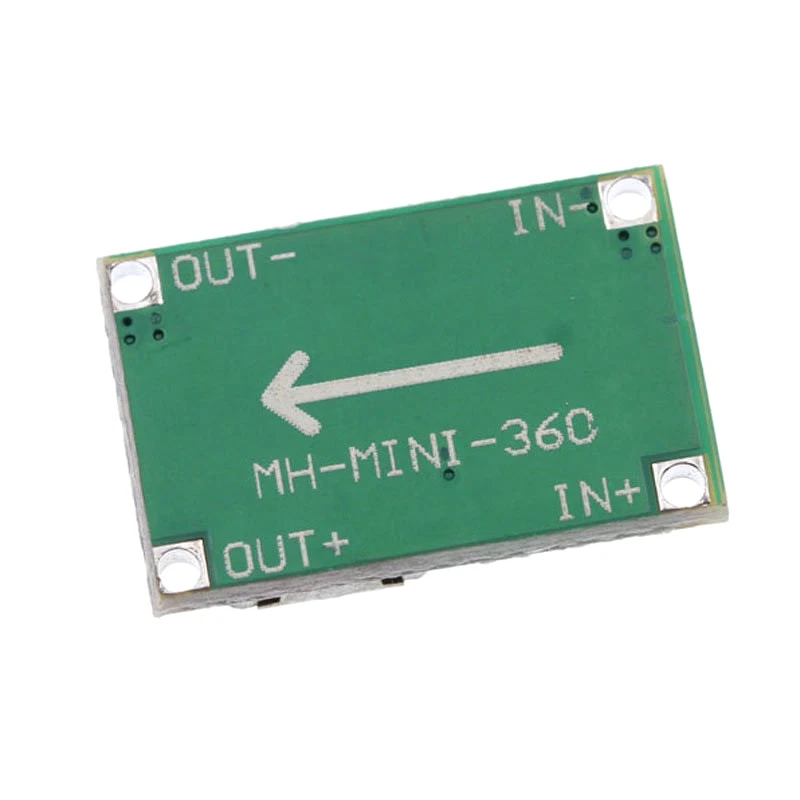

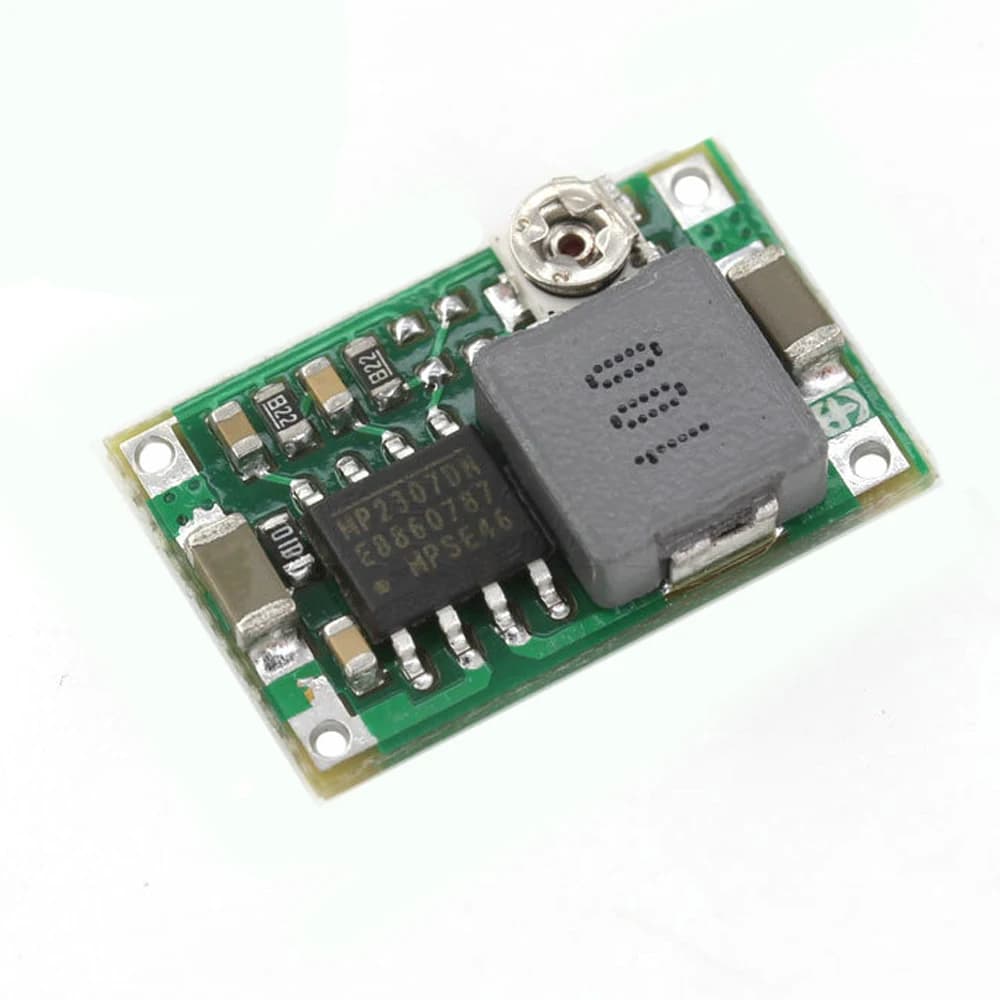

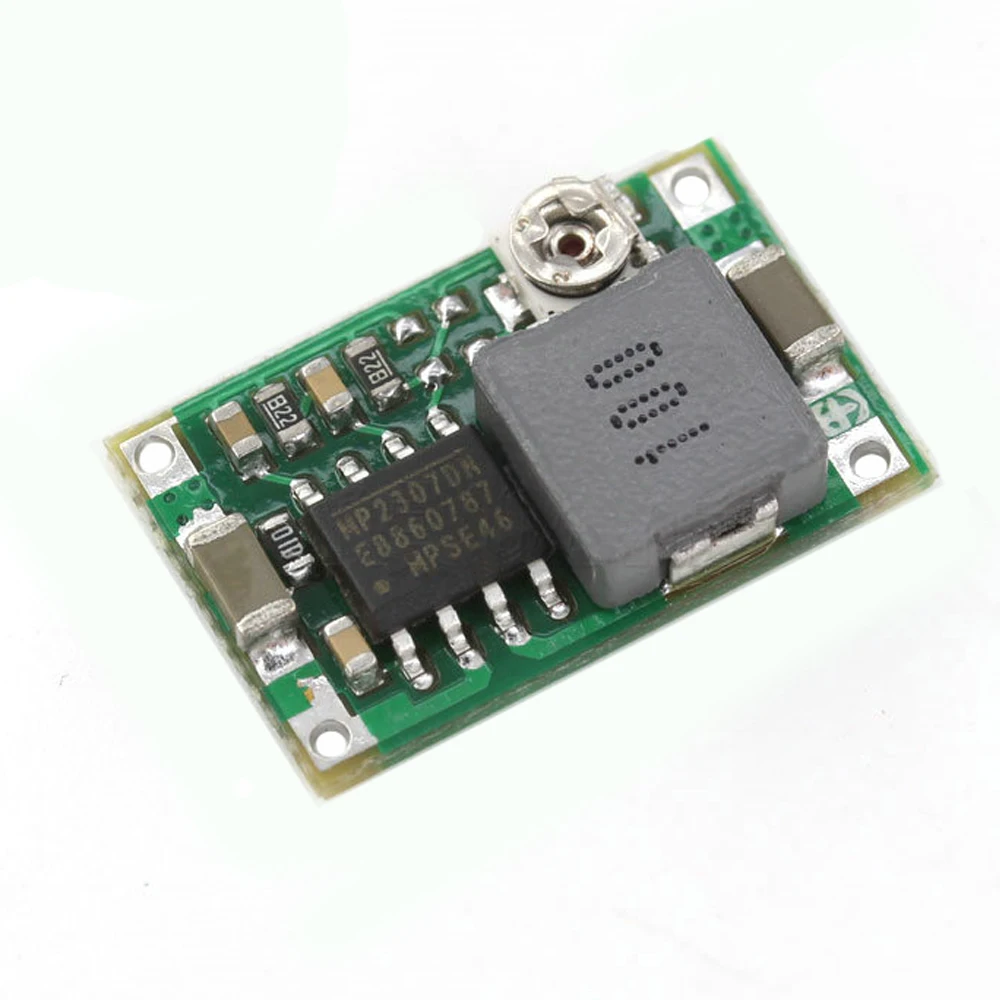

1/10/20PCS Mini360 Mini-360 DC-DC HM Buck Converter Step Down Power Supply Module 4.75-23V to 1-17V 340KHz Ultra-small MP2307DN

Description

Model Name: Mini-360 (ultra small size DC-DC synchronous rectifier buck module

Module Properties: non-isolated buck

Rectification: synchronous rectification

Input voltage: 4.75V-23V

Output voltage: 1.0V-17V

Output Current: lowering the value of 3A,long 1.8A

Conversion efficiency: 96% (maximum)

Switching Frequency: 340KHz

Output ripple: 30mV (no-load)

Load regulation: ±0.5%

Voltage regulation: ±2.5%

Working temperature: -40 Centigrade to +85 Centigrade

External dimensions: 17 * 11 * 3.8 (L * W * H) (mm)

Features: Use integrally molded power inductor and synchronous rectifier control chip,smaller and more efficient.
