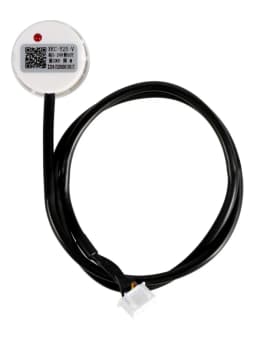

XKC-Y25 Non-contact 5-24V Easy-Installed Water Liquid Level Sensor for 20mm Thickness Containers and Pipelines

1、Model introduction

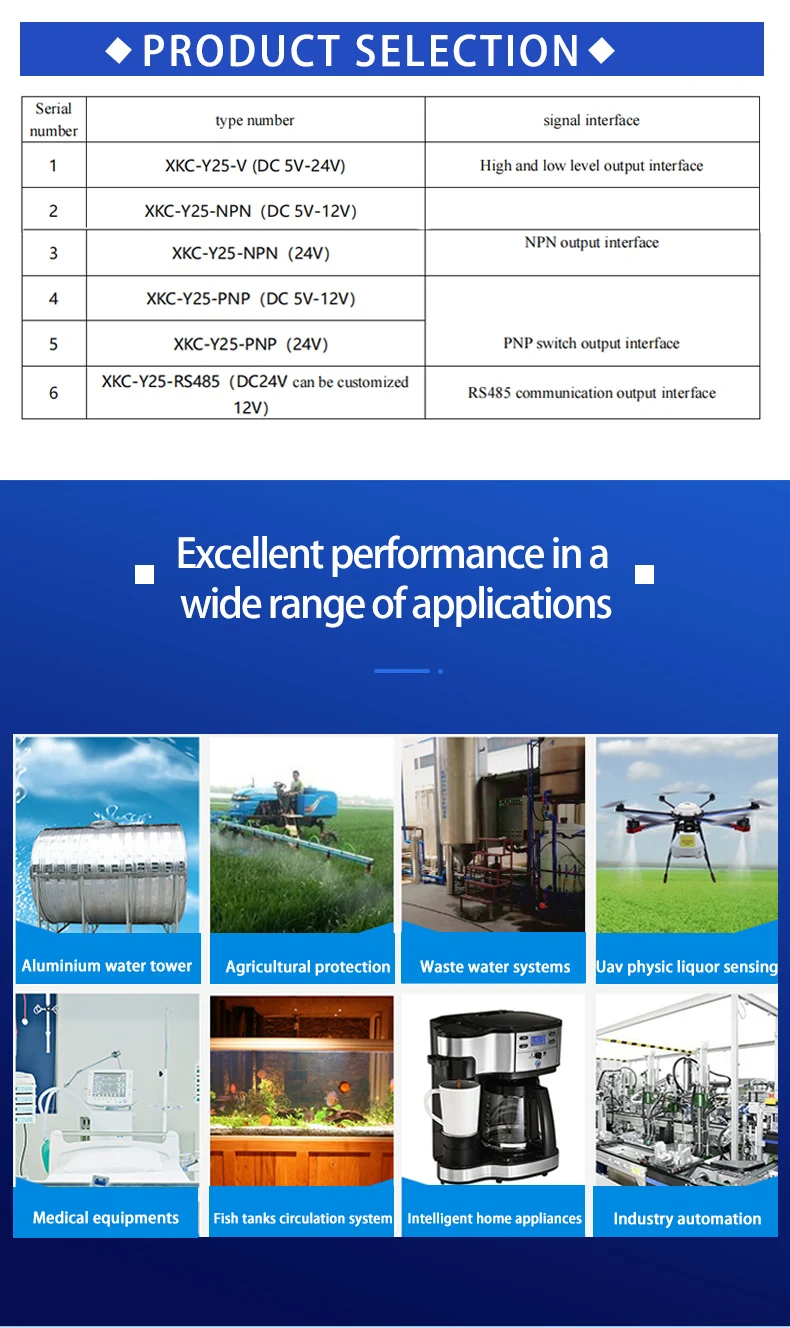

XKC-Y25-XXX series products are specially developed for non-metallic container liquid level detection. This series of liquid level sensors has four signal output interfaces, which are high and low level output interface, NPN output interface, PNP output interface, RS485 output Interface; the four types of output modes correspond to the following four types:

High and low level output interface — Model: XKC-Y25-V

NPN output interface —— Model: XKC-Y25-NPN

PNP output interface——Model: XKC-Y25-PNP

RS485 output interface ——Model: XKC-Y25-RS485

2、Product Features

1. The non-contact liquid level sensor is suitable for the outer wall of non-metallic containers without direct contact with the liquid. It will not be corroded by strong acids and alkalis and other corrosive liquids, and will not be affected by scale or other debris. It can support high and low level output, NPN, PNP signal output (please explain with the manufacturer when selecting).

2. The detection is accurate and stable, and the boiling water level can be detected.

3. Pure electronic circuit structure, non-mechanical working mode, stable performance and durability.

4. High stability, high sensitivity, strong anti-interference ability, free from external electromagnetic interference, special processing for power frequency interference and common mode interference, to be compatible with all 5-24V power adapters on the market.

5. Strong compatibility, penetrating various non-metallic containers, such as plastic, glass, ceramic and other containers, the sensing distance (container wall thickness) can reach 20mm;

6. Open collector output mode, wide voltage range (5-24V), suitable for connecting various circuits and product applications.

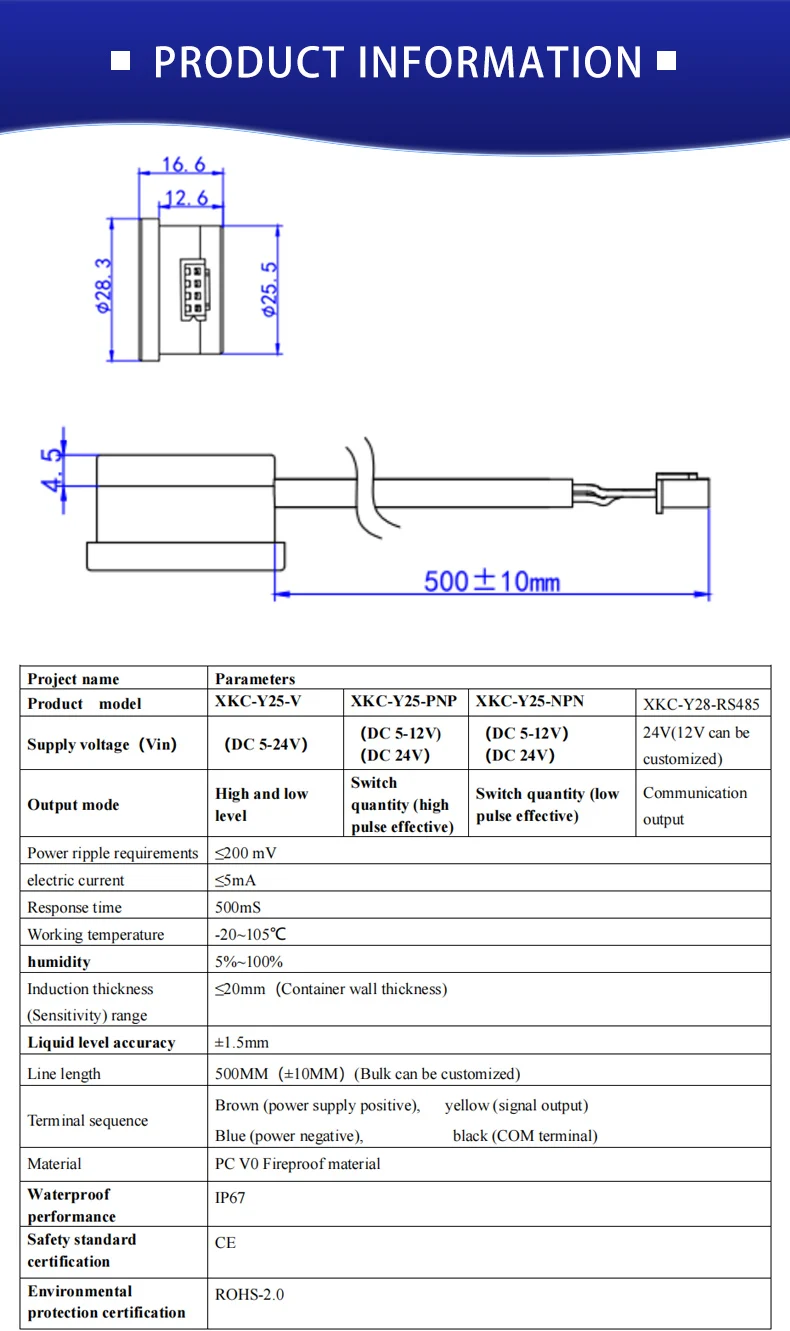

3、Product parameter

Supply voltage（Vin） ：DC5-24V

Power ripple requirements ：≤200 mv

electric current：5mA

Response tim:500mS

Working temperatur：-20~80℃

Induction thickness：≤20mm（Container wall thickness）

Liquid level accurac：±1.5mm

Line lengt：500MM（±10MM）(Bulk can be customized)

Terminal sequen：Brown (power supply positive), yellow (signal output)

Blue (power negative), black (COM terminal)

Materia：PC V0 Fireproof materi

Waterproof

performan：IP67

Safety standard certificati：CE

Environmental protection certification：ROHS 2.0

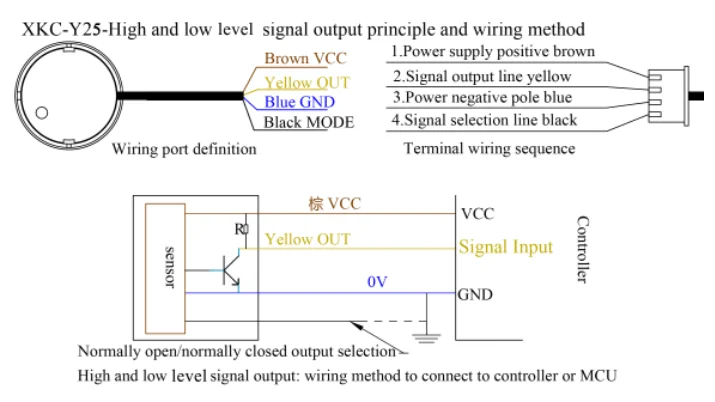

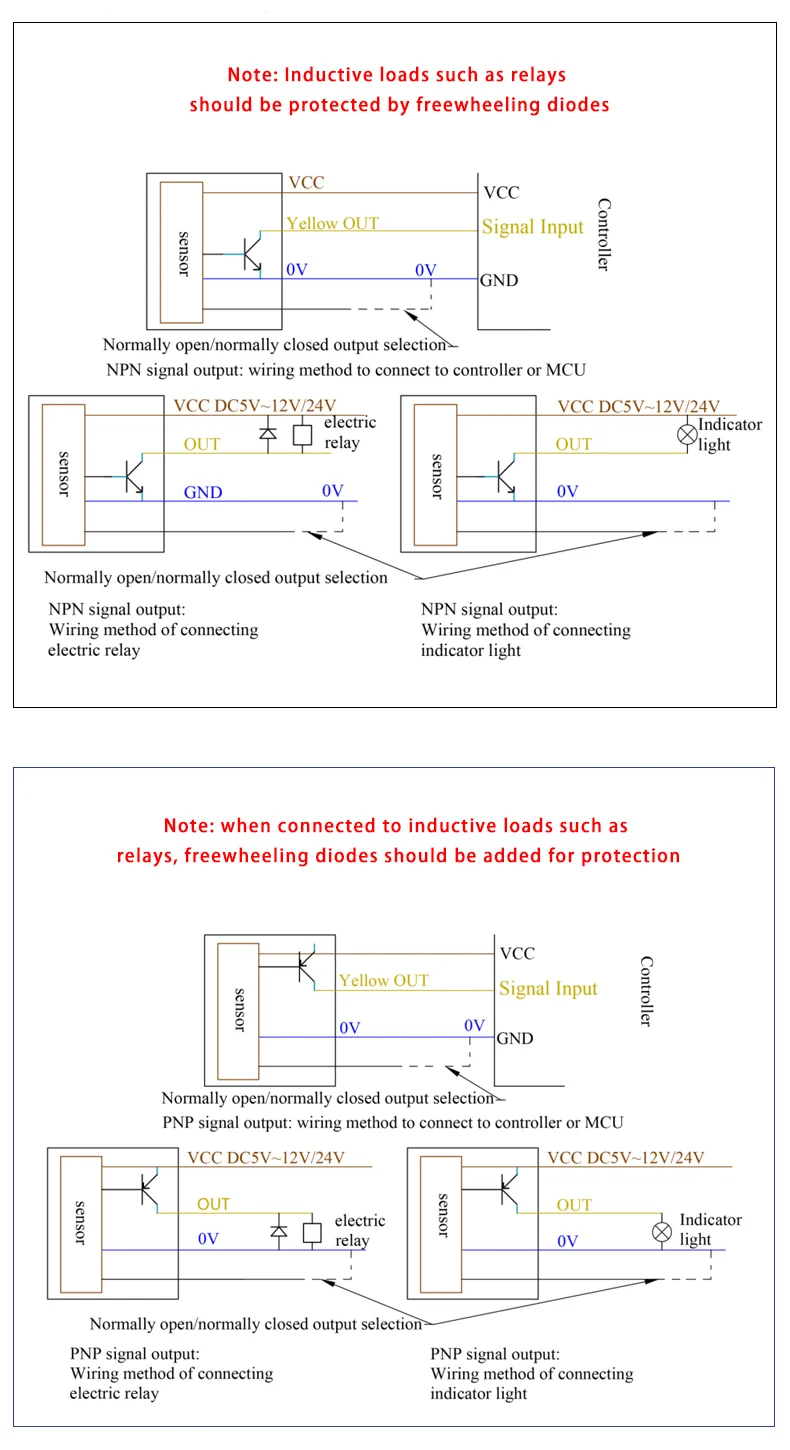

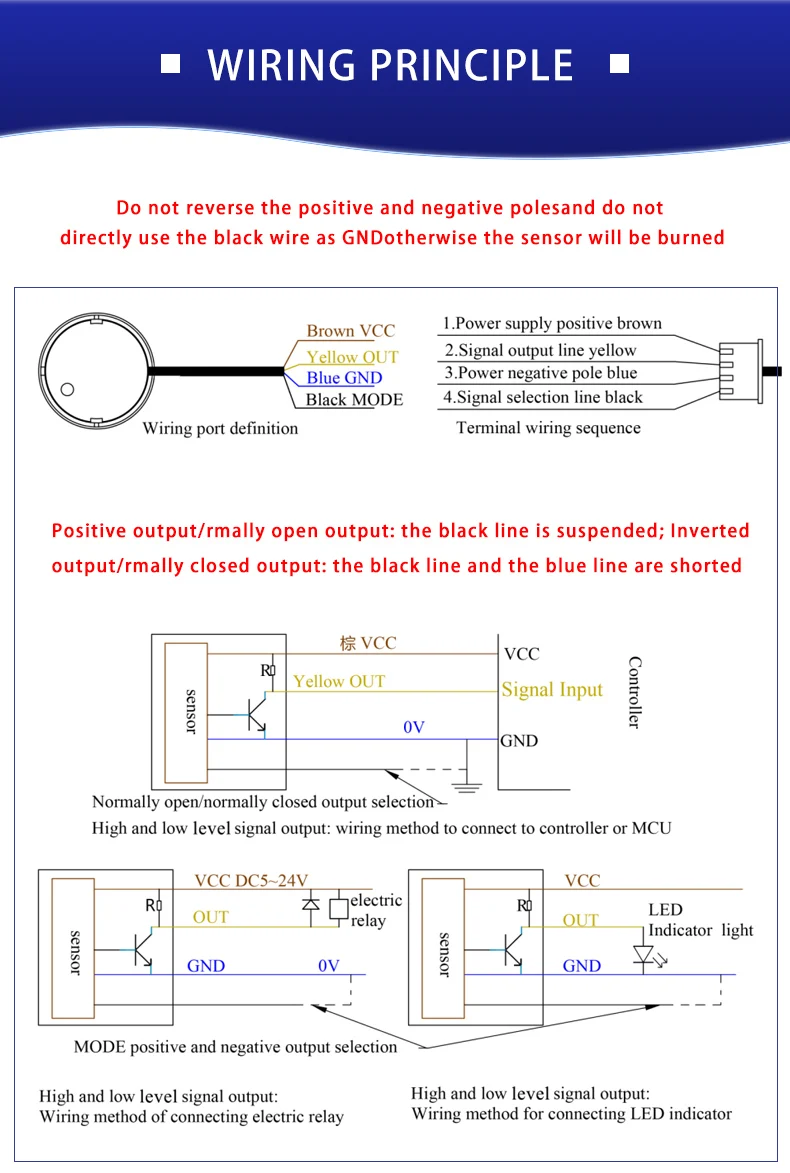

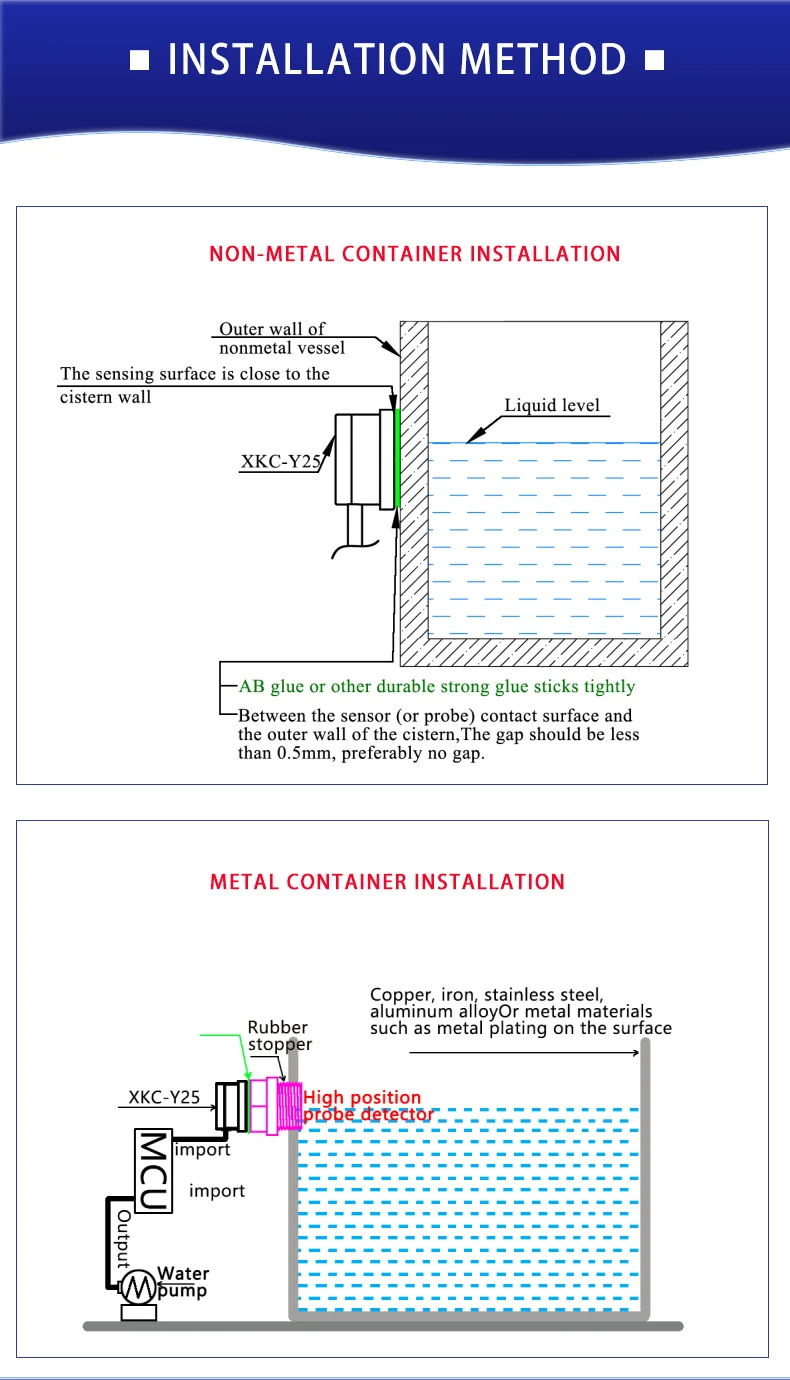

4、output principle and recommended wiring method

5、Sensitivity adjustment

If it cannot be detected or the detected liquid level is too high from the Y25 sensor.

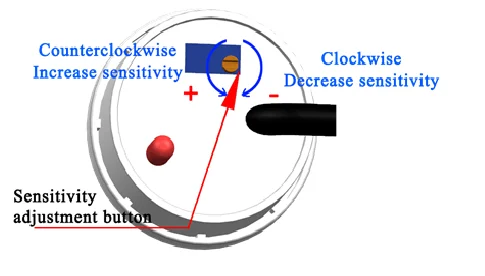

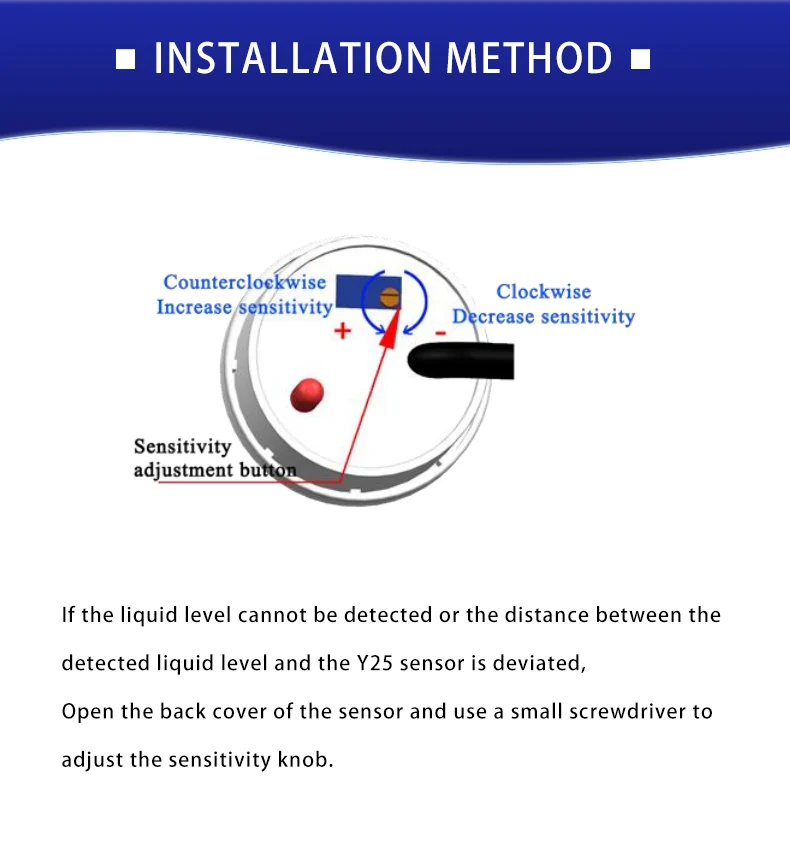

Open the back cover of the sensor and use a small screwdriver to adjust the sensitivity knob. There are two setting methods:

1. Low sensitivity adjustment: turn counterclockwise to increase sensitivity,

2. High sensitivity adjustment: turn clockwise to lower the sensitivity.
