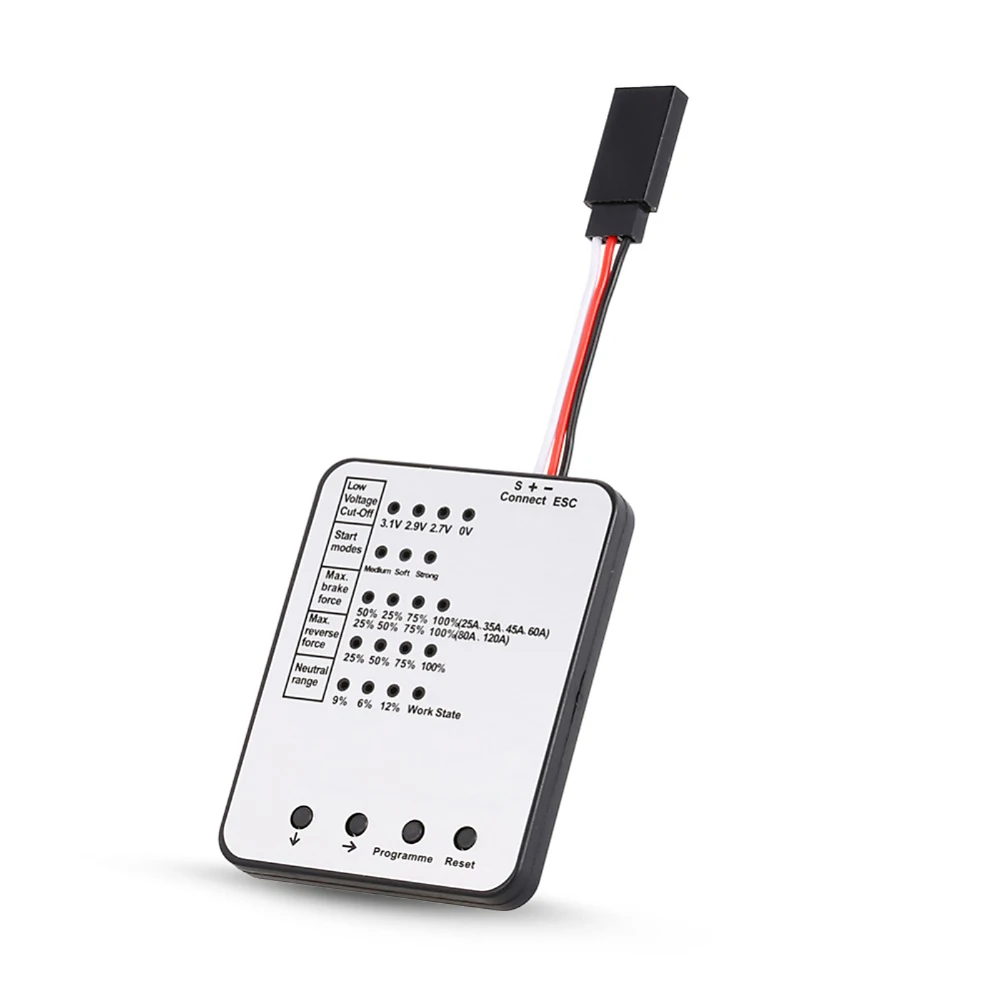

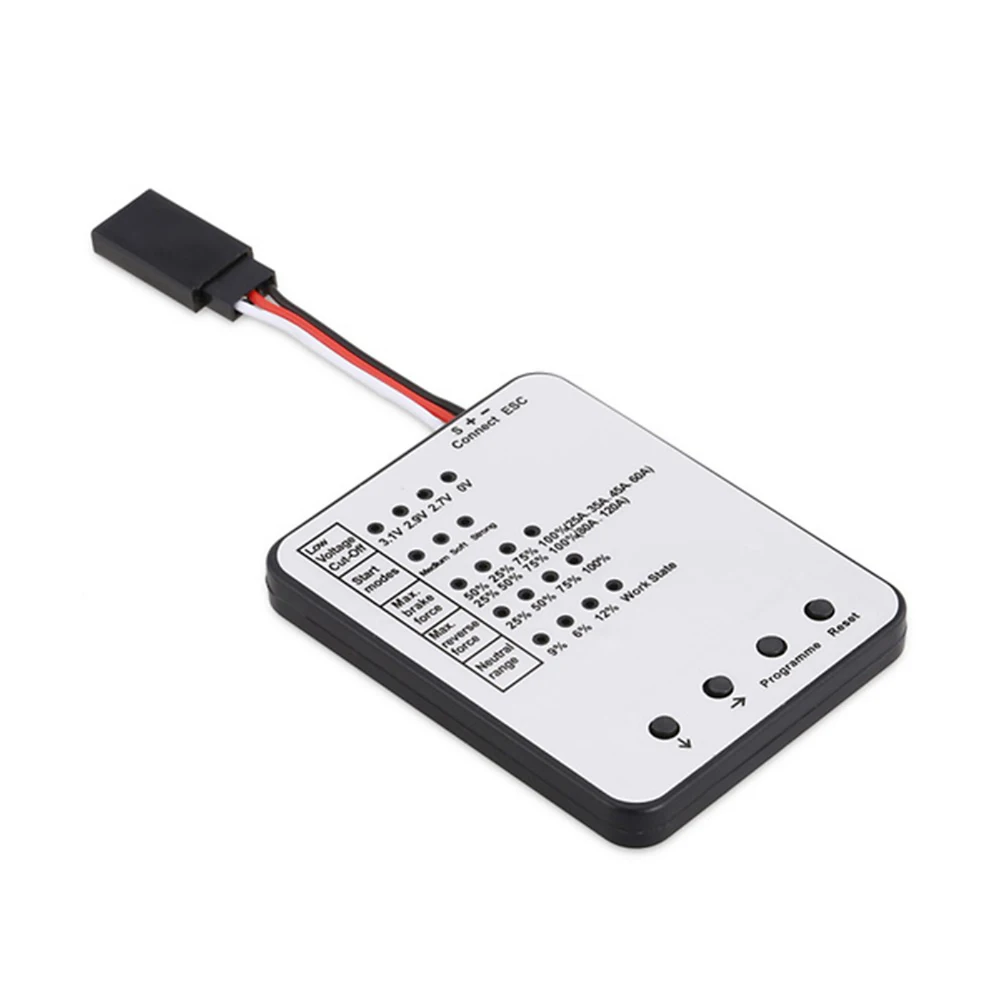

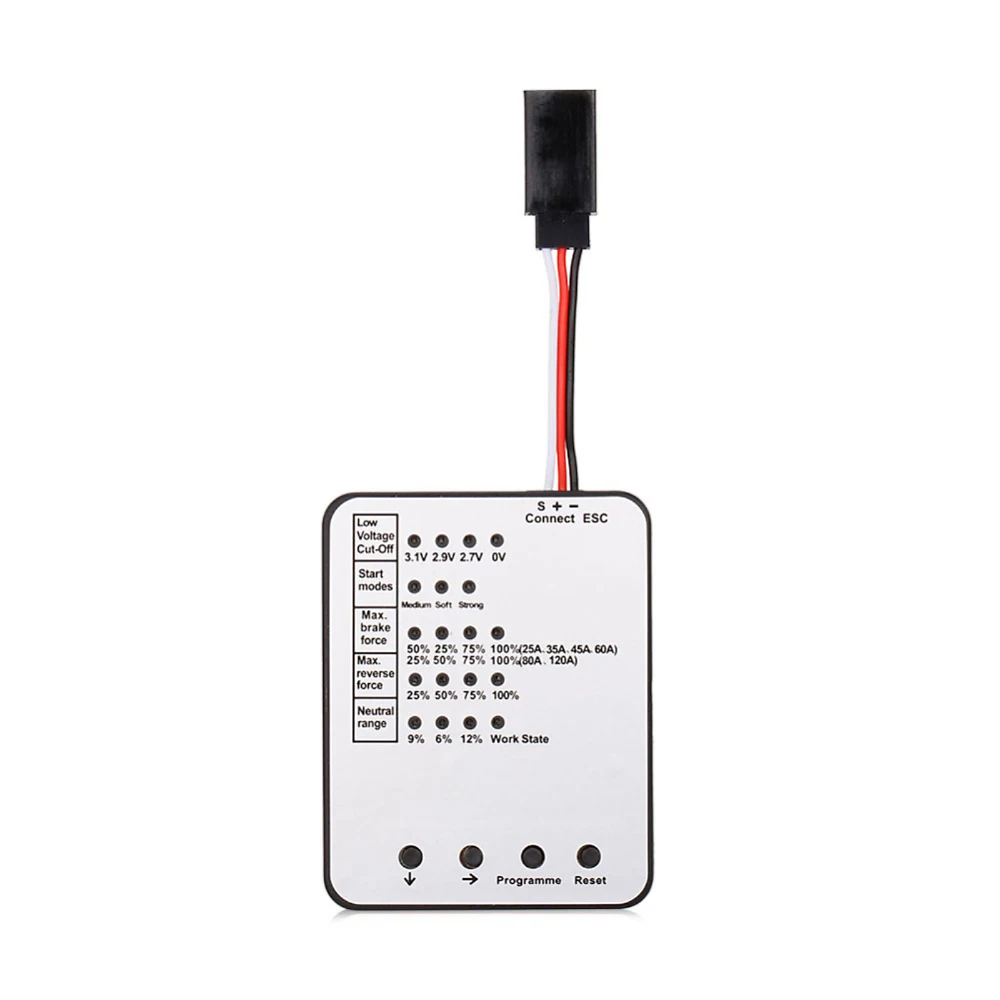

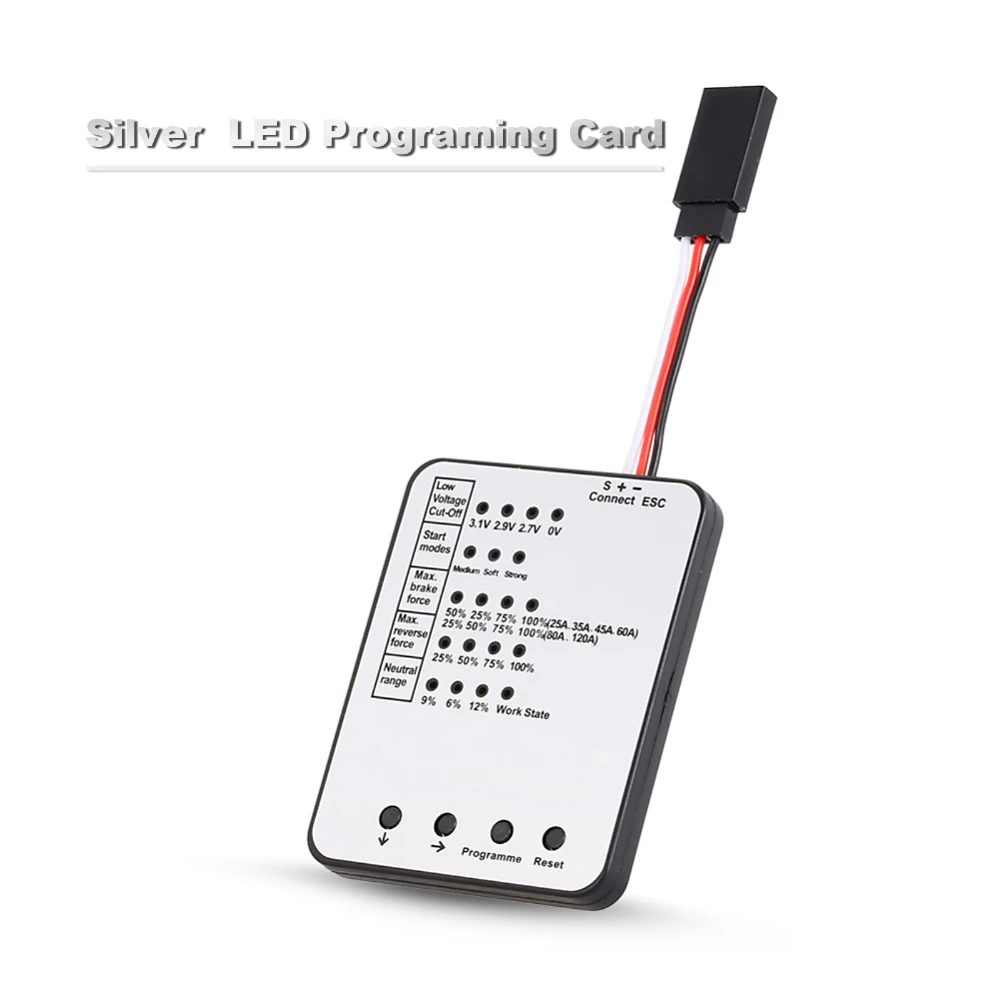

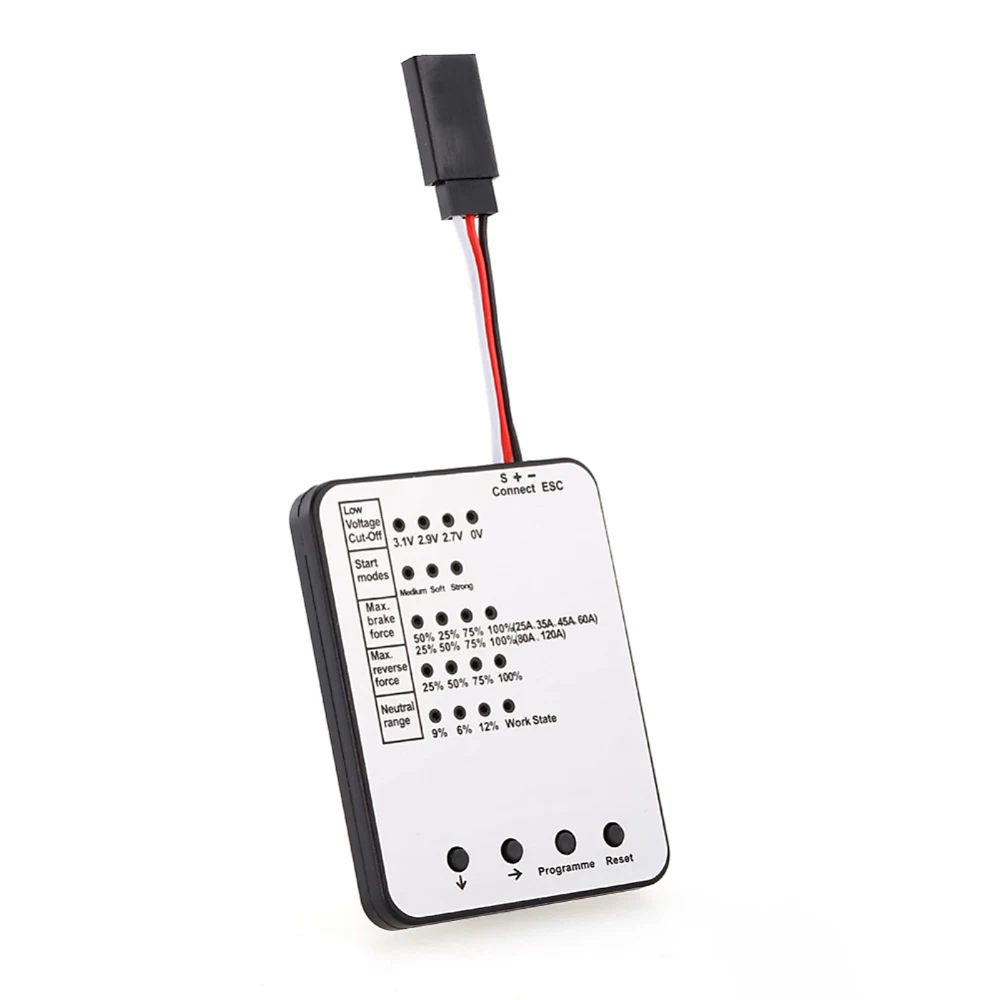

RC Car Program Card SURPASS HOBBY LED Programming Card for RC Car 25A/35A/45A/60A/80A/120A/150A Brushless ESC

Features:

1.Suit for 25/35/45/60/80/120A ESC.

2.This Programing Card is easy to use.

3.It can program brake force, reverse force, low voltage protection, start mode and neutral range.

Description:

Simple operation, suitable for a variety of esc, is a good choice for RC fans.

Specifications:

Brand Name: SURPASS HOBBY

Use: Vehicles & Remote Control Toys

For Vehicle Type: Cars

Remote Control Peripherals/Devices: LED Program Card

Only Apply to: Racerstar

Material: plastic

Low voltadge cut off voltadge: 3.1V/Cell 2.9V/Cell 2.7V/Cell No cut-off

Start mode：Medium soft strong

Max brake force: 25%,50%,75%,100%,

Max reverse force: 25%,50%,75%,100%,

Neutral range: 6%,9%,12%,work state

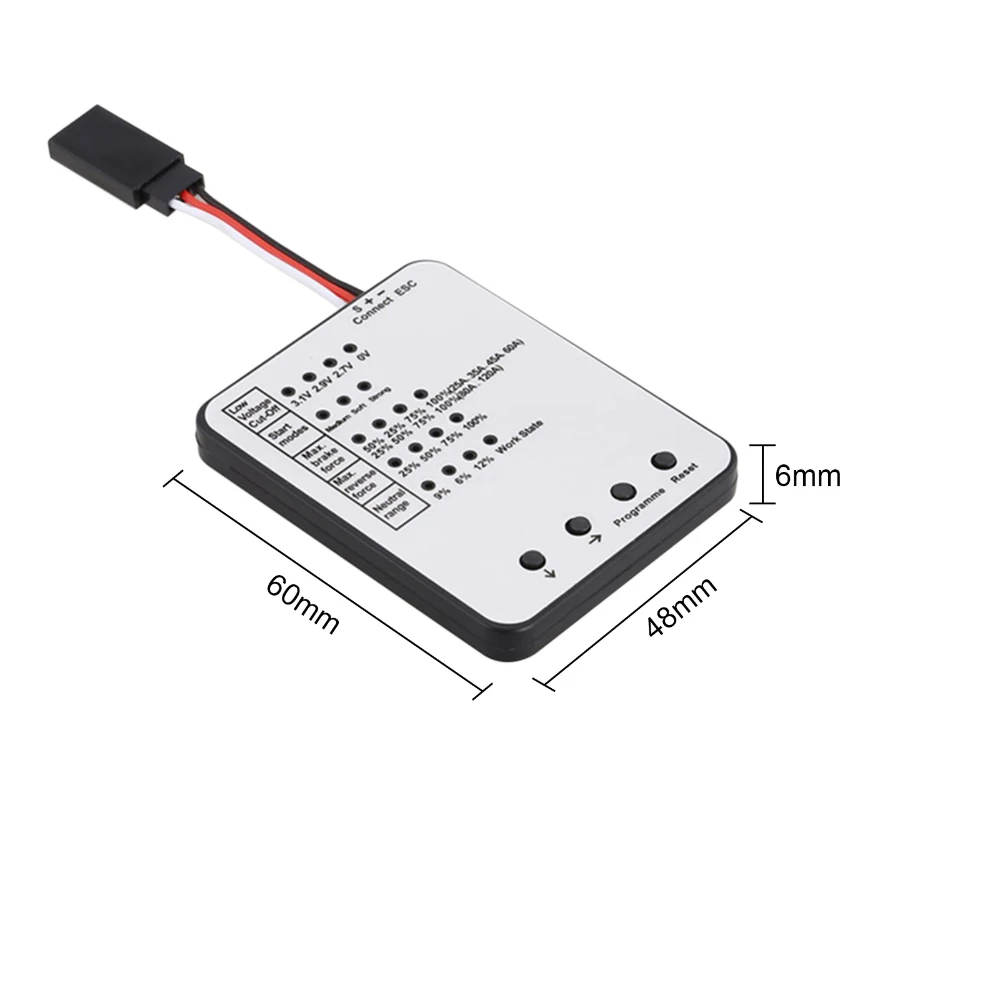

Size:60*48*6mm

Weight:20g

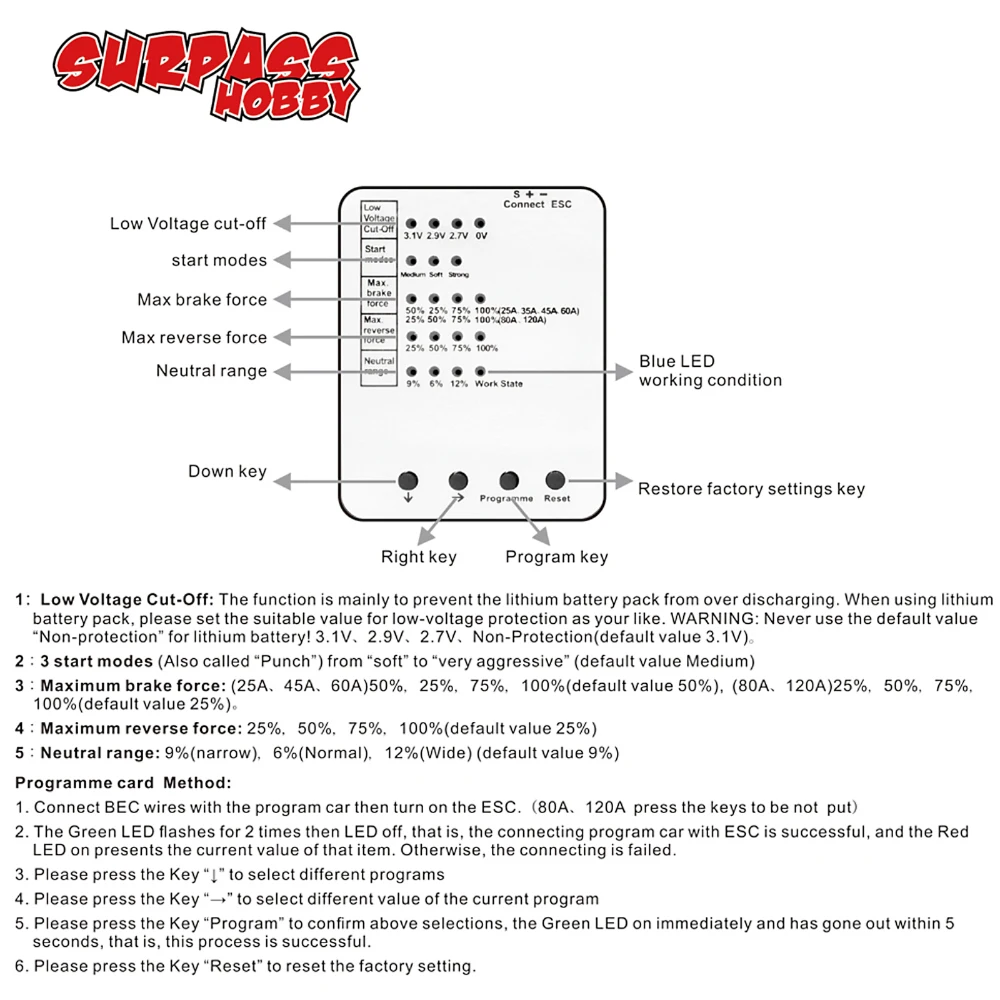

Programmer operation instructions:

A) Connect the BEC wire of the electric adjustment to the programmer in the direction of the color shown above (the black ground wire is on the right border).

B) Connect the power supply of the electric adjustment and turn on the power switch (80A and 120A should press the key of the electric adjustment.

C) When the programmable green LED flickers twice on the programmer, it always brightens to indicate that the electric tuner and the programmer are connected successfully. When the programmable LED is sub-extinguished, the programmer reads out the current programmable parameters of the electric adjustment and displays the corresponding LED in the corresponding project. Otherwise, the connection will fail.

D) The downward button on the programmer can be selected in different programming projects. The corresponding LED lights of the selected current project will be on in turn, indicating the currently selected project.

E) Press the right button on the programmer to select the current content to be set in the current selected project, and the selected content LED lights will be on.

F) Repeat the operations of D and e to select all the contents that need to be set.

G) According to the programming keys on the programmer, the contents set above are programmed to the electric adjustment. At the beginning of programming, the programming LED lights turn on and go out after 5S indicates that the programming is successful. Otherwise, the programming fails (after turning off the power, reprogramming).

H) Press the factory button on the programmer to indicate that the power adjustment will be restored to the default settings of the factory. At the beginning of programming, the programming LED lights turn on and go out after 5S indicates that the programming is successful. Otherwise, the programming fails (after turning off the power, reprogramming).

Package information:

Package size: 9*5*1cm

Package weight: 26g

Ploybag package

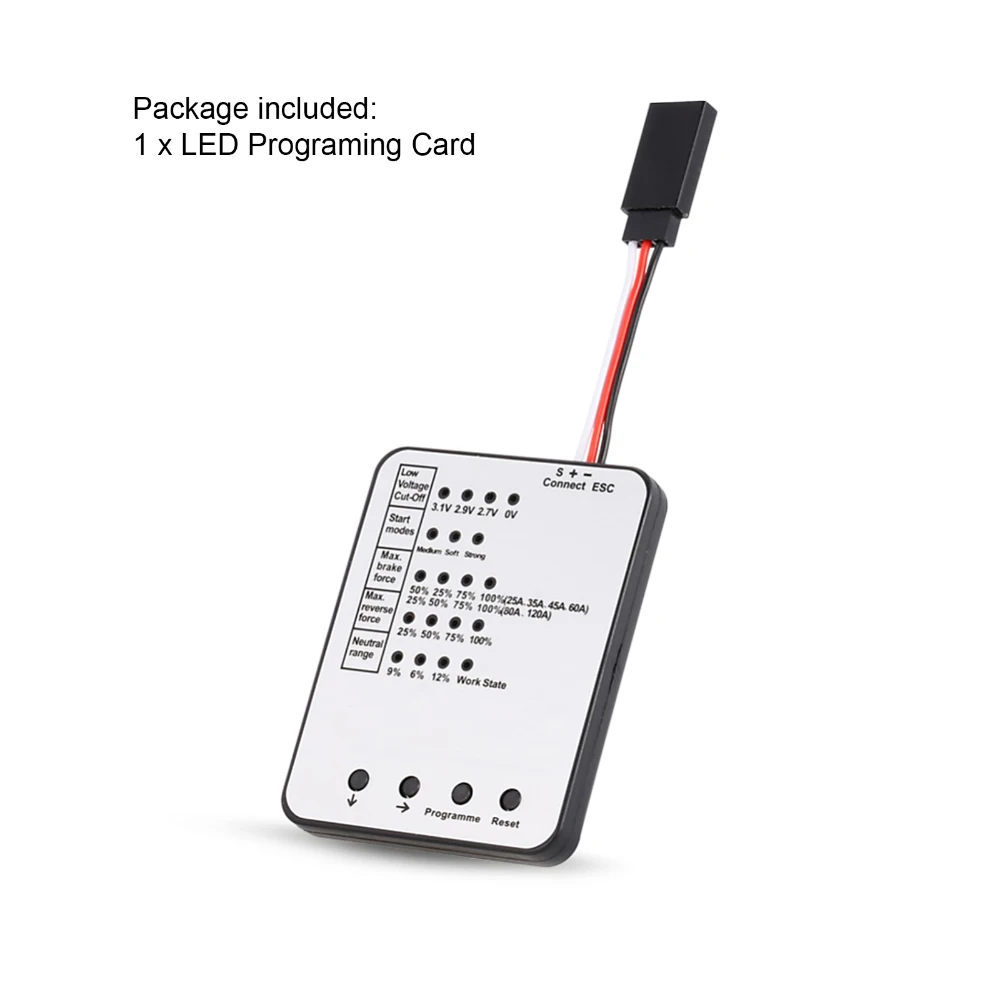

Package included:

1 x LED Programing Card
