10pcs PCB Tact Tactile Micro Mini Latching Push Button On Off Self Lock UnLock Switch DIP 6 Pin Cap 5.8*5.8/7*7/8*8/8.5*8.5mm

10pcs PCB Tact Tactile Micro Mini Latching Push Button On Off Self Lock UnLock Switch DIP 6 Pin Cap 5.8*5.8/7*7/8*8/8.5*8.5mm

Suggestion:

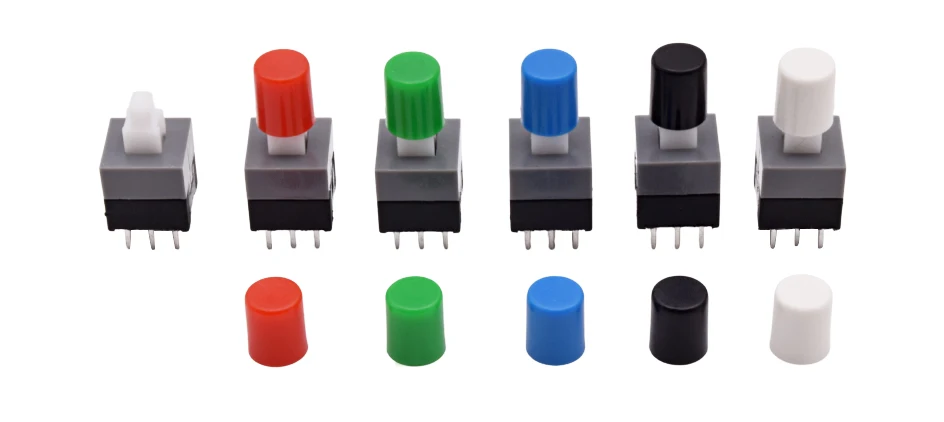

It is best to fix the switch cap with glue

Description:

1.6 Pin configuration can be used as jumper leads to facilitate PCB layout.
2.Features low contact resistance, small bouncing noise, high contact reliability.
3.Applied to home appliances and electrical products.

Specification:

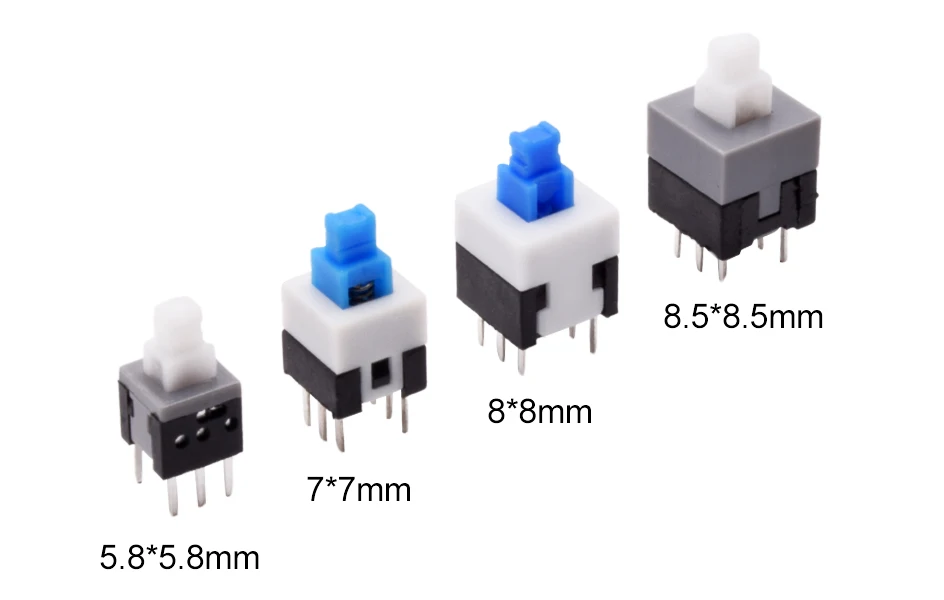

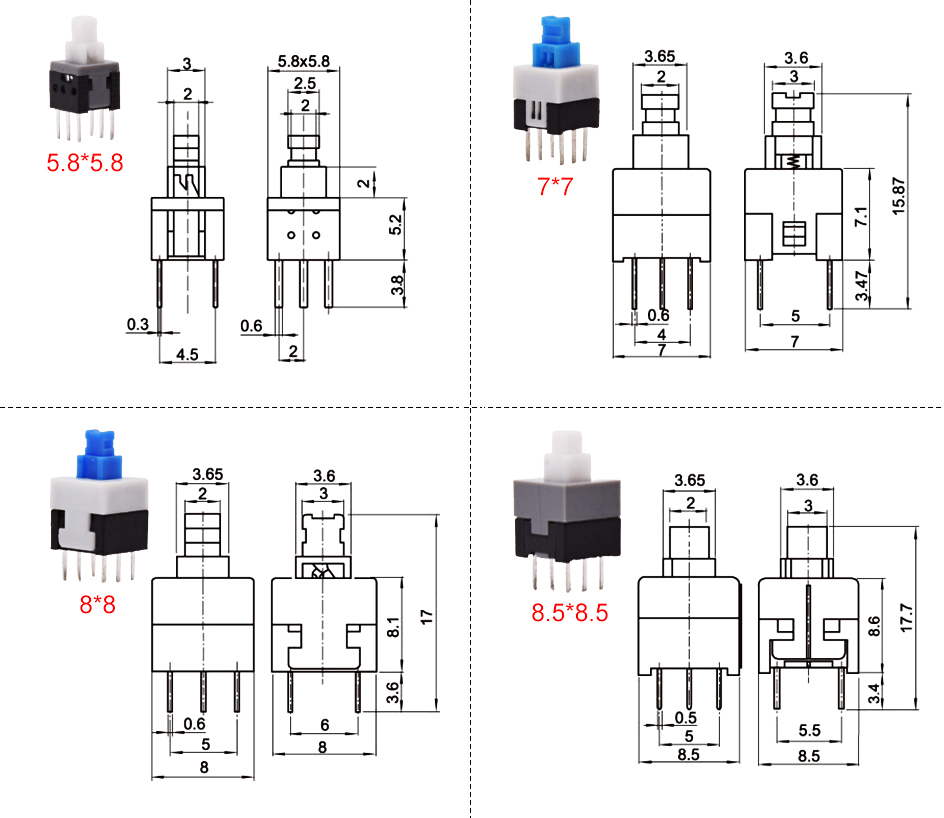

Size: 5.8*5.8mm/7*7mm/8*8mm/8.5*8.5mm
Function: Locking/Unlock
Rating: 0.1A 12V DC
Contact Resistance: ≤200mΩ
Withstand Voltage: AC250V 50Hz /min
Actuation Force: 250gf
Insulation Resistance :≥100mΩ
Mechanical Life: 100,000 times

Packing:10 pieces/lot

Note:

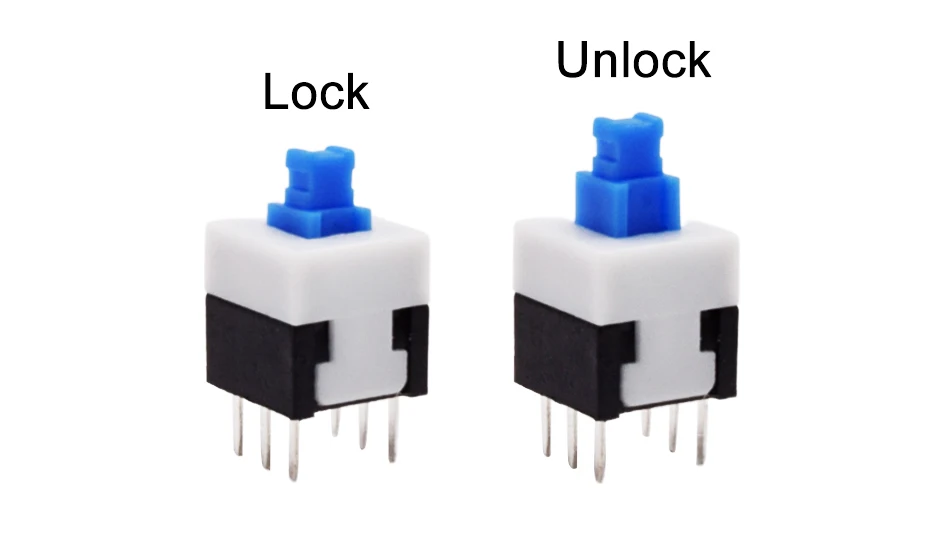

Locking- Push the button, switch on; Release it, switch keep on; Push again, switch off

Unlock - Push the button, switch on; Release it, switch off
