19/22/25/30mm Ultra Short LED Light Switch 3V 6V 12V 24V 220V Momentary Self Reset Waterproof Metal Push Button Switch with Wire

The key stroke of the product is ultra-short, the volume is ultra-thin, and the rated current is 1A.

🔥【IP65 Waterproof Metal Push Button Switch | Industrial-Grade Durability】

✅ IP65 High Protection Rating: Dustproof and waterproof, suitable for humid/dusty/outdoor environments

✅ Wide Voltage Compatibility: Offers 3-6V/12-24V/220V lighting voltage options; 3-6V/12-24V DC/AC universal (except 220V, which is AC only); 1A rated current ensures stable load

✅ Multiple Sizes: 16/19/22/25/30mm mounting apertures; pre-wired design for zero installation hassle

✅ Lighting Modes: No LED/Single Color/Dual Color/RGB Tri-Color

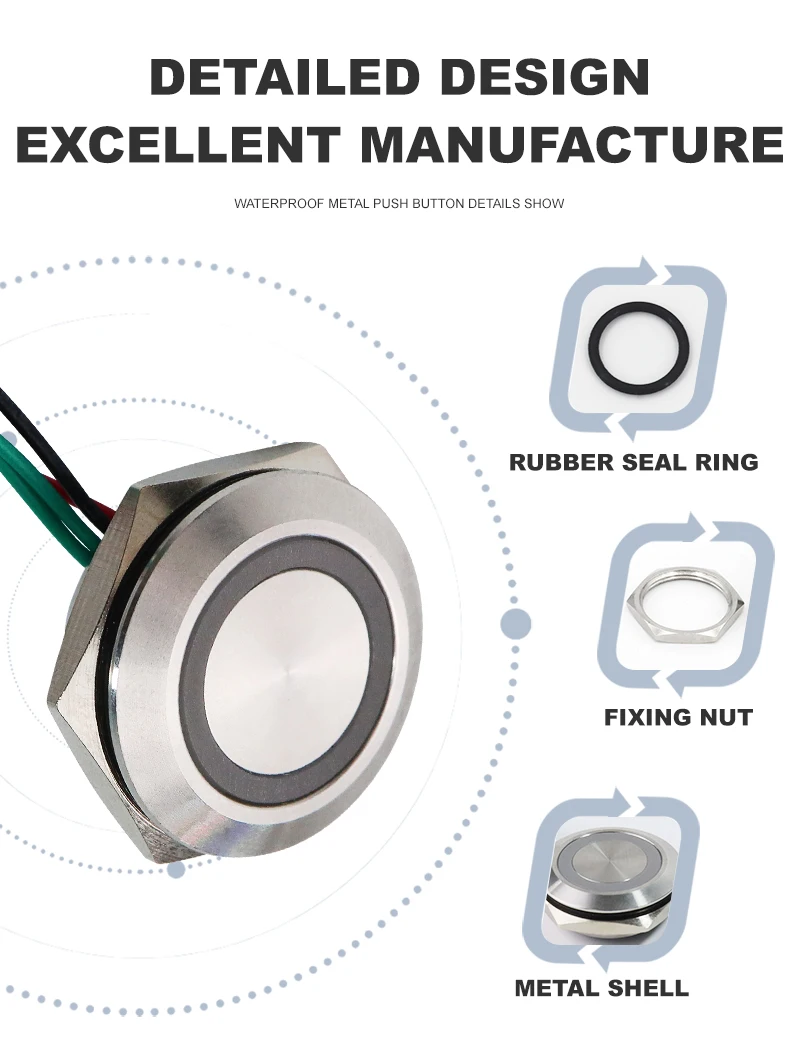

✅ Ultra-Compact Body: Solves installation challenges in tight spaces; stainless steel housing resists corrosion and impacts for extended lifespan

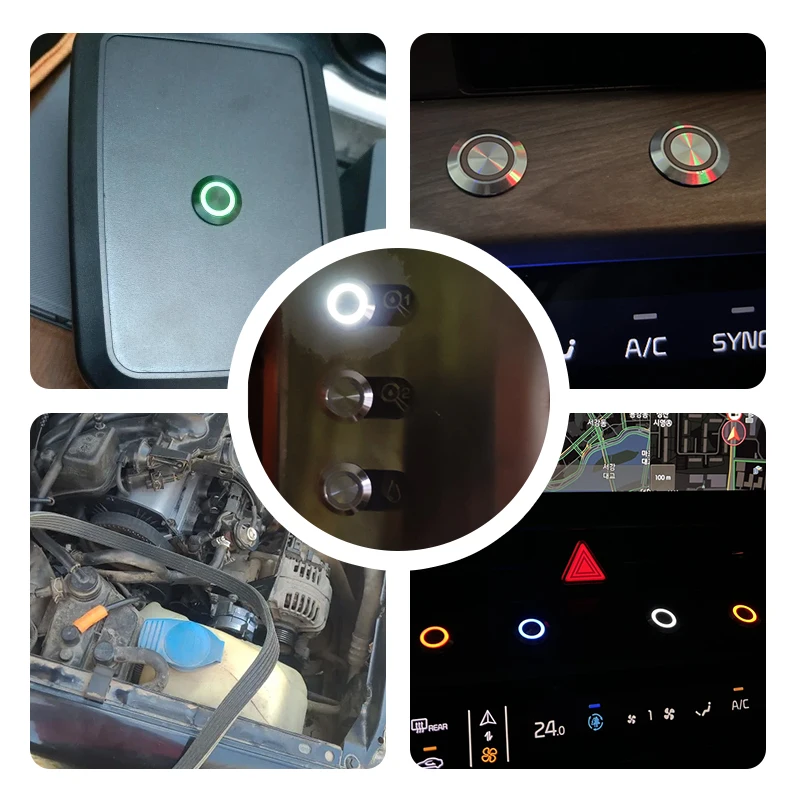

💡 Applications: Smart homes, automation equipment, automotive modifications, machinery control, outdoor lighting, DIY electronics projects, etc.

📦 Specifications:

- Protection rating: IP65

- Rated current: 1A

- Voltage: 3-6V / 12-24V / 220V

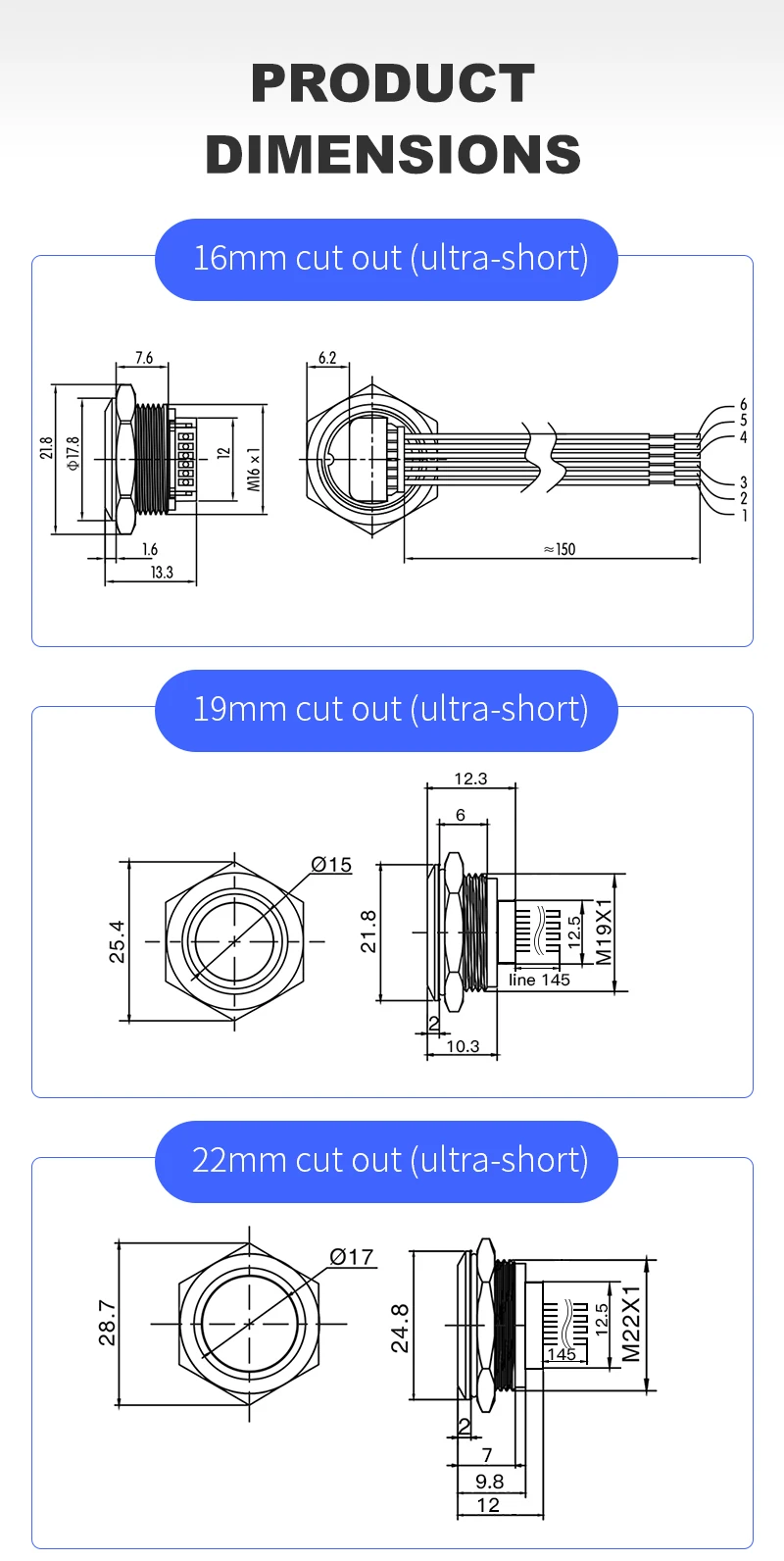

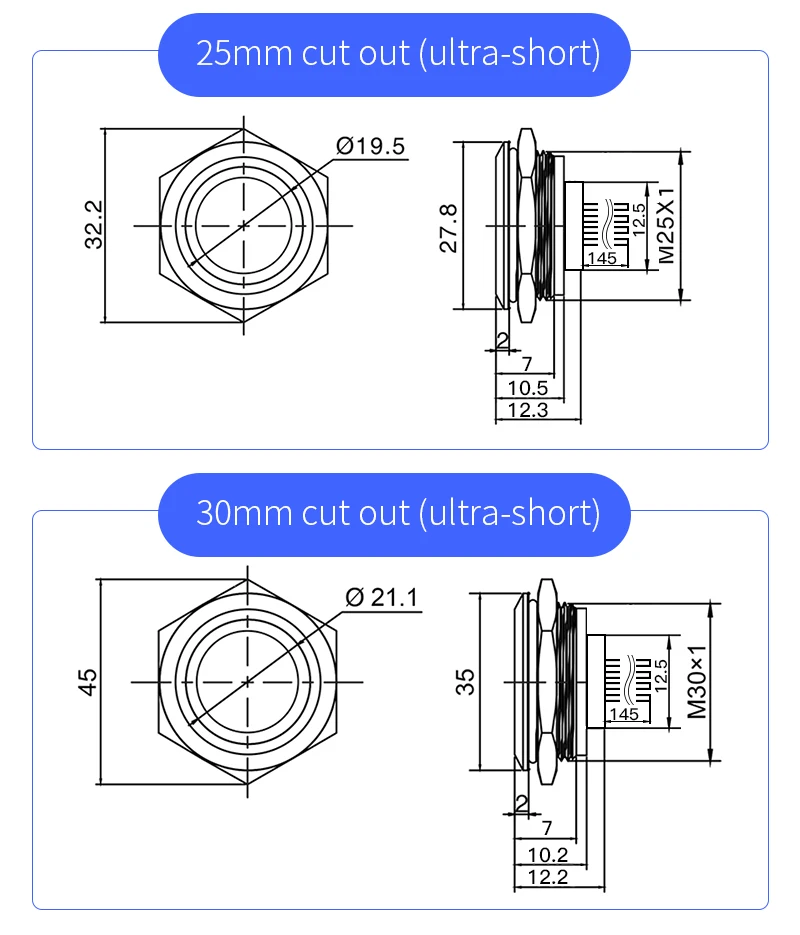

- Dimensions: 16/19/22/25/30mm

- Trigger Type: Momentary (Self-Resetting)

- Material: Stainless Steel (Silver Housing)/Aluminum Alloy (Black Housing)

✨ Why Choose: Ultra-compact design + IP65 waterproofing + Multiple size/voltage options for safer, more convenient device control!

This button is a momentary button. It means that the power is only applied when the button is pressed.Once the hand is released, the button switch is automatically reset and the power is off.

The bicolor/ tricolor button means that when the corresponding input terminal is powered on, the corresponding color will light up, not at the same time.

The bicolor lights are red green by default, and the tricolor lights are red green blue by default. If you want other colors, please leave a note on the order page or send the message to us through chatbox.

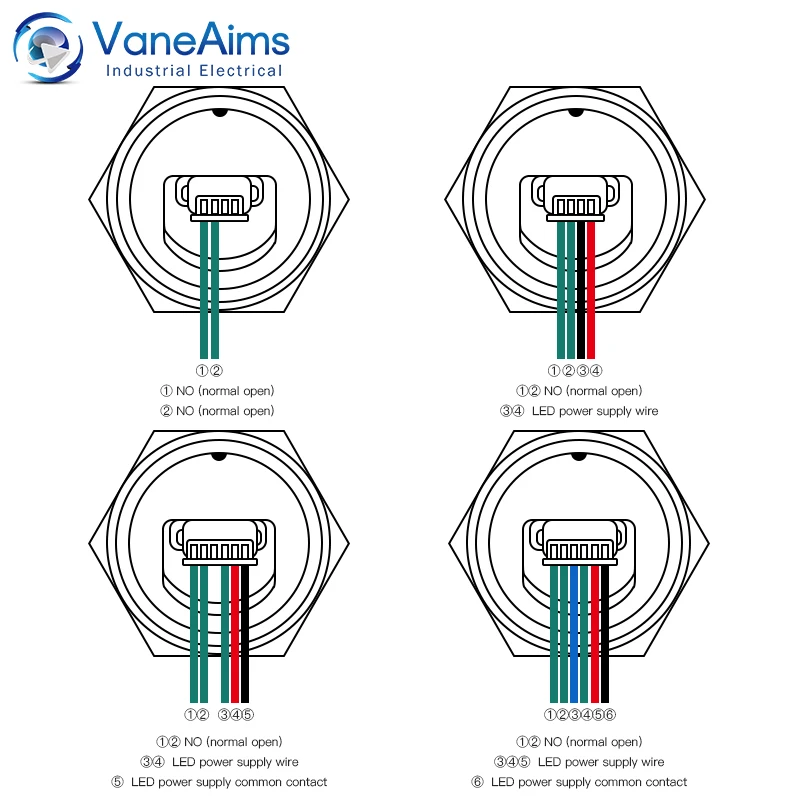

NO LED Type: 2 wires

With Single LED Type: 4 wires

With Bicolor LED Type: 5 wires

With Tricolor LED Type: 6 wires

①② NO(normally open contact)

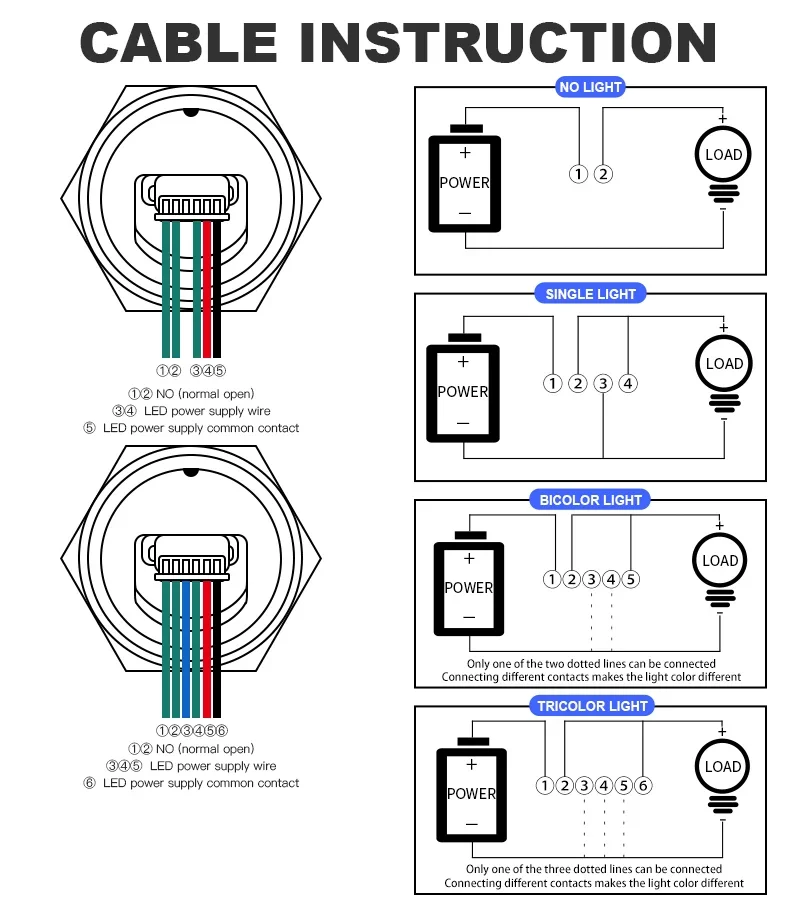

Bicolor Light Wiring Diagram: Only one of the two dotted lines can be connected. Connecting different contacts makes the light color different [③④---LED power supply line / ⑤---LED power supply common contact]

Tricolor Light Wiring Diagram: Only one of the three dotted lines can be connected. Connecting different contacts makes the light color different[③④⑤---LED power supply line / ⑥---LED power supply common contact]
