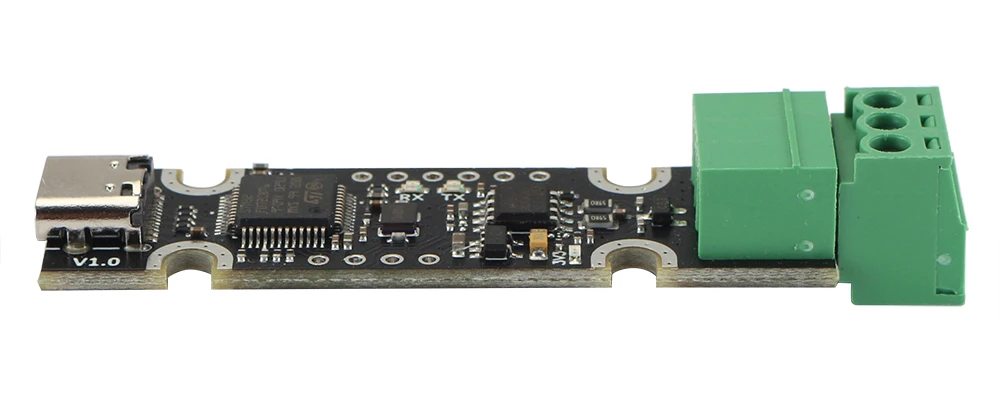

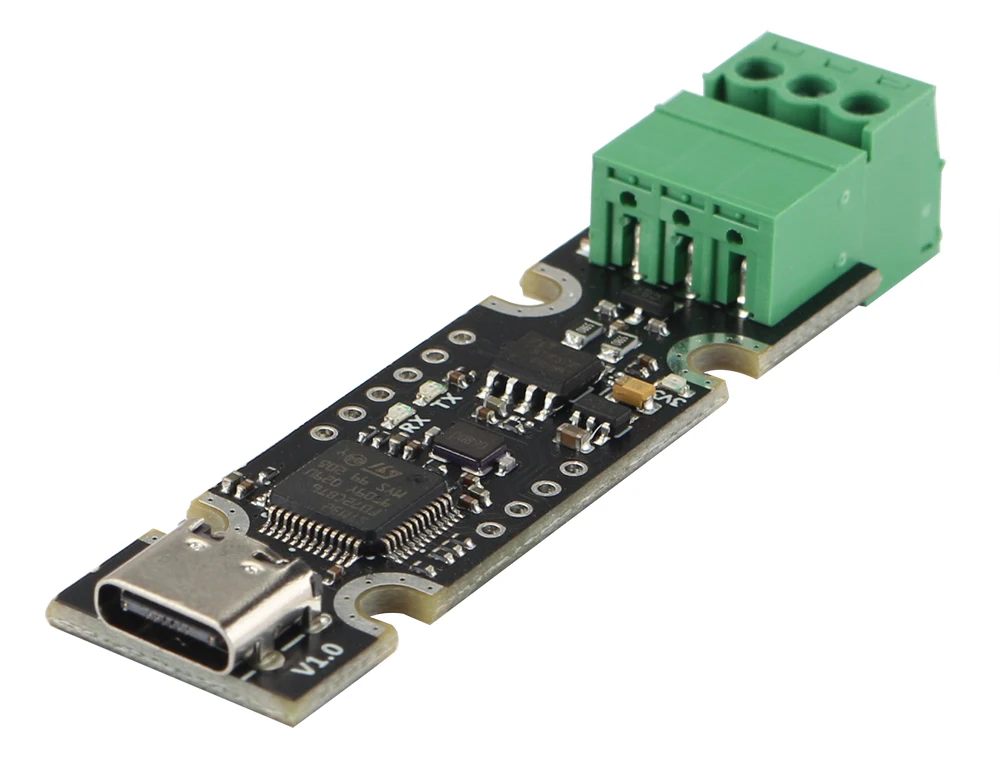

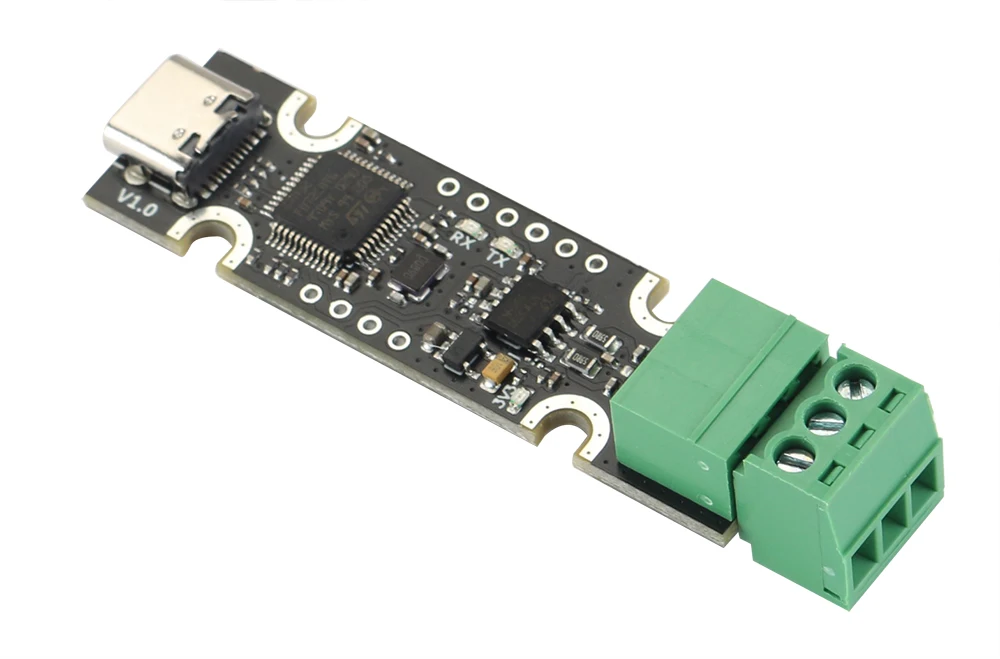

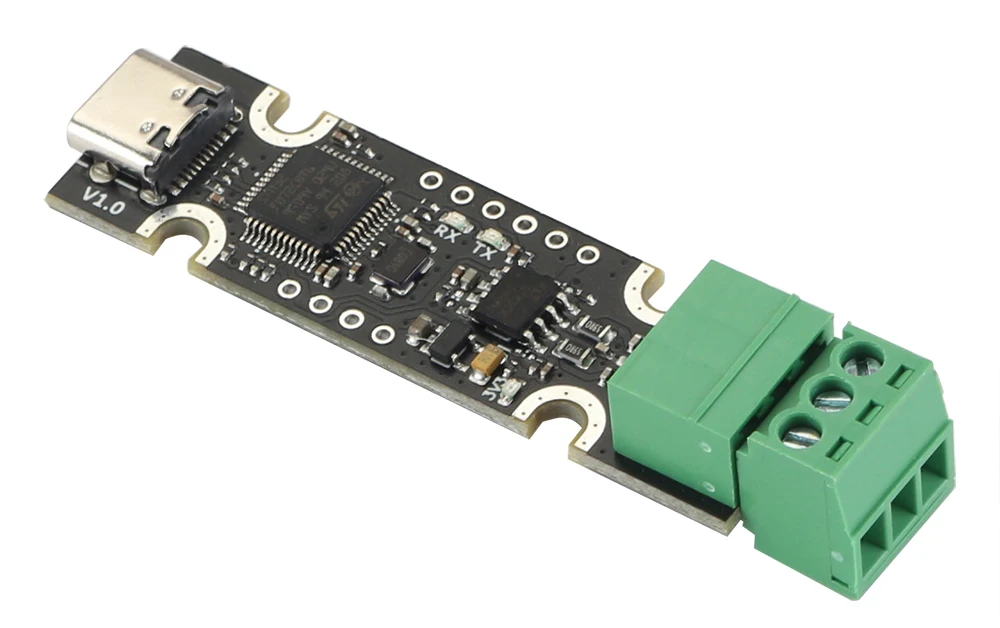

FYSETC UCAN Board Based on STM32F072 USB to CAN Adapter Support with CAnable / CandleLight / Klipper firmware

FYSETC UCAN Board Based on STM32F072 USB to CAN Adapter Support with CAnable / CandleLight / Klipper firmware

More info ：https://github.com/FYSETC/UCAN

Features：

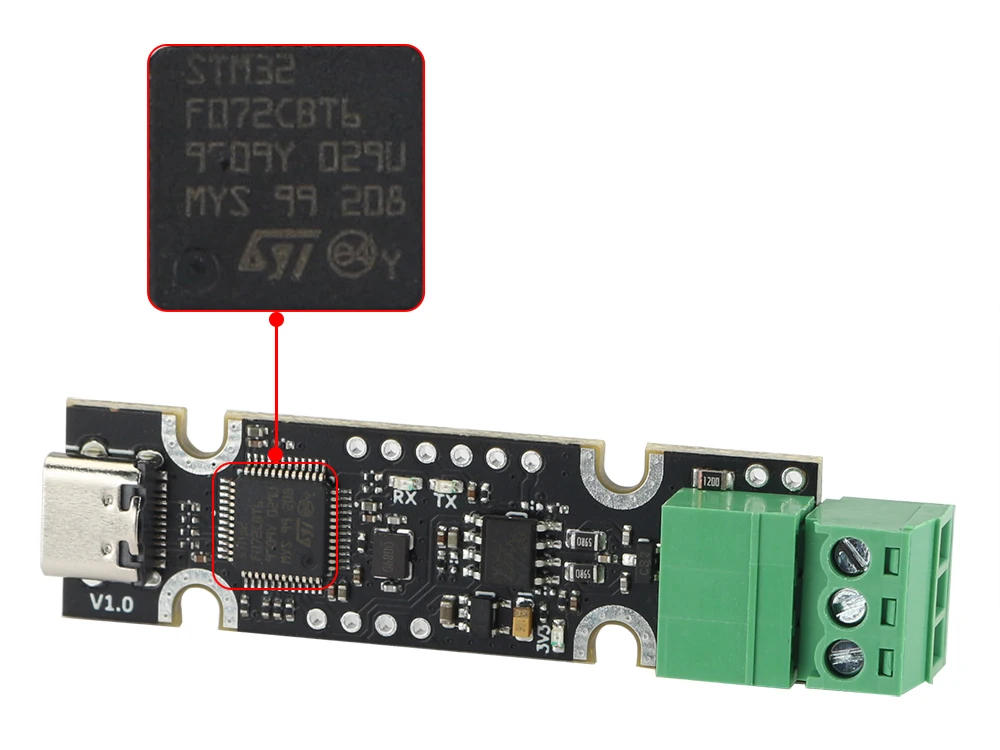

- Based on STM32F072

- Type-C USB socket

- Supports CAN2.0A and B, baud rates up to 1M

- Compatible with CANable

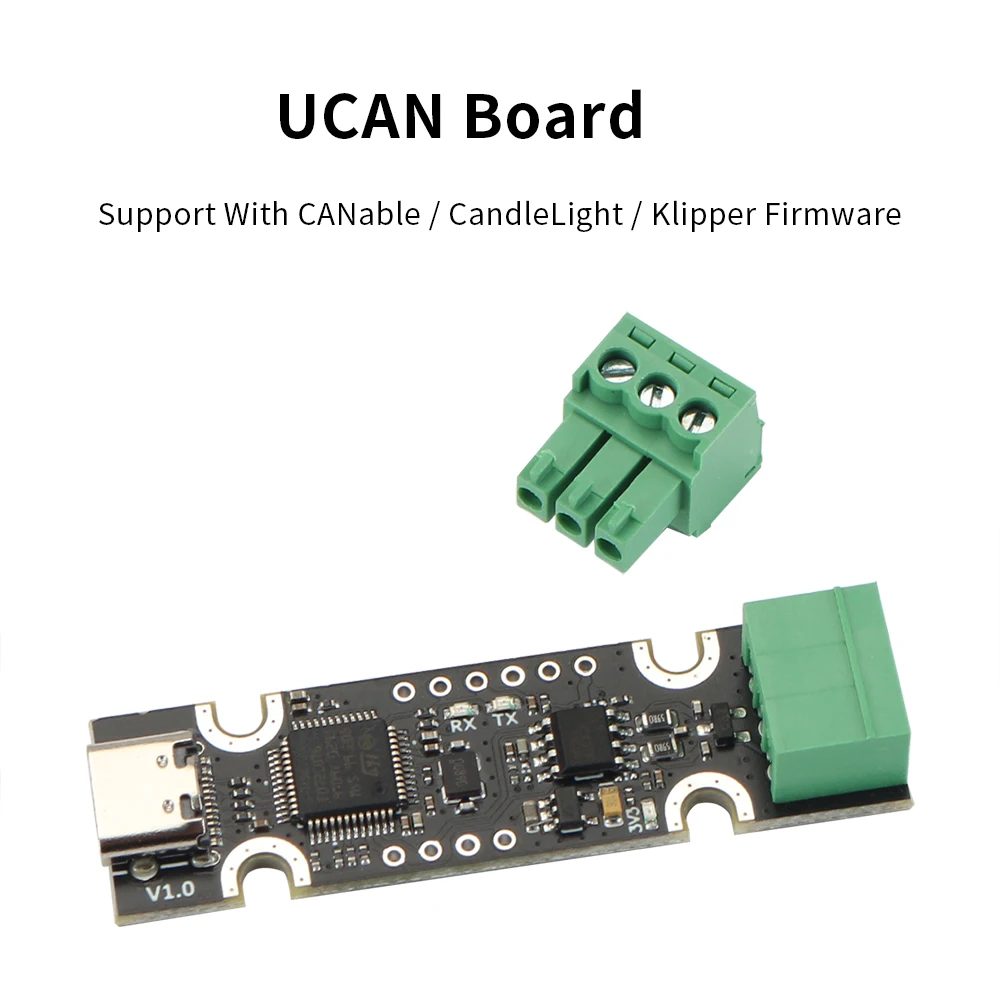

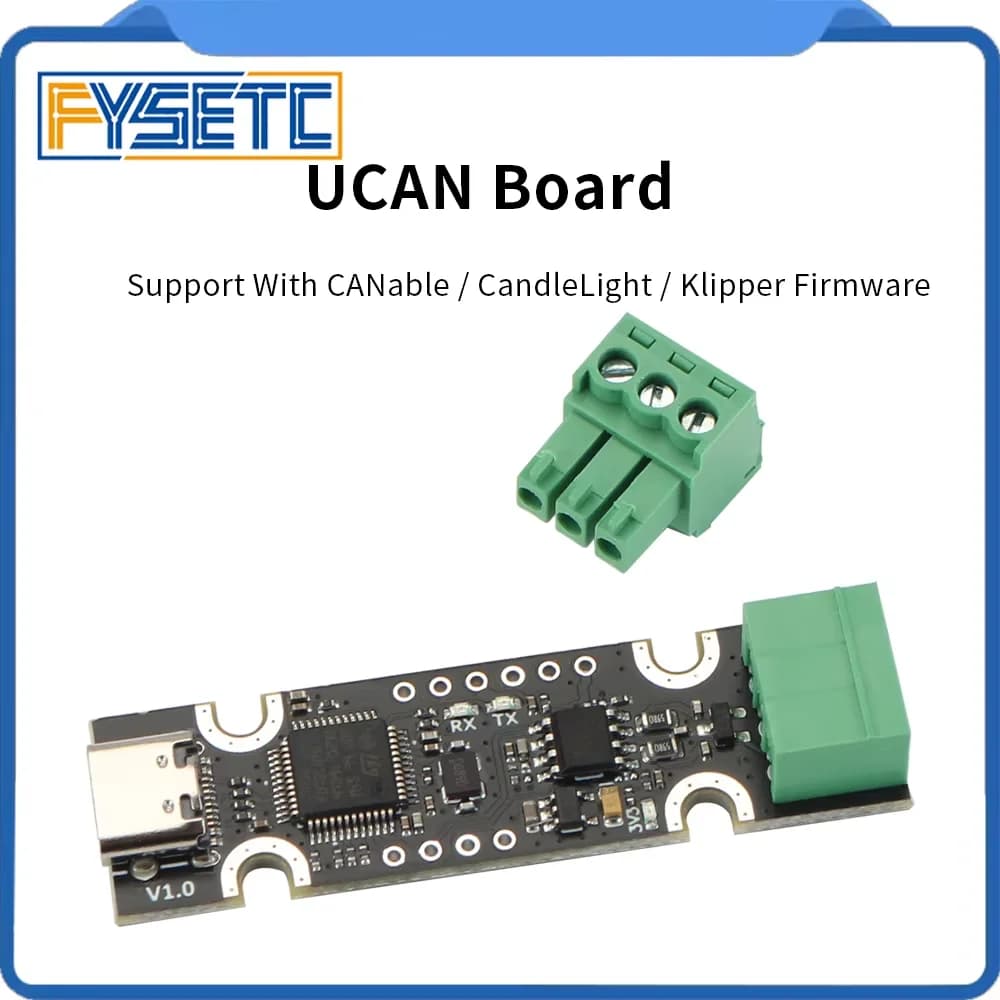

- Support with CAnable / CandleLight / Klipper firmware

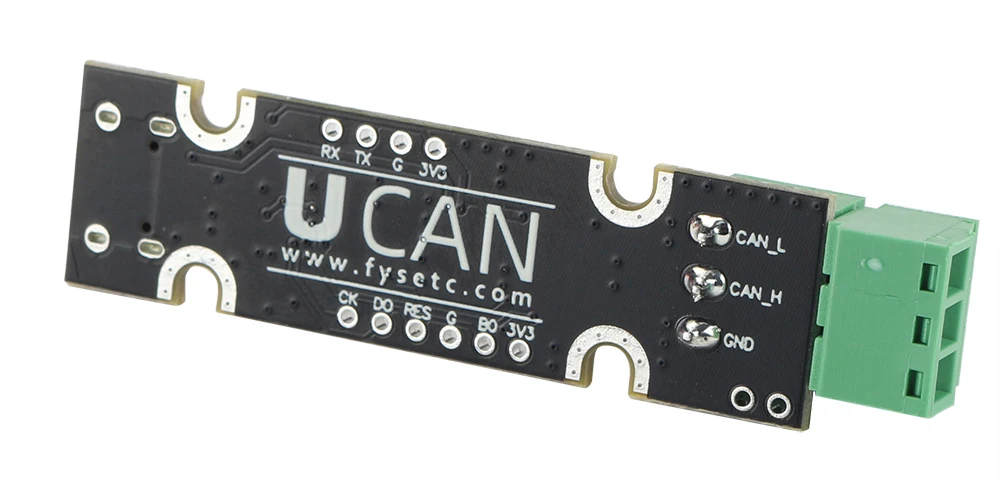

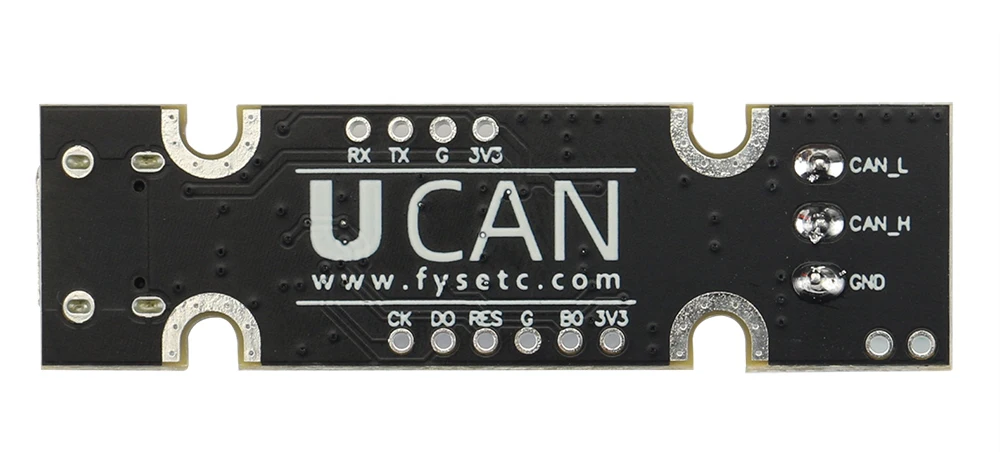

- 3-pin screw terminal: CANH, CANL, GND

- Jumper to enter bootloader for firmware updates

- Onboard 120R termination default or Jumper to enable/disable termination

About the Products：

UCAN is a small low-cost open source USB to CAN adapter, compatible with CANable hardware. The UCAN enumerates as a virtual serial port on the computer and acts as a serial-line for the CAN bus interface. With the alternative Candlelight firmware, UCAN is enumerated as the native CAN interface on Linux. The UCAN adapter is compatible with ARM-based embedded platforms such as Raspberry Pi, Raspberry Pi Zero, ODROID, BeagleBone, etc. At the same time, it can also be used as USB to CAN application on Klipper.
