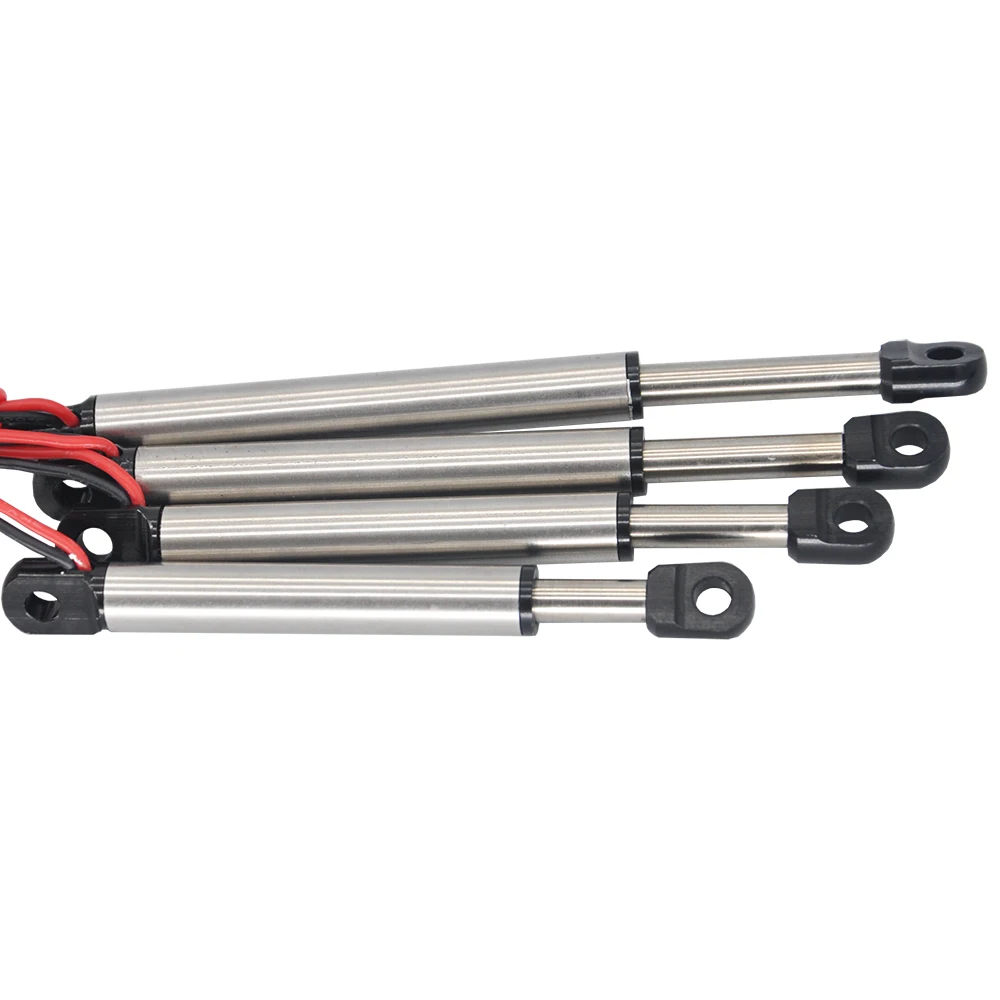

Metal Electric Push Rod Simulation Cylinder 30/50/80/100/130mm Travel 3 ~ 6V Pushrod For RC Car Excavator DIY Model Accessories

Full Metal Electric Push Rod Simulation Cylinder 10/15/20/25/30/50/80/100/130mm Travel Stroke 3~6V Input Metal Pushrod

Features:

1. Built-in hidden motor, full metal push rod is more simulated

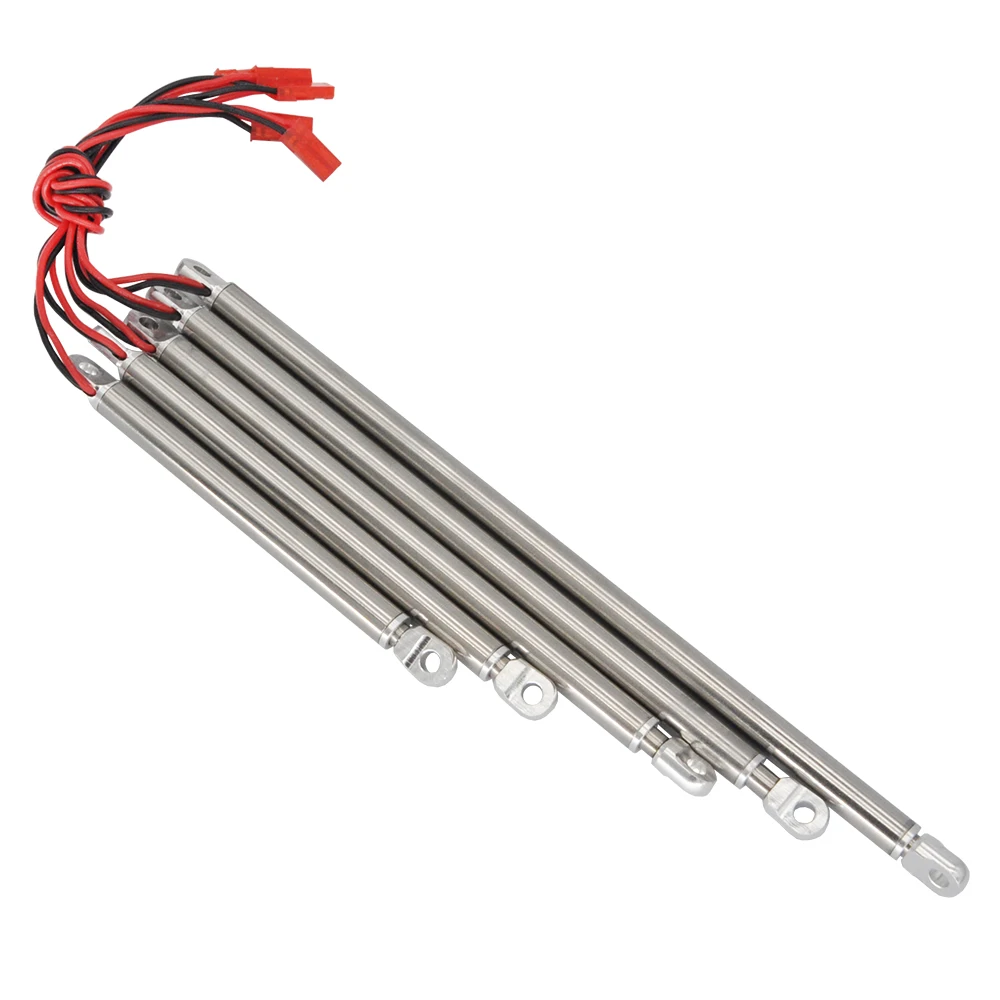

2. 10mm / 15mm / 20mm / 25mm / 30mm / 50mm / 80mm / 100mm / 130mm travel option

3. 5V power supply, thrust 1kg, speed 5mm/s; 6V power supply, thrust 1.5kg, speed 8mm/s

4. Closed design, the push rod will not slide out when it runs to the top.

5. Wide range of applications, various RC model upgrades, DIY toys, remote control models, robots, lifting platform opening and closing, etc.

Specifications:

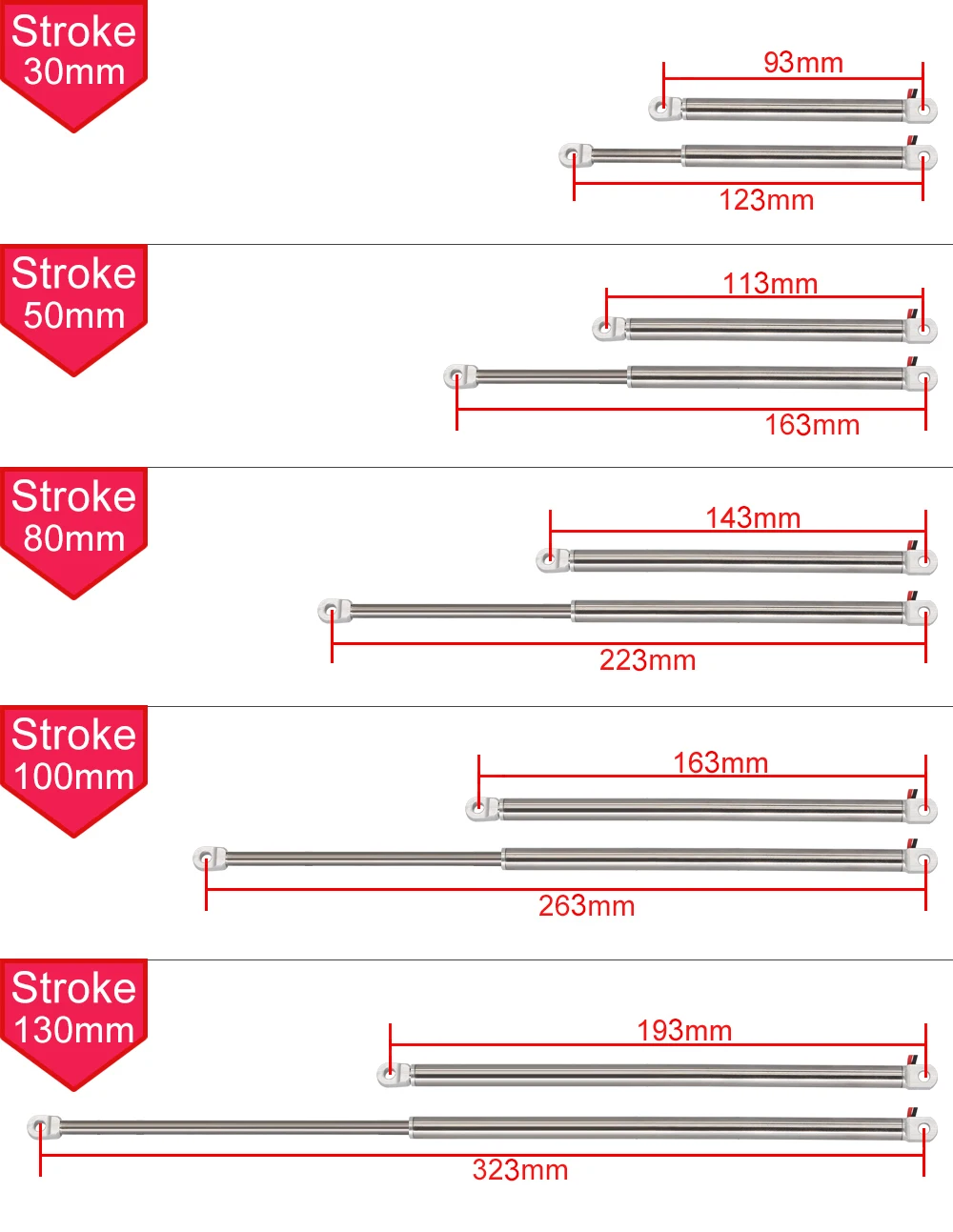

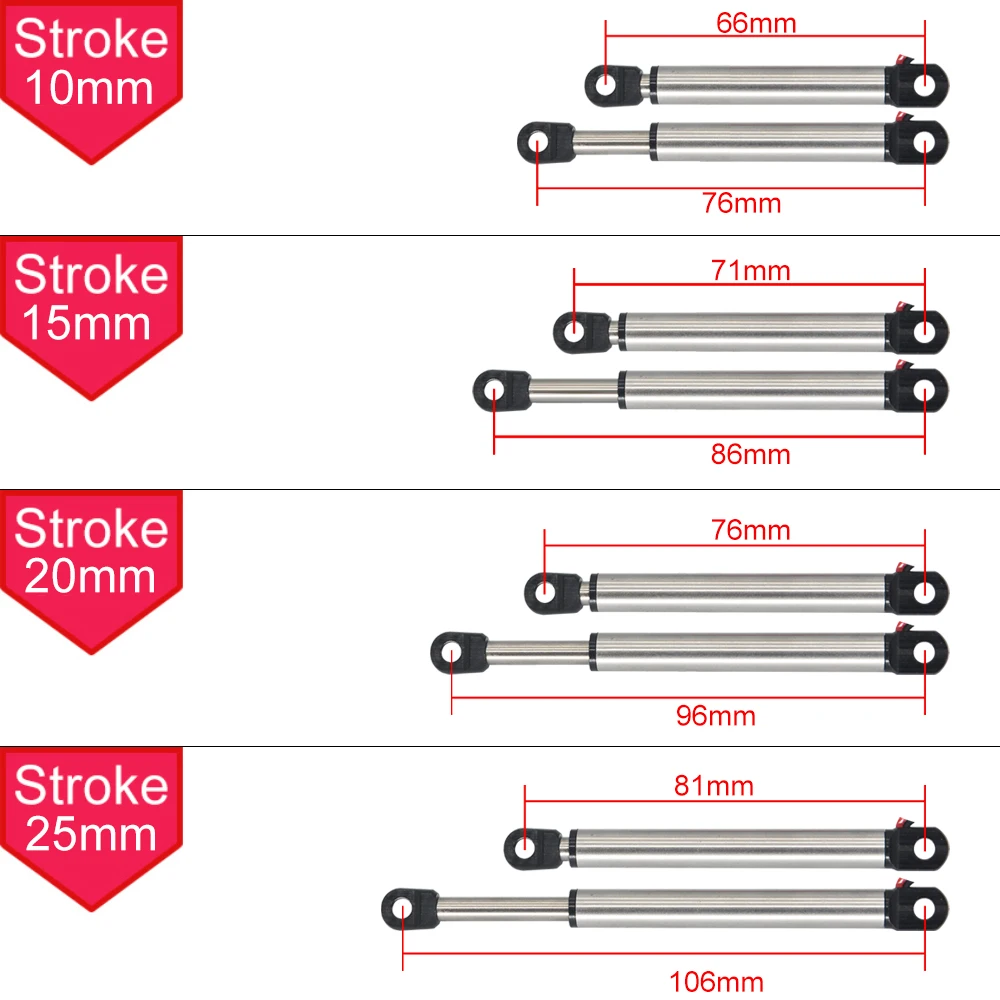

Stroke: 10mm, 15mm, 20mm, 25mm, 30mm, 50mm, 80mm, 100mm, 130mm

Voltage: 3.7~6V

Thrust: 1kg/5V, 1.5kg/6V

Speed: 5～8mm/s

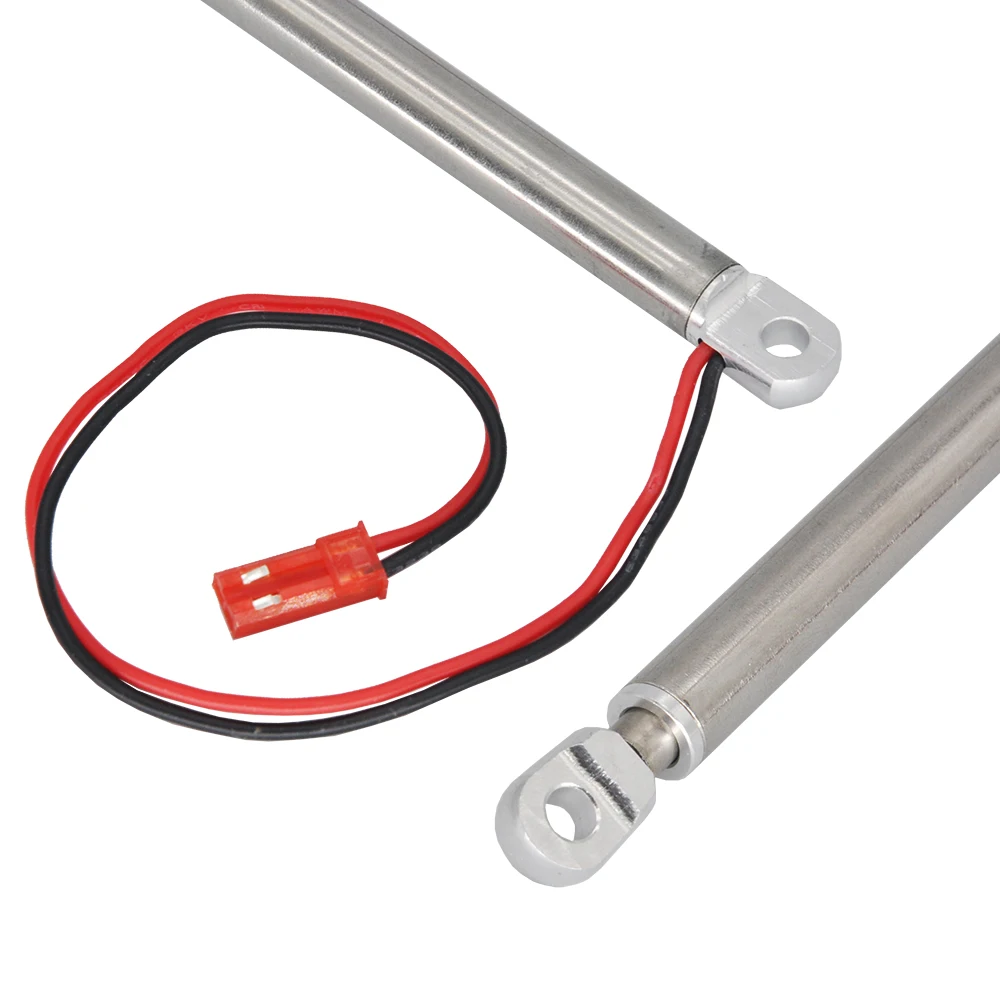

Material: Metal stainless steel, top and end metal connectors

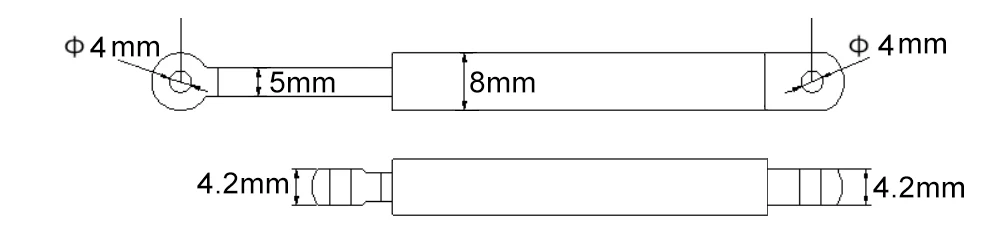

Size: 8mm outer diameter, 5mm diameter of the inner push rod , 4mm diameter of connector mounting hole, 4.2mm thickness

Notes:

1. The voltage should not exceed 8V, otherwise it may burn the motor.

2. Try to balance the top of the push rod , Can not withstand too much radial force.

3. Push to the top or pull back to the bottom, the motor will stop rotating.

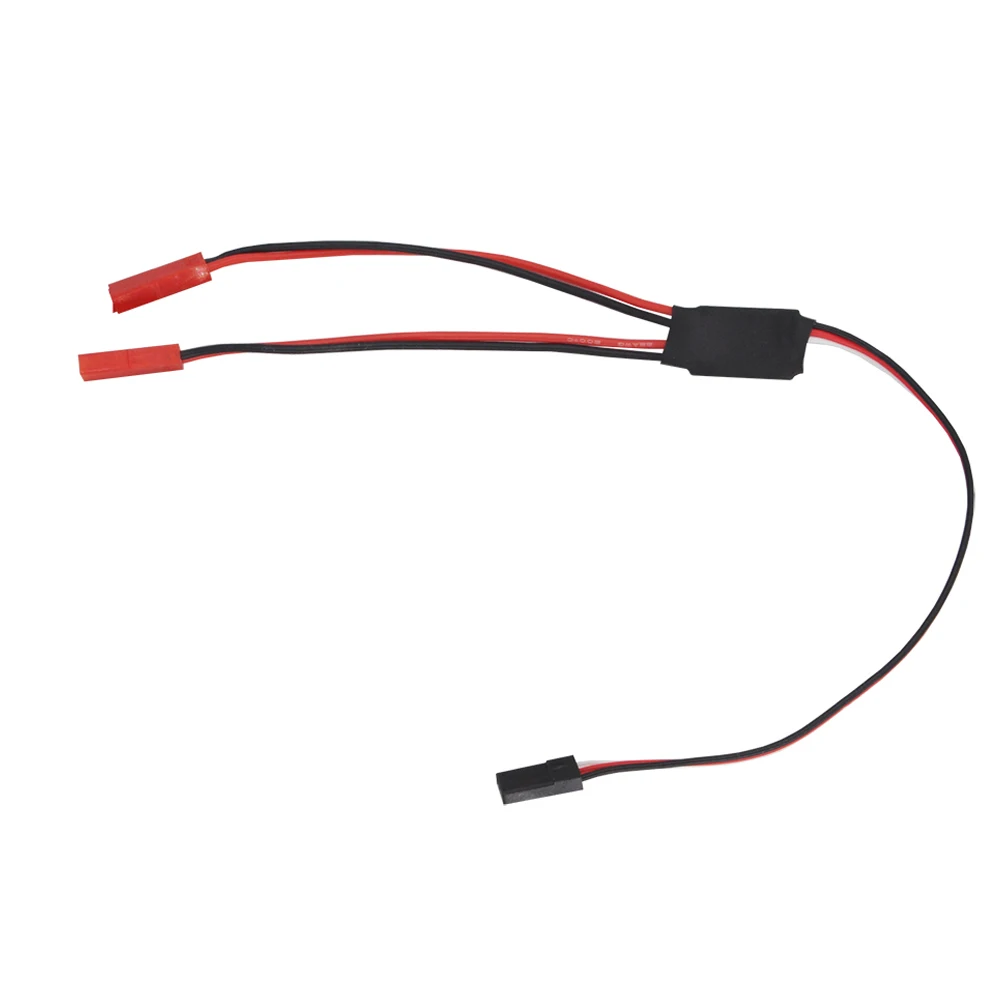

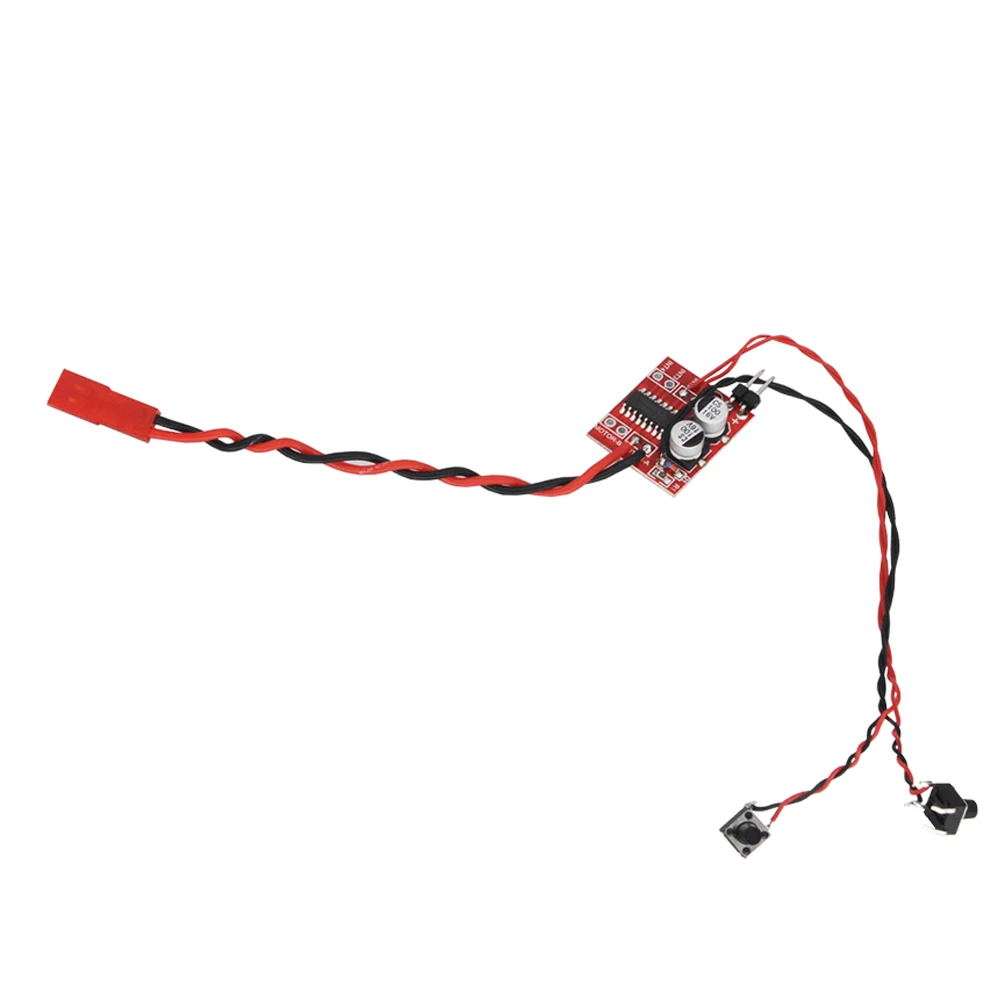

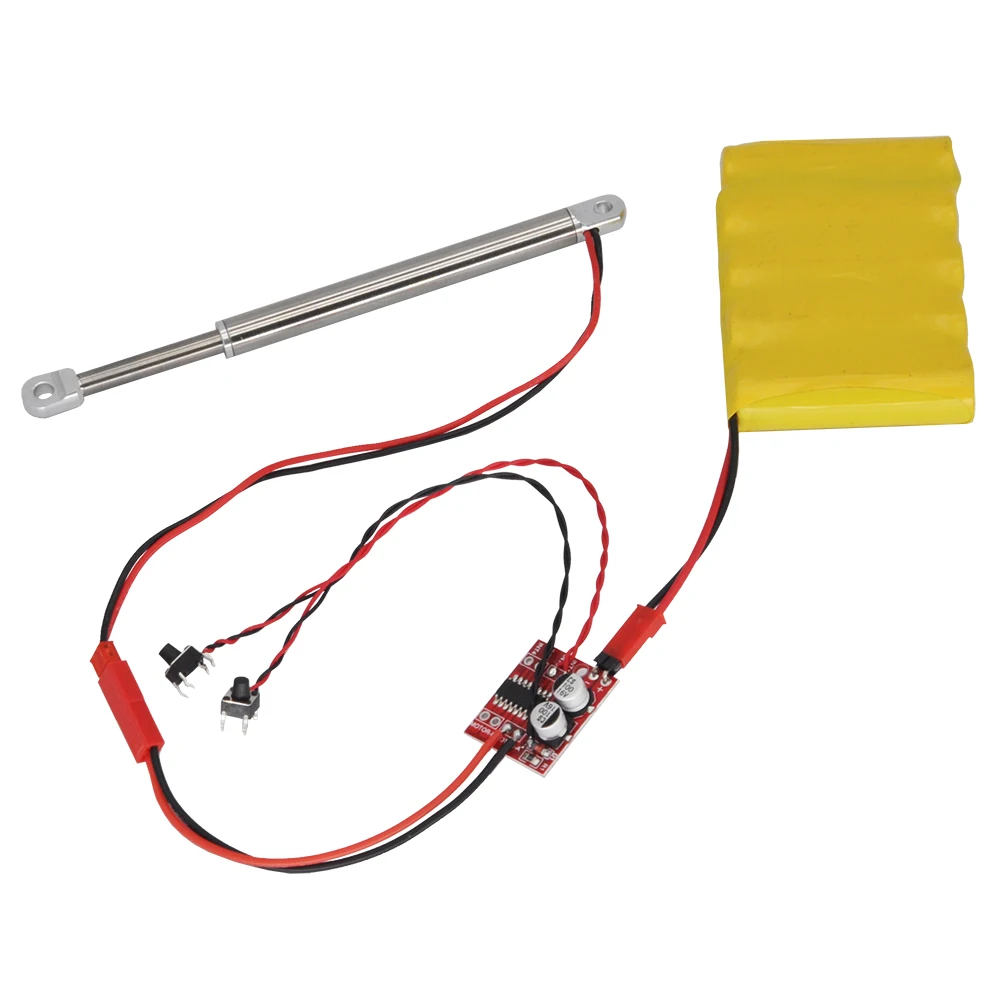

4. External drive plate or motor current limit is recommended, avoid burning when the motor is blocked.

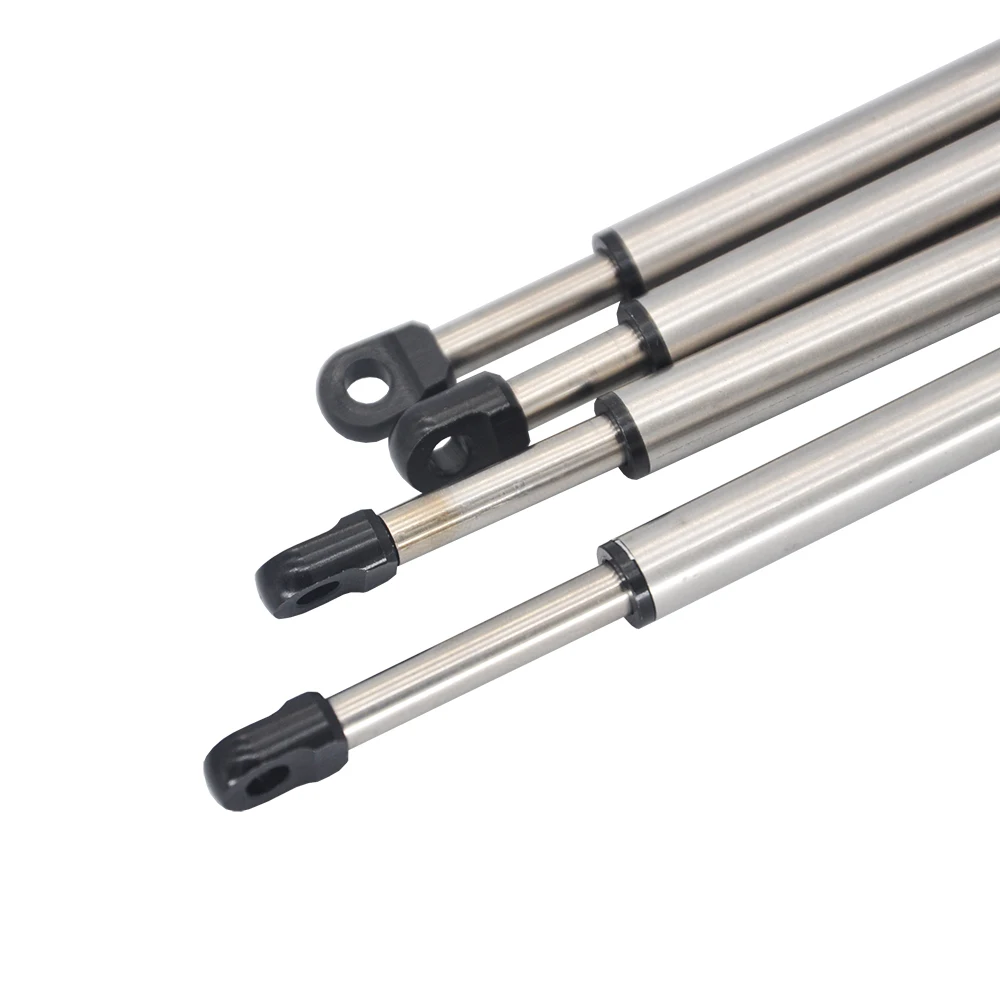

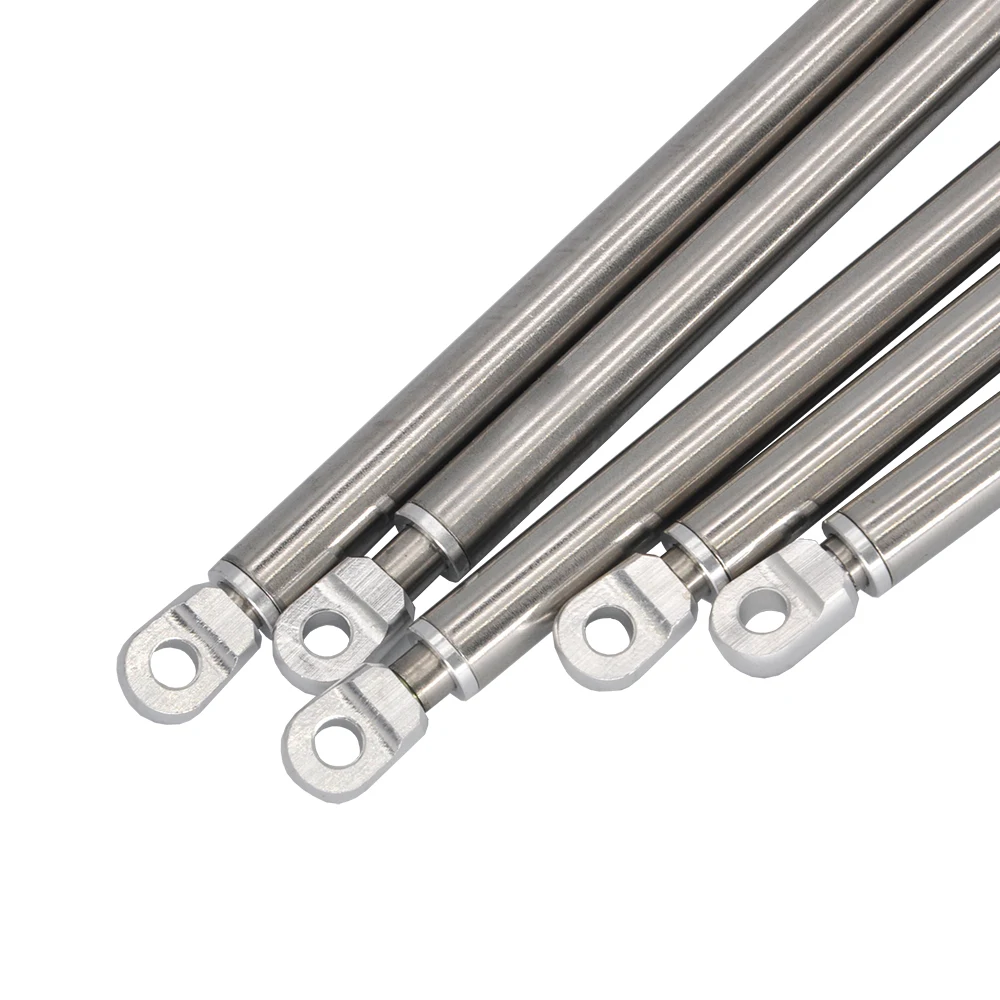

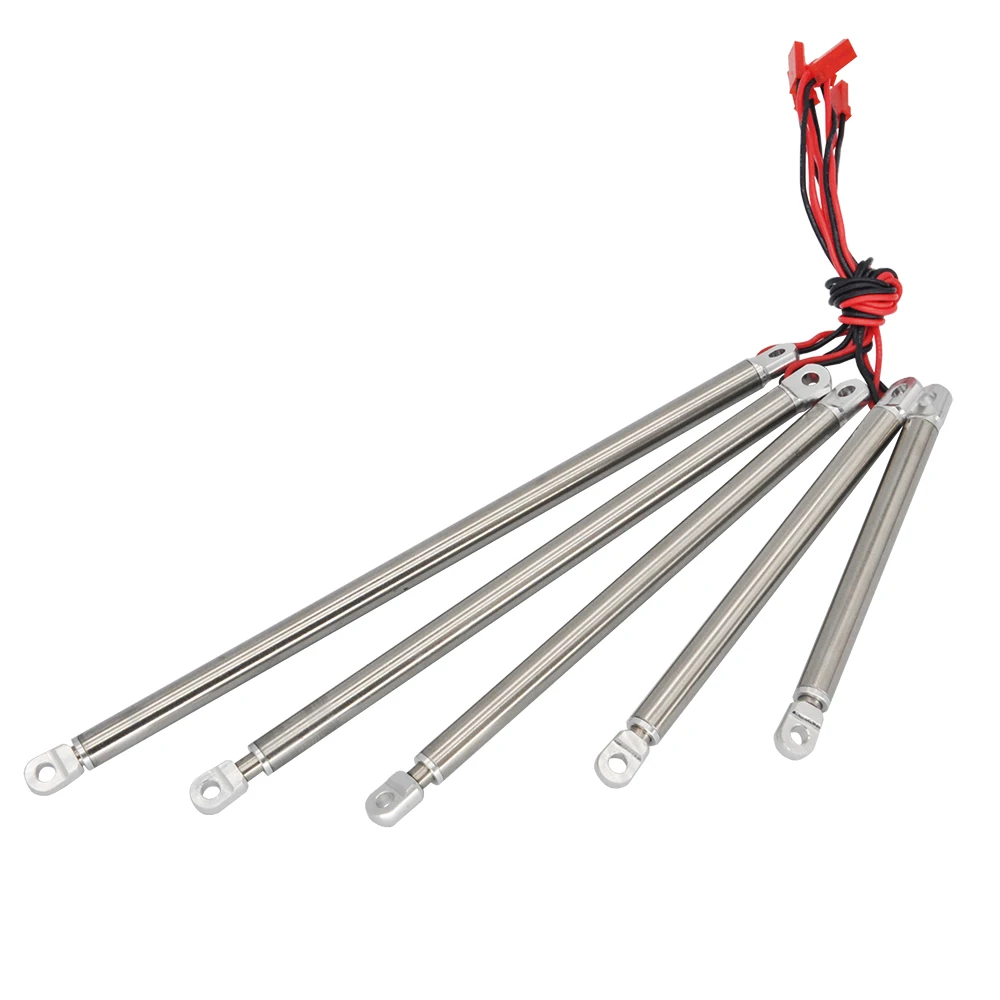

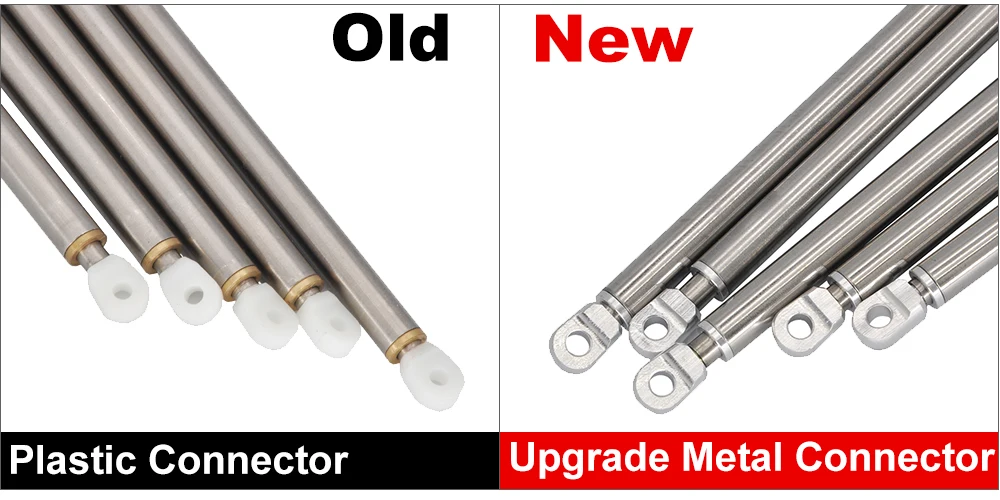

5. Upgrad the metal connector at the head and tail of the push rod, which has higher strength and is not easily damaged compared to the previous plastic material.
